PayPal, credit cards. Download editable-PDF & invoice in 1 second!

YS/T 575.5-2007 English PDF (YST575.5-2007)

YS/T 575.5-2007 English PDF (YST575.5-2007)

Regular price $95.00 USD
Regular price Sale price $95.00 USD
Sale Sold out
Shipping calculated at checkout.
Quotation: In 1-minute, 24-hr self-service. Click here YS/T 575.5-2007 to get it for Purchase Approval, Bank TT...

YS/T 575.5-2007: Methods for chemical analysis of bauxite. Part 5: Determination of iron oxide content. Orthophenanthroline photometric method

This Part specifies the determination of ferric oxide content in the bauxite. This Part is applicable to the determination of ferric oxide content in the bauxite; the determination range: 5.00%.

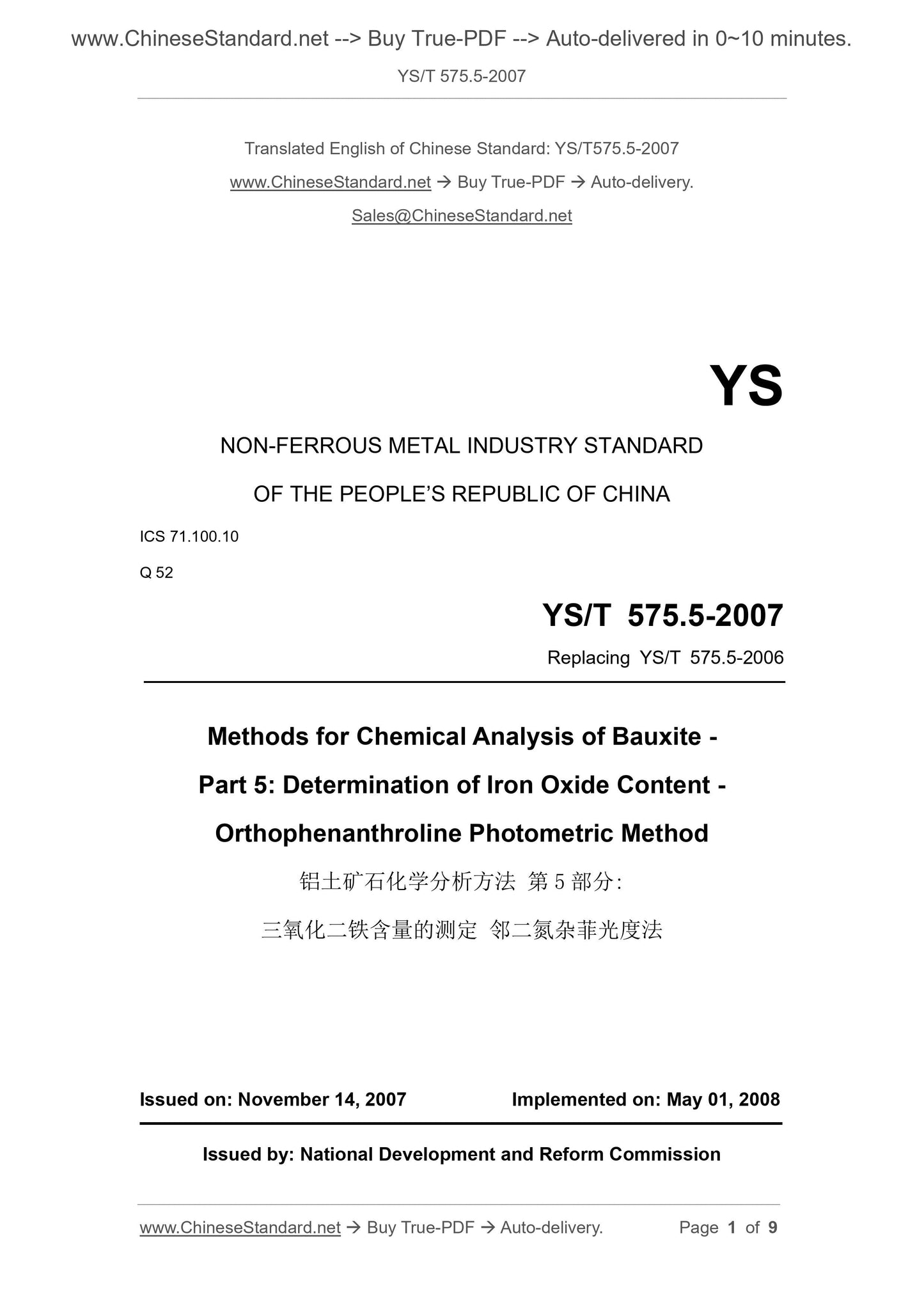

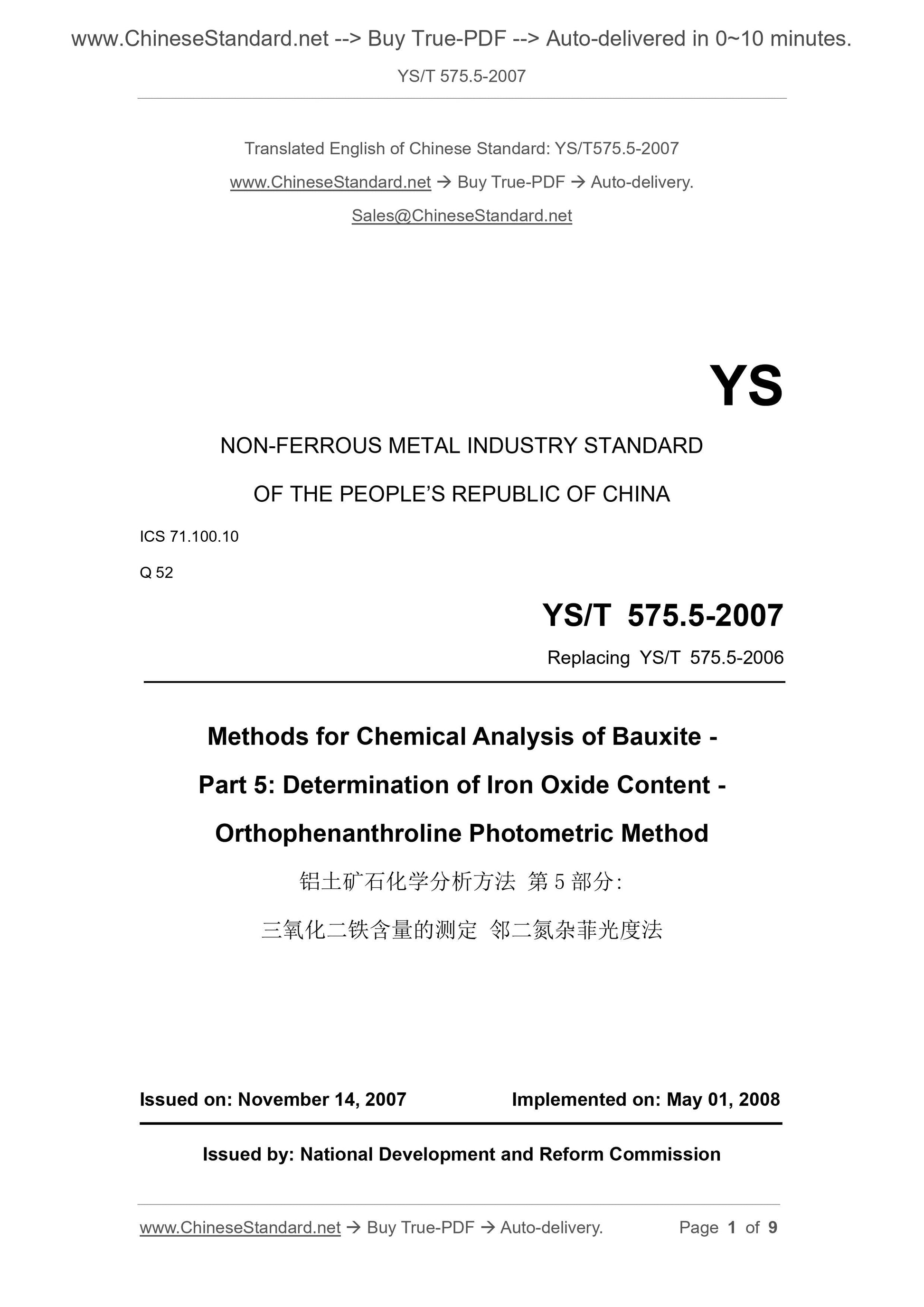

YS/T 575.5-2007
NON-FERROUS METAL INDUSTRY STANDARD
OF THE PEOPLE REPUBLIC OF CHINA
ICS 71.100.10
Q 52
Replacing YS/T 575.5-2006
Methods for Chemical Analysis of Bauxite -
Part 5: Determination of Iron Oxide Content -
Orthophenanthroline Photometric Method
ISSUED ON: NOVEMBER 14, 2007
IMPLEMENTED ON: MAY 01, 2008
Issued by: National Development and Reform Commission

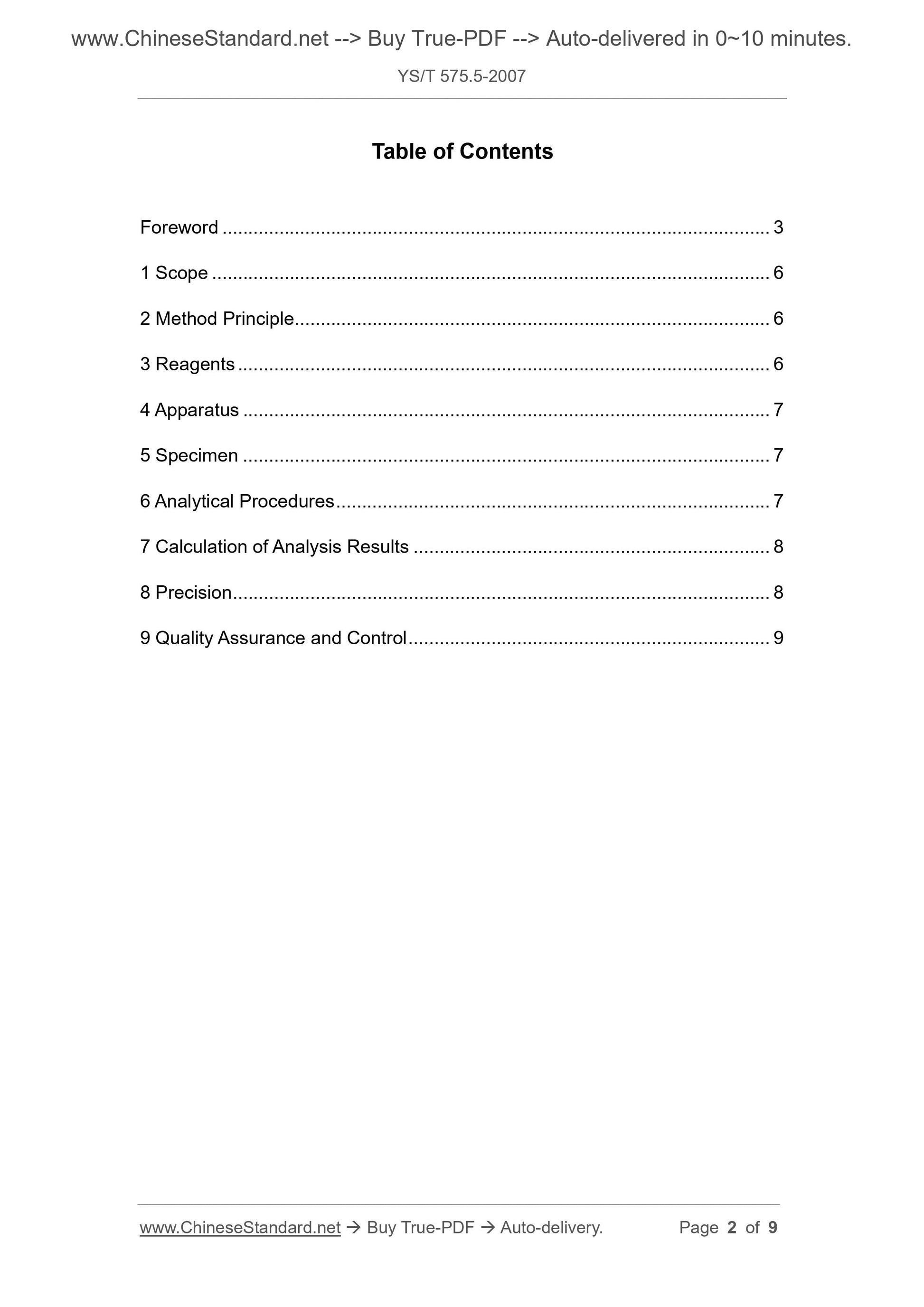

Table of Contents
Foreword ... 3
1 Scope ... 6
2 Method Principle ... 6
3 Reagents ... 6
4 Apparatus ... 7
5 Specimen ... 7
6 Analytical Procedures ... 7
7 Calculation of Analysis Results ... 8
8 Precision ... 8
9 Quality Assurance and Control ... 9

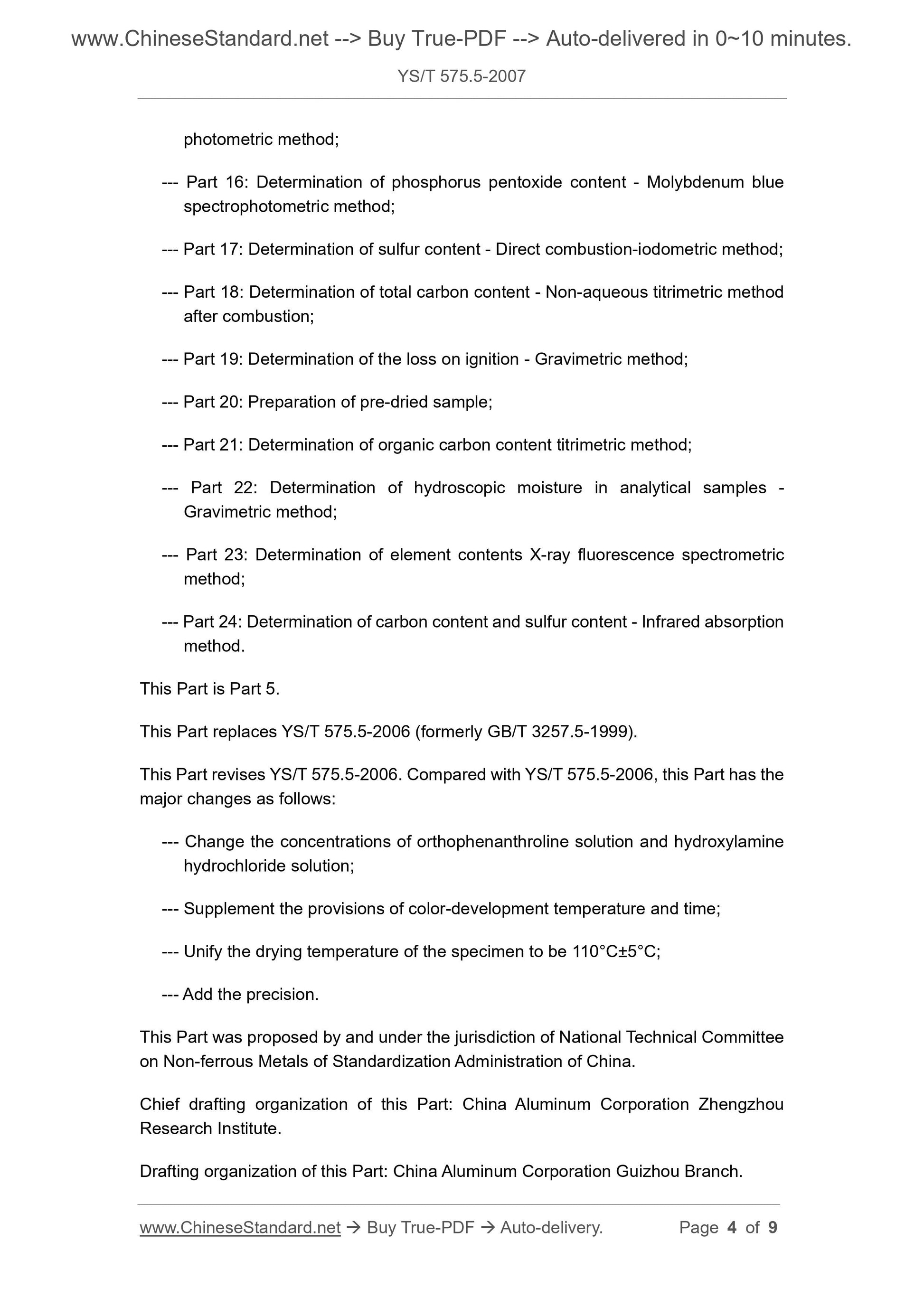

photometric method;
--- Part 16: Determination of phosphorus pentoxide content - Molybdenum blue spectrophotometric method;
--- Part 17: Determination of sulfur content - Direct combustion-iodometric method; --- Part 18: Determination of total carbon content - Non-aqueous titrimetric method after combustion;
--- Part 19: Determination of the loss on ignition - Gravimetric method; --- Part 20: Preparation of pre-dried sample;
--- Part 21: Determination of organic carbon content titrimetric method; --- Part 22: Determination of hydroscopic moisture in analytical samples - Gravimetric method;
--- Part 23: Determination of element contents X-ray fluorescence spectrometric method;
--- Part 24: Determination of carbon content and sulfur content - Infrared absorption method.
This Part is Part 5.
This Part replaces YS/T 575.5-2006 (formerly GB/T 3257.5-1999).
This Part revises YS/T 575.5-2006. Compared with YS/T 575.5-2006, this Part has the major changes as follows:
--- Change the concentrations of orthophenanthroline solution and hydroxylamine hydrochloride solution;
--- Supplement the provisions of color-development temperature and time; --- Unify the drying temperature of the specimen to be 110??C??5??C;
--- Add the precision.
This Part was proposed by and under the jurisdiction of National Technical Committee on Non-ferrous Metals of Standardization Administration of China.
Chief drafting organization of this Part: China Aluminum Corporation Zhengzhou Research Institute.
Drafting organization of this Part: China Aluminum Corporation Guizhou Branch. Methods for Chemical Analysis of Bauxite -
Part 5: Determination of Iron Oxide Content -
Orthophenanthroline Photometric Method

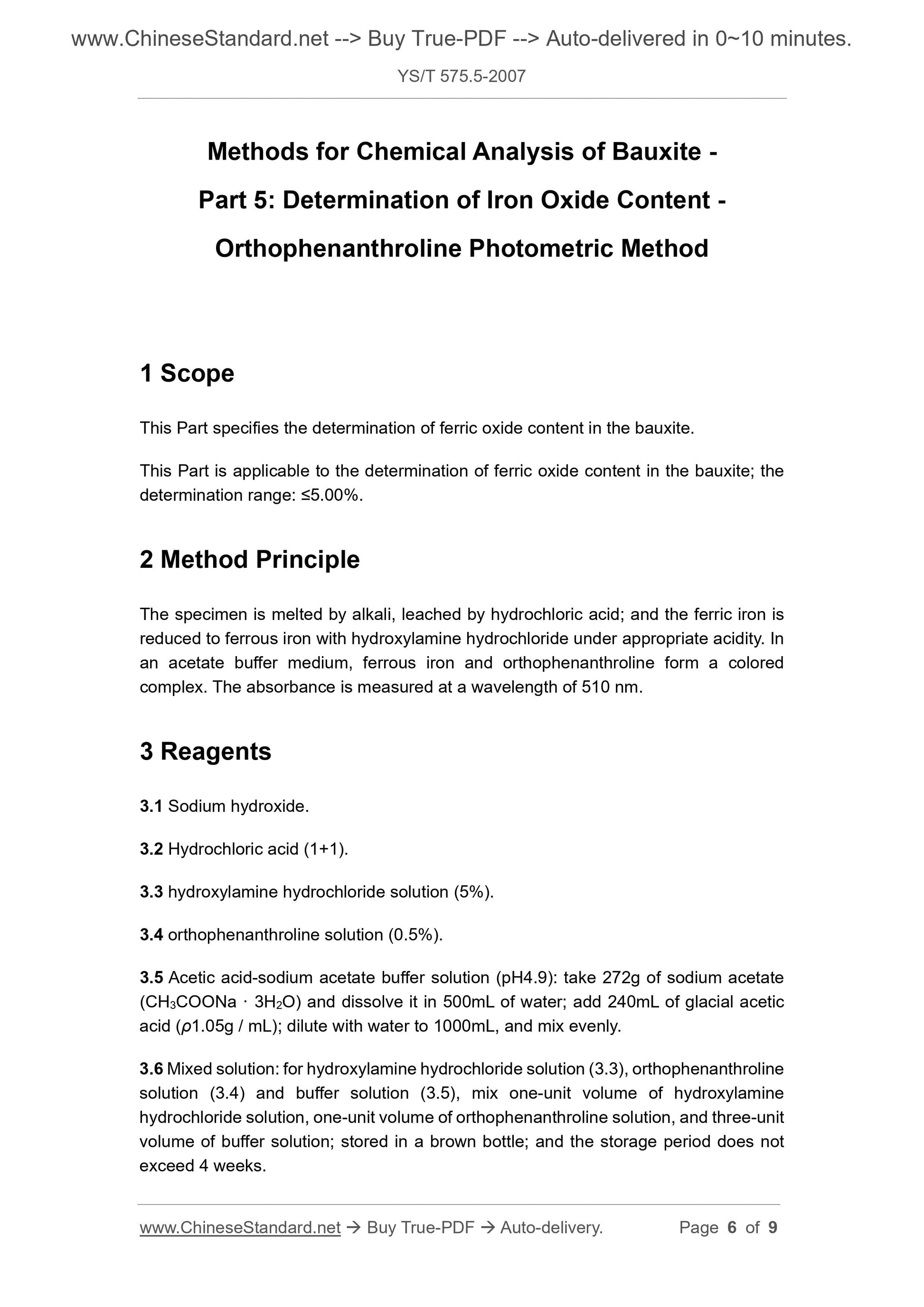

1 Scope
This Part specifies the determination of ferric oxide content in the bauxite. This Part is applicable to the determination of ferric oxide content in the bauxite; the determination range: ???5.00%.
2 Method Principle
The specimen is melted by alkali, leached by hydrochloric acid; and the ferric iron is reduced to ferrous iron with hydroxylamine hydrochloride under appropriate acidity. In an acetate buffer medium, ferrous iron and orthophenanthroline form a colored complex. The absorbance is measured at a wavelength of 510 nm.
3 Reagents
3.1 Sodium hydroxide.
3.2 Hydrochloric acid (1+1).
3.3 hydroxylamine hydrochloride solution (5%).
3.4 orthophenanthroline solution (0.5%).
3.5 Acetic acid-sodium acetate buffer solution (pH4.9): take 272g of sodium acetate (CH3COONa ?? 3H2O) and dissolve it in 500mL of water; add 240mL of glacial acetic acid (??1.05g / mL); dilute with water to 1000mL, and mix evenly.
3.6 Mixed solution: for hydroxylamine hydrochloride solution (3.3), orthophenanthroline solution (3.4) and buffer solution (3.5), mix one-unit volume of hydroxylamine hydrochloride solution, one-unit volume of orthophenanthroline solution, and three-unit volume of buffer solution; stored in a brown bottle; and the storage period does not exceed 4 weeks.

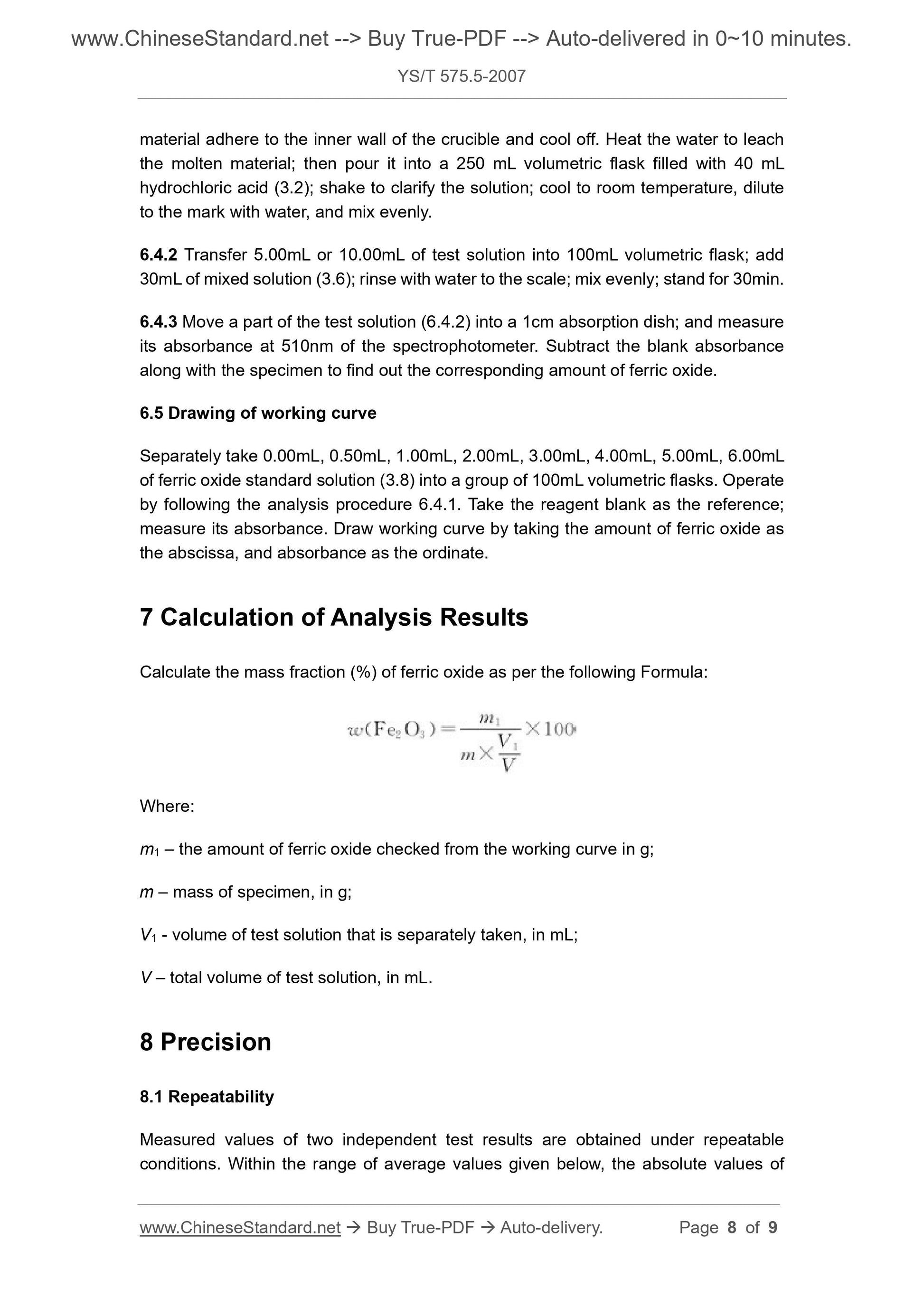

material adhere to the inner wall of the crucible and cool off. Heat the water to leach the molten material; then pour it into a 250 mL volumetric flask filled with 40 mL hydrochloric acid (3.2); shake to clarify the solution; cool to room temperature, dilute to the mark with water, and mix evenly.
6.4.2 Transfer 5.00mL or 10.00mL of test solution into 100mL volumetric flask; add 30mL of mixed solution (3.6); rinse with water to the scale; mix evenly; stand for 30min. 6.4.3 Move a part of the test solution (6.4.2) into a 1cm absorption dish; and measure its absorbance at 510nm of the spectrophotometer. Subtract the blank absorbance along with the specimen to find out the corresponding amount of ferric oxide. 6.5 Drawing of working curve
Separately take 0.00mL, 0.50mL, 1.00mL, 2.00mL, 3.00mL, 4.00mL, 5.00mL, 6.00mL of ferric oxide standard solution (3.8) into a group of 100mL volumetric flasks. Operate by following the analysis procedure 6.4.1. Take the reagent blank as the reference; measure its absorbance. Draw working curve by taking the amount of ferric oxide as the abscissa, and absorbance as the ordinate.
7 Calculation of Analysis Results
Calculate the mass fraction (%) of ferric oxide as per the following Formula: Where:
m1 ?€? the amount of ferric oxide checked from the working curve in g;
m ?€? mass of specimen, in g;
V1 - volume of test solution that is separately taken, in mL;
V ?€? total volume of test solution, in mL.
8 Precision
8.1 Repeatability
Measured values of two independent test results are obtained under repeatable conditions. Within the range of average values given below, the absolute values of
