YS/T 1028.4-2015: Methods for chemical analysis of lithium iron phosphate. Part 4: Determination of carbon content. High frequency combustion with infrared absorption method

This part of YS/T 1028 specifies the method for determining the carbon content in lithium iron phosphate. This part applies to the determination of carbon content in lithium iron phosphate. Measuring range: 0.5%~5.0%. 2 Method summary The sample and flux are put into a porcelain crucible and heated with a high-frequency induction furnace in the oxygen flow. The carbon is burned to generate carbon dioxide, which is carried by the oxygen to the infrared absorption cell. The change of carbon dioxide concentration on infrared absorption energy follows Beer and #39;s law. The analysis results of carbon content are directly displayed on the display as a percentage. 3 Reagents and materials 3.1 Oxygen: The purity is not less than 99.5%. 3.2 Desiccant: Anhydrous magnesium perchlorate with a particle size of 0.7 mm~1.2 mm. 3.3 Purifying agent: Soda asbestos with a particle size of 0.7 mm~1.2 mm. 3.4 Pure iron: The purity is greater than 99.8%, and the carbon content is less than 0.002%. 3.5 Tungsten particles: The carbon content is less than 0.002%. 3.6 Porcelain crucible: Before use, the porcelain crucible shall be placed in a muffle furnace and burned at 1200 ????C for no less than 2 hours. After it is taken out and cooled slightly, it is stored in a desiccator. YS/T 1028.4-2015 www.ChineseStandard.net ? Buy True-PDF ? Auto-delivery Page 5 of 7 4 Instruments The operating parameters of the instruments shall meet the following requirements: -- High-frequency induction furnace: It shall meet the requirements of the sample melting temperature. -- Electronic balance: The sensitivity shall be 0.1 mg. 5 Samples 5.1 Before use, the sample shall be dried in an oven at 110 ????C???€5 ????C for 1 hour, then taken out and stored in a desiccator. 5.2 The particle size of the sample shall not be larger than 0.10 mm. 6 Analysis steps WARNING -- The hazards associated with combustion analysis are primarily pre-fired porcelain crucibles and combustion during the melting process. Always use crucible tong...

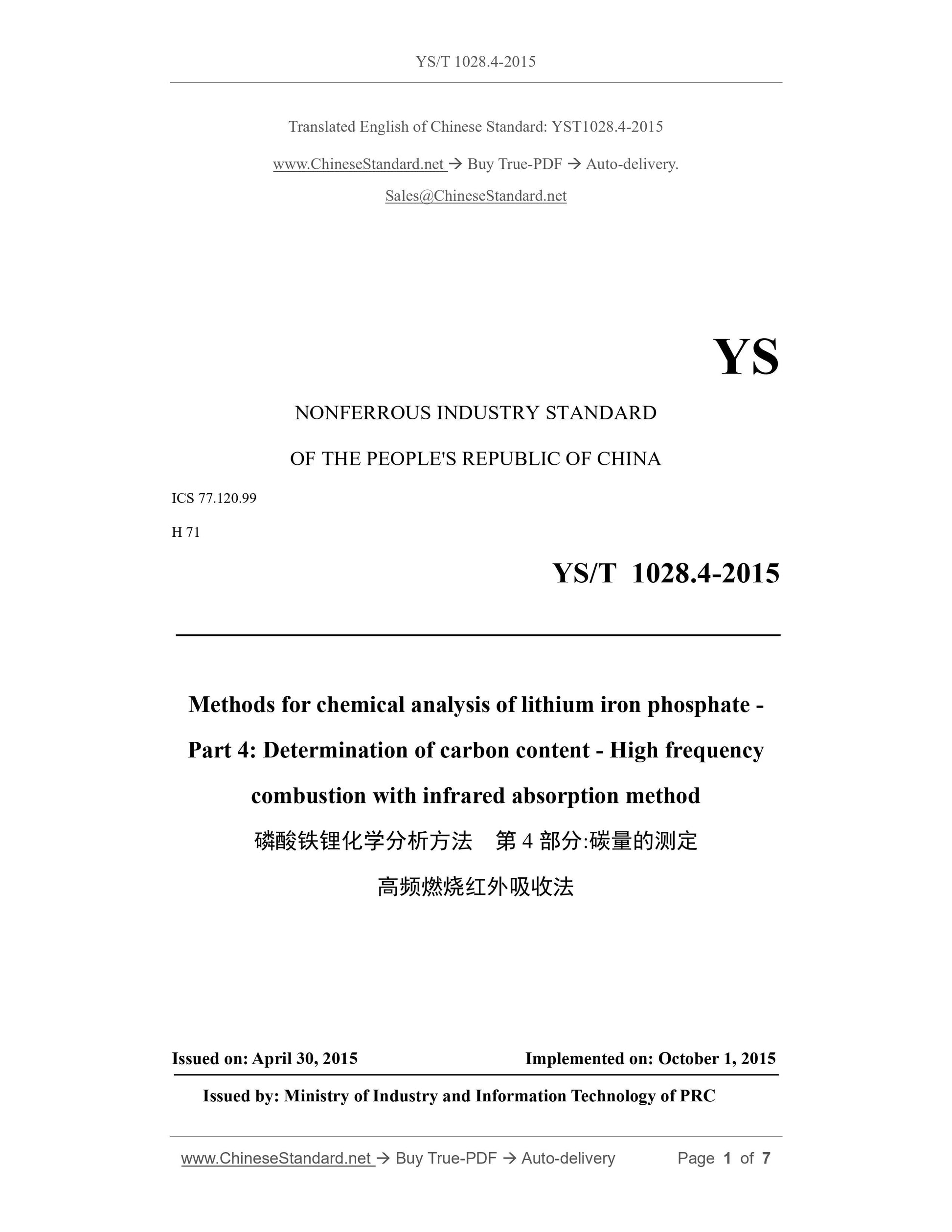

YS/T 1028.4-2015
YS
NONFERROUS INDUSTRY STANDARD
OF THE PEOPLE'S REPUBLIC OF CHINA
ICS 77.120.99
H 71
Methods for chemical analysis of lithium iron phosphate -
Part 4: Determination of carbon content - High frequency
combustion with infrared absorption method
ISSUED ON: APRIL 30, 2015
IMPLEMENTED ON: OCTOBER 1, 2015
Issued by: Ministry of Industry and Information Technology of PRC

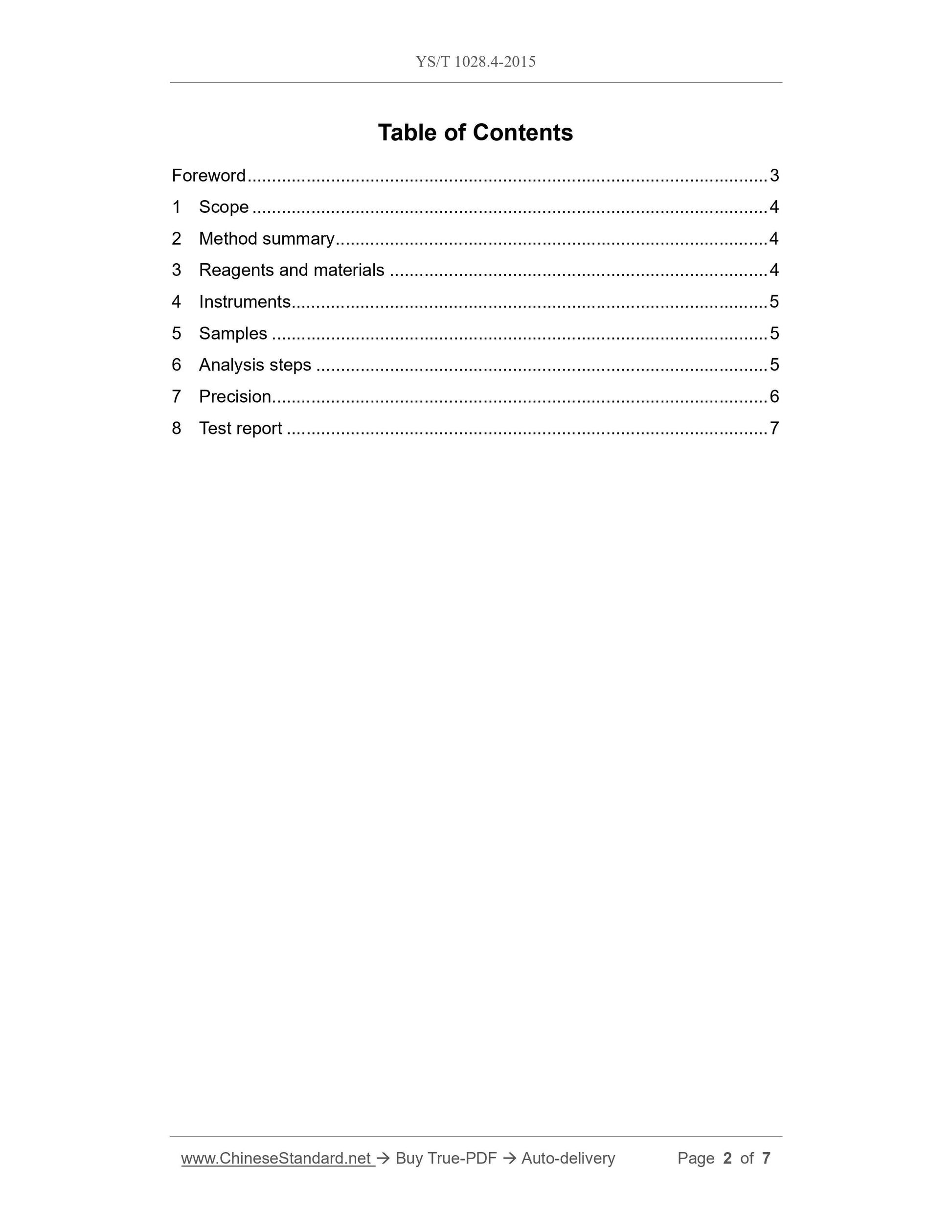

Table of Contents
Foreword ... 3
1 Scope ... 4
2 Method summary ... 4
3 Reagents and materials ... 4
4 Instruments ... 5
5 Samples ... 5
6 Analysis steps ... 5
7 Precision... 6
8 Test report ... 7

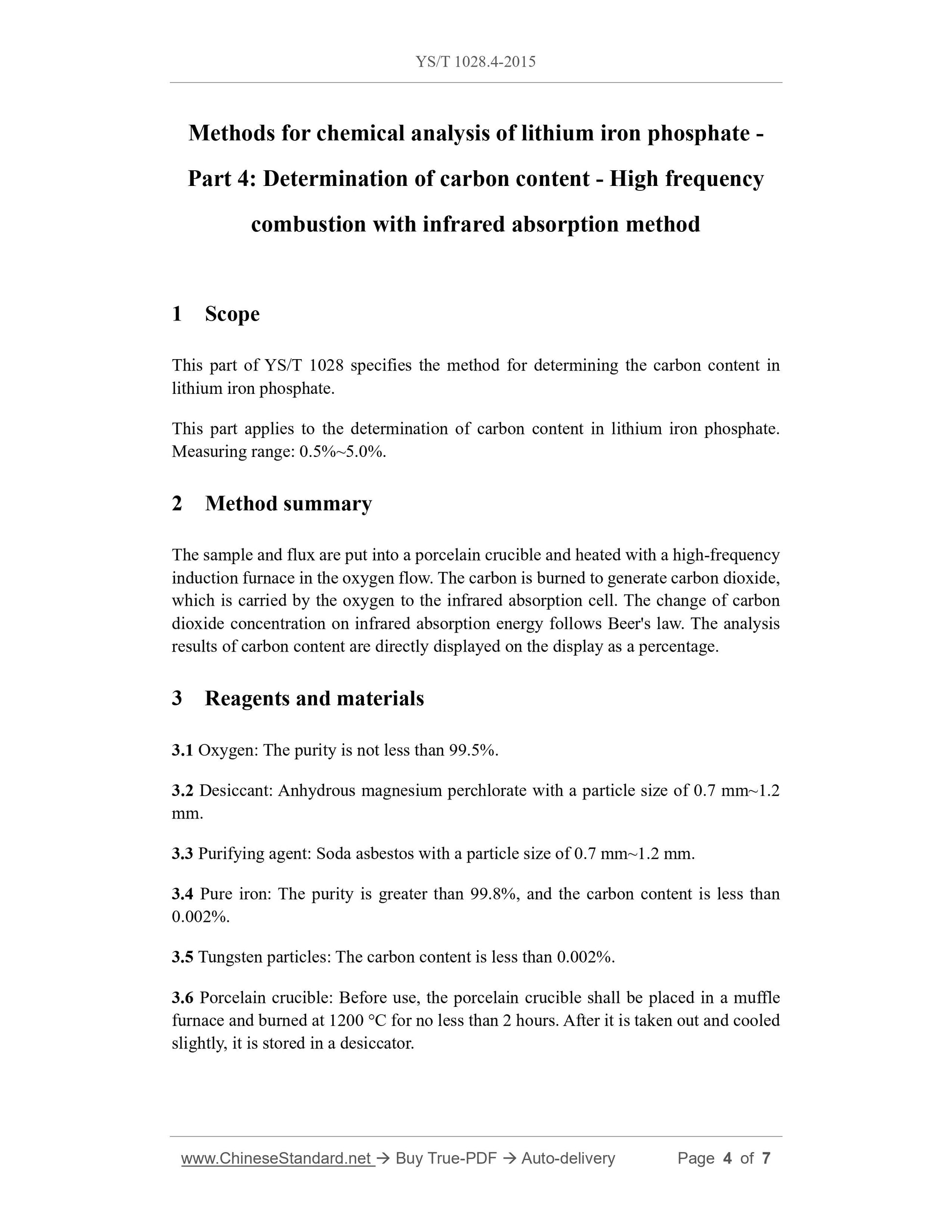

Methods for chemical analysis of lithium iron phosphate -
Part 4: Determination of carbon content - High frequency
combustion with infrared absorption method
1 Scope
This part of YS/T 1028 specifies the method for determining the carbon content in lithium iron phosphate.
This part applies to the determination of carbon content in lithium iron phosphate. Measuring range: 0.5%~5.0%.
2 Method summary
The sample and flux are put into a porcelain crucible and heated with a high-frequency induction furnace in the oxygen flow. The carbon is burned to generate carbon dioxide, which is carried by the oxygen to the infrared absorption cell. The change of carbon dioxide concentration on infrared absorption energy follows Beer's law. The analysis results of carbon content are directly displayed on the display as a percentage. 3 Reagents and materials
3.1 Oxygen: The purity is not less than 99.5%.
3.2 Desiccant: Anhydrous magnesium perchlorate with a particle size of 0.7 mm~1.2 mm.
3.3 Purifying agent: Soda asbestos with a particle size of 0.7 mm~1.2 mm. 3.4 Pure iron: The purity is greater than 99.8%, and the carbon content is less than 0.002%.
3.5 Tungsten particles: The carbon content is less than 0.002%.
3.6 Porcelain crucible: Before use, the porcelain crucible shall be placed in a muffle furnace and burned at 1200 ??C for no less than 2 hours. After it is taken out and cooled slightly, it is stored in a desiccator.

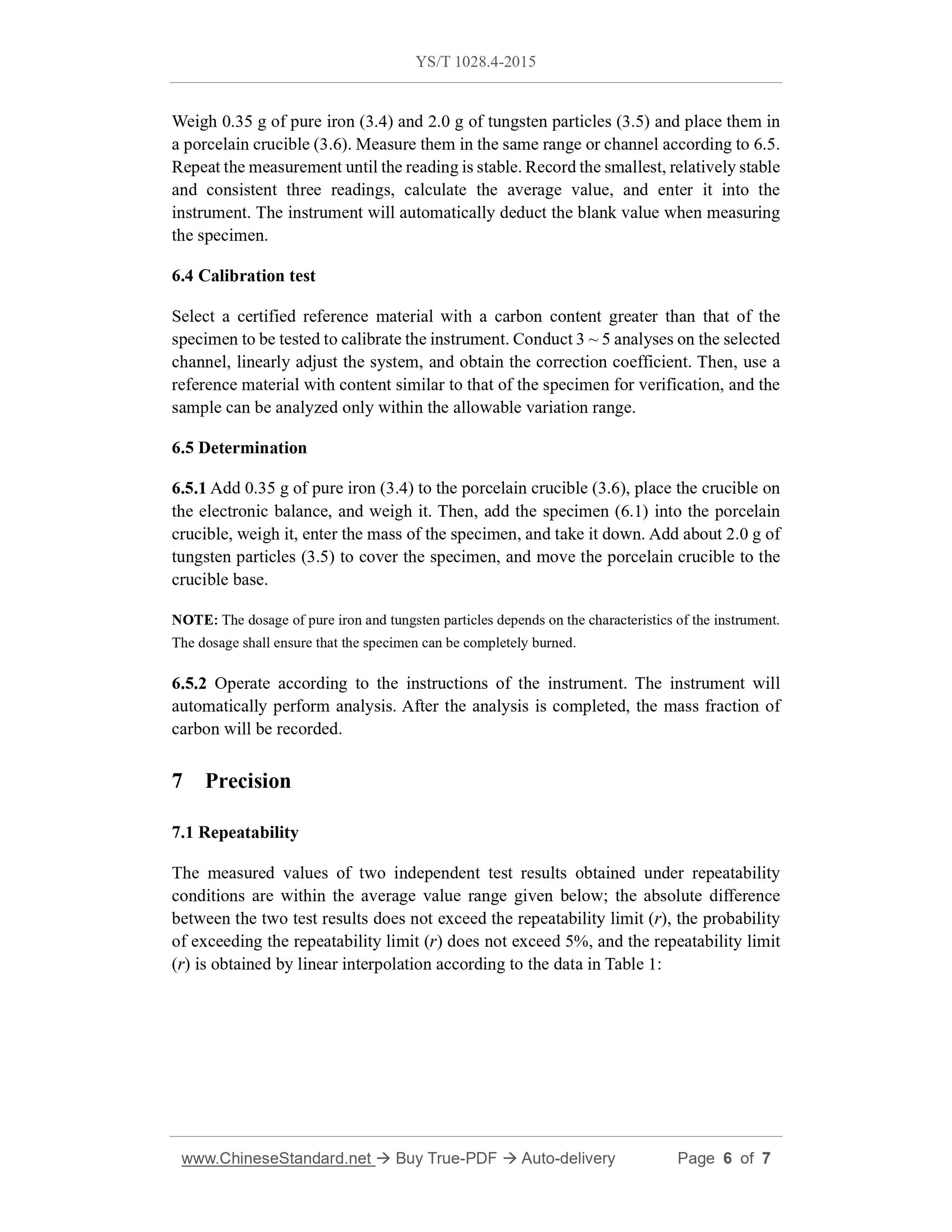

Weigh 0.35 g of pure iron (3.4) and 2.0 g of tungsten particles (3.5) and place them in a porcelain crucible (3.6). Measure them in the same range or channel according to 6.5. Repeat the measurement until the reading is stable. Record the smallest, relatively stable and consistent three readings, calculate the average value, and enter it into the instrument. The instrument will automatically deduct the blank value when measuring the specimen.
6.4 Calibration test
Select a certified reference material with a carbon content greater than that of the specimen to be tested to calibrate the instrument. Conduct 3 ~ 5 analyses on the selected channel, linearly adjust the system, and obtain the correction coefficient. Then, use a reference material with content similar to that of the specimen for verification, and the sample can be analyzed only within the allowable variation range.
6.5 Determination
6.5.1 Add 0.35 g of pure iron (3.4) to the porcelain crucible (3.6), place the crucible on the electronic balance, and weigh it. Then, add the specimen (6.1) into the porcelain crucible, weigh it, enter the mass of the specimen, and take it down. Add about 2.0 g of tungsten particles (3.5) to cover the specimen, and move the porcelain crucible to the crucible base.
NOTE: The dosage of pure iron and tungsten particles depends on the characteristics of the instrument. The dosage shall ensure that the specimen can be completely burned.
6.5.2 Operate according to the instructions of the instrument. The instrument will automatically perform analysis. After the analysis is completed, the mass fraction of carbon will be recorded.
7 Precision
7.1 Repeatability
The measured values of two independent test results obtained under repeatability conditions are within the average value range given below; the absolute difference between the two test results does not exceed the repeatability limit (r), the probability of exceeding the repeatability limit (r) does not exceed 5%, and the repeatability limit (r) is obtained by linear interpolation according to the data in Table 1:
