YD/T 2307-2011: Technical requirement and testing method for general function of mobile telecommunication terminal

This standard specifies the general functional technical requirements of the digital mobile communication terminal (hereinafter referred to as the mobile terminal) in the single-module single standby, multi-module single standby, single-module multi-standby state, etc., AND specifies the corresponding test methods.

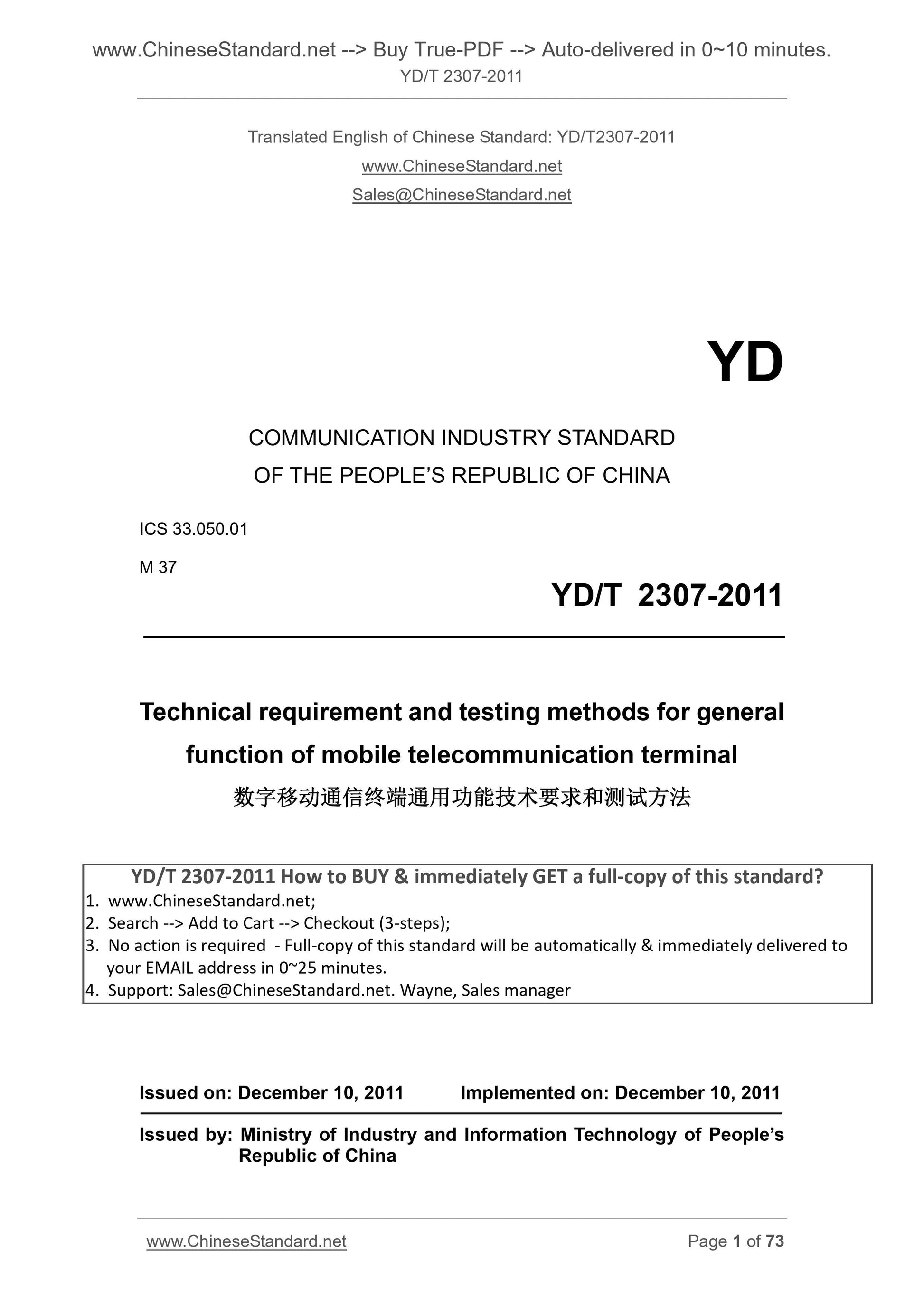

YD/T 2307-2011
YD
COMMUNICATION INDUSTRY STANDARD
OF THE PEOPLE REPUBLIC OF CHINA
ICS 33.050.01
M 37
Technical requirement and testing methods for general
function of mobile telecommunication terminal
ISSUED ON. DECEMBER 10, 2011
IMPLEMENTED ON. DECEMBER 10, 2011
Issued by. Ministry of Industry and Information Technology of PEOPLE
Republic of China

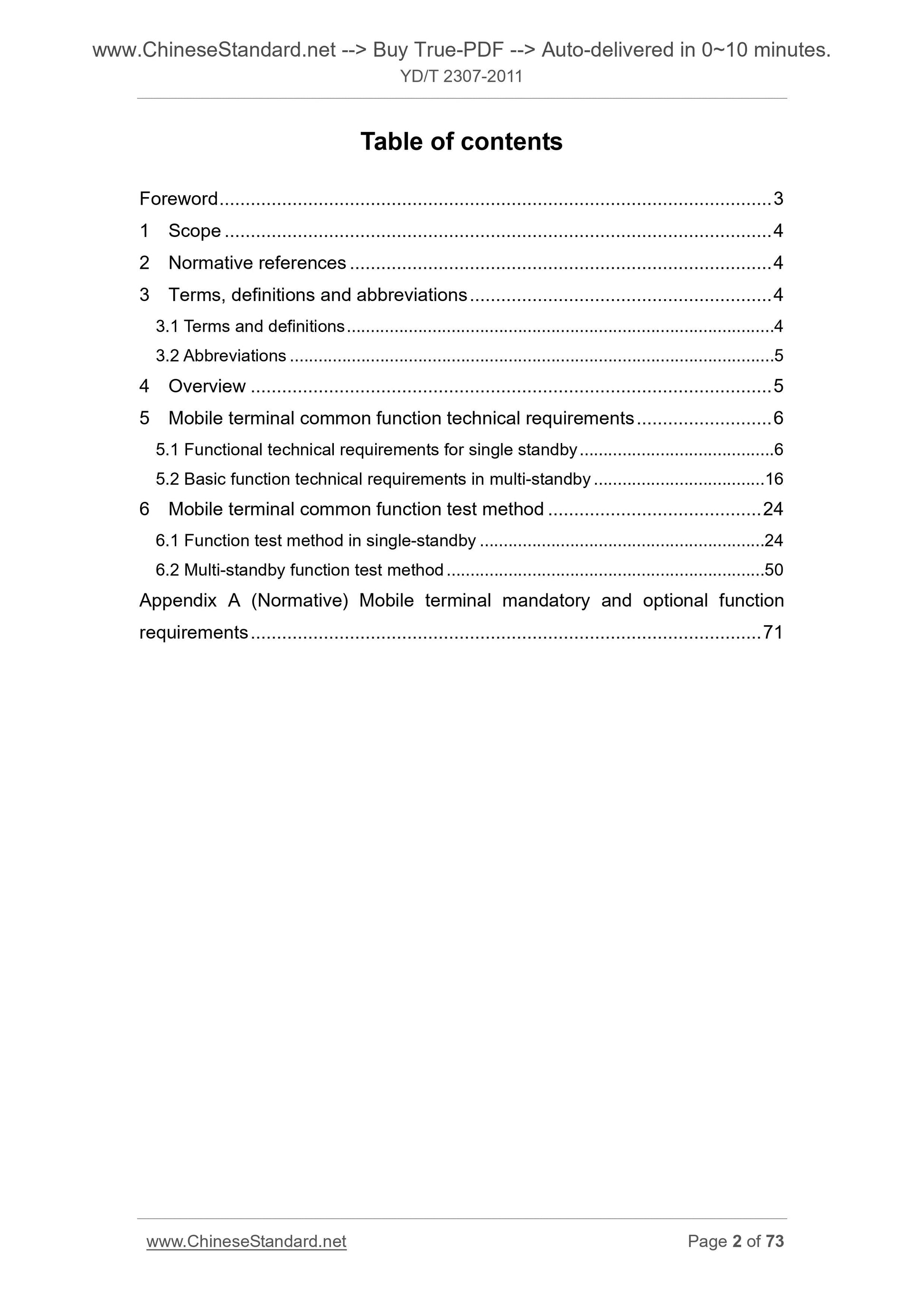

Table of contents
Foreword ... 3
1 Scope ... 4
2 Normative references ... 4
3 Terms, definitions and abbreviations ... 4
3.1 Terms and definitions ... 4
3.2 Abbreviations ... 5
4 Overview ... 5
5 Mobile terminal common function technical requirements ... 6
5.1 Functional technical requirements for single standby ... 6
5.2 Basic function technical requirements in multi-standby ... 16
6 Mobile terminal common function test method ... 24
6.1 Function test method in single-standby ... 24
6.2 Multi-standby function test method ... 50
Appendix A (Normative) Mobile terminal mandatory and optional function
requirements ... 71

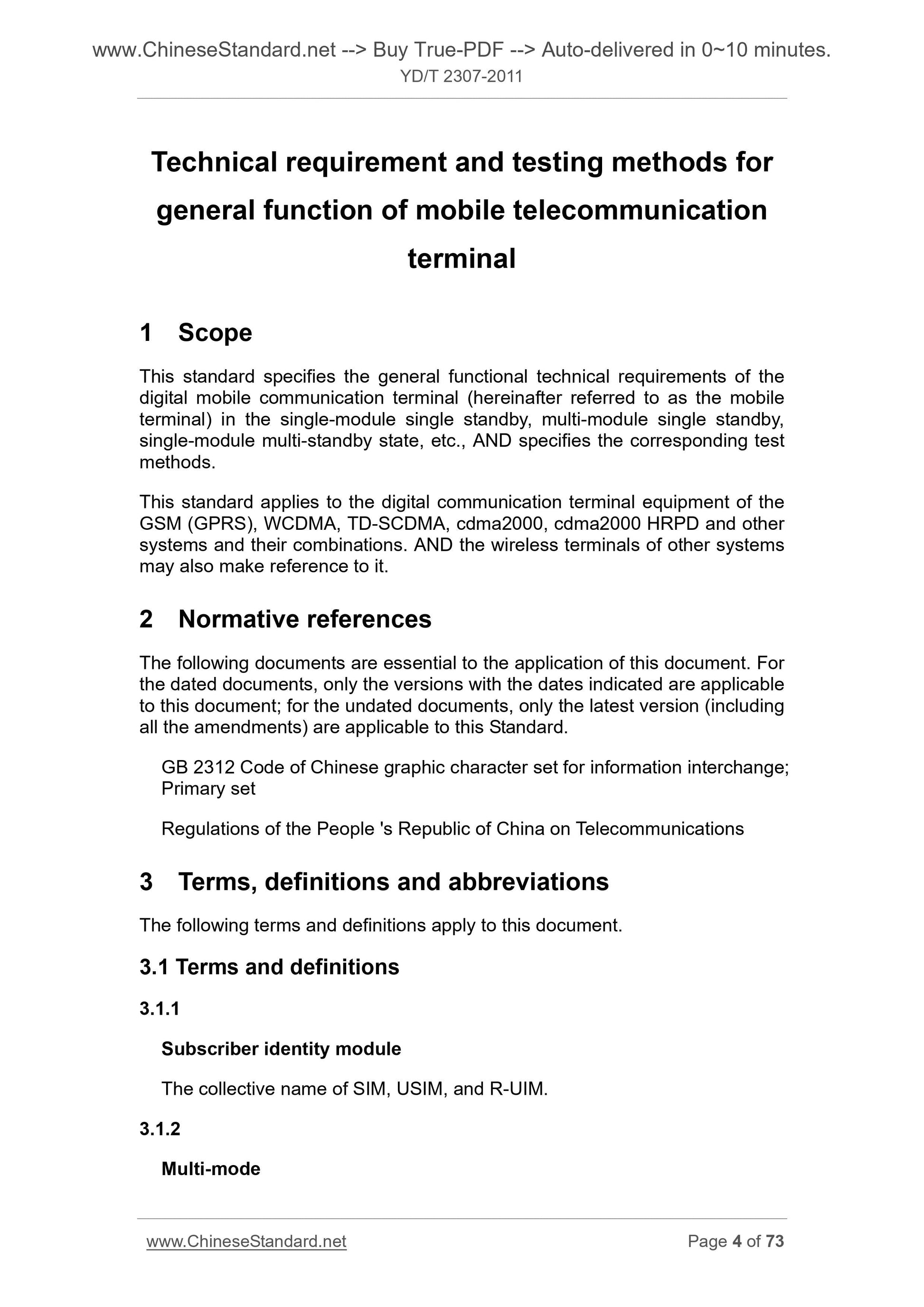

Technical requirement and testing methods for
general function of mobile telecommunication
terminal
1 Scope
This standard specifies the general functional technical requirements of the digital mobile communication terminal (hereinafter referred to as the mobile terminal) in the single-module single standby, multi-module single standby, single-module multi-standby state, etc., AND specifies the corresponding test methods.
This standard applies to the digital communication terminal equipment of the GSM (GPRS), WCDMA, TD-SCDMA, cdma2000, cdma2000 HRPD and other
systems and their combinations. AND the wireless terminals of other systems may also make reference to it.
2 Normative references
The following documents are essential to the application of this document. For the dated documents, only the versions with the dates indicated are applicable to this document; for the undated documents, only the latest version (including all the amendments) are applicable to this Standard.
GB 2312 Code of Chinese graphic character set for information interchange; Primary set
Regulations of the People 's Republic of China on Telecommunications
3 Terms, definitions and abbreviations
The following terms and definitions apply to this document.
3.1 Terms and definitions
3.1.1
Subscriber identity module
The collective name of SIM, USIM, and R-UIM.
3.1.2
Multi-mode
It supports the multiple modes in such systems as GSM (GPRS), WCDMA,
TD-SCDMA, cdma2000, and cdma2000 HRPD.

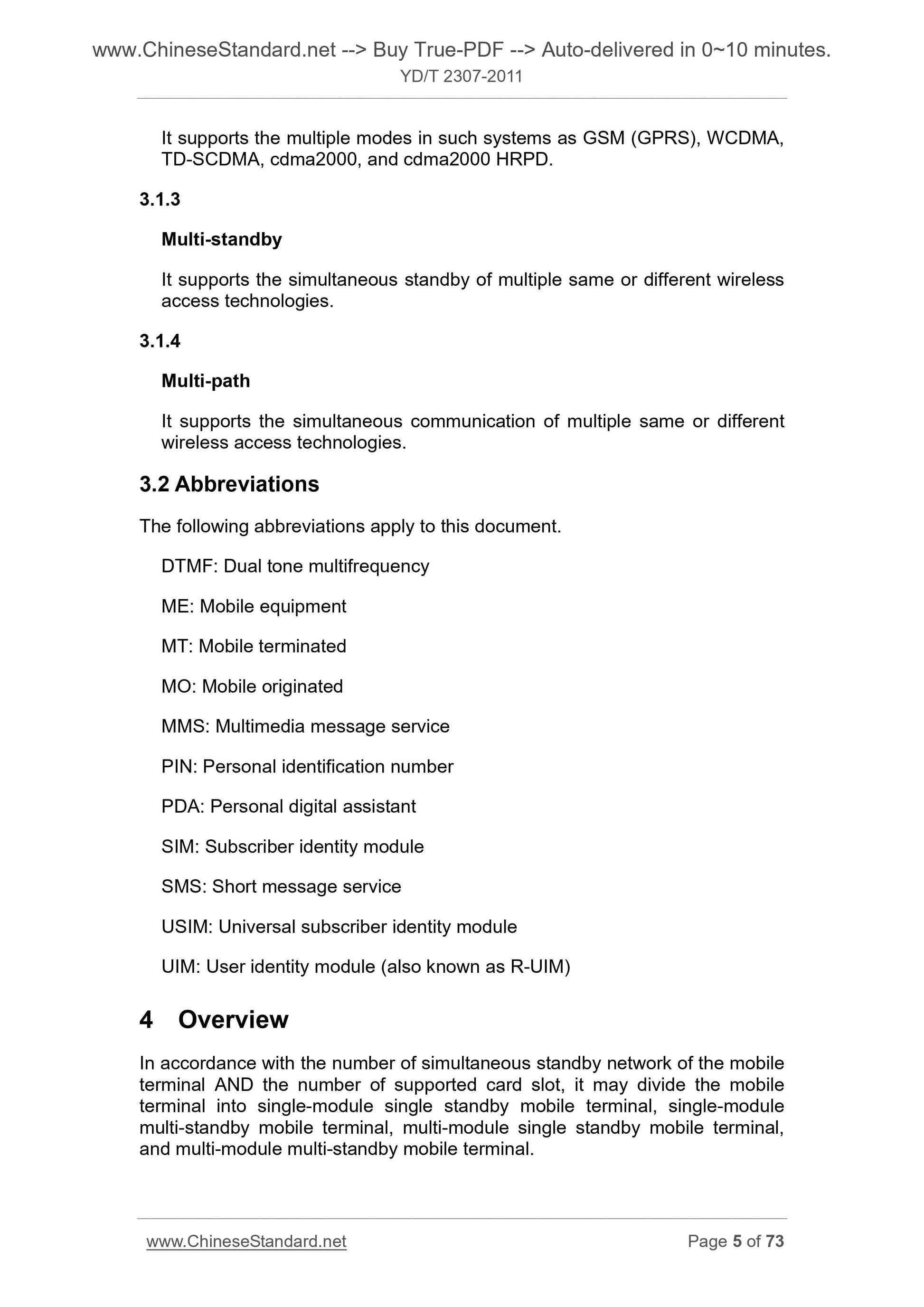

3.1.3
Multi-standby
It supports the simultaneous standby of multiple same or different wireless access technologies.
3.1.4
Multi-path
It supports the simultaneous communication of multiple same or different wireless access technologies.
3.2 Abbreviations
The following abbreviations apply to this document.
DTMF. Dual tone multifrequency
ME. Mobile equipment
MT. Mobile terminated
MO. Mobile originated
MMS. Multimedia message service
PIN. Personal identification number
PDA. Personal digital assistant
SIM. Subscriber identity module
SMS. Short message service
USIM. Universal subscriber identity module
UIM. User identity module (also known as R-UIM)
4 Overview
In accordance with the number of simultaneous standby network of the mobile terminal AND the number of supported card slot, it may divide the mobile terminal into single-module single standby mobile terminal, single-module multi-standby mobile terminal, multi-module single standby mobile terminal, and multi-module multi-standby mobile terminal.

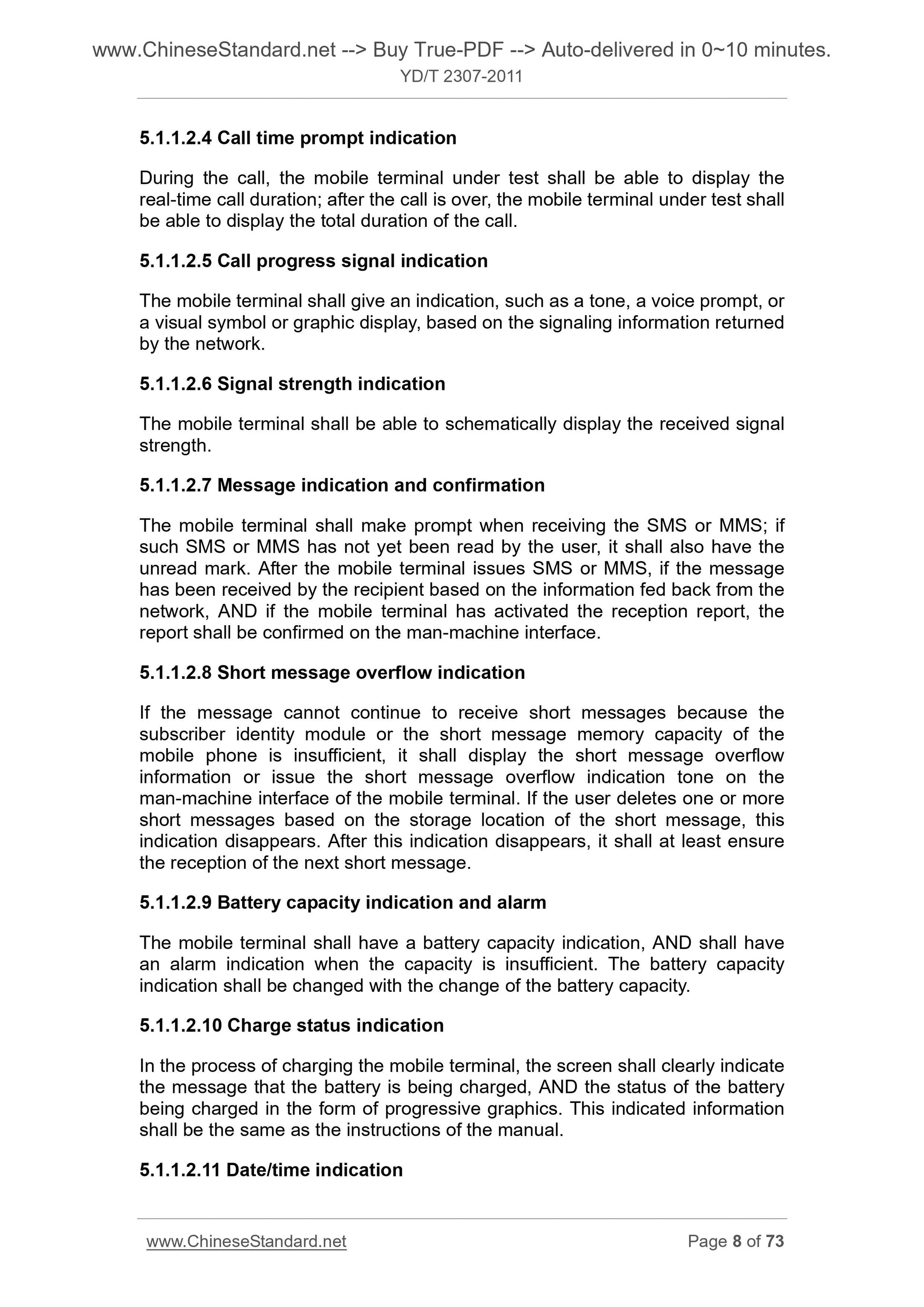

5.1.1.2.4 Call time prompt indication
During the call, the mobile terminal under test shall be able to display the real-time call duration; after the call is over, the mobile terminal under test shall be able to display the total duration of the call.
5.1.1.2.5 Call progress signal indication
The mobile terminal shall give an indication, such as a tone, a voice prompt, or a visual symbol or graphic display, based on the signaling information returned by the network.
5.1.1.2.6 Signal strength indication
The mobile terminal shall be able to schematically display the received signal strength.
5.1.1.2.7 Message indication and confirmation
The mobile terminal shall make prompt when receiving the SMS or MMS; if such SMS or MMS has not yet been read by the user, it shall also have the unread mark. After the mobile terminal issues SMS or MMS, if the message has been received by the recipient based on the information fed back from the network, AND if the mobile terminal has activated the reception report, the report shall be confirmed on the man-machine interface.
5.1.1.2.8 Short message overflow indication
If the message cannot continue to receive short messages because the
subscriber identity module or the short message memory capacity of the
mobile phone is insufficient, it shall display the short message overflow information or issue the short message overflow indication tone on the
man-machine interface of the mobile terminal. If the user deletes one or more short messages based on the storage location of the short message, this indication disappears. After this indication disappears, it shall at least ensure the reception of the next short message.
5.1.1.2.9 Battery capacity indication and alarm
The mobile terminal shall have a battery capacity indication, AND shall have an alarm indication when the capacity is insufficient. The battery capacity indication shall be changed with the change of the battery capacity.
5.1.1.2.10 Charge status indication
In the process of charging the mobile terminal, the screen shall clearly indicate the message that the battery is being charged, AND the status of the battery being charged in the form of progressive graphics. This indicated information shall be the same as the instructions of the manual.
5.1.1.2.11 Date/time indication

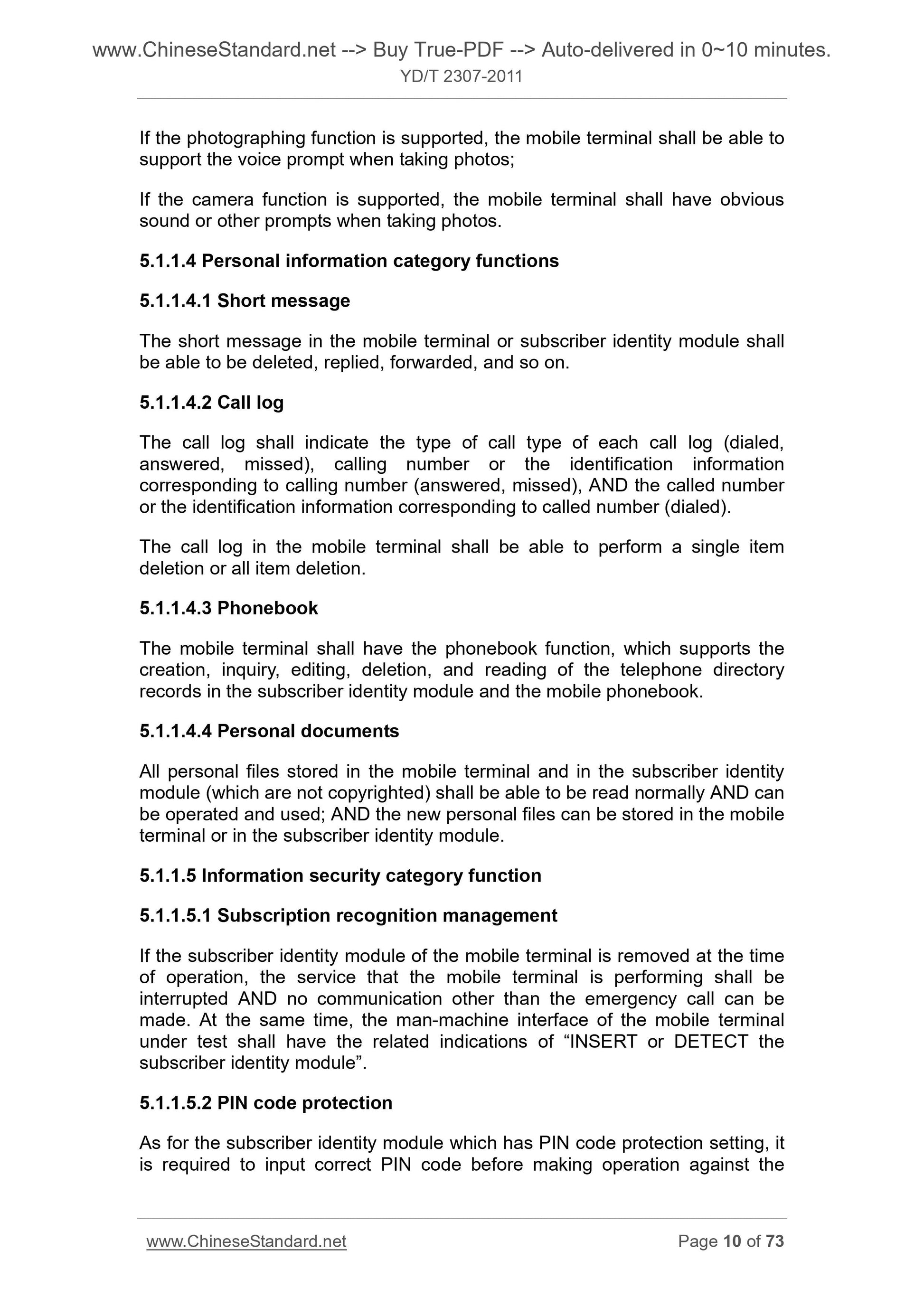

If the photographing function is supported, the mobile terminal shall be able to support the voice prompt when taking photos;
If the camera function is supported, the mobile terminal shall have obvious sound or other prompts when taking photos.
5.1.1.4 Personal information category functions
5.1.1.4.1 Short message
The short message in the mobile terminal or subscriber identity module shall be able to be deleted, replied, forwarded, and so on.
5.1.1.4.2 Call log
The call log shall indicate the type of call type of each call log (dialed, answered, missed), calling number or the identification information
corresponding to calling number (answered, missed), AND the called number or the identification information corresponding to called number (dialed). The call log in the mobile terminal shall be able to perform a single item deletion or all item deletion.
5.1.1.4.3 Phonebook
The mobile terminal shall have the phonebook function, which supports the creation, inquiry, editing, deletion, and reading of the telephone directory records in the subscriber identity module and the mobile phonebook.
5.1.1.4.4 Personal documents
All personal files stored in the mobile terminal and in the subscriber identity module (which are not copyrighted) shall be able to be read normally AND can be operated and used; AND the new personal files can be stored in the mobile terminal or in the subscriber identity module.
5.1.1.5 Information security category function
5.1.1.5.1 Subscription recognition management
If the subscriber identity module of the mobile terminal is removed at the time of operation, the service that the mobile terminal is performing shall be interrupted AND no communication other than the emergency call can be
made. At the same time, the man-machine interface of the mobile terminal under test shall have the related indications of ?€?INSERT or DETECT the
subscriber identity module?€?.
5.1.1.5.2 PIN code protection
As for the subscriber identity module which has PIN code protection setting, it is required to input correct PIN code before making operation against the Unless otherwise specified, all the contents of this clause are non-user default mode to select the subscriber identity module.

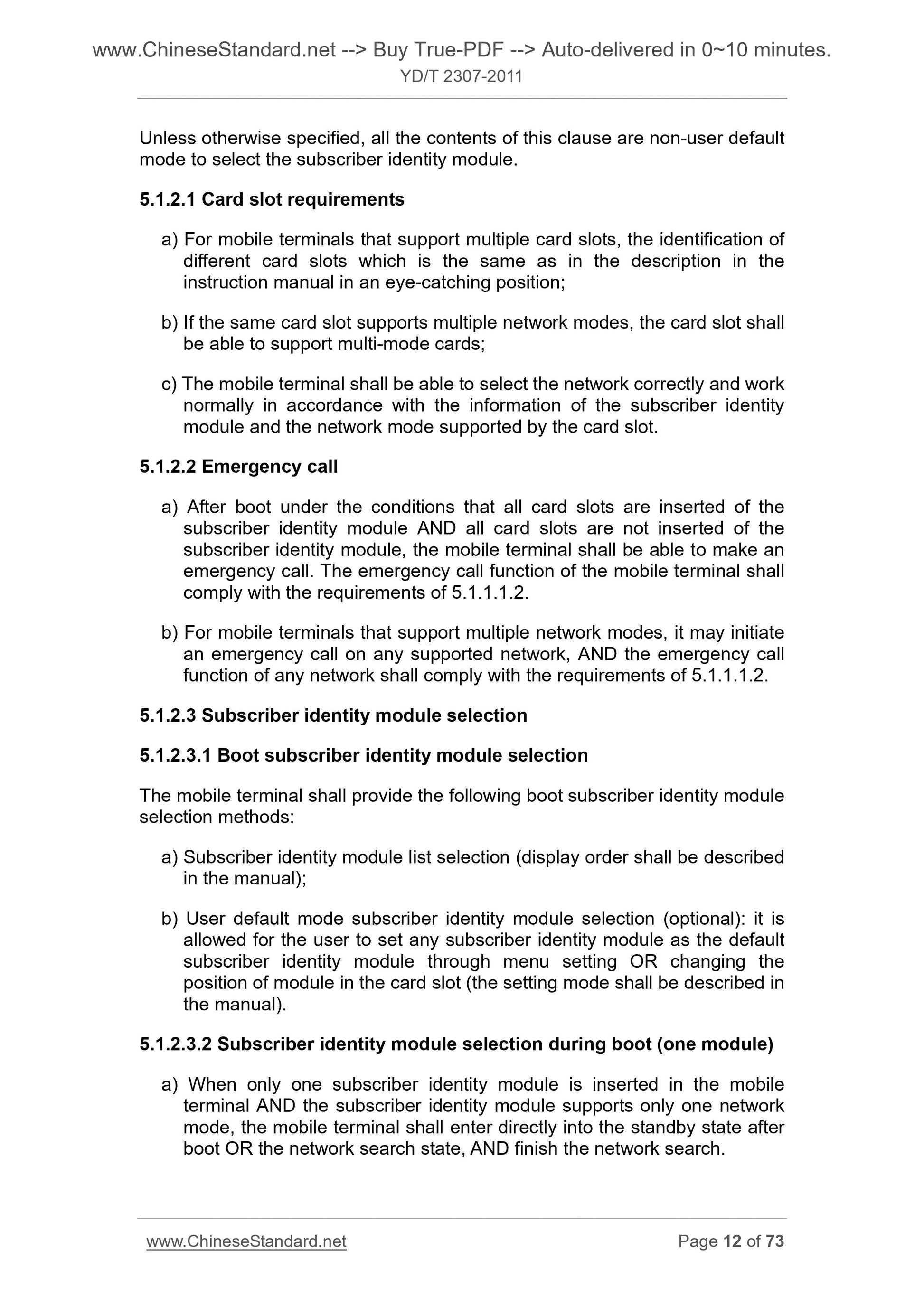

5.1.2.1 Card slot requirements
a) For mobile terminals that support multiple card slots, the identification of different card slots which is the same as in the description in the
instruction manual in an eye-catching position;
b) If the same card slot supports multiple network modes, the card slot shall be able to support multi-mode cards;
c) The mobile terminal shall be able to select the network correctly and work normally in accordance with the information of the subscriber identity
module and the network mode supported by the card slot.
5.1.2.2 Emergency call
a) After boot under the conditions that all card slots are inserted of the subscriber identity module AND all ca...
