YD/T 2152-2010: The requirement of reliability and test methods for optical fiber connectors

This standard specifies the relevant terms and definitions, classifications, test items, product life test item requirements, structure and material reliability test item requirements, etc., of optical fiber connectors; it also specifies the test conditions, test methods, evaluation criteria for each reliability requirement. This standard applies to all types and models of fiber optic connectors.

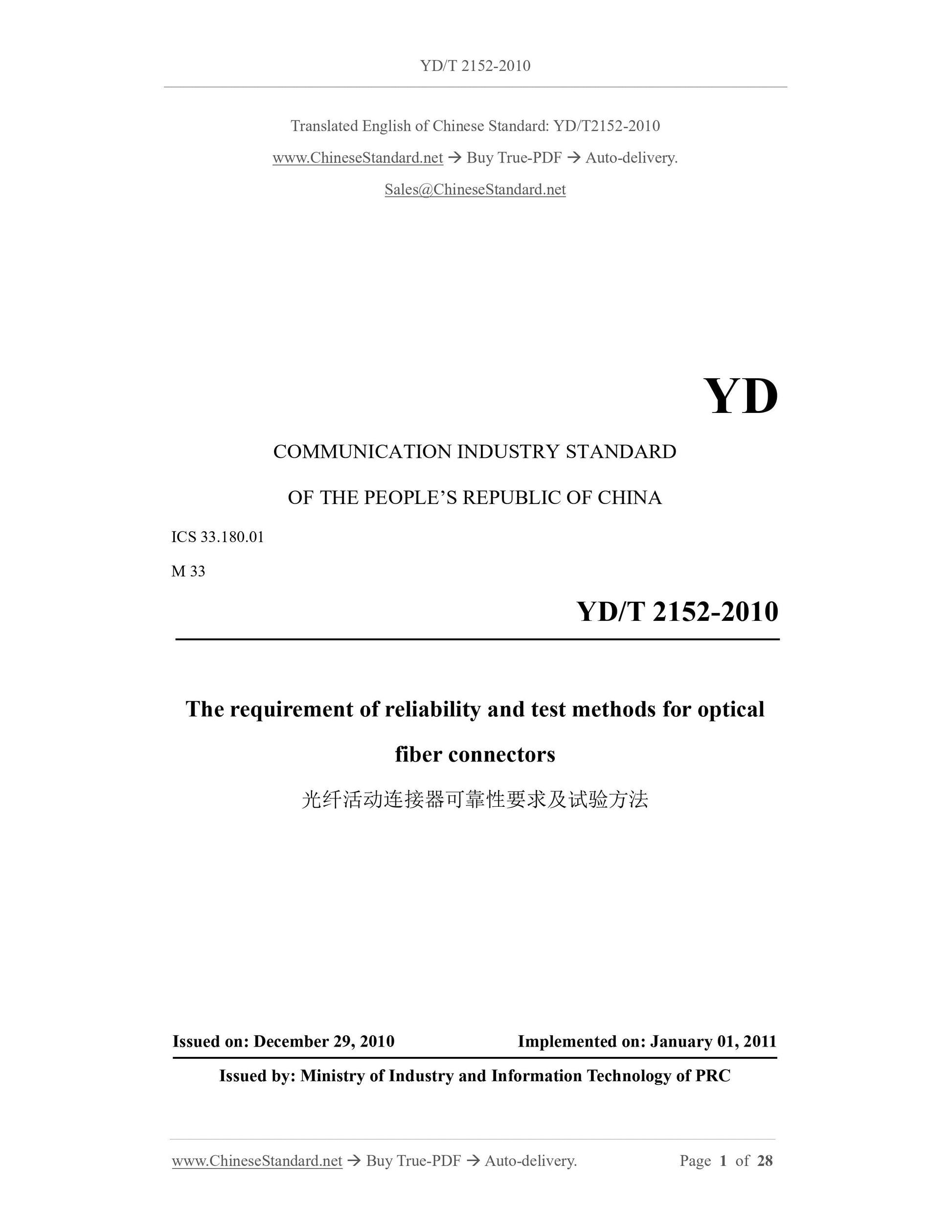

YD/T 2152-2010
YD
COMMUNICATION INDUSTRY STANDARD
OF THE PEOPLE REPUBLIC OF CHINA
ICS 33.180.01
M 33
The requirement of reliability and test methods for optical
fiber connectors
ISSUED ON: DECEMBER 29, 2010
IMPLEMENTED ON: JANUARY 01, 2011
Issued by: Ministry of Industry and Information Technology of PRC

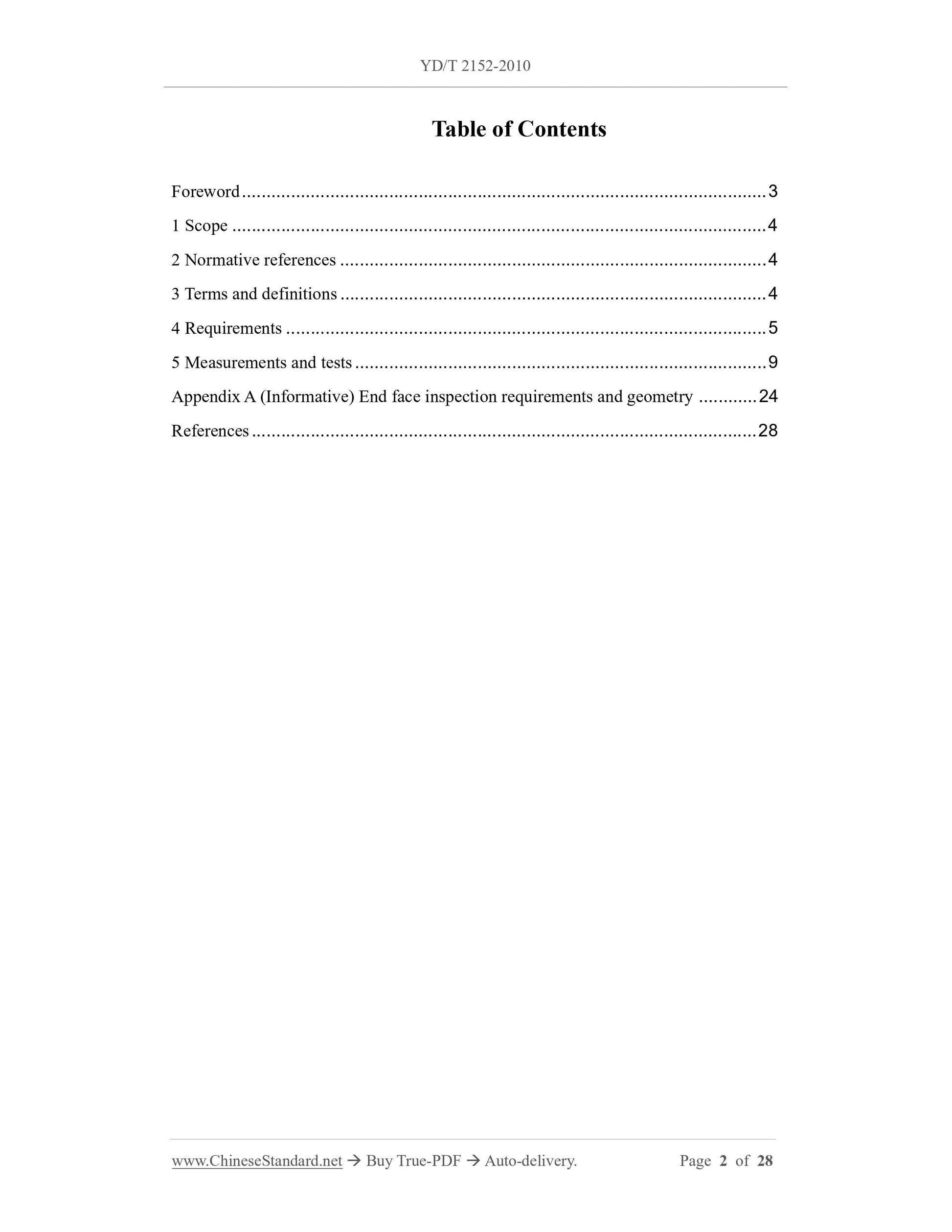

Table of Contents
Foreword ... 3
1 Scope ... 4
2 Normative references ... 4
3 Terms and definitions ... 4
4 Requirements ... 5
5 Measurements and tests ... 9
Appendix A (Informative) End face inspection requirements and geometry ... 24 References ... 28
The requirement of reliability and test methods for optical
fiber connectors

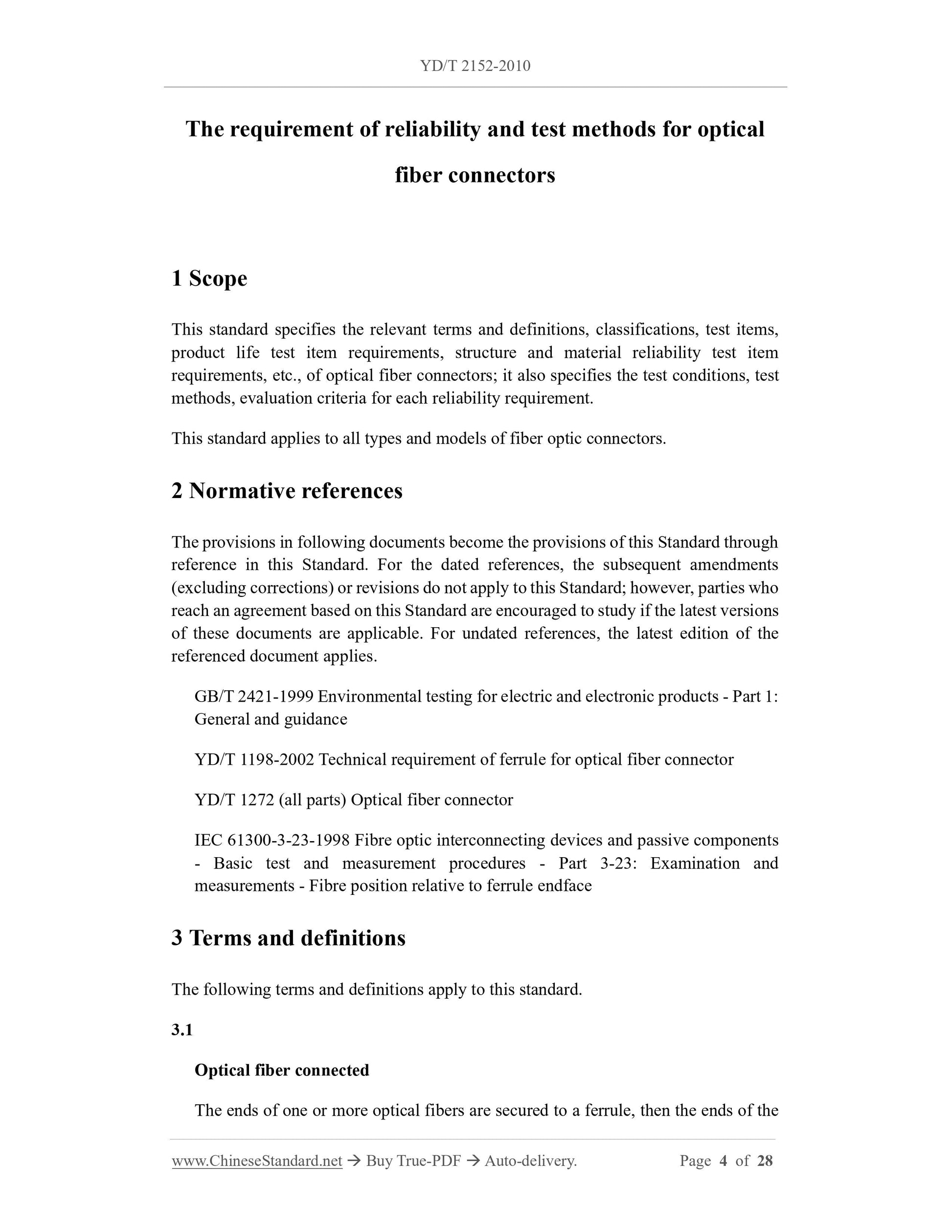

1 Scope
This standard specifies the relevant terms and definitions, classifications, test items, product life test item requirements, structure and material reliability test item requirements, etc., of optical fiber connectors; it also specifies the test conditions, test methods, evaluation criteria for each reliability requirement.
This standard applies to all types and models of fiber optic connectors. 2 Normative references
The provisions in following documents become the provisions of this Standard through reference in this Standard. For the dated references, the subsequent amendments (excluding corrections) or revisions do not apply to this Standard; however, parties who reach an agreement based on this Standard are encouraged to study if the latest versions of these documents are applicable. For undated references, the latest edition of the referenced document applies.
GB/T 2421-1999 Environmental testing for electric and electronic products - Part 1: General and guidance
YD/T 1198-2002 Technical requirement of ferrule for optical fiber connector YD/T 1272 (all parts) Optical fiber connector
IEC 61300-3-23-1998 Fibre optic interconnecting devices and passive components - Basic test and measurement procedures - Part 3-23: Examination and
measurements - Fibre position relative to ferrule endface
3 Terms and definitions
The following terms and definitions apply to this standard.
3.1
Optical fiber connected
The ends of one or more optical fibers are secured to a ferrule, then the ends of the clean, free of obvious flaws and scratches; the geometry of the end face meets the technical requirements of the corresponding products.

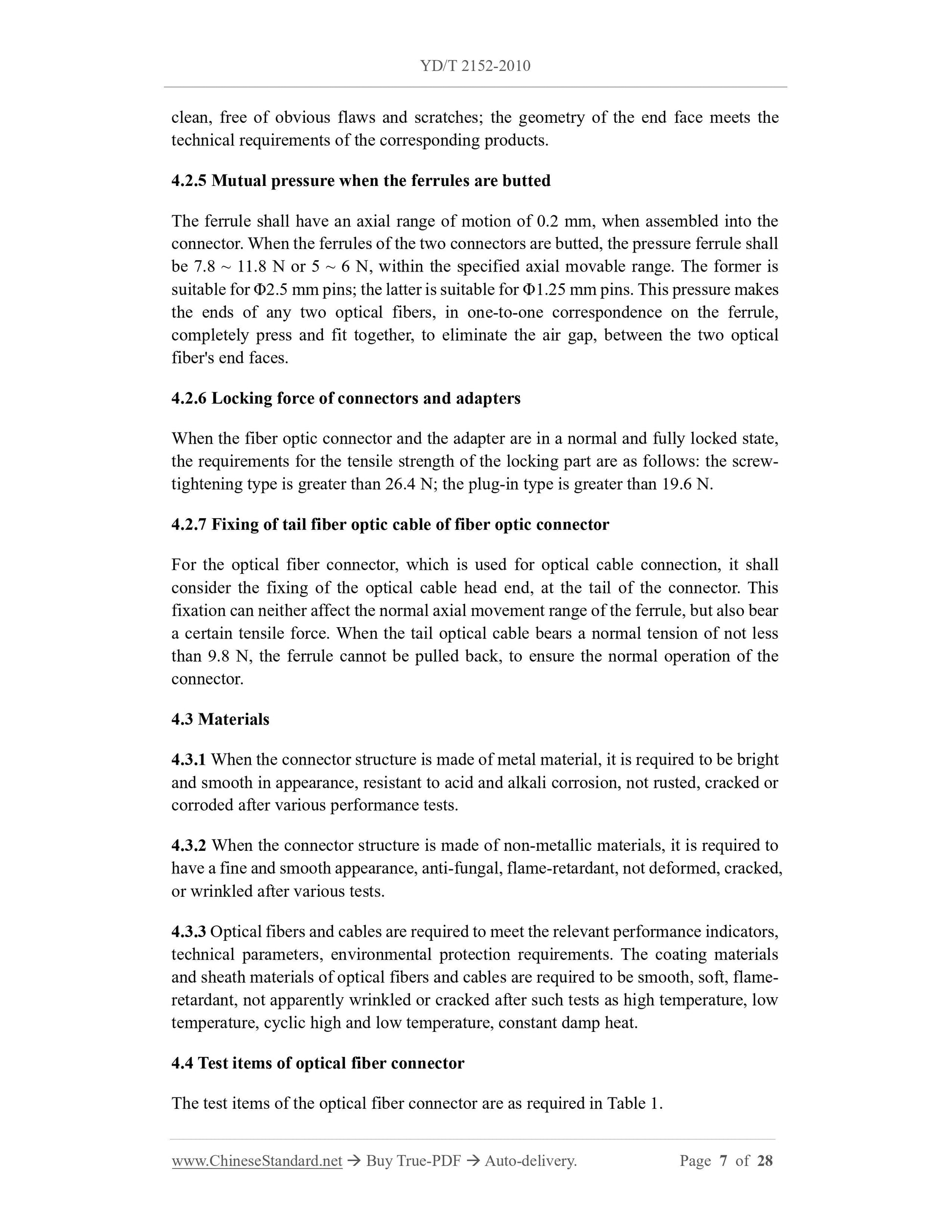

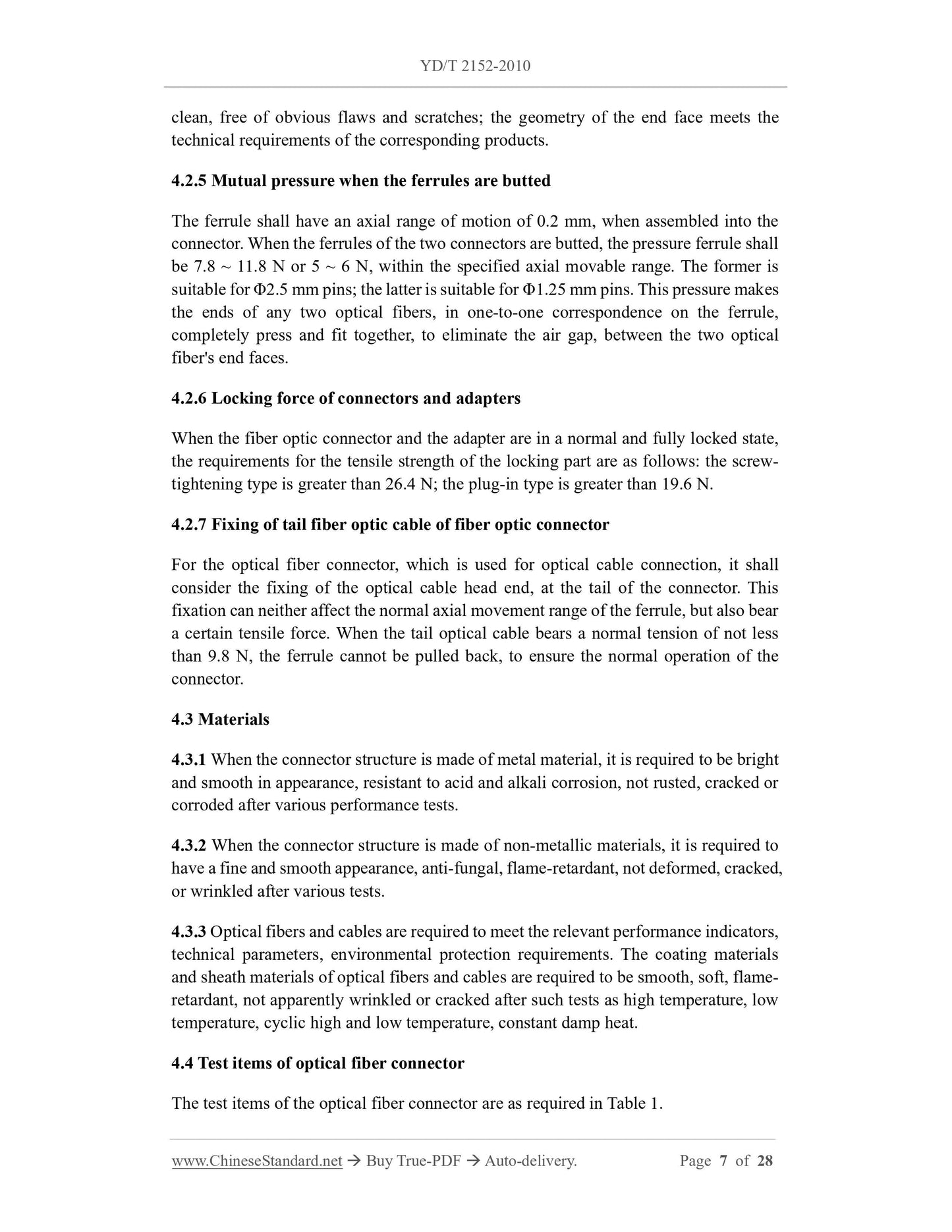

4.2.5 Mutual pressure when the ferrules are butted
The ferrule shall have an axial range of motion of 0.2 mm, when assembled into the connector. When the ferrules of the two connectors are butted, the pressure ferrule shall be 7.8 ~ 11.8 N or 5 ~ 6 N, within the specified axial movable range. The former is suitable for ??2.5 mm pins; the latter is suitable for ??1.25 mm pins. This pressure makes the ends of any two optical fibers, in one-to-one correspondence on the ferrule, completely press and fit together, to eliminate the air gap, between the two optical fiber's end faces.
4.2.6 Locking force of connectors and adapters
When the fiber optic connector and the adapter are in a normal and fully locked state, the requirements for the tensile strength of the locking part are as follows: the screw- tightening type is greater than 26.4 N; the plug-in type is greater than 19.6 N. 4.2.7 Fixing of tail fiber optic cable of fiber optic connector
For the optical fiber connector, which is used for optical cable connection, it shall consider the fixing of the optical cable head end, at the tail of the connector. This fixation can neither affect the normal axial movement range of the ferrule, but also bear a certain tensile force. When the tail optical cable bears a normal tension of not less than 9.8 N, the ferrule cannot be pulled back, to ensure the normal operation of the connector.
4.3 Materials
4.3.1 When the connector structure is made of metal material, it is required to be bright and smooth in appearance, resistant to acid and alkali corrosion, not rusted, cracked or corroded after various performance tests.
4.3.2 When the connector structure is made of non-metallic materials, it is required to have a fine and smooth appearance, anti-fungal, flame-retardant, not deformed, cracked, or wrinkled after various tests.
4.3.3 Optical fibers and cables are required to meet the relevant performance indicators, technical parameters, environmental protection requirements. The coating materials and sheath materials of optical fibers and cables are required to be smooth, soft, flame- retardant, not apparently wrinkled or cracked after such tests as high temperature, low temperature, cyclic high and low temperature, constant damp heat.
4.4 Test items of optical fiber connector

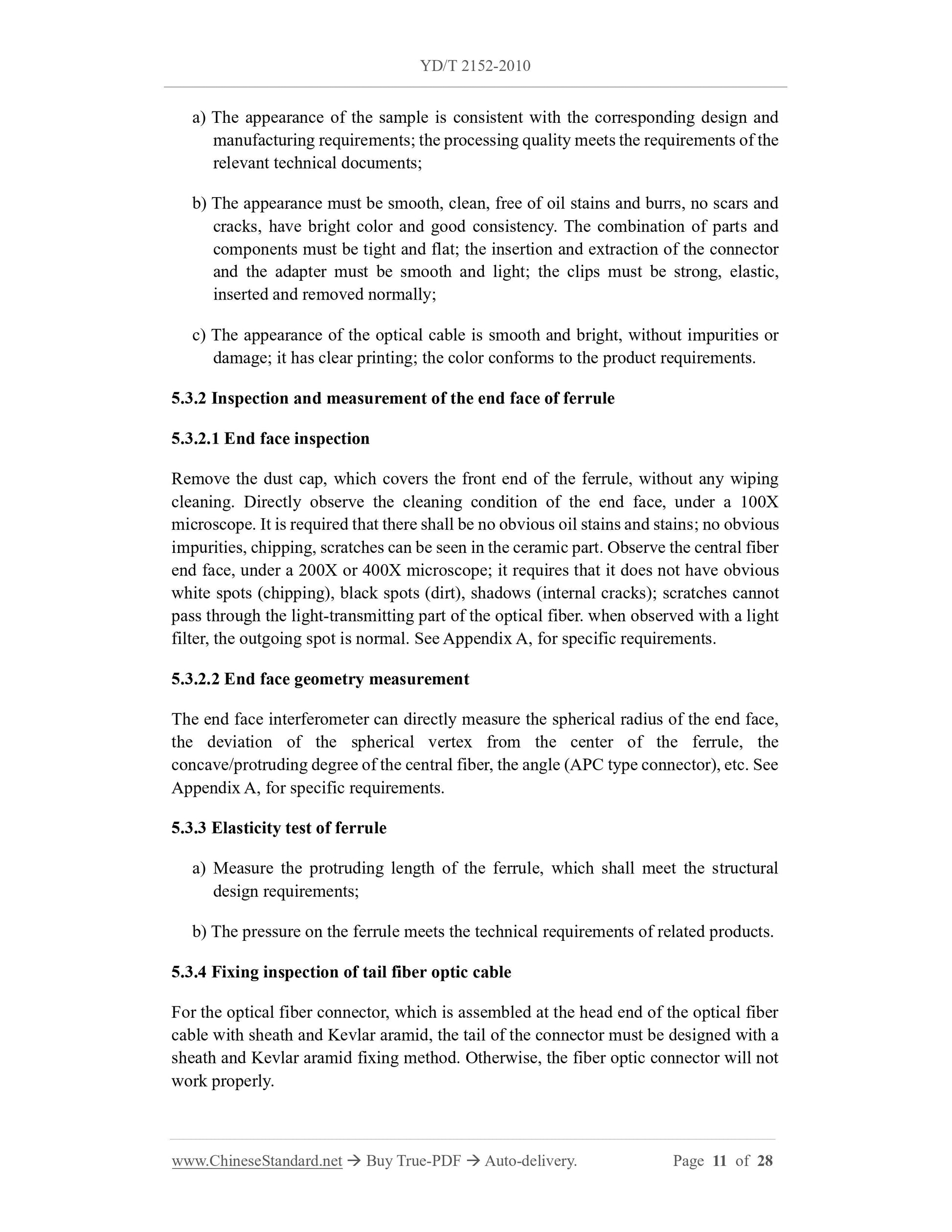

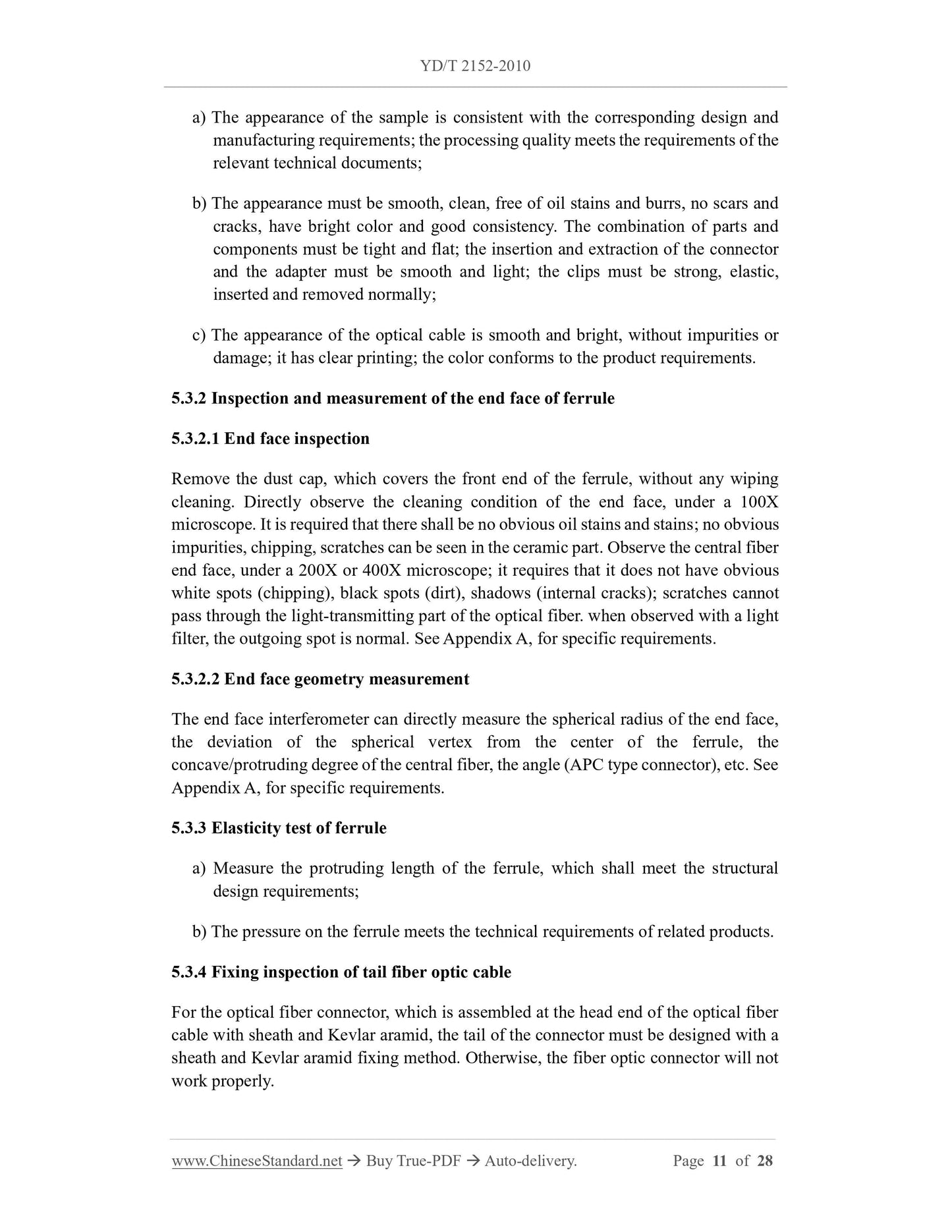

The test items of the optical fiber connector are as required in Table 1. a) The appearance of the sample is consistent with the corresponding design and manufacturing requirements; the processing quality meets the requirements of the relevant technical documents;
b) The appearance must be smooth, clean, free of oil stains and burrs, no scars and cracks, have bright color and good consistency. The combination of parts and components must be tight and flat; the insertion and extraction of the connector and the adapter must be smooth and light; the clips must be strong, elastic, inserted and removed normally;
c) The appearance of the optical cable is smooth and bright, without impurities or damage; it has clear printing; the color conforms to the product requirements. 5.3.2 Inspection and measurement of the end face of ferrule
5.3.2.1 End face inspection
Remove the dust cap, which covers the front end of the ferrule, without any wiping cleaning. Directly observe the cleaning condition of the end face, under a 100X microscope. It is required that there shall be no obvious oil stains and stains; no obvious impurities, chipping, scratches can be seen in the ceramic part. Observe the central fiber end face, under a 200X or 400X microscope; it requires that it does not have obvious white spots (chipping), black spots (dirt), shadows (internal cracks); scratches cannot pass through the light-transmitting part of the optical fiber. when observed with a light filter, the outgoing spot is normal. See Appendix A, for specific requirements. 5.3.2.2 End face geometry measurement
The end face interferometer can directly measure the spherical radius of the end face, the deviation of the spherical vertex from the center of the ferrule, the concave/protruding degree of the central fiber, the angle (APC type connector), etc. See Appendix A, for specific requirements.
5.3.3 Elasticity test of ferrule
a) Measure the protruding length of the ferrule, which shall meet the structural design requirements;
b) The pressure on the ferrule meets the technical requirements of related products. 5.3.4 Fixing inspection of tail fiber optic cable
For the optical fiber connector, which is assembled at the head end of the optical fiber cable with sheath and Kevlar aramid, the tail of the connector must be designed with a sheath and Kevlar aramid fixing method. Otherwise, the fiber optic connector will not work properly.

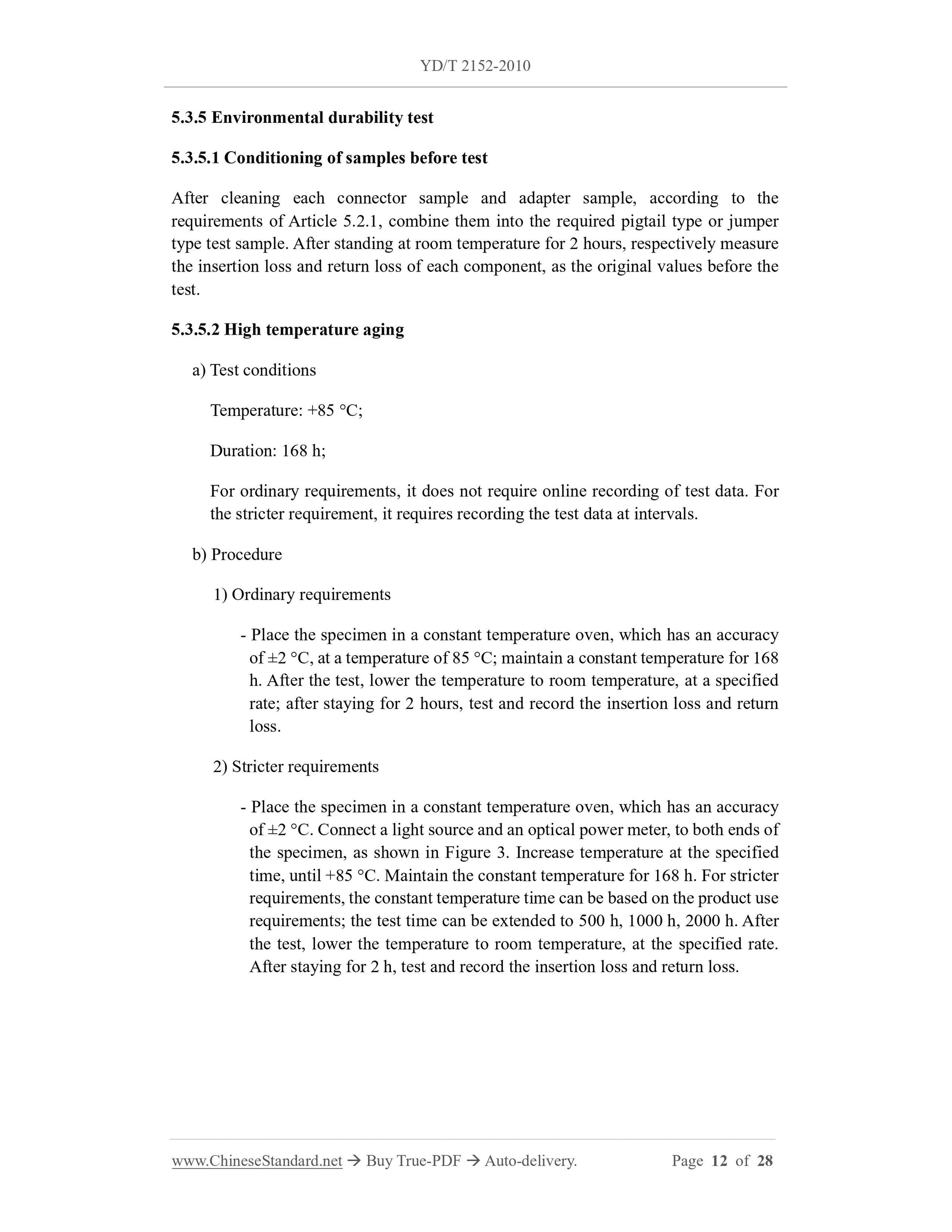

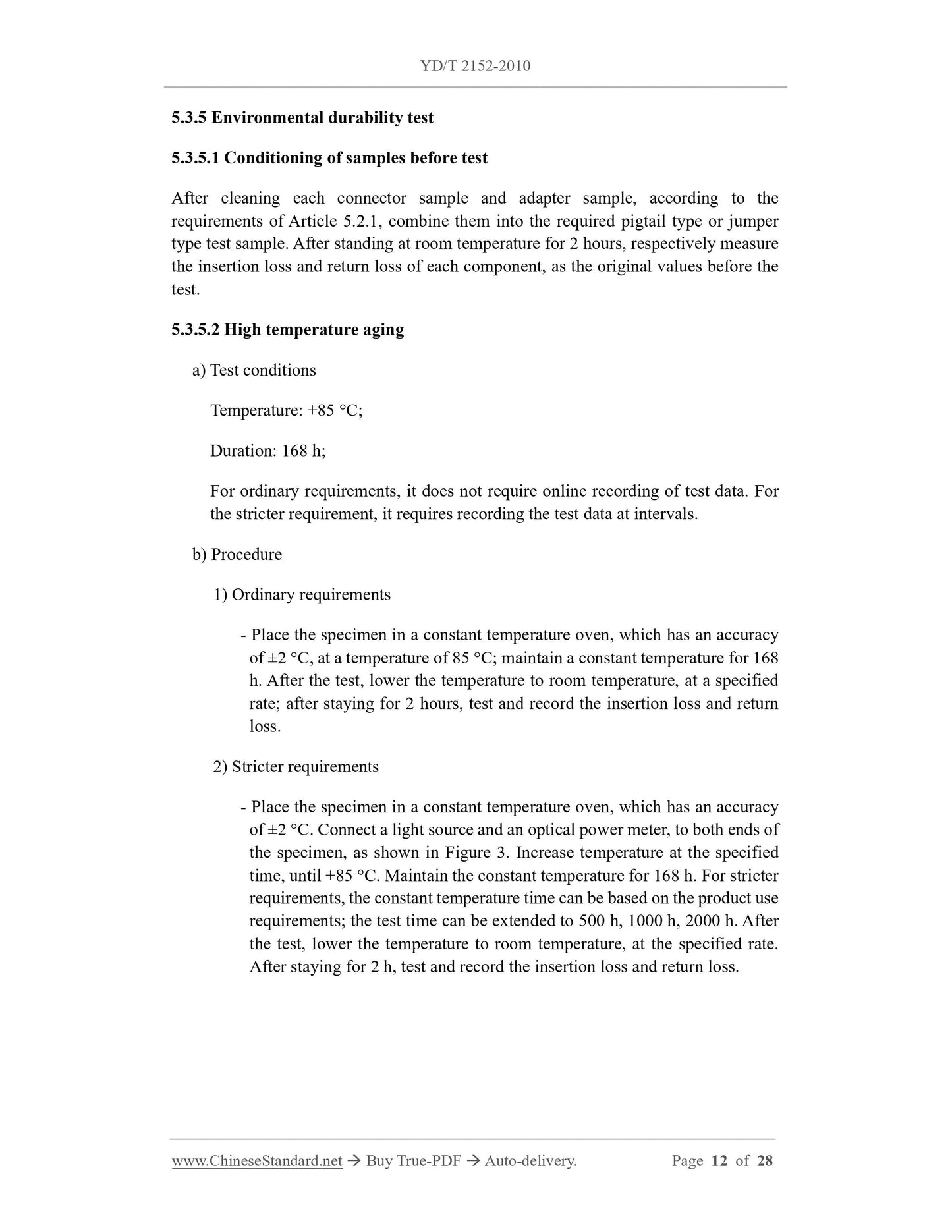

5.3.5 Environmental durability test
5.3.5.1 Conditioning of samples before test
After cleaning each connector sample and adapter sample, according to the requirements of Article 5.2.1, combine them into the required pigtail type or jumper type test sample. After standing at room temperature for 2 hours, respectively measure the insertion loss and return loss of each component, as the original values before the test.
5.3.5.2 High temperature aging
a) Test conditions
Temperature: +85 ??C;
Duration: 168 h;
For ordinary requirements, it does not require online recording of test data. For the stricter requirement, it requires recording the test data at intervals. b) Procedure
1) Ordinary requirements
- Place the specimen in a constant temperature oven, which has an accuracy of ??2 ??C, at a temperature of 85 ??C; maintain a constant temperature for 168 h. After the test, lower the temperature to room temperature, at a specified rate; after staying for 2 hours, test and record the insertion loss and return loss.
2) Stricter requirements
- Place the specimen in a constant temperature oven, which has an accuracy of ??2 ??C. Connect a light source and an optical power meter, to both ends of the specimen, as shown in Figure 3. Increase temperature at the specified time, until +85 ??C. Maintain the constant temperature for 168 h. For stricter requirements, the constant temperature time can be based on the product use requirements; the test time can be extended to 500 h, 1000 h, 2000 h. After the test, lower the temperature to room temperature, at the specified rate. After staying for 2 h, test and record the insertion loss and return loss. c) After the test, the sample must not have mechanical damage, such as deformation, cracking, relaxation, etc. The parameter change shall meet the requirements of Article 5.3.7.

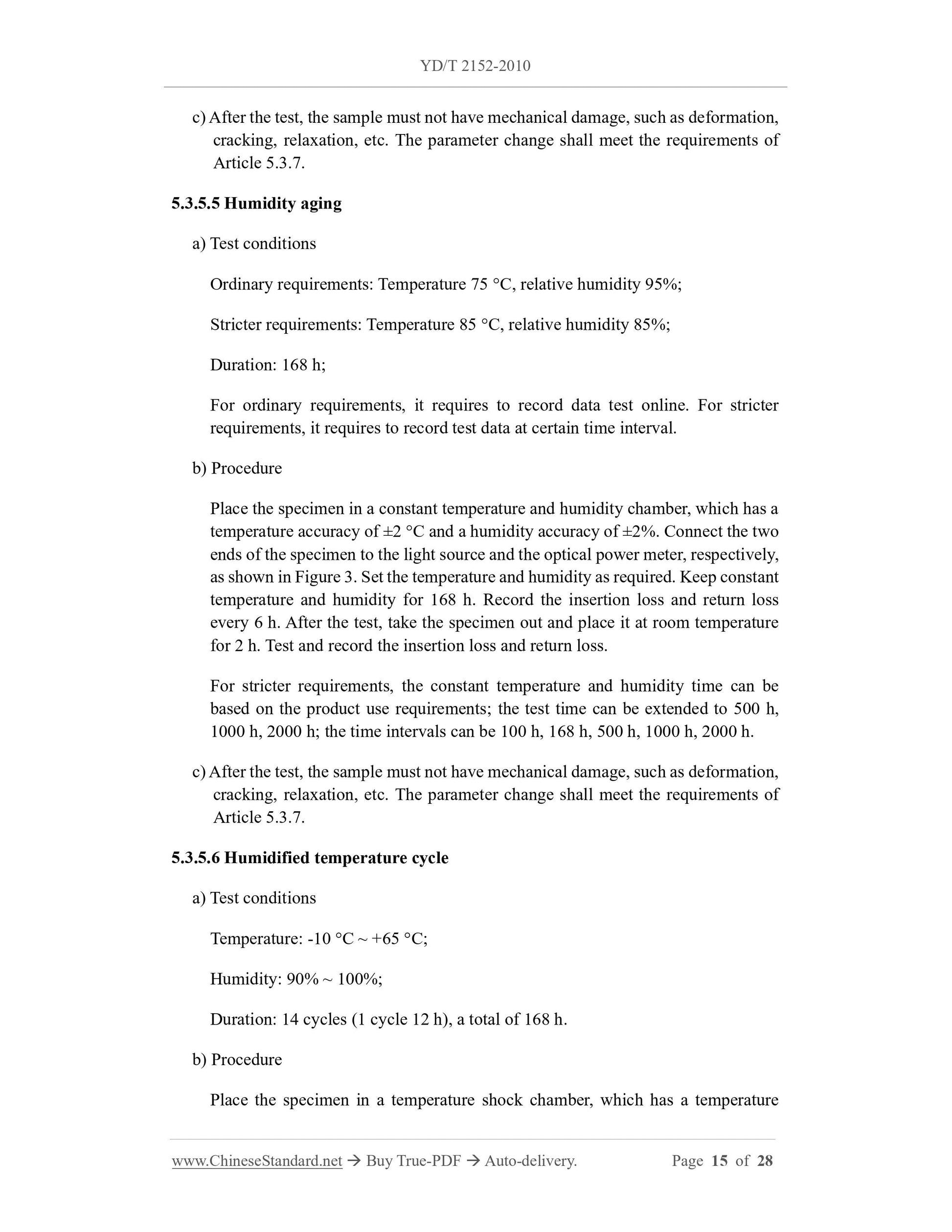

5.3.5.5 Humidity aging
a) Test conditions
Ordinary requirements: Temperature 75 ??C, relative humidity 95%;
Stricter requirements: Temperature 85 ??C, relative humidity 85%;
Duration: 168 h;
For ordinary requirements, it requires to record data test online. For stricter requirements, it requires to record test data at certain time interval. b) Procedure
Place the specimen in a constant temperature and humidity chamber, which has a temperature accuracy of ??2 ??C and a humidity accuracy of ??2%. Connect the two ends of the specimen to the light source and the optical power meter, respectively, as shown in Figure 3. Set the temperature and humidity as required. Keep constant temperature and humidity for 168 h. Record the insertion loss and return loss every 6 h. After the test, take the specimen out and place it at room temperature for 2 h. Test and record the insertion loss and return loss.
For stricter requirements, the constant temperature and humidity time can be based on the product use requirements; the test time can be extended to 500 h, 1000 h, 2000 h; the time intervals can be 100 h, 168 h, 500 h, 1000 h, 2000 h. c) After the test, the sample must not have mechanical damage, such as deformation, cracking, relaxation, etc. The parameter change shall meet the requirements of Article 5.3.7.
5.3.5.6 Humidified temperature cycle
a) Test conditions
Temperature: -10 ??C ~ +65 ??C;
Humidity: 90% ~ 100%;
Duration: 14 cycles (1 cycle 12 h), a total of 168 h.
b) Procedure
Place the specimen in a temperature shock chamber, which has a temperature c) Record the data of insertion loss, once every 10 plugging and unplugging. The variation meets the requirements of Article 5.3.7;
d) All data tested must meet the technical requirements of the product; e) After the test, there shall be no thread sliding, loss of elasticity of the lock, cracks in the parts, etc., on the specimen.

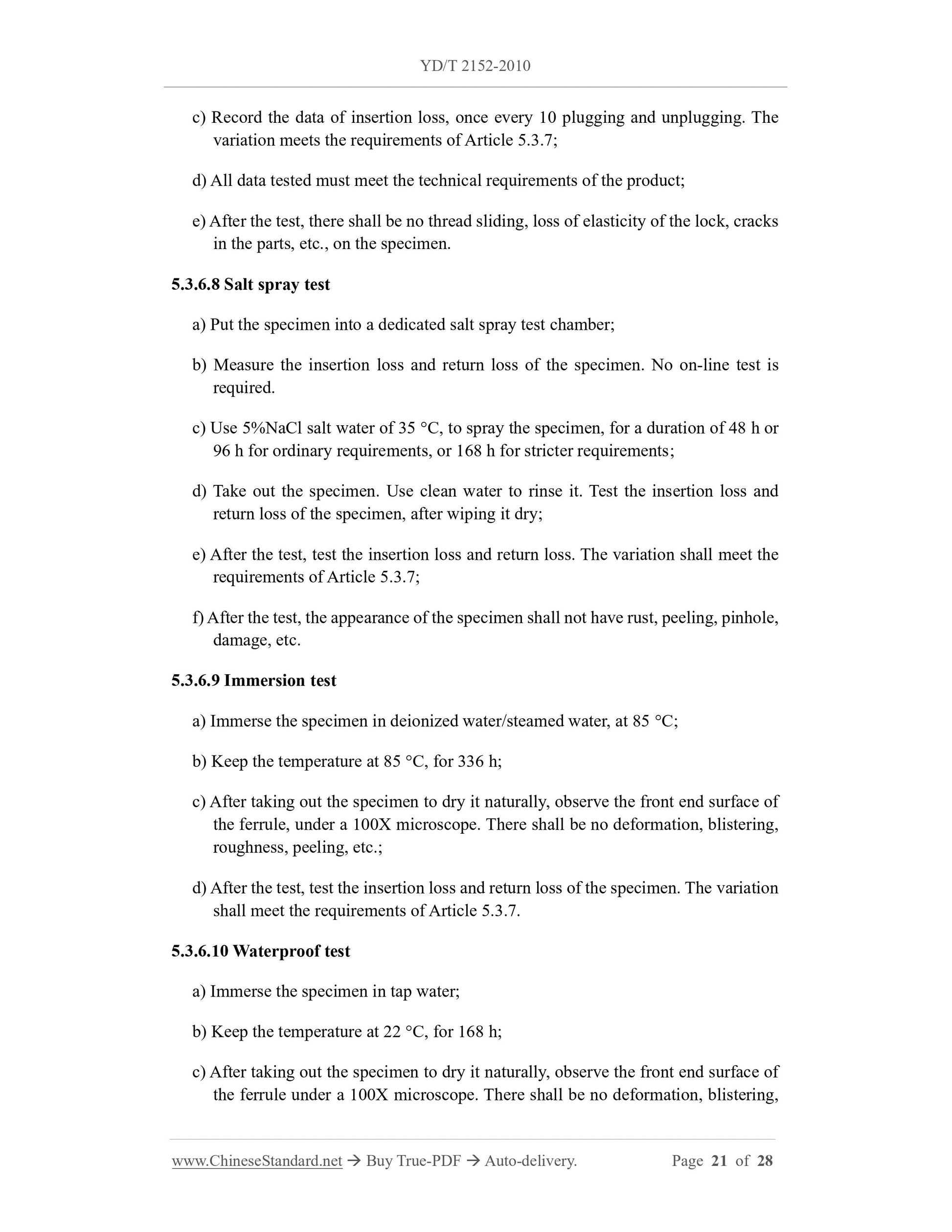

5.3.6.8 Salt spray test
a) Put the specimen into a dedicated salt spray test chamber;
b) Measure the insertion loss and return loss of the specimen. No on-line test is required.
c) Use 5%NaCl salt water of 35 ??C, to spray the specimen, for a duration of 48 h or 96 h for ordinary requirements, or 168 h for stricter requirements;
d) Take out the specimen. Use clean water to rinse it. Test the insertion loss and return loss of the specimen, after wiping it dry;
e) After the test, test the insertion loss and return loss. The variation shall meet the requirements of Article 5.3.7;
f) After the test, the appearance of the specimen shall not have rust, peeling, pinhole, damage, etc.
5.3.6.9 Immersion test
a) Immerse the specimen in deionized water/steamed water, at 85 ??C;
b) Keep the temperature at 85 ??C, for 336 h;
c) After taking out the specimen to dry it naturally, observe the front end surface of the ferrule, under a 100X microscope. There shall be no deformation, blistering, roughness, peeling, etc.;
d) After the test, test the insertion loss and return loss of the specimen. The variation shall meet the requirements of Article 5.3.7.
5.3.6.10 Waterproof test
a) Immerse the specimen in tap water;
b) Keep the temperature at 22 ??C, for 168 h;
c) After taking out the specimen to dry it naturally, observe the front end surface of the ferrule under a 100X microscope. There shall be no deformation, blistering,
