YD/T 1896-2009

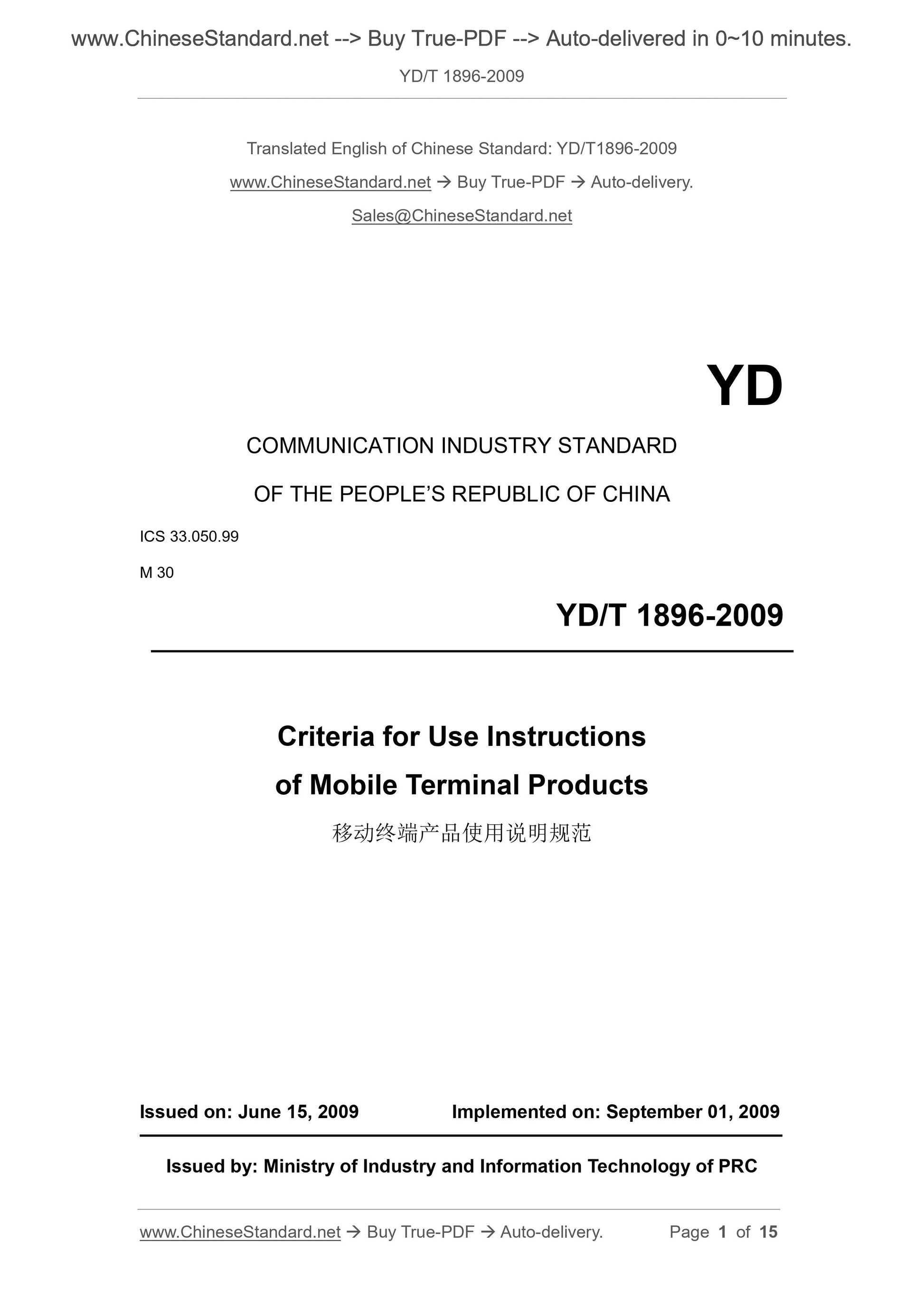

YD
COMMUNICATION INDUSTRY STANDARD
OF THE PEOPLE’S REPUBLIC OF CHINA
ICS 33.050.99
M 30
Criteria for Use Instructions
of Mobile Terminal Products
ISSUED ON. JUNE 15, 2009
IMPLEMENTED ON. SEPTEMBER 01, 2009
Issued by. Ministry of Industry and Information Technology of PRC

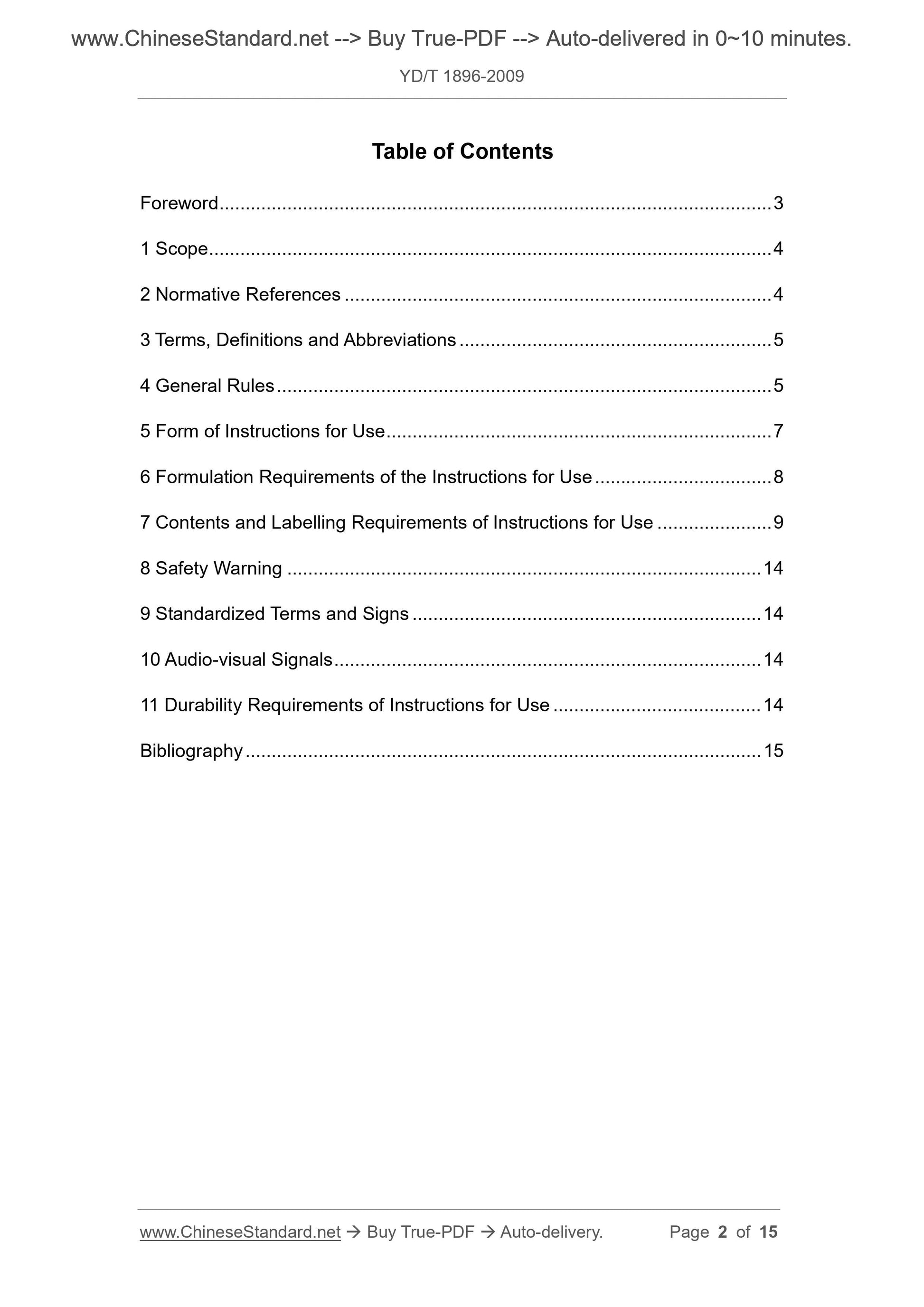

Table of Contents
Foreword ... 3
1 Scope ... 4
2 Normative References ... 4
3 Terms, Definitions and Abbreviations ... 5
4 General Rules ... 5
5 Form of Instructions for Use ... 7
6 Formulation Requirements of the Instructions for Use ... 8
7 Contents and Labelling Requirements of Instructions for Use ... 9
8 Safety Warning ... 14
9 Standardized Terms and Signs ... 14
10 Audio-visual Signals ... 14
11 Durability Requirements of Instructions for Use ... 14
Bibliography ... 15

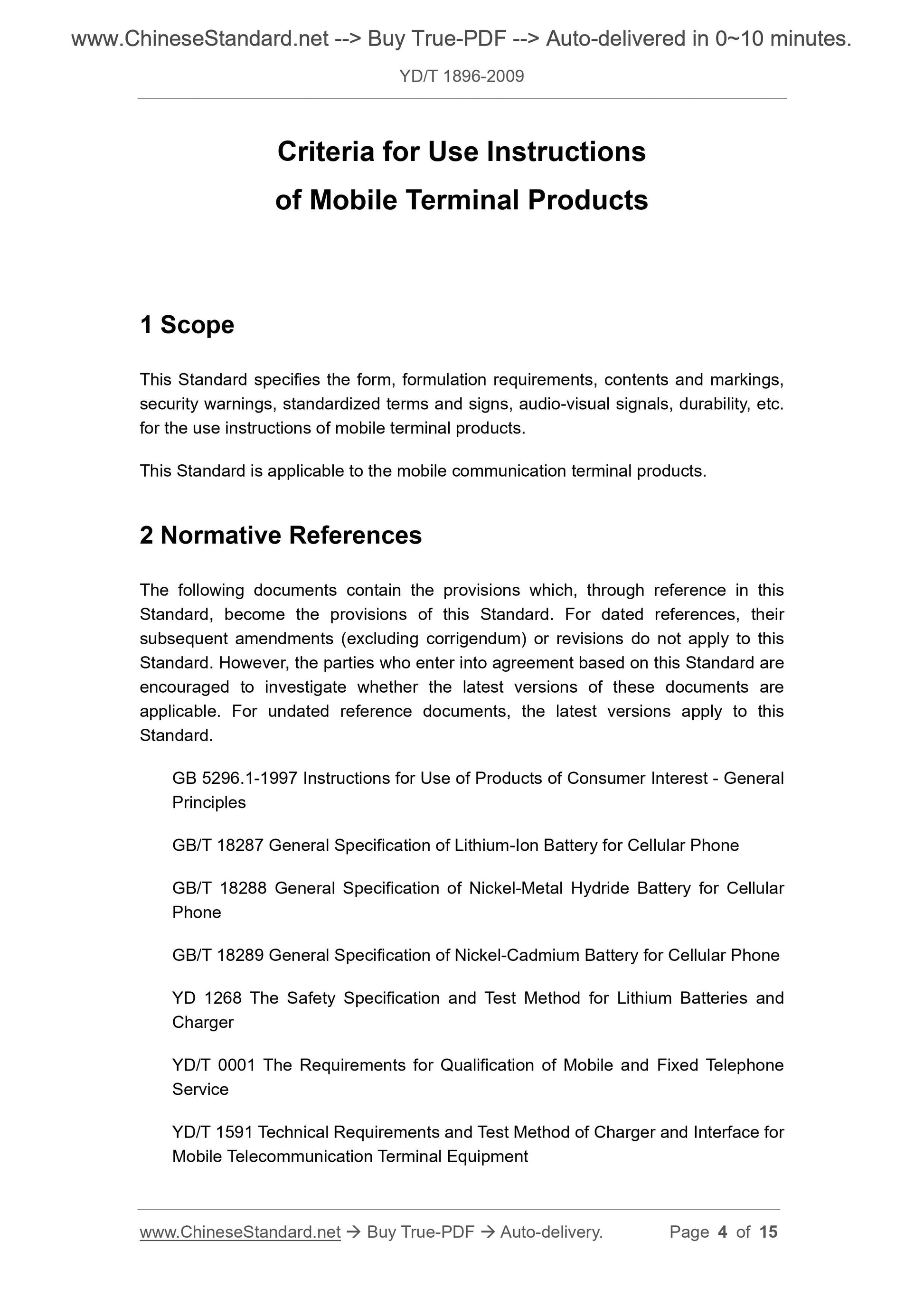

Criteria for Use Instructions
of Mobile Terminal Products
1 Scope
This Standard specifies the form, formulation requirements, contents and markings,
security warnings, standardized terms and signs, audio-visual signals, durability, etc.
for the use instructions of mobile terminal products.
This Standard is applicable to the mobile communication terminal products.
2 Normative References
The following documents contain the provisions which, through reference in this
Standard, become the provisions of this Standard. For dated references, their
subsequent amendments (excluding corrigendum) or revisions do not apply to this
Standard. However, the parties who enter into agreement based on this Standard are
encouraged to investigate whether the latest versions of these documents are
applicable. For undated reference documents, the latest versions apply to this
Standard.
GB 5296.1-1997 Instructions for Use of Products of Consumer Interest - General
Principles
GB/T 18287 General Specification of Lithium-Ion Battery for Cellular Phone
GB/T 18288 General Specification of Nickel-Metal Hydride Battery for Cellular
Phone
GB/T 18289 General Specification of Nickel-Cadmium Battery for Cellular Phone
YD 1268 The Safety Specification and Test Method for Lithium Batteries and
Charger
YD/T 0001 The Requirements for Qualification of Mobile and Fixed Telephone
Service
YD/T 1591 Technical Requirements and Test Method of Charger and Interface for
Mobile Telecommunication Terminal Equipment

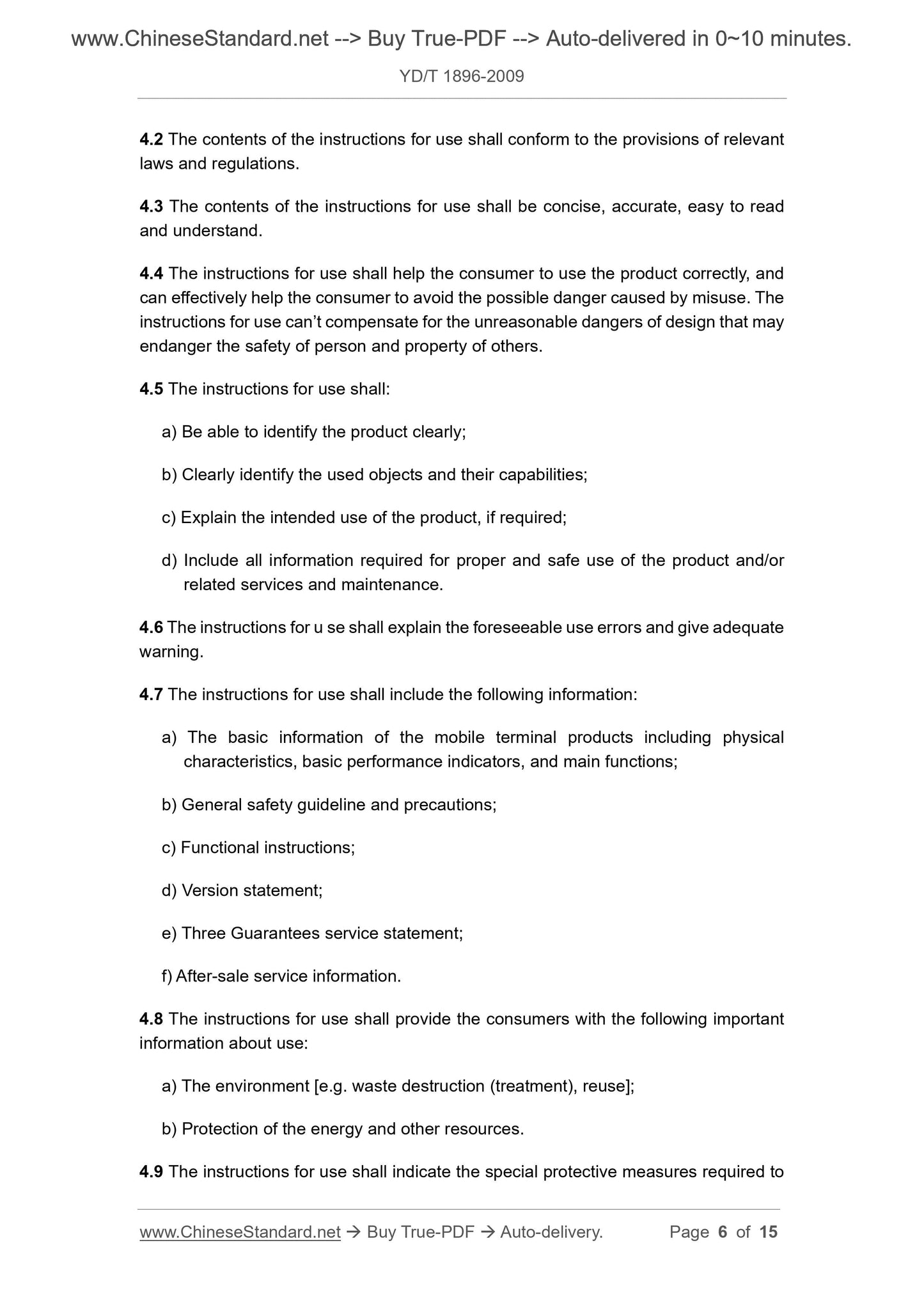

4.2 The contents of the instructions for use shall conform to the provisions of relevant
laws and regulations.
4.3 The contents of the instructions for use shall be concise, accurate, easy to read
and understand.
4.4 The instructions for use shall help the consumer to use the product correctly, and
can effectively help the consumer to avoid the possible danger caused by misuse. The
instructions for use can’t compensate for the unreasonable dangers of design that may
endanger the safety of person and property of others.
4.5 The instructions for use shall.
a) Be able to identify the product clearly;
b) Clearly identify the used objects and their capabilities;
c) Explain the intended use of the product, if required;
d) Include all information required for proper and safe use of the product and/or
related services and maintenance.
4.6 The instructions for u se shall explain the foreseeable use errors and give adequate
warning.
4.7 The instructions for use shall include the following information.
a) The basic information of the mobile terminal products including physical
characteristics, basic performance indicators, and main functions;
b) General safety guideline and precautions;
c) Functional instructions;
d) Version statement;
e) Three Guarantees service statement;
f) After-sale service information.
4.8 The instructions for use shall provide the consumers with the following important
information about use.
a) The environment [e.g. waste destruction (treatment), reuse];
b) Protection of the energy and other resources.
4.9 The instructions for use shall indicate the special protective measures required to

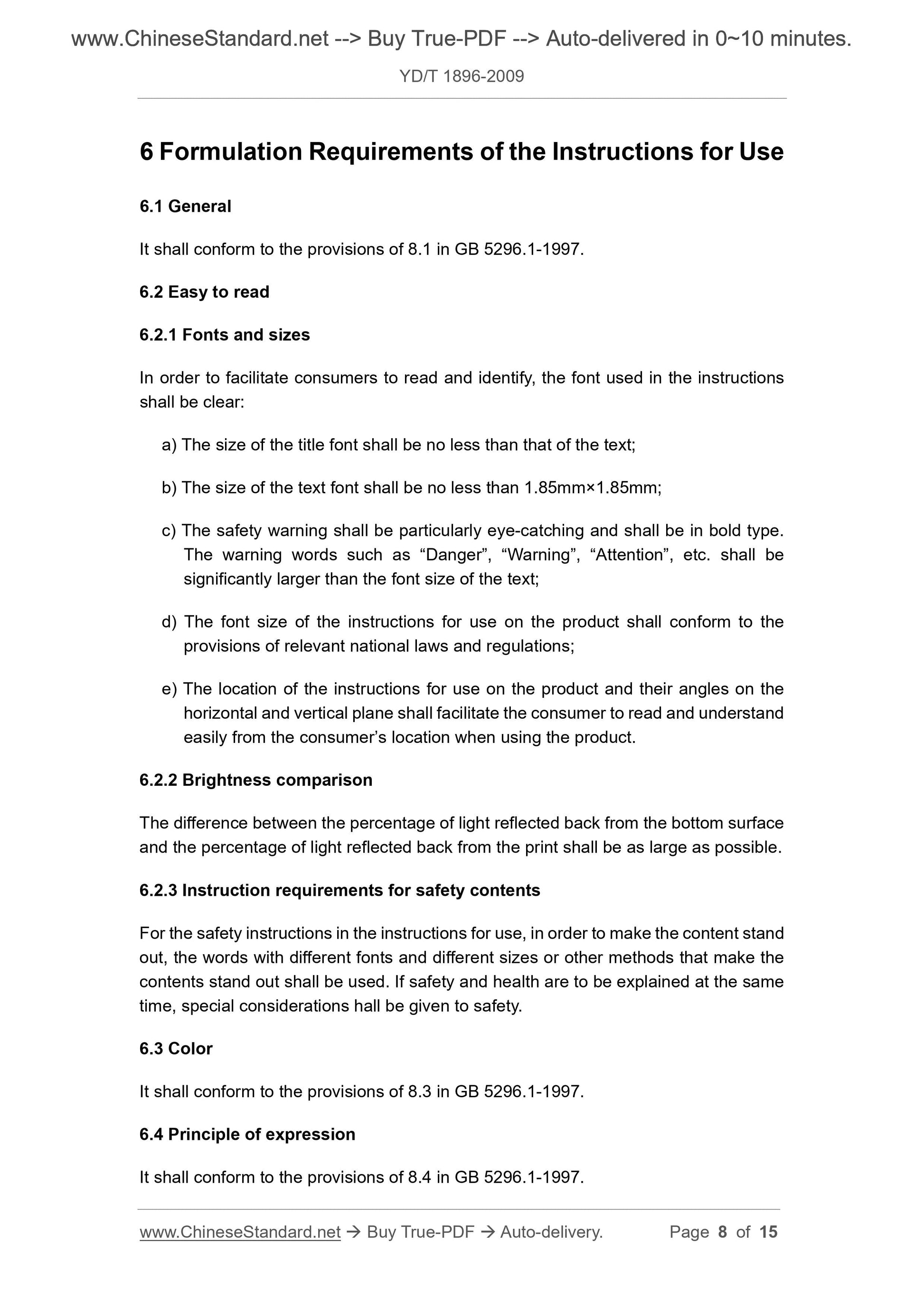

6 Formulation Requirements of the Instructions for Use
6.1 General
It shall conform to the provisions of 8.1 in GB 5296.1-1997.
6.2 Easy to read
6.2.1 Fonts and sizes
In order to facilitate consumers to read and identify, the font used in the instructions
shall be clear.
a) The size of the title font shall be no less than that of the text;
b) The size of the text font shall be no less than 1.85mm×1.85mm;
c) The safety warning shall be particularly eye-catching and shall be in bold type.
The warning words such as “Danger”, “Warning”, “Attention”, etc. shall be
significantly larger than the font size of the text;
d) The font size of the instructions for use on the product shall conform to the
provisions of relevant national laws and regulations;
e) The location of the instructions for use on the product and their angles on the
horizontal and vertical plane shall facilitate the consumer to read and understand
easily from the consumer’s location when using the product.
6.2.2 Brightness comparison
The difference between the percentage of light reflected back from the bottom surface
and the percentage of light reflected back from the print shall be as large as possible.
6.2.3 Instruction requirements for safety contents
For the safety instructions in the instructions for use, in order to make the content stand
out, the words with different fonts and different sizes or other methods that make the
contents stand out shall be used. If safety and health are to be explained at the same
time, special considerations hall be given to safety.
6.3 Color
It shall conform to the provisions of 8.3 in GB 5296.1-1997.
6.4 Principle of expression
It shall conform to the provisions of 8.4 in GB 5296.1-1997.

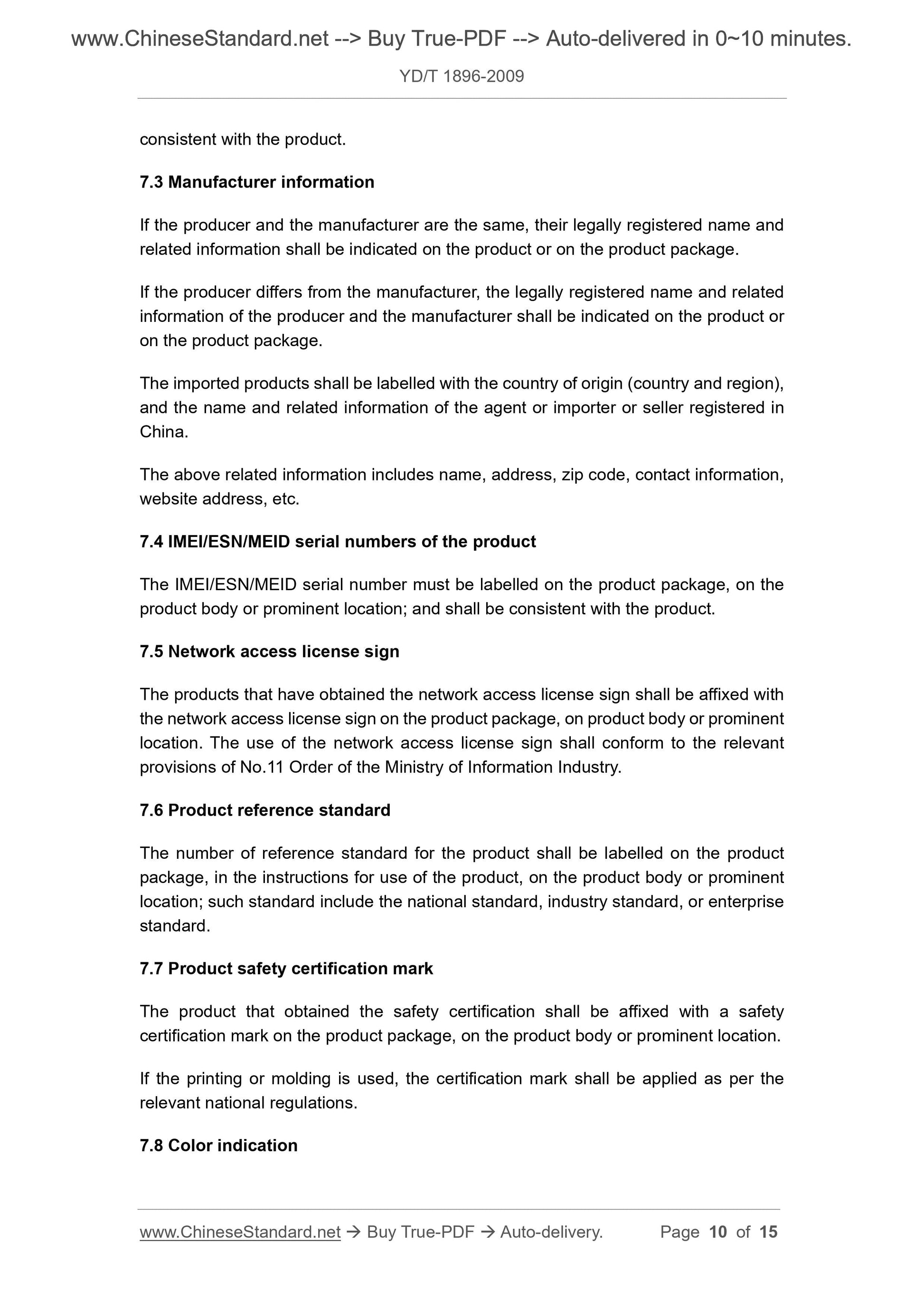

consistent with the product.
7.3 Manufacturer information
If the producer and the manufacturer are the same, their legally registered name and
related information shall be indicated on the product or on the product package.
If the producer differs from the manufacturer, the legally registered name and related
information of the producer and the manufacturer shall be indicated on the product or
on the product package.
The imported products shall be labelled with the country of origin (country and region),
and the name and related information of the agent or importer or seller registered in
China.
The above related information includes name, address, zip code, contact information,
website address, etc.
7.4 IMEI/ESN/MEID serial numbers of the product
The IMEI/ESN/MEID serial number must be labelled on the product package, on the
product body or prominent location; and shall be consistent with the product.
7.5 Network access license sign
The products that have obtained the network access license sign shall be affixed with
the network access license sign on the product package, on product body or prominent
location. The use of the network access license sign shall conform to the relevant
provisions of No.11 Order of the Ministry of Information Industry.
7.6 Product reference standard
The number of reference standard for the product shall be labelled on the product
package, in the instructions for use of the product, on the product body or prominent
location; such standard include the national standard, industry standard, or enterprise
standard.
7.7 Product safety certification mark
The product that obtained the safety certification shall be affixed with a safety
certification mark on the product package, on the product body or prominent location.
If the printing or molding is used, the certification mark shall be applied as per the
relevant national regulations.
7.8 Color indication

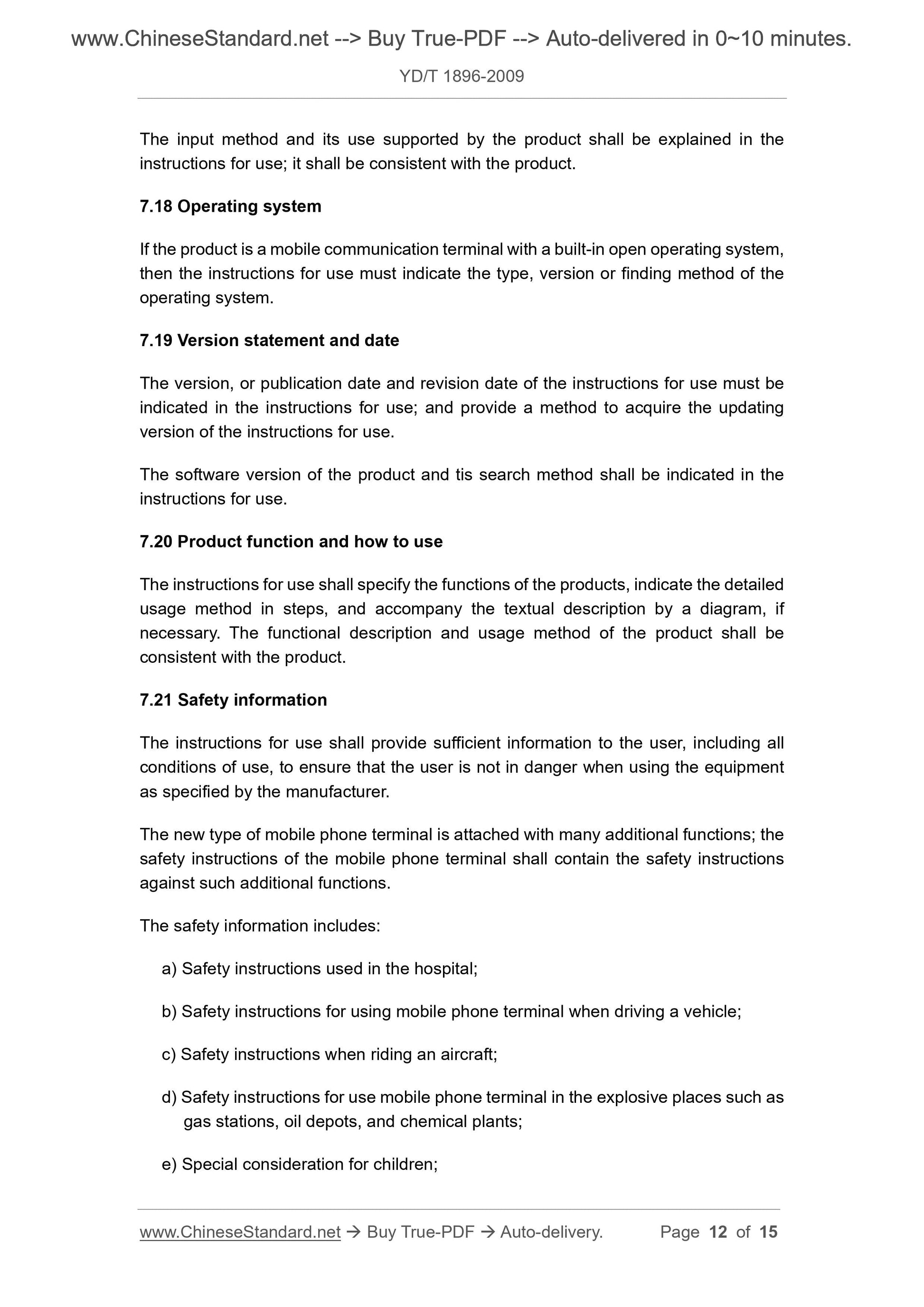

The input method and its use supported by the product shall be explained in the
instructions for use; it shall be consistent with the product.
7.18 Operating system
If the product is a mobile communication terminal with a built-in open operating system,
then the instructions for use must indicate the type, version or finding method of the
operating system.
7.19 Version statement and date
The version, or publication date and revision date of the instructions for use must be
indicated in the instructions for use; and provide a method to acquire the updating
version of the instructions for use.
The software version of the product and tis search method shall be indicated in the
instructions for use.
7.20 Product function and how to use
The instructions for use shall specify the functions of the products, indicate the detailed
usage method in steps, and accompany the textual description by a diagram, if
necessary. The functional description and usage method of the product shall be
consistent with the product.
7.21 Safety information
The instructions for use shall provide sufficient information to the user, including all
conditions of use, to ensure that the user is not in danger when using the equipment
as specified by the manufacturer.
The new type of mobile phone terminal is attached with many additional functions; the
safety instructions of the mobile phone terminal shall contain the safety instructions
against such additional functions.
The safety information includes.
a) Safety instructions used in the hospital;
b) Safety instructions for using mobile phone terminal when driving a vehicle;
c) Safety instructions when riding an aircraft;
d) Safety instructions for use mobile phone terminal in the explosive places such as
gas stations, oil depots, and chemical plants;
e) Special consideration for children;

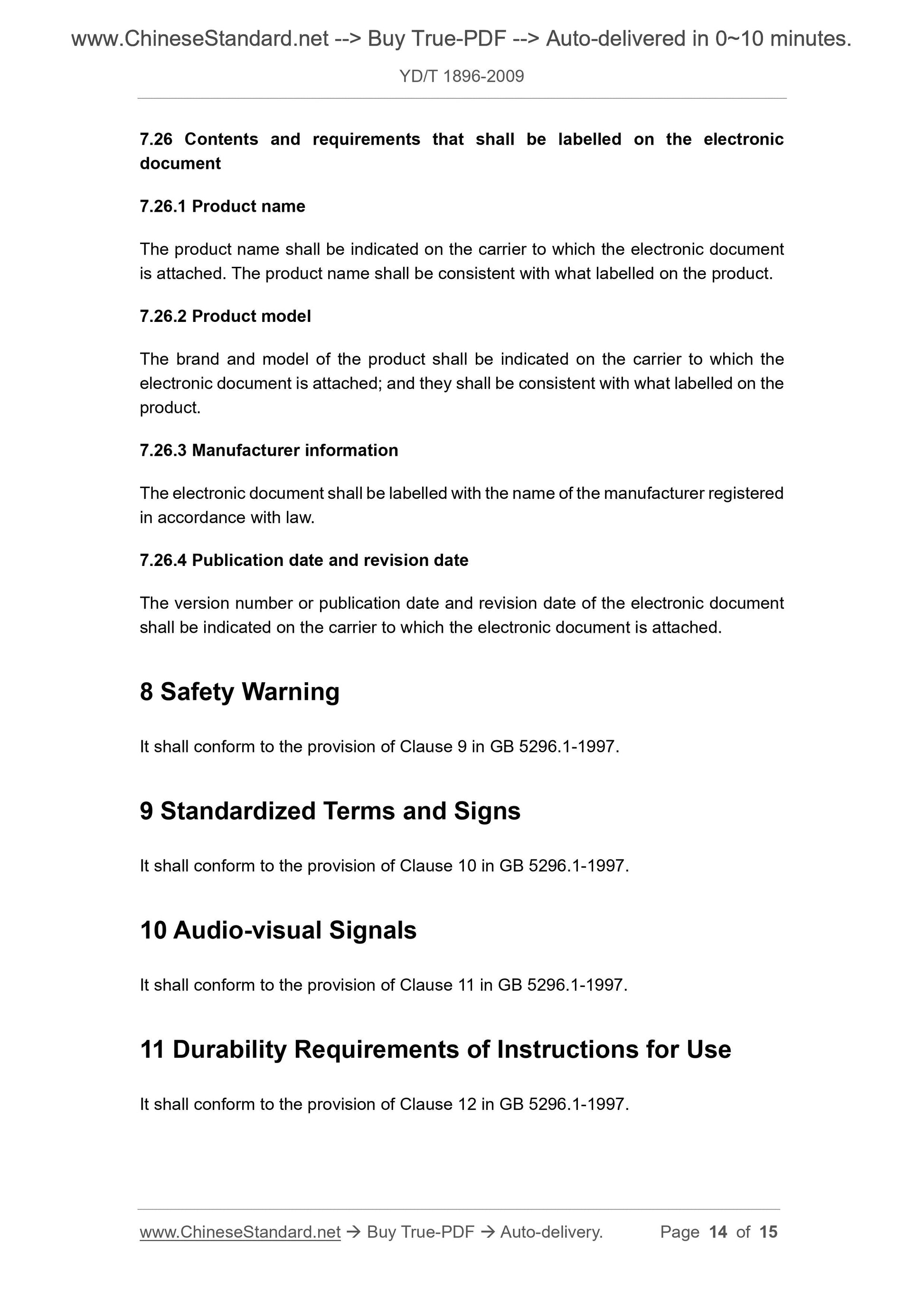

7.26 Contents and requirements that shall be labelled on the electronic
document
7.26.1 Product name
The product name shall be indicated on the carrier to which the electronic document
is attached. The product name shall be consistent with what labelled on the product.
7.26.2 Product model
The brand and model of the product shall be indicated on the carrier to which the
electronic document is attached; and they shall be consistent with what labelled on the
product.
7.26.3 Manufacturer information
The electronic document shall be labelled with the name of the manufacturer registered
in accordance with law.
7.26.4 Publication date and revision date
The version number or publication date and revision date of the electronic document
shall be indicated on the carrier to which the electronic document is attached.
8 Safety Warning
It shall conform to the provision of Clause 9 in GB 5296.1-1997.
9 Standardized Terms and Signs
It shall conform to the provision of Clause 10 in GB 5296.1-1997.
10 Audio-visual Signals
It shall conform to the provision of Clause 11 in GB 5296.1-1997.
11 Durability Requirements of Instructions for Use
It shall conform to the provision of Clause 12 in GB 5296.1-1997.
YD/T 1896-2009
YD
COMMUNICATION INDUSTRY STANDARD
OF THE PEOPLE’S REPUBLIC OF CHINA
ICS 33.050.99
M 30
Criteria for Use Instructions
of Mobile Terminal Products
ISSUED ON. JUNE 15, 2009
IMPLEMENTED ON. SEPTEMBER 01, 2009
Issued by. Ministry of Industry and Information Technology of PRC
Table of Contents
Foreword ... 3
1 Scope ... 4
2 Normative References ... 4
3 Terms, Definitions and Abbreviations ... 5
4 General Rules ... 5
5 Form of Instructions for Use ... 7
6 Formulation Requirements of the Instructions for Use ... 8
7 Contents and Labelling Requirements of Instructions for Use ... 9
8 Safety Warning ... 14
9 Standardized Terms and Signs ... 14
10 Audio-visual Signals ... 14
11 Durability Requirements of Instructions for Use ... 14
Bibliography ... 15
Criteria for Use Instructions
of Mobile Terminal Products
1 Scope
This Standard specifies the form, formulation requirements, contents and markings,
security warnings, standardized terms and signs, audio-visual signals, durability, etc.
for the use instructions of mobile terminal products.
This Standard is applicable to the mobile communication terminal products.
2 Normative References
The following documents contain the provisions which, through reference in this
Standard, become the provisions of this Standard. For dated references, their
subsequent amendments (excluding corrigendum) or revisions do not apply to this
Standard. However, the parties who enter into agreement based on this Standard are
encouraged to investigate whether the latest versions of these documents are
applicable. For undated reference documents, the latest versions apply to this
Standard.
GB 5296.1-1997 Instructions for Use of Products of Consumer Interest - General
Principles
GB/T 18287 General Specification of Lithium-Ion Battery for Cellular Phone
GB/T 18288 General Specification of Nickel-Metal Hydride Battery for Cellular
Phone
GB/T 18289 General Specification of Nickel-Cadmium Battery for Cellular Phone
YD 1268 The Safety Specification and Test Method for Lithium Batteries and
Charger
YD/T 0001 The Requirements for Qualification of Mobile and Fixed Telephone
Service
YD/T 1591 Technical Requirements and Test Method of Charger and Interface for
Mobile Telecommunication Terminal Equipment
4.2 The contents of the instructions for use shall conform to the provisions of relevant
laws and regulations.
4.3 The contents of the instructions for use shall be concise, accurate, easy to read
and understand.
4.4 The instructions for use shall help the consumer to use the product correctly, and
can effectively help the consumer to avoid the possible danger caused by misuse. The
instructions for use can’t compensate for the unreasonable dangers of design that may
endanger the safety of person and property of others.
4.5 The instructions for use shall.
a) Be able to identify the product clearly;
b) Clearly identify the used objects and their capabilities;
c) Explain the intended use of the product, if required;
d) Include all information required for proper and safe use of the product and/or
related services and maintenance.
4.6 The instructions for u se shall explain t...
