YD/T 1539-2006: Technical Requirements and Testing Methods for Reliability of Mobile Telecommunication Handset

This Standard defines the technical requirements and test methods for the adaptability of the environment and mechanical stress for mobile telecommunication handsets. This Standard is applicable for mobile telecommunication handset and it is also the reference for other mobile telecommunication terminals in addition to the handset.

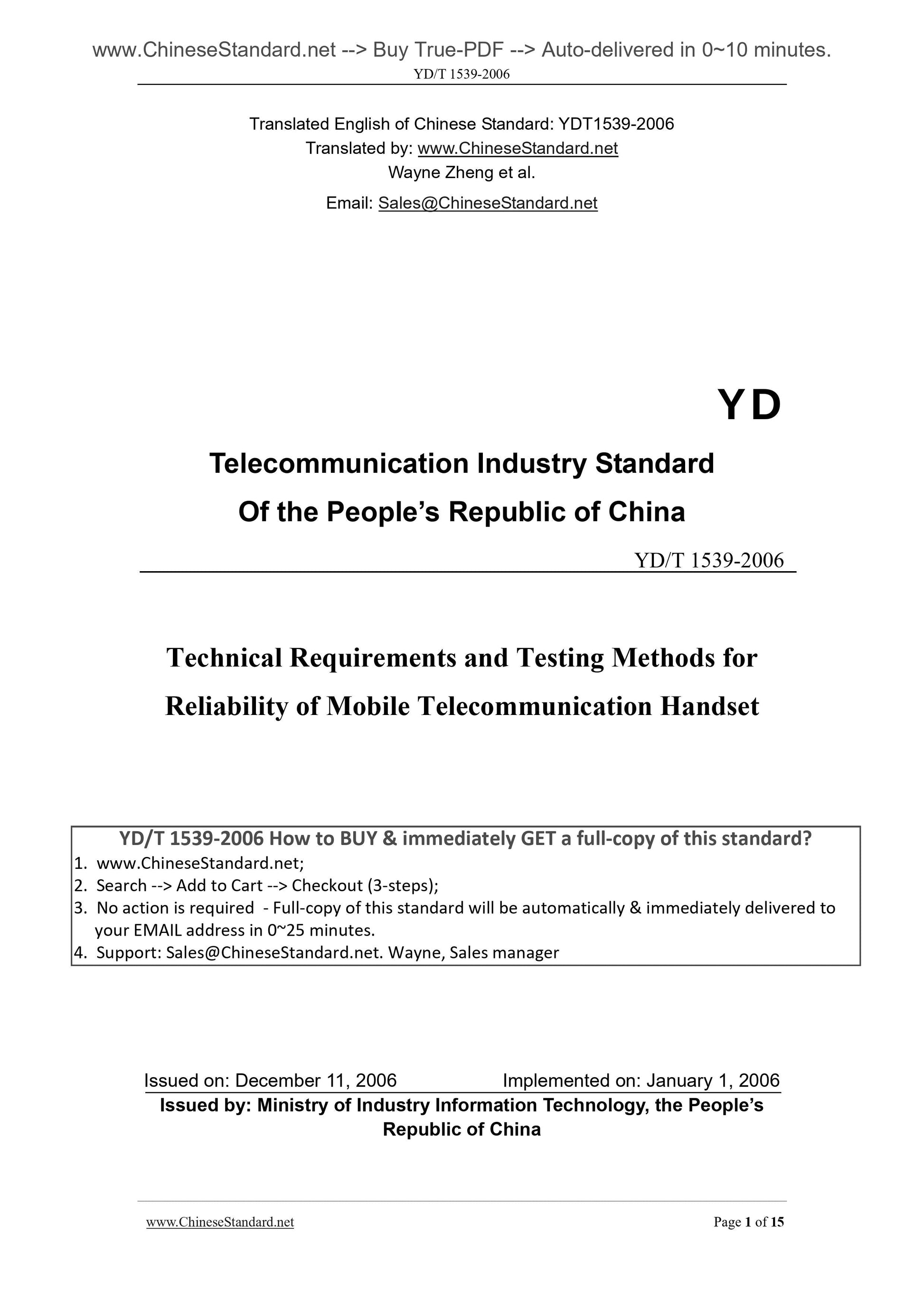

YD/T 1539-2006
YD
Telecommunication Industry Standard
Of the PEOPLE Republic of China
Technical Requirements and Testing Methods for
Reliability of Mobile Telecommunication Handset
ISSUED ON. DECEMBER 11, 2006
IMPLEMENTED ON. JANUARY 1, 2006
Issued by. Ministry of Industry Information Technology, the PEOPLE
Republic of China

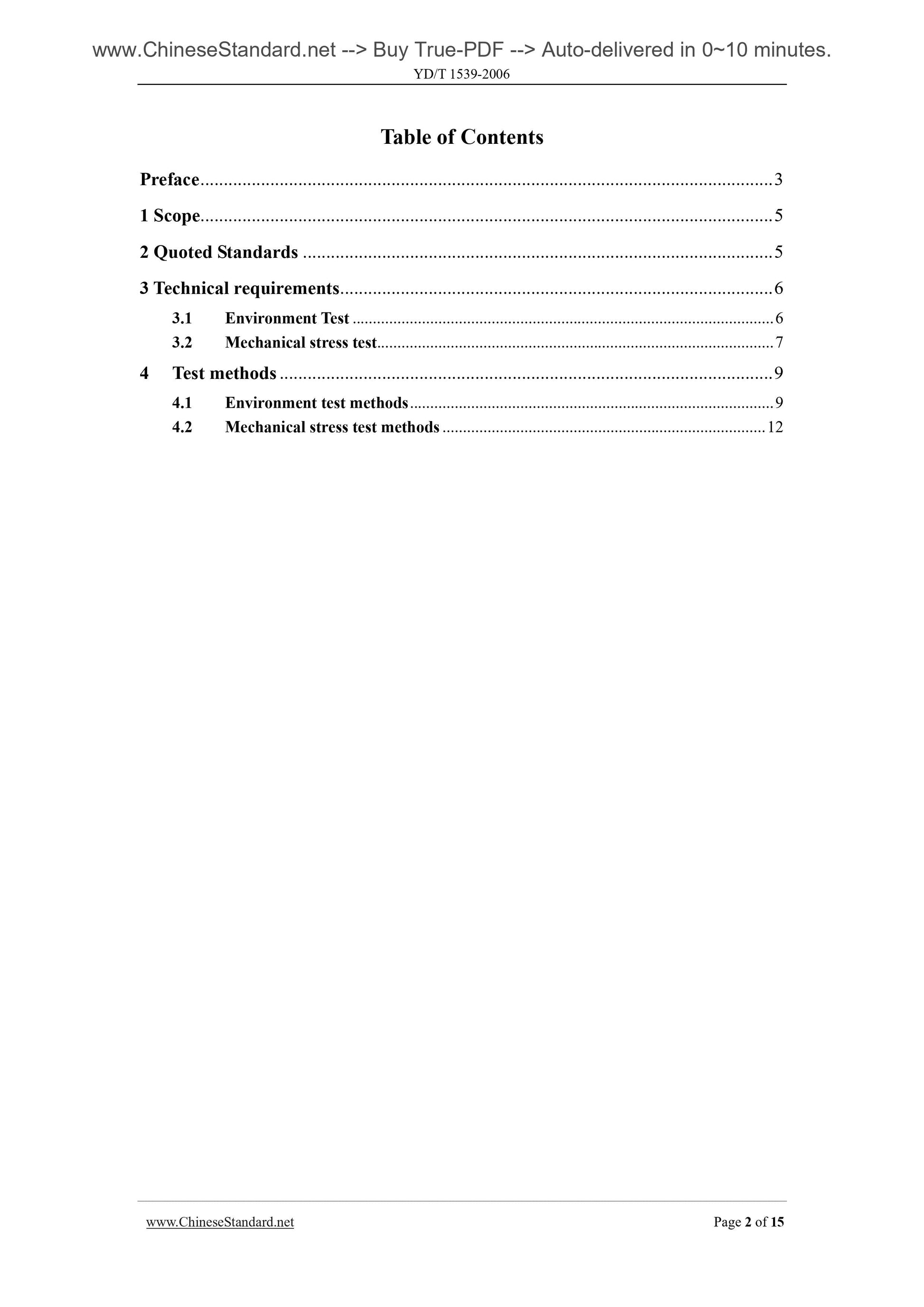

Table of Contents
Preface ... 3
1 Scope... 5
2 Quoted Standards ... 5
3 Technical requirements ... 6
3.1 Environment Test ... 6
3.2 Mechanical stress test ... 7
4 Test methods ... 9
4.1 Environment test methods ... 9
4.2 Mechanical stress test methods ... 12

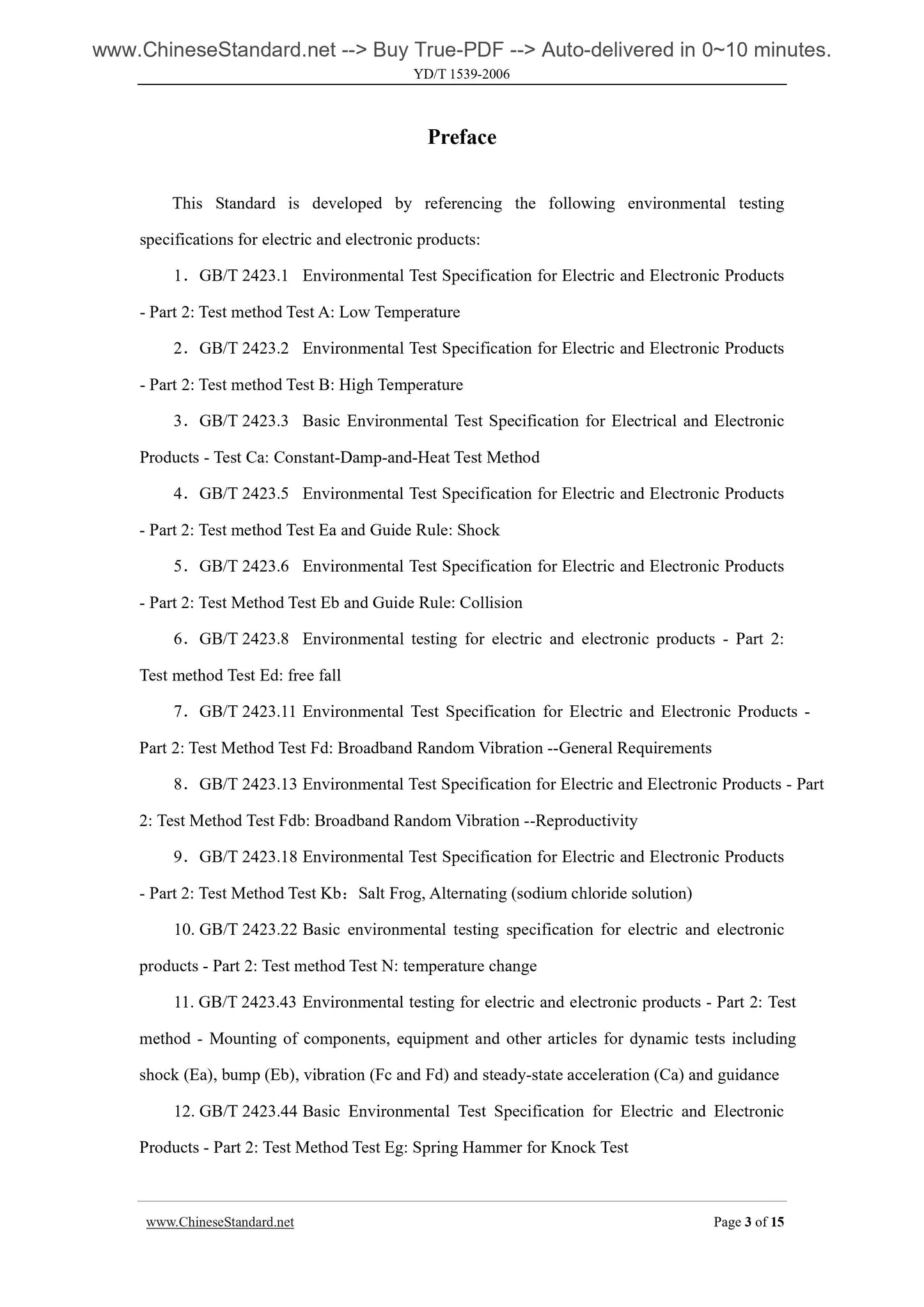

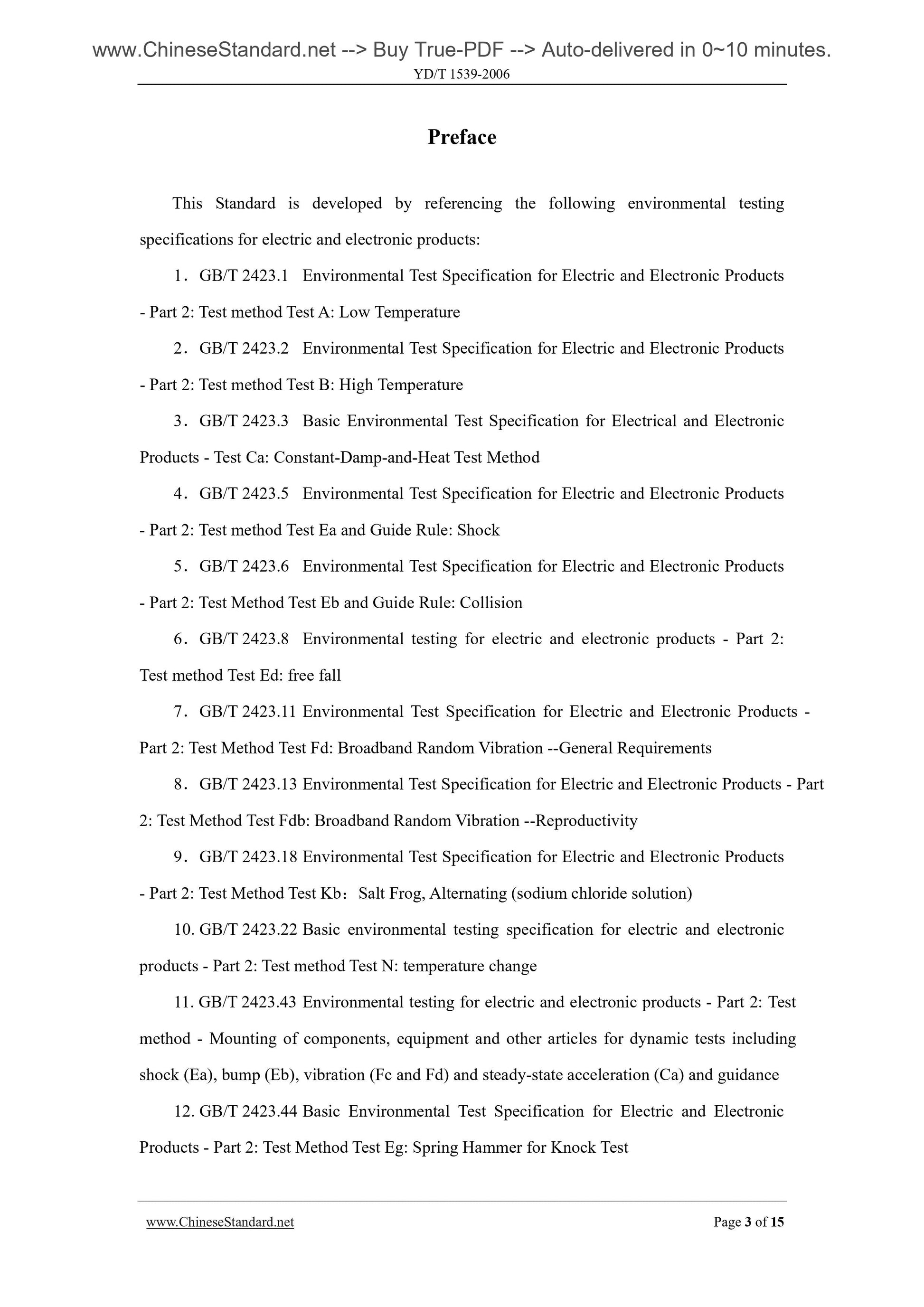

Preface
This Standard is developed by referencing the following environmental testing specifications for electric and electronic products.
1???GB/T 2423.1 Environmental Test Specification for Electric and Electronic Products - Part 2. Test method Test A. Low Temperature
2???GB/T 2423.2 Environmental Test Specification for Electric and Electronic Products - Part 2. Test method Test B. High Temperature
3???GB/T 2423.3 Basic Environmental Test Specification for Electrical and Electronic Products - Test Ca. Constant-Damp-and-Heat Test Method
4???GB/T 2423.5 Environmental Test Specification for Electric and Electronic Products - Part 2. Test method Test Ea and Guide Rule. Shock
5???GB/T 2423.6 Environmental Test Specification for Electric and Electronic Products - Part 2. Test Method Test Eb and Guide Rule. Collision
6???GB/T 2423.8 Environmental testing for electric and electronic products - Part 2. Test method Test Ed. free fall
7???GB/T 2423.11 Environmental Test Specification for Electric and Electronic Products - Part 2. Test Method Test Fd. Broadband Random Vibration --General Requirements 8???GB/T 2423.13 Environmental Test Specification for Electric and Electronic Products - Part 2. Test Method Test Fdb. Broadband Random Vibration --Reproductivity
9???GB/T 2423.18 Environmental Test Specification for Electric and Electronic Products - Part 2. Test Method Test Kb. Salt Frog, Alternating (sodium chloride solution) 10. GB/T 2423.22 Basic environmental testing specification for electric and electronic products - Part 2. Test method Test N. temperature change
11. GB/T 2423.43 Environmental testing for electric and electronic products - Part 2. Test method - Mounting of components, equipment and other articles for dynamic tests including shock (Ea), bump (Eb), vibration (Fc and Fd) and steady-state acceleration (Ca) and guidance 12. GB/T 2423.44 Basic Environmental Test Specification for Electric and Electronic Products - Part 2. Test Method Test Eg. Spring Hammer for Knock Test

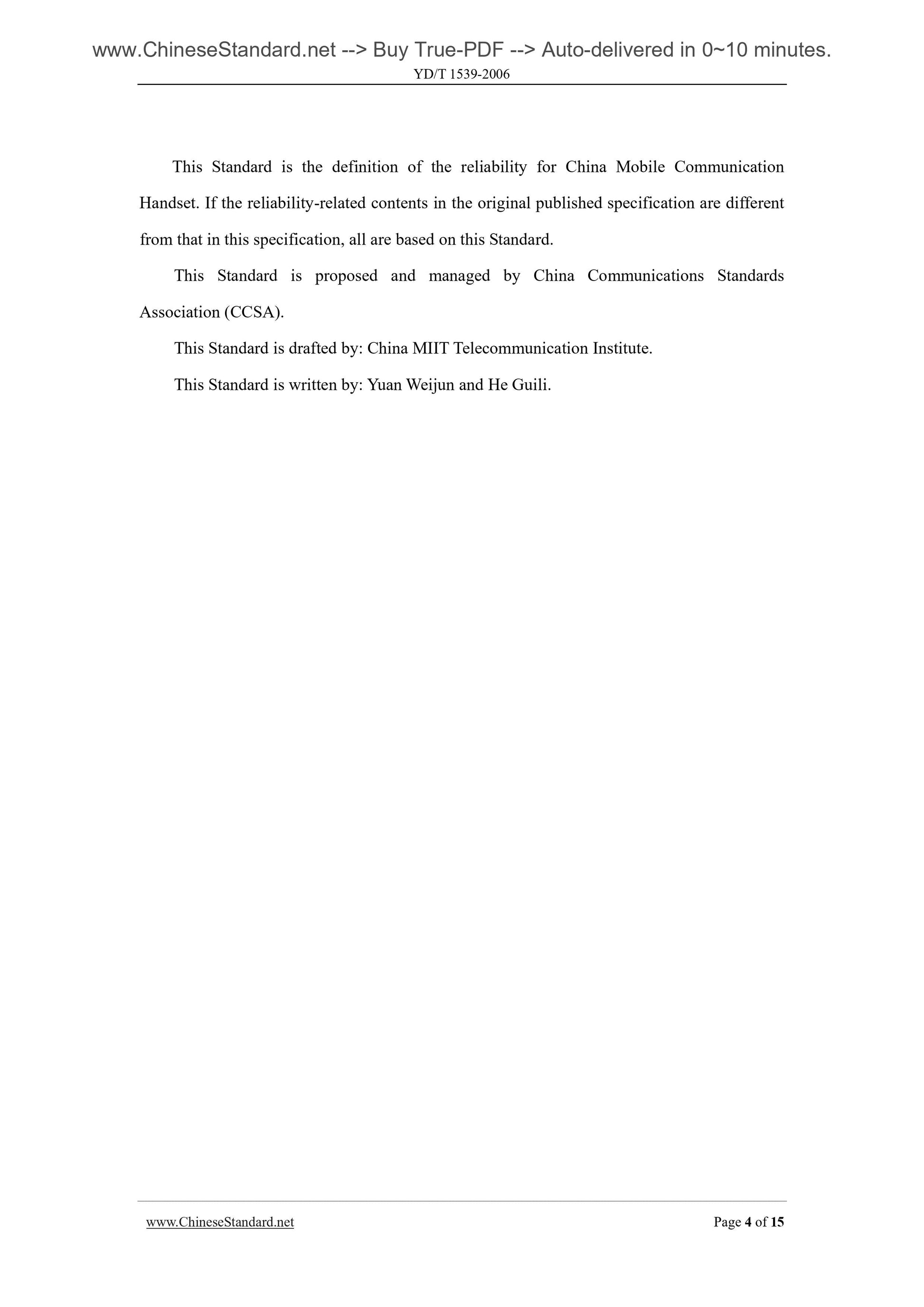

This Standard is the definition of the reliability for China Mobile Communication Handset. If the reliability-related contents in the original published specification are different from that in this specification, all are based on this Standard.
This Standard is proposed and managed by China Communications Standards Association (CCSA).
This Standard is drafted by. China MIIT Telecommunication Institute.
This Standard is written by. Yuan Weijun and He Guili.
Technical Requirement and Test Method for Reliability of Mobile
Telecommunication Handset

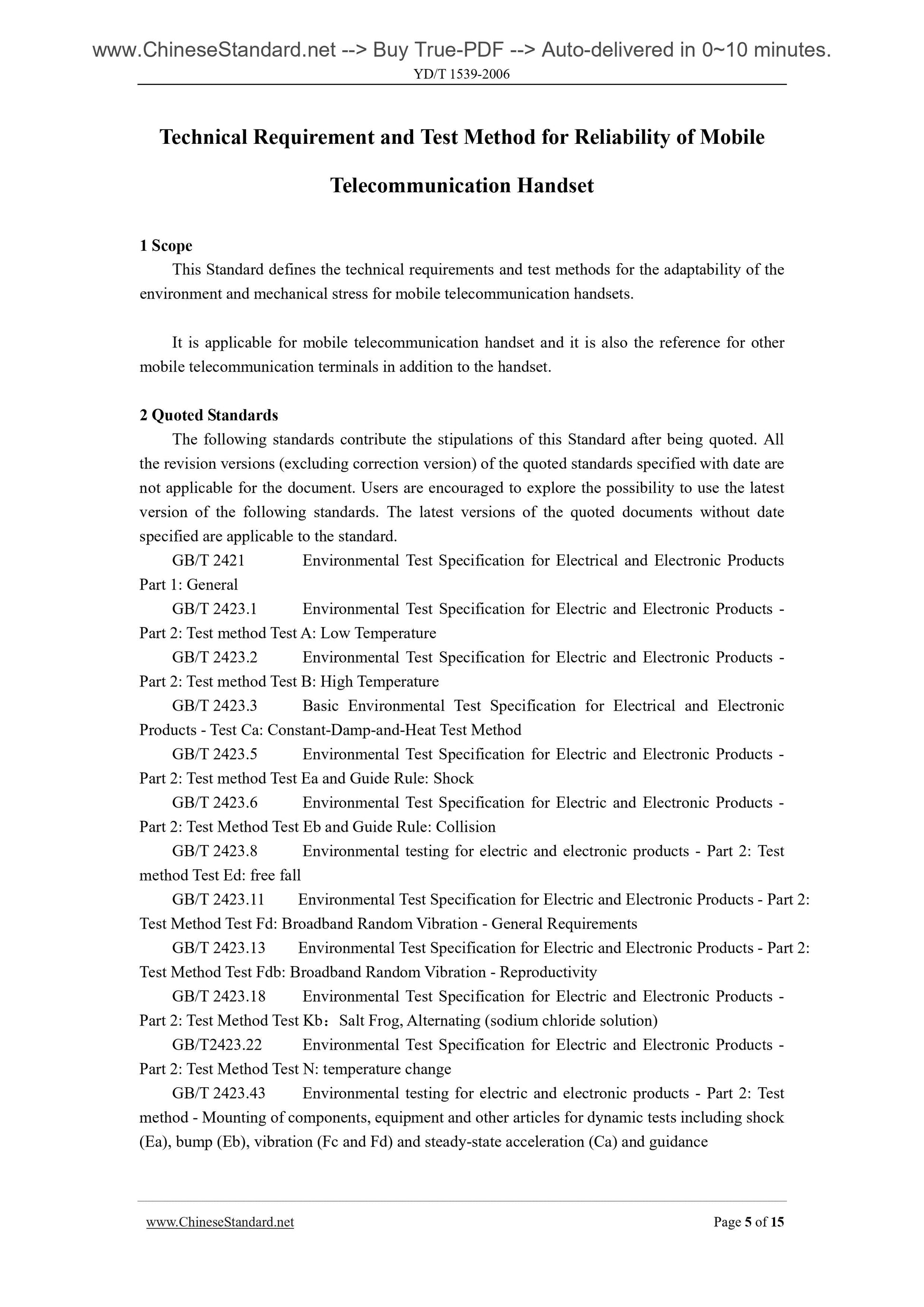

1 Scope
This Standard defines the technical requirements and test methods for the adaptability of the environment and mechanical stress for mobile telecommunication handsets. It is applicable for mobile telecommunication handset and it is also the reference for other mobile telecommunication terminals in addition to the handset.
2 Quoted Standards
The following standards contribute the stipulations of this Standard after being quoted. All the revision versions (excluding correction version) of the quoted standards specified with date are not applicable for the document. Users are encouraged to explore the possibility to use the latest version of the following standards. The latest versions of the quoted documents without date specified are applicable to the standard.
GB/T 2421 Environmental Test Specification for Electrical and Electronic Products Part 1. General
GB/T 2423.1 Environmental Test Specification for Electric and Electronic Products - Part 2. Test method Test A. Low Temperature
GB/T 2423.2 Environmental Test Specification for Electric and Electronic Products - Part 2. Test method Test B. High Temperature
GB/T 2423.3 Basic Environmental Test Specification for Electrical and Electronic Products - Test Ca. Constant-Damp-and-Heat Test Method
GB/T 2423.5 Environmental Test Specification for Electric and Electronic Products - Part 2. Test method Test Ea and Guide Rule. Shock
GB/T 2423.6 Environmental Test Specification for Electric and Electronic Products - Part 2. Test Method Test Eb and Guide Rule. Collision
GB/T 2423.8 Environmental testing for electric and electronic products - Part 2. Test method Test Ed. free fall
GB/T 2423.11 Environmental Test Specification for Electric and Electronic Products - Part 2. Test Method Test Fd. Broadband Random Vibration - General Requirements
GB/T 2423.13 Environmental Test Specification for Electric and Electronic Products - Part 2. Test Method Test Fdb. Broadband Random Vibration - Reproductivity
GB/T 2423.18 Environmental Test Specification for Electric and Electronic Products - Part 2. Test Method Test Kb. Salt Frog, Alternating (sodium chloride solution) GB/T2423.22 Environmental Test Specification for Electric and Electronic Products - Part 2. Test Method Test N. temperature change
GB/T 2423.43 Environmental testing for electric and electronic products - Part 2. Test method - Mounting of components, equipment and other articles for dynamic tests including shock (Ea), bump (Eb), vibration (Fc and Fd) and steady-state acceleration (Ca) and guidance GB/T 2423.44 Environmental Test Specification for Electric and Electronic Products - Part 2. Test method Test Eg. Spring Hammer for Knock Test
GB/T 2424.10 Environmental Test Specification for Electrical and Electronic Products ?€? General Rule for Atmospheric Corrosion Acceleration Test
GB/T 9286-1998 Paints and Varnishes ?€? Cross-cut test for films

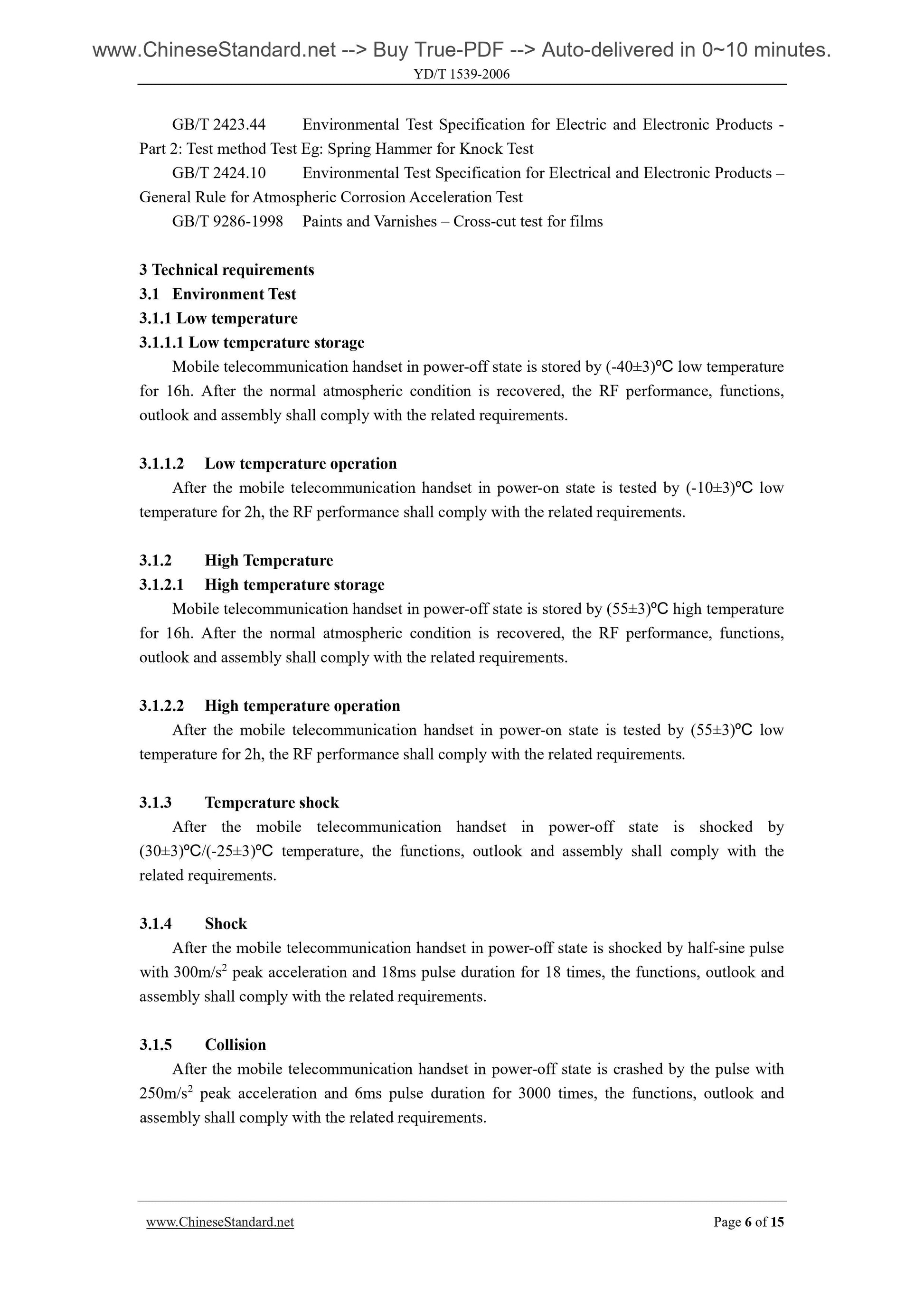

3 Technical requirements
3.1 Environment Test
3.1.1 Low temperature
3.1.1.1 Low temperature storage
Mobile telecommunication handset in power-off state is stored by (-40??3)??C low temperature for 16h. After the normal atmospheric condition is recovered, the RF performance, functions, outlook and assembly shall comply with the related requirements.
3.1.1.2 Low temperature operation
After the mobile telecommunication handset in power-on state is tested by (-10??3)??C low temperature for 2h, the RF performance shall comply with the related requirements. 3.1.2 High Temperature
3.1.2.1 High temperature storage
Mobile telecommunication handset in power-off state is stored by (55??3)??C high temperature for 16h. After the normal atmospheric condition is recovered, the RF performance, functions, outlook and assembly shall comply with the related requirements.
3.1.2.2 High temperature operation
After the mobile telecommunication handset in power-on state is tested by (55??3)??C low temperature for 2h, the RF performance shall comply with the related requirements. 3.1.3 Temperature shock
After the mobile telecommunication handset in power-off state is shocked by (30??3)??C/(-25??3)??C temperature, the functions, outlook and assembly shall comply with the related requirements.
3.1.4 Shock
After the mobile telecommunication handset in power-off state is shocked by half-sine pulse with 300m/s2 peak acceleration and 18ms pulse duration for 18 times, the functions, outlook and assembly shall comply with the related requirements.
3.1.5 Collision
After the mobile telecommunication handset in power-off state is crashed by the pulse with 250m/s2 peak acceleration and 6ms pulse duration for 3000 times, the functions, outlook and assembly shall comply with the related requirements.

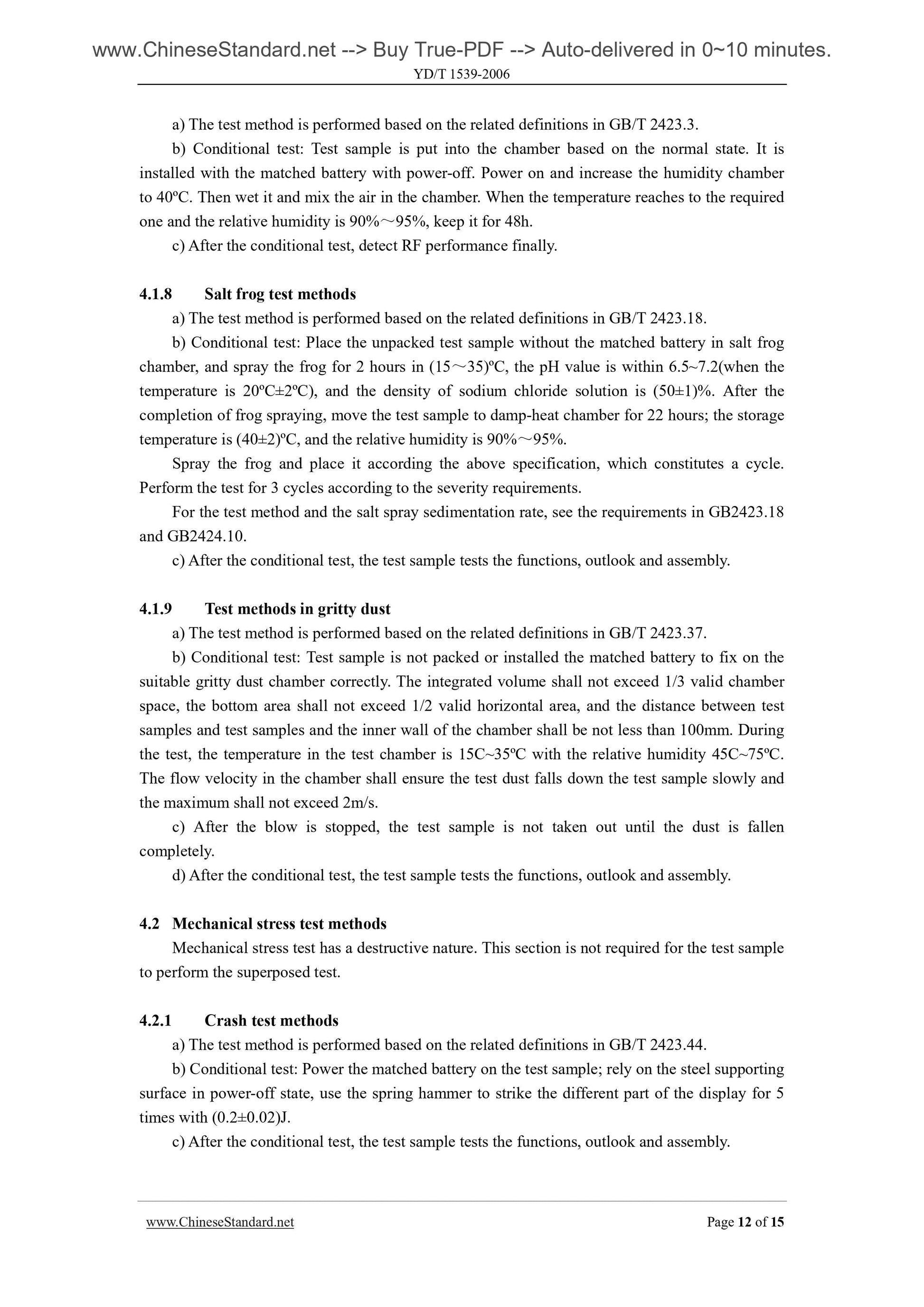

a) The test method is performed based on the related definitions in GB/T 2423.3. b) Conditional test. Test sample is put into the chamber based on the normal state. It is installed with the matched battery with power-off. Power on and increase the humidity chamber to 40??C. Then wet it and mix the air in the chamber. When the temperature reaches to the required one and the relative humidity is 90%???95%, keep it for 48h.
c) After the conditional test, detect RF performance finally.
4.1.8 Salt frog test methods
a) The test method is performed based on the related definitions in GB/T 2423.18. b) Conditional test. Place the unpacked test sample without the matched battery in salt frog chamber, and spray the frog for 2 hours in (15???35)??C, the pH value is within 6.5~7.2(when the temperature is 20??C??2??C), and the density of sodium chloride solution is (50??1)%. After the completion of frog spraying, move the test sampl...
