YD/T 1465-2006 English PDF (YDT1465-2006)

YD/T 1465-2006 English PDF (YDT1465-2006)

Regular price $145.00 USD
Regular price Sale price $145.00 USD
Sale Sold out
Shipping calculated at checkout.
Quotation: 24-hr self-service. Click YD/T 1465-2006
See Chinese contents: YD/T 1465-2006

YD/T 1465-2006: Technical Conditions for 10Gbit/s Small Form Factor Pluggable Transceiver Module

This Standard specifies the technical requirements and test methods for 10Gbit/s small form factor pluggable transceiver module; including terms, definitions, optical interface technical requirements and test methods, electrical interface technical requirements and limit working conditions, reliability test classification and test methods, product inspection and product management of optical module of XFP module.

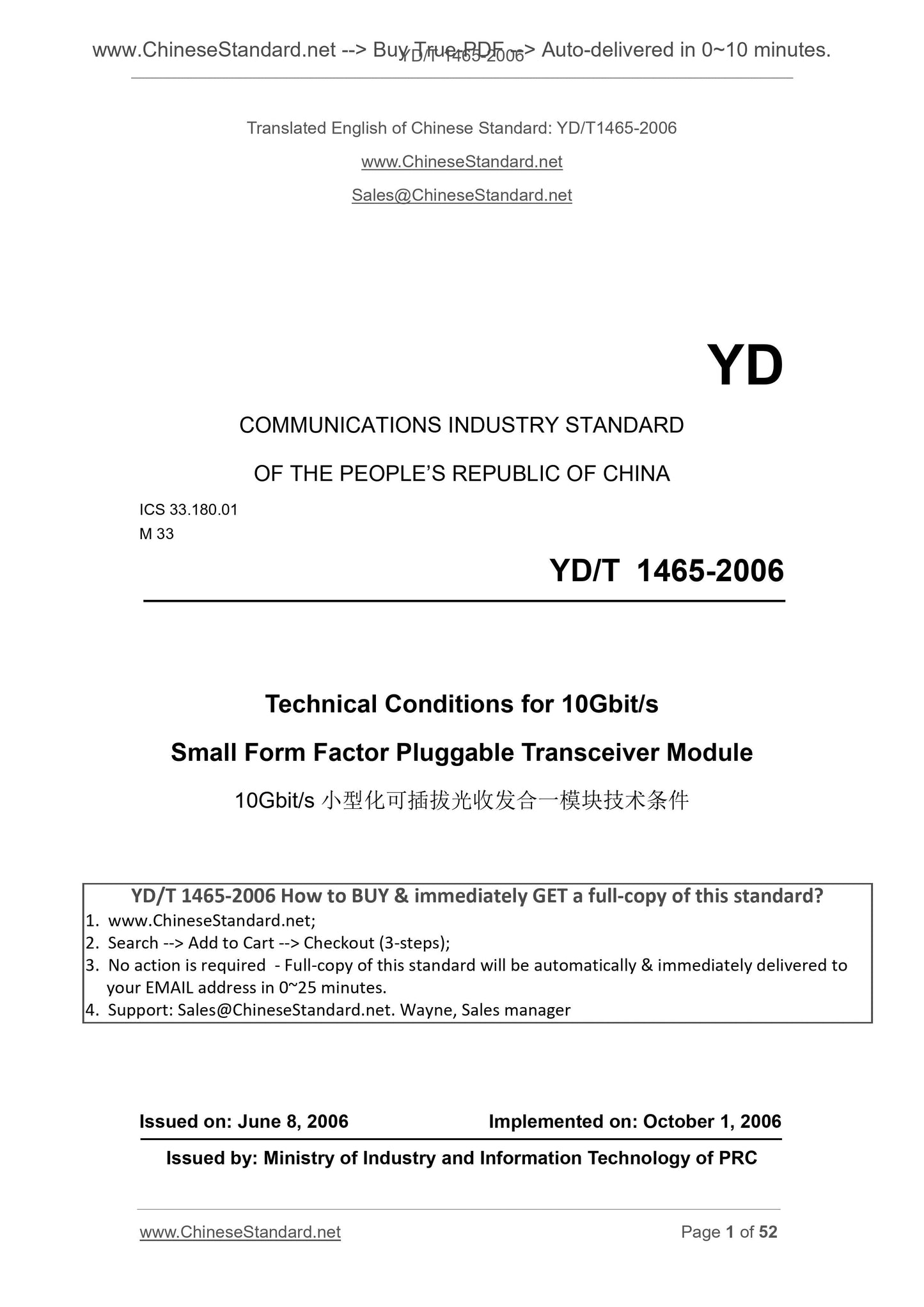

YD/T 1465-2006
YD
COMMUNICATIONS INDUSTRY STANDARD
OF THE PEOPLE REPUBLIC OF CHINA
ICS 33.180.01
M 33
Technical Conditions for 10Gbit/s
Small Form Factor Pluggable Transceiver Module
ISSUED ON. JUNE 8, 2006
IMPLEMENTED ON. OCTOBER 1, 2006
Issued by. Ministry of Industry and Information Technology of PRC

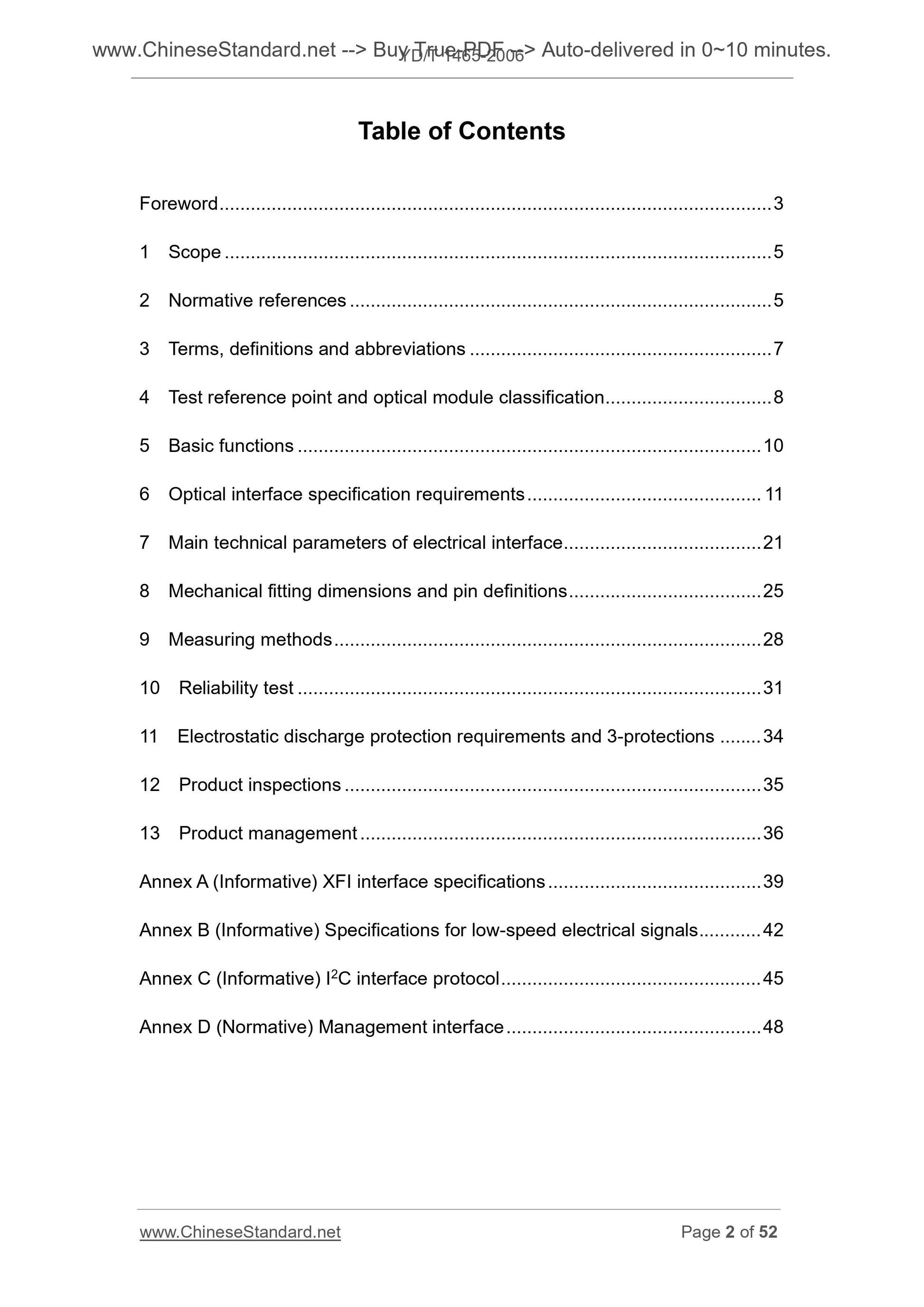

Table of Contents
Foreword ... 3
1 Scope ... 5
2 Normative references ... 5
3 Terms, definitions and abbreviations ... 7
4 Test reference point and optical module classification ... 8
5 Basic functions ... 10
6 Optical interface specification requirements ... 11
7 Main technical parameters of electrical interface ... 21
8 Mechanical fitting dimensions and pin definitions ... 25
9 Measuring methods ... 28
10 Reliability test ... 31
11 Electrostatic discharge protection requirements and 3-protections ... 34 12 Product inspections ... 35
13 Product management ... 36
Annex A (Informative) XFI interface specifications ... 39
Annex B (Informative) Specifications for low-speed electrical signals ... 42 Annex C (Informative) I2C interface protocol ... 45
Annex D (Normative) Management interface ... 48

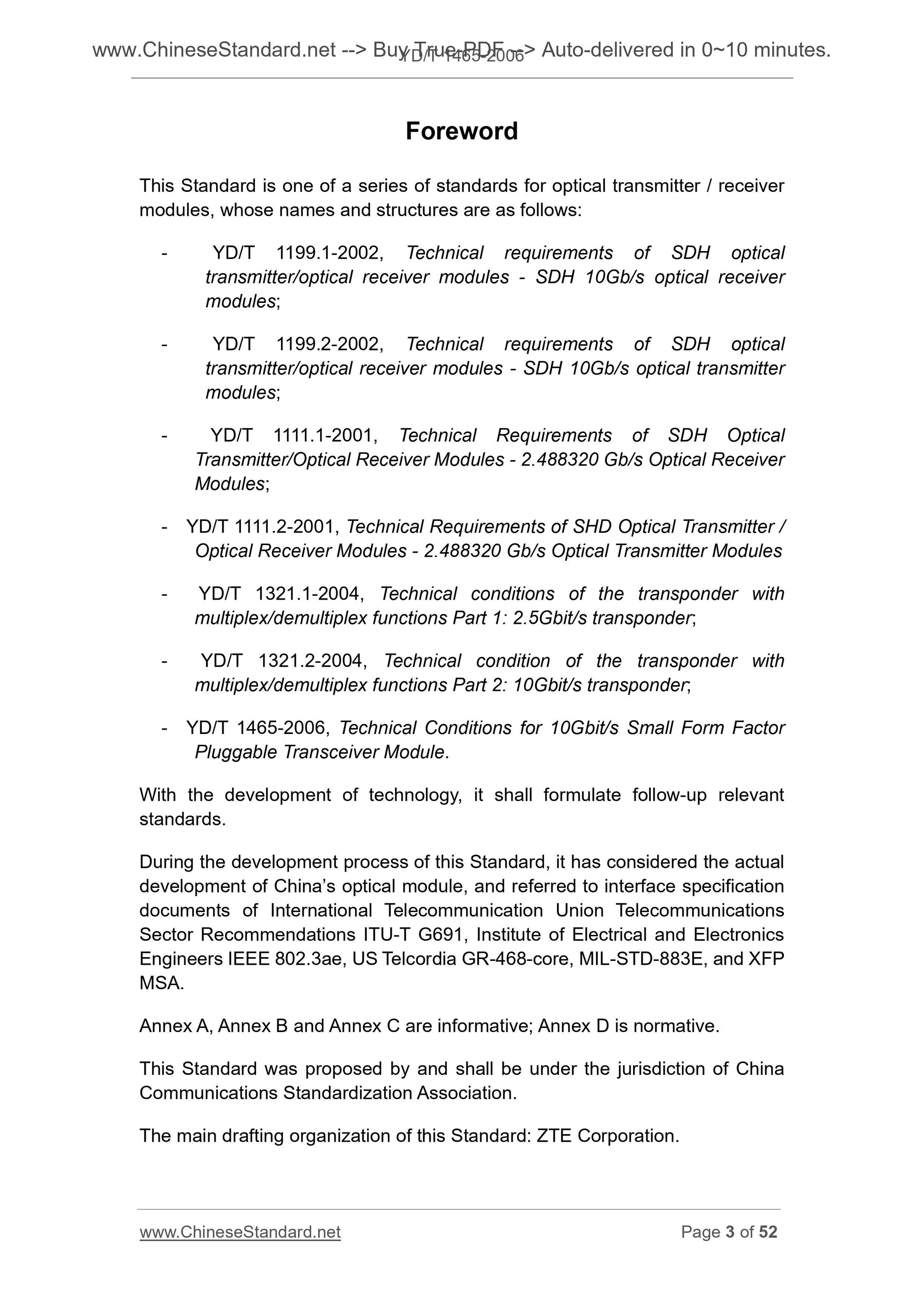

Foreword
This Standard is one of a series of standards for optical transmitter / receiver modules, whose names and structures are as follows.
- YD/T 1199.1-2002, Technical requirements of SDH optical
transmitter/optical receiver modules - SDH 10Gb/s optical receiver
modules;
- YD/T 1199.2-2002, Technical requirements of SDH optical
transmitter/optical receiver modules - SDH 10Gb/s optical transmitter
modules;
- YD/T 1111.1-2001, Technical Requirements of SDH Optical
Transmitter/Optical Receiver Modules - 2.488320 Gb/s Optical Receiver
Modules;
- YD/T 1111.2-2001, Technical Requirements of SHD Optical Transmitter / Optical Receiver Modules - 2.488320 Gb/s Optical Transmitter Modules
- YD/T 1321.1-2004, Technical conditions of the transponder with
multiplex/demultiplex functions Part 1. 2.5Gbit/s transponder;
- YD/T 1321.2-2004, Technical condition of the transponder with
multiplex/demultiplex functions Part 2. 10Gbit/s transponder;
- YD/T 1465-2006, Technical Conditions for 10Gbit/s Small Form Factor
Pluggable Transceiver Module.
With the development of technology, it shall formulate follow-up relevant standards.
During the development process of this Standard, it has considered the actual development of China?€?s optical module, and referred to interface specification documents of International Telecommunication Union Telecommunications
Sector Recommendations ITU-T G691, Institute of Electrical and Electronics Engineers IEEE 802.3ae, US Telcordia GR-468-core, MIL-STD-883E, and XFP MSA.
Annex A, Annex B and Annex C are informative; Annex D is normative.
This Standard was proposed by and shall be under the jurisdiction of China Communications Standardization Association.
The main drafting organization of this Standard. ZTE Corporation.

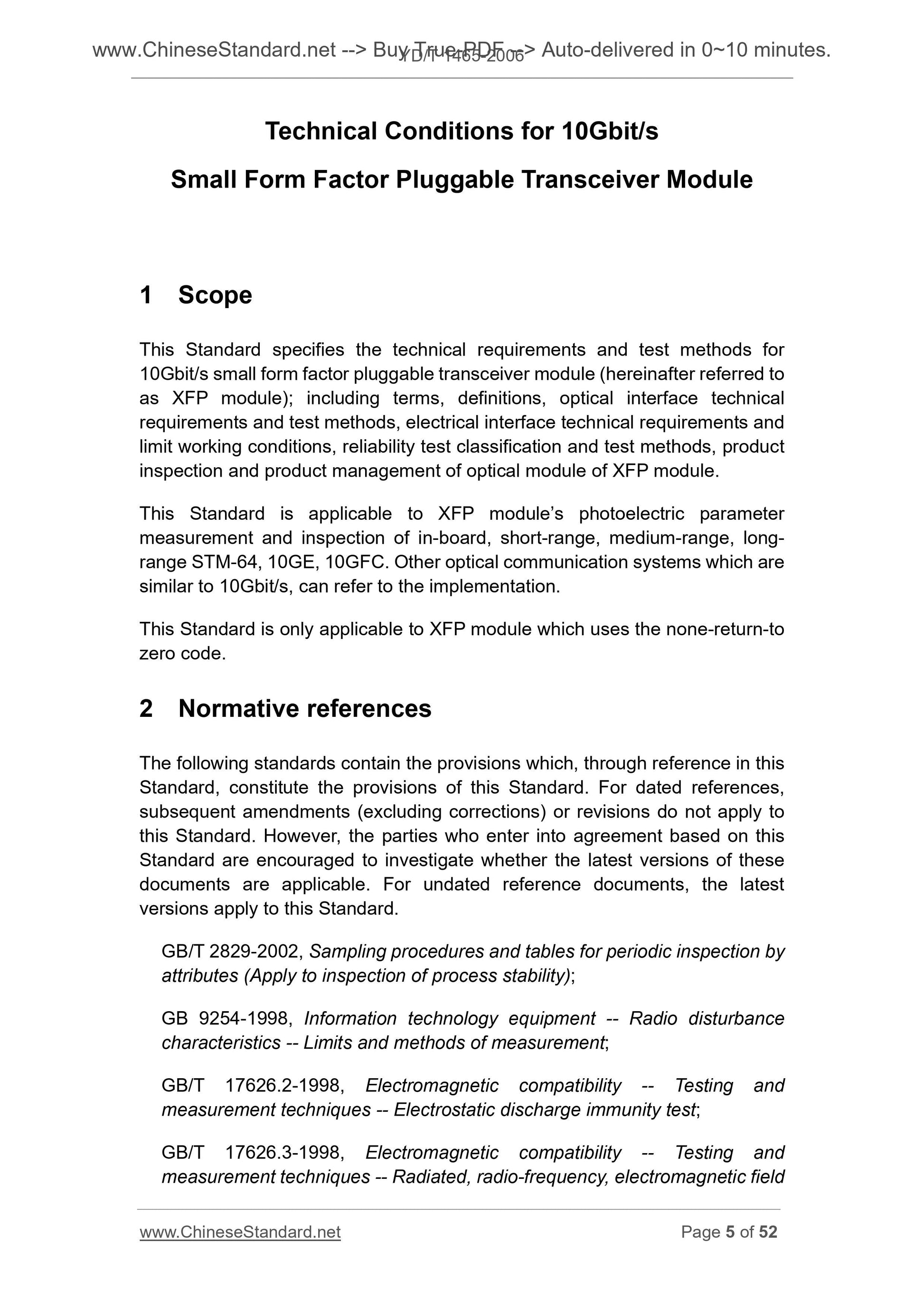

Technical Conditions for 10Gbit/s
Small Form Factor Pluggable Transceiver Module
1 Scope
This Standard specifies the technical requirements and test methods for 10Gbit/s small form factor pluggable transceiver module (hereinafter referred to as XFP module); including terms, definitions, optical interface technical requirements and test methods, electrical interface technical requirements and limit working conditions, reliability test classification and test methods, product inspection and product management of optical module of XFP module.
This Standard is applicable to XFP module?€?s photoelectric parameter
measurement and inspection of in-board, short-range, medium-range, long- range STM-64, 10GE, 10GFC. Other optical communication systems which are similar to 10Gbit/s, can refer to the implementation.
This Standard is only applicable to XFP module which uses the none-return-to zero code.
2 Normative references
The following standards contain the provisions which, through reference in this Standard, constitute the provisions of this Standard. For dated references, subsequent amendments (excluding corrections) or revisions do not apply to this Standard. However, the parties who enter into agreement based on this Standard are encouraged to investigate whether the latest versions of these documents are applicable. For undated reference documents, the latest
versions apply to this Standard.
GB/T 2829-2002, Sampling procedures and tables for periodic inspection by attributes (Apply to inspection of process stability);
GB 9254-1998, Information technology equipment -- Radio disturbance
characteristics -- Limits and methods of measurement;
GB/T 17626.2-1998, Electromagnetic compatibility -- Testing and
measurement techniques -- Electrostatic discharge immunity test;
GB/T 17626.3-1998, Electromagnetic compatibility -- Testing and
measurement techniques -- Radiated, radio-frequency, electromagnetic field immunity test;

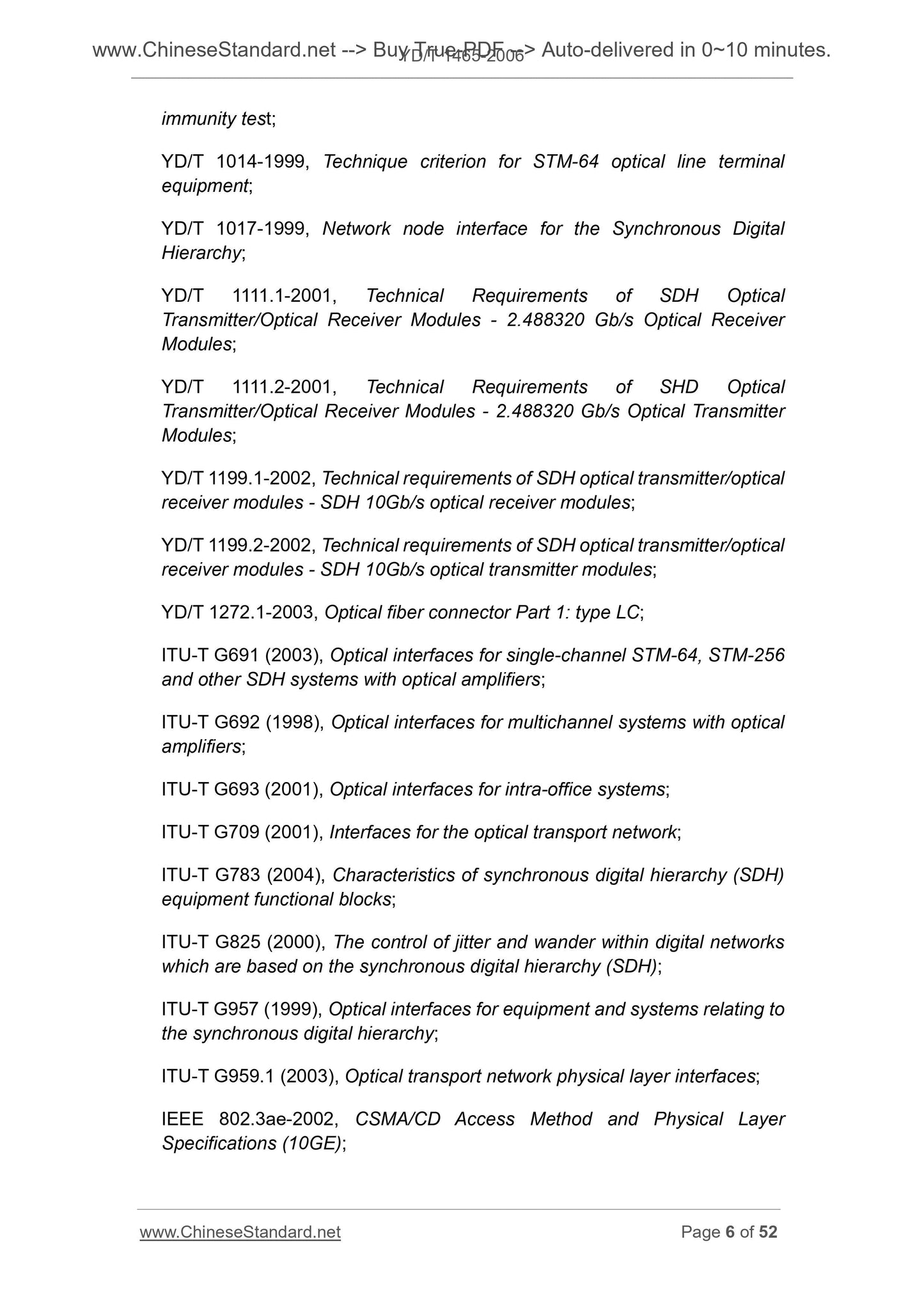

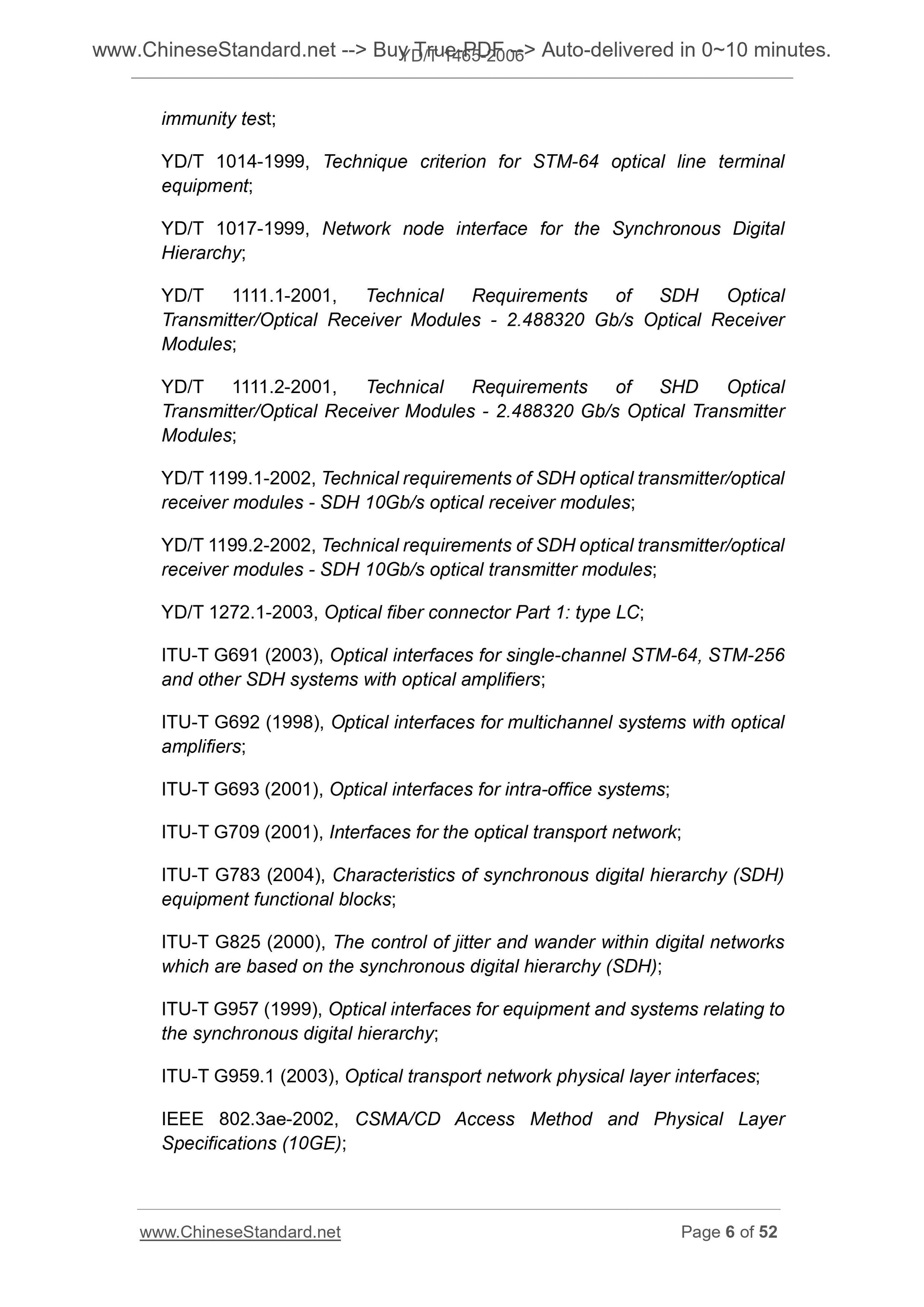

YD/T 1014-1999, Technique criterion for STM-64 optical line terminal
equipment;
YD/T 1017-1999, Network node interface for the Synchronous Digital
Hierarchy;
YD/T 1111.1-2001, Technical Requirements of SDH Optical
Transmitter/Optical Receiver Modules - 2.488320 Gb/s Optical Receiver
Modules;
YD/T 1111.2-2001, Technical Requirements of SHD Optical
Transmitter/Optical Receiver Modules - 2.488320 Gb/s Optical Transmitter Modules;
YD/T 1199.1-2002, Technical requirements of SDH optical transmitter/optical receiver modules - SDH 10Gb/s optical receiver modules;
YD/T 1199.2-2002, Technical requirements of SDH optical transmitter/optical receiver modules - SDH 10Gb/s optical transmitter modules;
YD/T 1272.1-2003, Optical fiber connector Part 1. type LC;
ITU-T G691 (2003), Optical interfaces for single-channel STM-64, STM-256 and other SDH systems with optical amplifiers;
ITU-T G692 (1998), Optical interfaces for multichannel systems with optical amplifiers;
ITU-T G693 (2001), Optical interfaces for intra-office systems;
ITU-T G709 (2001), Interfaces for the optical transport network;
ITU-T G783 (2004), Characteristics of synchronous digital hierarchy (SDH) equipment functional blocks;
ITU-T G825 (2000), The control of jitter and wander within digital networks which are based on the synchronous digital hierarchy (SDH);
ITU-T G957 (1999), Optical interfaces for equipment and systems relating to the synchronous digital hierarchy;
ITU-T G959.1 (2003), Optical transport network physical layer interfaces; IEEE 802.3ae-2002, CSMA/CD Access Method and Physical Layer
Specifications (10GE);

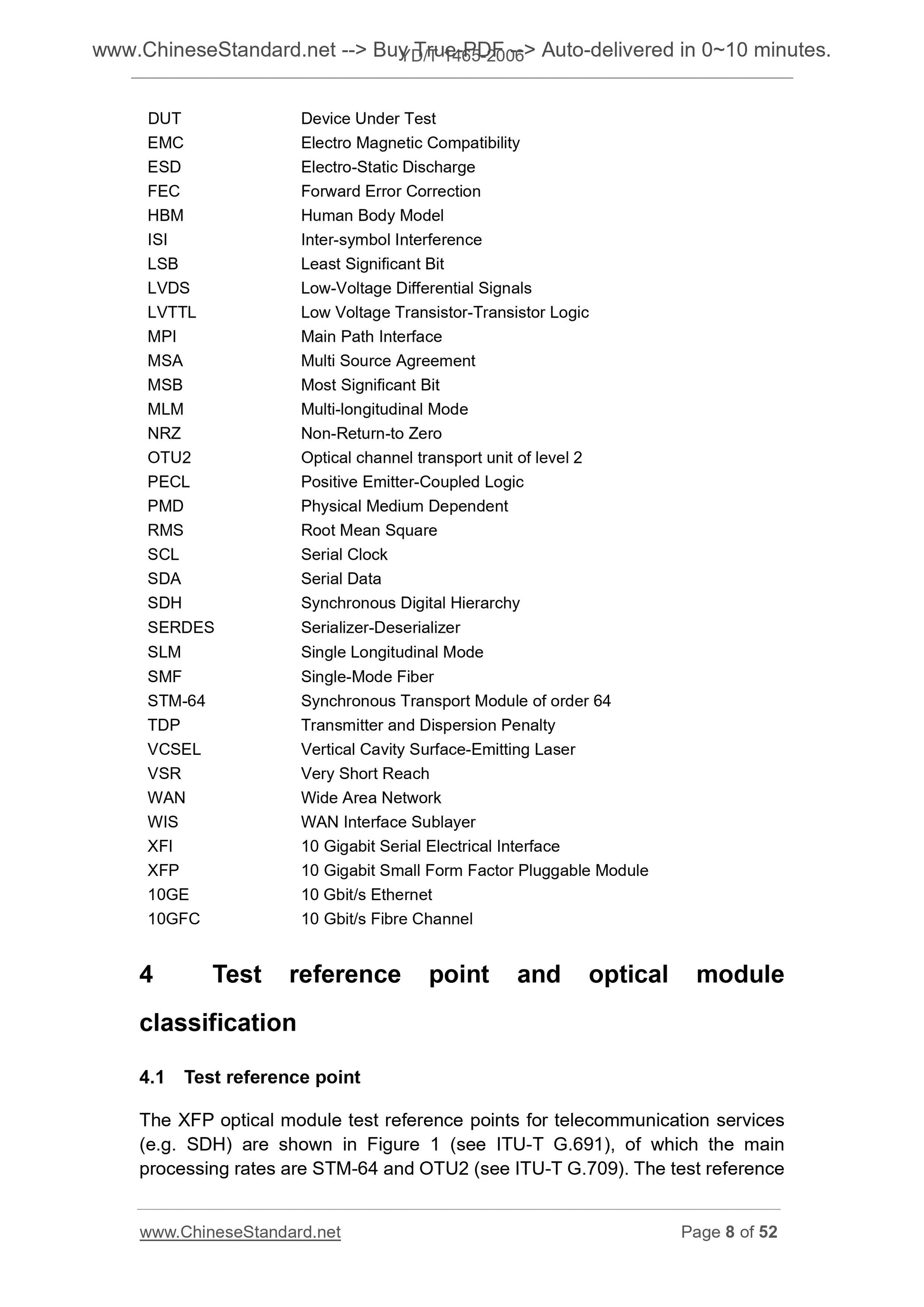

DUT Device Under Test
EMC Electro Magnetic Compatibility
ESD Electro-Static Discharge
FEC Forward Error Correction
HBM Human Body Model
ISI Inter-symbol Interference
LSB Least Significant Bit
LVDS Low-Voltage Differential Signals
LVTTL Low Voltage Transistor-Transistor Logic
MPI Main Path Interface
MSA Multi Source Agreement
MSB Most Significant Bit
MLM Multi-longitudinal Mode
NRZ Non-Return-to Zero
OTU2 Optical channel transport unit of level 2
PECL Positive Emitter-Coupled Logic
PMD Physical Medium Dependent
RMS Root Mean Square
SCL Serial Clock
SDA Serial Data
SDH Synchronous Digital Hierarchy
SERDES Serializer-Deserializer
SLM Single Longitudinal Mode
SMF Single-Mode Fiber
STM-64 Synchronous Transport Module of order 64
TDP Transmitter and Dispersion Penalty
VCSEL Vertical Cavity Surface-Emitting Laser
VSR Very Short Reach
WAN Wide Area Network
WIS WAN Interface Sublayer
XFI 10 Gigabit Serial Electrical Interface
XFP 10 Gigabit Small Form Factor Pluggable Module
10GE 10 Gbit/s Ethernet
10GFC 10 Gbit/s Fibre Channel
4 Test reference point and optical module
classification
4.1 Test reference point
The XFP optical module test reference points for telecommunication services (e.g. SDH) are shown in Figure 1 (see ITU-T G.691), of which the main
processing rates are STM-64 and OTU2 (see ITU-T G.709). The test reference (@BER=10-12) dBm
Minimum overload point (dBm) -1 -1 -1 -1 -1 -1
Receiver reflection coefficient
(max) (dB) -14 -14 -27 -27 -27 -27
Maximum optical channel cost
(dB) 1 1 2 2 1 2
(a) Target distance is only used for classification but not specification; (b) The exit-factory test value of the worst receiving sensitivity should be 2 to 3 dB better than the value at the end of life.

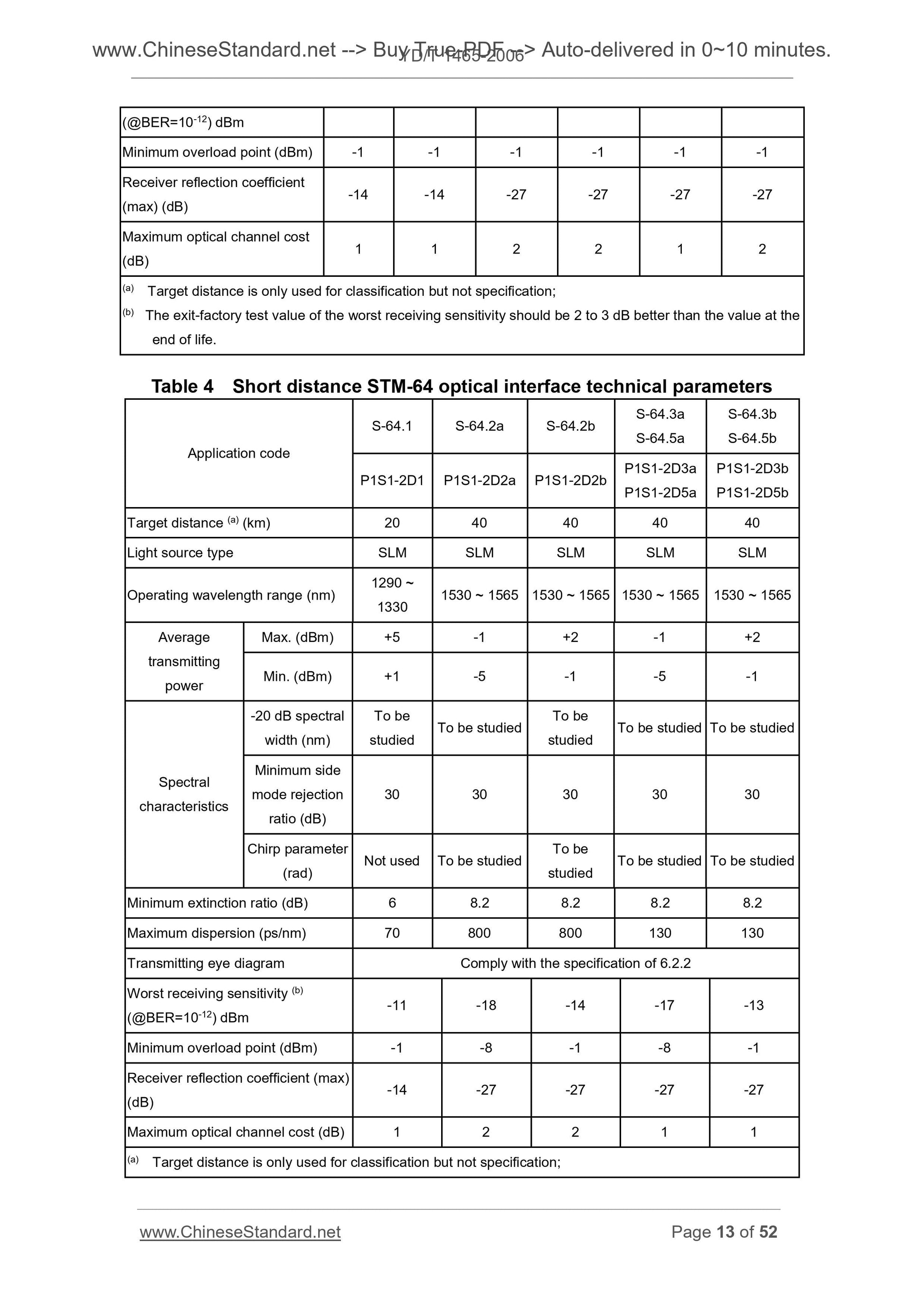

Table 4 Short distance STM-64 optical interface technical parameters
Application code
S-64.1 S-64.2a S-64.2b S-64.3a S-64.5a
S-64.3b
S-64.5b
P1S1-2D1 P1S1-2D2a P1S1-2D2b P1S1-2D3a P1S1-2D5a
P1S1-2D3b
P1S1-2D5b
Target distance (a) (km) 20 40 40 40 40
Light source type SLM SLM SLM SLM SLM
Operating wavelength range (nm) 1290 ~ 1330 1530 ~ 1565 1530 ~ 1565 1530 ~ 1565 1530 ~ 1565 Average
transmitting
power
Max. (dBm) +5 -1 +2 -1...
