YDB 086.1-2012: Requirement and Measurement Methods of Electromagnetic Compatibility for LTE Digital Mobile Telecommunications System - Part 1: Mobile terminal and Ancillary Equipment

This Part specifies the requirement and measurement methods of electromagnetic compatibility for mobile terminal and ancillary equipment of LTE digital mobile telecommunications system. This Part is applicable to the mobile terminal and ancillary equipment of LTE digital mobile telecommunications system.

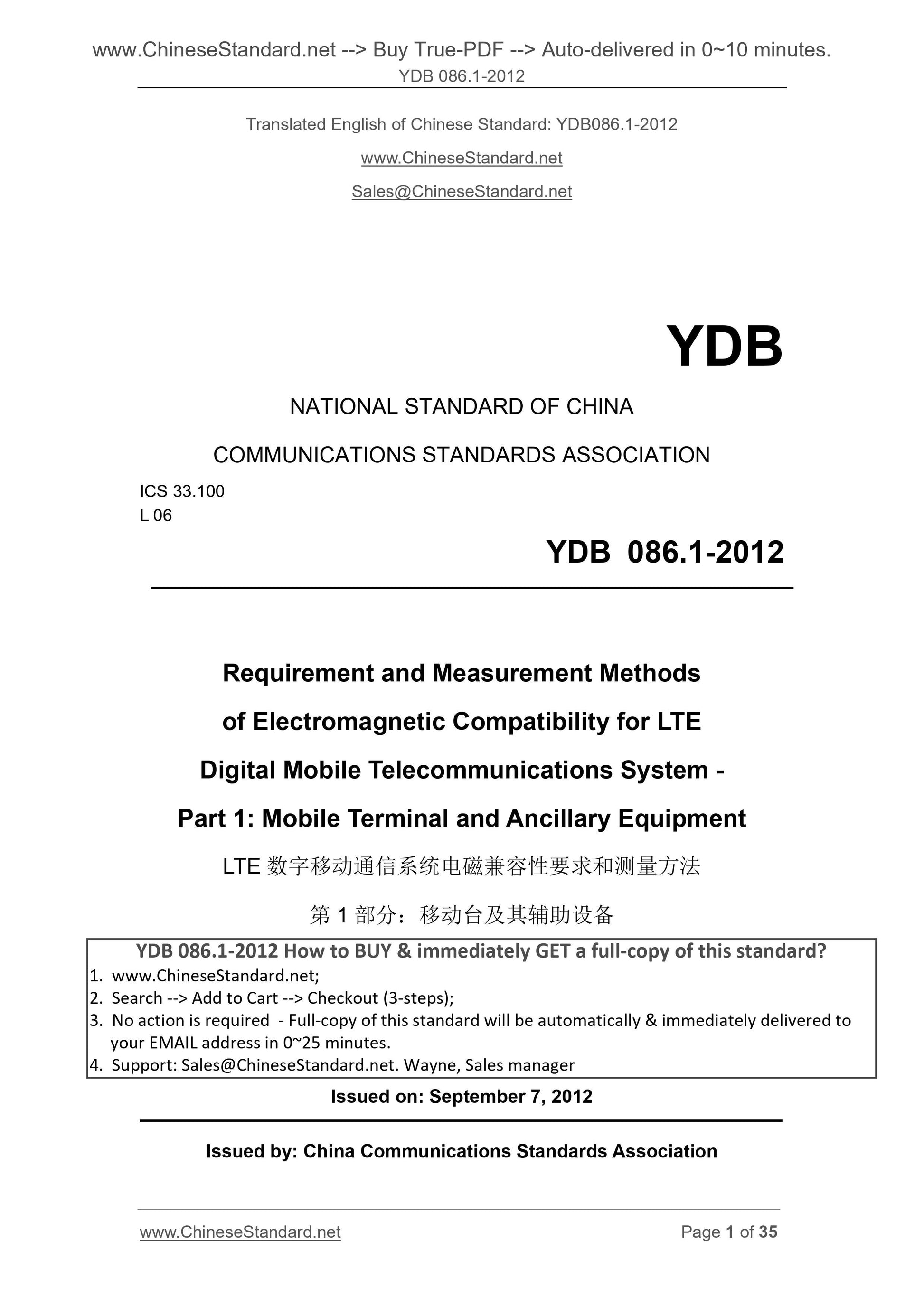

YDB 086.1-2012
YDB
NATIONAL STANDARD OF CHINA
COMMUNICATIONS STANDARDS ASSOCIATION
ICS 33.100
L 06
Requirement and Measurement Methods
of Electromagnetic Compatibility for LTE
Digital Mobile Telecommunications System -
Part 1. Mobile Terminal and Ancillary Equipment
Issued on. September 7, 2012
Issued by. China Communications Standards Association

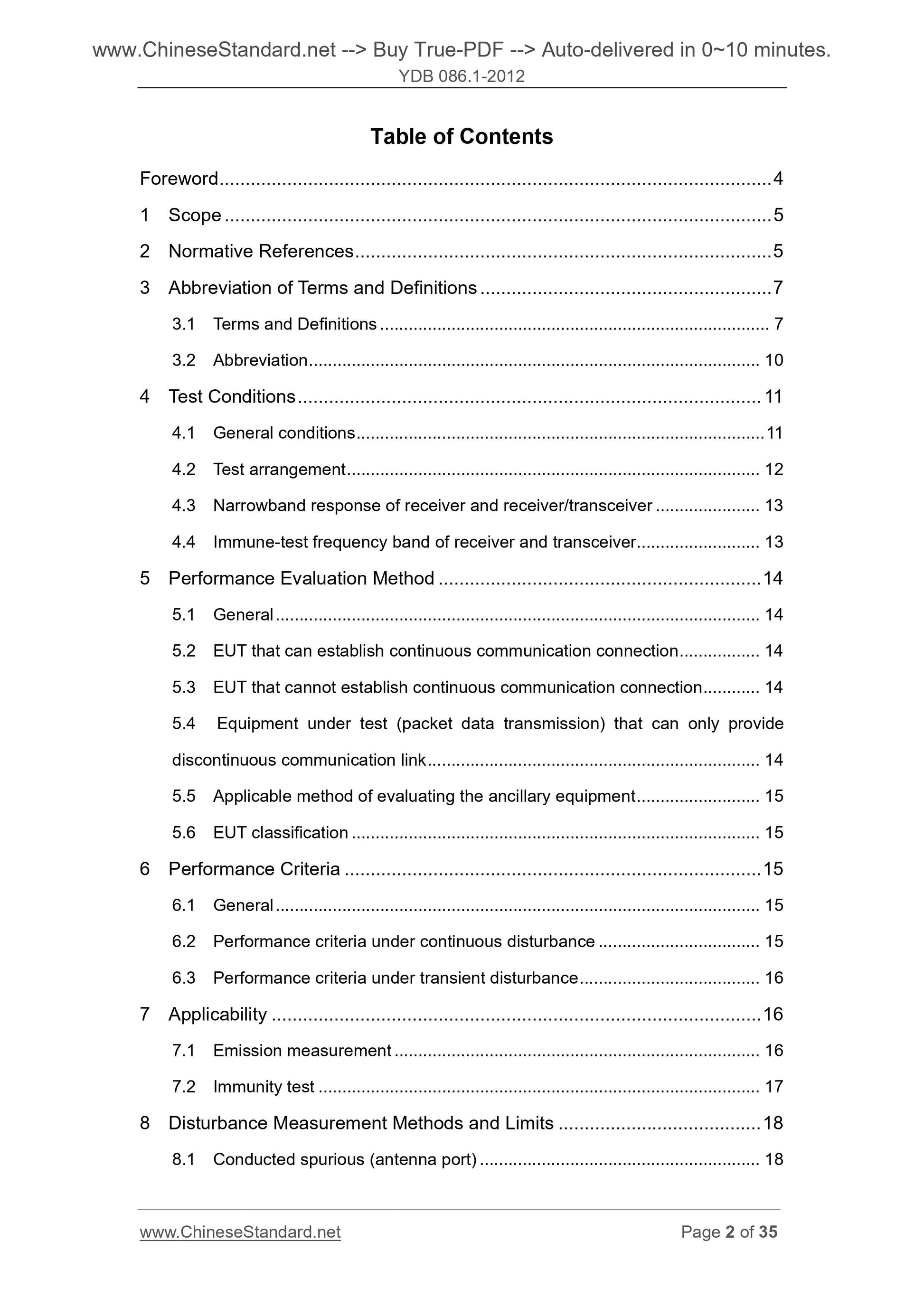

Table of Contents
Foreword ... 4
1 Scope ... 5
2 Normative References ... 5
3 Abbreviation of Terms and Definitions ... 7
3.1 Terms and Definitions ... 7

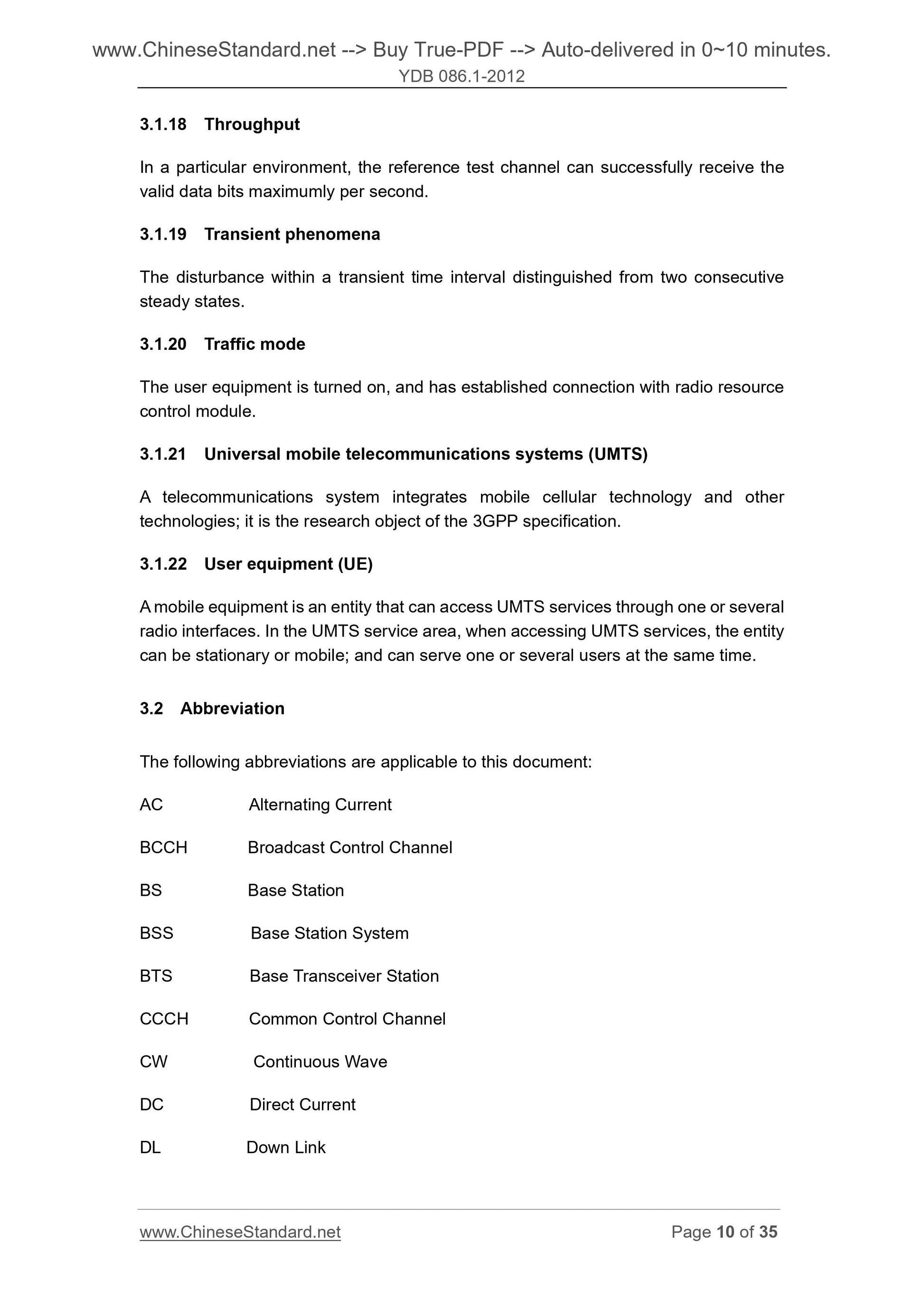

3.2 Abbreviation ... 10
4 Test Conditions ... 11
4.1 General conditions ... 11

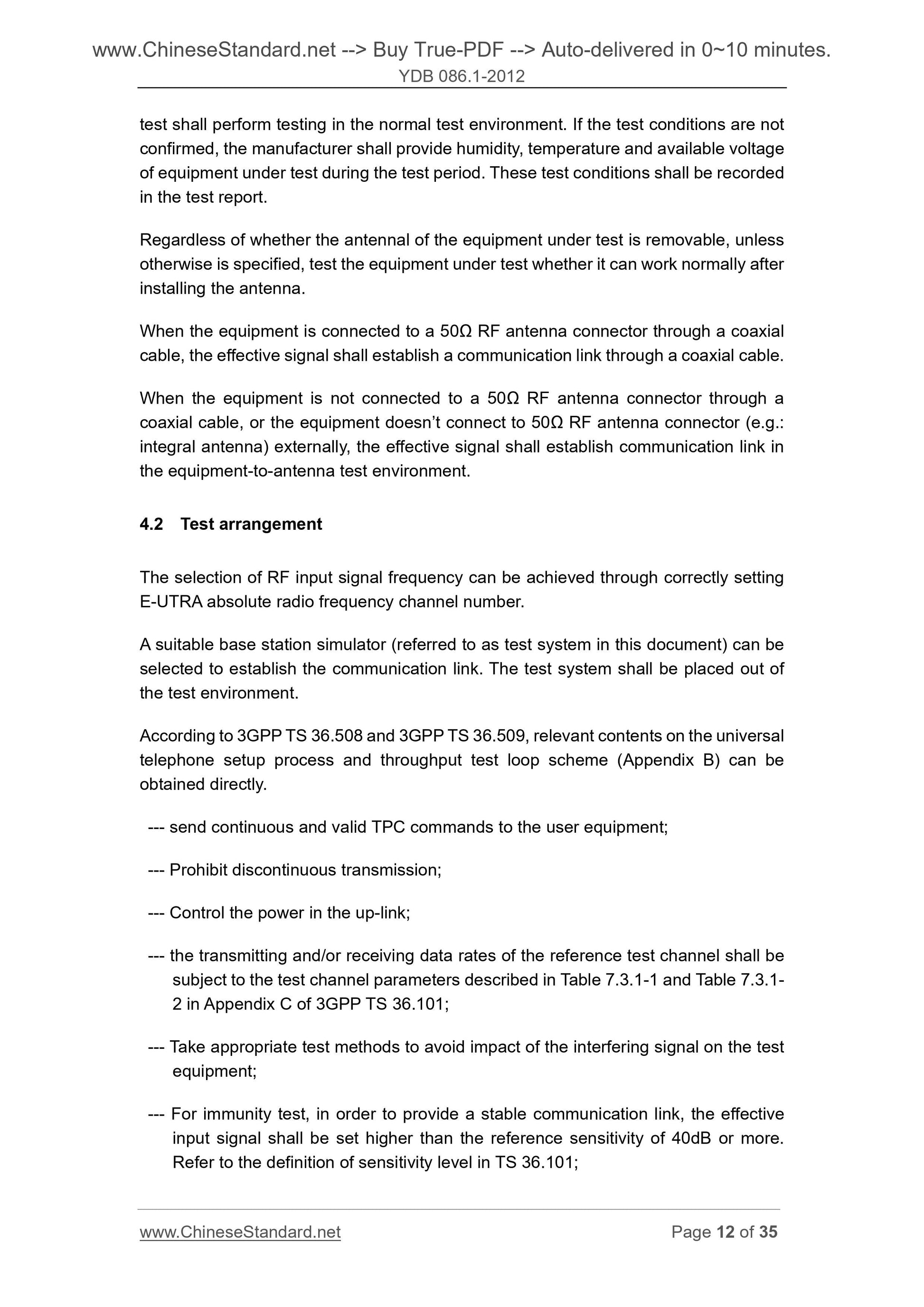

4.2 Test arrangement ... 12
4.3 Narrowband response of receiver and receiver/transceiver ... 13
4.4 Immune-test frequency band of receiver and transceiver ... 13

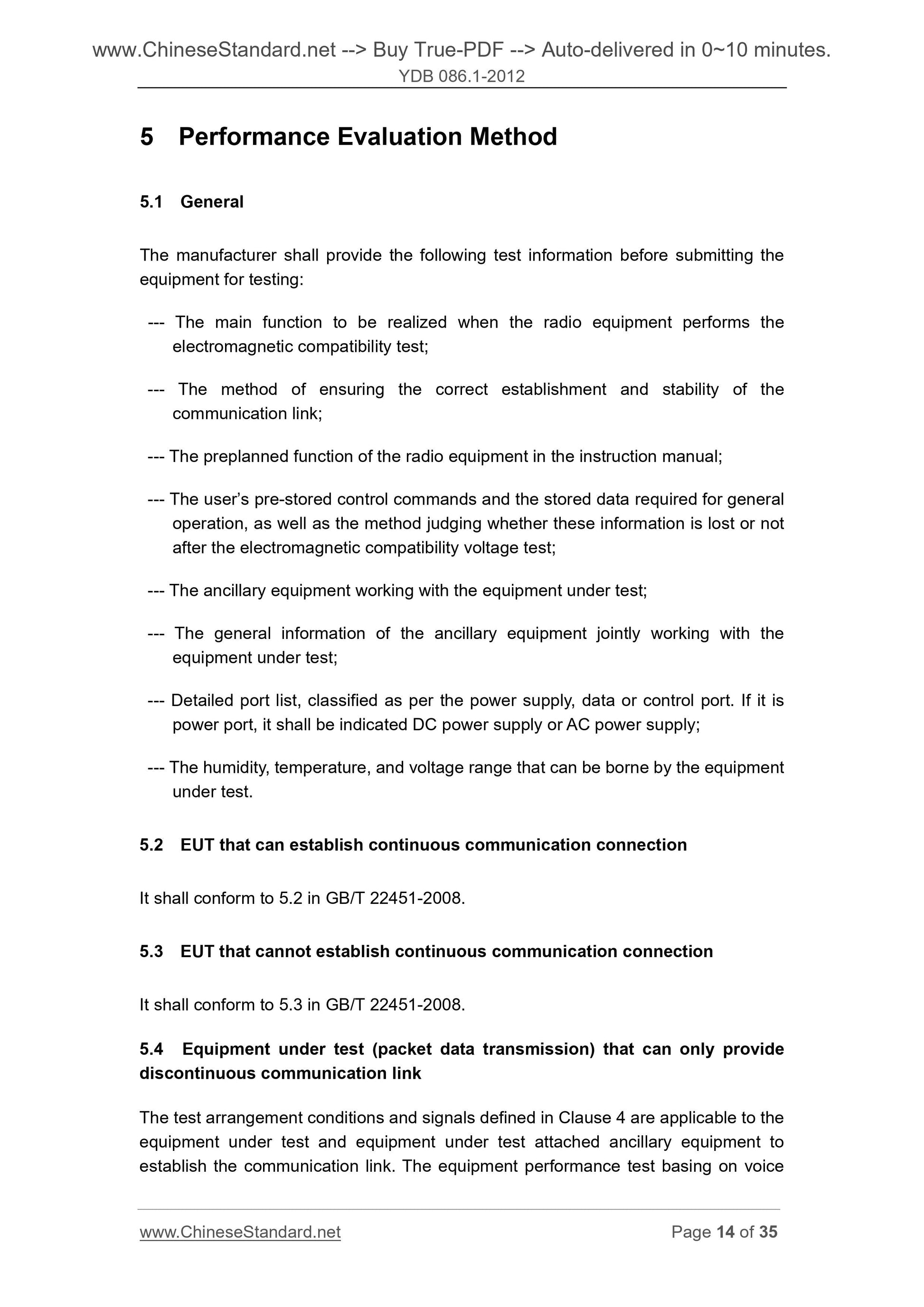

5 Performance Evaluation Method ... 14
5.1 General ... 14
5.2 EUT that can establish continuous communication connection ... 14
5.3 EUT that cannot establish continuous communication connection ... 14 5.4 Equipment under test (packet data transmission) that can only provide discontinuous communication link ... 14
5.5 Applicable method of evaluating the ancillary equipment ... 15
5.6 EUT classification ... 15

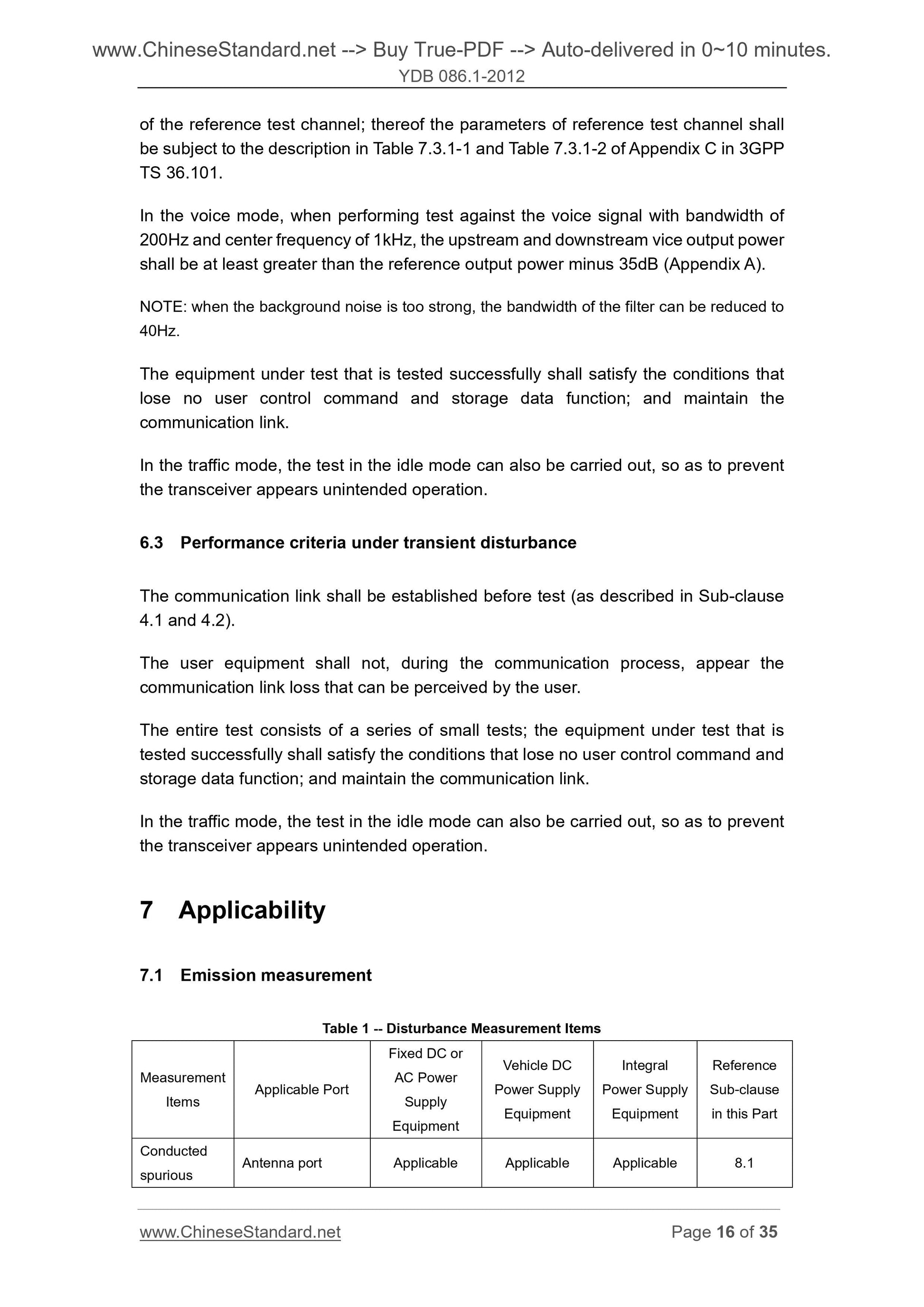

6 Performance Criteria ... 15
6.1 General ... 15
6.2 Performance criteria under continuous disturbance ... 15
6.3 Performance criteria under transient disturbance ... 16

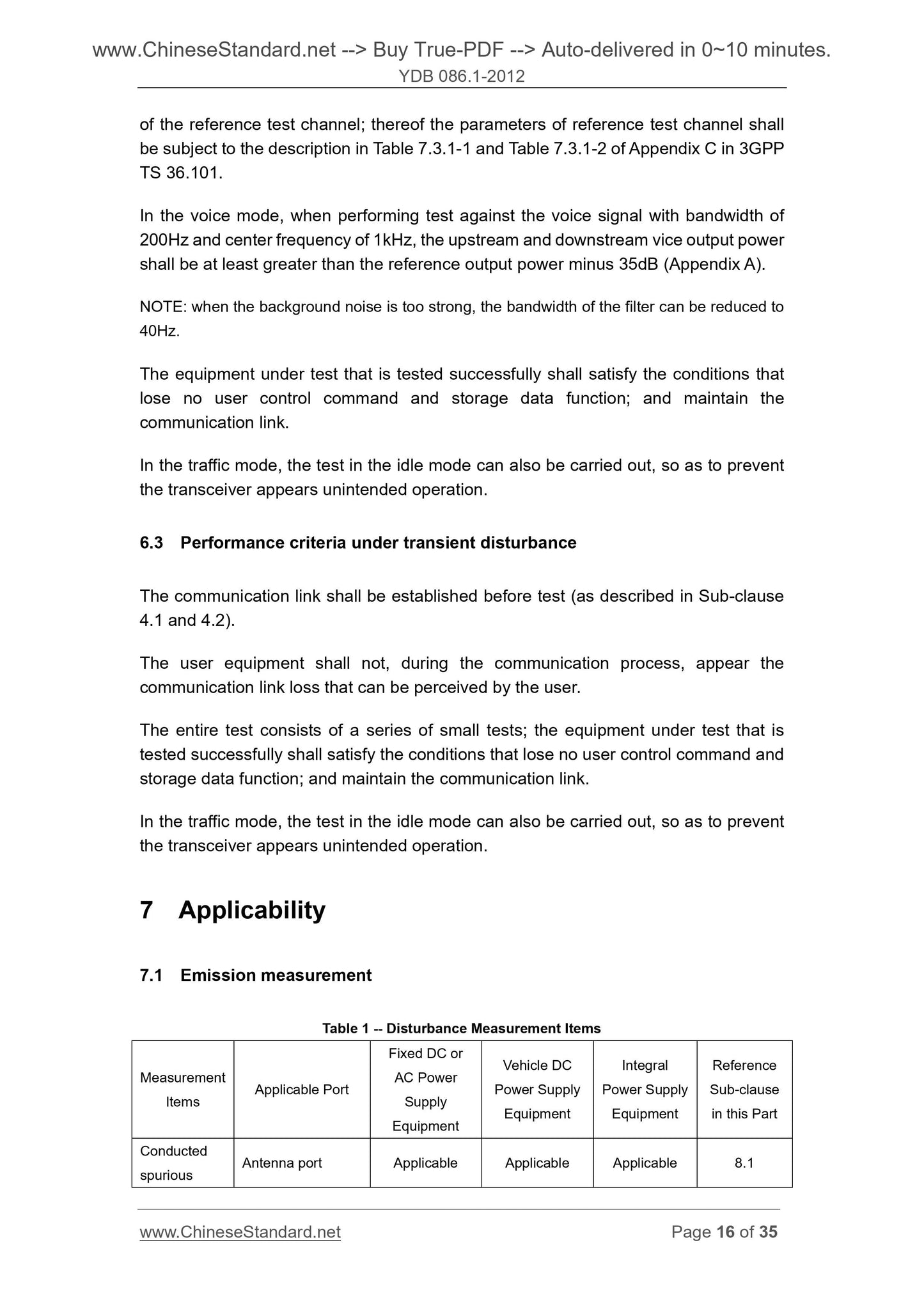

7 Applicability ... 16
7.1 Emission measurement ... 16
7.2 Immunity test ... 17
8 Disturbance Measurement Methods and Limits ... 18
8.1 Conducted spurious (antenna port) ... 18

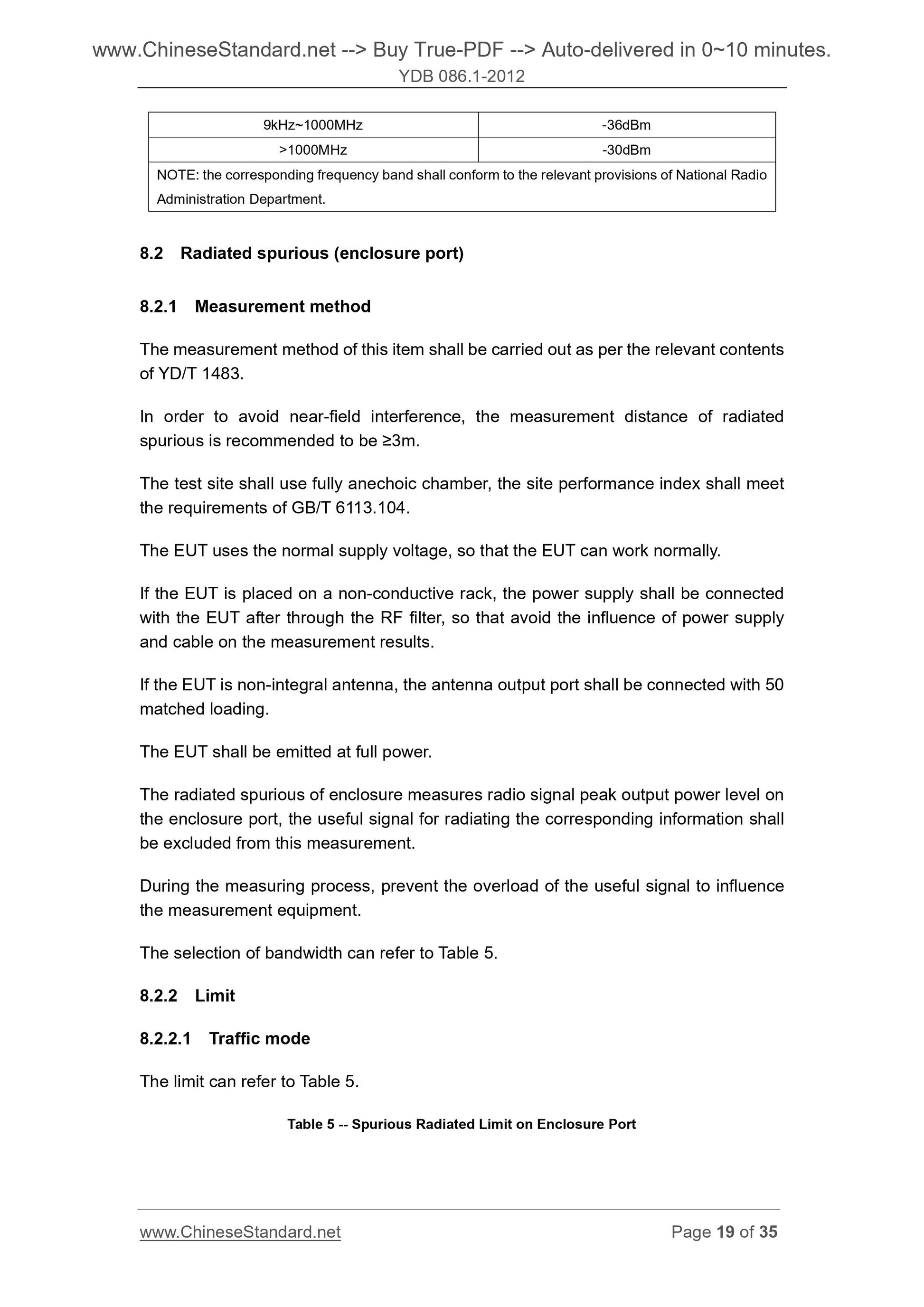

8.2 Radiated spurious (enclosure port) ... 19

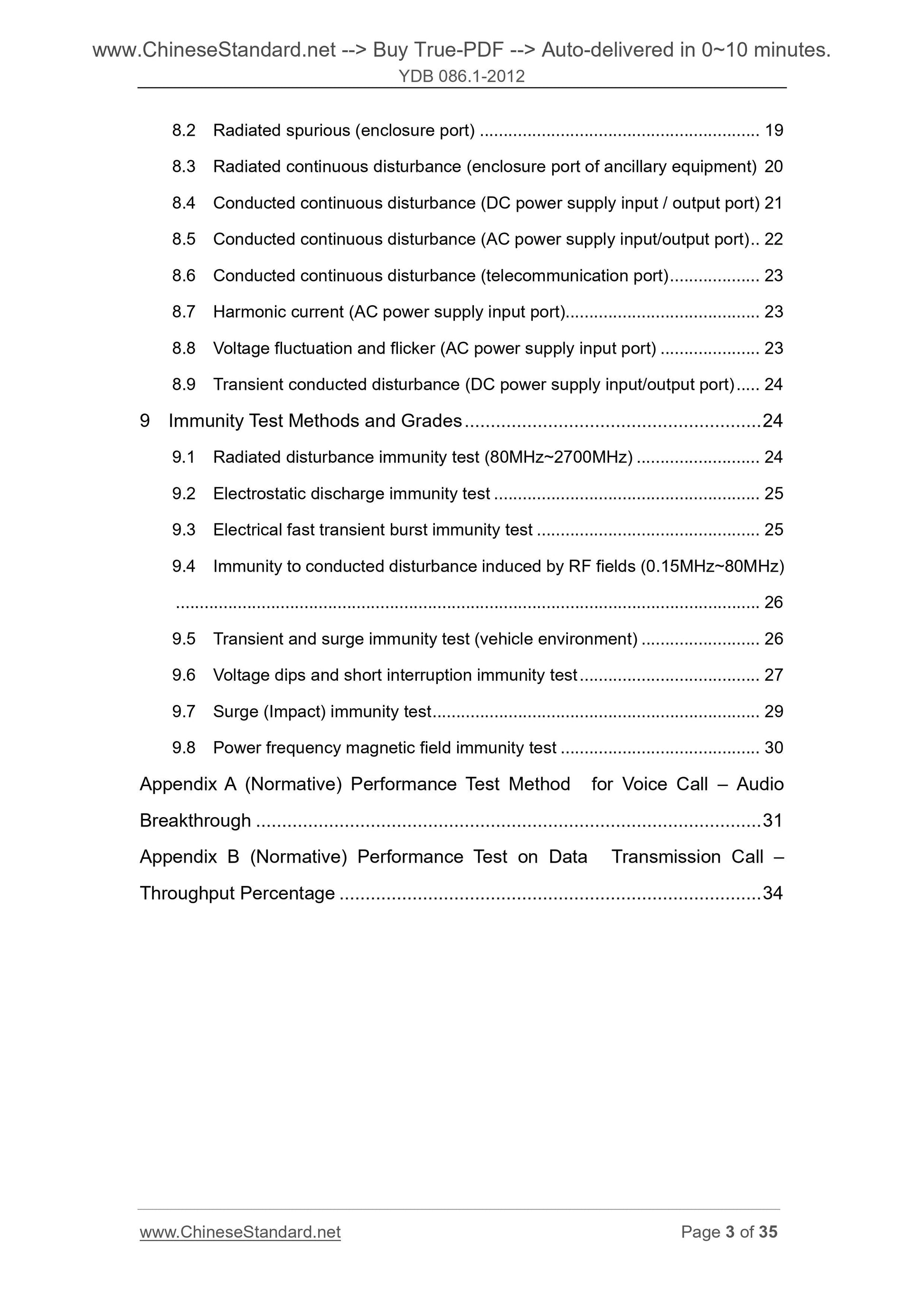

8.3 Radiated continuous disturbance (enclosure port of ancillary equipment) 20 8.4 Conducted continuous disturbance (DC power supply input / output port) 21 8.5 Conducted continuous disturbance (AC power supply input/output port) .. 22 8.6 Conducted continuous disturbance (telecommunication port) ... 23
8.7 Harmonic current (AC power supply input port)... 23
8.8 Voltage fluctuation and flicker (AC power supply input port) ... 23 8.9 Transient conducted disturbance (DC power supply input/output port) ... 24 9 Immunity Test Methods and Grades ... 24
9.1 Radiated disturbance immunity test (80MHz~2700MHz) ... 24
9.2 Electrostatic discharge immunity test ... 25
9.3 Electrical fast transient burst immunity test ... 25
9.4 Immunity to conducted disturbance induced by RF fields (0.15MHz~80MHz) ... 26
9.5 Transient and surge immunity test (vehicle environment) ... 26
9.6 Voltage dips and short interruption immunity test ... 27
9.7 Surge (Impact) immunity test ... 29
9.8 Power frequency magnetic field immunity test ... 30
Appendix A (Normative) Performance Test Method for Voice Call ?€? Audio
Breakthrough ... 31
Appendix B (Normative) Performance Test on Data Transmission Call ?€?
Throughput Percentage ... 34
Foreword

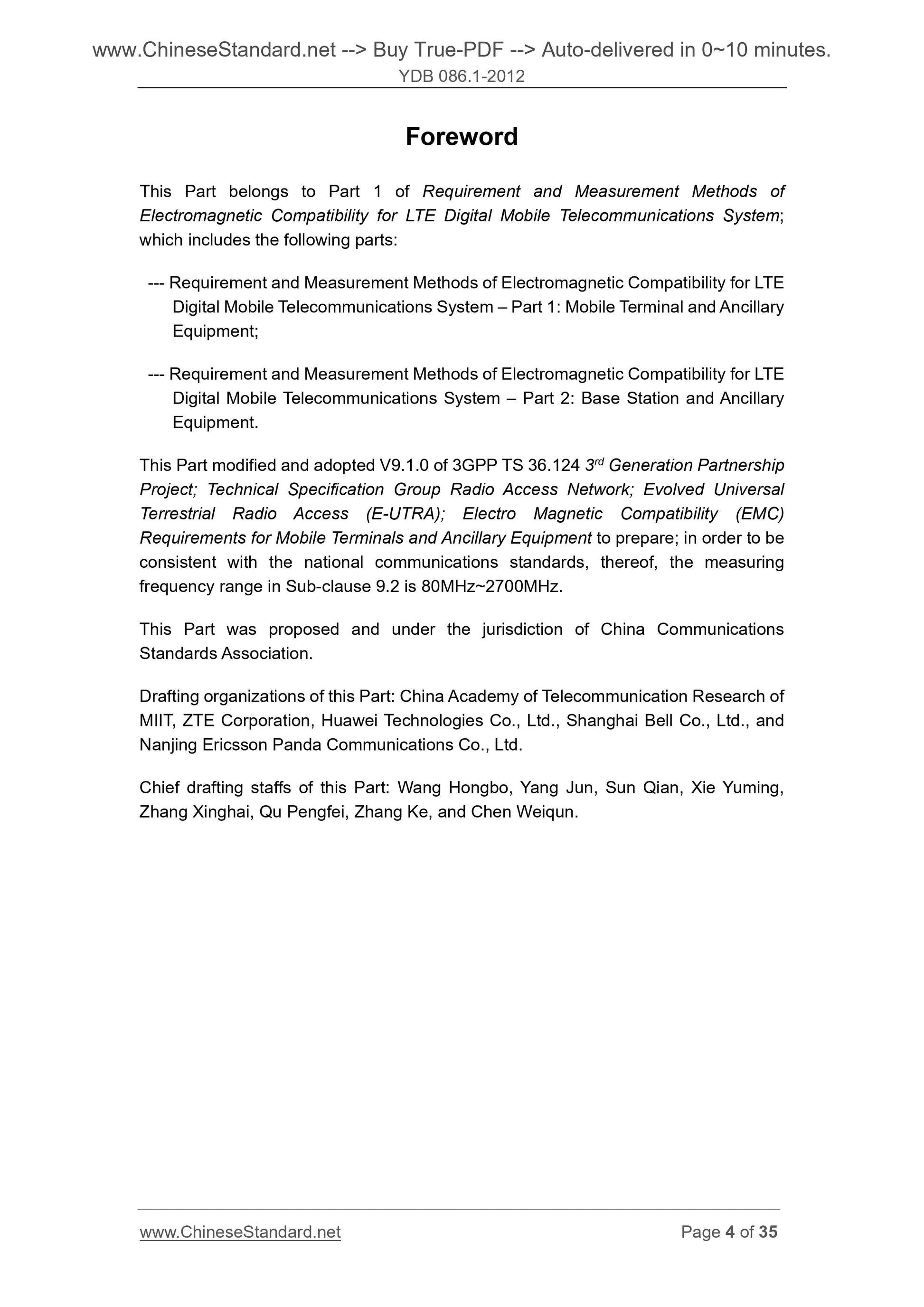

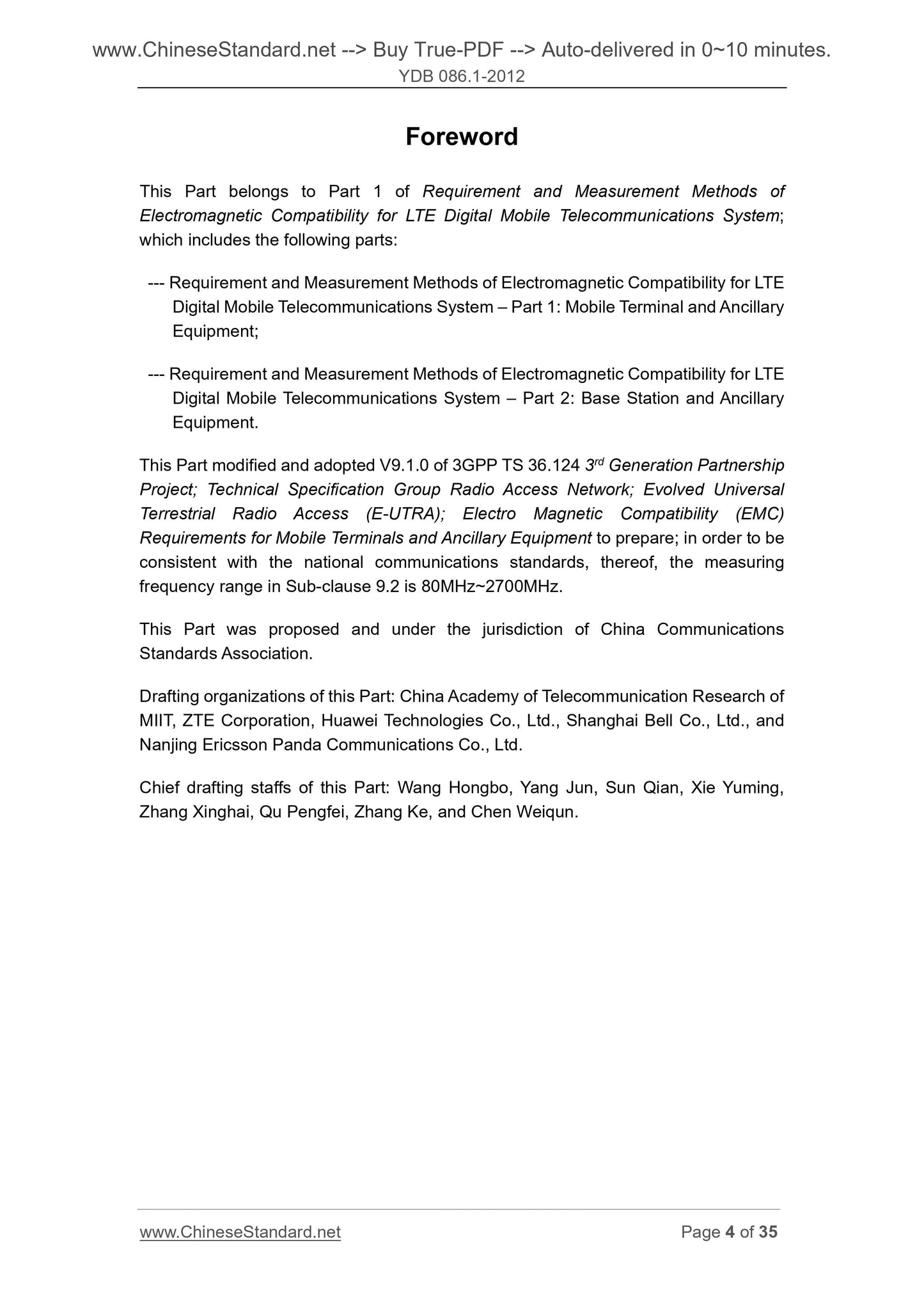

This Part belongs to Part 1 of Requirement and Measurement Methods of
Electromagnetic Compatibility for LTE Digital Mobile Telecommunications System; which includes the following parts.
--- Requirement and Measurement Methods of Electromagnetic Compatibility for LTE Digital Mobile Telecommunications System ?€? Part 1. Mobile Terminal and Ancillary Equipment;
--- Requirement and Measurement Methods of Electromagnetic Compatibility for LTE Digital Mobile Telecommunications System ?€? Part 2. Base Station and Ancillary Equipment.
This Part modified and adopted V9.1.0 of 3GPP TS 36.124 3rd Generation Partnership Project; Technical Specification Group Radio Access Network; Evolved Universal Terrestrial Radio Access (E-UTRA); Electro Magnetic Compatibility (EMC) Requirements for Mobile Terminals and Ancillary Equipment to prepare; in order to be consistent with the national communications standards, thereof, the measuring frequency range in Sub-clause 9.2 is 80MHz~2700MHz.
This Part was proposed and under the jurisdiction of China Communications Standards Association.
Drafting organizations of this Part. China Academy of Telecommunication Research of MIIT, ZTE Corporation, Huawei Technologies Co., Ltd., Shanghai Bell Co., Ltd., and Nanjing Ericsson Panda Communications Co., Ltd.
Chief drafting staffs of this Part. Wang Hongbo, Yang Jun, Sun Qian, Xie Yuming, Zhang Xinghai, Qu Pengfei, Zhang Ke, and Chen Weiqun.
Requirement and Measurement Methods
of Electromagnetic Compatibility for LTE
Digital Mobile Telecommunications System -
Part 1. Mobile Terminal and Ancillary Equipment

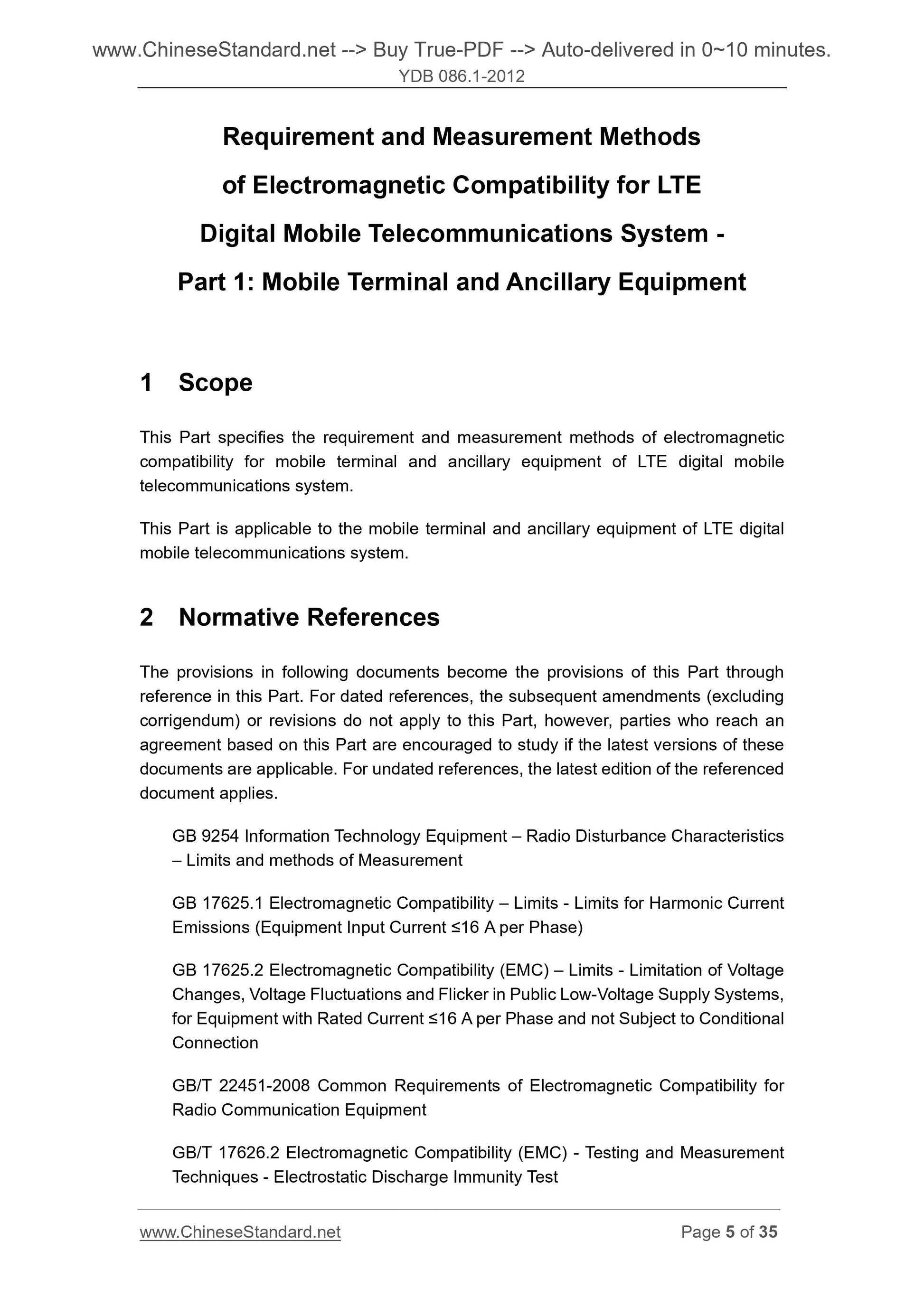

1 Scope
This Part specifies the requirement and measurement methods of electromagnetic compatibility for mobile terminal and ancillary equipment of LTE digital mobile telecommunications system.
This Part is applicable to the mobile terminal and ancillary equipment of LTE digital mobile telecommunications system.
2 Normative References
The provisions in following documents become the provisions of this Part through reference in this Part. For dated references, the subsequent amendments (excluding corrigendum) or revisions do not apply to this Part, however, parties who reach an agreement based on this Part are encouraged to study if the latest versions of these documents are applicable. For undated references, the latest edition of the referenced document applies.
GB 9254 Information Technology Equipment ?€? Radio Disturbance Characteristics ?€? Limits and methods of Measurement
GB 17625.1 Electromagnetic Compatibility ?€? Limits - Limits for Harmonic Current Emissions (Equipment Input Current ???16 A per Phase)
GB 17625.2 Electromagnetic Compatibility (EMC) ?€? Limits - Limitation of Voltage Changes, Voltage Fluctuations and Flicker in Public Low-Voltage Supply Systems, for Equipment with Rated Current ???16 A per Phase and not Subject to Conditional Connection
GB/T 22451-2008 Common Requirements of Electromagnetic Compatibility for Radio Communication Equipment
GB/T 17626.2 Electromagnetic Compatibility (EMC) - Testing and Measurement Techniques - Electrostatic Discharge Immunity Test
GB/T 17626.3 Electromagnetic Compatibility - Testing and Measurement
Techniques - Radiated Radio-Frequency Electromagnetic Field Immunity Test GB/T 17626.4 Electromagnetic Compatibility - Testing and Measurement
Techniques - Electrical Fast Transient/Burst Immunity Test
GB/T 17626.5 Electromagnetic Compatibility - Testing and Measurement
Techniques - Surge Immunity Test
GB/T 17626.6 Electromagnetic Compatibility - Testing and Measurement
Techniques - Immunity to Conducted Disturbances Induced by Radio-Frequency Fields
GB/T 17626.8 Electromagnetic Compatibility (EMC) - Part 8. Testing and
Measurement Techniques - Power Frequency Magnetic Field Immunity Test

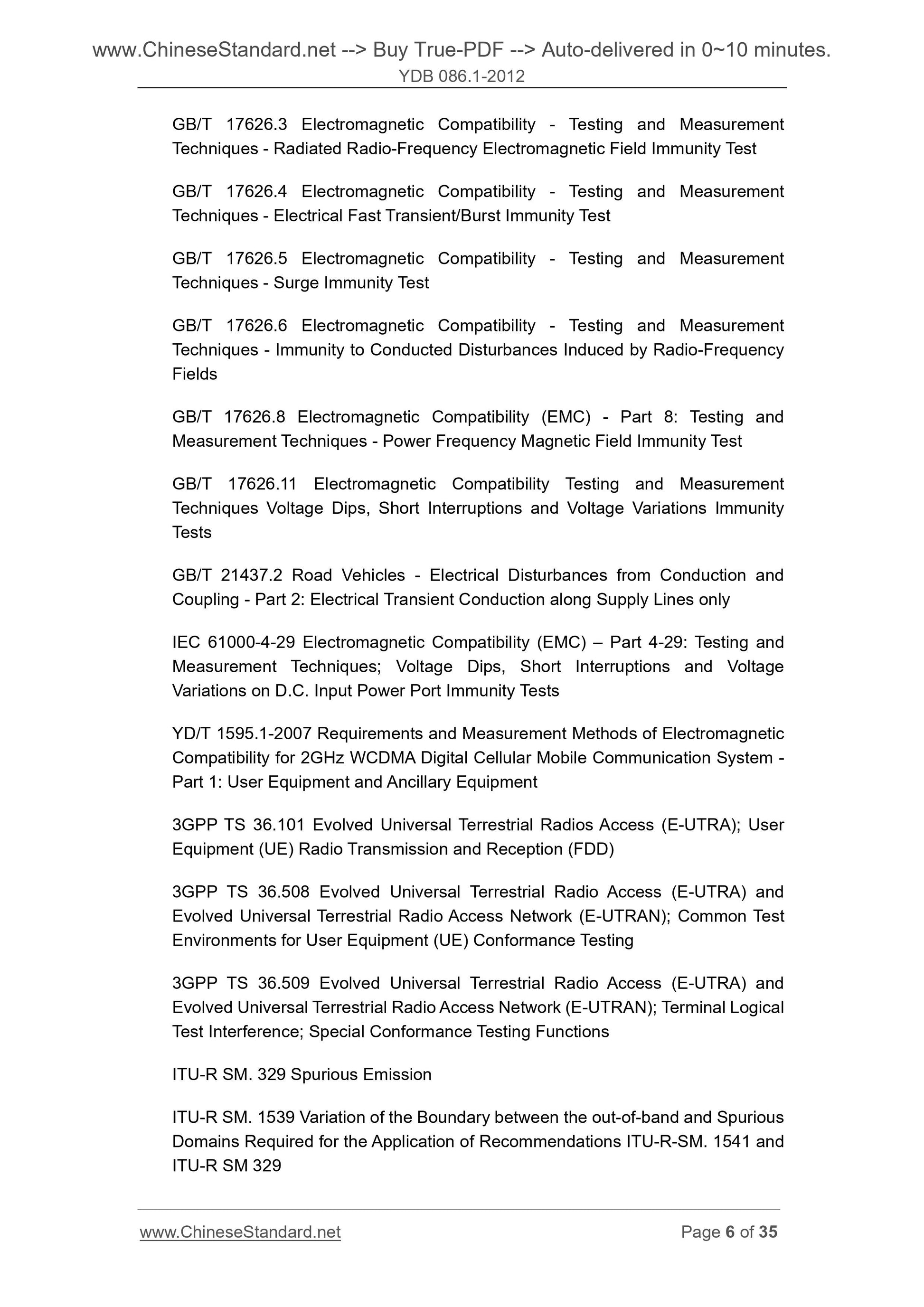

GB/T 17626.11 Electromagnetic Compatibility Testing and Measurement
Techniques Voltage Dips, Short Interruptions and Voltage Variations Immunity Tests
GB/T 21437.2 Road Vehicles - Electrical Disturbances from Conduction and Coupling - Part 2. Electrical Transient Conduction along Supply Lines only IEC 61000-4-29 Electromagnetic Compatibility (EMC) ?€? Part 4-29. Testing and Measurement Techniques; Voltage Dips, Short Interruptions and Voltage
Variations on D.C. Input Power Port Immunity Tests
YD/T 1595.1-2007 Requirements and Measurement Methods of Electromagnetic Compatibility for 2GHz WCDMA Digital Cellular Mobile Communication System - Par...
