YC/T 316-2009: Determination of arsenic, lead, cadmium, chromium, nickel, mercury in tipping paper and tipping base paper for cigarette - Inductively coupled plasma mass spectrometry

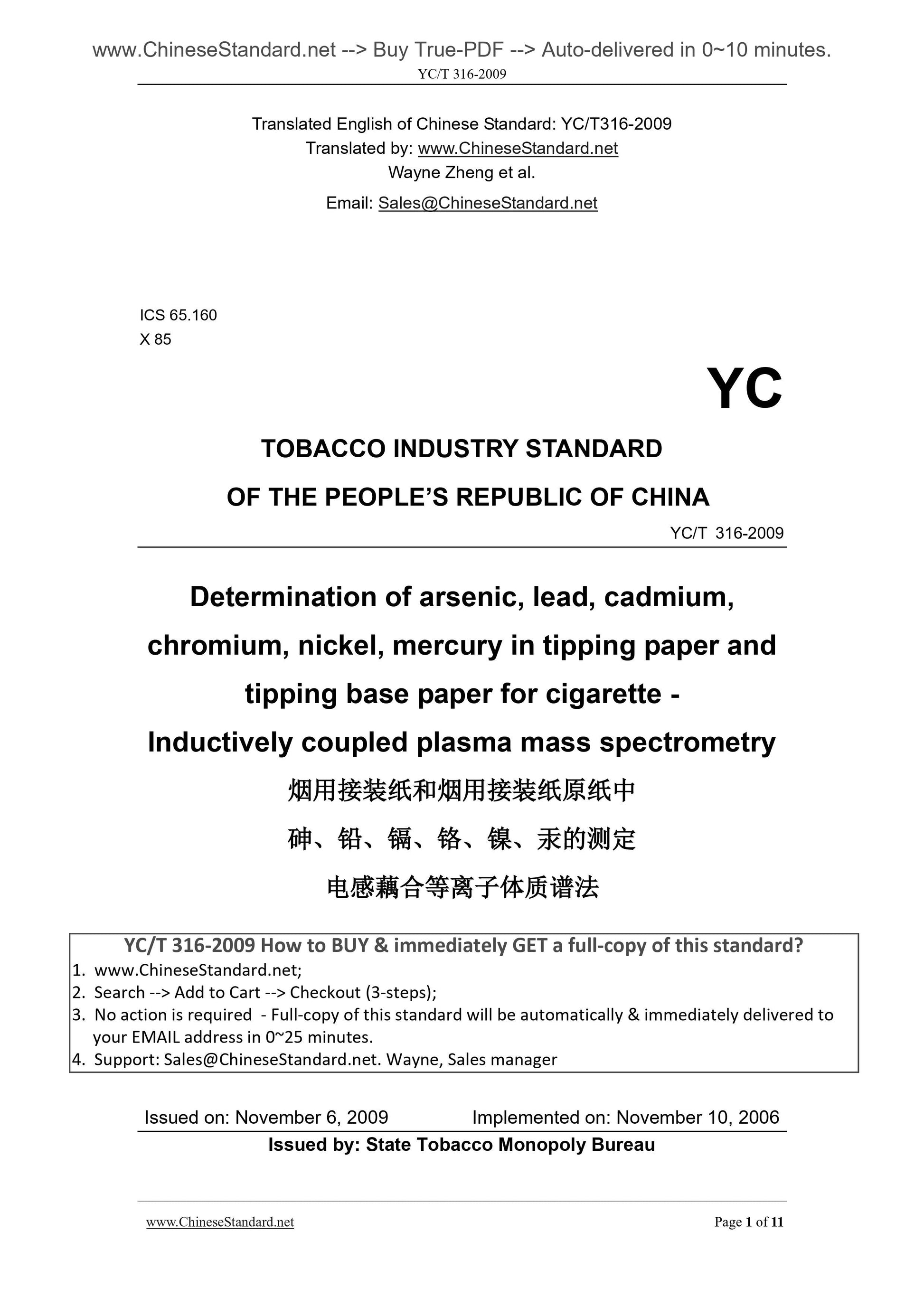

YC/T 316-2009
ICS 65.160
X 85
YC
TOBACCO INDUSTRY STANDARD
OF THE PEOPLE’S REPUBLIC OF CHINA
Determination of arsenic, lead, cadmium,
chromium, nickel, mercury in tipping paper and
tipping base paper for cigarette -
Inductively coupled plasma mass spectrometry
ISSUED ON. NOVEMBER 6, 2009
IMPLEMENTED ON. NOVEMBER 10, 2006
Issued by. State Tobacco Monopoly Bureau

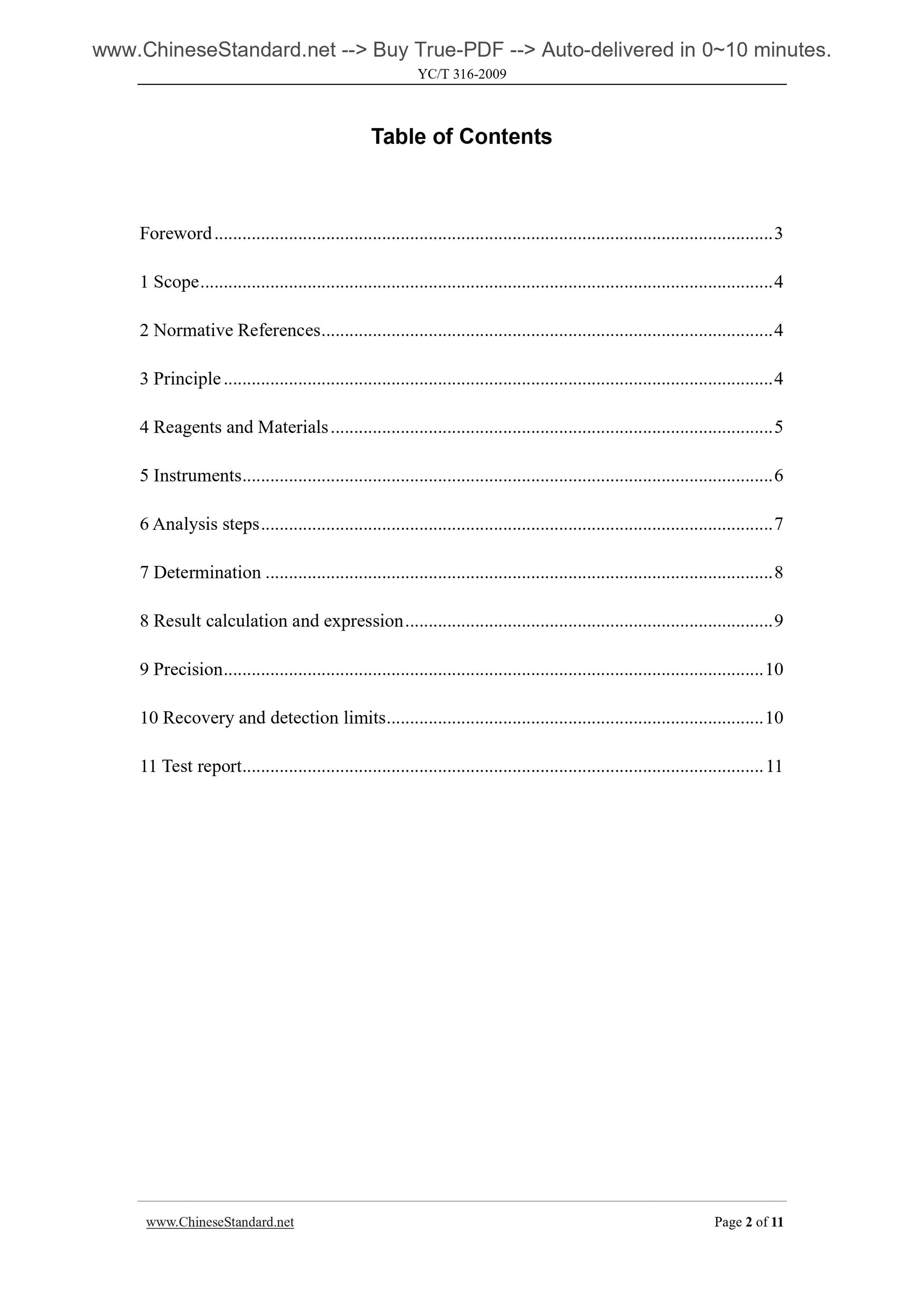

Table of Contents
Foreword ... 3
1 Scope ... 4
2 Normative References ... 4
3 Principle ... 4
4 Reagents and Materials ... 5
5 Instruments ... 6
6 Analysis steps ... 7
7 Determination ... 8
8 Result calculation and expression ... 9
9 Precision ... 10
10 Recovery and detection limits ... 10
11 Test report ... 11

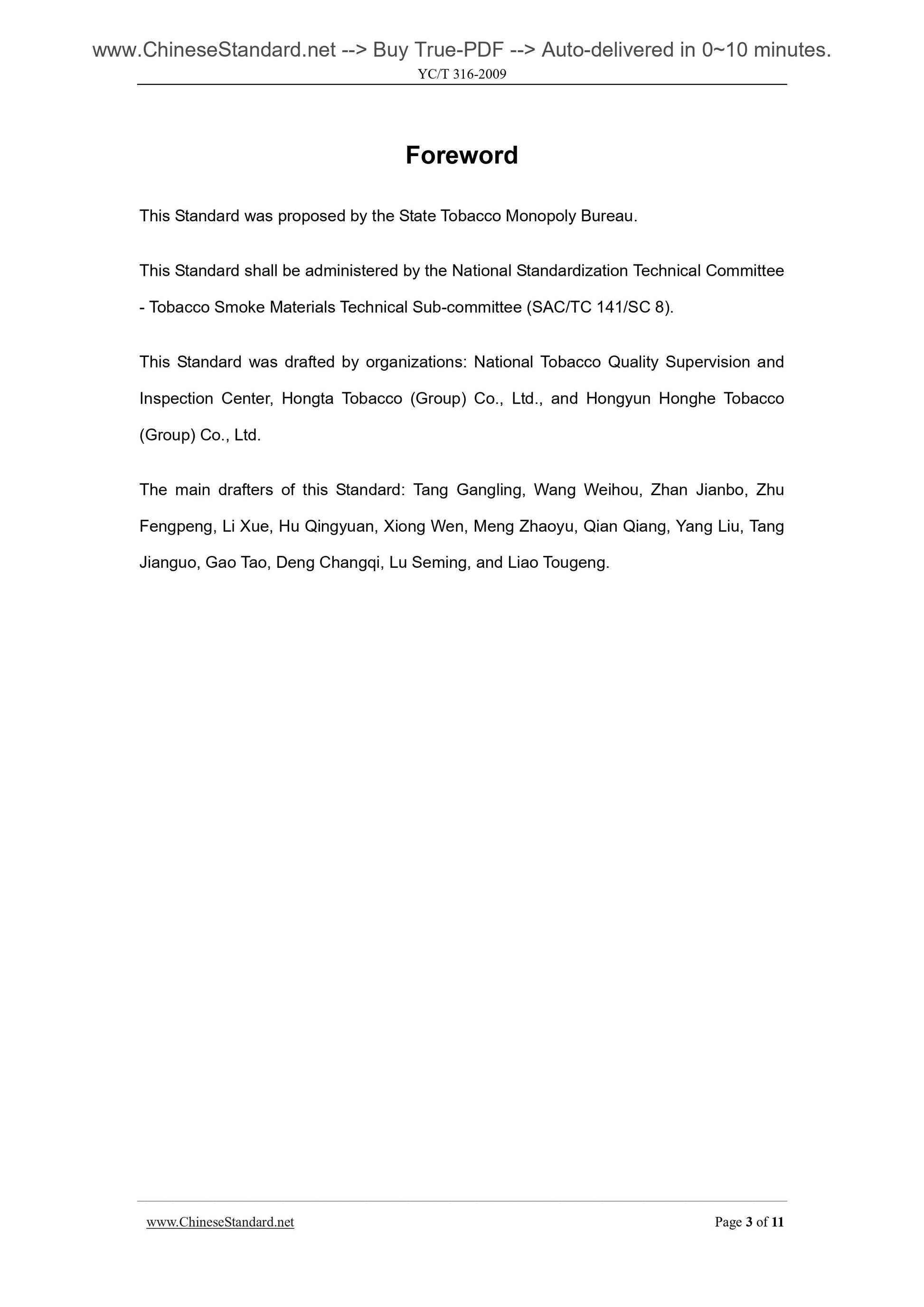

Foreword
This Standard was proposed by the State Tobacco Monopoly Bureau.
This Standard shall be administered by the National Standardization Technical Committee
- Tobacco Smoke Materials Technical Sub-committee (SAC/TC 141/SC 8).
This Standard was drafted by organizations. National Tobacco Quality Supervision and
Inspection Center, Hongta Tobacco (Group) Co., Ltd., and Hongyun Honghe Tobacco
(Group) Co., Ltd.
The main drafters of this Standard. Tang Gangling, Wang Weihou, Zhan Jianbo, Zhu
Fengpeng, Li Xue, Hu Qingyuan, Xiong Wen, Meng Zhaoyu, Qian Qiang, Yang Liu, Tang
Jianguo, Gao Tao, Deng Changqi, Lu Seming, and Liao Tougeng.

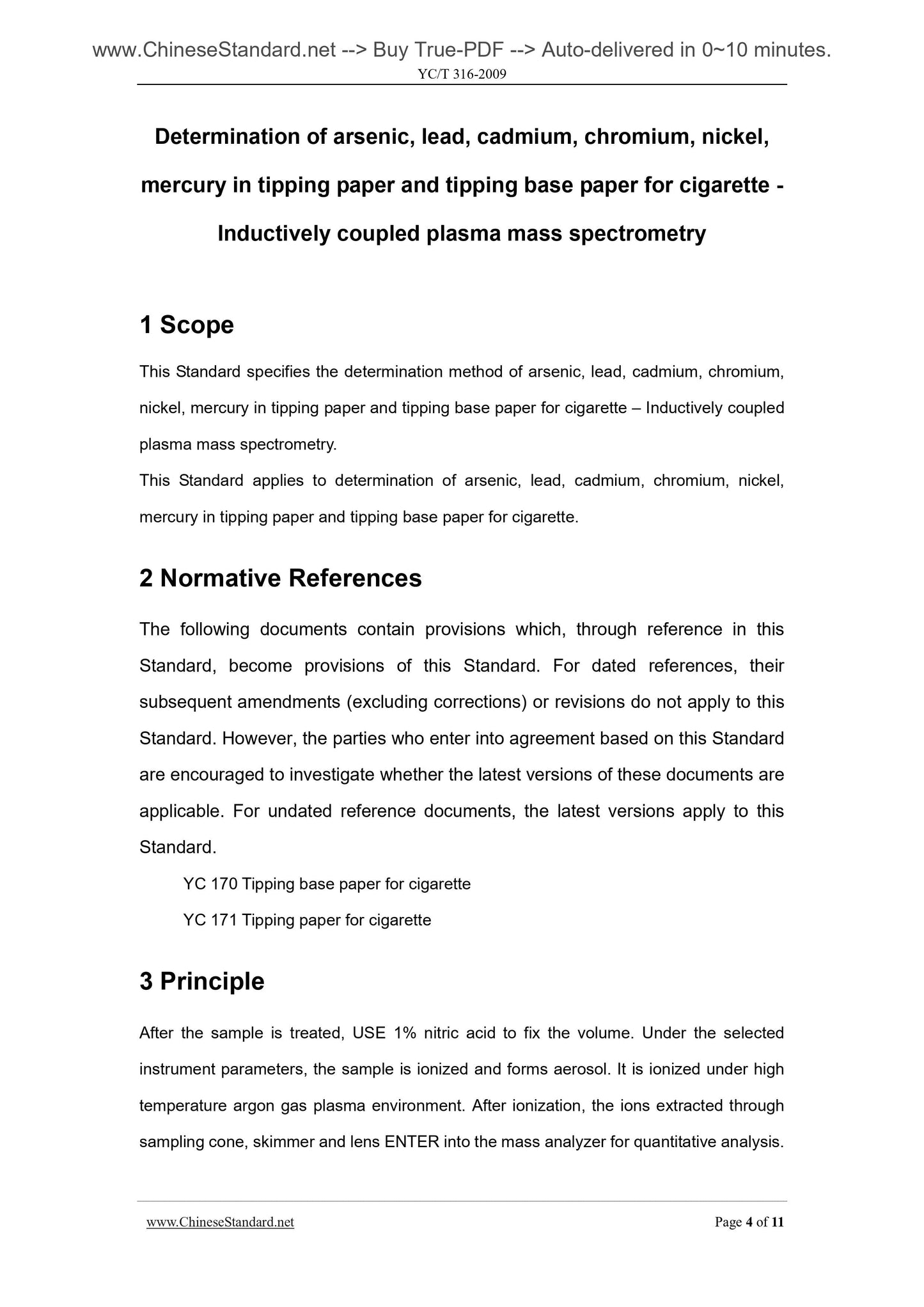

Determination of arsenic, lead, cadmium, chromium, nickel,
mercury in tipping paper and tipping base paper for cigarette -
Inductively coupled plasma mass spectrometry
1 Scope
This Standard specifies the determination method of arsenic, lead, cadmium, chromium,
nickel, mercury in tipping paper and tipping base paper for cigarette – Inductively coupled
plasma mass spectrometry.
This Standard applies to determination of arsenic, lead, cadmium, chromium, nickel,
mercury in tipping paper and tipping base paper for cigarette.
2 Normative References
The following documents contain provisions which, through reference in this
Standard, become provisions of this Standard. For dated references, their
subsequent amendments (excluding corrections) or revisions do not apply to this
Standard. However, the parties who enter into agreement based on this Standard
are encouraged to investigate whether the latest versions of these documents are
applicable. For undated reference documents, the latest versions apply to this
Standard.
YC 170 Tipping base paper for cigarette
YC 171 Tipping paper for cigarette
3 Principle
After the sample is treated, USE 1% nitric acid to fix the volume. Under the selected
instrument parameters, the sample is ionized and forms aerosol. It is ionized under high
temperature argon gas plasma environment. After ionization, the ions extracted through
sampling cone, skimmer and lens ENTER into the mass analyzer for quantitative analysis.

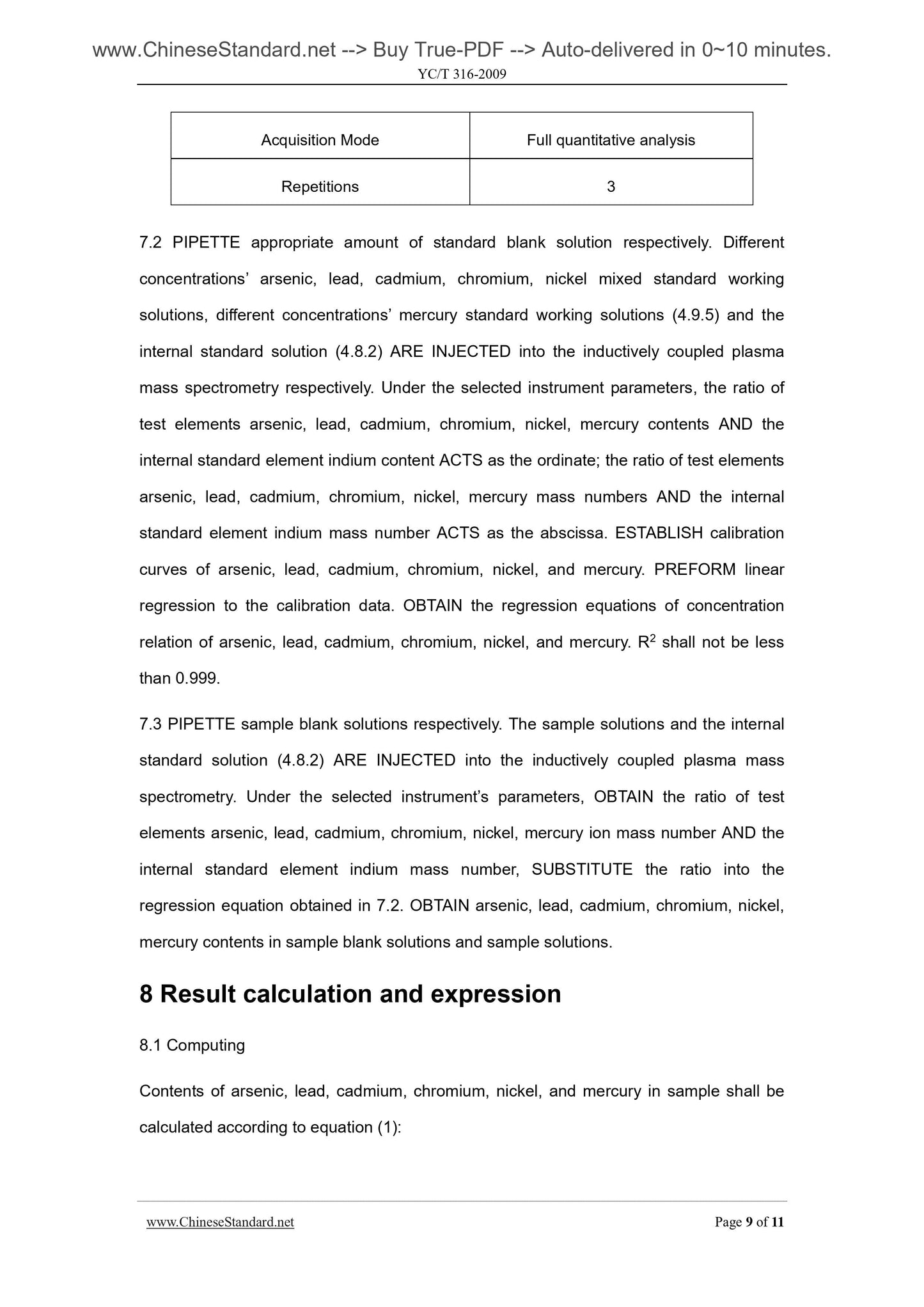

Acquisition Mode Full quantitative analysis
Repetitions 3
7.2 PIPETTE appropriate amount of standard blank solution respectively. Different
concentrations’ arsenic, lead, cadmium, chromium, nickel mixed standard working
solutions, different concentrations’ mercury standard working solutions (4.9.5) and the
internal standard solution (4.8.2) ARE INJECTED into the inductively coupled plasma
mass spectrometry respectively. Under the selected instrument parameters, the ratio of
test elements arsenic, lead, cadmium, chromium, nickel, mercury contents AND the
internal standard element indium content ACTS as the ordinate; the ratio of test elements
arsenic, lead, cadmium, chromium, nickel, mercury mass numbers AND the internal
standard element indium mass number ACTS as the abscissa. ESTABLISH calibration
curves of arsenic, lead, cadmium, chromium, nickel, and mercury. PREFORM linear
regression to the calibration data. OBTAIN the regression equations of concentration
relation of arsenic, lead, cadmium, chromium, nickel, and mercury. R2 shall not be less
than 0.999.
7.3 PIPETTE sample blank solutions respectively. The sample solutions and the internal
standard solution (4.8.2) ARE INJECTED into the inductively coupled plasma mass
spectrometry. Under the selected instrument’s parameters, OBTAIN the ratio of test
elements arsenic, lead, cadmium, chromium, nickel, mercury ion mass number AND the
internal standard element indium mass number, SUBSTITUTE the ratio into the
regression equation obtained in 7.2. OBTAIN arsenic, lead, cadmium, chromium, nickel,
mercury contents in sample blank solutions and sample solutions.
8 Result calculation and expression
8.1 Computing
Contents of arsenic, lead, cadmium, chromium, nickel, and mercury in sample shall be
calculated according to equation (1).

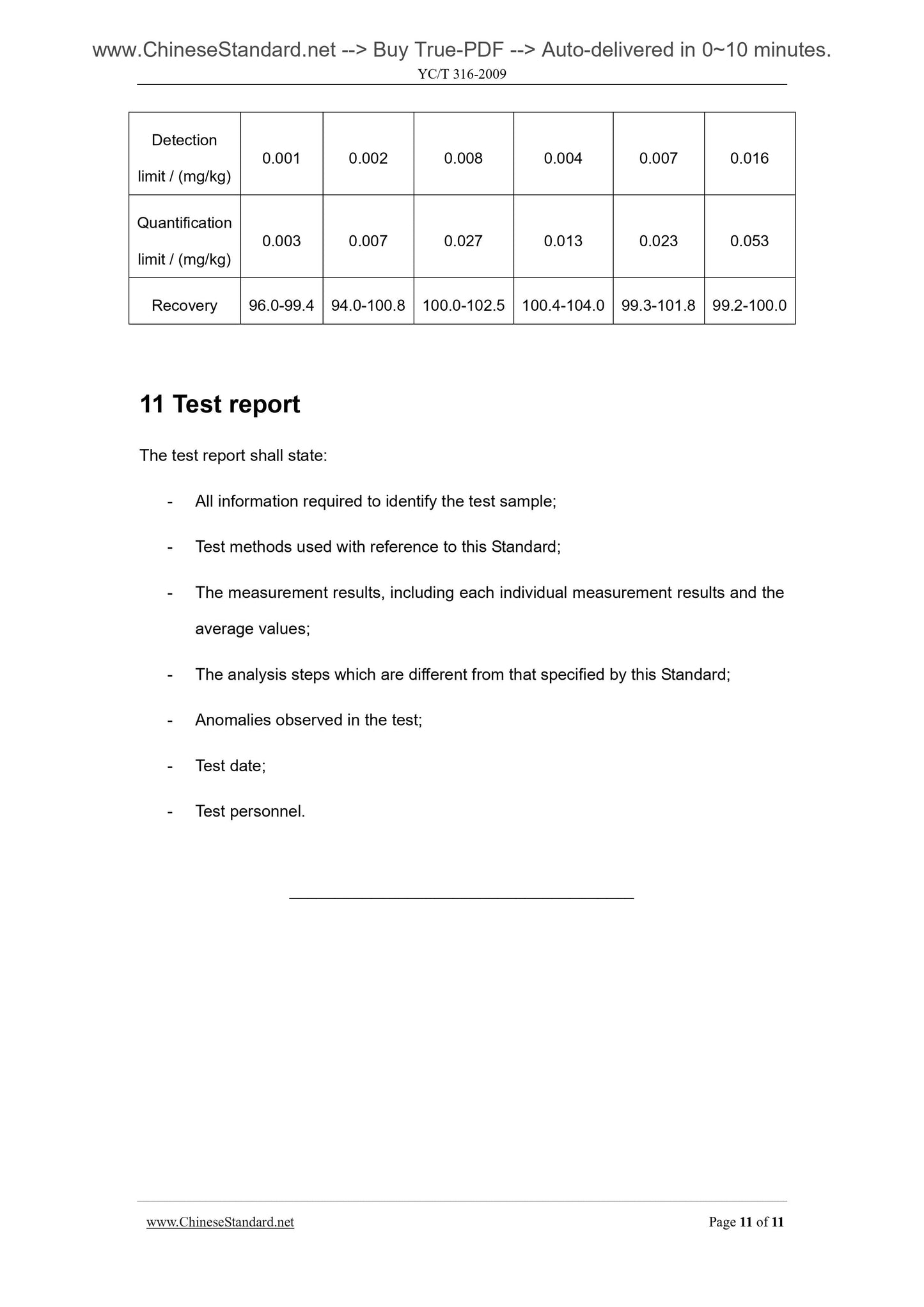

Detection
limit / (mg/kg)
0.001 0.002 0.008 0.004 0.007 0.016
Quantification
limit / (mg/kg)
0.003 0.007 0.027 0.013 0.023 0.053
Recovery 96.0-99.4 94.0-100.8 100.0-102.5 100.4-104.0 99.3-101.8 99.2-100.0
11 Test report
The test report shall state.
- All information required to identify the test sample;
- Test methods used with reference to this Standard;
- The measurement results, including each individual measurement results and the
average values;
- The analysis steps which are different from that specified by this Standard;
- Anomalies observed in the test;
- Test date;
- Test personnel.
