YB/T 4090-2015: Ultra high power graphite electrode

This standard specifies the shape, dimensions and tolerances, technical requirements, test methods, inspection rules, packaging, marking, storage, transportation and quality certificates of ultra high-power graphite electrodes. This standard is applicable to ultra high-power graphite electrodes made of needle coke and coal tar pitch as main raw materials, formed by molding, burning, impregnation, graphitization and mechanical processing, and used as the conductive materials for electric furnace.

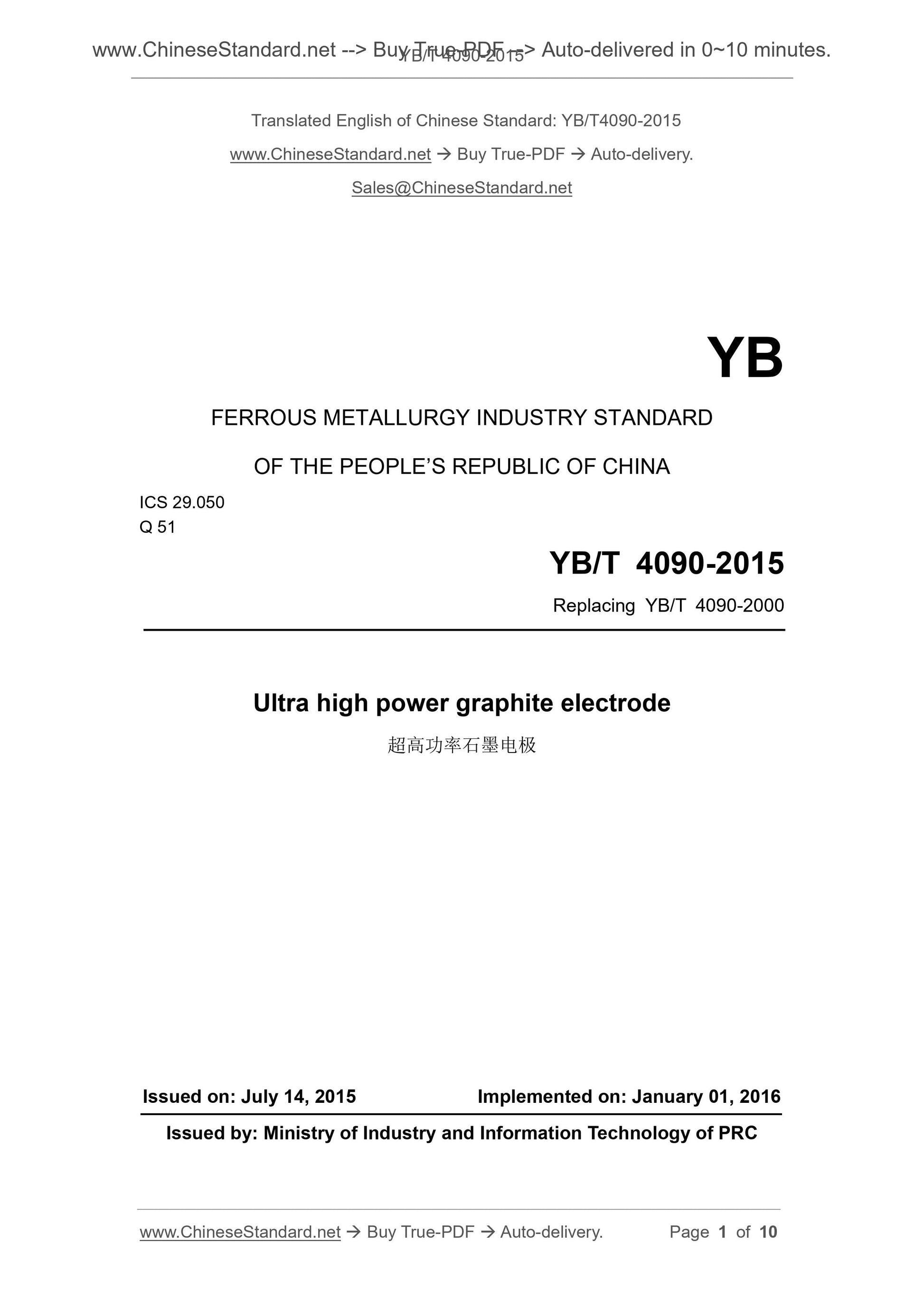

YB/T 4090-2015
YB
FERROUS METALLURGY INDUSTRY STANDARD
OF THE PEOPLE REPUBLIC OF CHINA
ICS 29.050
Q 51
Replacing YB/T 4090-2000
Ultra high power graphite electrode
ISSUED ON. JULY 14, 2015
IMPLEMENTED ON. JANUARY 01, 2016
Issued by. Ministry of Industry and Information Technology of PRC

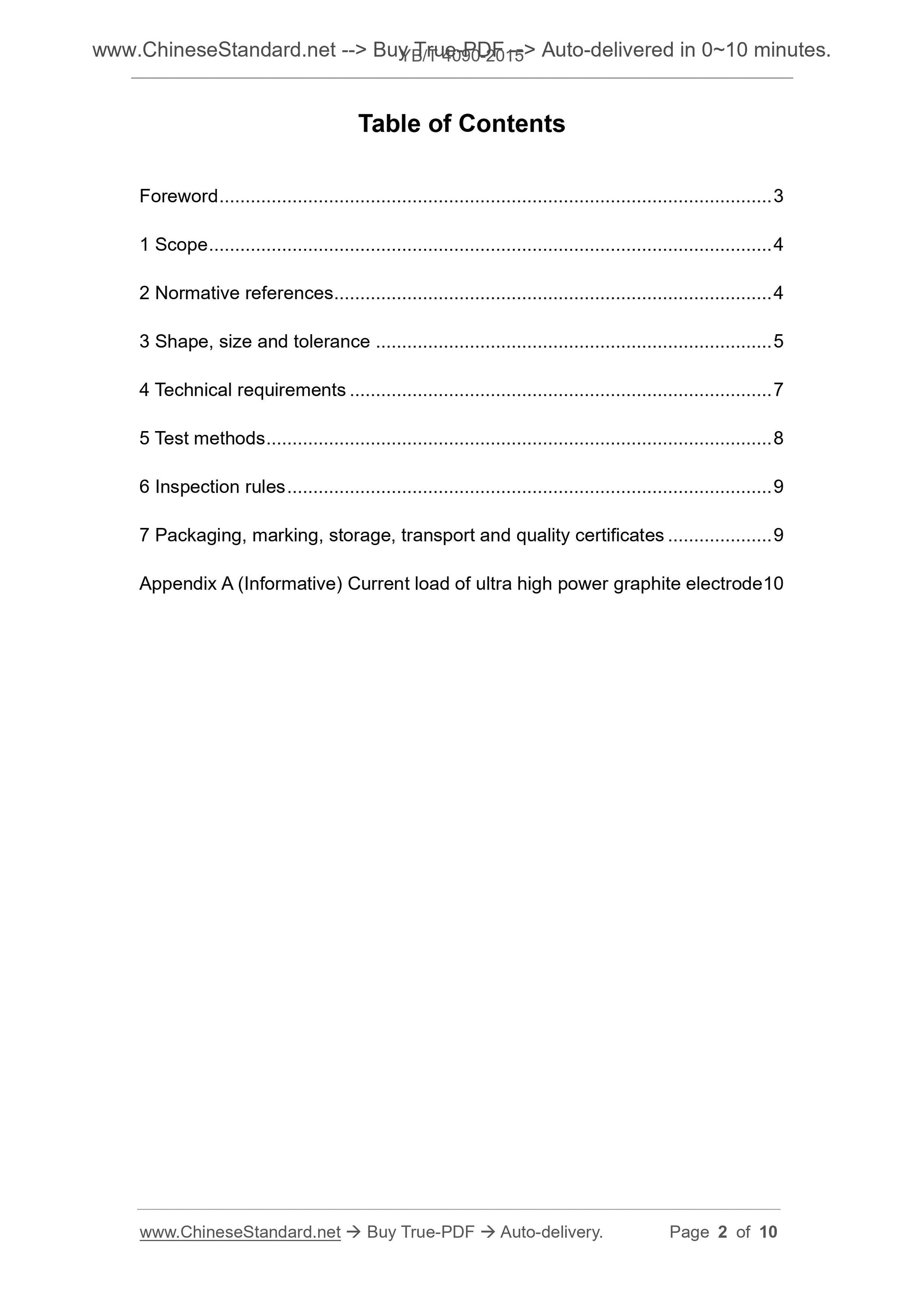

Table of Contents
Foreword ... 3
1 Scope ... 4
2 Normative references ... 4
3 Shape, size and tolerance ... 5
4 Technical requirements ... 7
5 Test methods ... 8
6 Inspection rules ... 9
7 Packaging, marking, storage, transport and quality certificates ... 9 Appendix A (Informative) Current load of ultra high power graphite electrode 10 Ultra high power graphite electrode

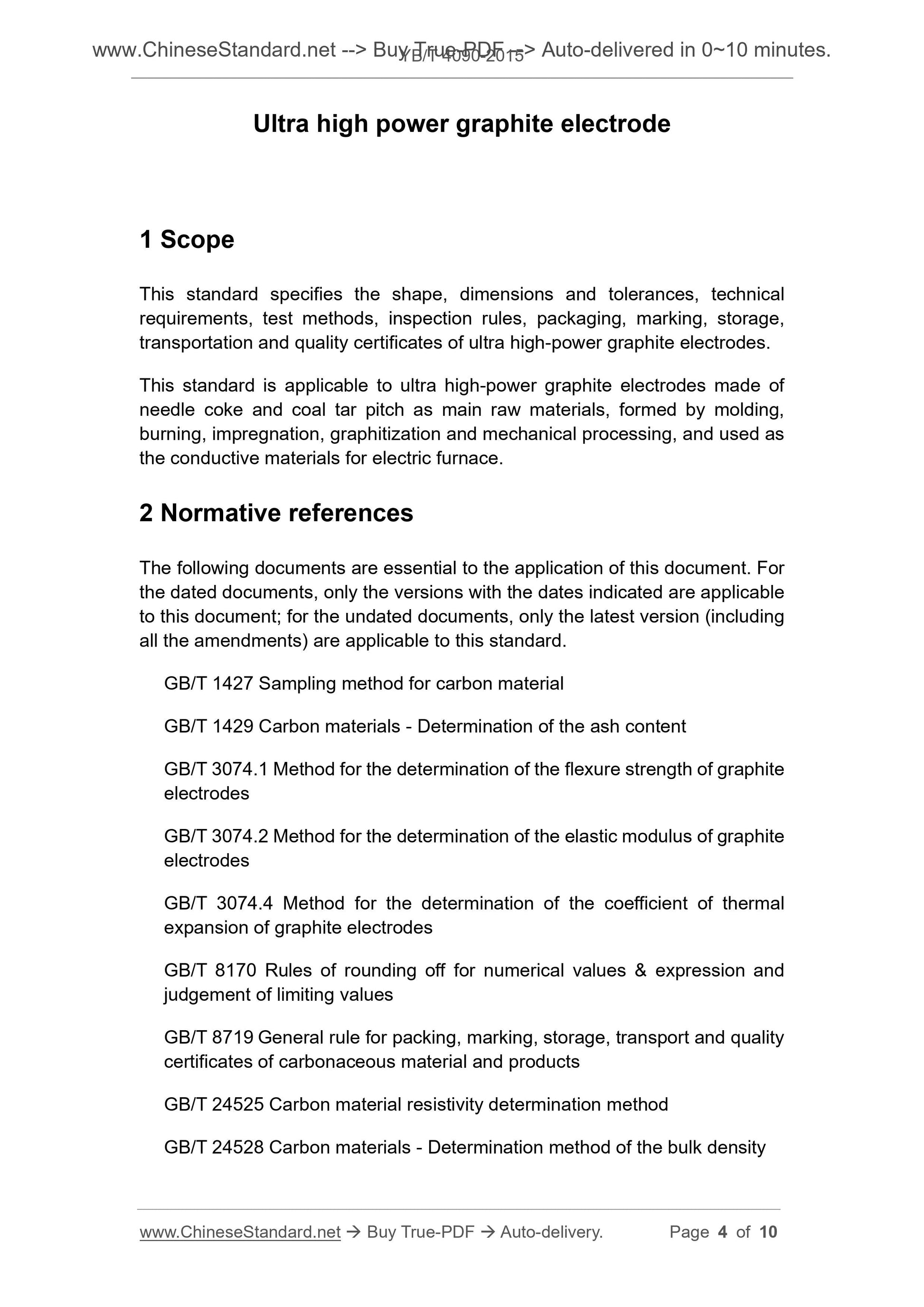

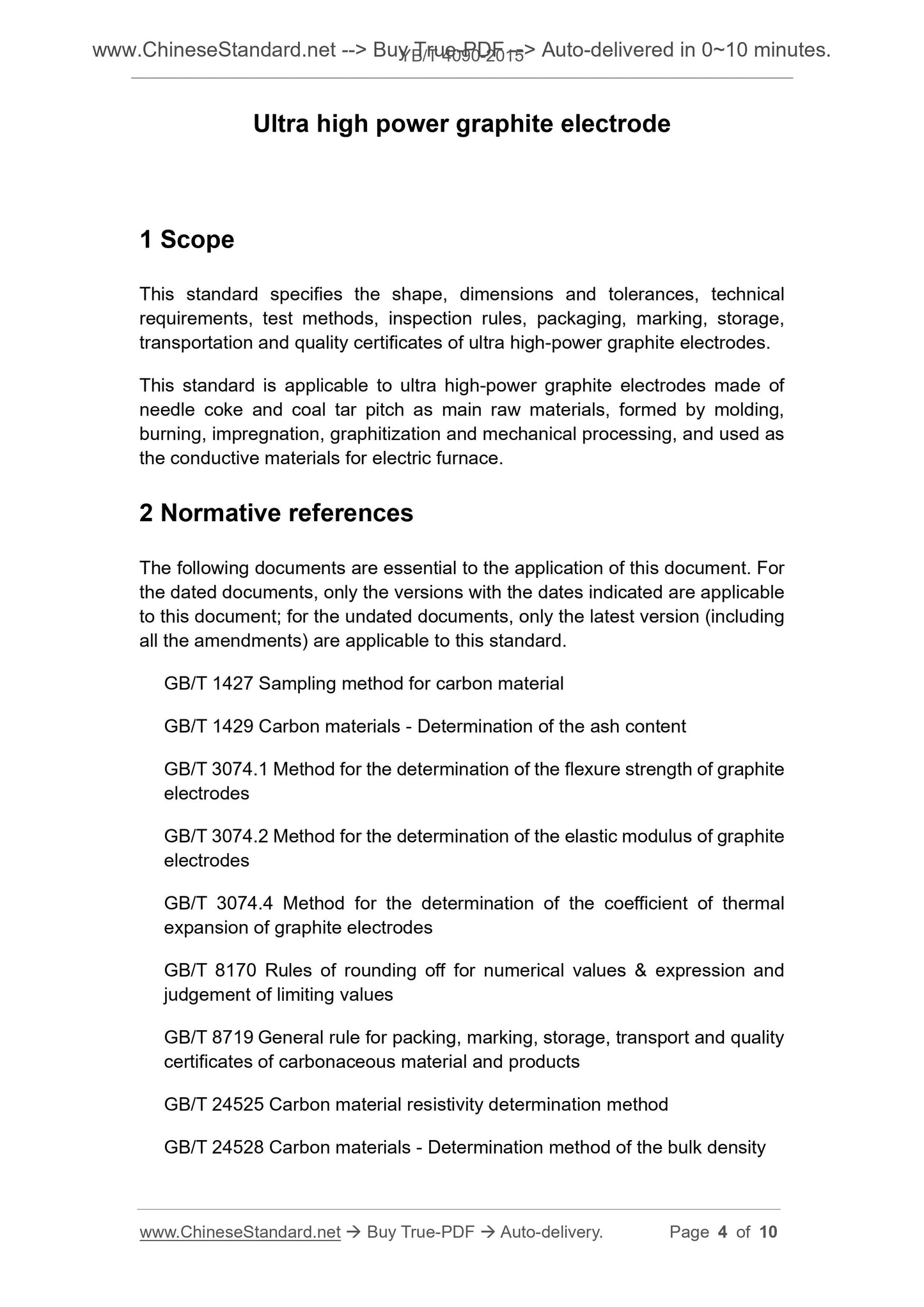

1 Scope
This standard specifies the shape, dimensions and tolerances, technical requirements, test methods, inspection rules, packaging, marking, storage, transportation and quality certificates of ultra high-power graphite electrodes. This standard is applicable to ultra high-power graphite electrodes made of needle coke and coal tar pitch as main raw materials, formed by molding, burning, impregnation, graphitization and mechanical processing, and used as the conductive materials for electric furnace.
2 Normative references
The following documents are essential to the application of this document. For the dated documents, only the versions with the dates indicated are applicable to this document; for the undated documents, only the latest version (including all the amendments) are applicable to this standard.
GB/T 1427 Sampling method for carbon material
GB/T 1429 Carbon materials - Determination of the ash content
GB/T 3074.1 Method for the determination of the flexure strength of graphite electrodes
GB/T 3074.2 Method for the determination of the elastic modulus of graphite electrodes
GB/T 3074.4 Method for the determination of the coefficient of thermal
expansion of graphite electrodes
GB/T 8170 Rules of rounding off for numerical values and expression and
judgement of limiting values
GB/T 8719 General rule for packing, marking, storage, transport and quality certificates of carbonaceous material and products
GB/T 24525 Carbon material resistivity determination method
GB/T 24528 Carbon materials - Determination method of the bulk density

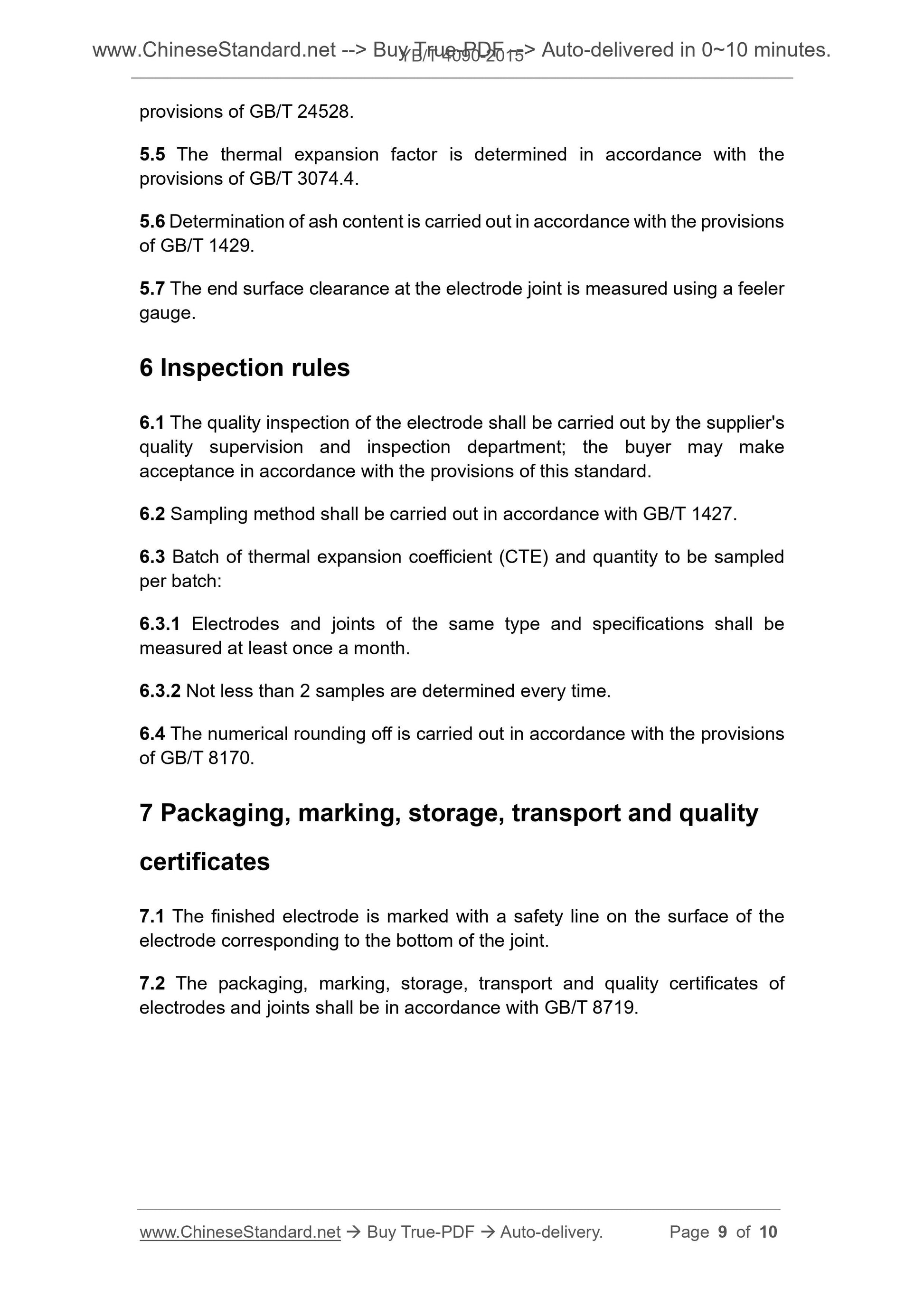

provisions of GB/T 24528.
5.5 The thermal expansion factor is determined in accordance with the
provisions of GB/T 3074.4.
5.6 Determination of ash content is carried out in accordance with the provisions of GB/T 1429.
5.7 The end surface clearance at the electrode joint is measured using a feeler gauge.
6 Inspection rules
6.1 The quality inspection of the electrode shall be carried out by the supplier's quality supervision and inspection department; the buyer may make
acceptance in accordance with the provisions of this standard.
6.2 Sampling method shall be carried out in accordance with GB/T 1427.
6.3 Batch of thermal expansion coefficient (CTE) and quantity to be sampled per batch.
6.3.1 Electrodes and joints of the same type and specifications shall be measured at least once a month.
6.3.2 Not less than 2 samples are determined every time.
6.4 The numerical rounding off is carried out in accordance with the provisions of GB/T 8170.
7 Packaging, marking, storage, transport and quality
certificates
7.1 The finished electrode is marked with a safety line on the surface of the electrode corresponding to the bottom of the joint.
7.2 The packaging, marking, storage, transport and quality certificates of electrodes and joints shall be in accordance with GB/T 8719.
