TSG D7001-2013: Pressure Piping Components Manufacture Supervision Inspection Regulation

In order to standardize the supervision-inspection of pressure piping components, this Regulation is formulated in accordance with the Special Equipment Safety Supervision Regulations. Article 2 This Regulation applies to the manufacturing supervision-inspection of the pressure piping components that are subject to the implementation of the Pressure Pipe Component Manufacturing License Rules.

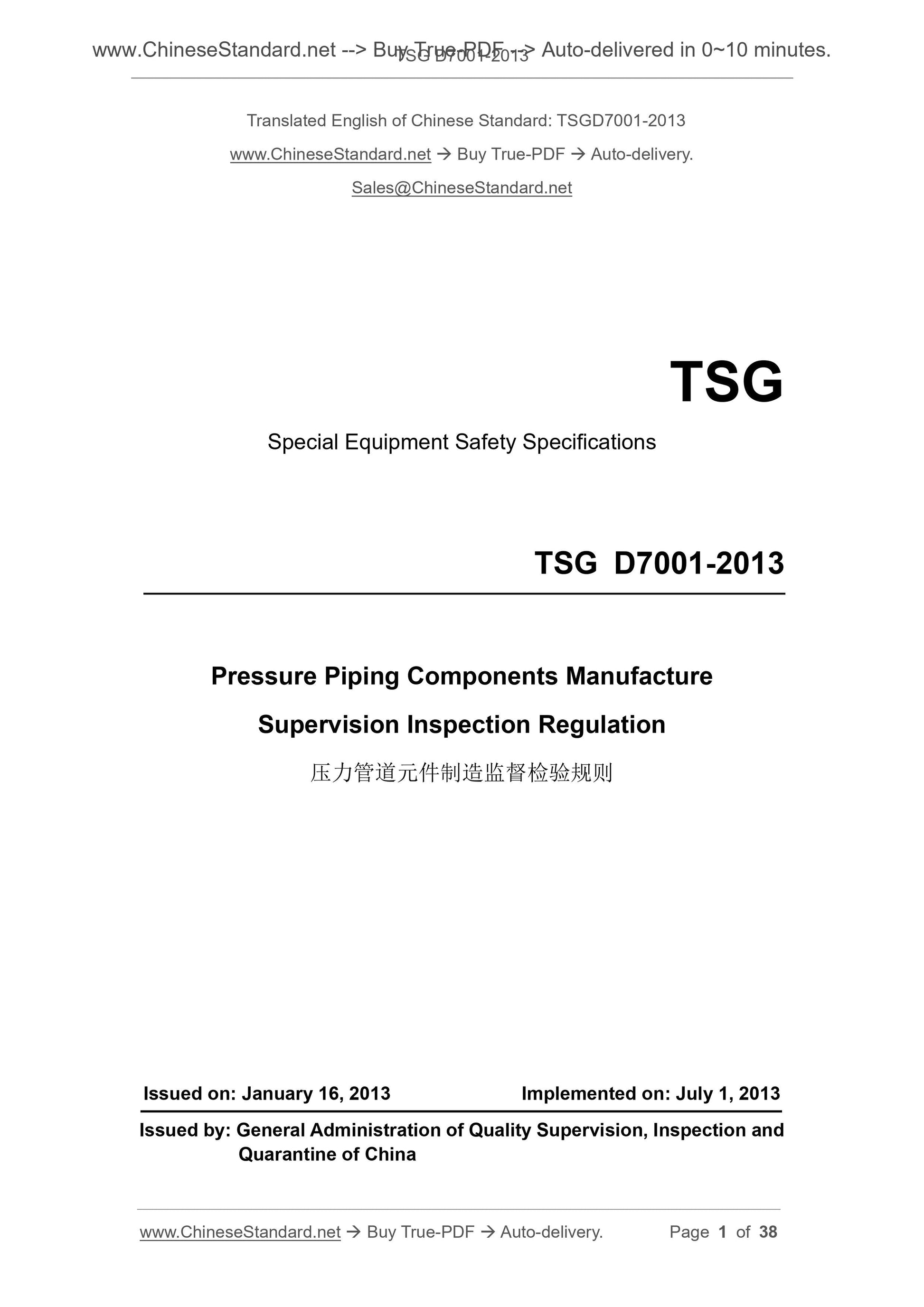

TSG D7001-2013
TSG
Special Equipment Safety Specifications
Pressure Piping Components Manufacture
Supervision Inspection Regulation
ISSUED ON. JANUARY 16, 2013
IMPLEMENTED ON. JULY 1, 2013
Issued by. General Administration of Quality Supervision, Inspection and Quarantine of China

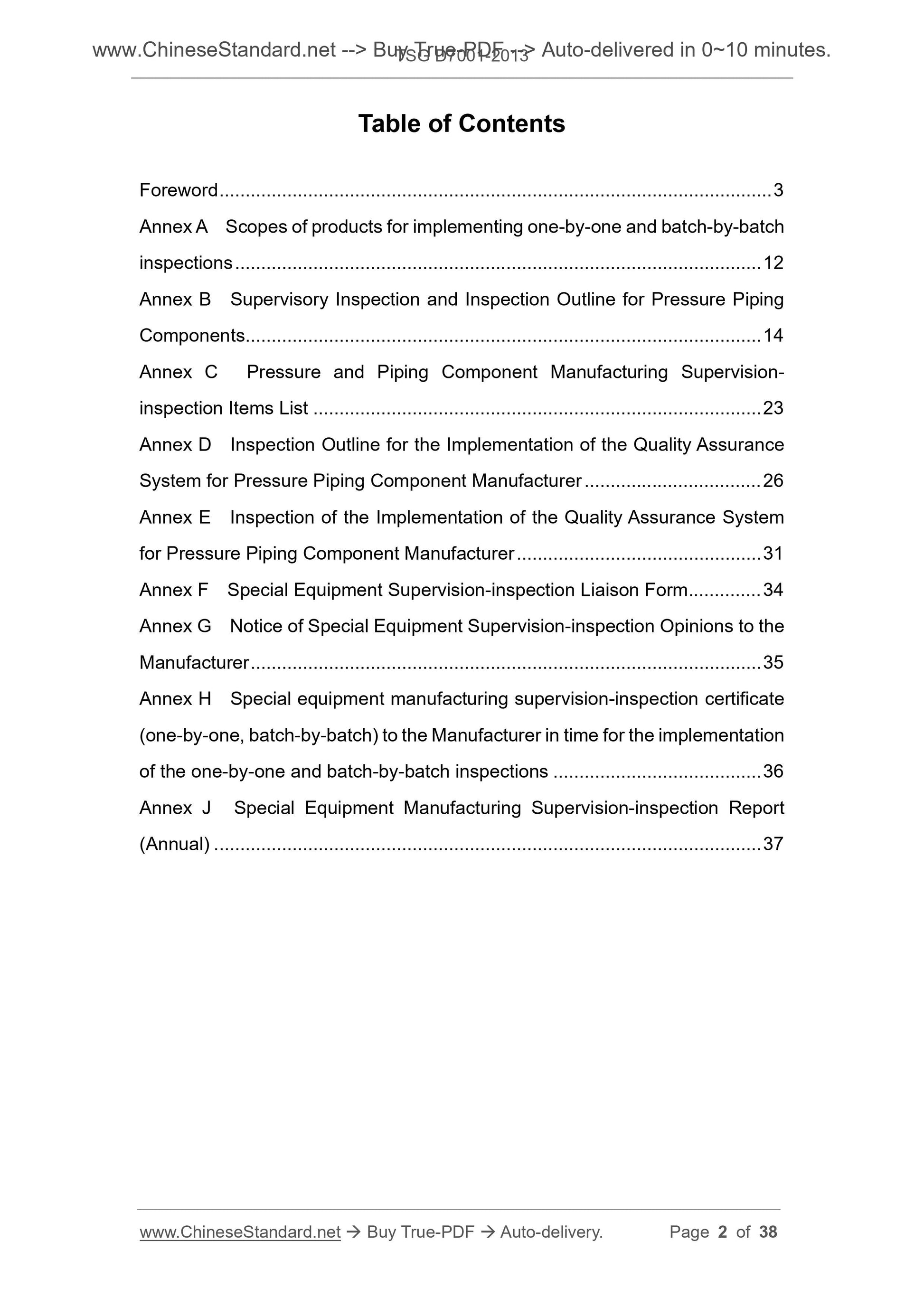

Table of Contents
Foreword ... 3
Annex A Scopes of products for implementing one-by-one and batch-by-batch inspections ... 12
Annex B Supervisory Inspection and Inspection Outline for Pressure Piping Components... 14
Annex C Pressure and Piping Component Manufacturing Supervision-
inspection Items List ... 23
Annex D Inspection Outline for the Implementation of the Quality Assurance System for Pressure Piping Component Manufacturer ... 26
Annex E Inspection of the Implementation of the Quality Assurance System for Pressure Piping Component Manufacturer ... 31
Annex F Special Equipment Supervision-inspection Liaison Form ... 34
Annex G Notice of Special Equipment Supervision-inspection Opinions to the Manufacturer ... 35
Annex H Special equipment manufacturing supervision-inspection certificate (one-by-one, batch-by-batch) to the Manufacturer in time for the implementation of the one-by-one and batch-by-batch inspections ... 36
Annex J Special Equipment Manufacturing Supervision-inspection Report
(Annual) ... 37

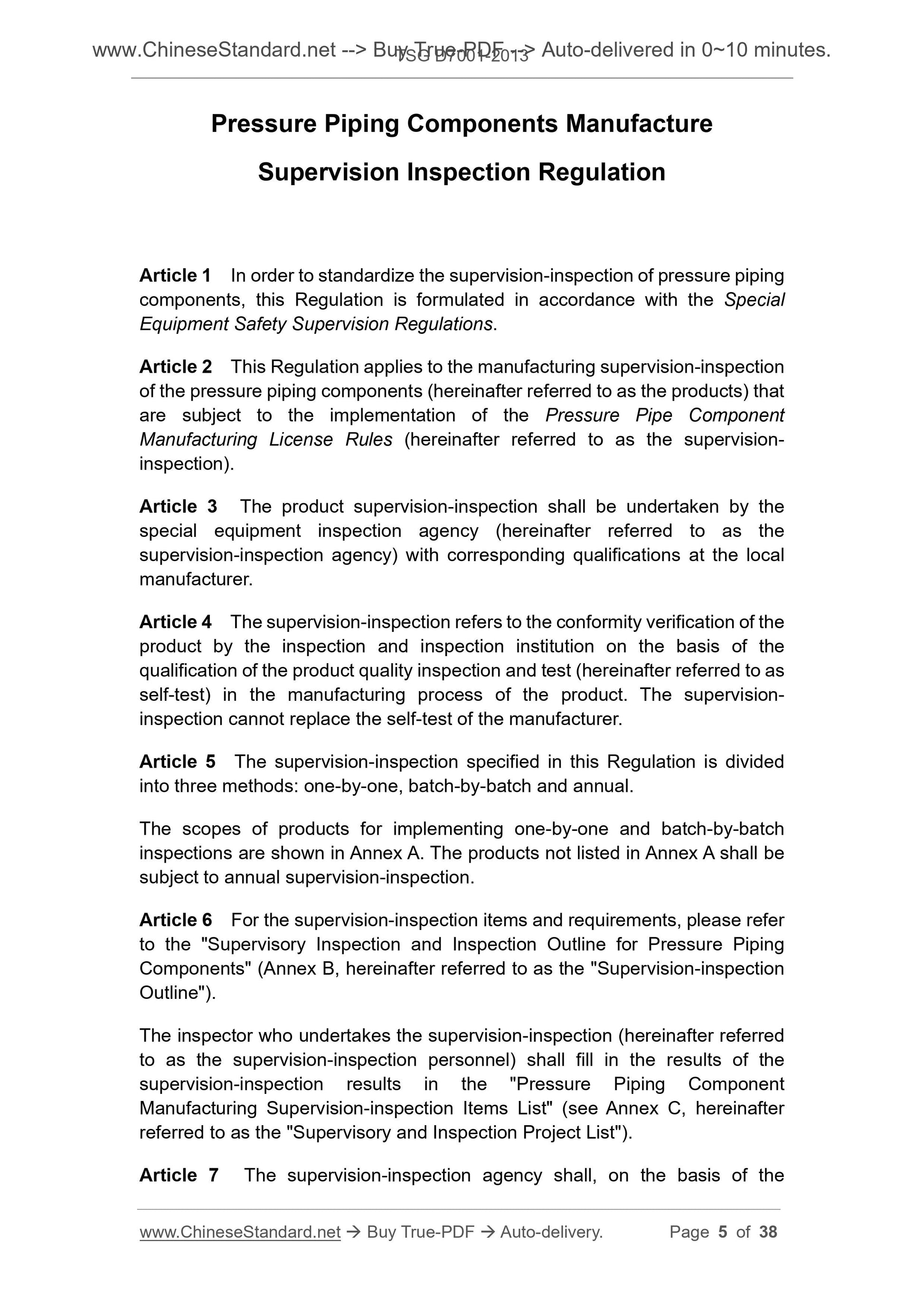

Pressure Piping Components Manufacture
Supervision Inspection Regulation
Article 1 In order to standardize the supervision-inspection of pressure piping components, this Regulation is formulated in accordance with the Special Equipment Safety Supervision Regulations.
Article 2 This Regulation applies to the manufacturing supervision-inspection of the pressure piping components (hereinafter referred to as the products) that are subject to the implementation of the Pressure Pipe Component
Manufacturing License Rules (hereinafter referred to as the supervision- inspection).
Article 3 The product supervision-inspection shall be undertaken by the special equipment inspection agency (hereinafter referred to as the
supervision-inspection agency) with corresponding qualifications at the local manufacturer.
Article 4 The supervision-inspection refers to the conformity verification of the product by the inspection and inspection institution on the basis of the qualification of the product quality inspection and test (hereinafter referred to as self-test) in the manufacturing process of the product. The supervision- inspection cannot replace the self-test of the manufacturer.
Article 5 The supervision-inspection specified in this Regulation is divided into three methods. one-by-one, batch-by-batch and annual.
The scopes of products for implementing one-by-one and batch-by-batch
inspections are shown in Annex A. The products not listed in Annex A shall be subject to annual supervision-inspection.
Article 6 For the supervision-inspection items and requirements, please refer to the "Supervisory Inspection and Inspection Outline for Pressure Piping Components" (Annex B, hereinafter referred to as the "Supervision-inspection Outline").
The inspector who undertakes the supervision-inspection (hereinafter referred to as the supervision-inspection personnel) shall fill in the results of the supervision-inspection results in the "Pressure Piping Component
Manufacturing Supervision-inspection Items List" (see Annex C, hereinafter referred to as the "Supervisory and Inspection Project List").
Article 7 The supervision-inspection agency shall, on the basis of the

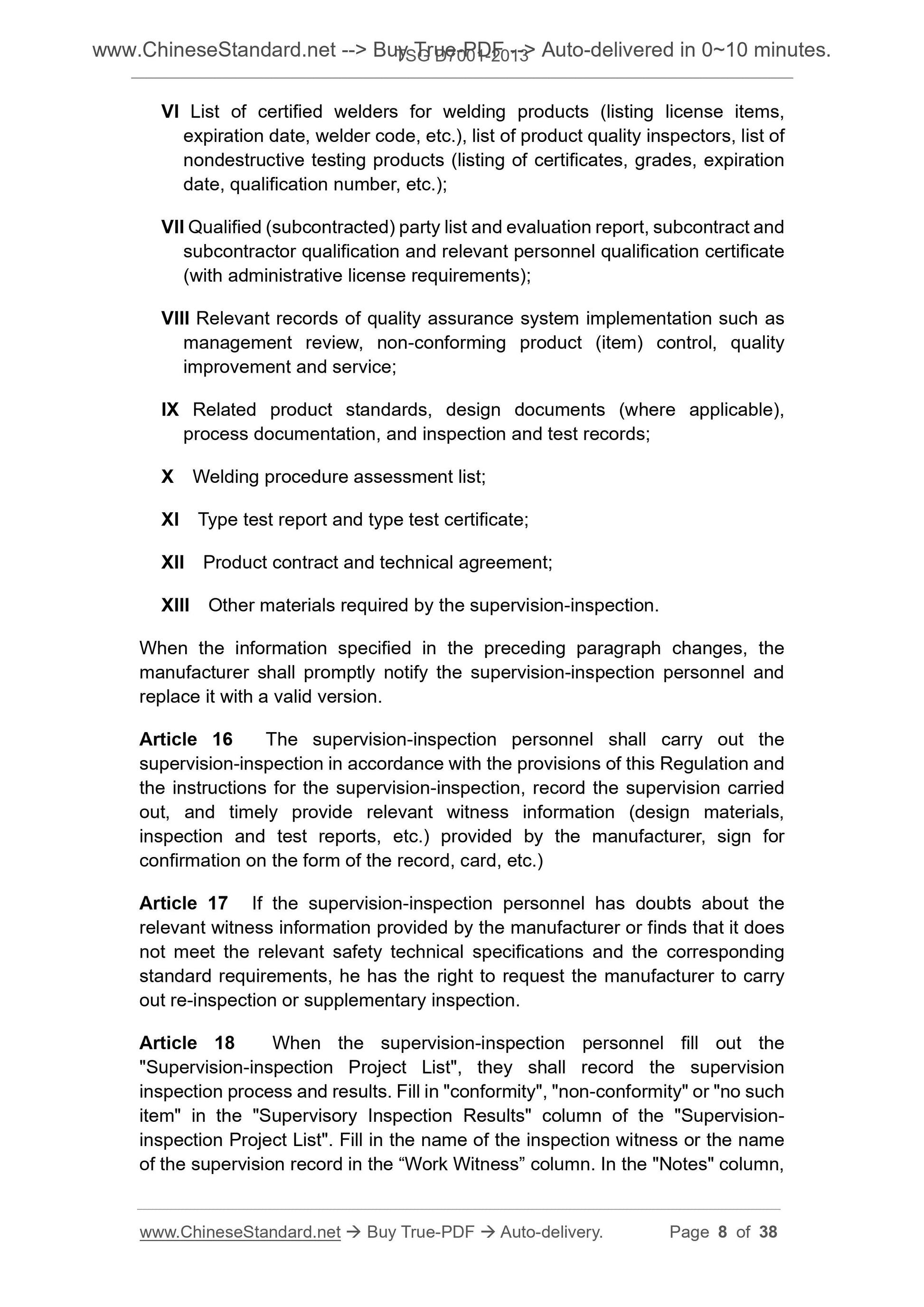

VI List of certified welders for welding products (listing license items, expiration date, welder code, etc.), list of product quality inspectors, list of nondestructive testing products (listing of certificates, grades, expiration date, qualification number, etc.);
VII Qualified (subcontracted) party list and evaluation report, subcontract and subcontractor qualification and relevant personnel qualification certificate (with administrative license requirements);
VIII Relevant records of quality assurance system implementation such as management review, non-conforming product (item) control, quality
improvement and service;
IX Related product standards, design documents (where applicable),
process documentation, and inspection and test records;
X Welding procedure assessment list;
XI Type test report and type test certificate;
XII Product contract and technical agreement;
XIII Other materials required by the supervision-inspection.
When the information specified in the preceding paragraph changes, the
manufacturer shall promptly notify the supervision-inspection personnel and replace it with a valid version.
Article 16 The supervision-inspection personnel shall carry out the
supervision-inspection in accordance with the provisions of this Regulation and the instructions for the supervision-inspection, record the supervision carried out, and timely provide relevant witness information (design materials, inspection and test reports, etc.) provided by the manufacturer, sign for confirmation on the form of the record, card, etc.)
Article 17 If the supervision-inspection personnel has doubts about the relevant witness information provided by the manufacturer or finds that it does not meet the relevant safety technical specifications and the corresponding standard requirements, he has the right to request the manufacturer to carry out re-inspection or supplementary inspection.
Article 18 When the supervision-inspection personnel fill out the
"Supervision-inspection Project List", they shall record the supervision inspection process and results. Fill in "conformity", "non-conformity" or "no such item" in the "Supervisory Inspection Results" column of the "Supervision- inspection Project List". Fill in the name of the inspection witness or the name of the supervision record in the ?€?Work Witness?€? column. In the "Notes" column, supervision-inspection within 6 months before April 5, 2014. The next supervision-inspection date shall be scheduled for the first 6 months of April 5, 2015 (not according to the implementation date of the supervision-inspection), and so on. However, it cannot exceed the validity period of the special equipment manufacturing license, that is, April 5, 2017 (according to the special equipment manufacturing license valid for 4 years).

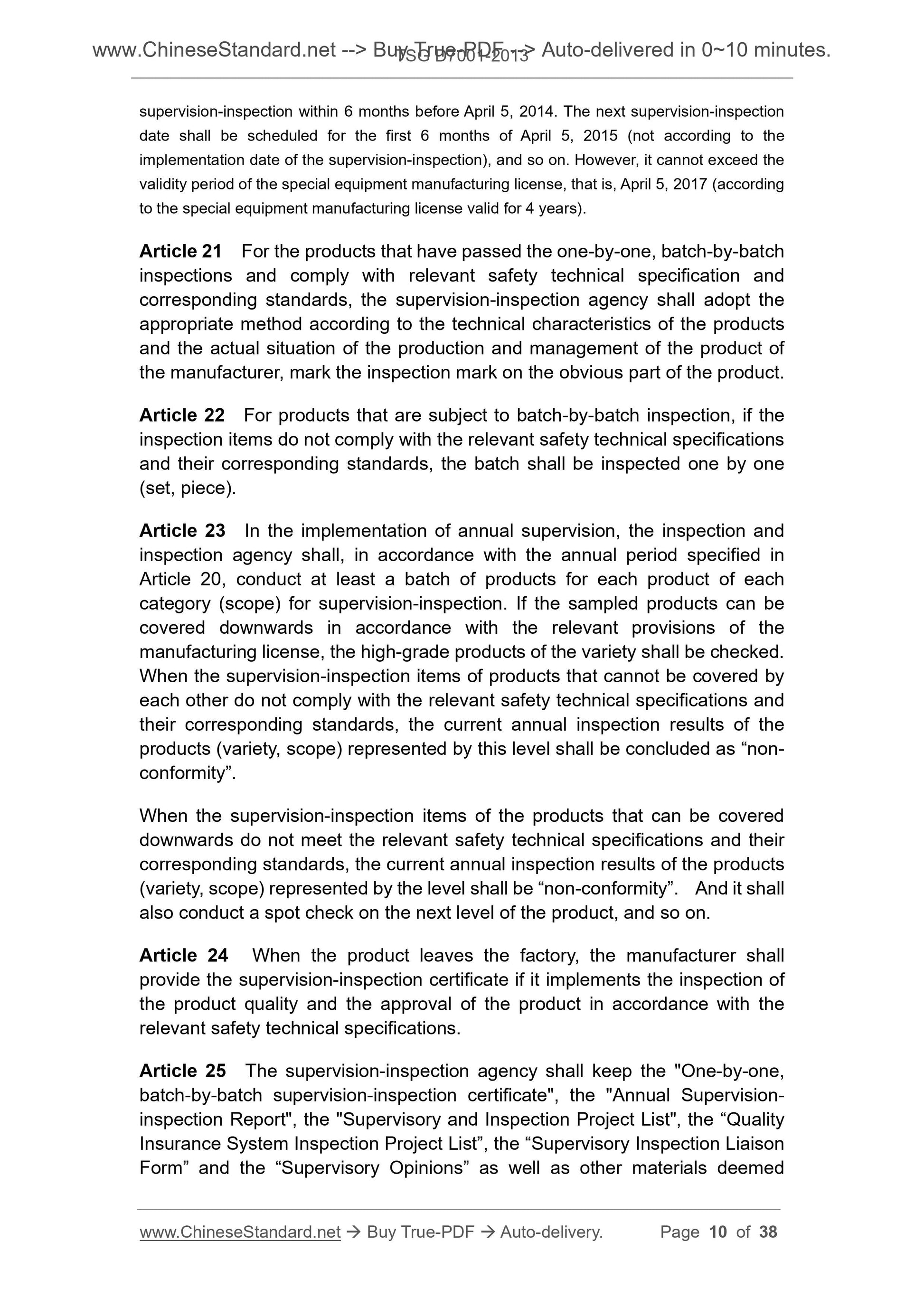

Article 21 For the products that have passed the one-by-one, batch-by-batch inspections and comply with relevant safety technical specification and corresponding standards, the supervision-inspection agency shall adopt the appropriate method according to the technical characteristics of the products and the actual situation of the production and management of the product of the manufacturer, mark the inspection mark on the obvious part of the product. Article 22 For products that are subject to batch-by-batch inspection, if the inspection items do not comply with the relevant safety technical specifications and their corresponding standards, the batch shall be inspected one by one (set, piece).
Article 23 In the implementation of annual supervision, the inspection and inspection agency shall, in accordance with the annual period specified in Article 20, conduct at least a batch of products for each product of each category (scope) for supervision-inspection. If the sampled products can be covered downwards in accordance with the relevant provisions of the
manufacturing license, the high-grade products of the variety shall be checked. When the supervision-inspection items of products that cannot be covered by each other do not comply with the relevant safety technical specifications and their corresponding standards, the current annual inspection results of the products (variety, scope) represented by this level shall be concluded as ?€?non- conformity?€?.
When the supervision-inspection items of the products that can be covered downwards do not meet the relevant safety technical specifications and their corresponding standards, the current annual inspection results of the products (variety, scope) represented by the level shall be ?€?non-conformity?€?. And it shall also conduct a spot check on the next level of the product, and so on.
Article 24 When the product leaves the factory, the manufacturer shall
provide the supervision-inspection certificate if it implements the inspection of the product quality and the approval of the product in accordance with the relevant safety technical specifications.
Article 25 The supervision-inspection agency shall keep the "One-by-one, batch-by-batch supervision-inspection certificate", the "Annual Supervision- inspection Report", the "Supervisory and Inspection Project List", the ?€?Quality Insurance System Inspection Project List?€?, the ?€?Supervisory Inspection Liaison Form?€? and the ?€?Supervisory Opinions?€? as well as other materials deemed

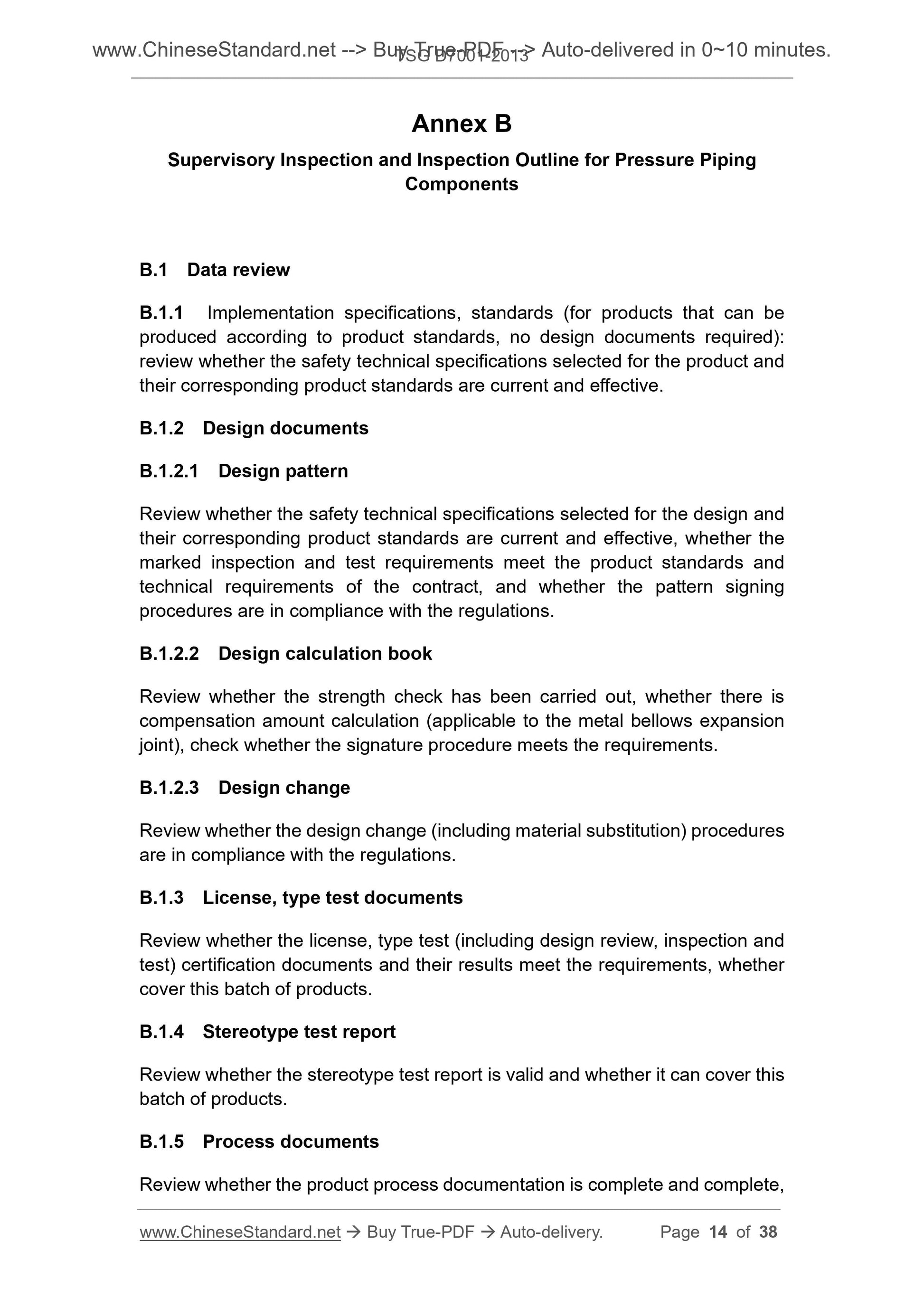

Annex B
Supervisory Inspection and Inspection Outline for Pressure Piping
Components
B.1 Data review
B.1.1 Implementation specifications, standards (for products that can be produced according to product standards, no design documents required). review whether the safety technical specifications selected for the product and their corresponding product standards are current and effective.
B.1.2 Design documents
B.1.2.1 Design pattern
Review whether the safety technical specifications selected for the design and their corresponding product standards are current and effective, whether the marked inspection and test requirements meet the product standards and
technical requirements of the contract, and whether the pattern signing procedures are in compliance with the regulations.
B.1.2.2 Design calculation book
Review whether the strength check has been carried out, whether there is compensation amount calculation (applicable to the metal bellows expansion joint), check whether the signature procedure meets the requirements.
B.1.2.3 Design change
Review whether the design change (including material substitution) procedures are in compliance with the regulations.
B.1.3 License, type test documents
Review whether the license, type test (including design review, inspection and test) certification documents and their results meet the requirements, whether cover this batch of products.
B.1.4 Stereotype test report
Review whether the stereotype test report is valid and whether it can cover this batch of products.
B.1.5 Process documents
Review whether the product process documentation is complete and complete, Including raw materials for pressure components, main parts and materials, sealing components, welding materials and purchased parts. The raw materials of polyethylene and polyethylene composite pipes also include compounding ingredients.

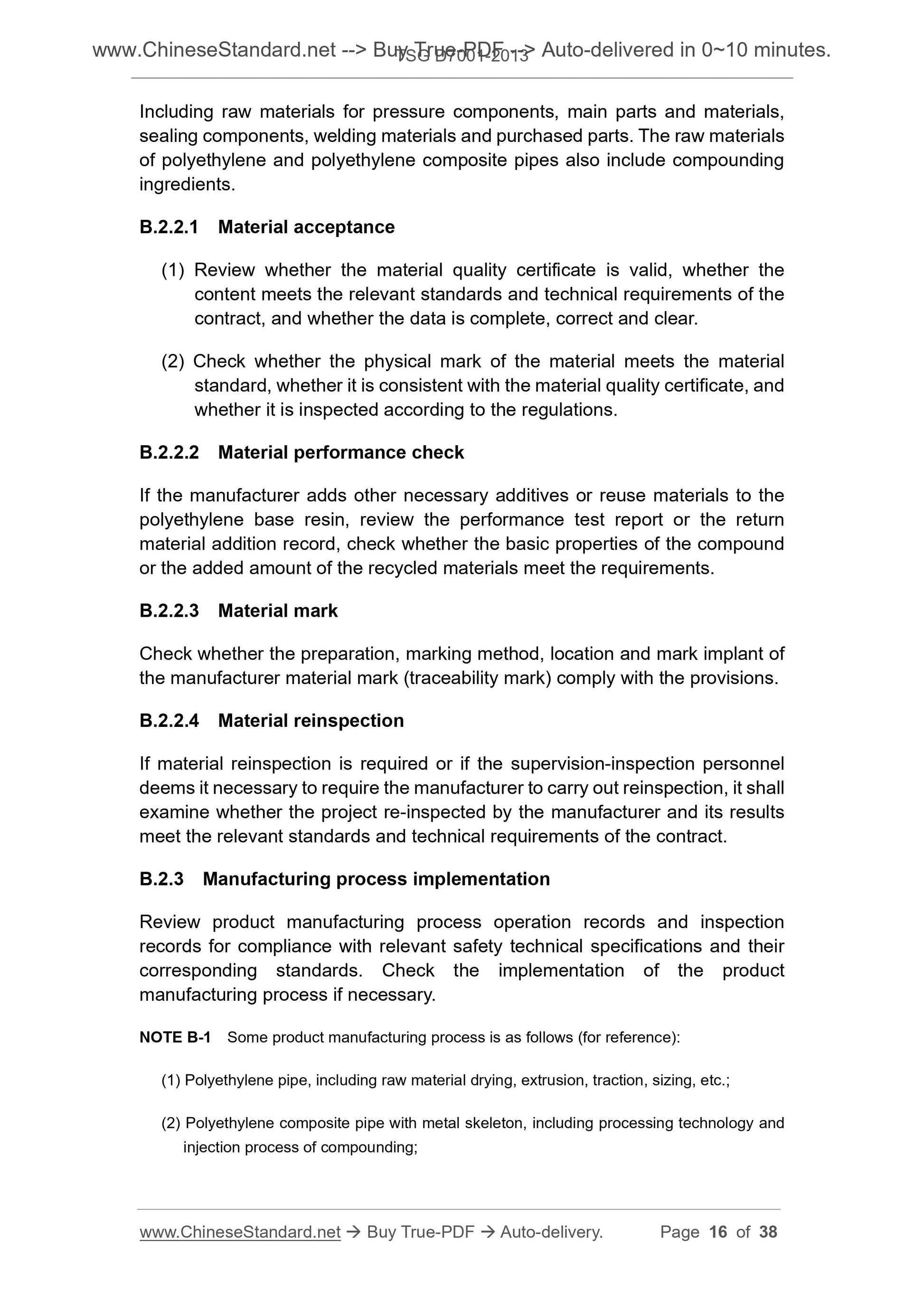

B.2.2.1 Material acceptance
(1) Review whether the material quality certificate is valid, whether the content meets the relevant standards and technical requirements of the
contract, and whether the data is complete, correct and clear.
(2) Check whether the physical mark of the material meets the material
standard, whether it is consistent with the material quality certificate, and whether it is inspected according to the regulations.
B.2.2.2 Material performance check
If the manufacturer adds other necessary additives or reuse materials to the polyethylene base resin, review the performance test report or the return material addition record, check whether the basic properties of the compound or the added amount of the recycled materials meet the requirements.
B.2.2.3 Material mark
Check whether the preparation, marking method, location and mark implant of the manufacturer material mark (traceability mark) comply with the provisions. B.2.2.4 Material reinspection
If material reinspection is required or if the supervision-inspection personnel deems it necessary to require the manufacturer to carry out reinspection, it shall examine whether the project re-inspected by the manufacturer and its results meet the relevant standards and technical requirements of the contract. B.2.3 Manufacturing process implementation
Review product manufacturing process operation records and inspection
records for compliance with relevant safety technical specifications and their corresponding standards. Check the implementation of the product
manufacturing process if necessary.
NOTE B-1 Some product manufacturing process is as follows (for reference). (1) Polyethylene pipe, including raw material drying, extrusion, traction, sizing, etc.; (2) Polyethylene composite pipe with metal skeleton, including processing technology and injection process of compounding;

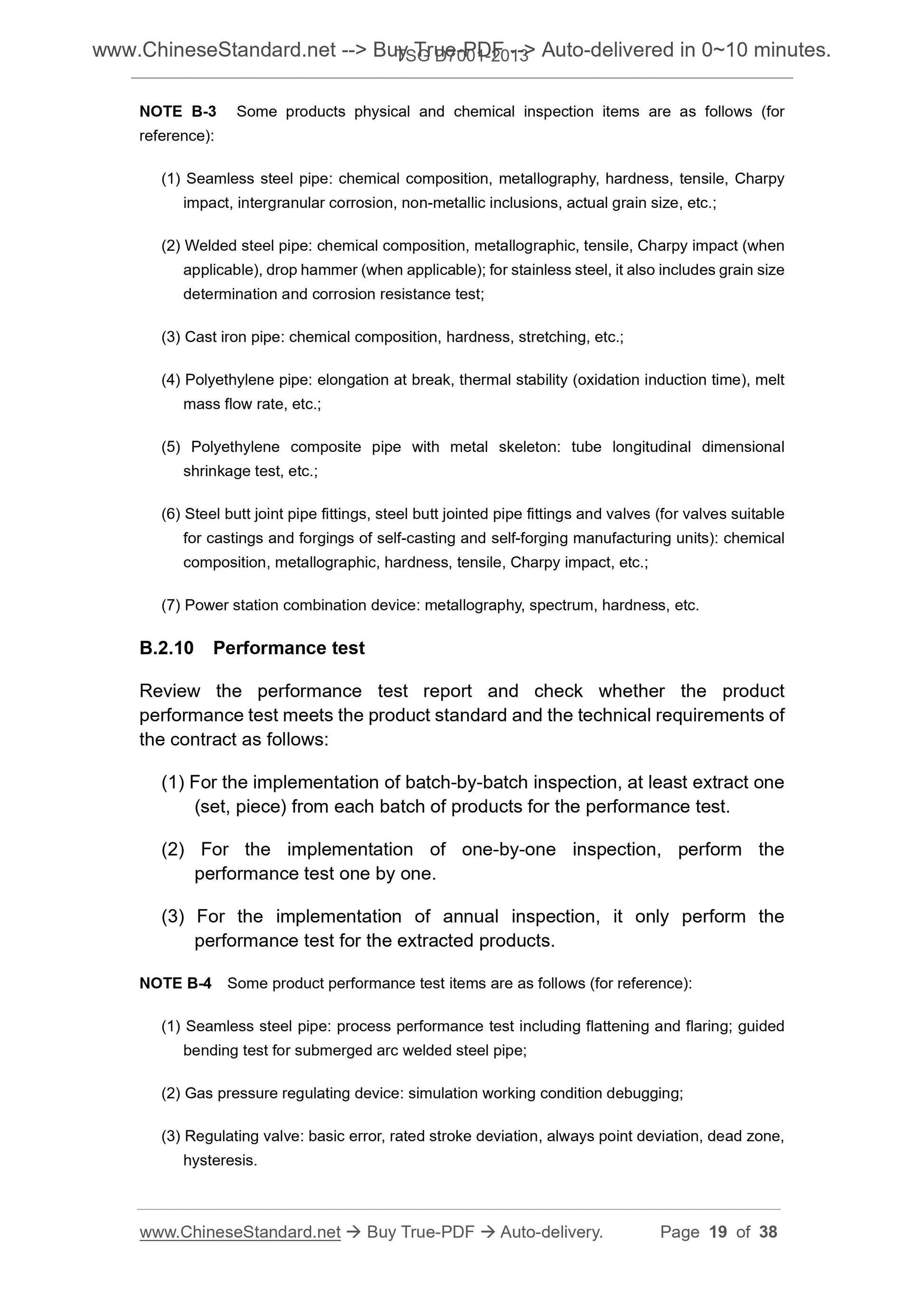

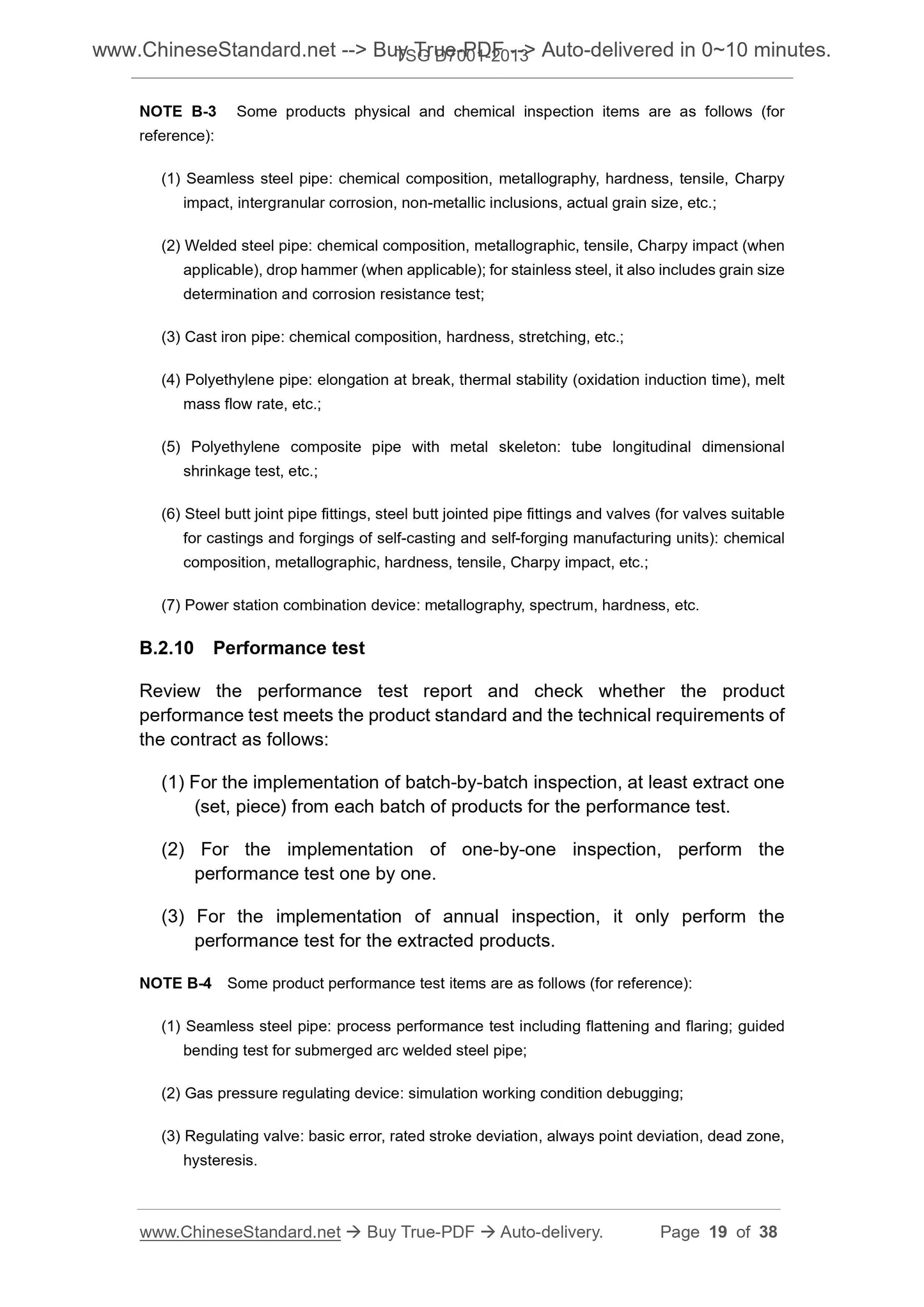

NOTE B-3 Some products physical and chemical inspection items are as follows (for reference).
(1) Seamless steel pipe. chemical composition, metallography, hardness, tensile, Charpy impact, intergranular corrosion, non-metallic inclusions, actual grain size, etc.; (2) Welded steel pipe. chemical composition, metallographic, tensile, Charpy impact (when applicable), drop hammer (when applicable); for stainless steel, it also includes grain size determination and corrosion resistance test;
(3) Cast iron pipe. chemical composition, hardness, stretching, etc.;
(4) Polyethylene pipe. elongation at break, thermal stability (oxidation induction time), melt mass flow rate, etc.;
(5) Polyethylene composite pipe with metal skeleton. tube longitudinal dimensional shrinkage test, etc.;
(6) Steel butt joint pipe fittings, steel butt jointed pipe fittings and valves (for valves suitable for castings and forgings of self-casting and self-forging manufacturing units). chemical composition, metallographic, hardness, tensile, Charpy impact, etc.;
(7) Power station combination device. metallography, spectrum, hardness, etc. B.2.10 Performance test
Review the performance test report and check whether the product
performance test meets the product standard and the technical requirements of the contract as follows.
(1) For the implementation of batch-by-batch inspection, at least extract one (set, piece) from each batch of products for the performance test.
(2) For the implementation of one-by-one inspection, perform the
performance test one by one.
(3) For the implementation of annual inspection, it only perform the
performance test for the extracted products.
NOTE B-4 Some product performance test items are as follows (for reference). (1) Seamless steel pipe. process performance test including flattening and flaring; guided bending test for submerged arc welded steel pipe;
(2) Gas pressure regulating device. simulation working condition debugging; (3) Regulating valve. basic error, rated stroke deviation, always point deviation, dead zone, hysteresis.

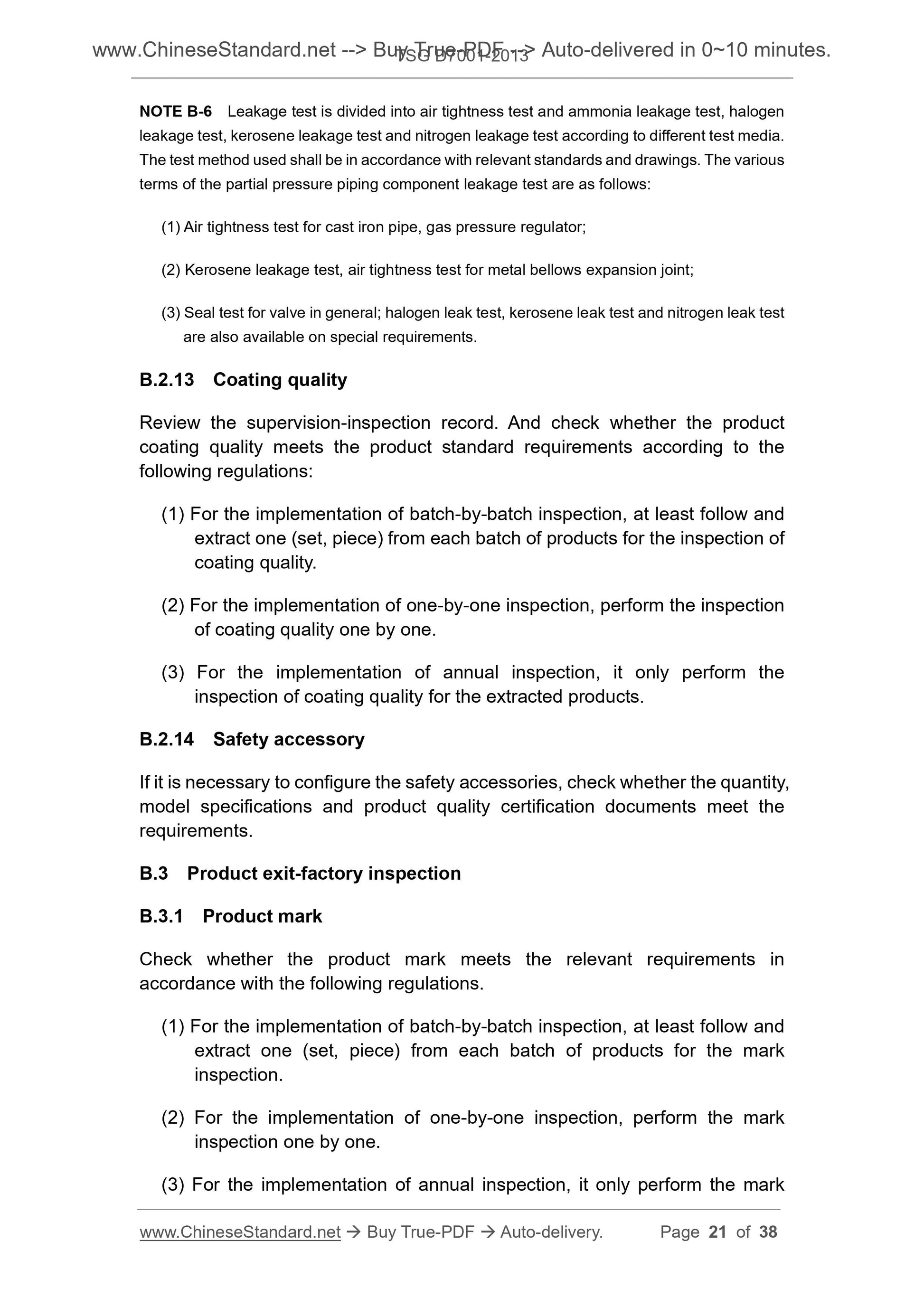

NOTE B-6 Leakage test is divided into air tightness test and ammonia leakage test, halogen leakage test, kerosene leakage test and nitrogen leakage test according to different test media. The test method used shall be in accordance with relevant standards and drawings. The various terms of the partial pressure piping component leakage test are as follows. (1) Air tightness test for cast iron pipe, gas pressure regulator;
(2) Kerosene leakage test, air tightness test for metal bellows expansion joint; (3) Seal test for valve in general; halogen leak test, kerosene leak test and nitrogen leak test are also available on special requirements.
B.2.13 Coating quality
Review the supervision-inspection record. And check whether the product coating quality meets the product standard requirements according to the following regulations.
(1) For the implementation of batch-by-batch inspection, at least follow and extract one (set, piece) from each batch of products for the inspection of coating quality.
(2) For the implementation of one-by-one inspection, perform the inspection of coating quality one by one.
(3) For the implementation of annual inspection, it only perform the
inspection of coating quality for the extracted products.
B.2.14 Safety accessory
If it is necessary to configure the safety accessories, check whether the quantity, model specifications and product quality certification documents meet the requirements.
B.3 Product exit-factory inspection
B.3.1 Product mark
Check whether the product mark meets the relevant requirements in
accordance with the following regulations.
(1) For the implementation of batch-by-batch inspection, at least follow and extract one (set, piece) from each batch of products for the mark
inspection.
(2) For the implementation of one-by-one inspection, perform the mark
inspection one by one.
(3) For the implementation of annual inspection, it only perform the mark Piping Component Manufacturing Permit Regulations" (TSG D2001).

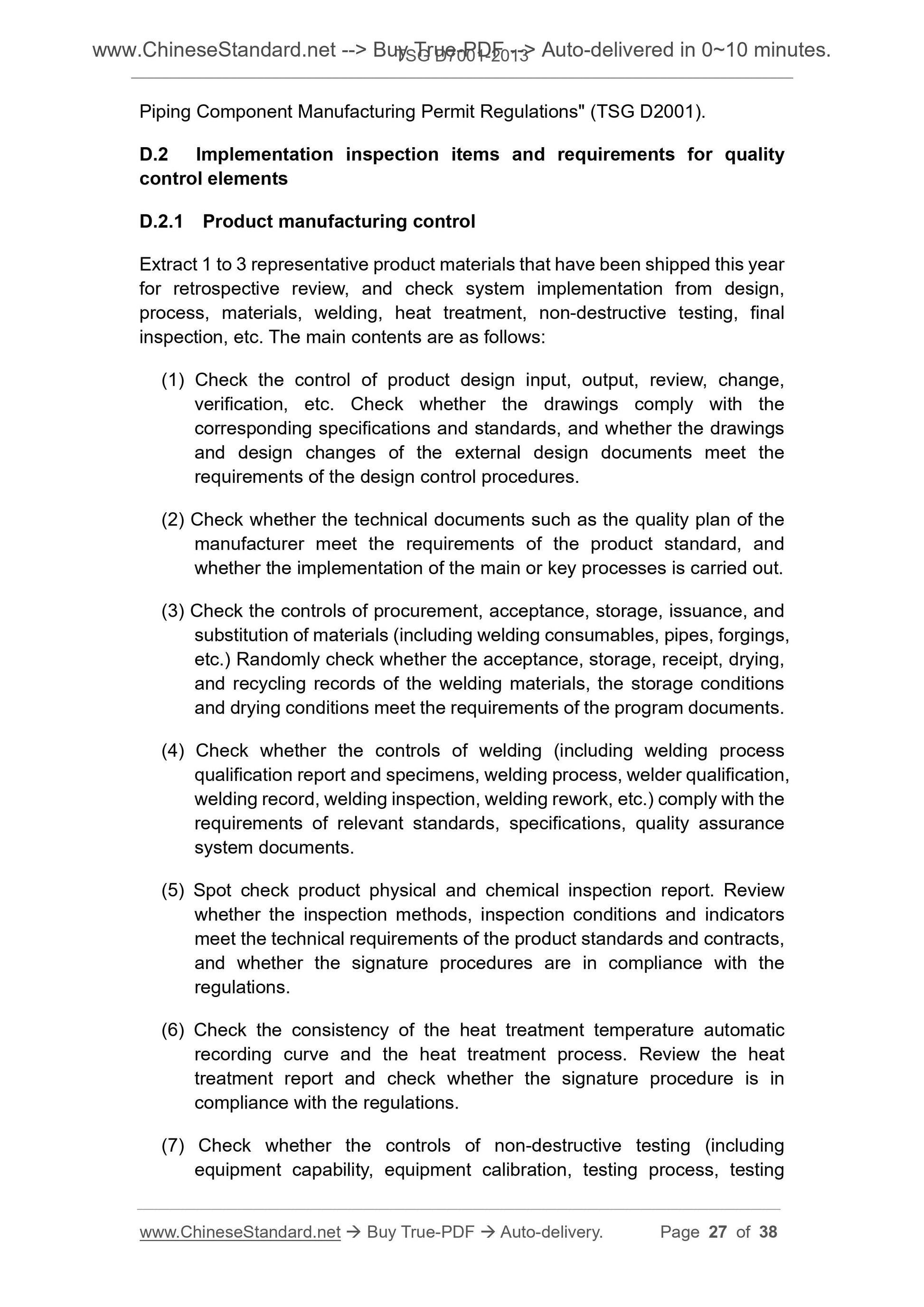

D.2 Implementation inspection items and requirements for quality
control elements
D.2.1 Product manufacturing control
Extract 1 to 3 representative product materials that have been shipped this year for retrospective review, and check system implementation from design,
process, materials, welding, heat treatment, non-destructive testing, final inspection, etc. The main contents are as follows.
(1) Check the control of product design input, output, review, change,
verification, etc. Check whether the drawings comply with the
corresponding specifications and standards, and whether the drawings
and design changes of the external design documents meet the
requirements of the design control procedures.
(2) Check whether the technical documents such as the quality plan of the manufacturer meet the requirements of the product standard, and
whether the implementation of the main or key processes is carried out. (3) Check the controls of procurement, acceptance, storage, issuance, and substitution of materials (including welding consumables, pipes, forgings, etc.) Randomly check whether the acceptance, storage, receipt, drying,
and recycling records of the welding materials, the storage conditions
and drying conditions meet the requirements of the program documents.
(4) Check whether the controls of welding (including welding process
qualification report and specimens, welding process, welder qualification, welding record, welding inspection, welding rework, etc.) comply with the requirements of relevant standards, specifications, quality assurance
system documents.
(5) Spot check product physical and chemical inspection report. Review
whether the inspection methods, inspection conditions and indicators
meet the technical requirements of the product standards and contracts, and whether the signature procedures are in compliance with the
regulations.
(6) Check the consistency of the heat treatment temperature automatic
recording curve and the heat treatment process. Review the heat
treatment report and check whether the signature procedure is in
compliance with the regulations.
(7) Check whether the controls of non-destructive testing (including
equipment capability, equipment calibration, testing process, testing

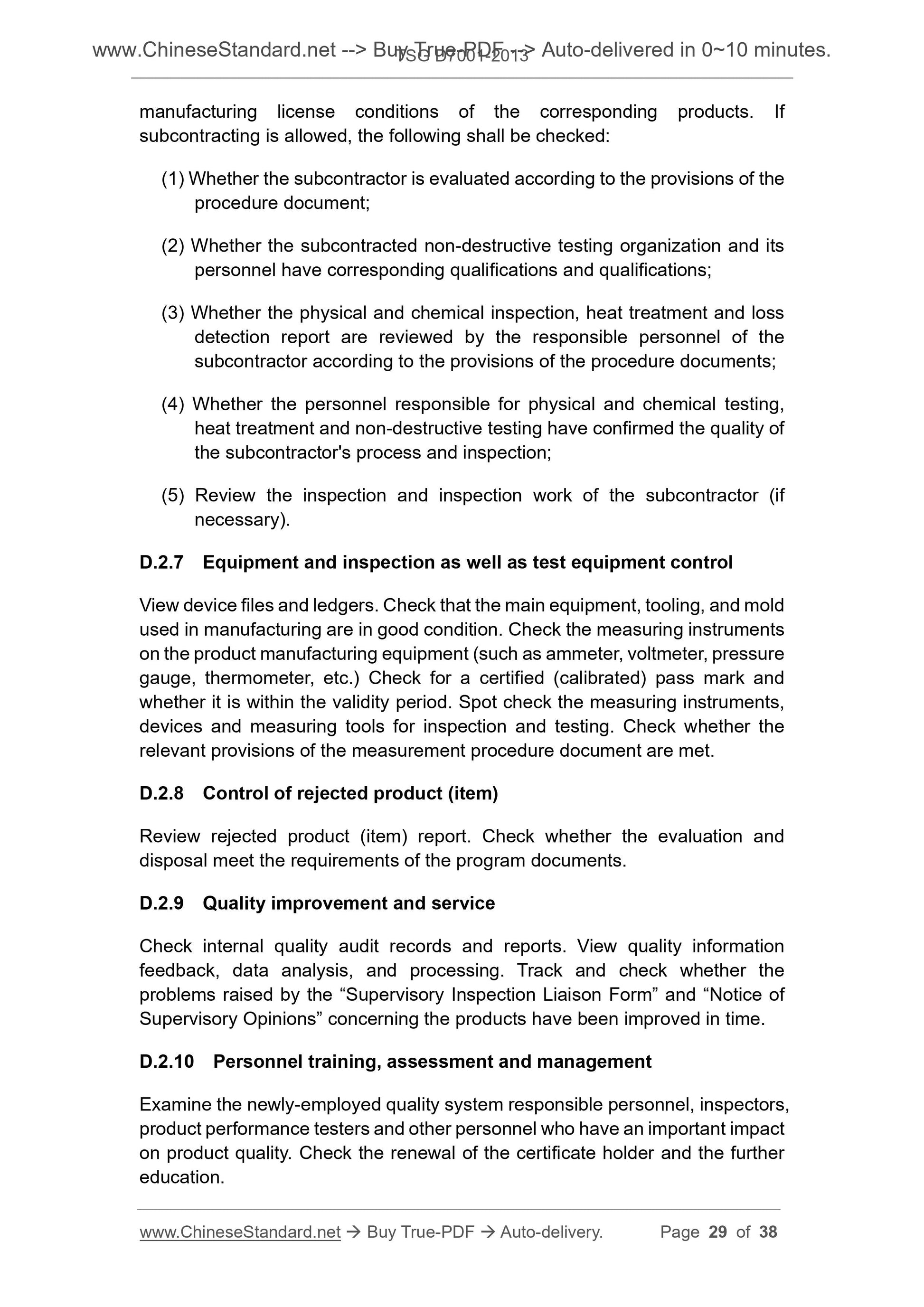

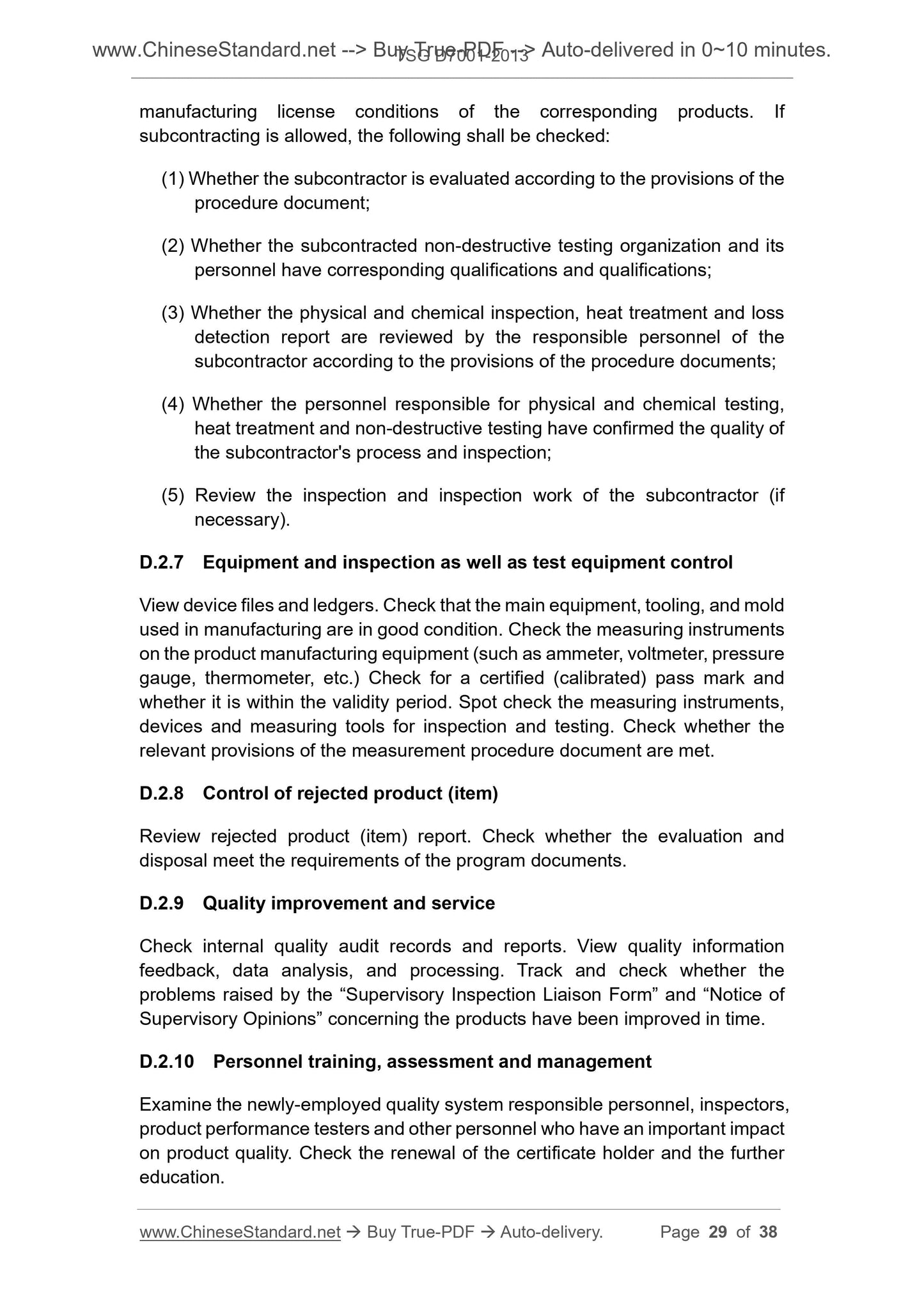

manufacturing license conditions of the corresponding products. If
subcontracting is allowed, the following shall be checked.
(1) Whether the subcontractor is evaluated according to the provisions of the procedure document;
(2) Whether the subcontracted non-destructive testing organization and its personnel have corresponding qualifications and qualifications;
(3) Whether ...
