TSG D2001-2006 English PDF (TSGD2001-2006)

TSG D2001-2006 English PDF (TSGD2001-2006)

Regular price $410.00 USD
Regular price Sale price $410.00 USD
Sale Sold out
Shipping calculated at checkout.
Quotation: 24-hr self-service. Click TSG D2001-2006
See Chinese contents: TSG D2001-2006

TSG D2001-2006: Including 2009XG Modification] Pressure Piping Components Manufacture Appraisal Regulation

This Rules is regulated in order to maintain a good job in the implementation of the qualification of the pipe unit manufacture appraisal, according to the relevant provisions of Special Equipment Safety Supervision Regulations.

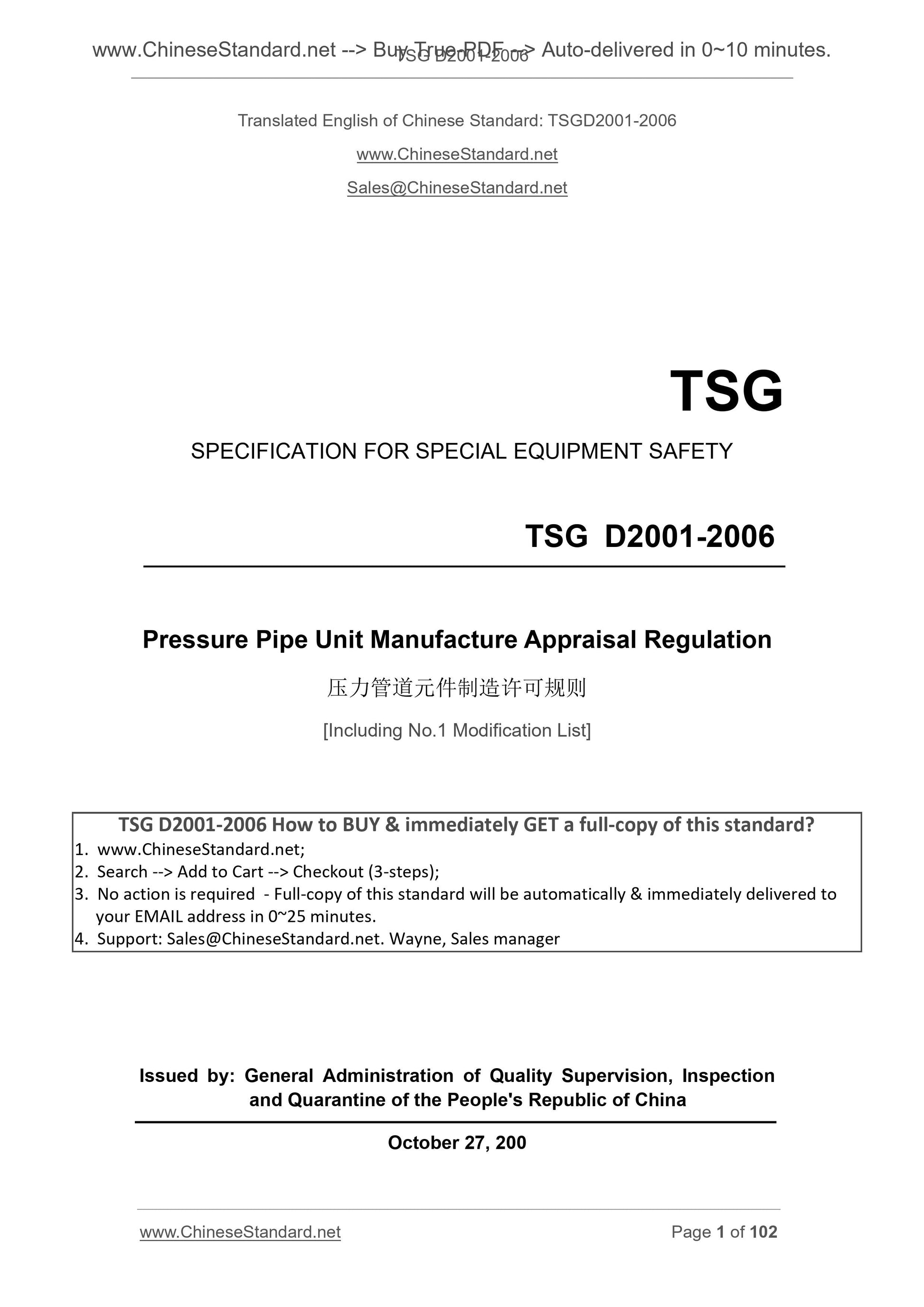

TSG D2001-2006
TSG
SPECIFICATION FOR SPECIAL EQUIPMENT SAFETY
Pressure Pipe Unit Manufacture Appraisal Regulation
[Including No.1 Modification List]
Issued by. General Administration of Quality Supervision, Inspection
and Quarantine of the People's Republic of China
October 27, 200

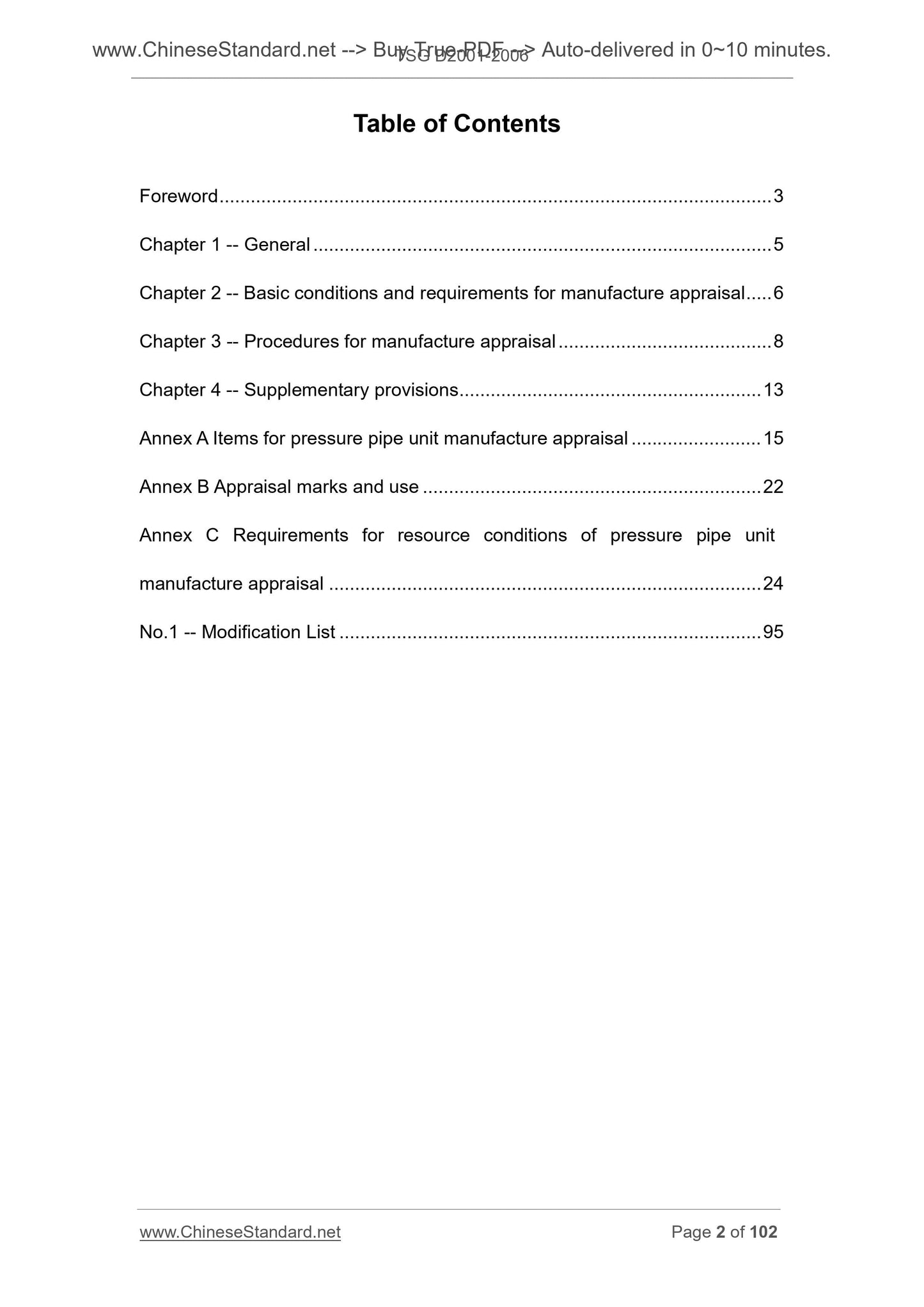

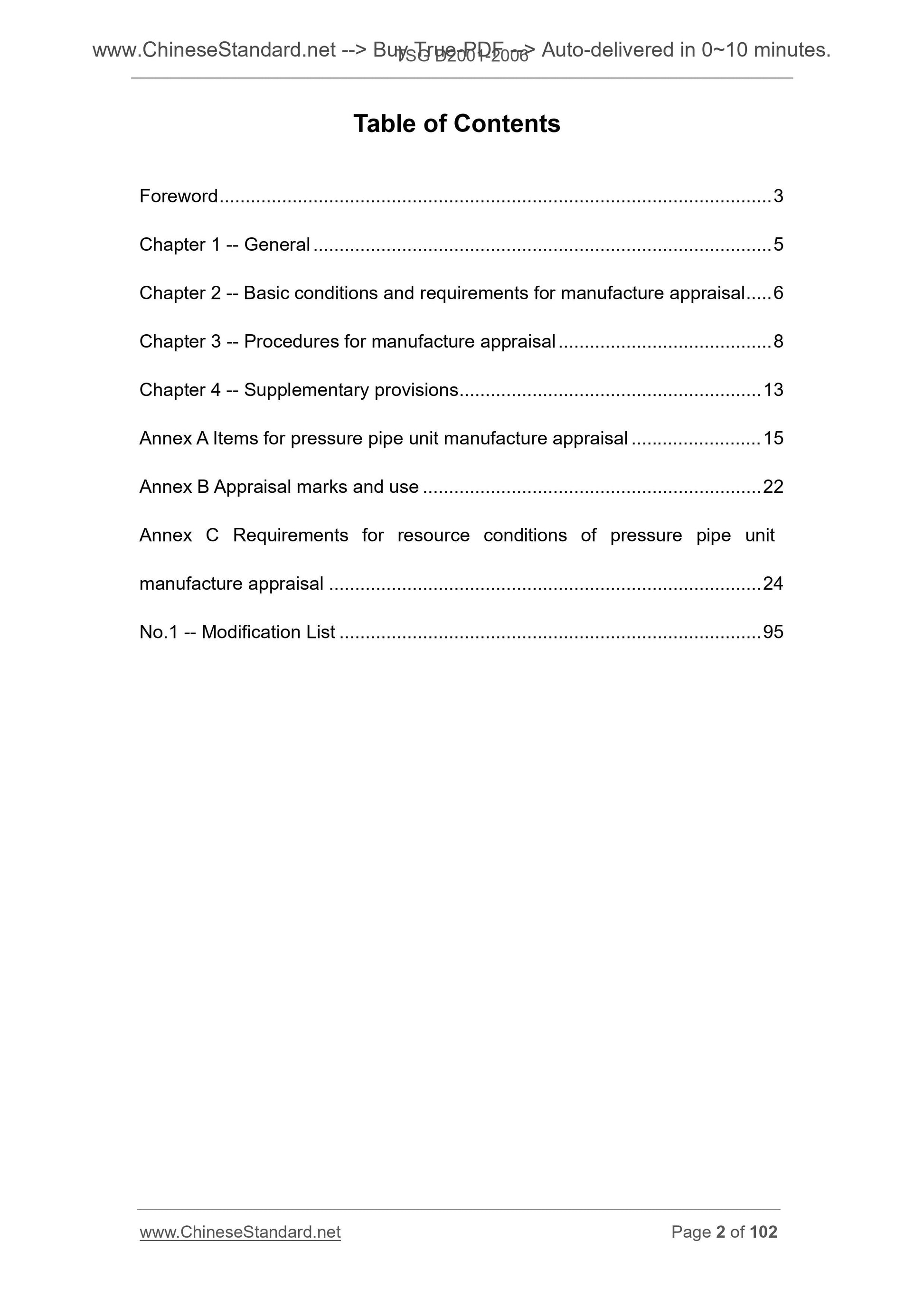

Table of Contents
Foreword ... 3
Chapter 1 -- General ... 5
Chapter 2 -- Basic conditions and requirements for manufacture appraisal ... 6 Chapter 3 -- Procedures for manufacture appraisal ... 8
Chapter 4 -- Supplementary provisions ... 13
Annex A Items for pressure pipe unit manufacture appraisal ... 15
Annex B Appraisal marks and use ... 22

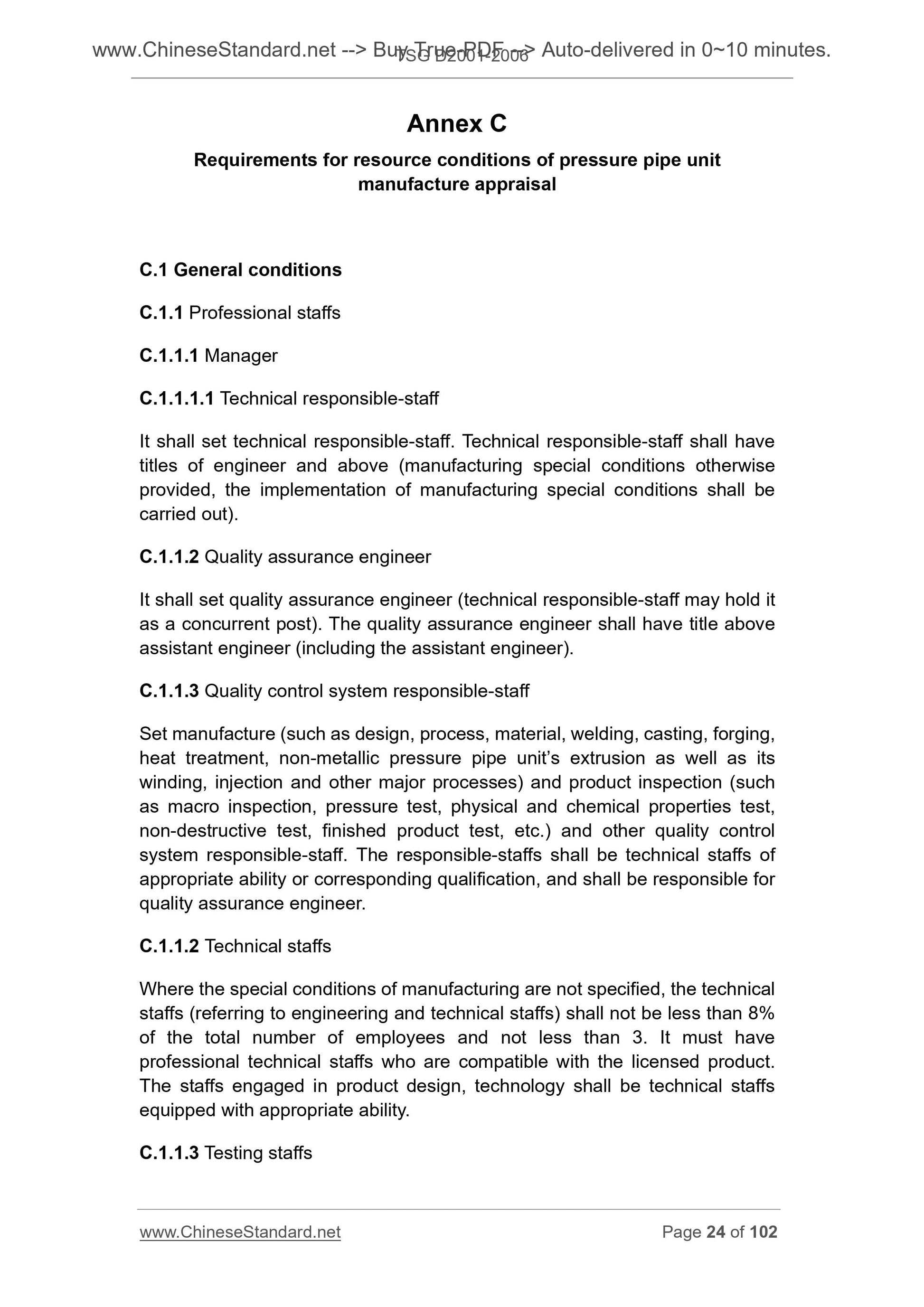

Annex C Requirements for resource conditions of pressure pipe unit
manufacture appraisal ... 24
No.1 -- Modification List ... 95

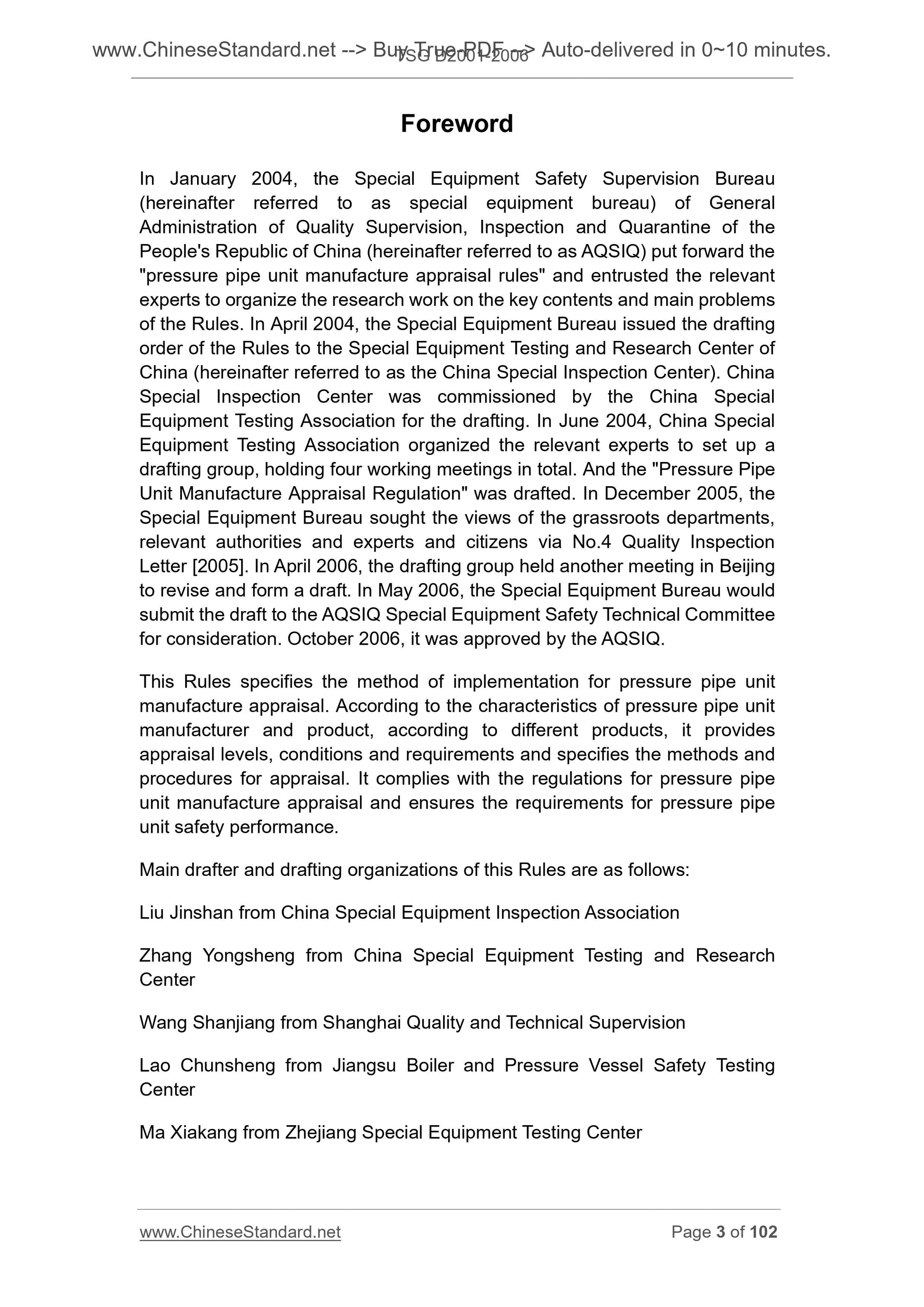

Foreword
In January 2004, the Special Equipment Safety Supervision Bureau
(hereinafter referred to as special equipment bureau) of General
Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China (hereinafter referred to as AQSIQ) put forward the "pressure pipe unit manufacture appraisal rules" and entrusted the relevant experts to organize the research work on the key contents and main problems of the Rules. In April 2004, the Special Equipment Bureau issued the drafting order of the Rules to the Special Equipment Testing and Research Center of China (hereinafter referred to as the China Special Inspection Center). China Special Inspection Center was commissioned by the China Special
Equipment Testing Association for the drafting. In June 2004, China Special Equipment Testing Association organized the relevant experts to set up a drafting group, holding four working meetings in total. And the "Pressure Pipe Unit Manufacture Appraisal Regulation" was drafted. In December 2005, the Special Equipment Bureau sought the views of the grassroots departments, relevant authorities and experts and citizens via No.4 Quality Inspection Letter [2005]. In April 2006, the drafting group held another meeting in Beijing to revise and form a draft. In May 2006, the Special Equipment Bureau would submit the draft to the AQSIQ Special Equipment Safety Technical Committee for consideration. October 2006, it was approved by the AQSIQ.
This Rules specifies the method of implementation for pressure pipe unit manufacture appraisal. According to the characteristics of pressure pipe unit manufacturer and product, according to different products, it provides
appraisal levels, conditions and requirements and specifies the methods and procedures for appraisal. It complies with the regulations for pressure pipe unit manufacture appraisal and ensures the requirements for pressure pipe unit safety performance.
Main drafter and drafting organizations of this Rules are as follows.
Liu Jinshan from China Special Equipment Inspection Association
Zhang Yongsheng from China Special Equipment Testing and Research
Center
Wang Shanjiang from Shanghai Quality and Technical Supervision
Lao Chunsheng from Jiangsu Boiler and Pressure Vessel Safety Testing
Center
Ma Xiakang from Zhejiang Special Equipment Testing Center

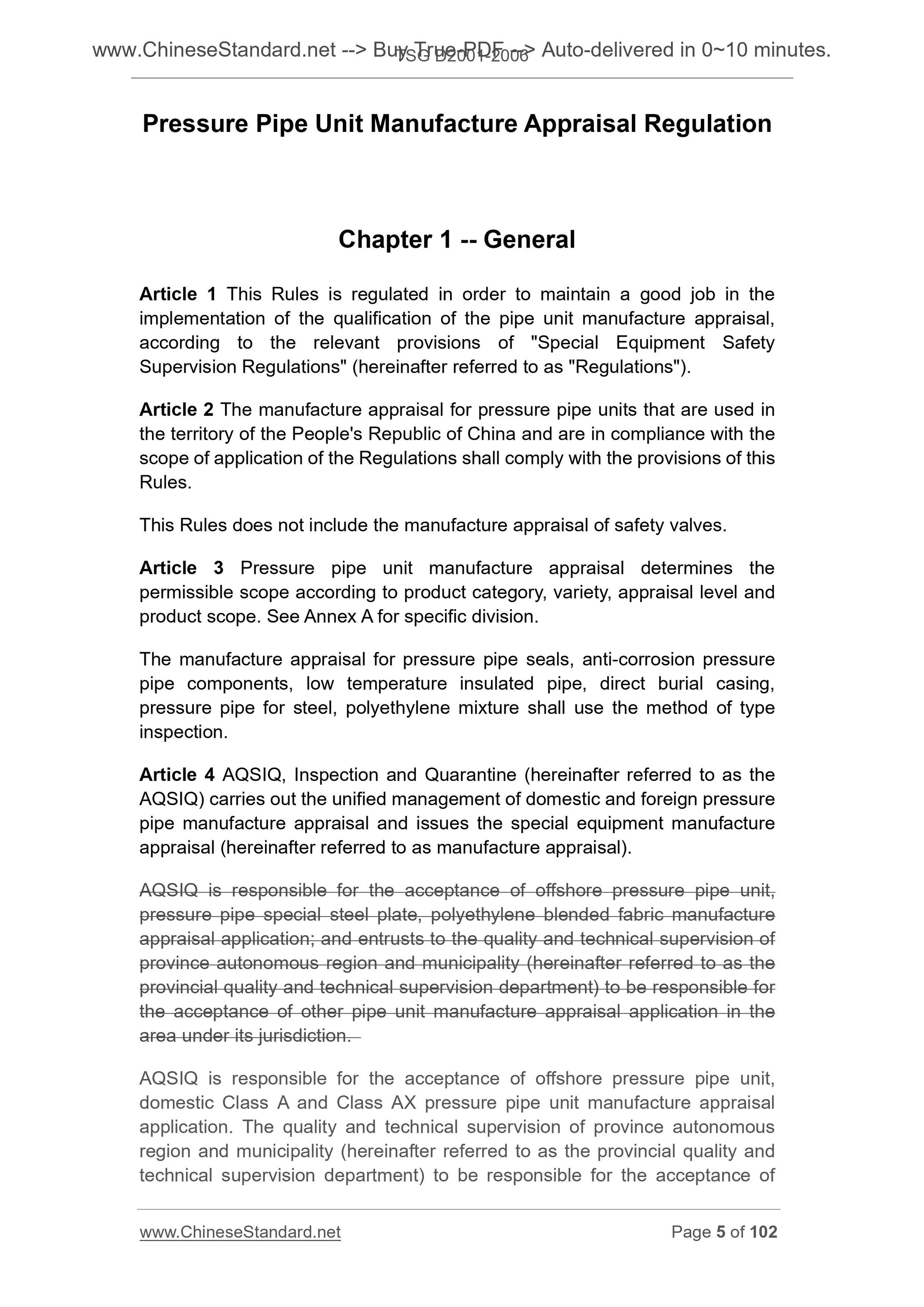

Pressure Pipe Unit Manufacture Appraisal Regulation
Chapter 1 -- General
Article 1 This Rules is regulated in order to maintain a good job in the implementation of the qualification of the pipe unit manufacture appraisal, according to the relevant provisions of "Special Equipment Safety
Supervision Regulations" (hereinafter referred to as "Regulations").
Article 2 The manufacture appraisal for pressure pipe units that are used in the territory of the People's Republic of China and are in compliance with the scope of application of the Regulations shall comply with the provisions of this Rules.
This Rules does not include the manufacture appraisal of safety valves. Article 3 Pressure pipe unit manufacture appraisal determines the
permissible scope according to product category, variety, appraisal level and product scope. See Annex A for specific division.
The manufacture appraisal for pressure pipe seals, anti-corrosion pressure pipe components, low temperature insulated pipe, direct burial casing,
pressure pipe for steel, polyethylene mixture shall use the method of type inspection.
Article 4 AQSIQ, Inspection and Quarantine (hereinafter referred to as the AQSIQ) carries out the unified management of domestic and foreign pressure pipe manufacture appraisal and issues the special equipment manufacture appraisal (hereinafter referred to as manufacture appraisal).
AQSIQ is responsible for the acceptance of offshore pressure pipe unit, pressure pipe special steel plate, polyethylene blended fabric manufacture appraisal application; and entrusts to the quality and technical supervision of province autonomous region and municipality (hereinafter referred to as the provincial quality and technical supervision department) to be responsible for the acceptance of other pipe unit manufacture appraisal application in the area under its jurisdiction.
AQSIQ is responsible for the acceptance of offshore pressure pipe unit, domestic Class A and Class AX pressure pipe unit manufacture appraisal
application. The quality and technical supervision of province autonomous region and municipality (hereinafter referred to as the provincial quality and technical supervision department) to be responsible for the acceptance of other pipe unit manufacture appraisal application in the area under its jurisdiction.
AQSIQ is responsible for the approval of the manufacture appraisal for some pressure pipe units and entrusts to the provincial quality and technical supervision department who shall be responsible for the approval of the manufacture appraisal for some pressure pipe units in the area under its jurisdiction. See Annex A for specific entrusted items.

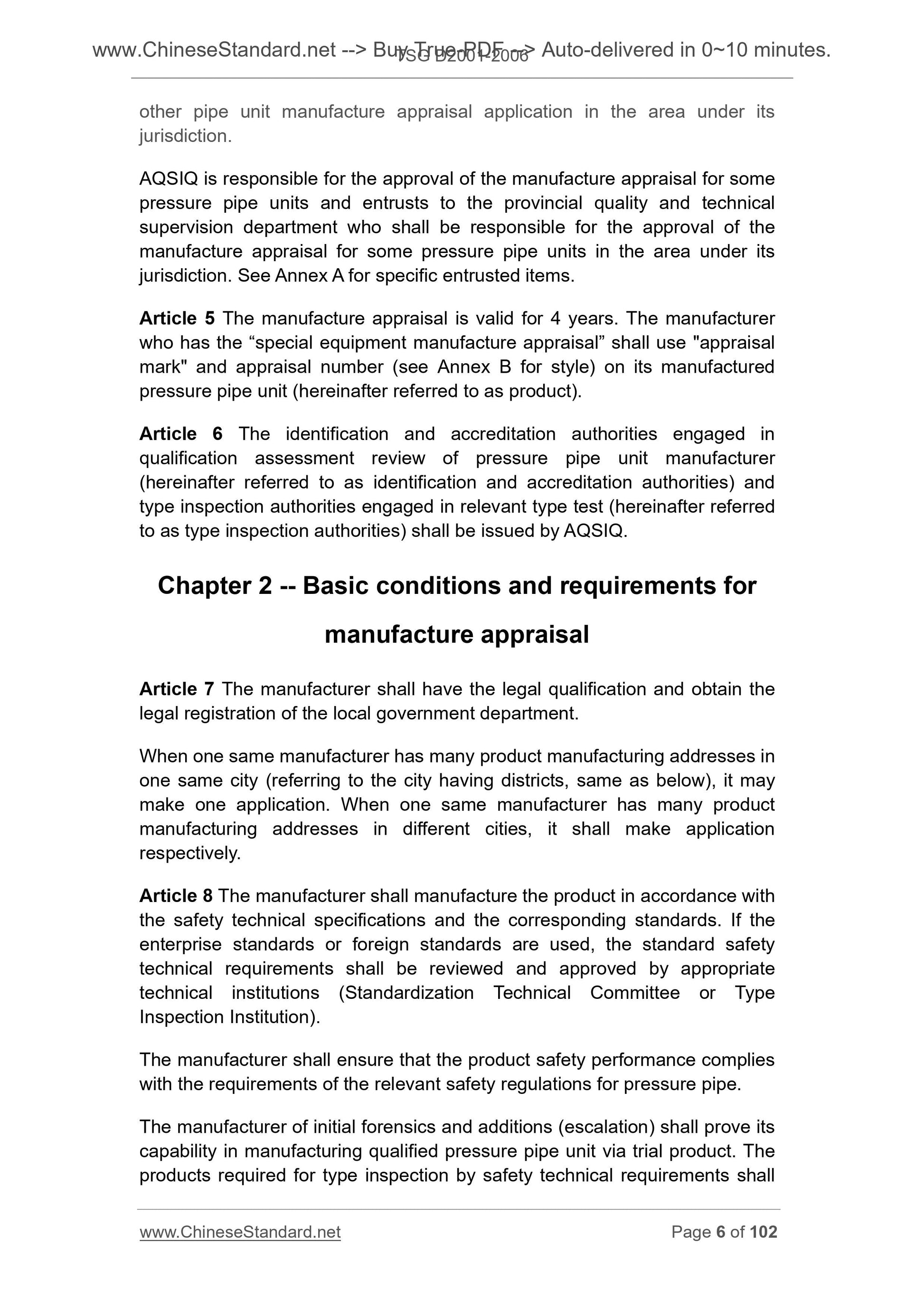

Article 5 The manufacture appraisal is valid for 4 years. The manufacturer who has the ?€?special equipment manufacture appraisal?€? shall use "appraisal mark" and appraisal number (see Annex B for style) on its manufactured
pressure pipe unit (hereinafter referred to as product).
Article 6 The identification and accreditation authorities engaged in
qualification assessment review of pressure pipe unit manufacturer
(hereinafter referred to as identification and accreditation authorities) and type inspection authorities engaged in relevant type test (hereinafter referred to as type inspection authorities) shall be issued by AQSIQ.
Chapter 2 -- Basic conditions and requirements for
manufacture appraisal
Article 7 The manufacturer shall have the legal qualification and obtain the legal registration of the local government department.
When one same manufacturer has many product manufacturing addresses in
one same city (referring to the city having districts, same as below), it may make one application. When one same manufacturer has many product
manufacturing addresses in different cities, it shall make application
respectively.
Article 8 The manufacturer shall manufacture the product in accordance with the safety technical specifications and the corresponding standards. If the enterprise standards or foreign standards are used, the standard safety technical requirements shall be reviewed and approved by appropriate
technical institutions (Standardization Technical Committee or Type
Inspection Institution).
The manufacturer shall ensure that the product safety performance complies with the requirements of the relevant safety regulations for pressure pipe. The manufacturer of initial forensics and additions (escalation) shall prove its capability in manufacturing qualified pressure pipe unit via trial product. The products required for type inspection by safety technical requirements shall has not been completed within 18 months due to the manufacturer, the
manufacturer shall reapply the application according to the conditions of change.

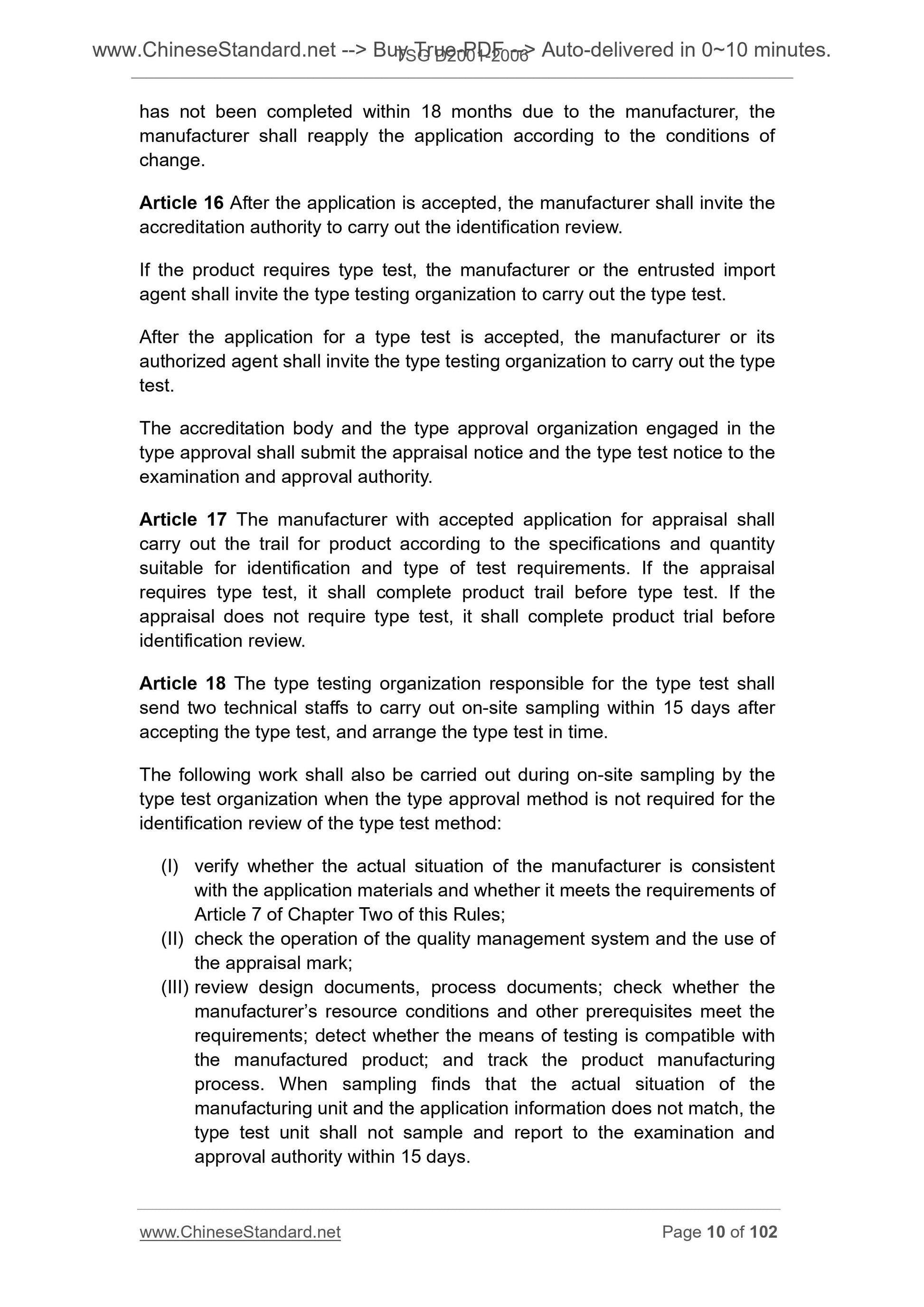

Article 16 After the application is accepted, the manufacturer shall invite the accreditation authority to carry out the identification review.
If the product requires type test, the manufacturer or the entrusted import agent shall invite the type testing organization to carry out the type test. After the application for a type test is accepted, the manufacturer or its authorized agent shall invite the type testing organization to carry out the type test.
The accreditation body and the type approval organization engaged in the type approval shall submit the appraisal notice and the type test notice to the examination and approval authority.
Article 17 The manufacturer with accepted application for appraisal shall carry out the trail for product according to the specifications and quantity suitable for identification and type of test requirements. If the appraisal requires type test, it shall complete product trail before type test. If the appraisal does not require type test, it shall complete product trial before identification review.
Article 18 The type testing organization responsible for the type test shall send two technical staffs to carry out on-site sampling within 15 days after accepting the type test, and arrange the type test in time.
The following work shall also be carried out...
