TB/T 3396.6-2015: Test methods for fastening systems of high-speed railway - Part 6: Effect of severe environmental conditions

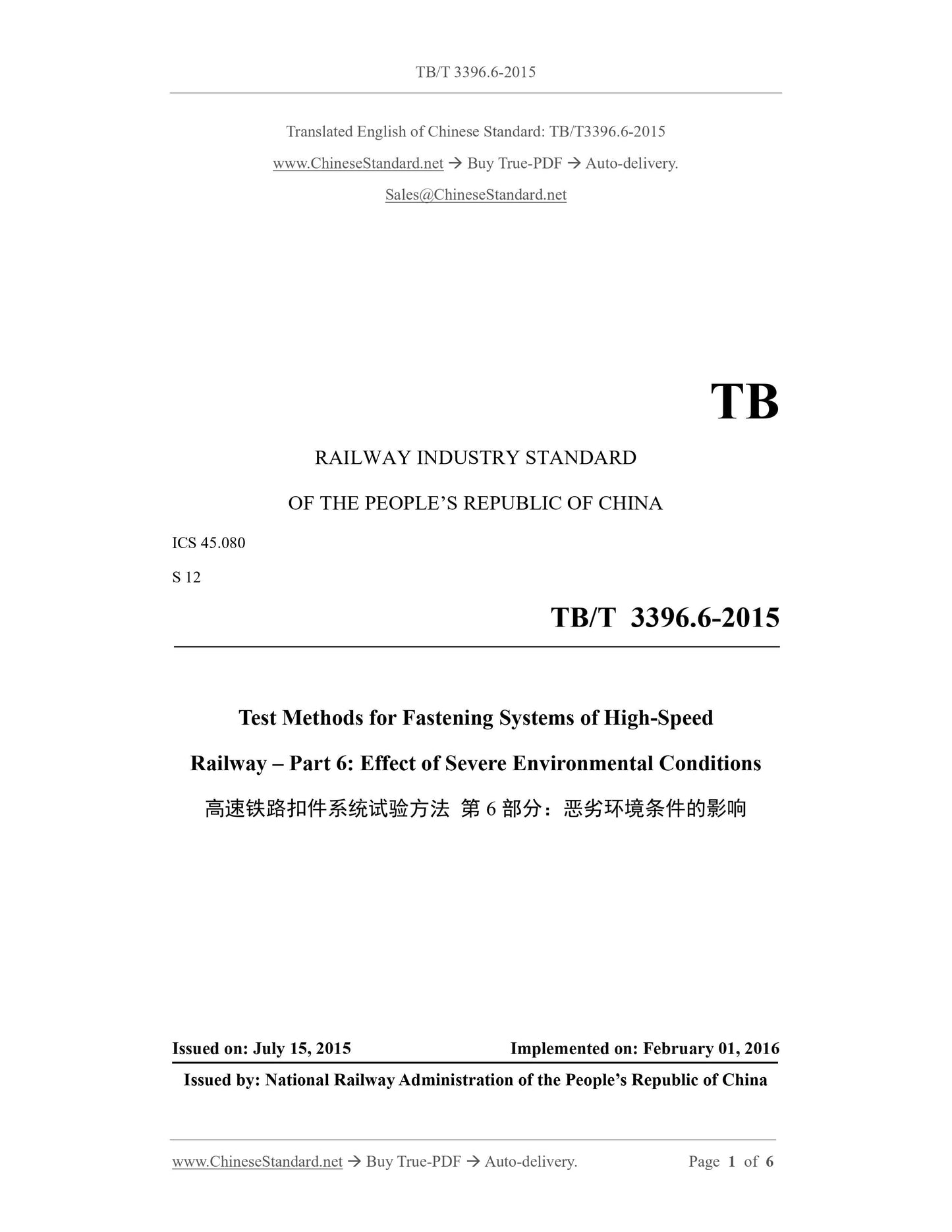

TB/T 3396.6-2015
TB
RAILWAY INDUSTRY STANDARD
OF THE PEOPLE’S REPUBLIC OF CHINA
ICS 45.080
S 12
Test Methods for Fastening Systems of High-Speed
Railway – Part 6: Effect of Severe Environmental Conditions
ISSUED ON: JULY 15, 2015
IMPLEMENTED ON: FEBRUARY 01, 2016
Issued by: National Railway Administration of the People’s Republic of China

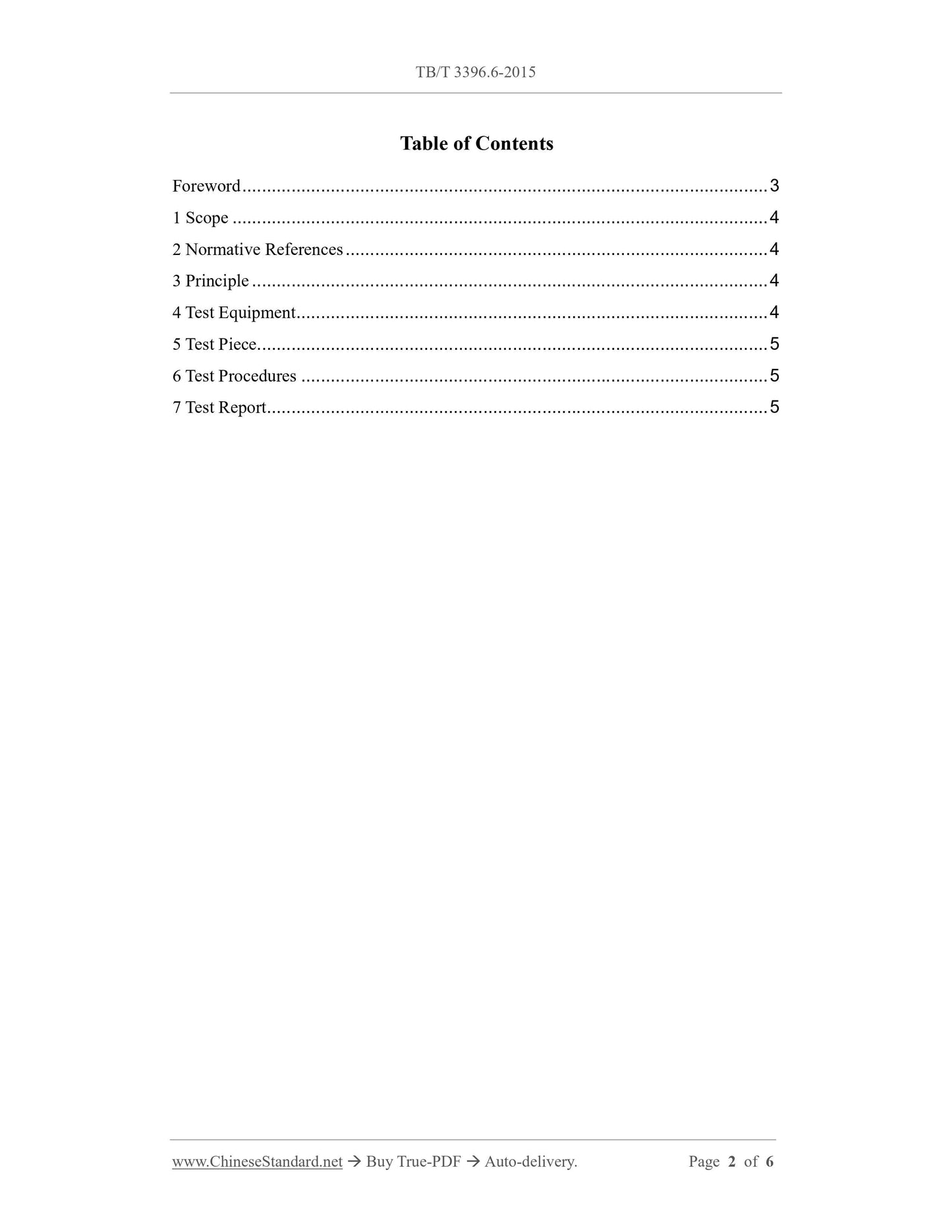

Table of Contents
Foreword ... 3
1 Scope ... 4
2 Normative References ... 4
3 Principle ... 4
4 Test Equipment ... 4
5 Test Piece... 5
6 Test Procedures ... 5
7 Test Report ... 5

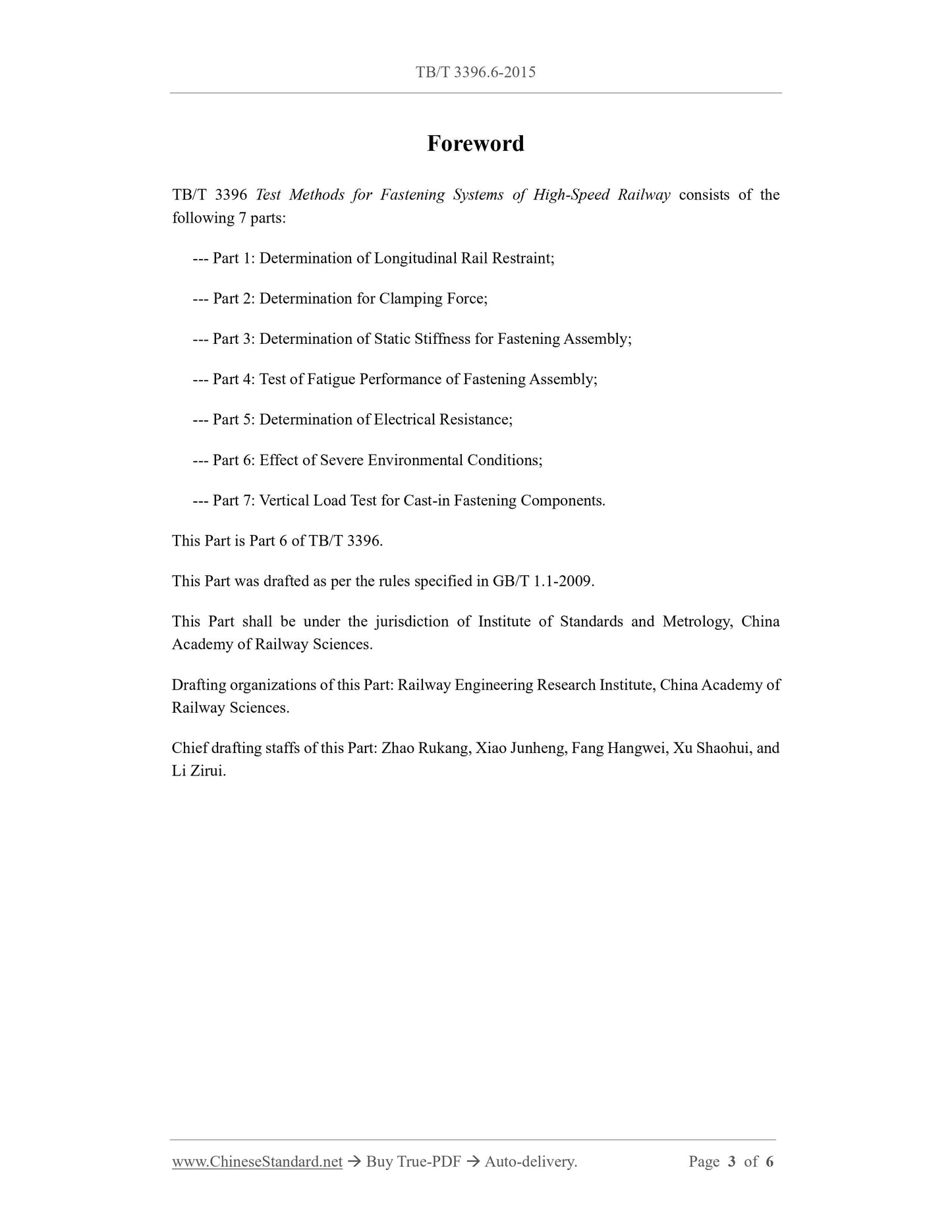

Foreword
TB/T 3396 Test Methods for Fastening Systems of High-Speed Railway consists of the
following 7 parts:
--- Part 1: Determination of Longitudinal Rail Restraint;
--- Part 2: Determination for Clamping Force;
--- Part 3: Determination of Static Stiffness for Fastening Assembly;
--- Part 4: Test of Fatigue Performance of Fastening Assembly;
--- Part 5: Determination of Electrical Resistance;
--- Part 6: Effect of Severe Environmental Conditions;
--- Part 7: Vertical Load Test for Cast-in Fastening Components.
This Part is Part 6 of TB/T 3396.
This Part was drafted as per the rules specified in GB/T 1.1-2009.
This Part shall be under the jurisdiction of Institute of Standards and Metrology, China
Academy of Railway Sciences.
Drafting organizations of this Part: Railway Engineering Research Institute, China Academy of
Railway Sciences.
Chief drafting staffs of this Part: Zhao Rukang, Xiao Junheng, Fang Hangwei, Xu Shaohui, and
Li Zirui.

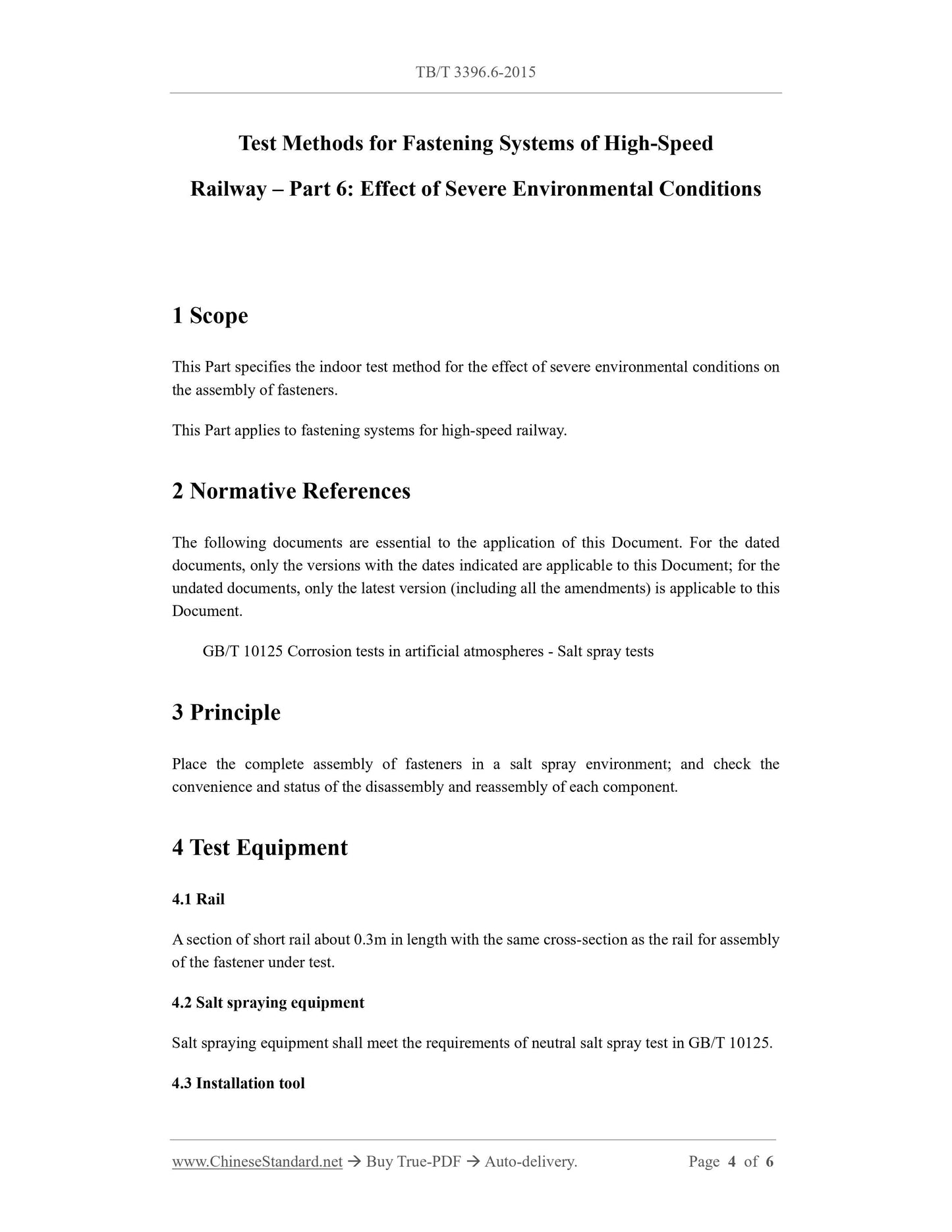

Test Methods for Fastening Systems of High-Speed
Railway – Part 6: Effect of Severe Environmental Conditions
1 Scope
This Part specifies the indoor test method for the effect of severe environmental conditions on
the assembly of fasteners.
This Part applies to fastening systems for high-speed railway.
2 Normative References
The following documents are essential to the application of this Document. For the dated
documents, only the versions with the dates indicated are applicable to this Document; for the
undated documents, only the latest version (including all the amendments) is applicable to this
Document.
GB/T 10125 Corrosion tests in artificial atmospheres - Salt spray tests
3 Principle
Place the complete assembly of fasteners in a salt spray environment; and check the
convenience and status of the disassembly and reassembly of each component.
4 Test Equipment
4.1 Rail
A section of short rail about 0.3m in length with the same cross-section as the rail for assembly
of the fastener under test.
4.2 Salt spraying equipment
Salt spraying equipment shall meet the requirements of neutral salt spray test in GB/T 10125.
4.3 Installation tool
