TB/T 3138-2018: Technical specification of flame retardant materials for railway locomotive and vehicle

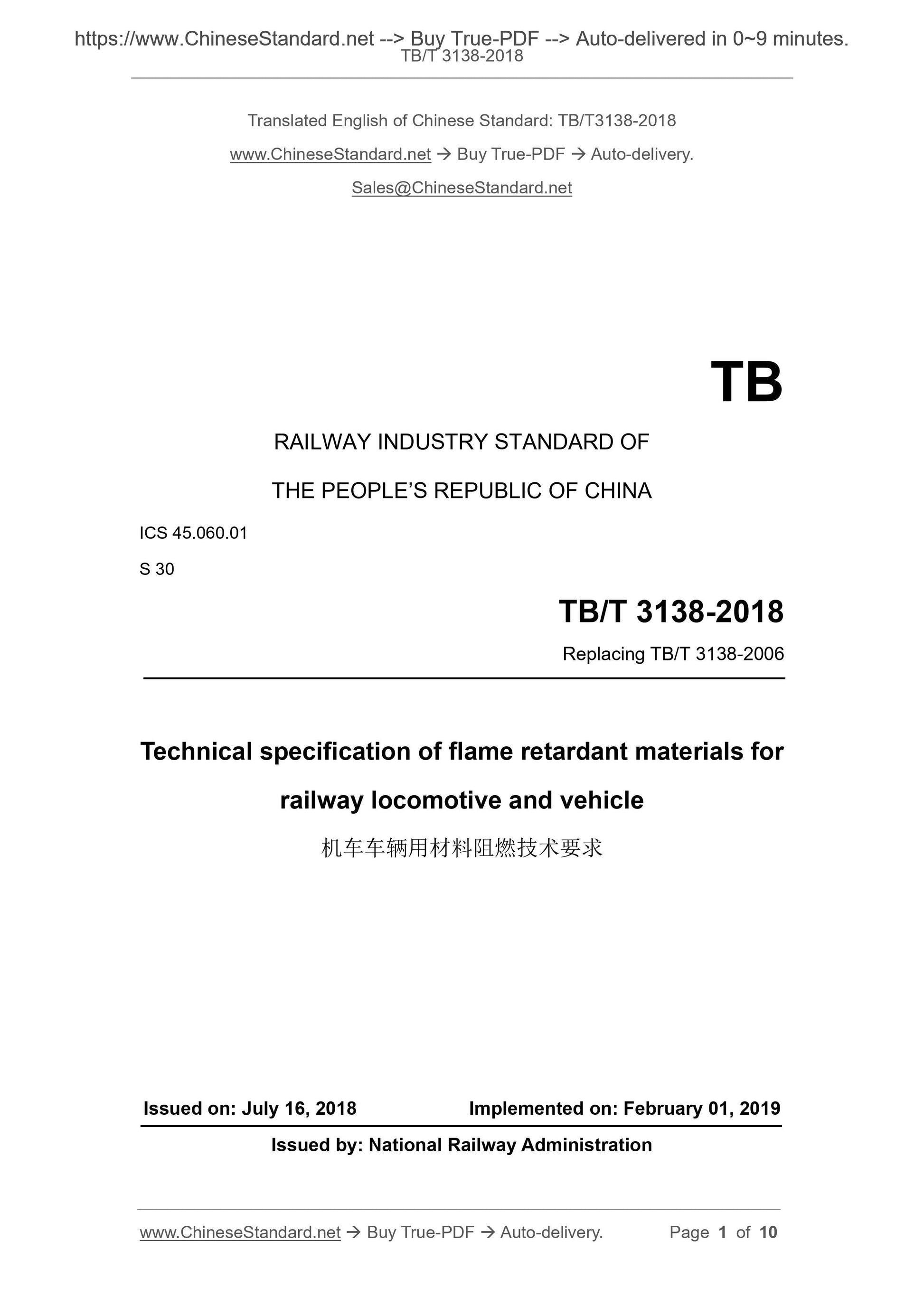

TB/T 3138-2018
TB
RAILWAY INDUSTRY STANDARD OF
THE PEOPLE’S REPUBLIC OF CHINA
ICS 45.060.01
S 30
Replacing TB/T 3138-2006
Technical specification of flame retardant materials for
railway locomotive and vehicle
ISSUED ON: JULY 16, 2018
IMPLEMENTED ON: FEBRUARY 01, 2019
Issued by: National Railway Administration

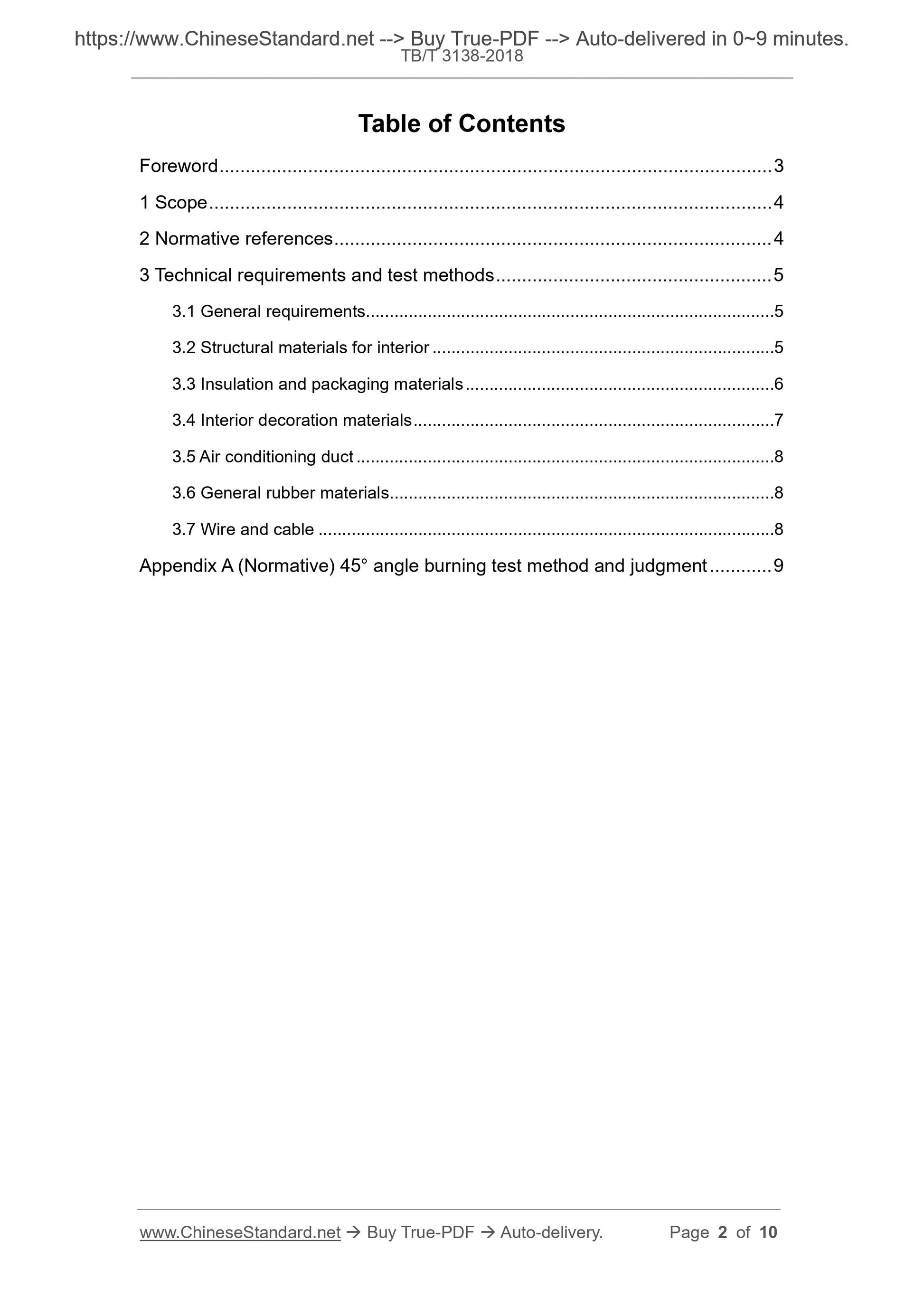

Table of Contents
Foreword ... 3
1 Scope ... 4
2 Normative references ... 4
3 Technical requirements and test methods ... 5
3.1 General requirements... 5
3.2 Structural materials for interior ... 5
3.3 Insulation and packaging materials ... 6
3.4 Interior decoration materials ... 7
3.5 Air conditioning duct ... 8
3.6 General rubber materials ... 8
3.7 Wire and cable ... 8
Appendix A (Normative) 45° angle burning test method and judgment ... 9

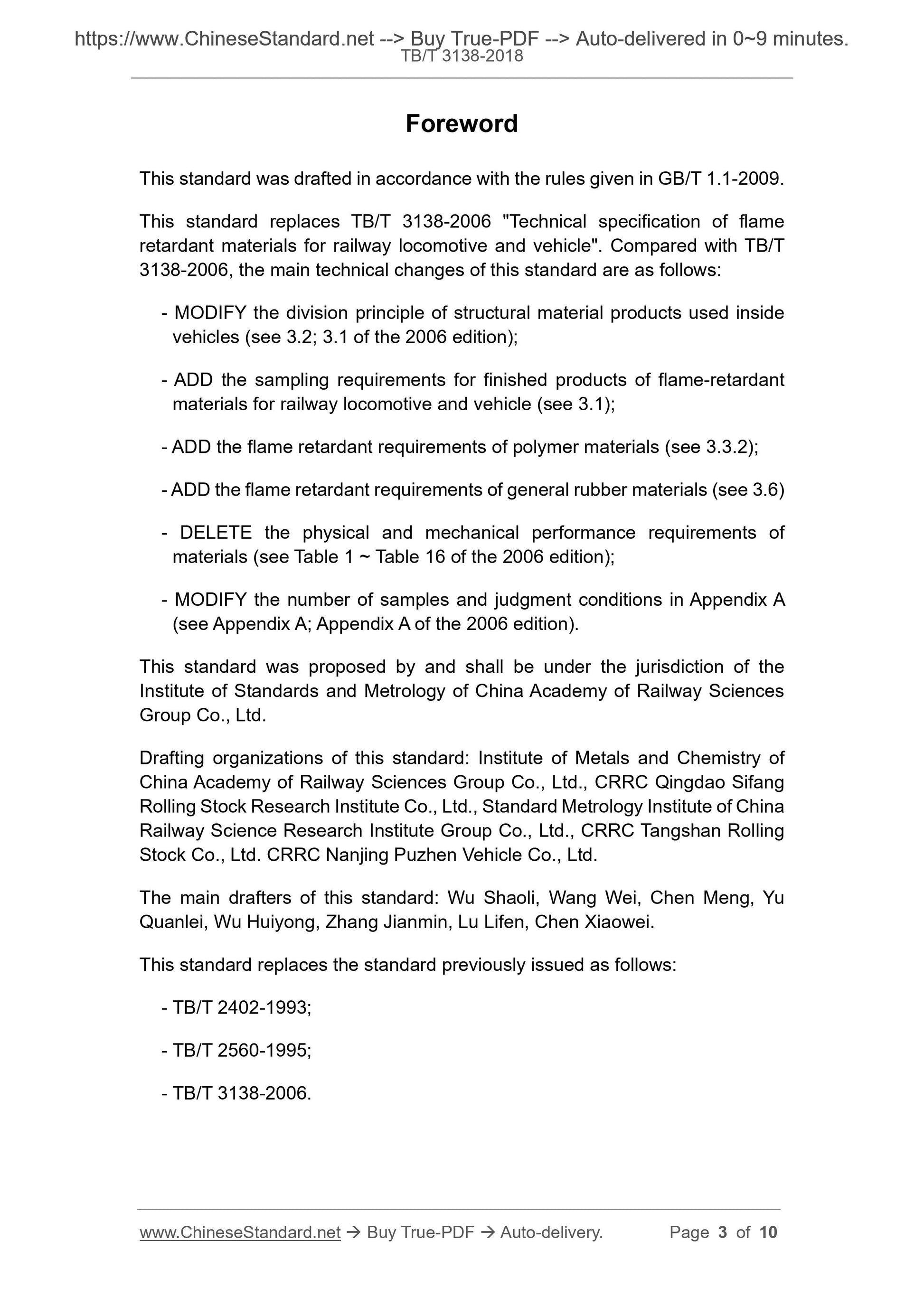

Foreword
This standard was drafted in accordance with the rules given in GB/T 1.1-2009.
This standard replaces TB/T 3138-2006 "Technical specification of flame
retardant materials for railway locomotive and vehicle". Compared with TB/T
3138-2006, the main technical changes of this standard are as follows:
- MODIFY the division principle of structural material products used inside
vehicles (see 3.2; 3.1 of the 2006 edition);
- ADD the sampling requirements for finished products of flame-retardant
materials for railway locomotive and vehicle (see 3.1);
- ADD the flame retardant requirements of polymer materials (see 3.3.2);
- ADD the flame retardant requirements of general rubber materials (see 3.6)
- DELETE the physical and mechanical performance requirements of
materials (see Table 1 ~ Table 16 of the 2006 edition);
- MODIFY the number of samples and judgment conditions in Appendix A
(see Appendix A; Appendix A of the 2006 edition).
This standard was proposed by and shall be under the jurisdiction of the
Institute of Standards and Metrology of China Academy of Railway Sciences
Group Co., Ltd.
Drafting organizations of this standard: Institute of Metals and Chemistry of
China Academy of Railway Sciences Group Co., Ltd., CRRC Qingdao Sifang
Rolling Stock Research Institute Co., Ltd., Standard Metrology Institute of China
Railway Science Research Institute Group Co., Ltd., CRRC Tangshan Rolling
Stock Co., Ltd. CRRC Nanjing Puzhen Vehicle Co., Ltd.
The main drafters of this standard: Wu Shaoli, Wang Wei, Chen Meng, Yu
Quanlei, Wu Huiyong, Zhang Jianmin, Lu Lifen, Chen Xiaowei.
This standard replaces the standard previously issued as follows:
- TB/T 2402-1993;
- TB/T 2560-1995;
- TB/T 3138-2006.

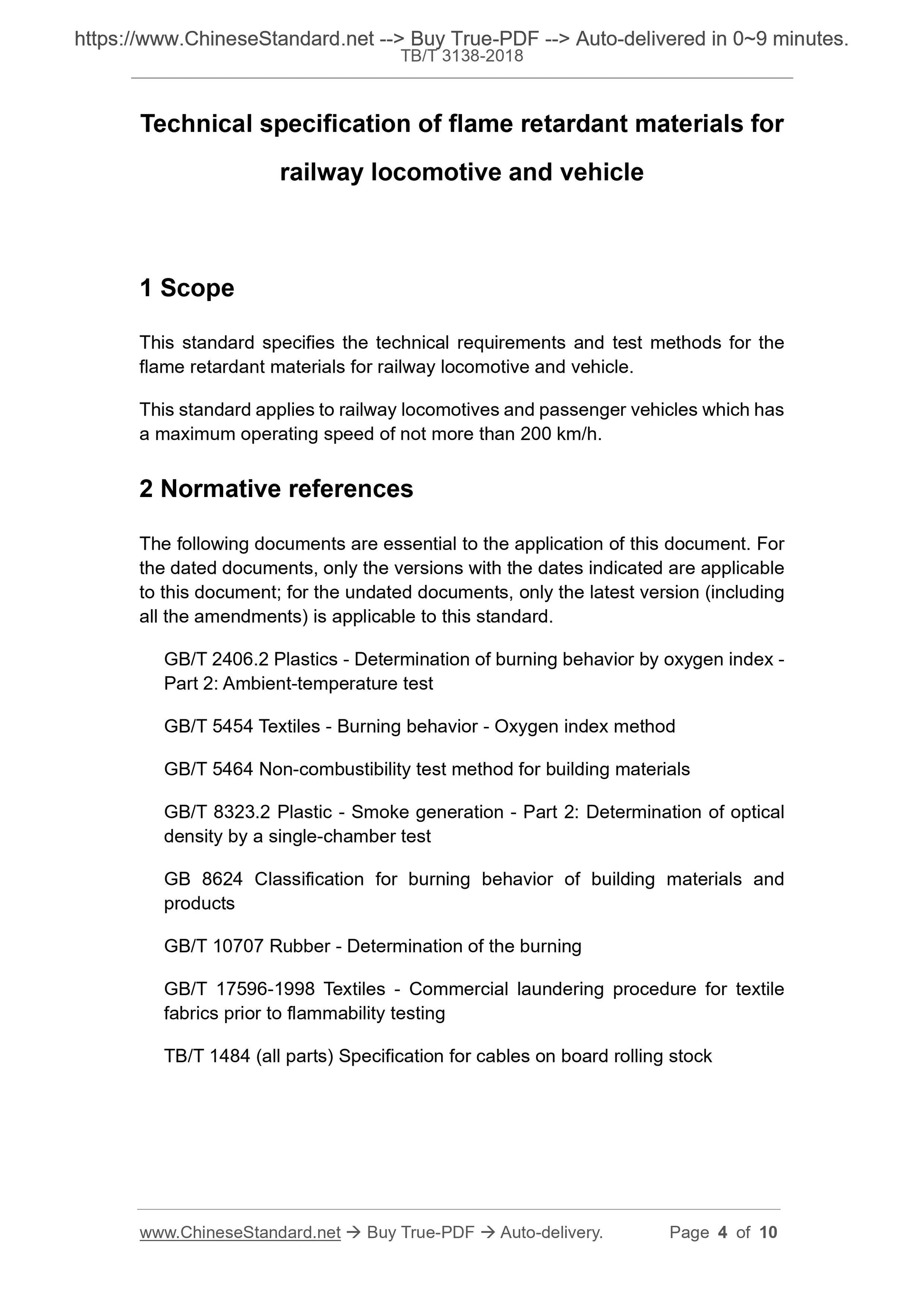

Technical specification of flame retardant materials for
railway locomotive and vehicle
1 Scope
This standard specifies the technical requirements and test methods for the
flame retardant materials for railway locomotive and vehicle.
This standard applies to railway locomotives and passenger vehicles which has
a maximum operating speed of not more than 200 km/h.
2 Normative references
The following documents are essential to the application of this document. For
the dated documents, only the versions with the dates indicated are applicable
to this document; for the undated documents, only the latest version (including
all the amendments) is applicable to this standard.
GB/T 2406.2 Plastics - Determination of burning behavior by oxygen index -
Part 2: Ambient-temperature test
GB/T 5454 Textiles - Burning behavior - Oxygen index method
GB/T 5464 Non-combustibility test method for building materials
GB/T 8323.2 Plastic - Smoke generation - Part 2: Determination of optical
density by a single-chamber test
GB 8624 Classification for burning behavior of building materials and
products
GB/T 10707 Rubber - Determination of the burning
GB/T 17596-1998 Textiles - Commercial laundering procedure for textile
fabrics prior to flammability testing
TB/T 1484 (all parts) Specification for cables on board rolling stock
