TB/T 3137-2006: Rules for railway product identification code

This Standard specifies the terms and definitions, preparing principle, structure and management of railway product identification code, product item identification code. This Standard applies to codes required as product identification and relevant information processing, exchange and share carrier in railway product management.

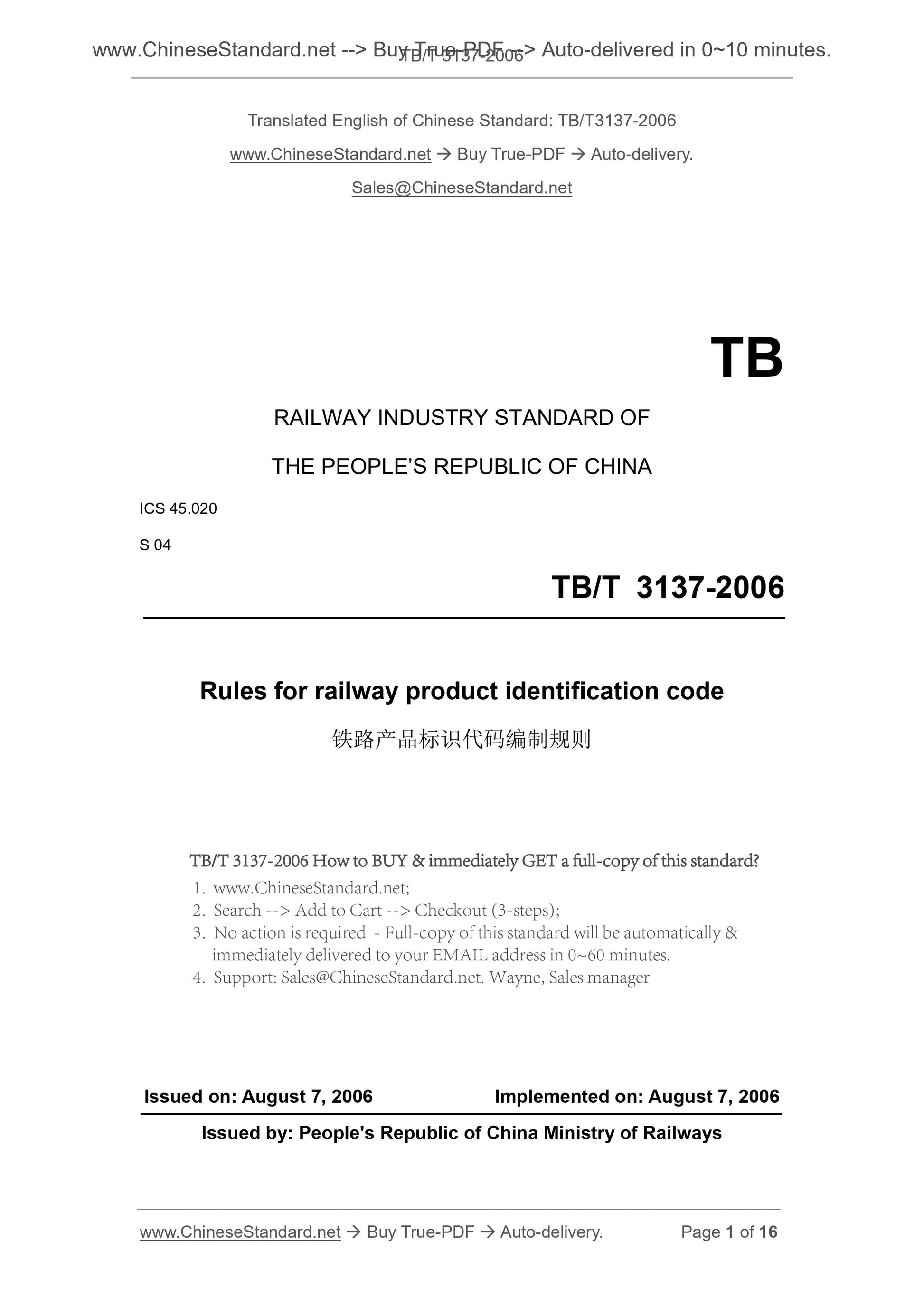

TB/T 3137-2006
TB
RAILWAY INDUSTRY STANDARD OF
THE PEOPLE REPUBLIC OF CHINA
ICS 45.020
S 04
Rules for railway product identification code
ISSUED ON. AUGUST 7, 2006
IMPLEMENTED ON. AUGUST 7, 2006
Issued by. People's Republic of China Ministry of Railways
3. No action is required - Full-copy of this standard will be automatically and immediately delivered to your EMAIL address in 0~60 minutes.

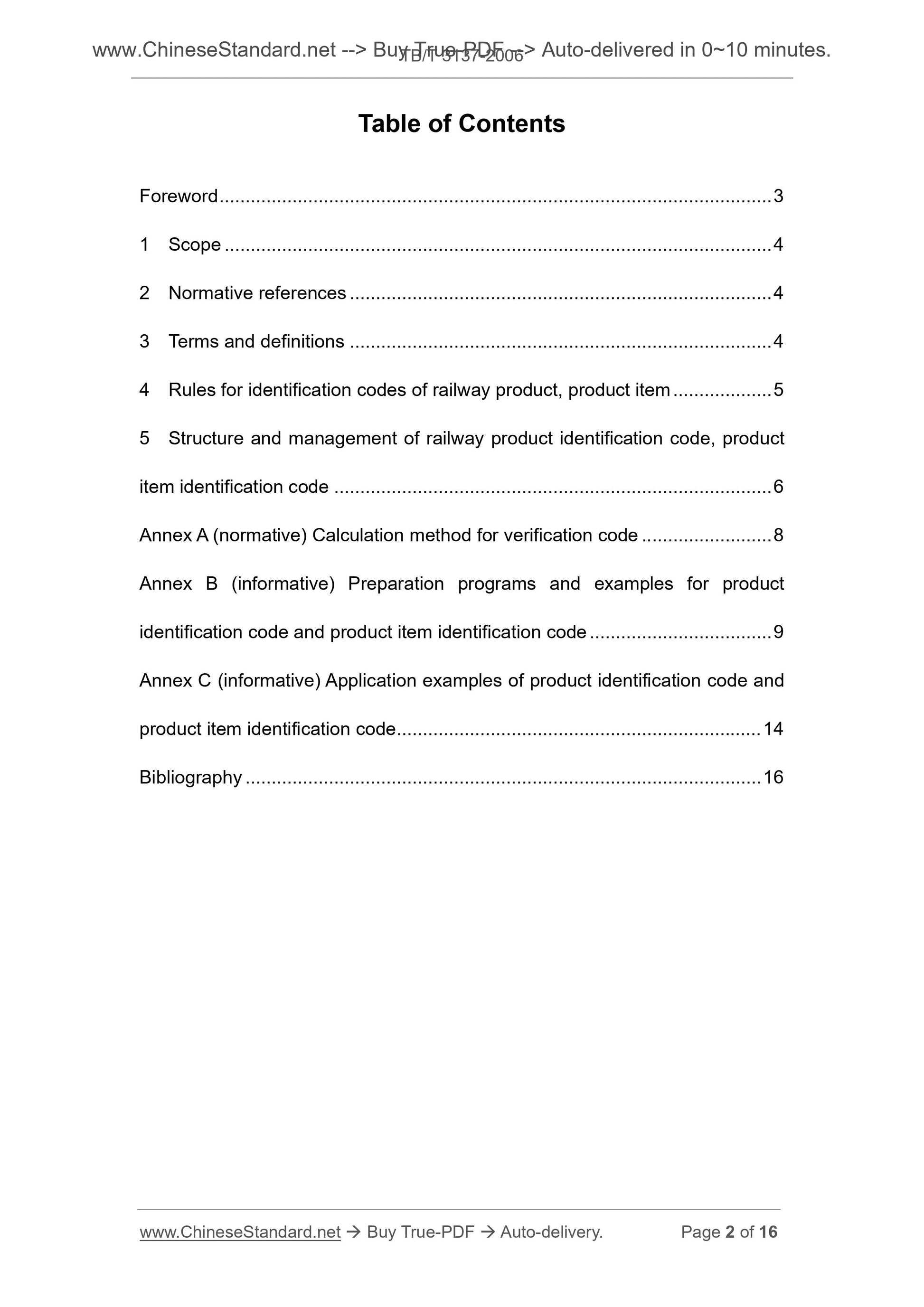

Table of Contents
Foreword ... 3
1 Scope .. 4
2 Normative references ... 4
3 Terms and definitions ... 4
4 Rules for identification codes of railway product, product item ... 5 5 Structure and management of railway product identification code, product item identification code ... 6
Annex A (normative) Calculation method for verification code .. 8
Annex B (informative) Preparation programs and examples for product
identification code and product item identification code ... 9
Annex C (informative) Application examples of product identification code and product item identification code ... 14
Bibliography ... 16

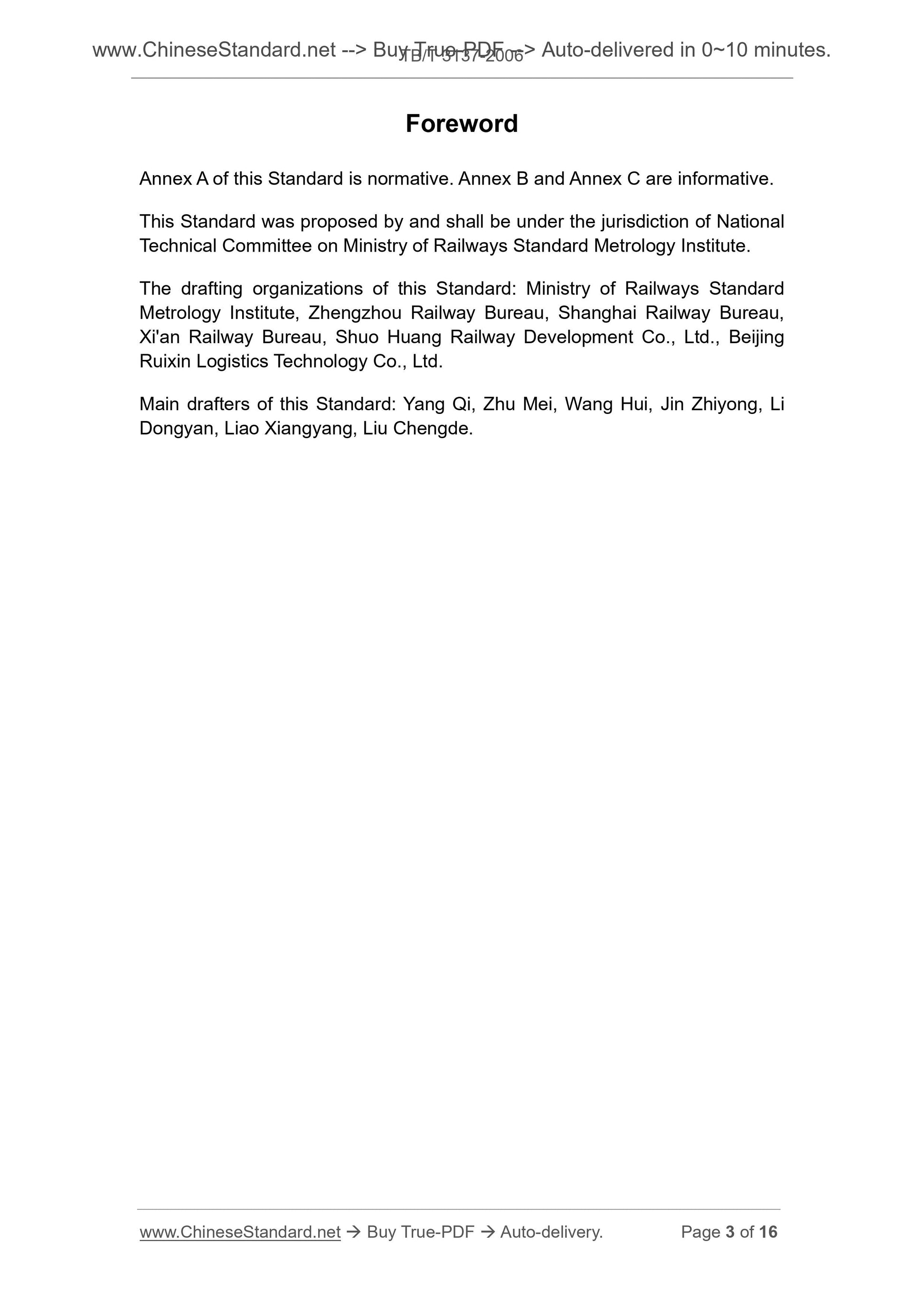

Foreword
Annex A of this Standard is normative. Annex B and Annex C are informative. This Standard was proposed by and shall be under the jurisdiction of National Technical Committee on Ministry of Railways Standard Metrology Institute. The drafting organizations of this Standard. Ministry of Railways Standard Metrology Institute, Zhengzhou Railway Bureau, Shanghai Railway Bureau, Xi'an Railway Bureau, Shuo Huang Railway Development Co., Ltd., Beijing Ruixin Logistics Technology Co., Ltd.
Main drafters of this Standard. Yang Qi, Zhu Mei, Wang Hui, Jin Zhiyong, Li Dongyan, Liao Xiangyang, Liu Chengde.
Rules for railway product identification code

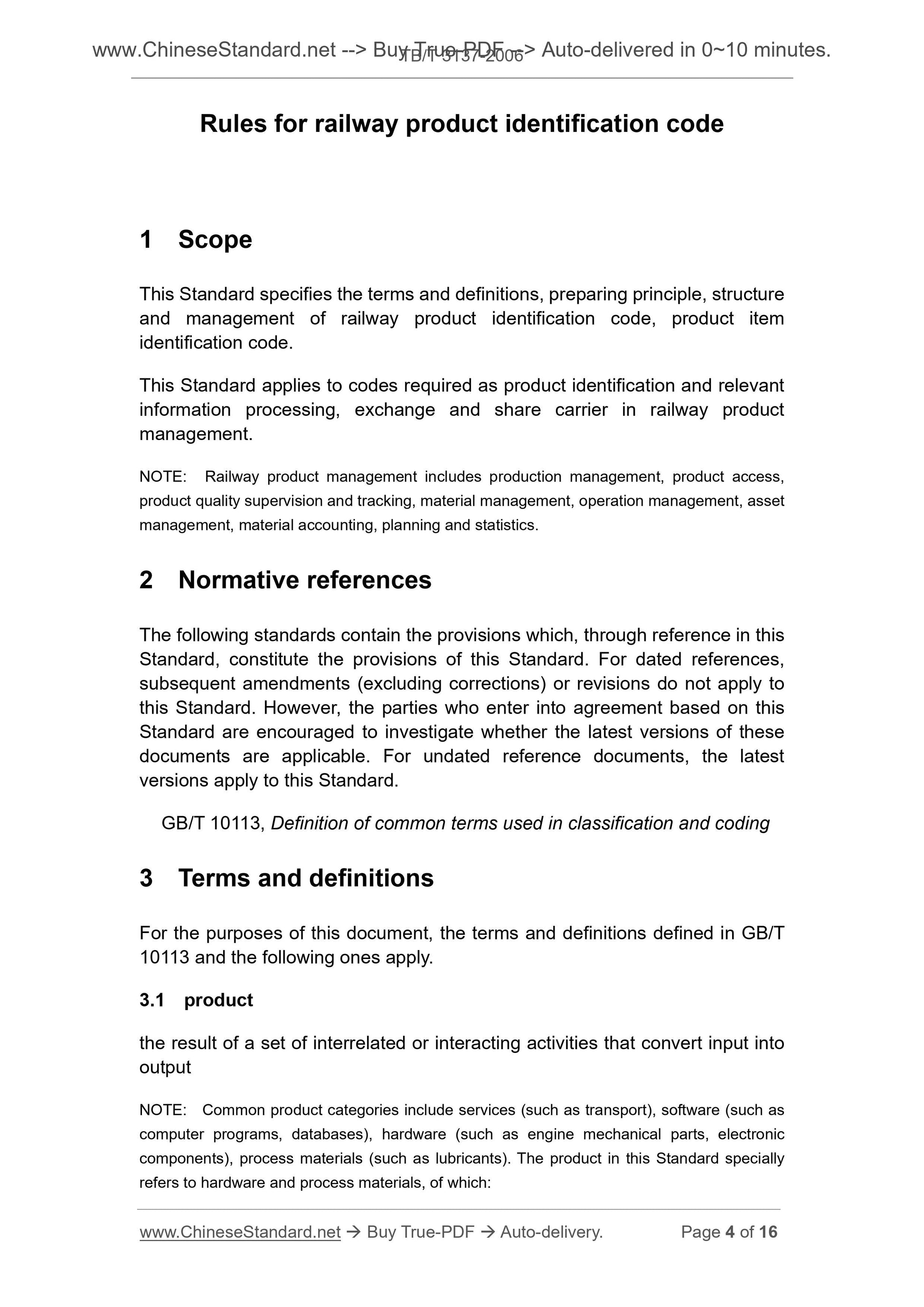

1 Scope
This Standard specifies the terms and definitions, preparing principle, structure and management of railway product identification code, product item
identification code.
This Standard applies to codes required as product identification and relevant information processing, exchange and share carrier in railway product
management.
NOTE. Railway product management includes production management, product access, product quality supervision and tracking, material management, operation management, asset management, material accounting, planning and statistics.
2 Normative references
The following standards contain the provisions which, through reference in this Standard, constitute the provisions of this Standard. For dated references, subsequent amendments (excluding corrections) or revisions do not apply to this Standard. However, the parties who enter into agreement based on this Standard are encouraged to investigate whether the latest versions of these documents are applicable. For undated reference documents, the latest
versions apply to this Standard.
GB/T 10113, Definition of common terms used in classification and coding 3 Terms and definitions
For the purposes of this document, the terms and definitions defined in GB/T 10113 and the following ones apply.
3.1 product
the result of a set of interrelated or interacting activities that convert input into output
NOTE. Common product categories include services (such as transport), software (such as computer programs, databases), hardware (such as engine mechanical parts, electronic components), process materials (such as lubricants). The product in this Standard specially refers to hardware and process materials, of which.
1) the hardware is usually a tangible product, the amount of which is counted; 2) the process materials are usually tangible products, the amount of which has a characteristic of continuity.

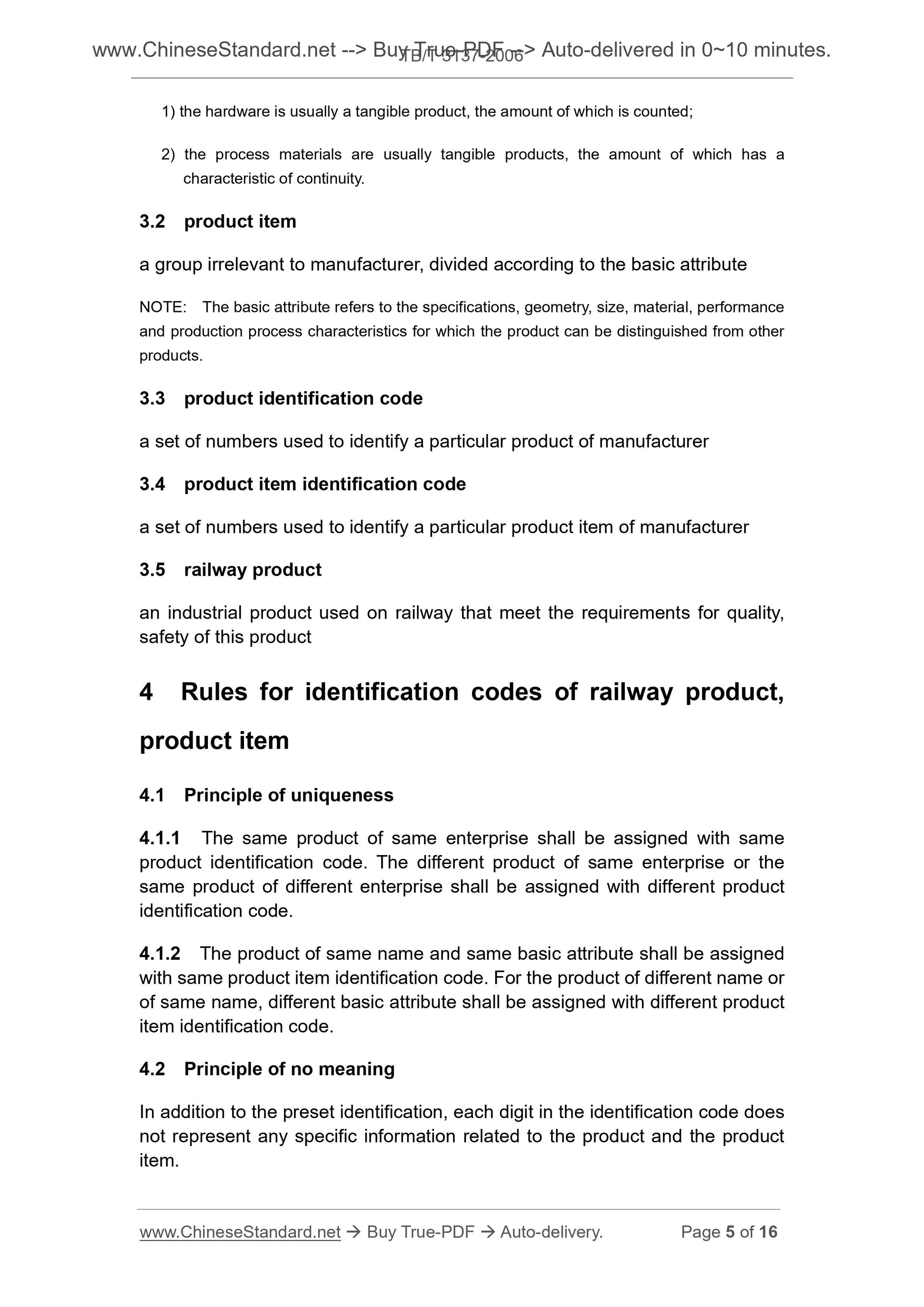

3.2 product item
a group irrelevant to manufacturer, divided according to the basic attribute NOTE. The basic attribute refers to the specifications, geometry, size, material, performance and production process characteristics for which the product can be distinguished from other products.
3.3 product identification code
a set of numbers used to identify a particular product of manufacturer
3.4 product item identification code
a set of numbers used to identify a particular product item of manufacturer 3.5 railway product
an industrial product used on railway that meet the requirements for quality, safety of this product
4 Rules for identification codes of railway product,
product item
4.1 Principle of uniqueness
4.1.1 The same product of same enterprise shall be assigned with same
product identification code. The different product of same enterprise or the same product of different enterprise shall be assigned with different product identification code.
4.1.2 The product of same name and same basic attribute shall be assigned with same product item identification code. For the product of different name or of same name, different basic attribute shall be assigned with different product item identification code.
4.2 Principle of no meaning
In addition to the preset identification, each digit in the identification code does not represent any specific information related to the product and the product item.

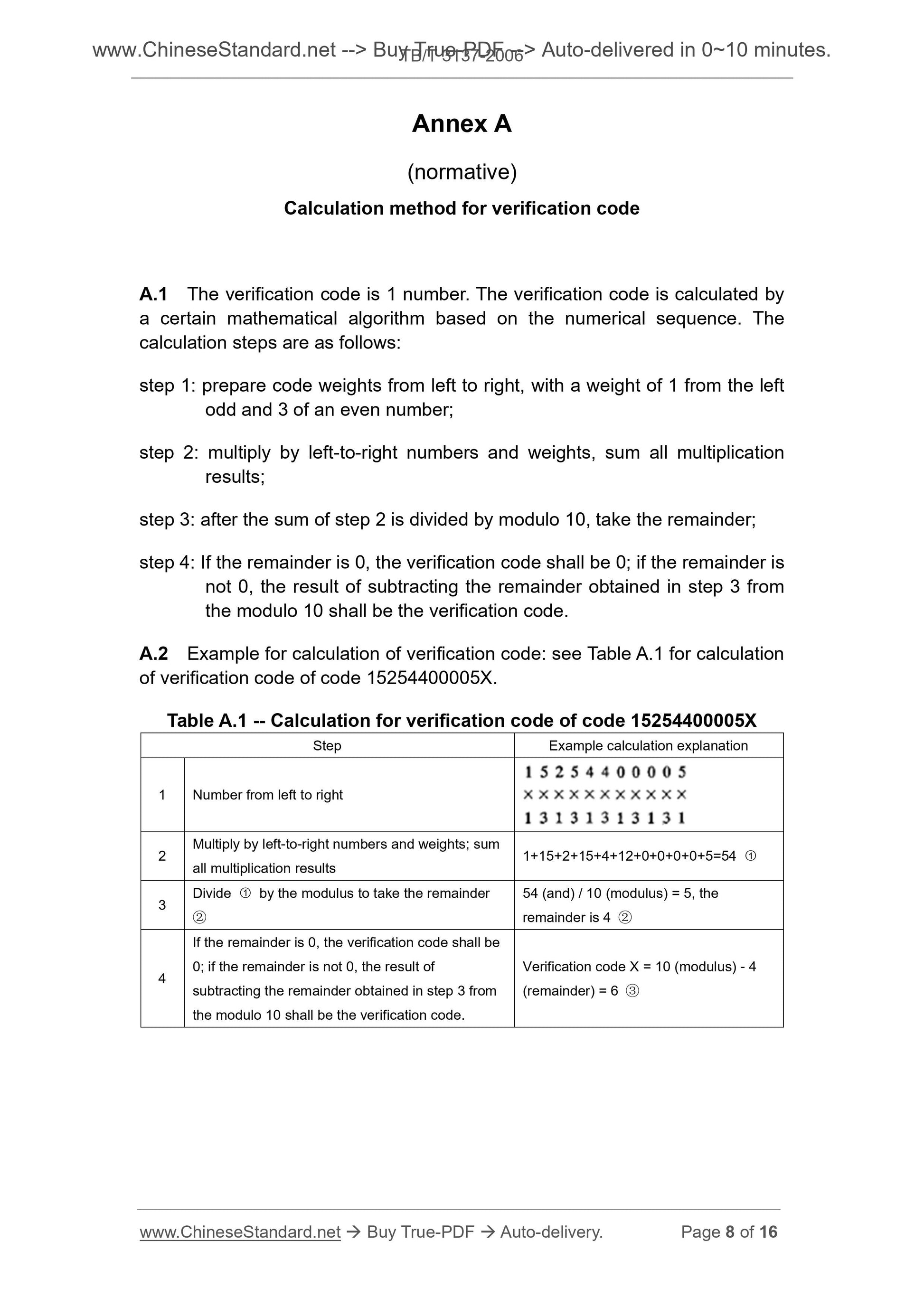

Annex A
(normative)
Calculation method for verification code
A.1 The verification code is 1 number. The verification code is calculated by a certain mathematical algorithm based on the numerical sequence. The
calculation steps are as follows.
step 1. prepare code weights from left to right, with a weight of 1 from the left odd and 3 of an even number;
step 2. multiply by left-to-right numbers and weights, sum all multiplication results;
step 3. after the sum of step 2 is divided by modulo 10, take the remainder; step 4. If the remainder is 0, the verification code shall be 0; if the remainder is not 0, the result of subtracting the remainder obtained in step 3 from
the modulo 10 shall be the verification code.
A.2 Example for calculation of verification code. see Table A.1 for calculation of verification code of code 15254400005X.
Table A.1 -- Calculation for verification code of code 15254400005X
Step Example calculation explanation
1 Number from left to right
2 Multiply by left-to-right numbers and weights; sum all multiplication results 1+15+2+15+4+12+0+0+0+0+5=54 ???1 3 Divide ???1 by the modulus to take the remainder
54 (and) / 10 (modulus) = 5, the
remainder is 4 ???
If the remainder is 0, the verification code shall be
0; if the remainder is not 0, the result of
subtracting the remainder obtained in step 3 from
the modulo 10 shall be the verification code.
Verification code X = 10 (modulus) - 4
(remainder) = 6 ???

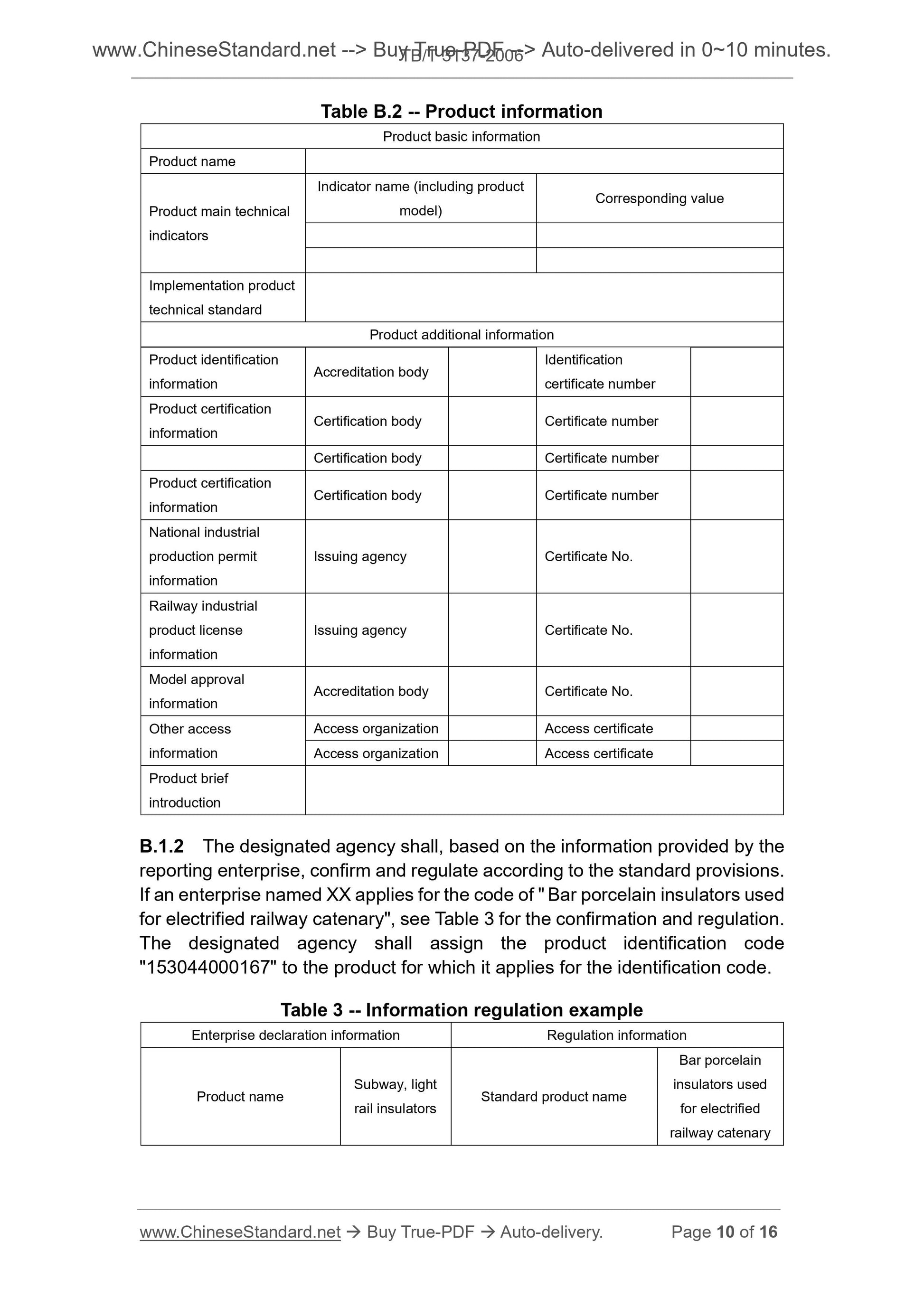

Table B.2 -- Product information
Product basic information
Product name
Product main technical
indicators
Indicator name (including product
model) Corresponding value
Implementation product
technical standard
Product additional information
Product identification
information Accreditation body
Identification
certificate number
Product certification
information Certification body Certificate number
Certification body Certificate number
Product certification
information Certification body Certificate number
National industrial
production permit
information
Issuing agency Certificate No.
Railway industrial
product license
information
Issuing agency Certificate No.
Model approval
information Accreditation body Certificate No.
Other access
information
Access organization Access certificate
Access organization Access certificate
Product brief
introduction
B.1.2 The designated agency shall, based on the information provided by the reporting enterprise, confirm and regulate according to the standard provisions. If an enterprise named XX applies for the code of " Bar porcelain insulators used for electrified railway catenary", see Table 3 for the confirmation and regulation. The designated agency shall assign the product identification code
"153044000167" to the product for which it applies for the identification code. Table 3 -- Information regulation example
Enterprise declaration information Regulation information
Product name Subway, light rail insulators Standard product name
Bar porcelain
insulators used
for electrified
railway catenary

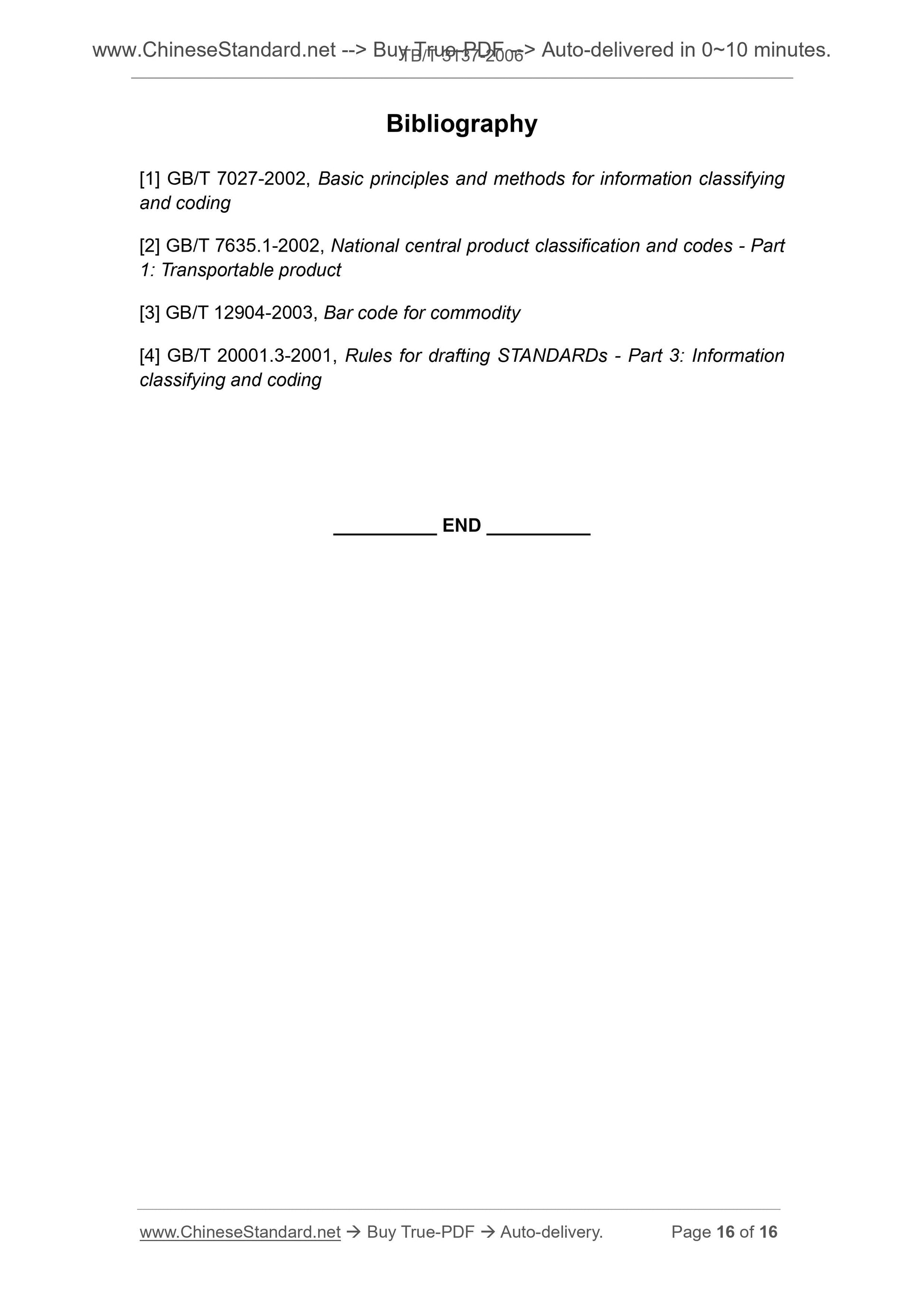

Bibliography
[1] GB/T 7027-2002, Basic principles and methods for information classifying and coding
[2] GB/T 7635.1-2002, National central product classification and codes - Part 1. Transportable product
[3] GB/T 12904-2003, Bar code for commodity
[4] GB/T 20001.3-2001, Rules for drafting STANDARDs - Part 3. Information classifying and coding
