TB/T 3094-2015: Vestibule diaphragm of locomotive and rolling stock

This Standard specifies the terms and definitions, working conditions, main characteristics, technical requirements, test, inspection results, marking, packaging, transportation and storage of vestibule diaphragm of locomotive and rolling stock.

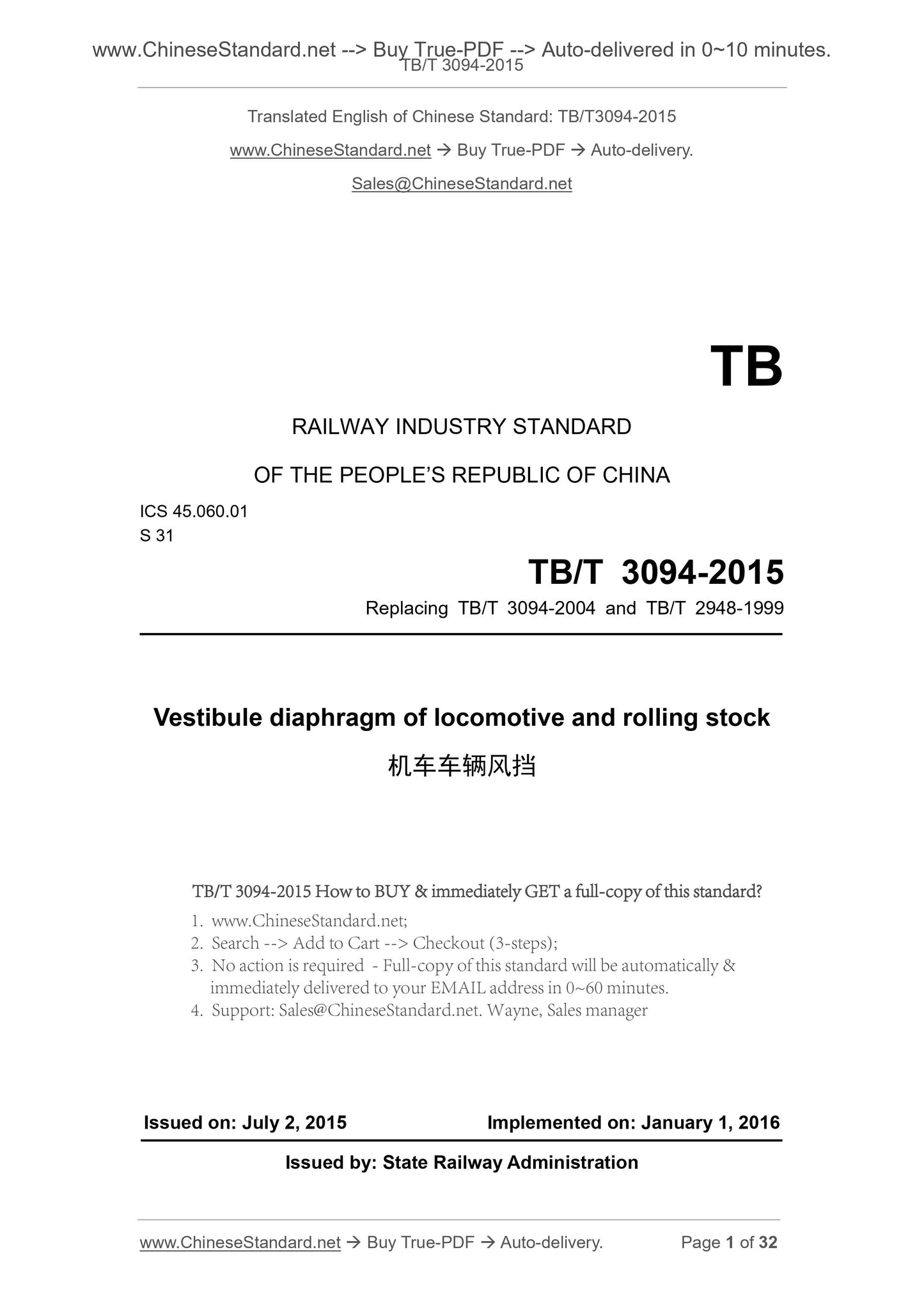

TB/T 3094-2015
TB
RAILWAY INDUSTRY STANDARD
OF THE PEOPLE REPUBLIC OF CHINA
ICS 45.060.01
S 31
Replacing TB/T 3094-2004 and TB/T 2948-1999
Vestibule diaphragm of locomotive and rolling stock
ISSUED ON. JULY 2, 2015
IMPLEMENTED ON. JANUARY 1, 2016
Issued by. State Railway Administration
3. No action is required - Full-copy of this standard will be automatically and immediately delivered to your EMAIL address in 0~60 minutes.

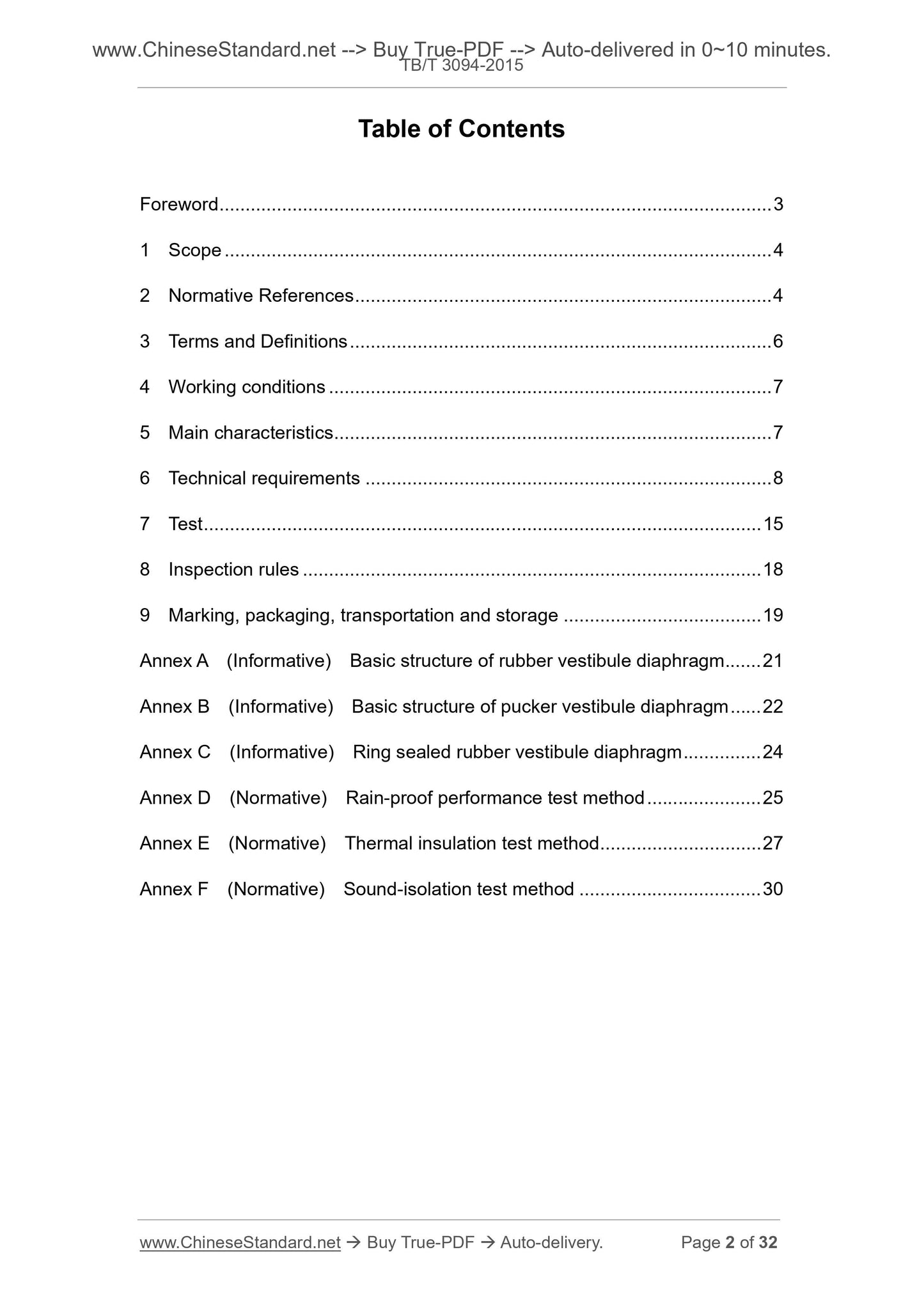

Table of Contents
Foreword ... 3
1 Scope .. 4
2 Normative References ... 4
3 Terms and Definitions ... 6
4 Working conditions .. 7
5 Main characteristics ... 7
6 Technical requirements ... 8
7 Test ... 15
8 Inspection rules .. 18
9 Marking, packaging, transportation and storage ... 19
Annex A (Informative) Basic structure of rubber vestibule diaphragm ... 21 Annex B (Informative) Basic structure of pucker vestibule diaphragm ... 22 Annex C (Informative) Ring sealed rubber vestibule diaphragm ... 24

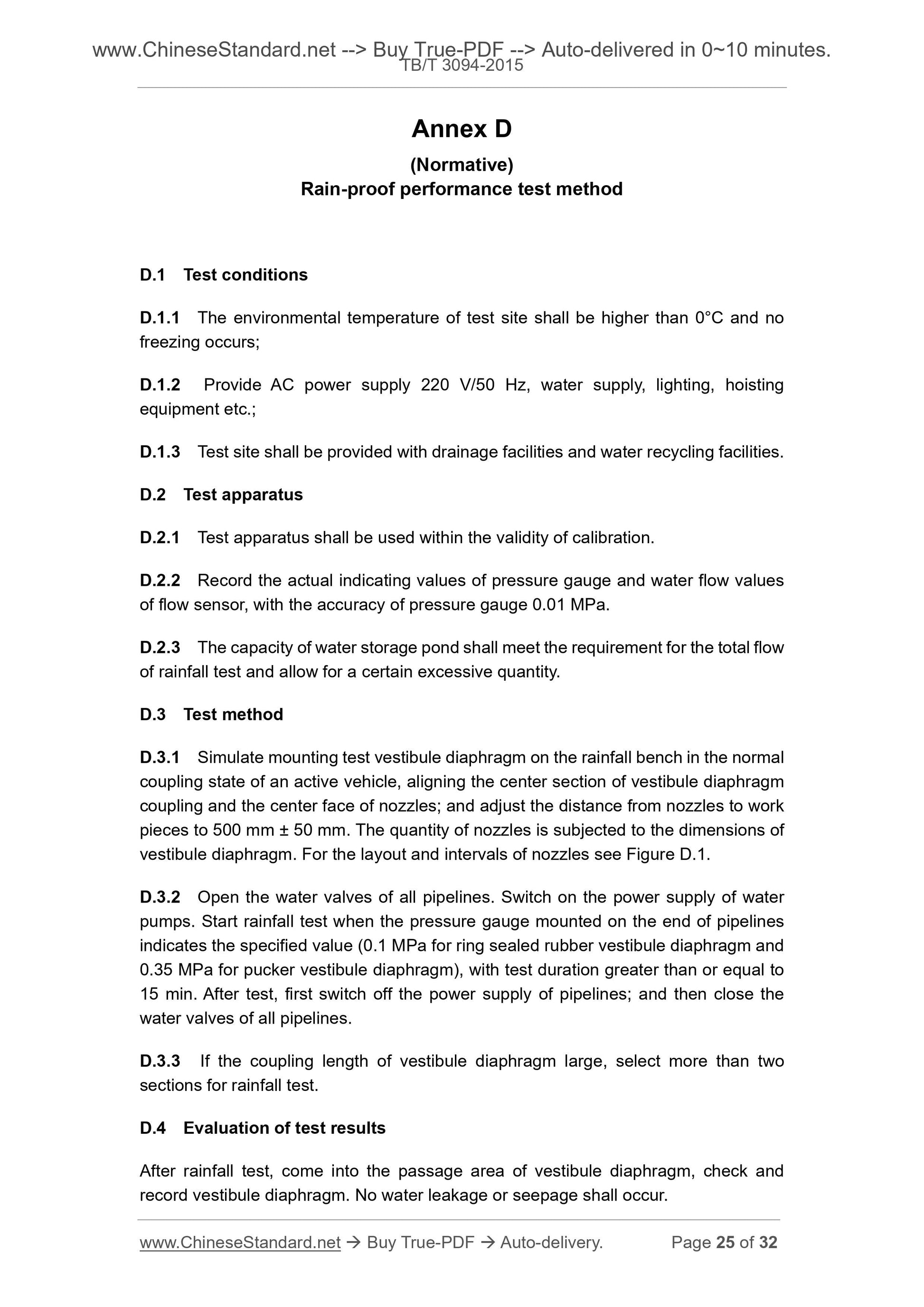

Annex D (Normative) Rain-proof performance test method .. 25
Annex E (Normative) Thermal insulation test method .. 27

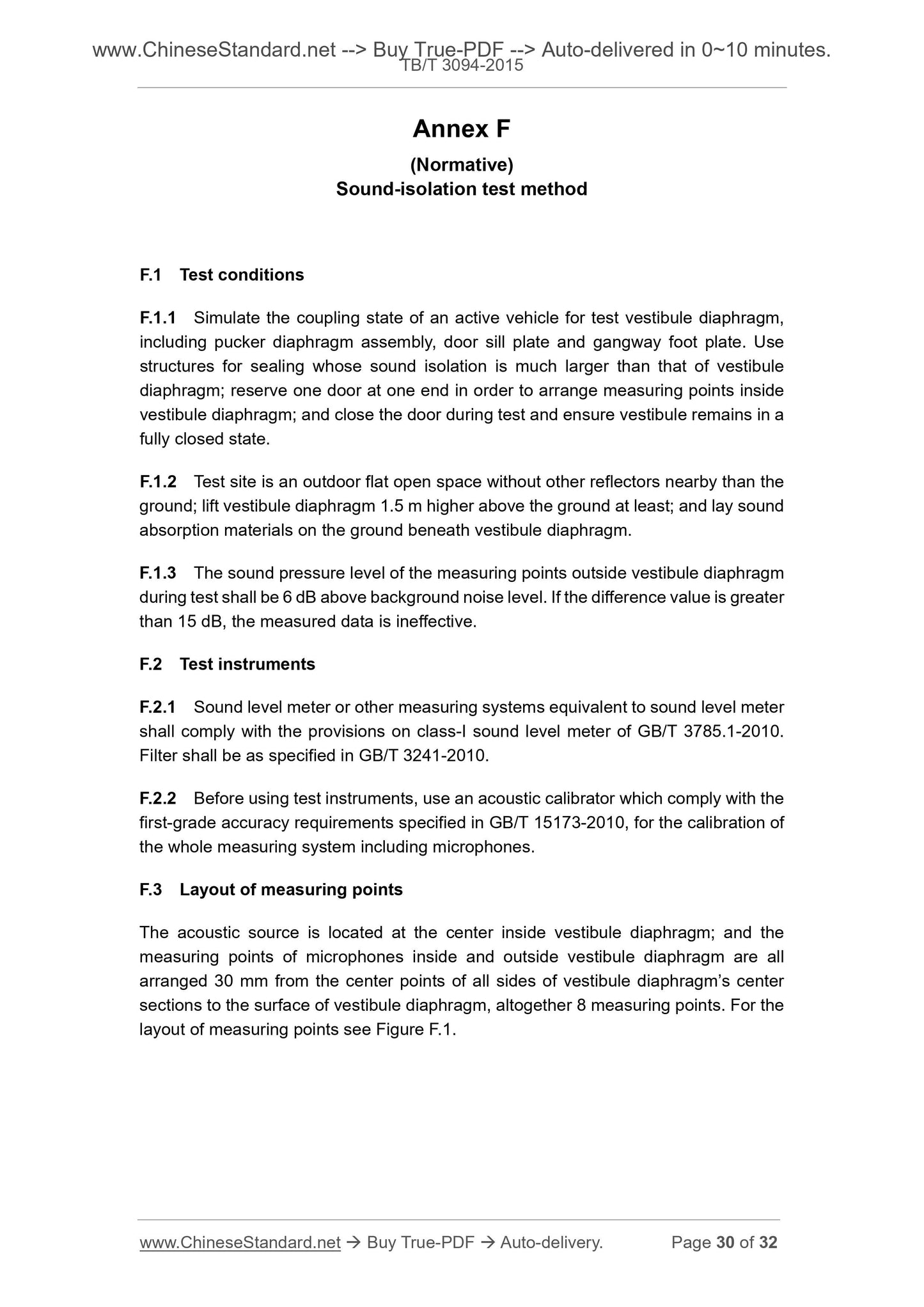

Annex F (Normative) Sound-isolation test method ... 30

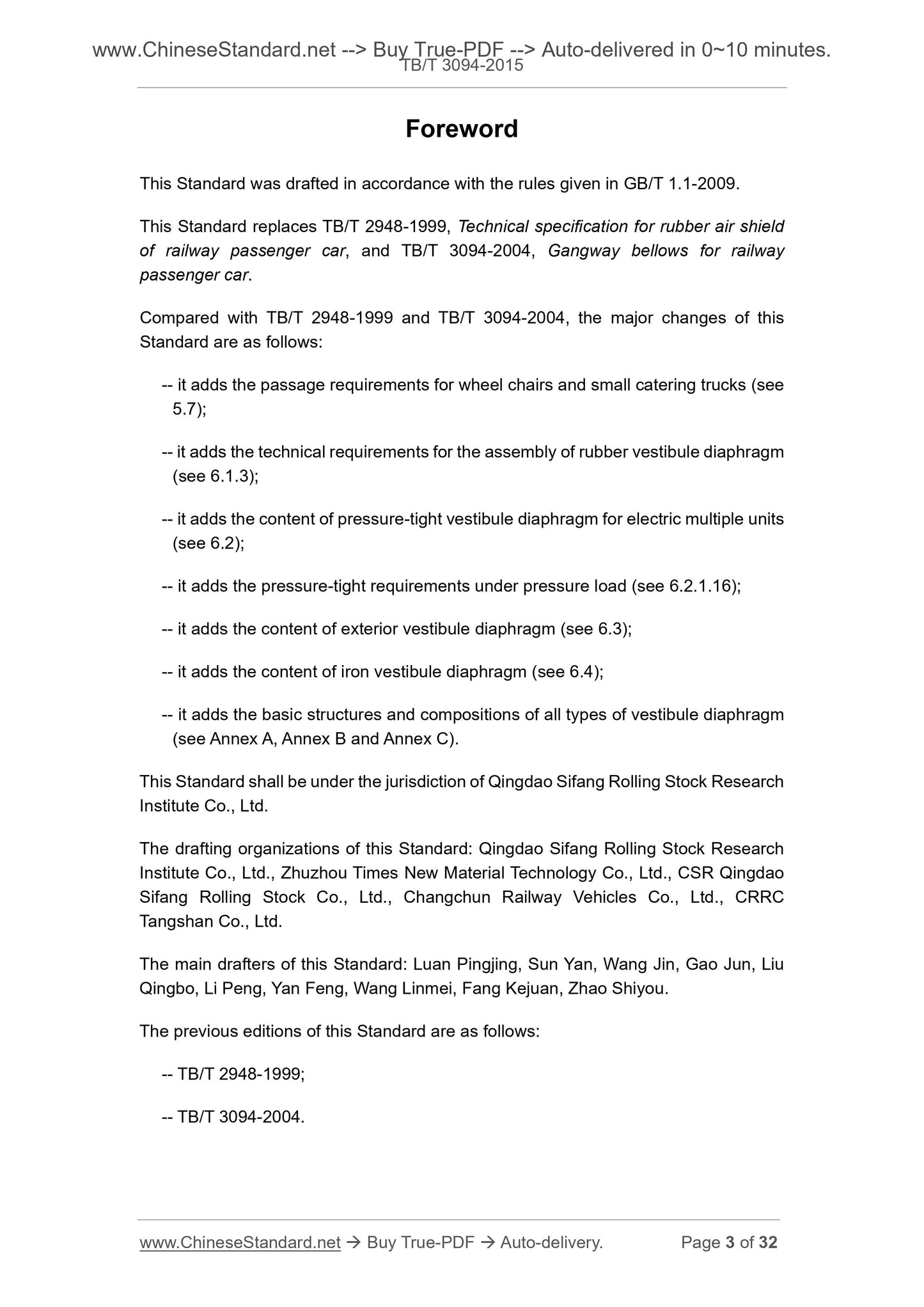

Foreword
This Standard was drafted in accordance with the rules given in GB/T 1.1-2009. This Standard replaces TB/T 2948-1999, Technical specification for rubber air shield of railway passenger car, and TB/T 3094-2004, Gangway bellows for railway passenger car.
Compared with TB/T 2948-1999 and TB/T 3094-2004, the major changes of this Standard are as follows.
-- it adds the passage requirements for wheel chairs and small catering trucks (see 5.7);
-- it adds the technical requirements for the assembly of rubber vestibule diaphragm (see 6.1.3);
-- it adds the content of pressure-tight vestibule diaphragm for electric multiple units (see 6.2);
-- it adds the pressure-tight requirements under pressure load (see 6.2.1.16); -- it adds the content of exterior vestibule diaphragm (see 6.3);
-- it adds the content of iron vestibule diaphragm (see 6.4);
-- it adds the basic structures and compositions of all types of vestibule diaphragm (see Annex A, Annex B and Annex C).
This Standard shall be under the jurisdiction of Qingdao Sifang Rolling Stock Research Institute Co., Ltd.
The drafting organizations of this Standard. Qingdao Sifang Rolling Stock Research Institute Co., Ltd., Zhuzhou Times New Material Technology Co., Ltd., CSR Qingdao Sifang Rolling Stock Co., Ltd., Changchun Railway Vehicles Co., Ltd., CRRC Tangshan Co., Ltd.
The main drafters of this Standard. Luan Pingjing, Sun Yan, Wang Jin, Gao Jun, Liu Qingbo, Li Peng, Yan Feng, Wang Linmei, Fang Kejuan, Zhao Shiyou.
The previous editions of this Standard are as follows.
-- TB/T 2948-1999;
-- TB/T 3094-2004.

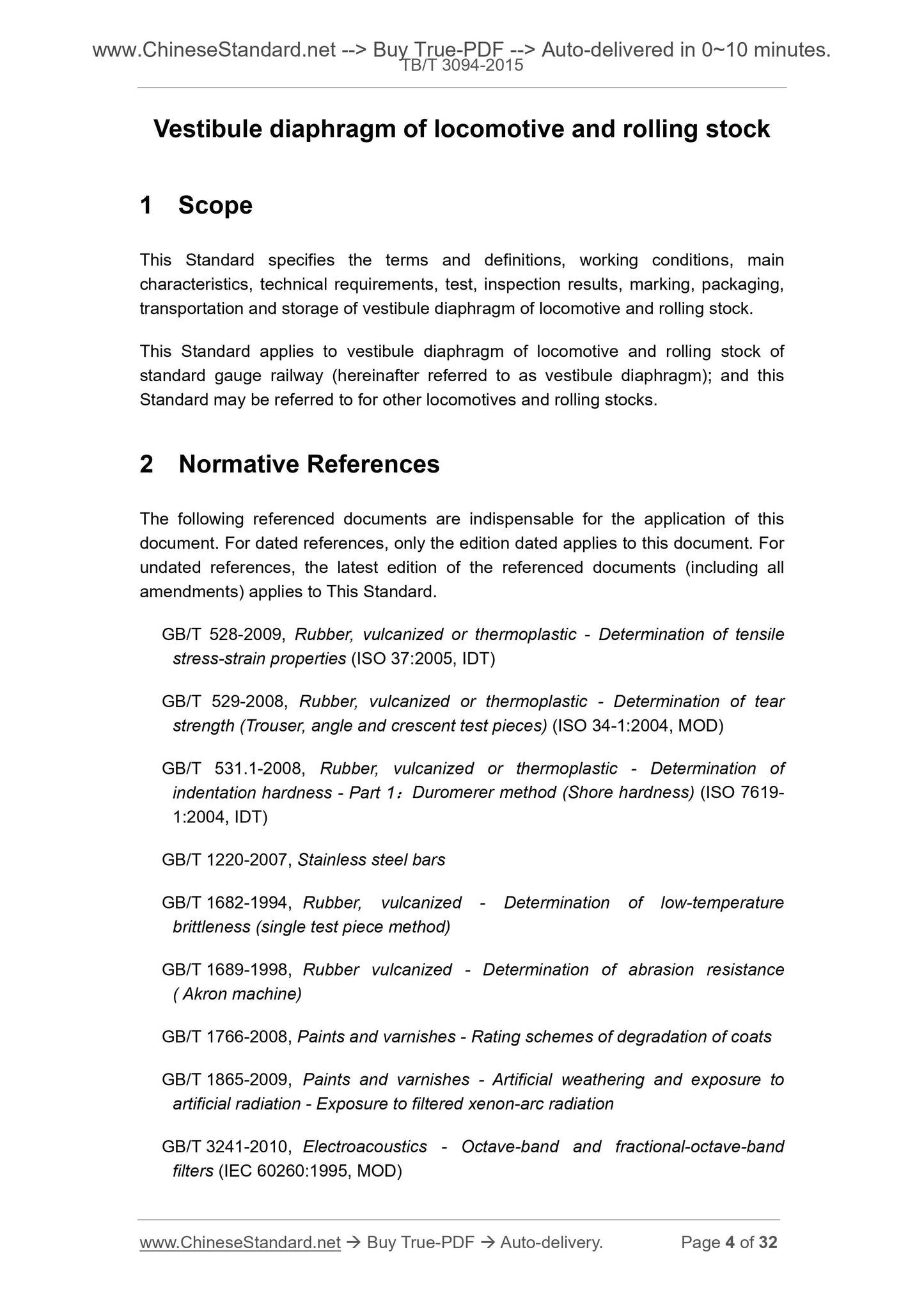

Vestibule diaphragm of locomotive and rolling stock
1 Scope
This Standard specifies the terms and definitions, working conditions, main characteristics, technical requirements, test, inspection results, marking, packaging, transportation and storage of vestibule diaphragm of locomotive and rolling stock. This Standard applies to vestibule diaphragm of locomotive and rolling stock of standard gauge railway (hereinafter referred to as vestibule diaphragm); and this Standard may be referred to for other locomotives and rolling stocks.
2 Normative References
The following referenced documents are indispensable for the application of this document. For dated references, only the edition dated applies to this document. For undated references, the latest edition of the referenced documents (including all amendments) applies to This Standard.
GB/T 528-2009, Rubber, vulcanized or thermoplastic - Determination of tensile stress-strain properties (ISO 37.2005, IDT)
GB/T 529-2008, Rubber, vulcanized or thermoplastic - Determination of tear strength (Trouser, angle and crescent test pieces) (ISO 34-1.2004, MOD) GB/T 531.1-2008, Rubber, vulcanized or thermoplastic - Determination of indentation hardness - Part 1. Duromerer method (Shore hardness) (ISO 7619- 1.2004, IDT)
GB/T 1220-2007, Stainless steel bars
GB/T 1682-1994, Rubber, vulcanized - Determination of low-temperature
brittleness (single test piece method)
GB/T 1689-1998, Rubber vulcanized - Determination of abrasion resistance ( Akron machine)
GB/T 1766-2008, Paints and varnishes - Rating schemes of degradation of coats GB/T 1865-2009, Paints and varnishes - Artificial weathering and exposure to artificial radiation - Exposure to filtered xenon-arc radiation
GB/T 3241-2010, Electroacoustics - Octave-band and fractional-octave-band filters (IEC 60260.1995, MOD)

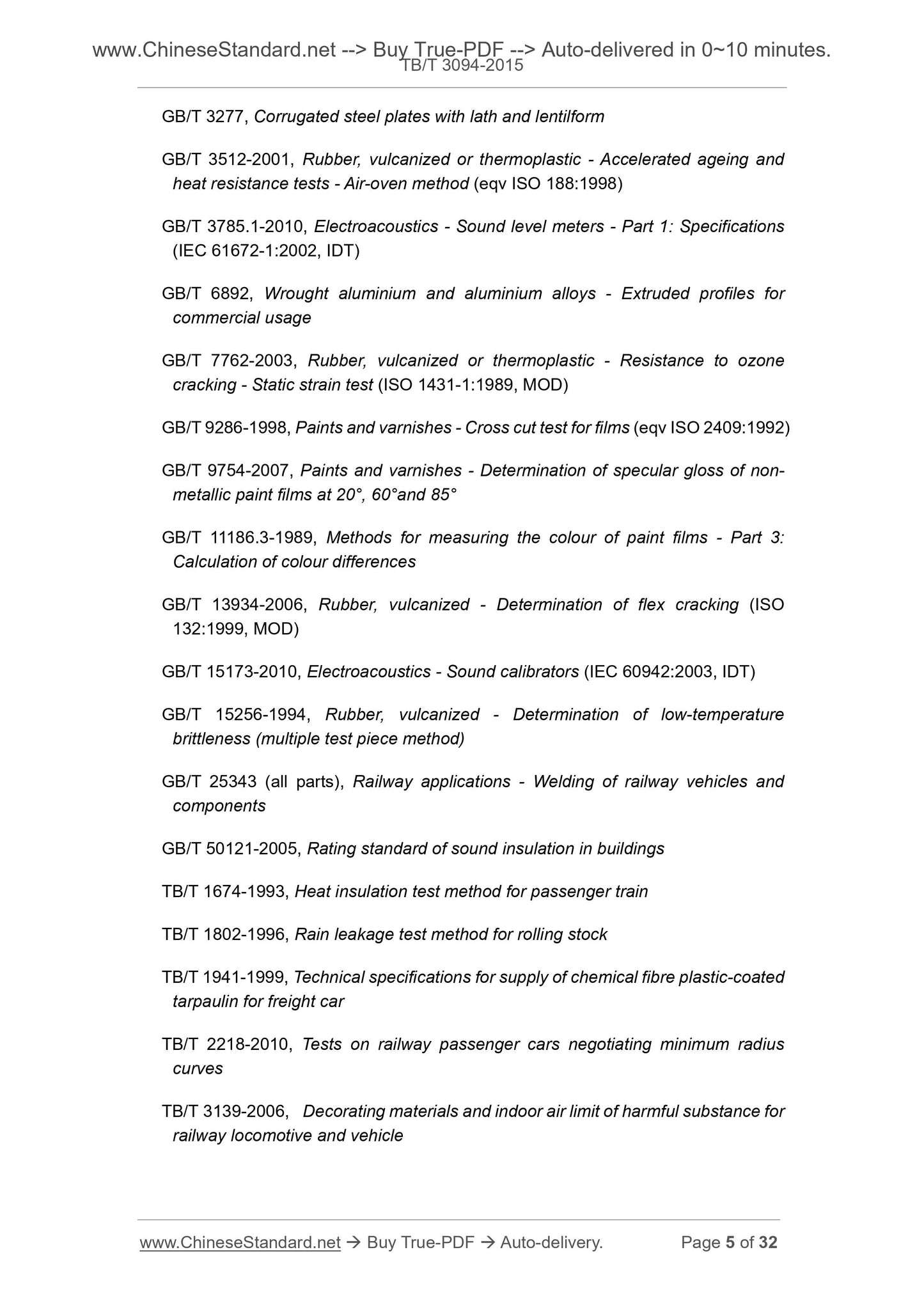

GB/T 3277, Corrugated steel plates with lath and lentilform
GB/T 3512-2001, Rubber, vulcanized or thermoplastic - Accelerated ageing and heat resistance tests - Air-oven method (eqv ISO 188.1998)
GB/T 3785.1-2010, Electroacoustics - Sound level meters - Part 1. Specifications (IEC 61672-1.2002, IDT)
GB/T 6892, Wrought aluminium and aluminium alloys - Extruded profiles for commercial usage
GB/T 7762-2003, Rubber, vulcanized or thermoplastic - Resistance to ozone cracking - Static strain test (ISO 1431-1.1989, MOD)
GB/T 9286-1998, Paints and varnishes - Cross cut test for films (eqv ISO 2409.1992) GB/T 9754-2007, Paints and varnishes - Determination of specular gloss of non- metallic paint films at 20??, 60??and 85??
GB/T 11186.3-1989, Methods for measuring the colour of paint films - Part 3. Calculation of colour differences
GB/T 13934-2006, Rubber, vulcanized - Determination of flex cracking (ISO 132.1999, MOD)
GB/T 15173-2010, Electroacoustics - Sound calibrators (IEC 60942.2003, IDT) GB/T 15256-1994, Rubber, vulcanized - Determination of low-temperature
brittleness (multiple test piece method)
GB/T 25343 (all parts), Railway applications - Welding of railway vehicles and components
GB/T 50121-2005, Rating standard of sound insulation in buildings
TB/T 1674-1993, Heat insulation test method for passenger train
TB/T 1802-1996, Rain leakage test method for rolling stock
TB/T 1941-1999, Technical specifications for supply of chemical fibre plastic-coated tarpaulin for freight car
TB/T 2218-2010, Tests on railway passenger cars negotiating minimum radius curves
TB/T 3139-2006, Decorating materials and indoor air limit of harmful substance for railway locomotive and vehicle

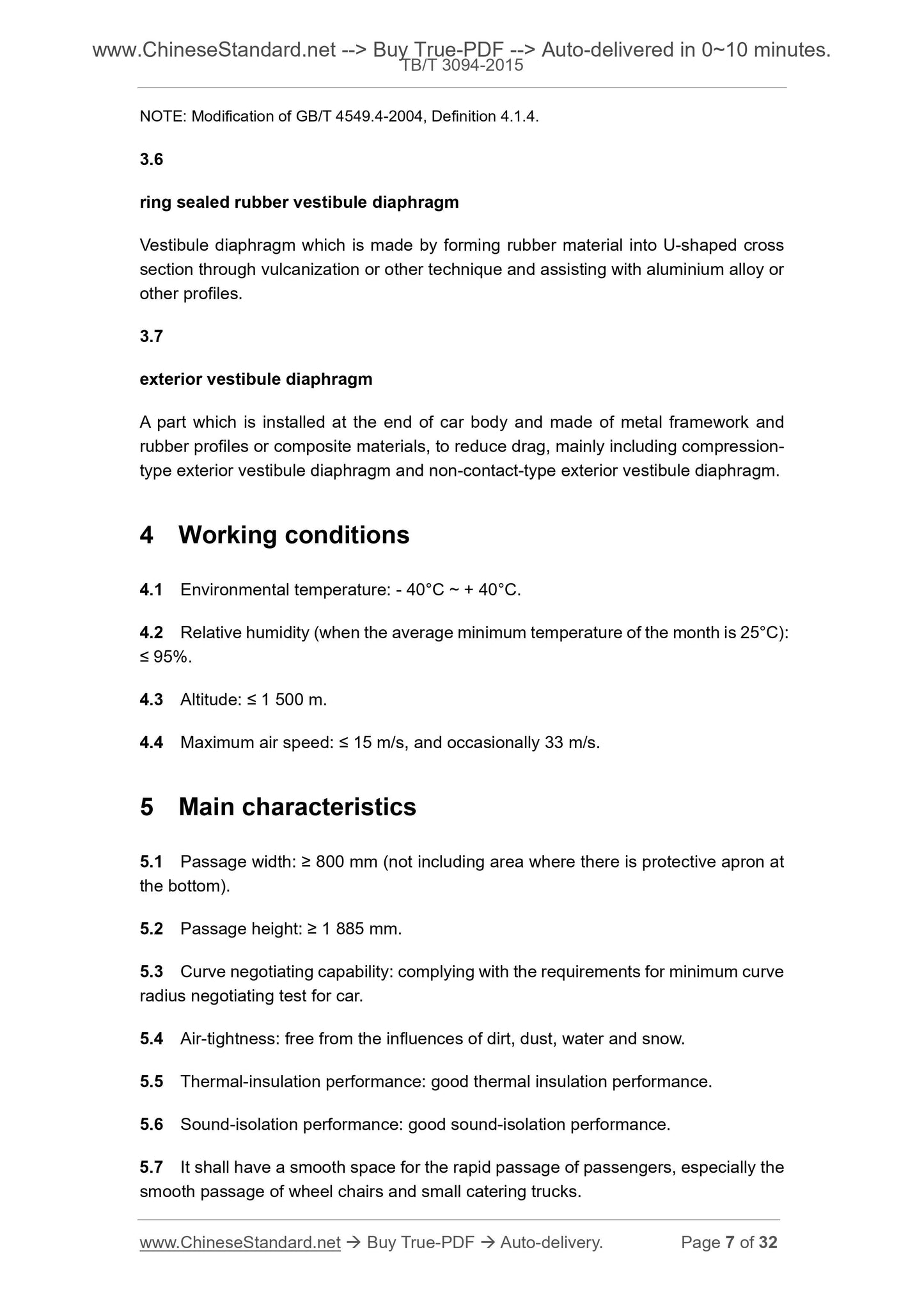

NOTE. Modification of GB/T 4549.4-2004, Definition 4.1.4.
3.6
ring sealed rubber vestibule diaphragm
Vestibule diaphragm which is made by forming rubber material into U-shaped cross section through vulcanization or other technique and assisting with aluminium alloy or other profiles.
3.7
exterior vestibule diaphragm
A part which is installed at the end of car body and made of metal framework and rubber profiles or composite materials, to reduce drag, mainly including compression- type exterior vestibule diaphragm and non-contact-type exterior vestibule diaphragm. 4 Working conditions
4.1 Environmental temperature. - 40??C ~ + 40??C.
4.2 Relative humidity (when the average minimum temperature of the month is 25??C). ??? 95%.
4.3 Altitude. ??? 1 500 m.
4.4 Maximum air speed. ??? 15 m/s, and occasionally 33 m/s.
5 Main characteristics
5.1 Passage width. ??? 800 mm (not including area where there is protective apron at the bottom).
5.2 Passage height. ??? 1 885 mm.
5.3 Curve negotiating capability. complying with the requirements for minimum curve radius negotiating test for car.
5.4 Air-tightness. free from the influences of dirt, dust, water and snow. 5.5 Thermal-insulation performance. good thermal insulation performance. 5.6 Sound-isolation performance. good sound-isolation performance.
5.7 It shall have a smooth space for the rapid passage of passengers, especially the smooth passage of wheel chairs and small catering trucks.

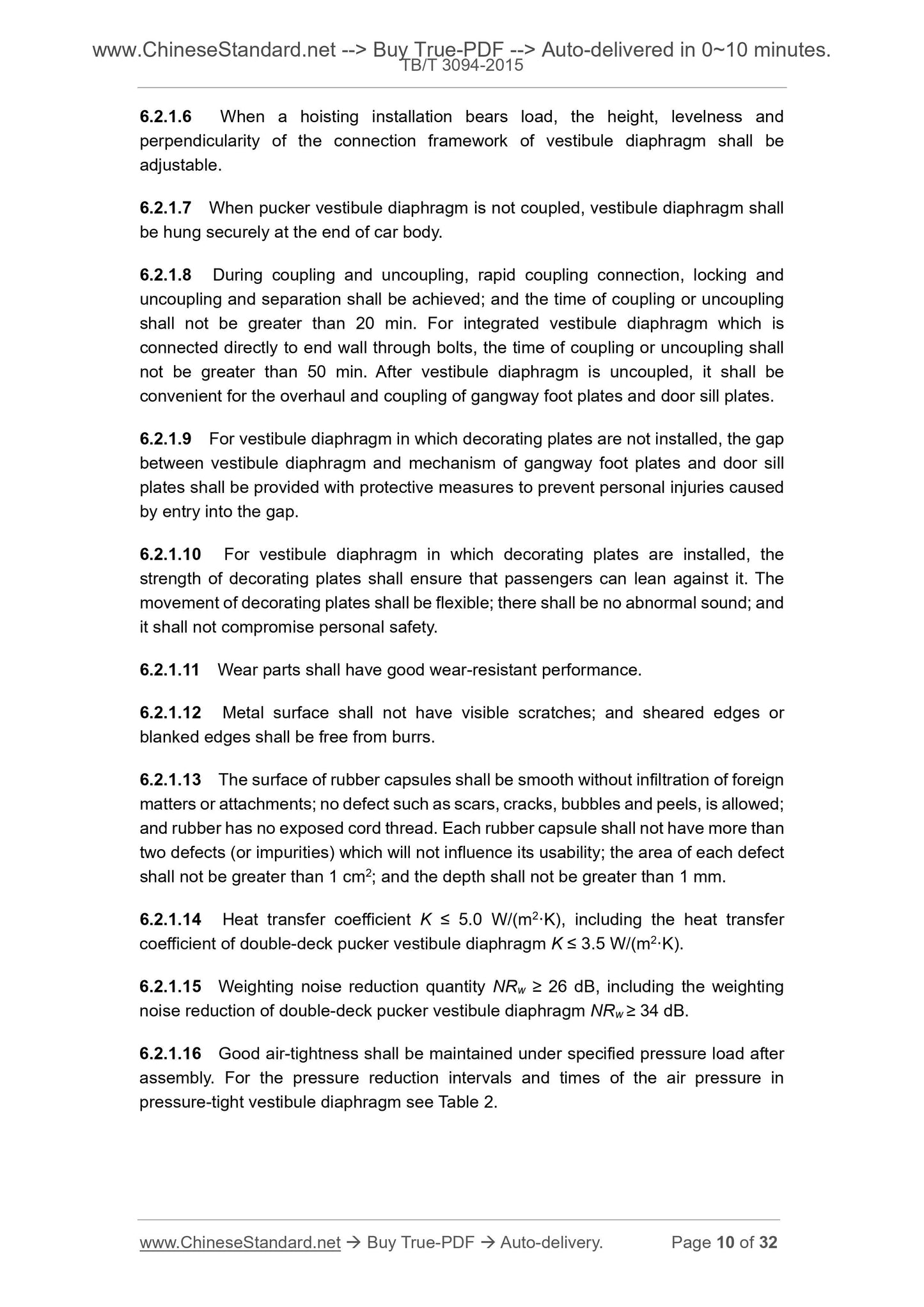

6.2.1.6 When a hoisting installation bears load, the height, levelness and perpendicularity of the connection framework of vestibule diaphragm shall be adjustable.
6.2.1.7 When pucker vestibule diaphragm is not coupled, vestibule diaphragm shall be hung securely at the end of car body.
6.2.1.8 During coupling and uncoupling, rapid coupling connection, locking and uncoupling and separation shall be achieved; and the time of coupling or uncoupling shall not be greater than 20 min. For integrated vestibule diaphragm which is connected directly to end wall through bolts, the time of coupling or uncoupling shall not be greater than 50 min. After vestibule diaphragm is uncoupled, it shall be convenient for the overhaul and coupling of gangway foot plates and door sill plates. 6.2.1.9 For vestibule diaphragm in which decorating plates are not installed, the gap between vestibule diaphragm and mechanism of gangway foot plates and door sill plates shall be provided with protective measures to prevent personal injuries caused by entry into the gap.
6.2.1.10 For vestibule diaphragm in which decorating plates are installed, the strength of decorating plates shall ensure that passengers can lean against it. The movement of decorating plates shall be flexible; there shall be no abnormal sound; and it shall not compromise personal safety.
6.2.1.11 Wear parts shall have good wear-resistant performance.
6.2.1.12 Metal surface shall not have visible scratches; and sheared edges or blanked edges shall be free from burrs.
6.2.1.13 The surface of rubber capsules shall be smooth without infiltration of foreign matters or attachments; no defect such as scars, cracks, bubbles and peels, is allowed; and rubber has no exposed cord thread. Each rubber capsule shall not have more than two defects (or impurities) which will not influence its usability; the area of each defect shall not be greater than 1 cm2; and the depth shall not be greater than 1 mm. 6.2.1.14 Heat transfer coefficient K ??? 5.0 W/(m2??K), including the heat transfer coefficient of double-deck pucker vestibule diaphragm K ??? 3.5 W/(m2??K). 6.2.1.15 Weighting noise reduction quantity NRw ??? 26 dB, including the weighting noise reduction of double-deck pucker vestibule diaphragm NRw ??? 34 dB.
6.2.1.16 Good air-tightness shall be maintained under specified pressure load after assembly. For the pressure reduction intervals and times of the air pressure in pressure-tight vestibule diaphragm see Table 2.

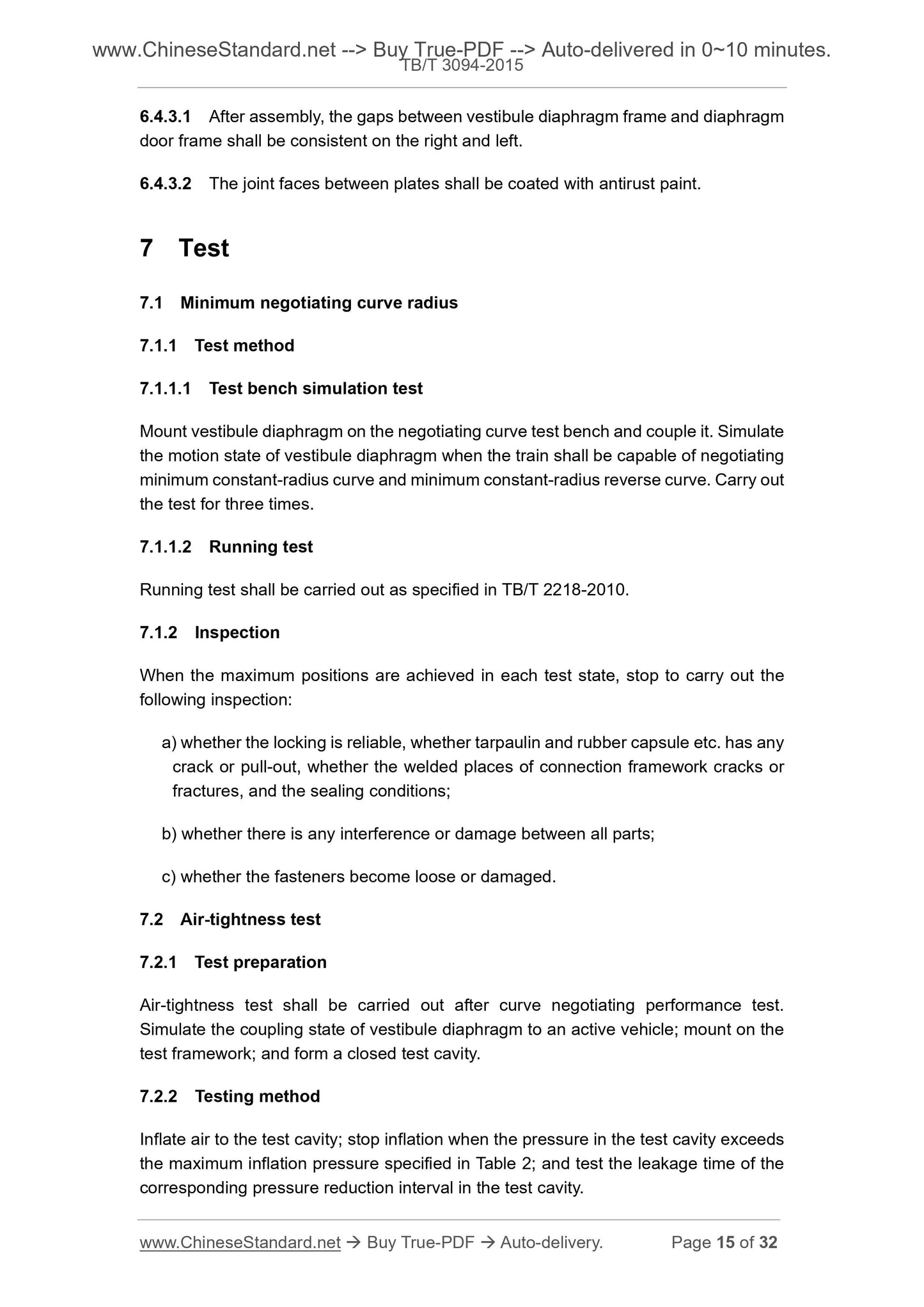

6.4.3.1 After assembly, the gaps between vestibule diaphragm frame and diaphragm door frame shall be consistent on the right and left.
6.4.3.2 The joint faces between plates shall be coated with antirust paint. 7 Test
7.1 Minimum negotiating curve radius
7.1.1 Test method
7.1.1.1 Test bench simulation test
Mount vestibule diaphragm on the negotiating curve test bench and couple it. Simulate the motion state of vestibule diaphragm when the train shall be capable of negotiating minimum constant-radius curve and minimum constant-radius reverse curve. Carry out the test for three times.
7.1.1.2 Running test
Running test shall be carried out as specified in TB/T 2218-2010.
7.1.2 Inspection
When the maximum positions are achieved in each test state, stop to carry out the following inspection.
a) whether the locking is reliable, whether tarpaulin and rubber capsule etc. has any crack or pull-out, whether the welded places of connection framework cracks or fractures, and the sealing conditions;
b) whether there is any interference or damage between all parts;
c) whether the fasteners become loose or damaged.
7.2 Air-tightness test
7.2.1 Test preparation
Air-tightness test shall be carried out after curve negotiating performance test. Simulate the coupling state of vestibule diaphragm to an active vehicle; mount ...
