TB/T 2075.13-2010: Fittings for overhead contact system in electrification railway. Part 13: Tension assembly wheel

Delivery: 9 seconds. Download (and Email) true-PDF + Invoice.
Get Quotation: Click TB/T 2075.13-2010 (Self-service in 1-minute)
Newer / historical versions: TB/T 2075.13-2010

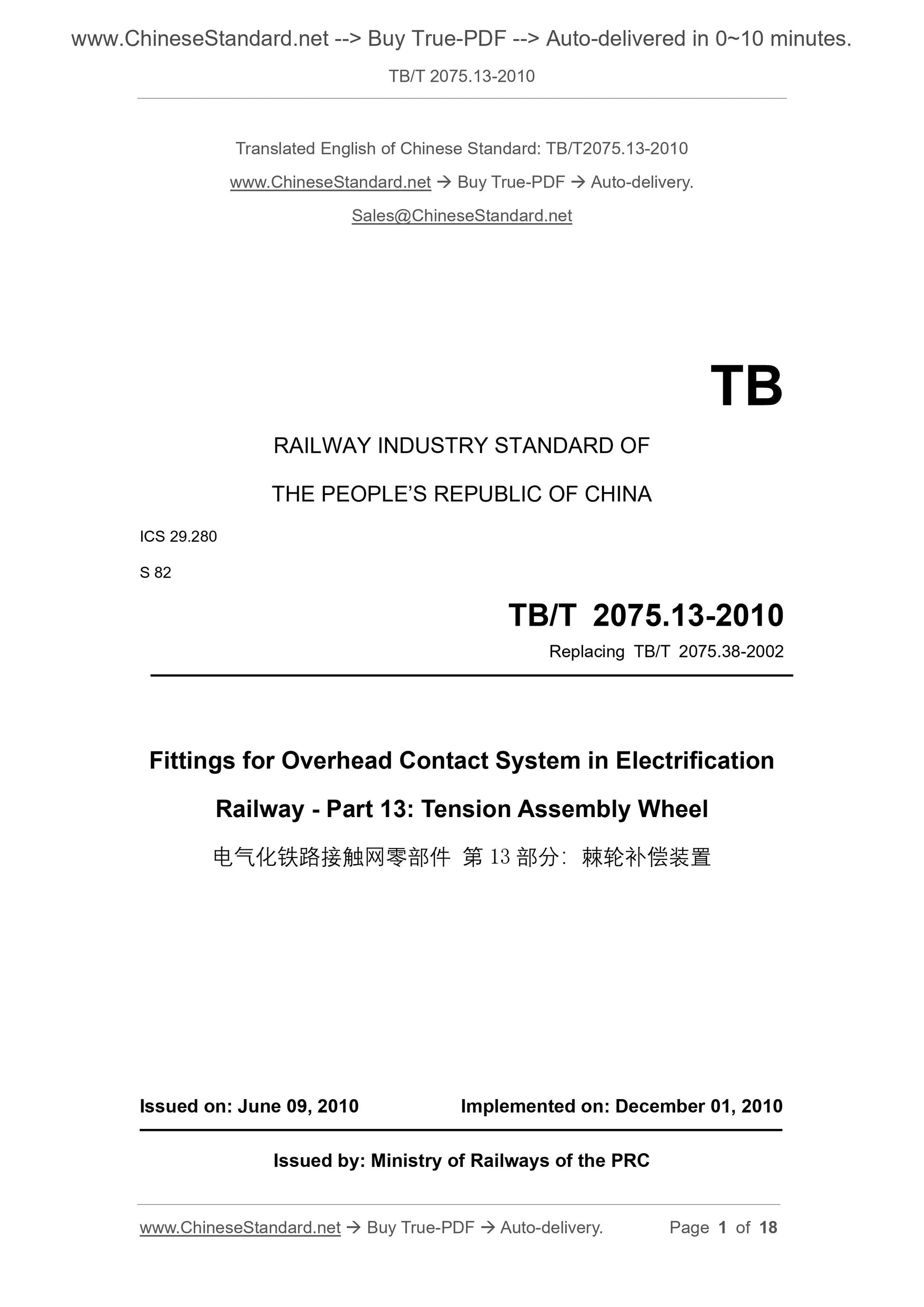

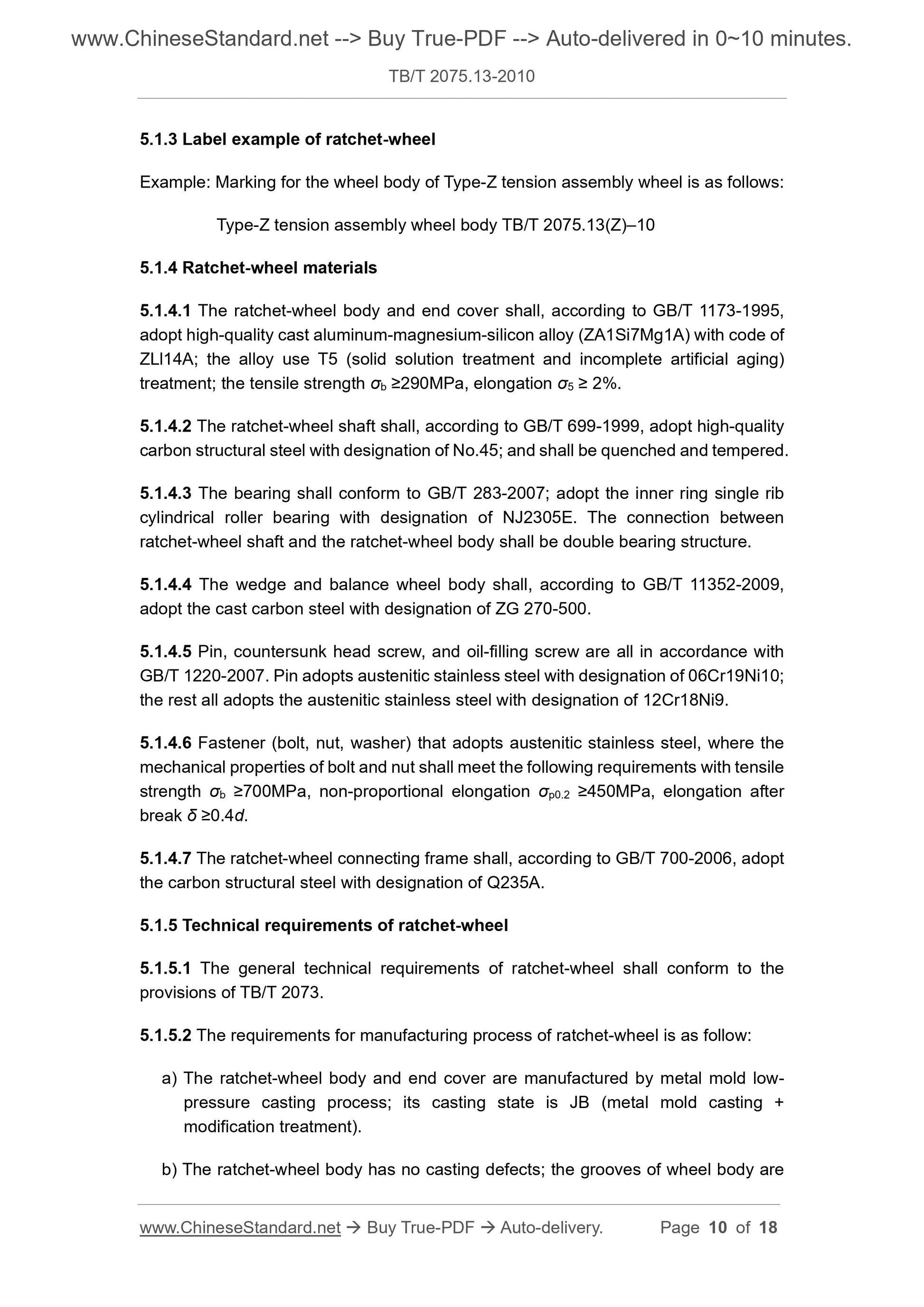

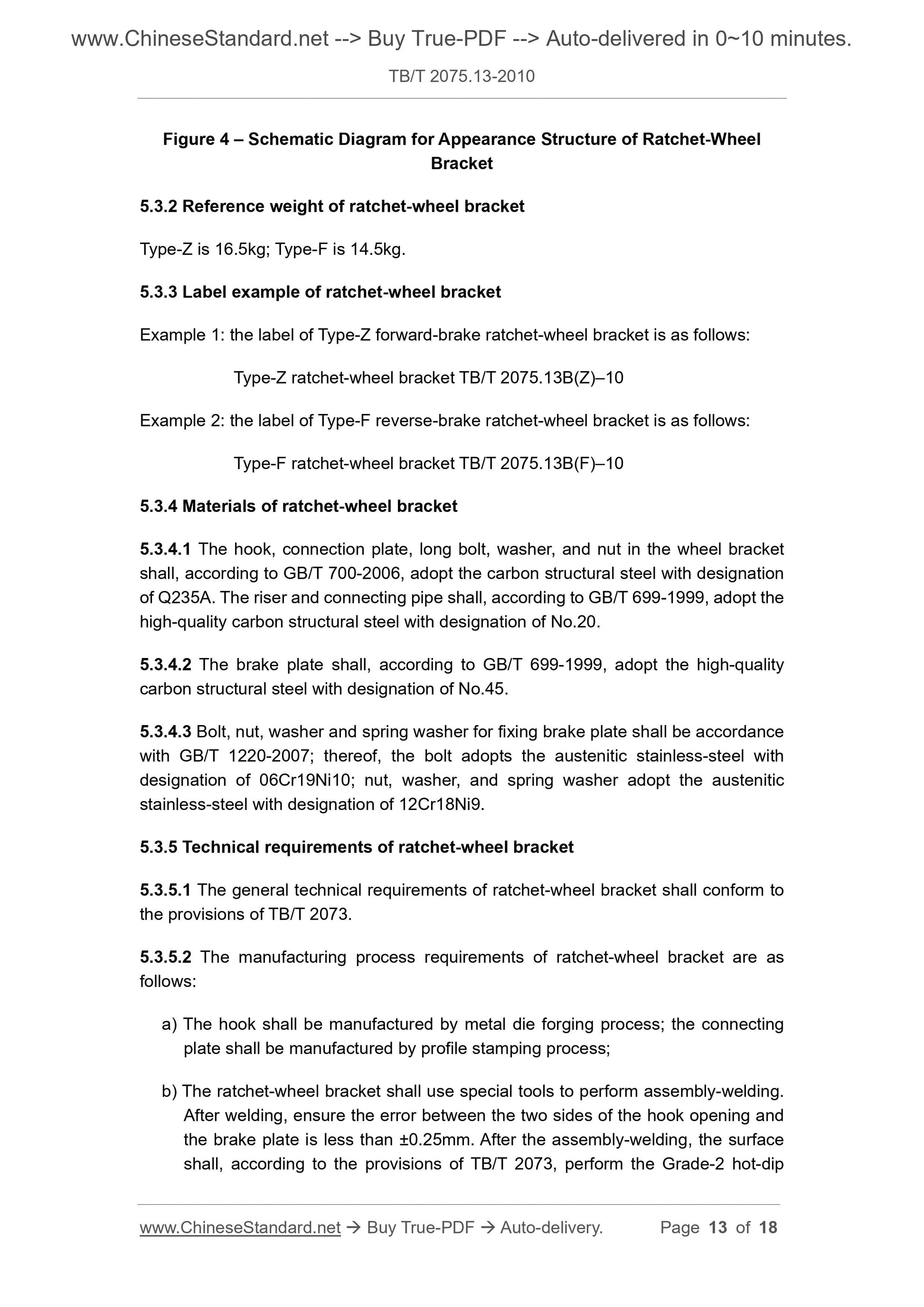

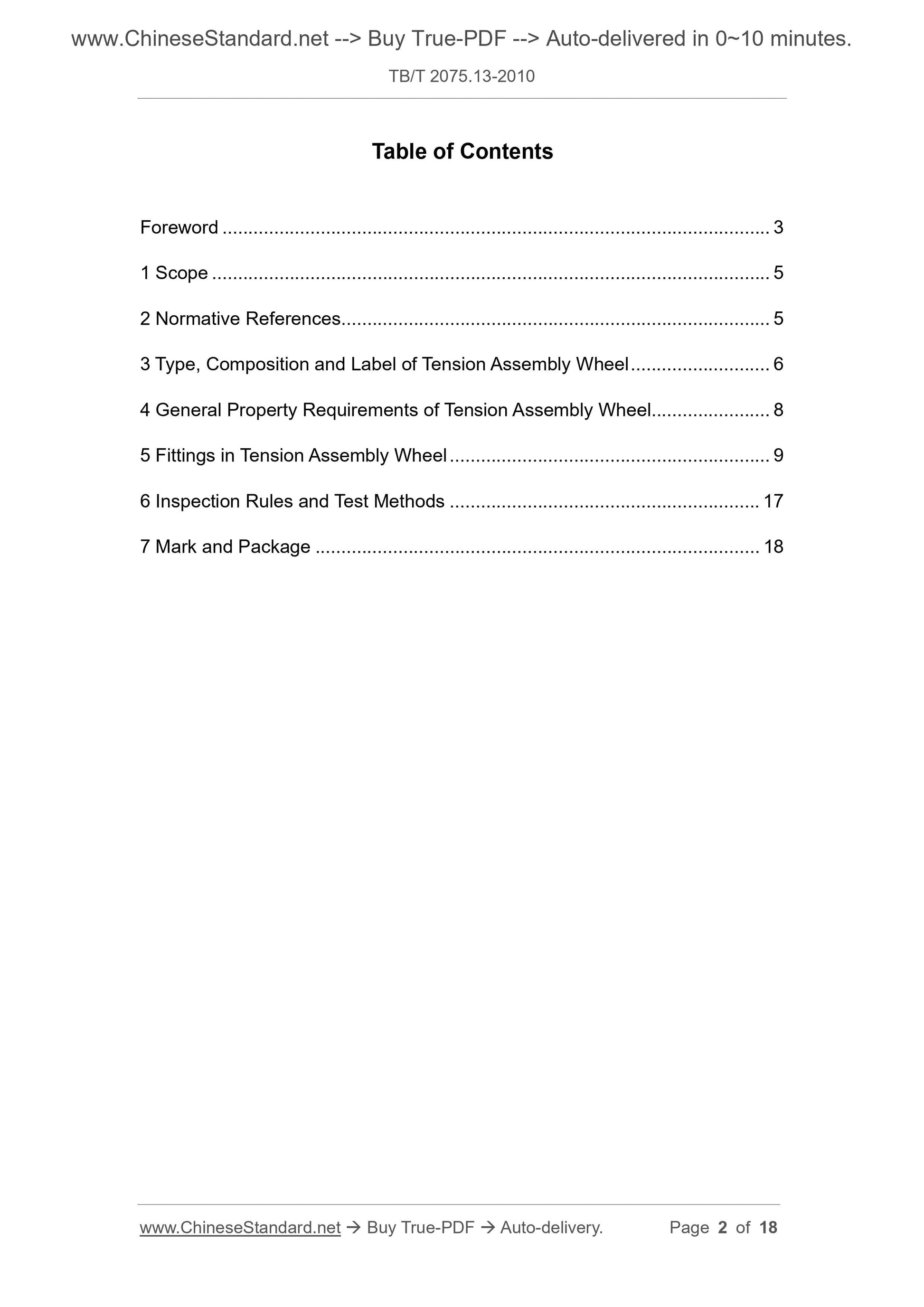

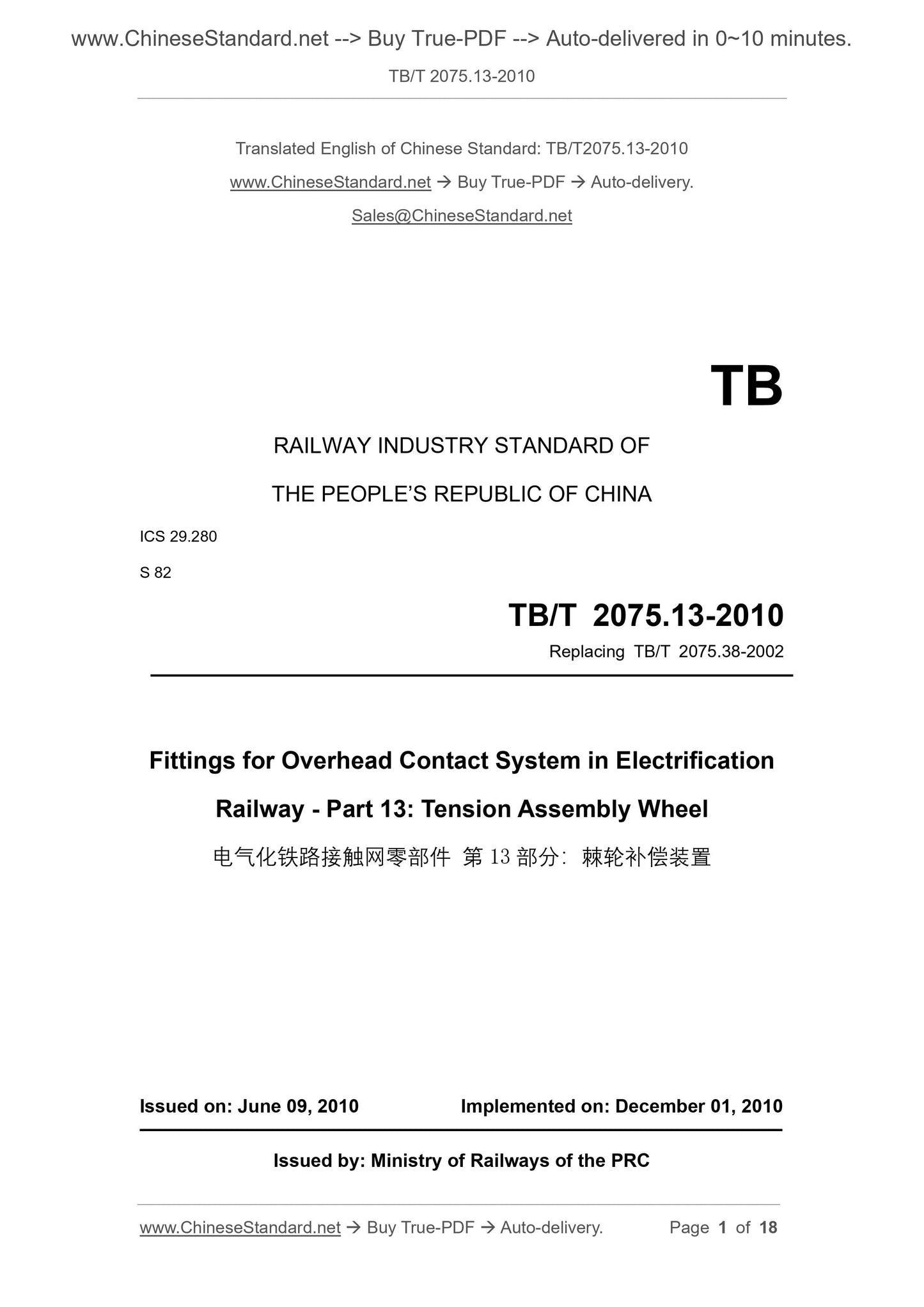

Preview True-PDF

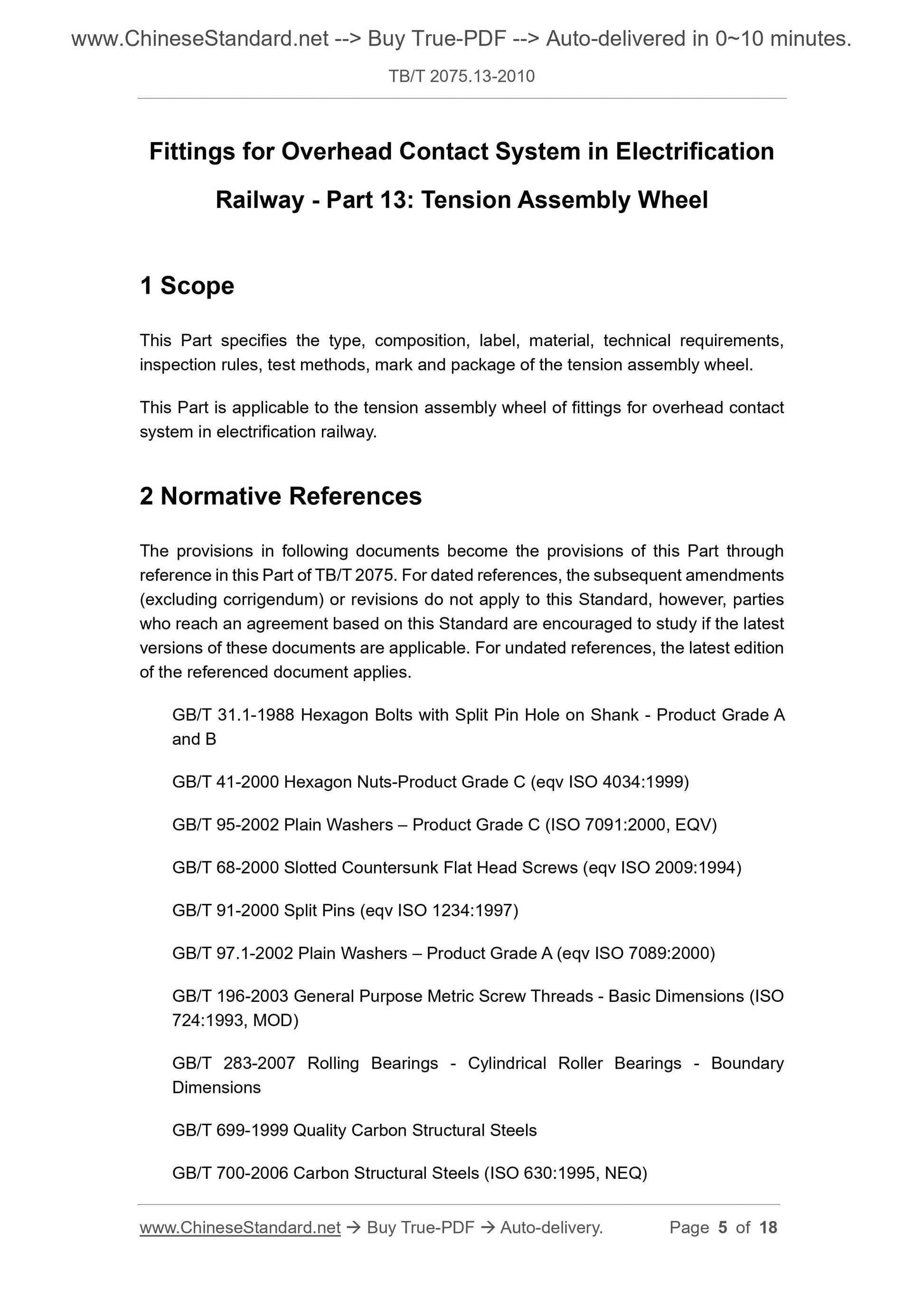

Scope

This Part specifies the type, composition, label, material, technical requirements,
inspection rules, test methods, mark and package of the tension assembly wheel.
This Part is applicable to the tension assembly wheel of fittings for overhead contact
system in electrification railway.

Basic Data

Standard ID	TB/T 2075.13-2010 (TB/T2075.13-2010)
Description (Translated English)	Fittings for overhead contact system in electrification railway. Part 13: Tension assembly wheel
Sector / Industry	Railway and Train Industry Standard (Recommended)
Classification of Chinese Standard	S82
Classification of International Standard	29.280
Word Count Estimation	11,128
Date of Issue	2010-06-09
Date of Implementation	2010-12-01
Older Standard (superseded by this standard)	TB/T 2075.38-2002
Quoted Standard	GB/T 31.1-1988; GB/T 41-2000; GB/T 95-2002; GB/T 68-2000; GB/T 91-2000; GB/T 97.1-2002; GB/T 196-2003; GB/T 283-2007; GB/T 699-1999; GB/T 700-2006; GB/T 859-1987; GB/T 1173-1995; GB/T 1220-2007; GB/T 5783-2000; GB/T 6170-2000; GB/T 8706-2006; GB/T 11352-2009; GB/T 17395-2008; FZ/T 92010-1991; JB/T 7757.2-2006; JB/T 7940.1-1995; TB/T 2073; TB/T 2074; DIN 48201; EN 1706-1998; EN 12163-1998
Regulation (derived from)	Railway Technology (2010) 84
Issuing agency(ies)	Ministry of Railways of the People's Republic of China
Summary	This standard specifies the ratchet compensation device of the type, composition, labeling, material, technical requirements, inspection rules, test methods, marking and packaging. This standard applies to electrified railway catenary system exposed suspension ratchet compensation device.
