TB/T 1463-2015: Technical specification for wheelsets assembly of locomotive

This standard specifies the terms and definitions of the assembly of new wheelsets, the technical requirements of the assembly parts, the classification and selection of the assembly methods of wheelsets as well as the technical requirements, inspection requirements, marking and protection of wheelsets assembly of railway locomotives.

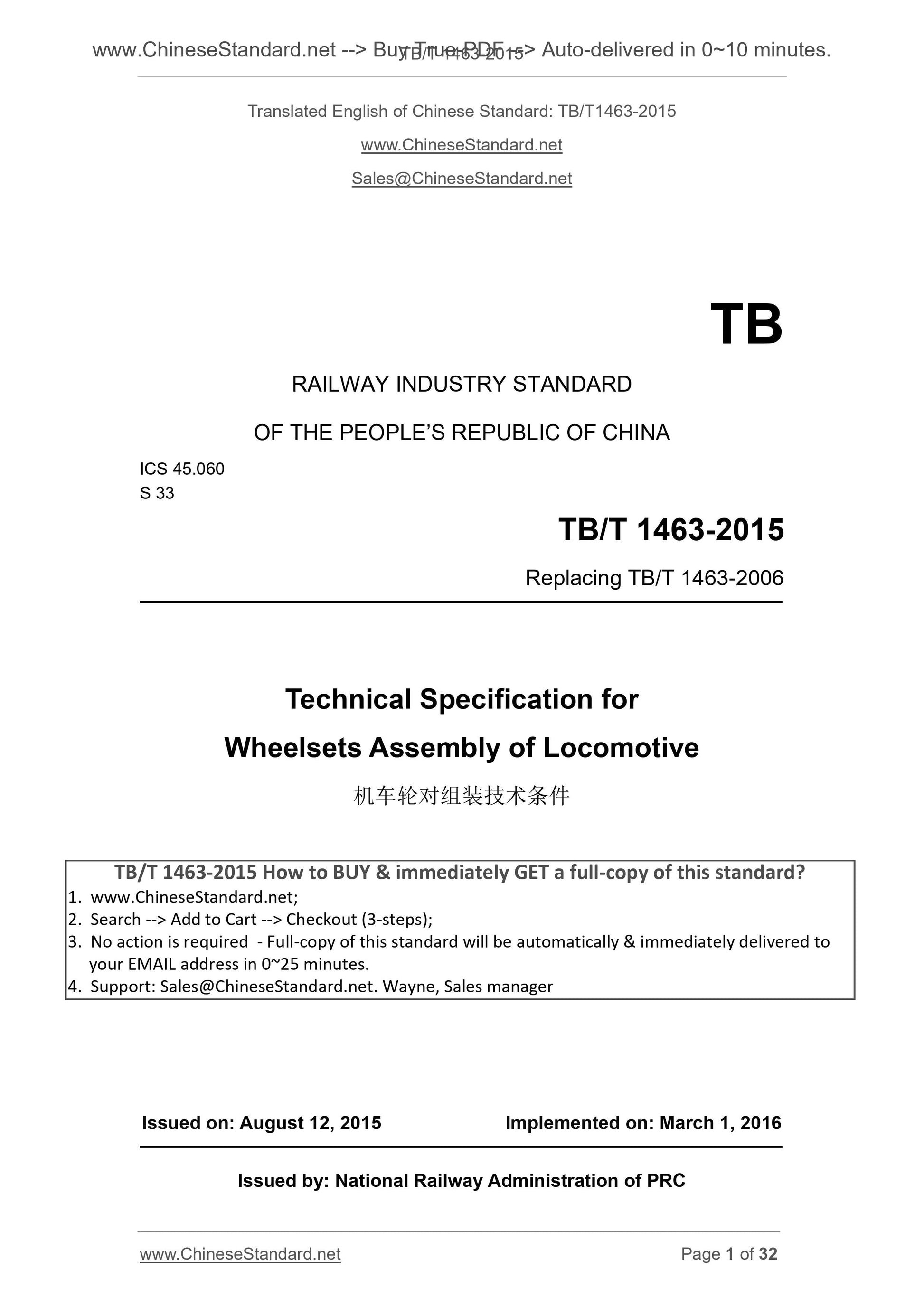

TB/T 1463-2015
TB
RAILWAY INDUSTRY STANDARD
OF THE PEOPLE REPUBLIC OF CHINA
ICS 45.060
S 33
Replacing TB/T 1463-2006
Technical Specification for
Wheelsets Assembly of Locomotive
ISSUED ON. AUGUST 12, 2015
IMPLEMENTED ON. MARCH 1, 2016
Issued by. National Railway Administration of PRC

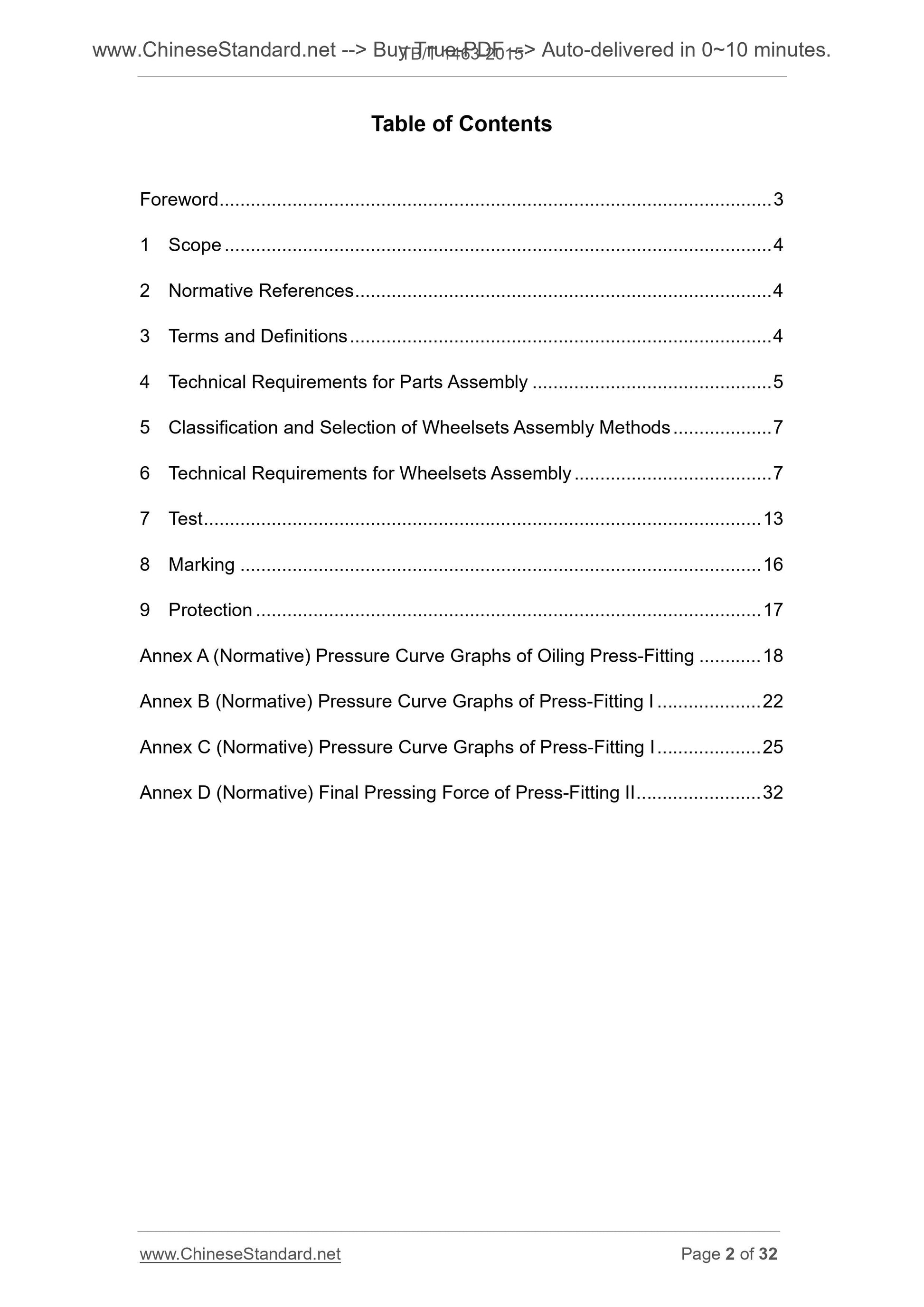

Table of Contents
Foreword ... 3
1 Scope ... 4
2 Normative References ... 4
3 Terms and Definitions ... 4
4 Technical Requirements for Parts Assembly ... 5
5 Classification and Selection of Wheelsets Assembly Methods ... 7
6 Technical Requirements for Wheelsets Assembly ... 7
7 Test ... 13
8 Marking ... 16
9 Protection ... 17
Annex A (Normative) Pressure Curve Graphs of Oiling Press-Fitting ... 18 Annex B (Normative) Pressure Curve Graphs of Press-Fitting I ... 22
Annex C (Normative) Pressure Curve Graphs of Press-Fitting I ... 25
Annex D (Normative) Final Pressing Force of Press-Fitting II ... 32

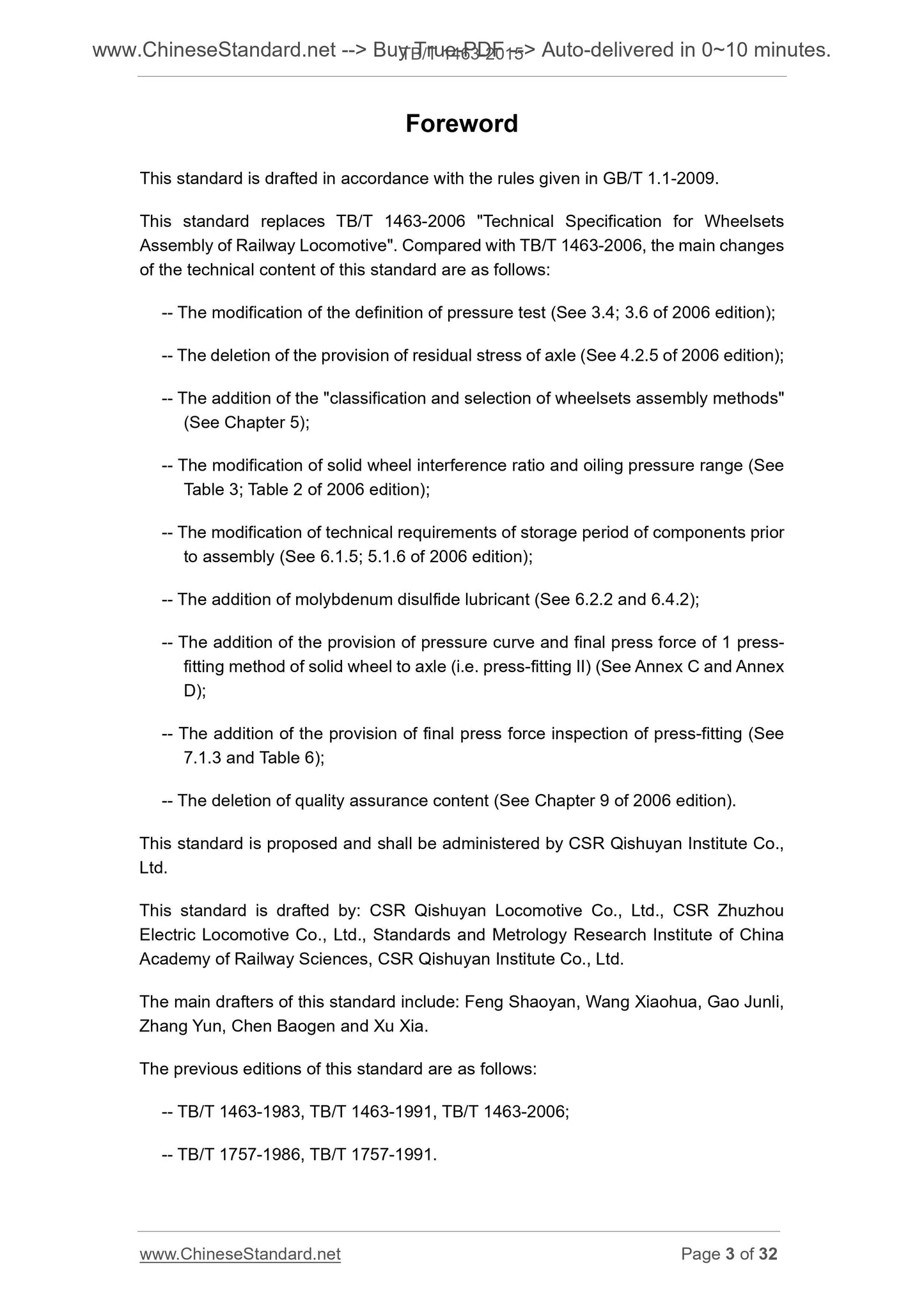

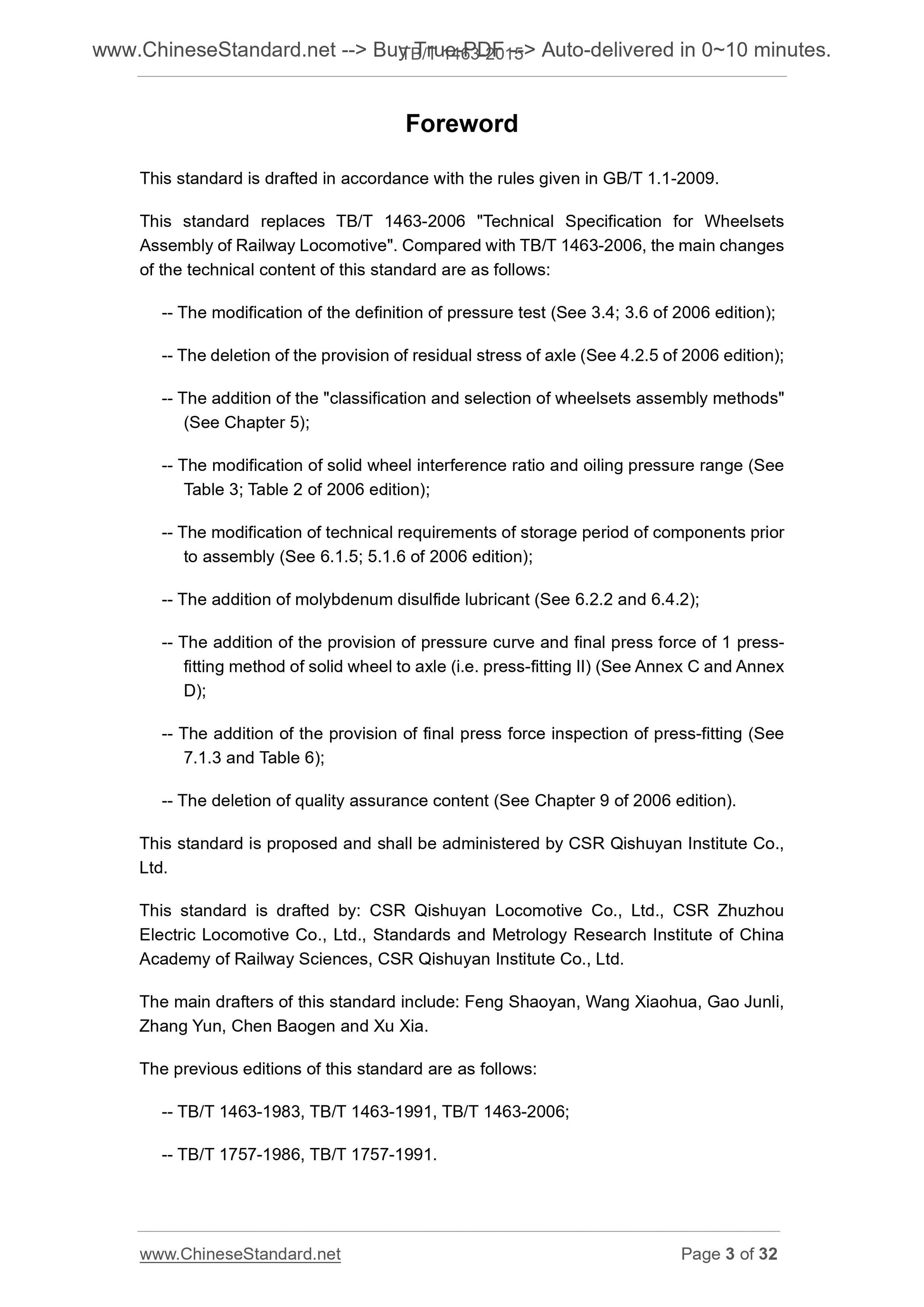

Foreword
This standard is drafted in accordance with the rules given in GB/T 1.1-2009. This standard replaces TB/T 1463-2006 "Technical Specification for Wheelsets Assembly of Railway Locomotive". Compared with TB/T 1463-2006, the main changes of the technical content of this standard are as follows.
-- The modification of the definition of pressure test (See 3.4; 3.6 of 2006 edition); -- The deletion of the provision of residual stress of axle (See 4.2.5 of 2006 edition); -- The addition of the "classification and selection of wheelsets assembly methods" (See Chapter 5);
-- The modification of solid wheel interference ratio and oiling pressure range (See Table 3; Table 2 of 2006 edition);
-- The modification of technical requirements of storage period of components prior to assembly (See 6.1.5; 5.1.6 of 2006 edition);
-- The addition of molybdenum disulfide lubricant (See 6.2.2 and 6.4.2); -- The addition of the provision of pressure curve and final press force of 1 press- fitting method of solid wheel to axle (i.e. press-fitting II) (See Annex C and Annex D);
-- The addition of the provision of final press force inspection of press-fitting (See 7.1.3 and Table 6);
-- The deletion of quality assurance content (See Chapter 9 of 2006 edition). This standard is proposed and shall be administered by CSR Qishuyan Institute Co., Ltd.
This standard is drafted by. CSR Qishuyan Locomotive Co., Ltd., CSR Zhuzhou Electric Locomotive Co., Ltd., Standards and Metrology Research Institute of China Academy of Railway Sciences, CSR Qishuyan Institute Co., Ltd.
The main drafters of this standard include. Feng Shaoyan, Wang Xiaohua, Gao Junli, Zhang Yun, Chen Baogen and Xu Xia.
The previous editions of this standard are as follows.
-- TB/T 1463-1983, TB/T 1463-1991, TB/T 1463-2006;
-- TB/T 1757-1986, TB/T 1757-1991.

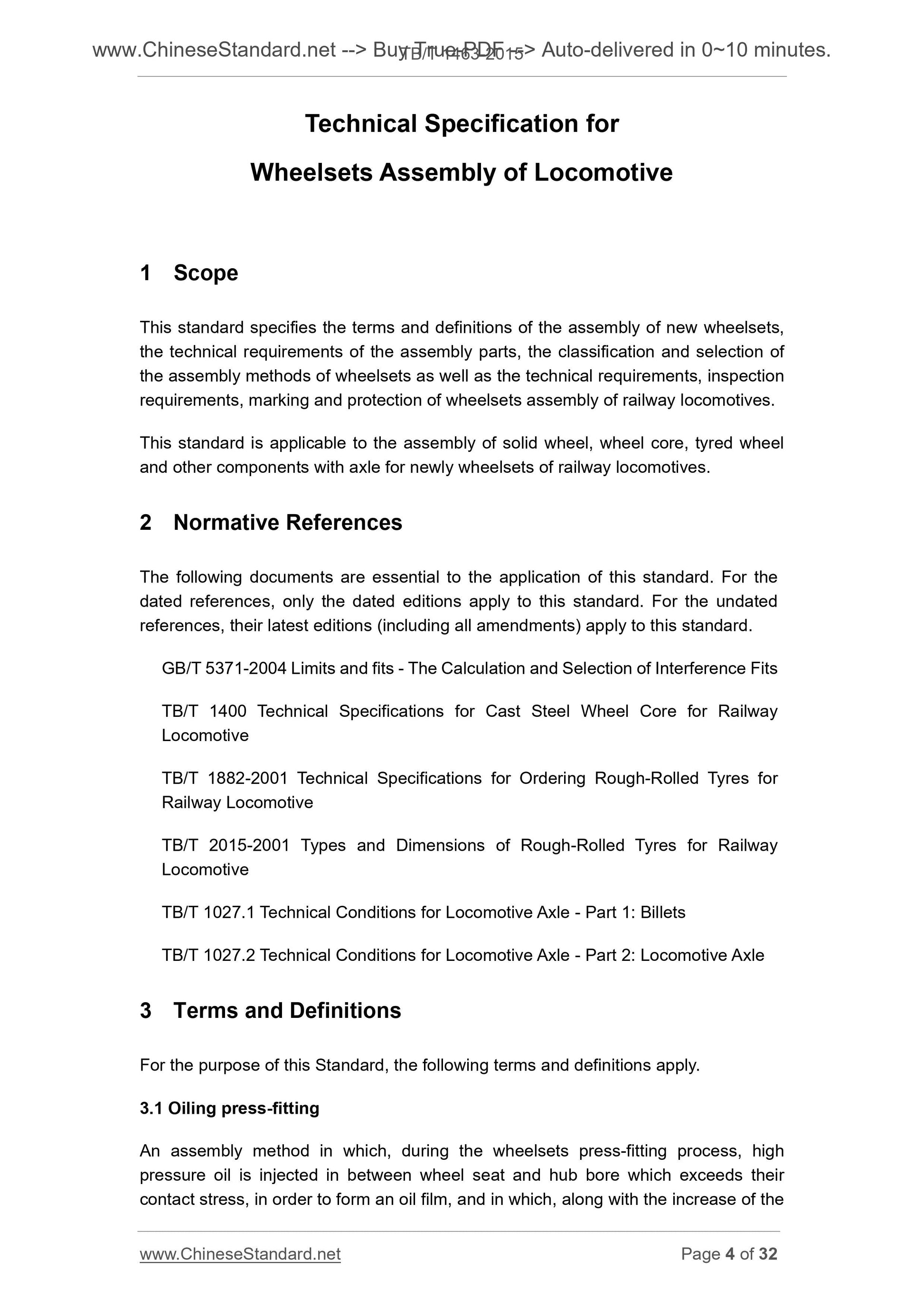

Technical Specification for
Wheelsets Assembly of Locomotive
1 Scope
This standard specifies the terms and definitions of the assembly of new wheelsets, the technical requirements of the assembly parts, the classification and selection of the assembly methods of wheelsets as well as the technical requirements, inspection requirements, marking and protection of wheelsets assembly of railway locomotives. This standard is applicable to the assembly of solid wheel, wheel core, tyred wheel and other components with axle for newly wheelsets of railway locomotives. 2 Normative References
The following documents are essential to the application of this standard. For the dated references, only the dated editions apply to this standard. For the undated references, their latest editions (including all amendments) apply to this standard. GB/T 5371-2004 Limits and fits - The Calculation and Selection of Interference Fits TB/T 1400 Technical Specifications for Cast Steel Wheel Core for Railway Locomotive
TB/T 1882-2001 Technical Specifications for Ordering Rough-Rolled Tyres for Railway Locomotive
TB/T 2015-2001 Types and Dimensions of Rough-Rolled Tyres for Railway
Locomotive
TB/T 1027.1 Technical Conditions for Locomotive Axle - Part 1. Billets
TB/T 1027.2 Technical Conditions for Locomotive Axle - Part 2. Locomotive Axle 3 Terms and Definitions
For the purpose of this Standard, the following terms and definitions apply. 3.1 Oiling press-fitting

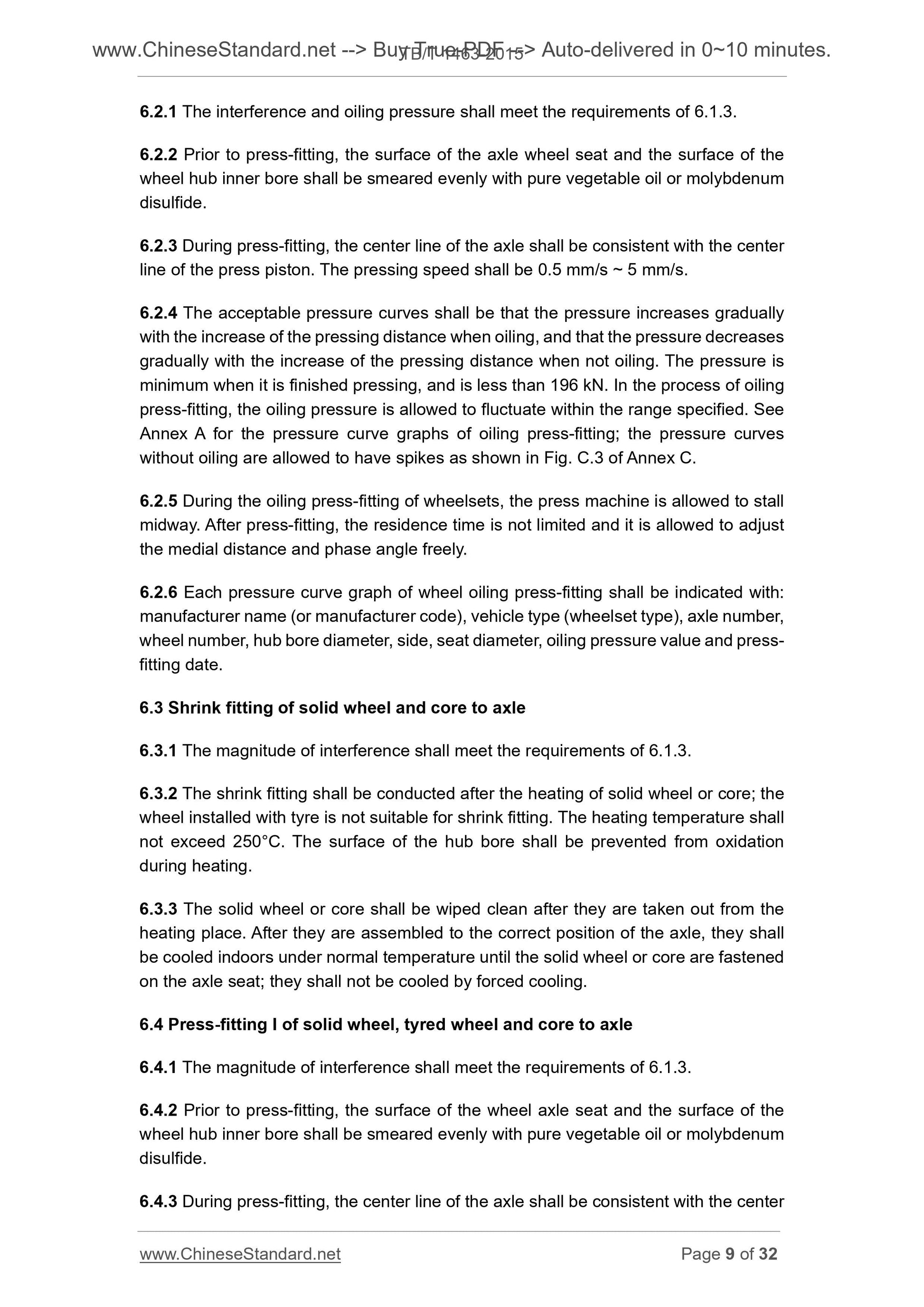

An assembly method in which, during the wheelsets press-fitting process, high pressure oil is injected in between wheel seat and hub bore which exceeds their contact stress, in order to form an oil film, and in which, along with the increase of the 6.2.1 The interference and oiling pressure shall meet the requirements of 6.1.3. 6.2.2 Prior to press-fitting, the surface of the axle wheel seat and the surface of the wheel hub inner bore shall be smeared evenly with pure vegetable oil or molybdenum disulfide.
6.2.3 During press-fitting, the center line of the axle shall be consistent with the center line of the press piston. The pressing speed shall be 0.5 mm/s ~ 5 mm/s. 6.2.4 The acceptable pressure curves shall be that the pressure increases gradually with the increase of the pressing distance when oiling, and that the pressure decreases gradually with the increase of the pressing distance when not oiling. The pressure is minimum when it is finished pressing, and is less than 196 kN. In the process of oiling press-fitting, the oiling pressure is allowed to fluctuate within the range specified. See Annex A for the pressure curve graphs of oiling press-fitting; the pressure curves without oiling are allowed to have spikes as shown in Fig. C.3 of Annex C. 6.2.5 During the oiling press-fitting of wheelsets, the press machine is allowed to stall midway. After press-fitting, the residence time is not limited and it is allowed to adjust the medial distance and phase angle freely.
6.2.6 Each pressure curve graph of wheel oiling press-fitting shall be indicated with. manufacturer name (or manufacturer code), vehicle type (wheelset type), axle number, wheel number, hub bore diameter, side, seat diameter, oiling pressure value and press- fitting date.
6.3 Shrink fitting of solid wheel and core to axle
6.3.1 The magnitude of interference shall meet the requirements of 6.1.3. 6.3.2 The shrink fitting shall be conducted after the heating of solid wheel or core; the wheel installed with tyre is not suitable for shrink fitting. The heating temperature shall not exceed 250??C. The surface of the hub bore shall be prevented from oxidation during heating.
6.3.3 The solid wheel or core shall be wiped clean after they are taken out from the heating place. After they are assembled to the correct position of the axle, they shall be cooled indoors under normal temperature until the solid wheel or core are fastened on the axle seat; they shall not be cooled by forced cooling.
6.4 Press-fitting I of solid wheel, tyred wheel and core to axle
6.4.1 The magnitude of interference shall meet the requirements of 6.1.3. 6.4.2 Prior to press-fitting, the surface of the wheel axle seat and the surface of the wheel hub inner bore shall be smeared evenly with pure vegetable oil or molybdenum disulfide.

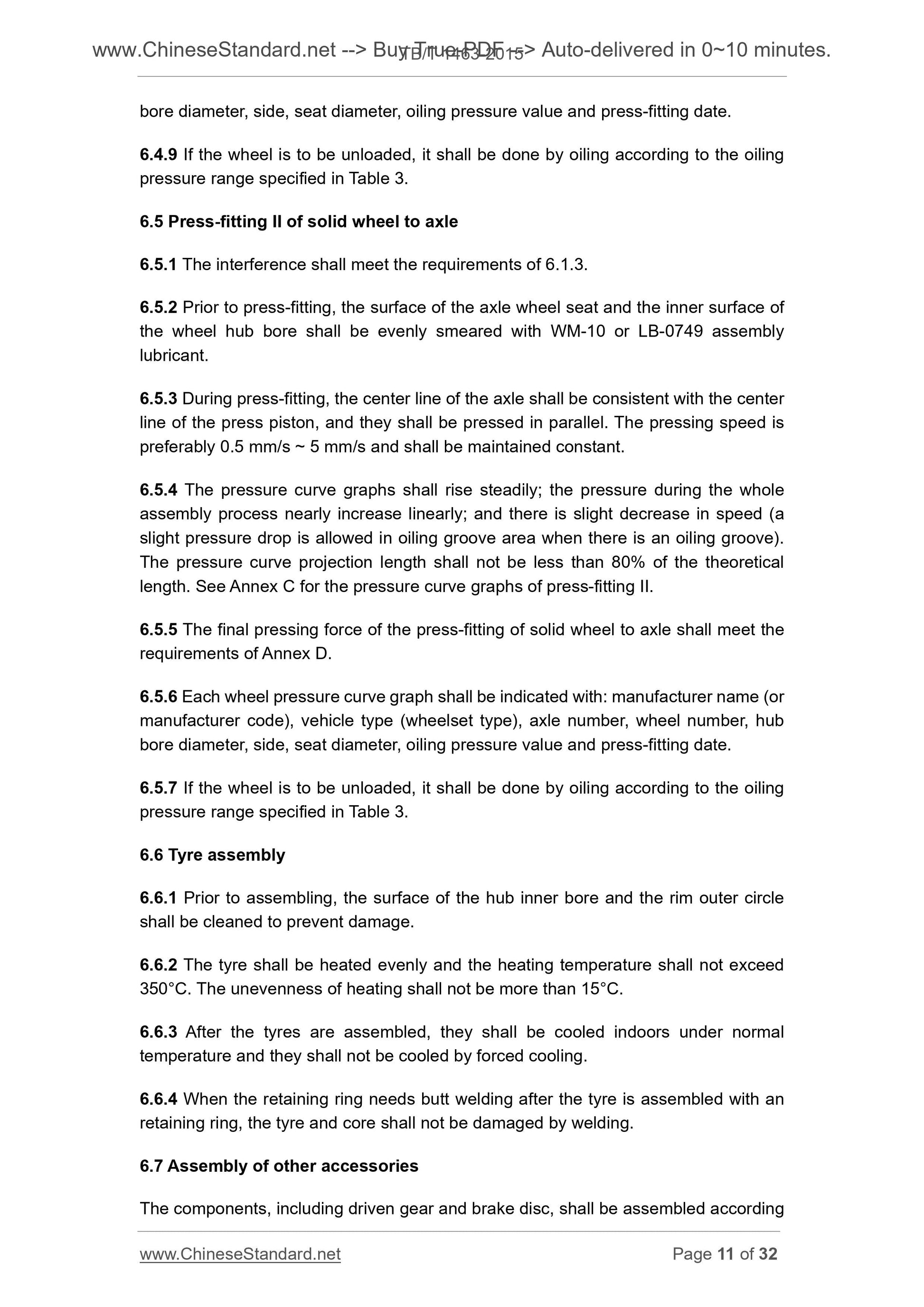

6.4.3 During press-fitting, the center line of the axle shall be consistent with the center bore diameter, side, seat diameter, oiling pressure value and press-fitting date. 6.4.9 If the wheel is to be unloaded, it shall be done by oiling according to the oiling pressure range specified in Table 3.
6.5 Press-fitting II of solid wheel to axle
6.5.1 The interference shall meet the requirements of 6.1.3.
6.5.2 Prior to press-fitting, the surface of the axle wheel seat and the inner surface of the wheel hub bore shall be evenly smeared with WM-10 or LB-0749 assembly lubricant.
6.5.3 During press-fitting, the center line of the axle shall be consistent with the center line of the press piston, and they shall be pressed in parallel. The pressing speed is preferably 0.5 mm/s ~ 5 mm/s and shall be maintained constant.
6.5.4 The pressure curve graphs shall rise steadily; the pressure during the whole assembly process nearly increase linearly; and there is slight decrease in speed (a slight pressure drop is allowed in oiling groove area when there is an oiling groove). The pressure curve projection length shall not be less than 80% of the theoretical length. See Annex C for the pressure curve graphs of press-fitting II.
6.5.5 The final pressing force of the press-fitting of solid wheel to axle shall meet the requirements of Annex D.
6.5.6 Each wheel pressure curve graph shall be indicated with. manufacturer name (or manufacturer code), vehicle type (wheelset type), axle number, wheel number, hub bore diameter, side, seat diameter, oiling pressure value and press-fitting date. 6.5.7 If the wheel is to be unloaded, it shall be done by oiling according to the oiling pressure range specified in Table 3.
6.6 Tyre assembly
6.6.1 Prior to assembling, the surface of the hub inner bore and the rim outer circle shall be cleaned to prevent damage.
6.6.2 The tyre shall b...
