SN/T 3587-2016: Textiles for import and export--Determination of residual admides solvent--Gas chromatography-mass spectrometry method

This standard specifies the gas chromatograph-mass spectrometry method, for the detection of 5 residual amide solvents (see Appendix A) in textiles. This standard applies to the determination of the 5 residual amide solvents in various textile materials and their products.

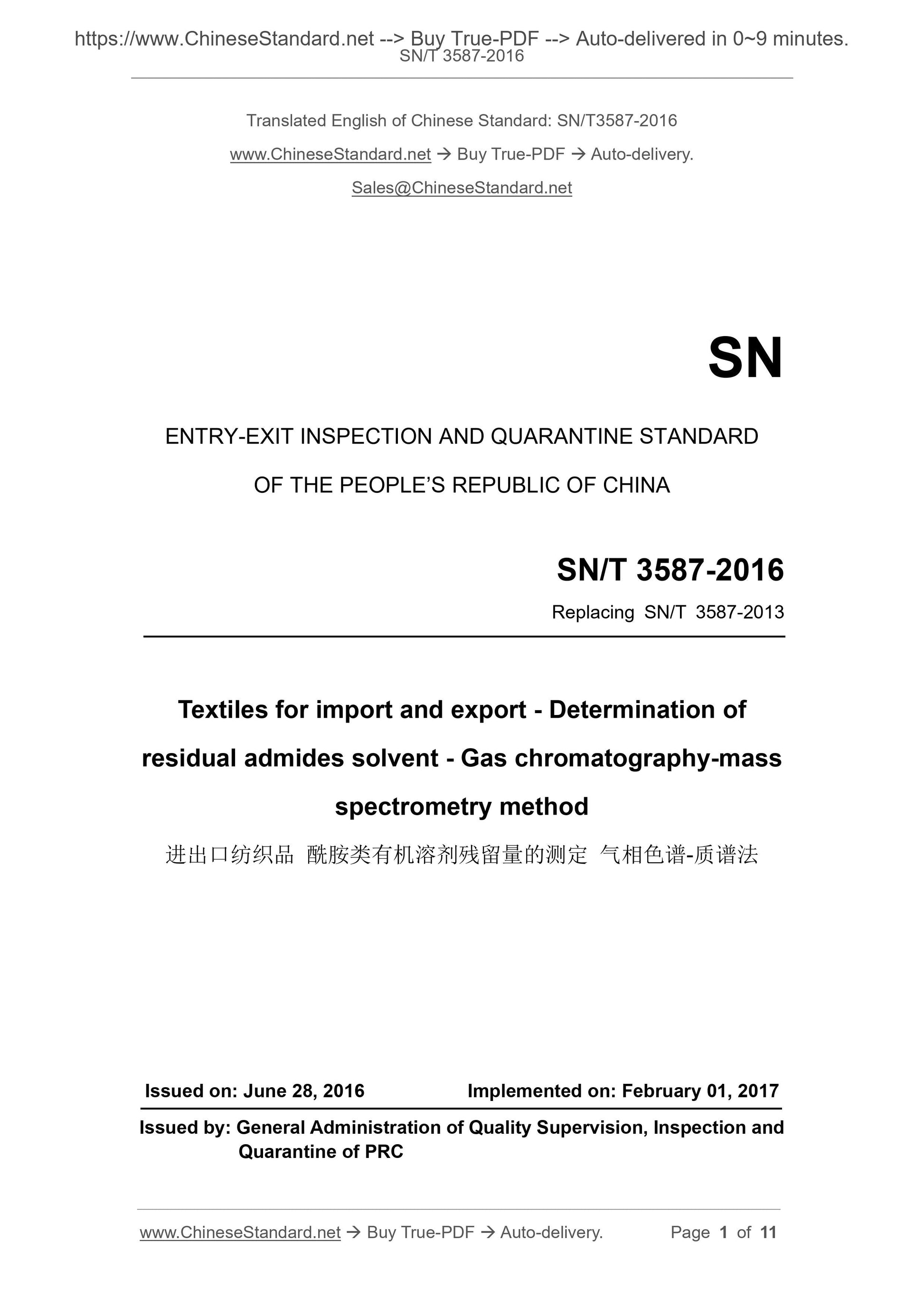

SN/T 3587-2016
SN
ENTRY-EXIT INSPECTION AND QUARANTINE STANDARD
OF THE PEOPLE REPUBLIC OF CHINA
Replacing SN/T 3587-2013
Textiles for import and export - Determination of
residual admides solvent - Gas chromatography-mass
spectrometry method
ISSUED ON: JUNE 28, 2016
IMPLEMENTED ON: FEBRUARY 01, 2017
Issued by: General Administration of Quality Supervision, Inspection and Quarantine of PRC

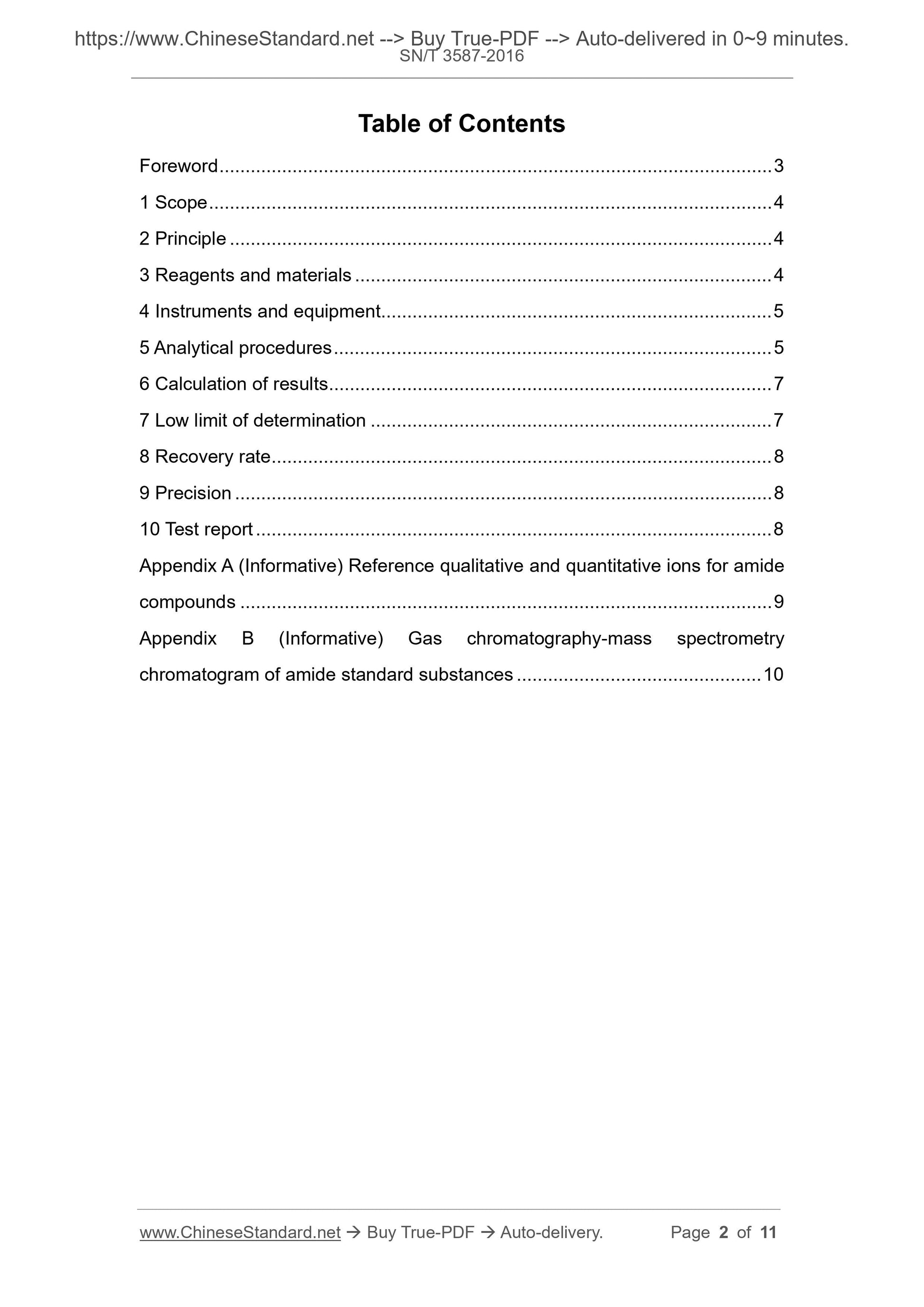

Table of Contents
Foreword ... 3
1 Scope ... 4
2 Principle ... 4
3 Reagents and materials ... 4
4 Instruments and equipment... 5
5 Analytical procedures ... 5
6 Calculation of results ... 7
7 Low limit of determination ... 7
8 Recovery rate ... 8
9 Precision ... 8
10 Test report ... 8
Appendix A (Informative) Reference qualitative and quantitative ions for amide compounds ... 9
Appendix B (Informative) Gas chromatography-mass spectrometry
chromatogram of amide standard substances ... 10

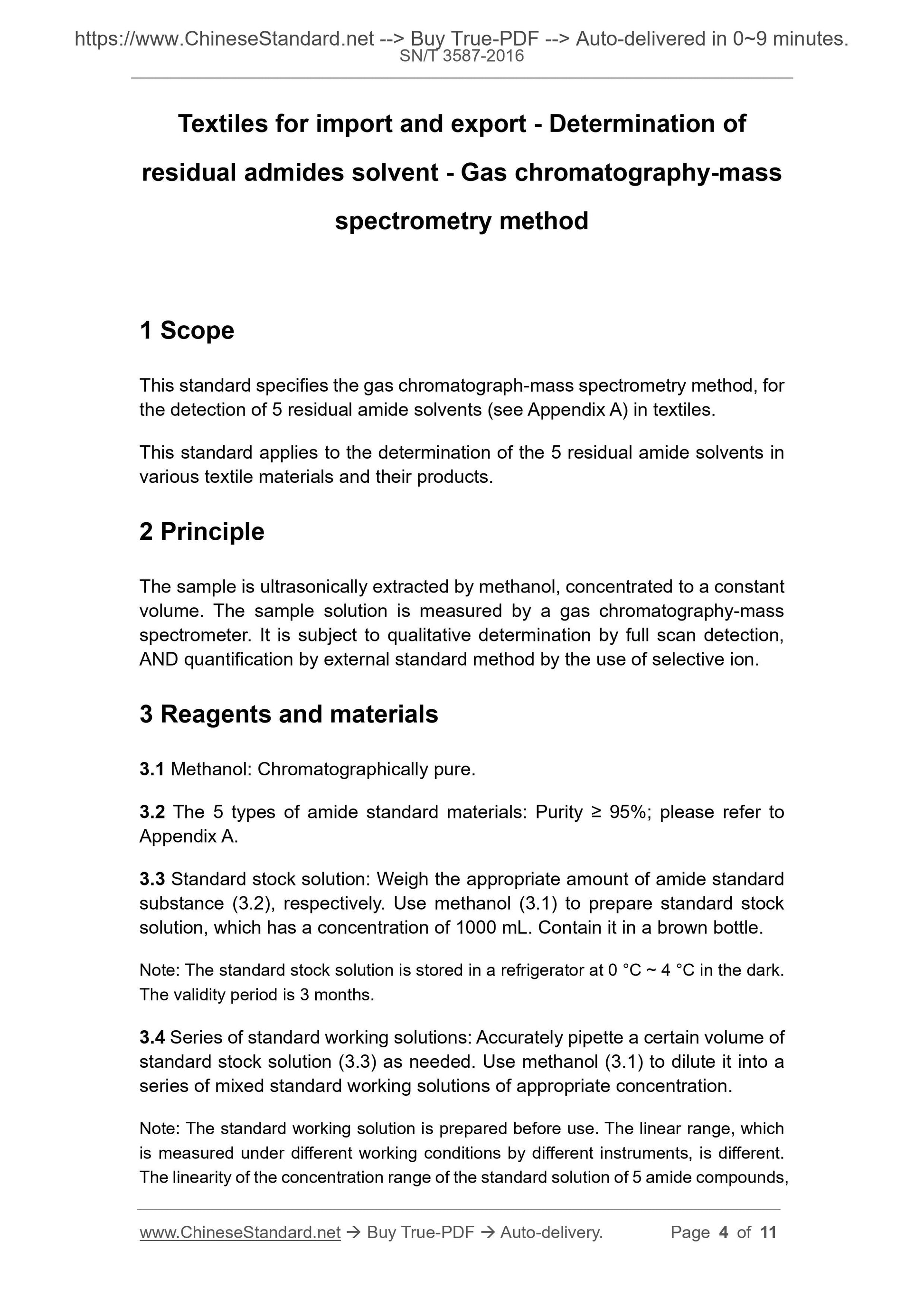

Textiles for import and export - Determination of
residual admides solvent - Gas chromatography-mass
spectrometry method
1 Scope
This standard specifies the gas chromatograph-mass spectrometry method, for the detection of 5 residual amide solvents (see Appendix A) in textiles. This standard applies to the determination of the 5 residual amide solvents in various textile materials and their products.
2 Principle
The sample is ultrasonically extracted by methanol, concentrated to a constant volume. The sample solution is measured by a gas chromatography-mass
spectrometer. It is subject to qualitative determination by full scan detection, AND quantification by external standard method by the use of selective ion. 3 Reagents and materials
3.1 Methanol: Chromatographically pure.
3.2 The 5 types of amide standard materials: Purity ??? 95%; please refer to Appendix A.
3.3 Standard stock solution: Weigh the appropriate amount of amide standard substance (3.2), respectively. Use methanol (3.1) to prepare standard stock solution, which has a concentration of 1000 mL. Contain it in a brown bottle. Note: The standard stock solution is stored in a refrigerator at 0 ??C ~ 4 ??C in the dark. The validity period is 3 months.
3.4 Series of standard working solutions: Accurately pipette a certain volume of standard stock solution (3.3) as needed. Use methanol (3.1) to dilute it into a series of mixed standard working solutions of appropriate concentration. Note: The standard working solution is prepared before use. The linear range, which is measured under different working conditions by different instruments, is different. The linearity of the concentration range of the standard solution of 5 amide compounds, b) Column temperature: ;
c) Inlet temperature: 230 ??C:
d) Temperature at the interface of mass spectrometer: 280 ??C;
e) Temperature of ion source: 220 ??C;
f) Quadrupole's temperature: 150 ??C;
g) Ionization method: EI;
h) Ionization energy: 70 eV;
i) Injection volume: 1.0 ??L;
j) Sampling mode: Pulse-split injection, which has a split ratio of 20:1; k) Carrier gas: Helium (purity ??? 99.999%), which has a flow rate 0.8 mL/min; l) Solvent delay: 3 min;
m) Measurement method: Full scan (SCAN) and selective ion monitoring
(SIM) are performed at the same time. Refer to Appendix A for selective ions.
5.2.2 Qualitative and quantitative analysis by gas chromatography/mass
spectrometry
According to the content of the analyte in the sample solution, select a standard working solution, which has a similar concentration. The response values of the amide compounds in BOTH the standard working solution AND the sample
solution to be tested shall be within the linear range of the instrument detection. Standard working solution and sample solution are interleaved at equal volume, for the purposes of determination.
This standard uses the full scan mode for qualitative; it uses selective ion monitoring mode for quantitative. For the selection of qualitative ions and quantitative ions, refer to Appendix A. BOTH the standard solution AND the sample solution are tested according to the conditions specified in 5.2.1. If, in the sample solution, there appears a peak, at the same retention time as the standard solution, THEN, the selective ion shall be confirmed. Through
confirmation and analysis, if all of the following conditions are met [Translator note: the sentences are restructured as follows]:
- The retention time of the chromatographic peak of the analyte is consistent with that of the standard substance;

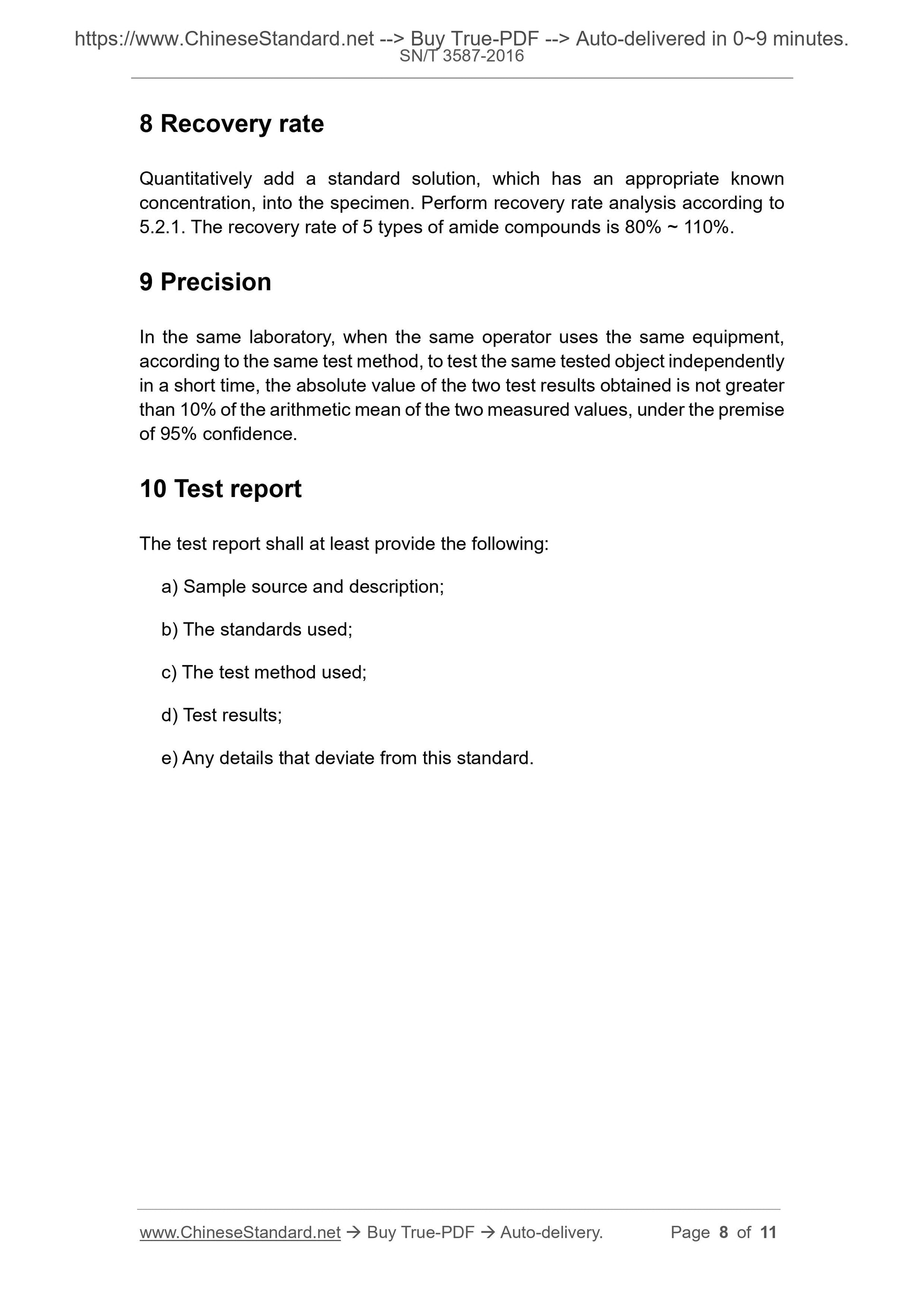

8 Recovery rate
Quantitatively add a standard solution, which has an appropriate known
concentration, into the specimen. Perform recovery rate analysis according to 5.2.1. The recovery rate of 5 types of amide compounds is 80% ~ 110%.
9 Precision
In the same laboratory, when the same operator uses the same equipment, according to the same test method, to test the same tested object independently in a short time, the absolute value of the two test results obtained is not greater than 10% of the arithmetic mean of the two measured values, under the premise of 95% confidence.
10 Test report
The test report shall at least provide the following:
a) Sample source and description;
b) The standards used;
c) The test method used;
d) Test results;
e) Any details that deviate from this standard.
