SJ/T 11633-2016 English PDF (SJT11633-2016)

SJ/T 11633-2016 English PDF (SJT11633-2016)

Regular price $125.00 USD
Regular price Sale price $125.00 USD
Sale Sold out
Shipping calculated at checkout.
Quotation: In 1-minute, 24-hr self-service. Click here SJ/T 11633-2016 to get it for Purchase Approval, Bank TT...

SJ/T 11633-2016: Supporting high-voltage bus capacitors selective specifications for electric vehicle motor controller

This Specifications specifies the selective requirements for supporting highvoltage bus capacitors for electric vehicle motor controller, mainly including the selective requirements for DC-Link capacitors. Other types of capacitors can refer to use. This Specifications is applicable to the capacitors for hybrid vehicle with rated DC voltage over 60V, plug-in hybrid vehicle and pure electric vehicle.
SJ/T 11633-2016
SJ
ELECTRONICS INDUSTRY STANDARD
OF THE PEOPLE REPUBLIC OF CHINA
ICS 30.060.10
L 11
Record No..
Supporting high-voltage bus capacitors selective
specifications for electric vehicle motor controller
ISSUED ON. OCTOBER 22, 2016
IMPLEMENTED ON. JANUARY 1, 2017
Issued by. Ministry of Industry and Information Technology of the
People's Republic of China

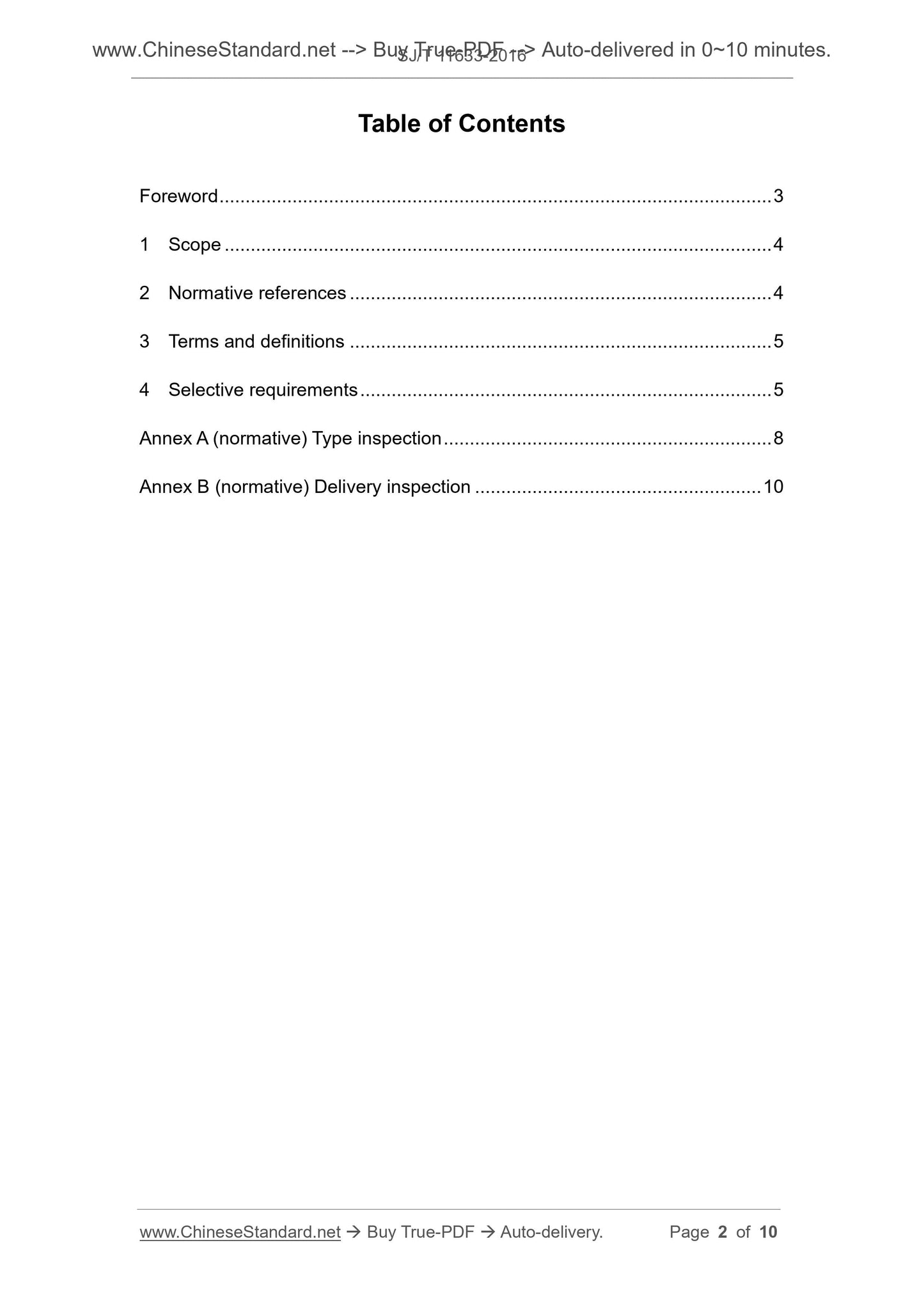

Table of Contents
Foreword ... 3
1 Scope ... 4
2 Normative references ... 4
3 Terms and definitions ... 5
4 Selective requirements ... 5
Annex A (normative) Type inspection ... 8
Annex B (normative) Delivery inspection ... 10

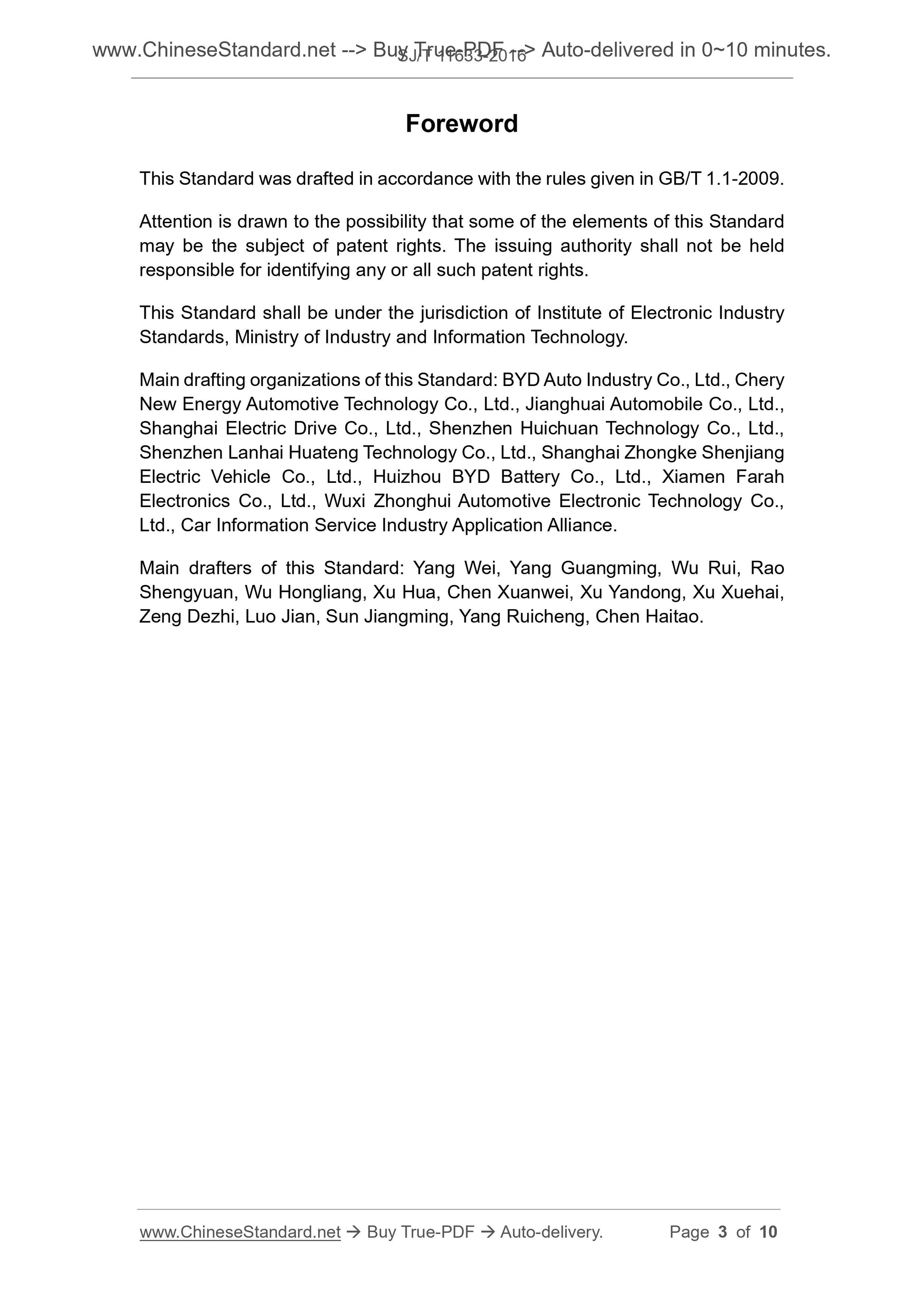

Foreword
This Standard was drafted in accordance with the rules given in GB/T 1.1-2009. Attention is drawn to the possibility that some of the elements of this Standard may be the subject of patent rights. The issuing authority shall not be held responsible for identifying any or all such patent rights.
This Standard shall be under the jurisdiction of Institute of Electronic Industry Standards, Ministry of Industry and Information Technology.
Main drafting organizations of this Standard. BYD Auto Industry Co., Ltd., Chery New Energy Automotive Technology Co., Ltd., Jianghuai Automobile Co., Ltd., Shanghai Electric Drive Co., Ltd., Shenzhen Huichuan Technology Co., Ltd., Shenzhen Lanhai Huateng Technology Co., Ltd., Shanghai Zhongke Shenjiang Electric Vehicle Co., Ltd., Huizhou BYD Battery Co., Ltd., Xiamen Farah Electronics Co., Ltd., Wuxi Zhonghui Automotive Electronic Technology Co., Ltd., Car Information Service Industry Application Alliance.
Main drafters of this Standard. Yang Wei, Yang Guangming, Wu Rui, Rao
Shengyuan, Wu Hongliang, Xu Hua, Chen Xuanwei, Xu Yandong, Xu Xuehai,
Zeng Dezhi, Luo Jian, Sun Jiangming, Yang Ruicheng, Chen Haitao.

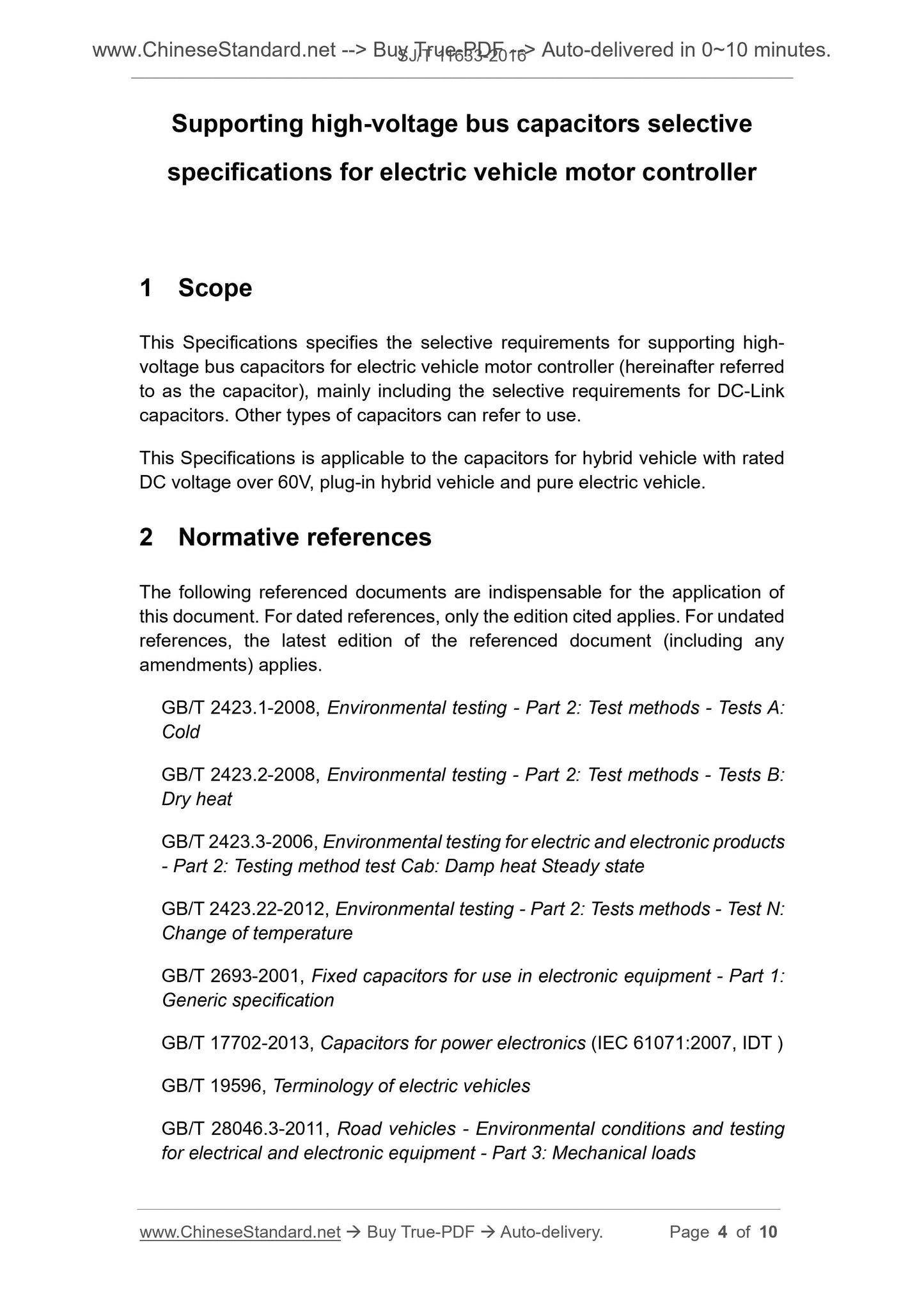

Supporting high-voltage bus capacitors selective
specifications for electric vehicle motor controller
1 Scope
This Specifications specifies the selective requirements for supporting high- voltage bus capacitors for electric vehicle motor controller (hereinafter referred to as the capacitor), mainly including the selective requirements for DC-Link capacitors. Other types of capacitors can refer to use.
This Specifications is applicable to the capacitors for hybrid vehicle with rated DC voltage over 60V, plug-in hybrid vehicle and pure electric vehicle.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies.
GB/T 2423.1-2008, Environmental testing - Part 2. Test methods - Tests A. Cold
GB/T 2423.2-2008, Environmental testing - Part 2. Test methods - Tests B. Dry heat
GB/T 2423.3-2006, Environmental testing for electric and electronic products - Part 2. Testing method test Cab. Damp heat Steady state
GB/T 2423.22-2012, Environmental testing - Part 2. Tests methods - Test N. Change of temperature
GB/T 2693-2001, Fixed capacitors for use in electronic equipment - Part 1. Generic specification
GB/T 17702-2013, Capacitors for power electronics (IEC 61071.2007, IDT ) GB/T 19596, Terminology of electric vehicles
GB/T 28046.3-2011, Road vehicles - Environmental conditions and testing for electrical and electronic equipment - Part 3. Mechanical loads
requirements.

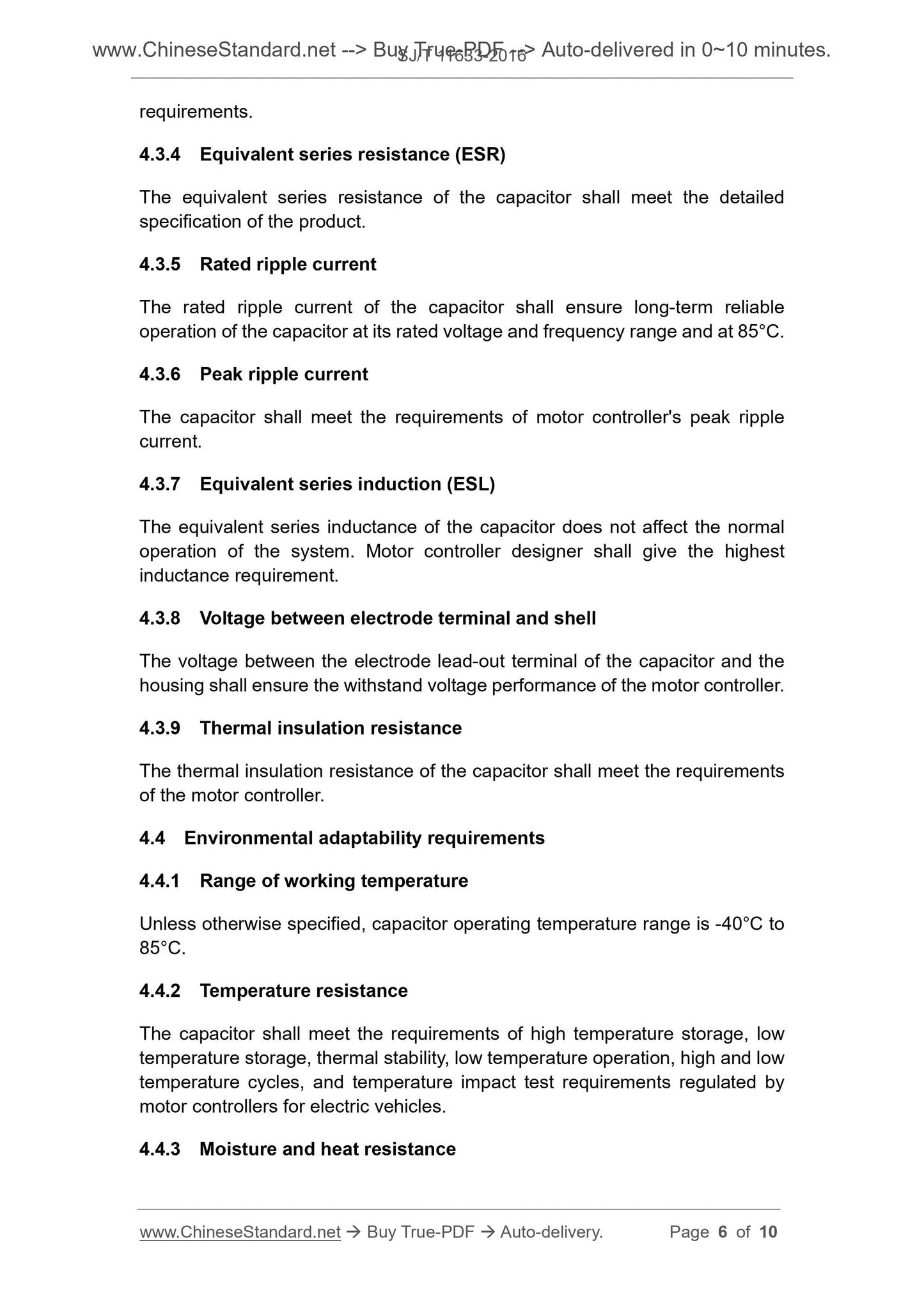

4.3.4 Equivalent series resistance (ESR)
The equivalent series resistance of the capacitor shall meet the detailed specification of the product.
4.3.5 Rated ripple current
The rated ripple current of the capacitor shall ensure long-term reliable operation of the capacitor at its rated voltage and frequency range and at 85??C. 4.3.6 Peak ripple current
The capacitor shall meet the requirements of motor controller's peak ripple current.
4.3.7 Equivalent series induction (ESL)
The equivalent series inductance of the capacitor does not affect the normal operation of the system. Motor controller designer shall give the highest inductance requirement.
4.3.8 Voltage between electrode terminal and shell
The voltage between the electrode lead-out terminal of the capacitor and the housing shall ensure the withstand voltage performance of the motor controller. 4.3.9 Thermal insulation resistance
The thermal insulation resistance of the capacitor shall meet the requirements of the motor controller.
4.4 Environmental adaptability requirements
4.4.1 Range of working temperature
Unless otherwise specified, capacitor operating temperature range is -40??C to 85??C.
4.4.2 Temperature resistance
The capacitor shall meet the requirements of high temperature storage, low temperature storage, thermal stability, low temperature operation, high and low temperature cycles, and temperature impact test requirements regulated by motor controllers for electric vehicles.
4.4.3 Moisture and heat resistance
