QC/T 824-2019: Rotational speed sensor for automobile
This standard specifies the requirements, test methods, inspection rules, etc. of rotational speed sensors for automobiles. This standard applies to crankshaft speed sensors, wheel speed sensors, gearbox speed sensors, for the categories M, N, O automobiles. Other motor vehicles may refer to this standard.

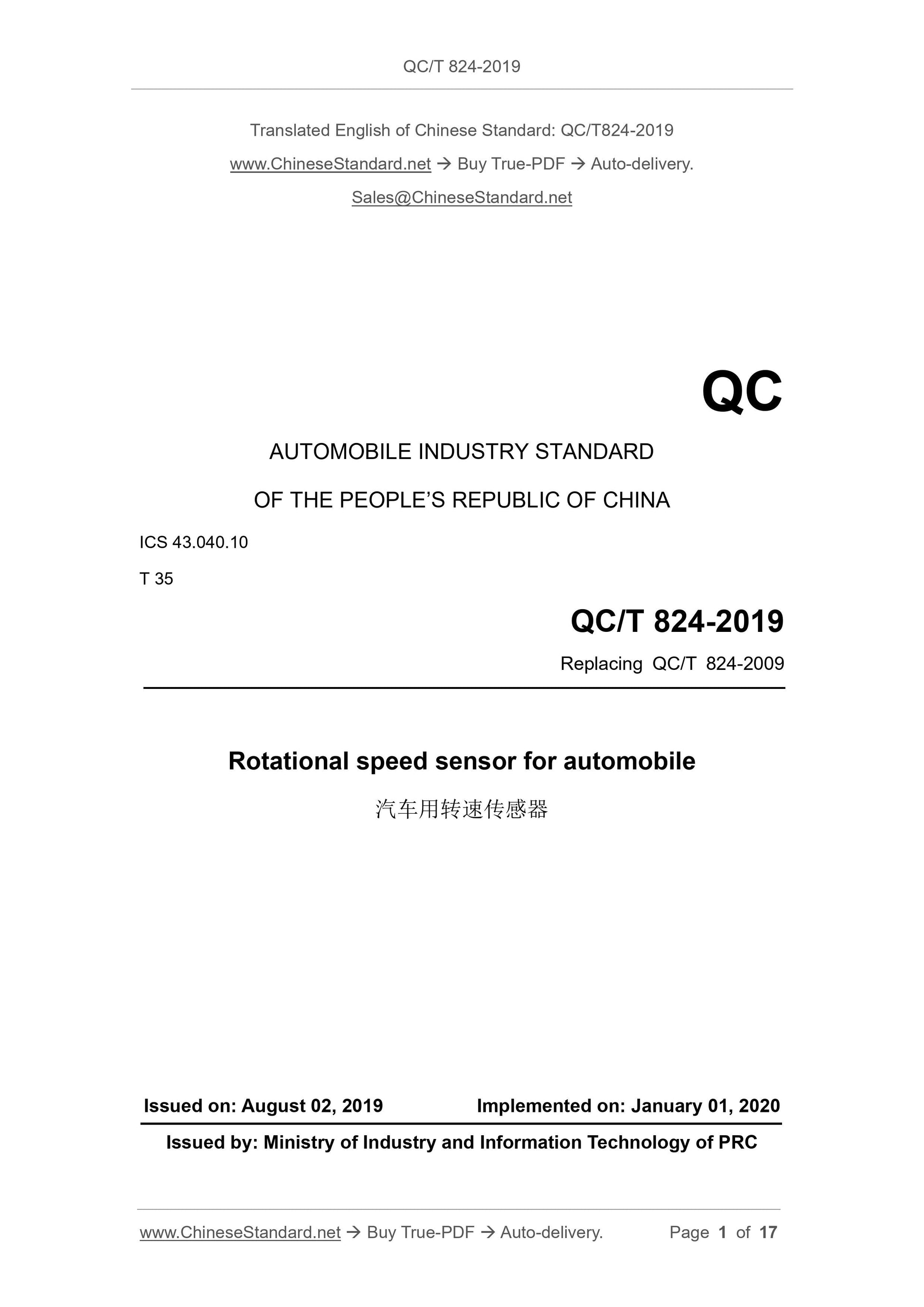

QC/T 824-2019
QC
AUTOMOBILE INDUSTRY STANDARD
OF THE PEOPLE’S REPUBLIC OF CHINA
ICS 43.040.10
T 35
Replacing QC/T 824-2009
Rotational speed sensor for automobile
ISSUED ON: AUGUST 02, 2019
IMPLEMENTED ON: JANUARY 01, 2020
Issued by: Ministry of Industry and Information Technology of PRC

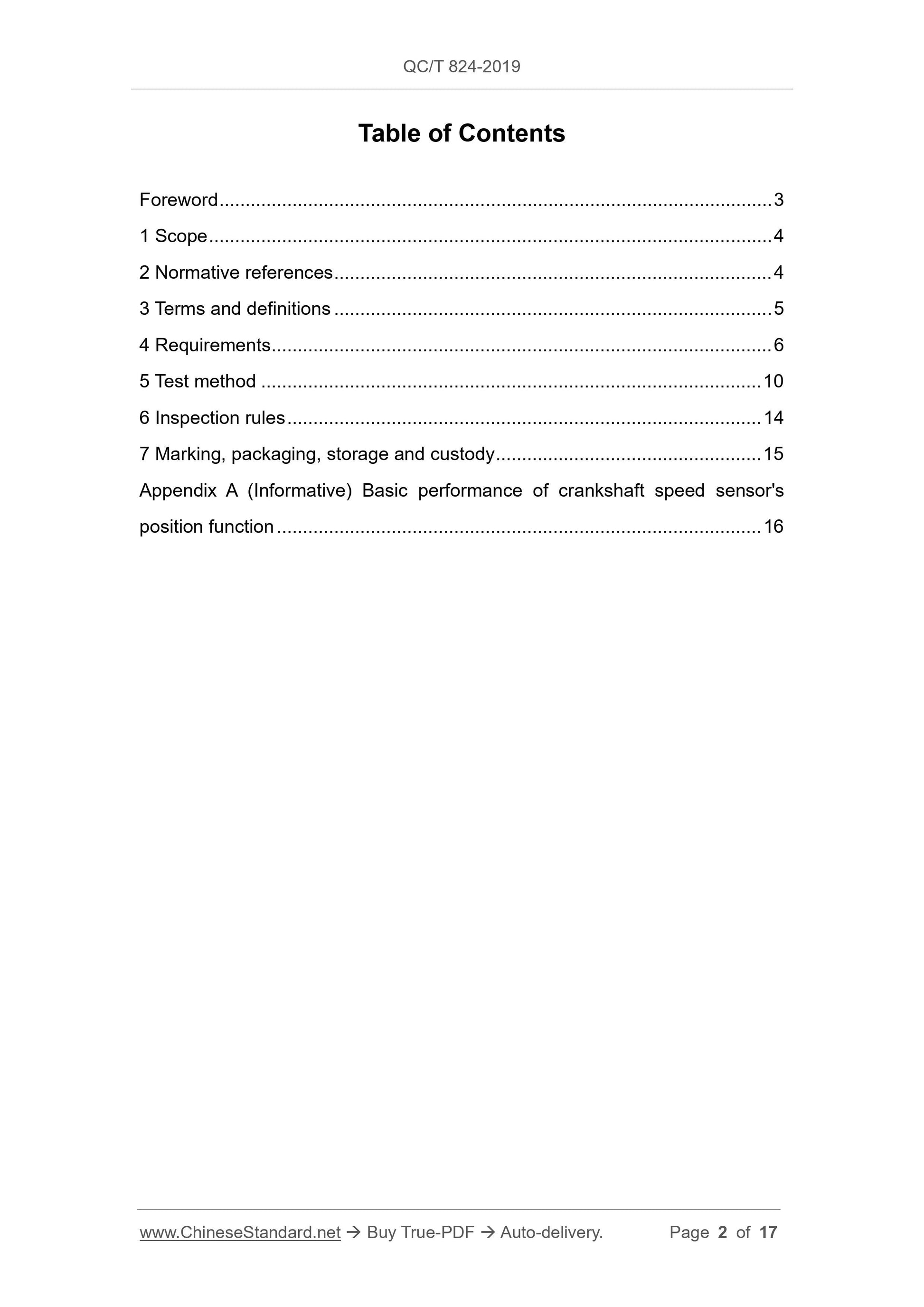

Table of Contents
Foreword ... 3
1 Scope ... 4
2 Normative references ... 4
3 Terms and definitions ... 5
4 Requirements ... 6
5 Test method ... 10
6 Inspection rules ... 14
7 Marking, packaging, storage and custody ... 15
Appendix A (Informative) Basic performance of crankshaft speed sensor's position function ... 16
Rotational speed sensor for automobile

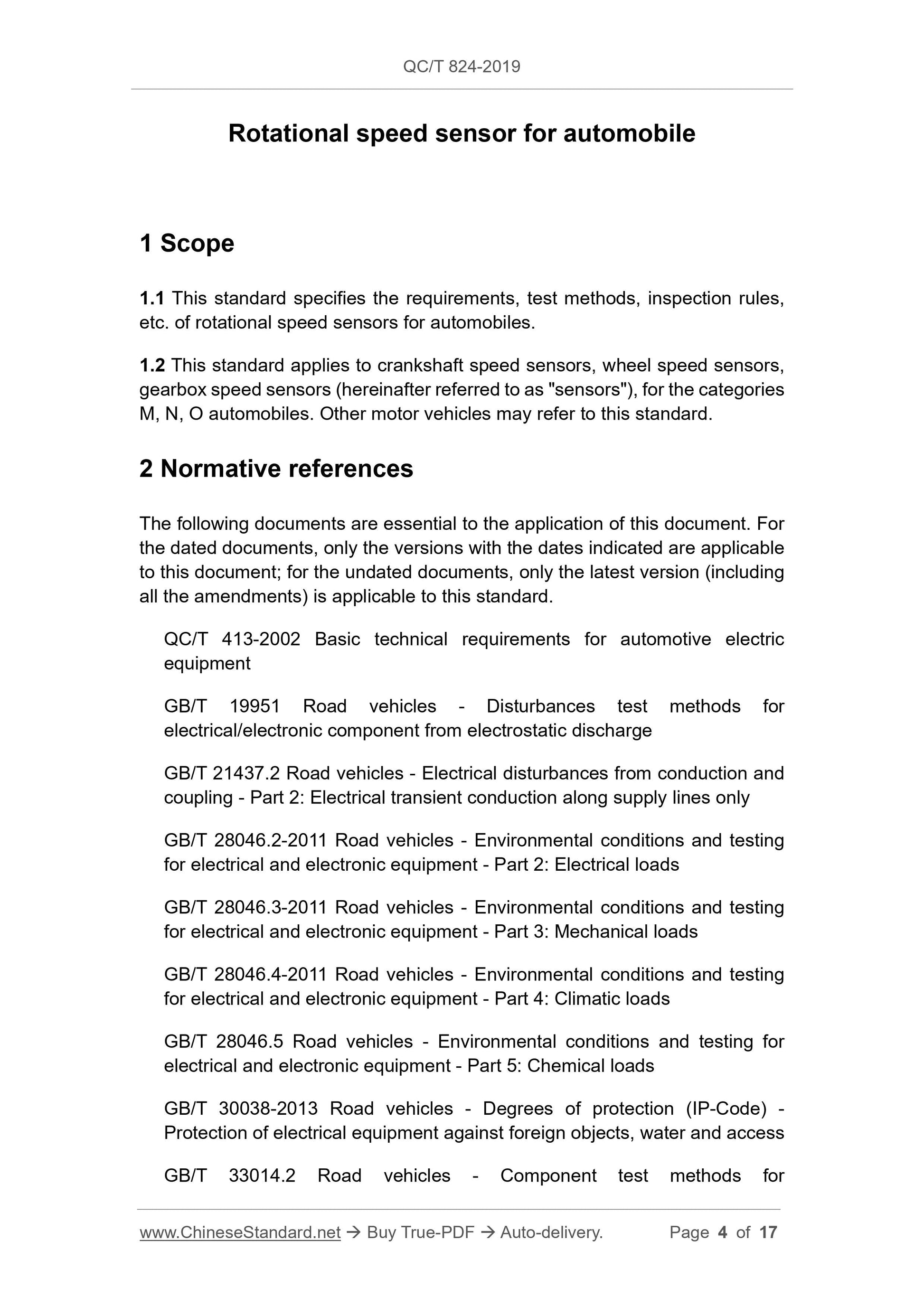

1 Scope
1.1 This standard specifies the requirements, test methods, inspection rules, etc. of rotational speed sensors for automobiles.
1.2 This standard applies to crankshaft speed sensors, wheel speed sensors, gearbox speed sensors (hereinafter referred to as "sensors"), for the categories M, N, O automobiles. Other motor vehicles may refer to this standard.
2 Normative references
The following documents are essential to the application of this document. For the dated documents, only the versions with the dates indicated are applicable to this document; for the undated documents, only the latest version (including all the amendments) is applicable to this standard.
QC/T 413-2002 Basic technical requirements for automotive electric
equipment
GB/T 19951 Road vehicles - Disturbances test methods for
electrical/electronic component from electrostatic discharge
GB/T 21437.2 Road vehicles - Electrical disturbances from conduction and coupling - Part 2: Electrical transient conduction along supply lines only GB/T 28046.2-2011 Road vehicles - Environmental conditions and testing
for electrical and electronic equipment - Part 2: Electrical loads
GB/T 28046.3-2011 Road vehicles - Environmental conditions and testing
for electrical and electronic equipment - Part 3: Mechanical loads
GB/T 28046.4-2011 Road vehicles - Environmental conditions and testing
for electrical and electronic equipment - Part 4: Climatic loads
GB/T 28046.5 Road vehicles - Environmental conditions and testing for
electrical and electronic equipment - Part 5: Chemical loads
GB/T 30038-2013 Road vehicles - Degrees of protection (IP-Code) -
Protection of electrical equipment against foreign objects, water and access GB/T 33014.2 Road vehicles - Component test methods for

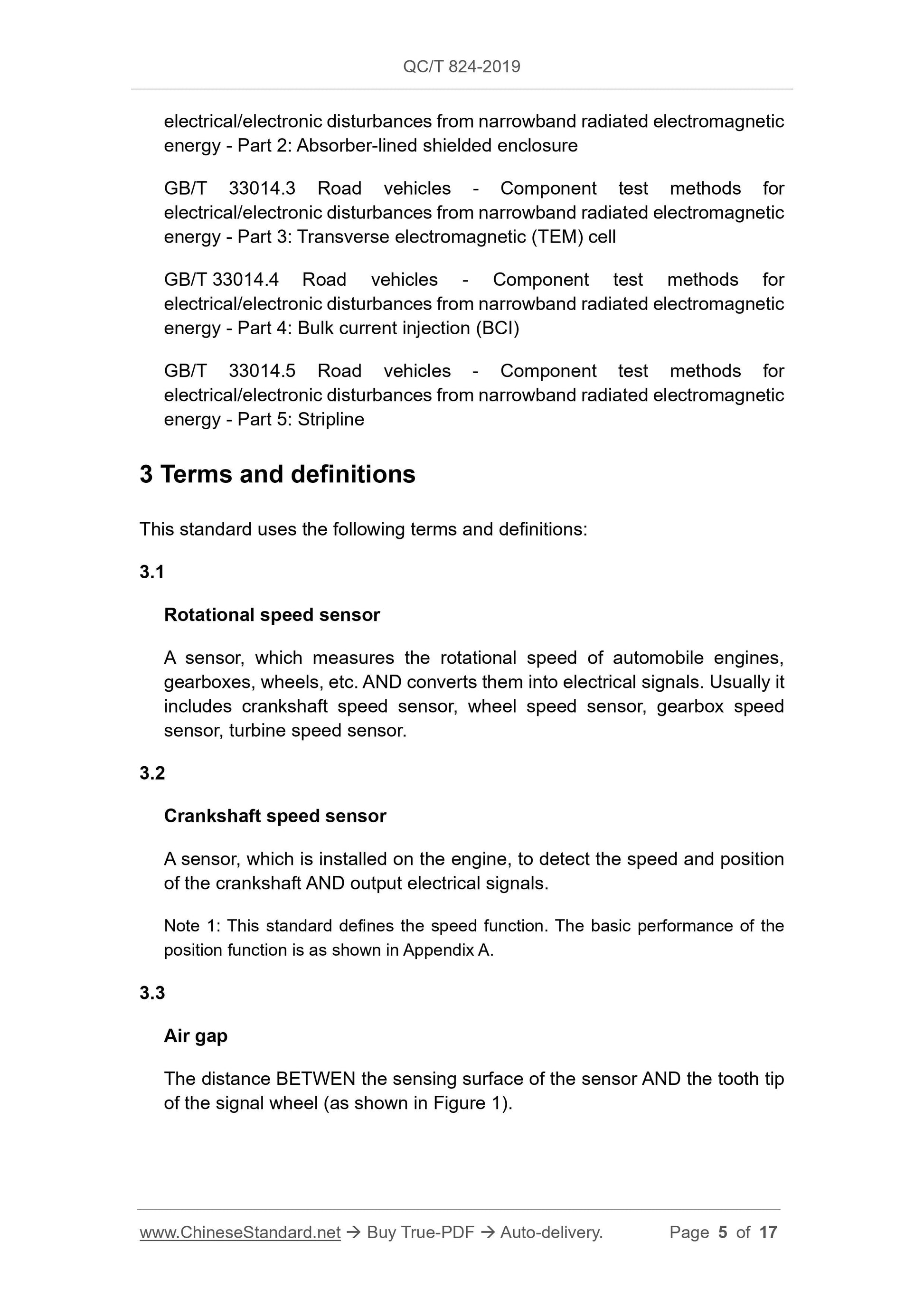

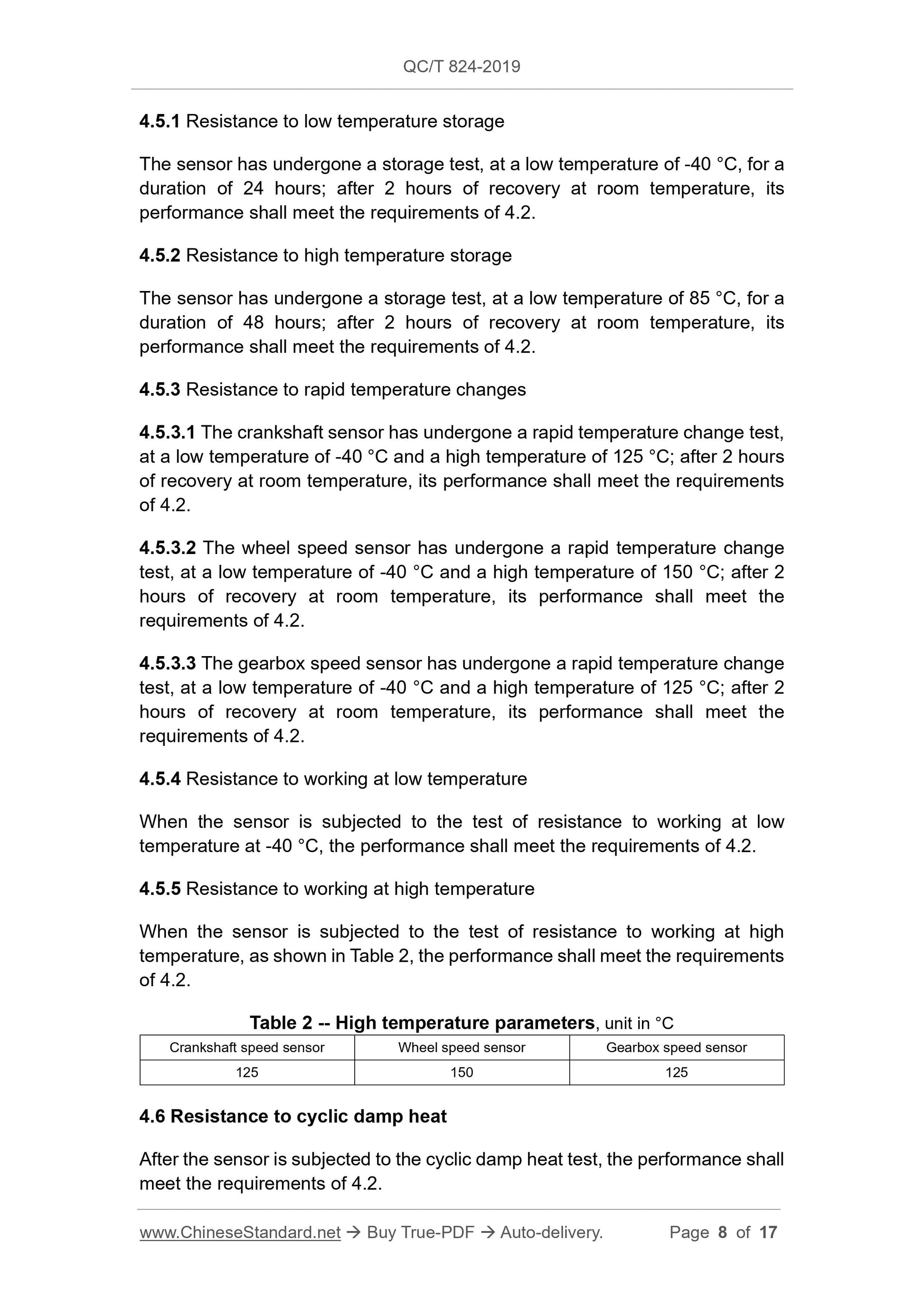

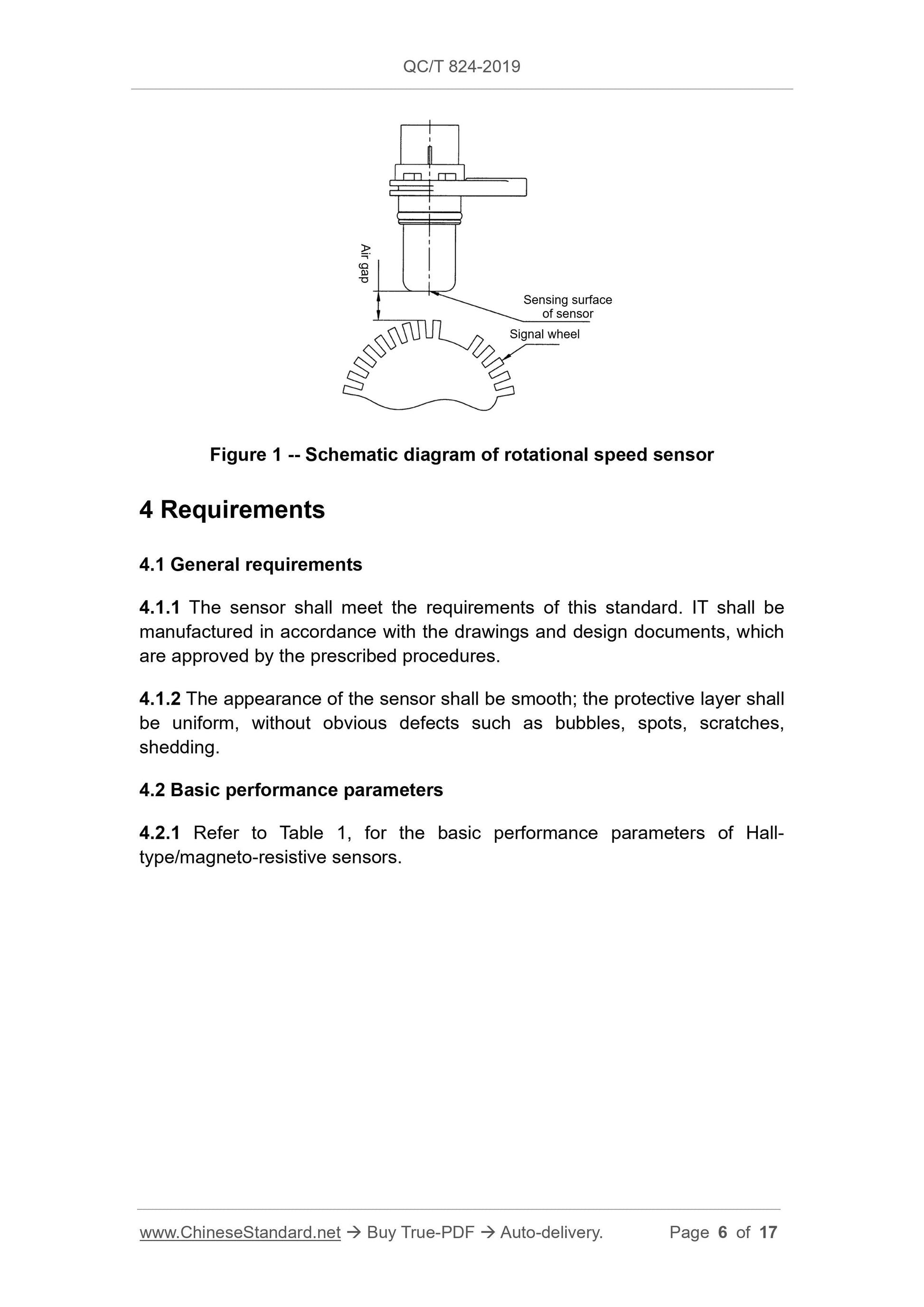

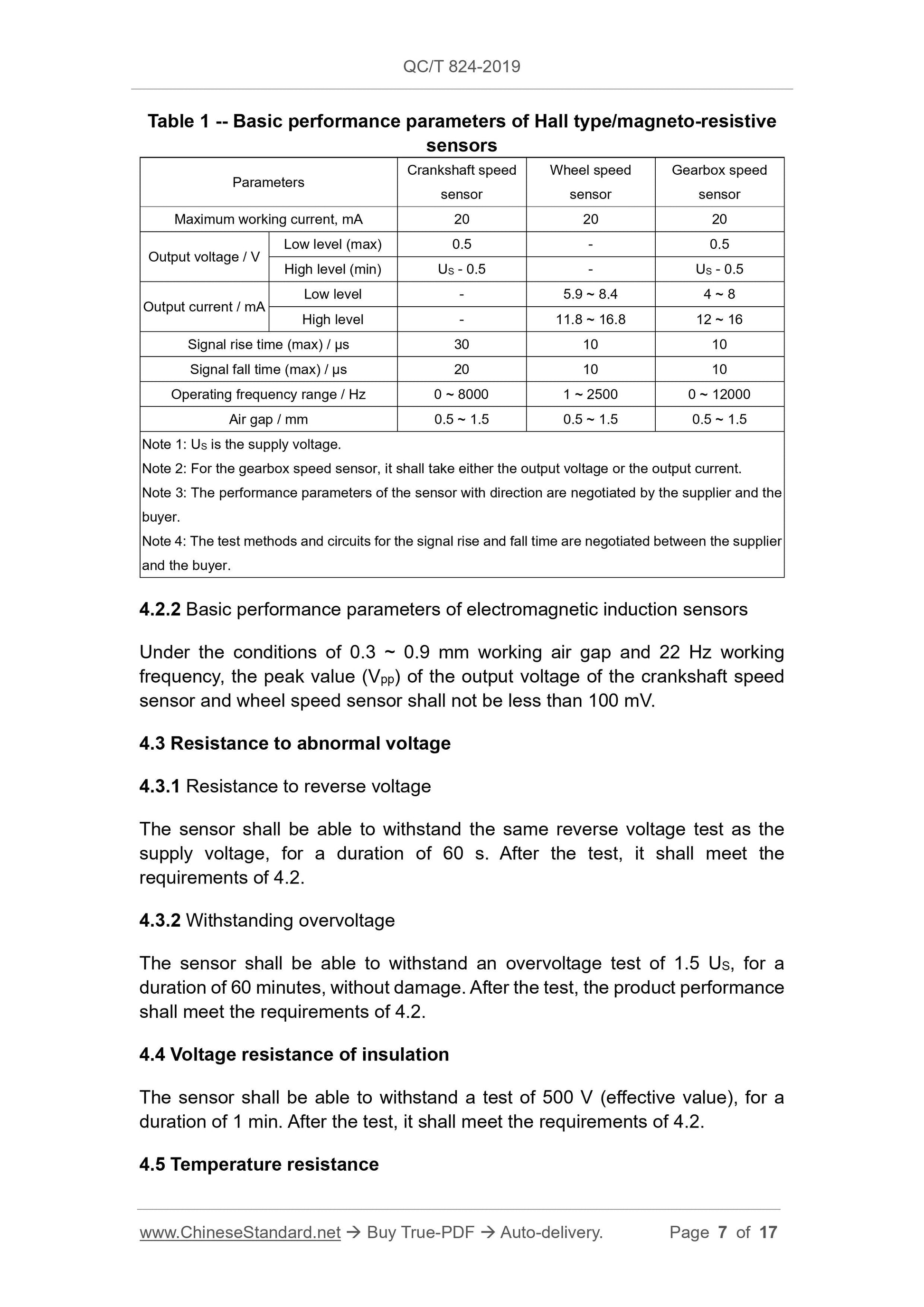

4.5.1 Resistance to low temperature storage
The sensor has undergone a storage test, at a low temperature of -40 °C, for a duration of 24 hours; after 2 hours of recovery at room temperature, its performance shall meet the requirements of 4.2.
4.5.2 Resistance to high temperature storage
The sensor has undergone a storage test, at a low temperature of 85 °C, for a duration of 48 hours; after 2 hours of recovery at room temperature, its performance shall meet the requirements of 4.2.
4.5.3 Resistance to rapid temperature changes
4.5.3.1 The crankshaft sensor has undergone a rapid temperature change test, at a low temperature of -40 °C and a high temperature of 125 °C; after 2 hours of recovery at room temperature, its performance shall meet the requirements of 4.2.
4.5.3.2 The wheel speed sensor has undergone a rapid temperature change test, at a low temperature of -40 °C and a high temperature of 150 °C; after 2 hours of recovery at room temperature, its performance shall meet the
requirements of 4.2.
4.5.3.3 The gearbox speed sensor has undergone a rapid temperature change test, at a low temperature of -40 °C and a high temperature of 125 °C; after 2 hours of recovery at room temperature, its performance shall meet the
requirements of 4.2.
4.5.4 Resistance to working at low temperature
When the sensor is subjected to the test of resistance to working at low temperature at -40 °C, the performance shall meet the requirements of 4.2. 4.5.5 Resistance to working at high temperature
When the sensor is subjected to the test of resistance to working at high temperature, as shown in Table 2, the performance shall meet the requirements of 4.2.
Table 2 -- High temperature parameters, unit in °C
Crankshaft speed sensor Wheel speed sensor Gearbox speed sensor
125 150 125
4.6 Resistance to cyclic damp heat
After the sensor is subjected to the cyclic damp heat test, the performance shall meet the requirements of 4.2.
4.7 Vibration resistance
The sensor shall be subjected to a vibration resistance test. After the test, the appearance shall not be damaged; the performance shall meet the
requirements of 4.2.

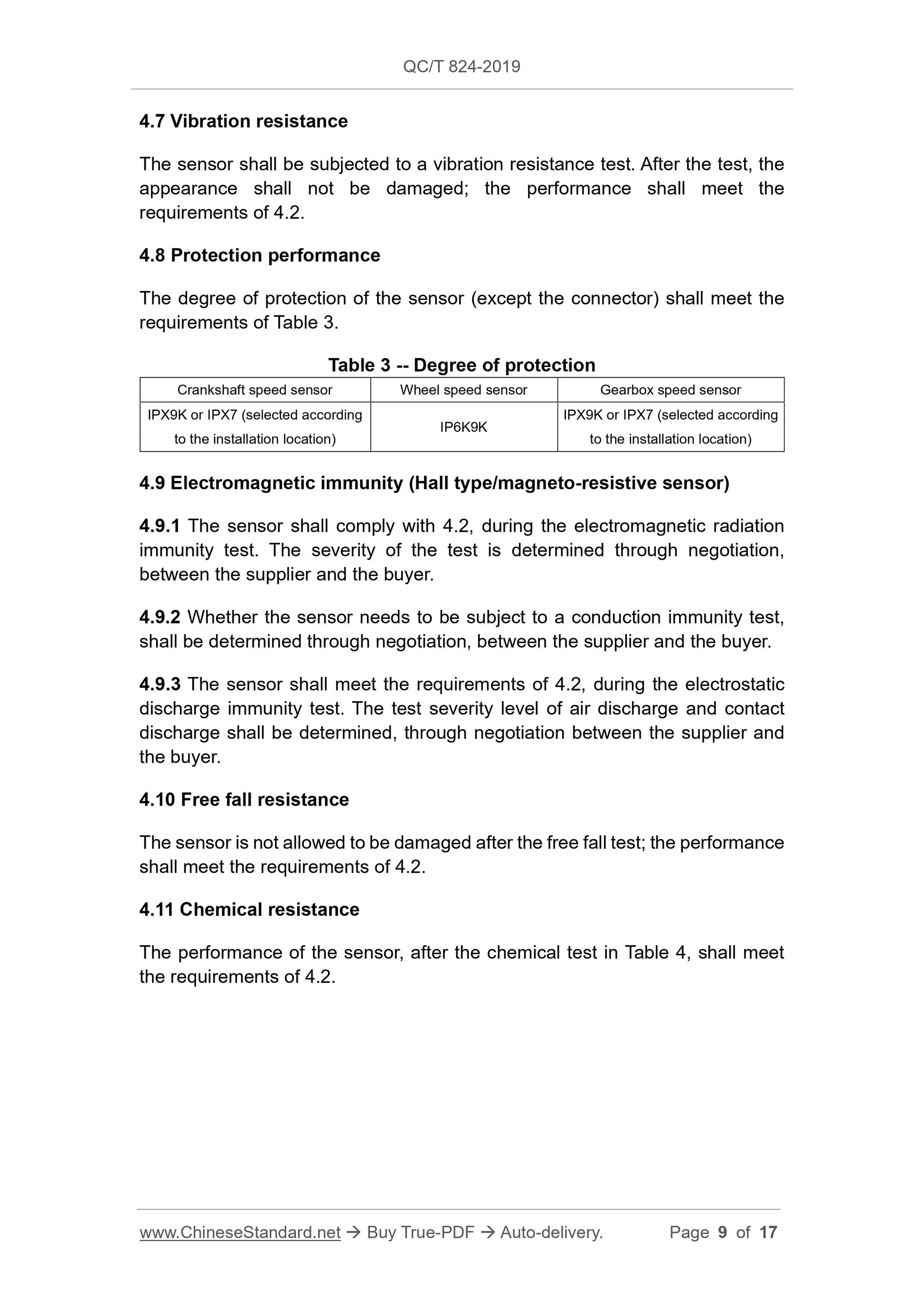

4.8 Protection performance
The degree of protection of the sensor (except the connector) shall meet the requirements of Table 3.
Table 3 -- Degree of protection
4.9 Electromagnetic immunity (Hall type/magneto-resistive sensor)
4.9.1 The sensor shall comply with 4.2, during the electromagnetic radiation immunity test. The severity of the test is determined through negotiation, between the supplier and the buyer.
4.9.2 Whether the sensor needs to be subject to a conduction immunity test, shall be determined through negotiation, between the supplier and the buyer. 4.9.3 The sensor shall meet the requirements of 4.2, during the electrostatic discharge immunity test. The test severity level of air discharge and contact discharge shall be determined, through negotiation between the supplier and the buyer.
4.10 Free fall resistance
The sensor is not allowed to be damaged after the free fall test; the performance shall meet the requirements of 4.2.

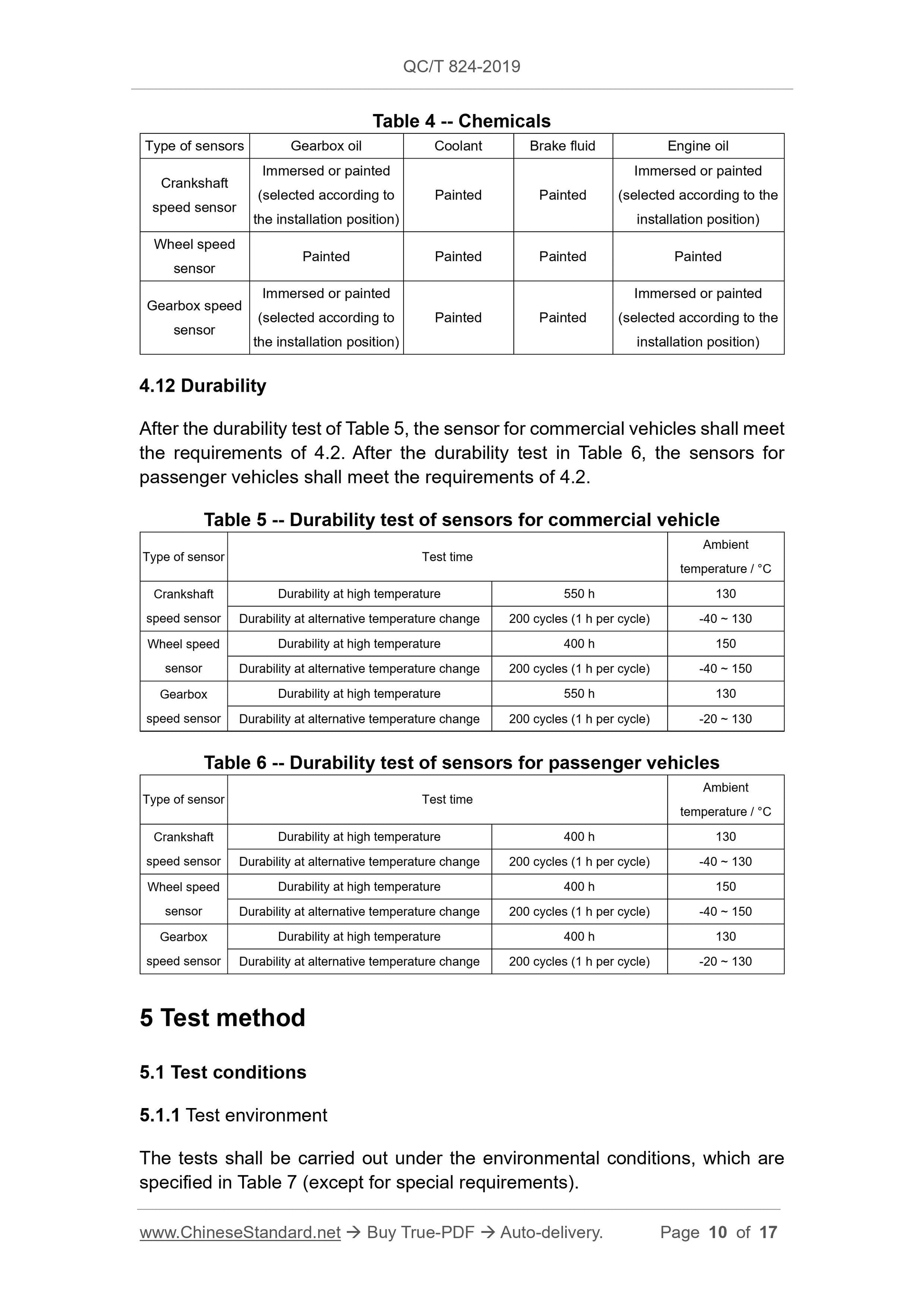

4.11 Chemical resistance
The performance of the sensor, after the chemical test in Table 4, shall meet the requirements of 4.2.

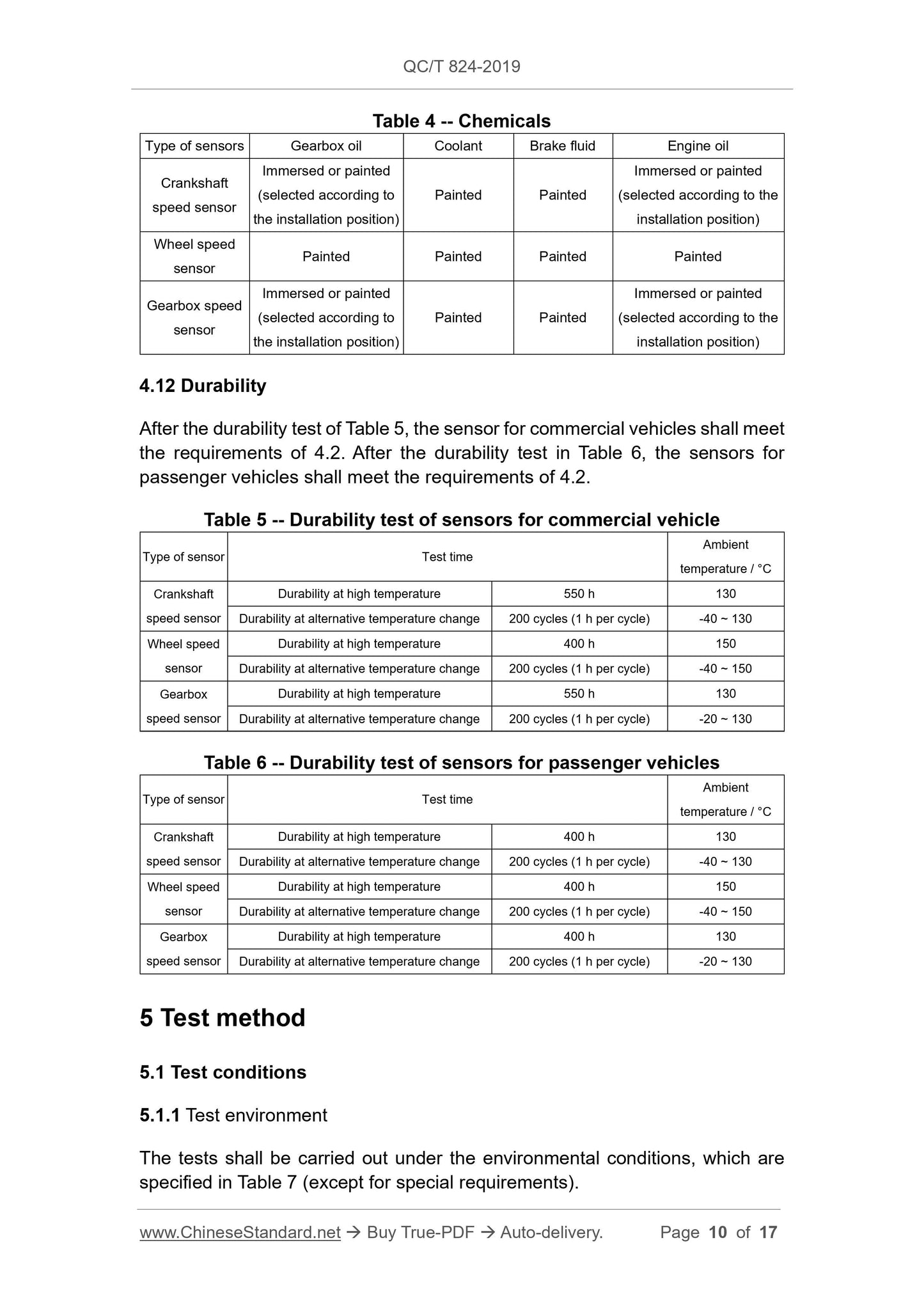

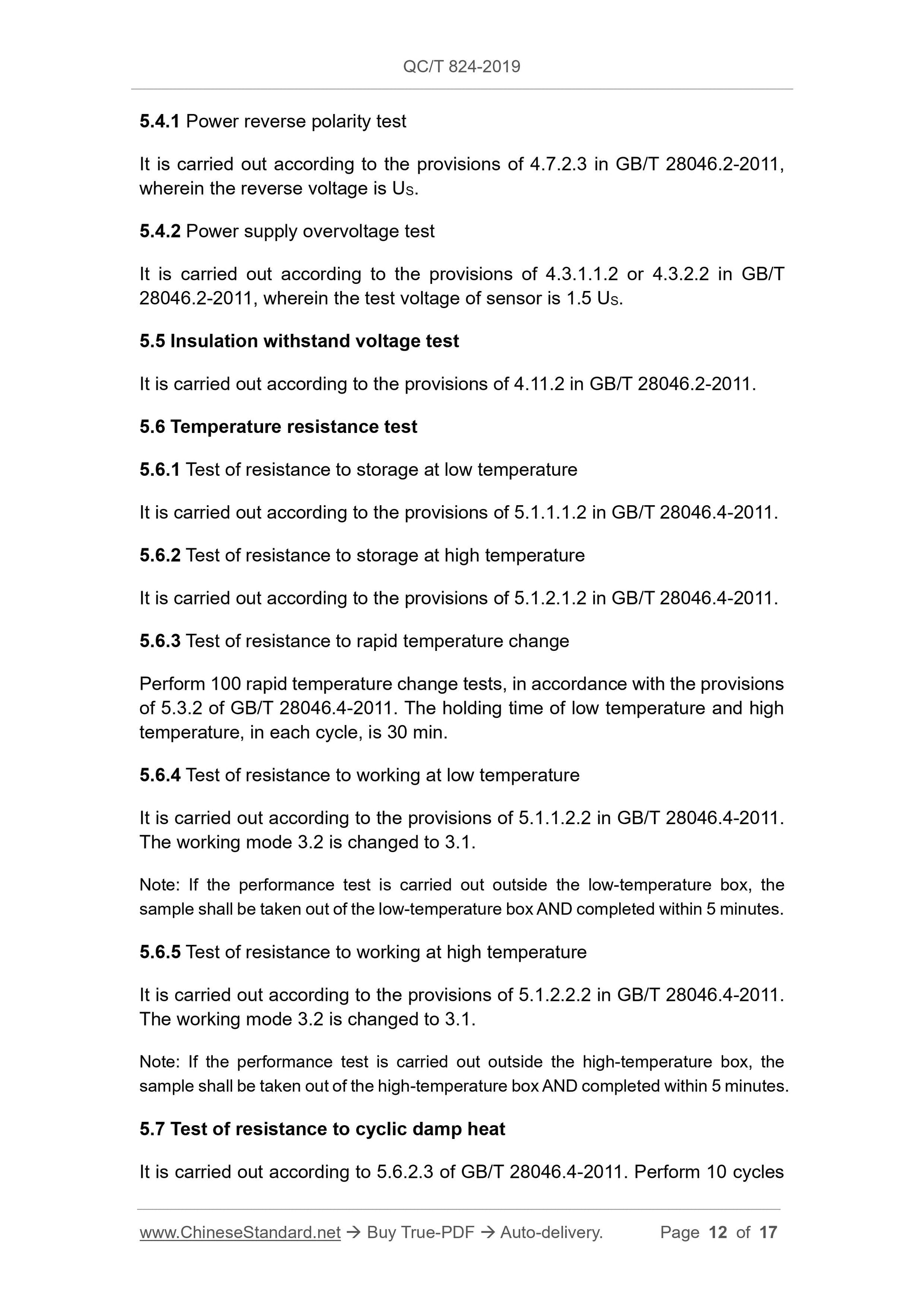

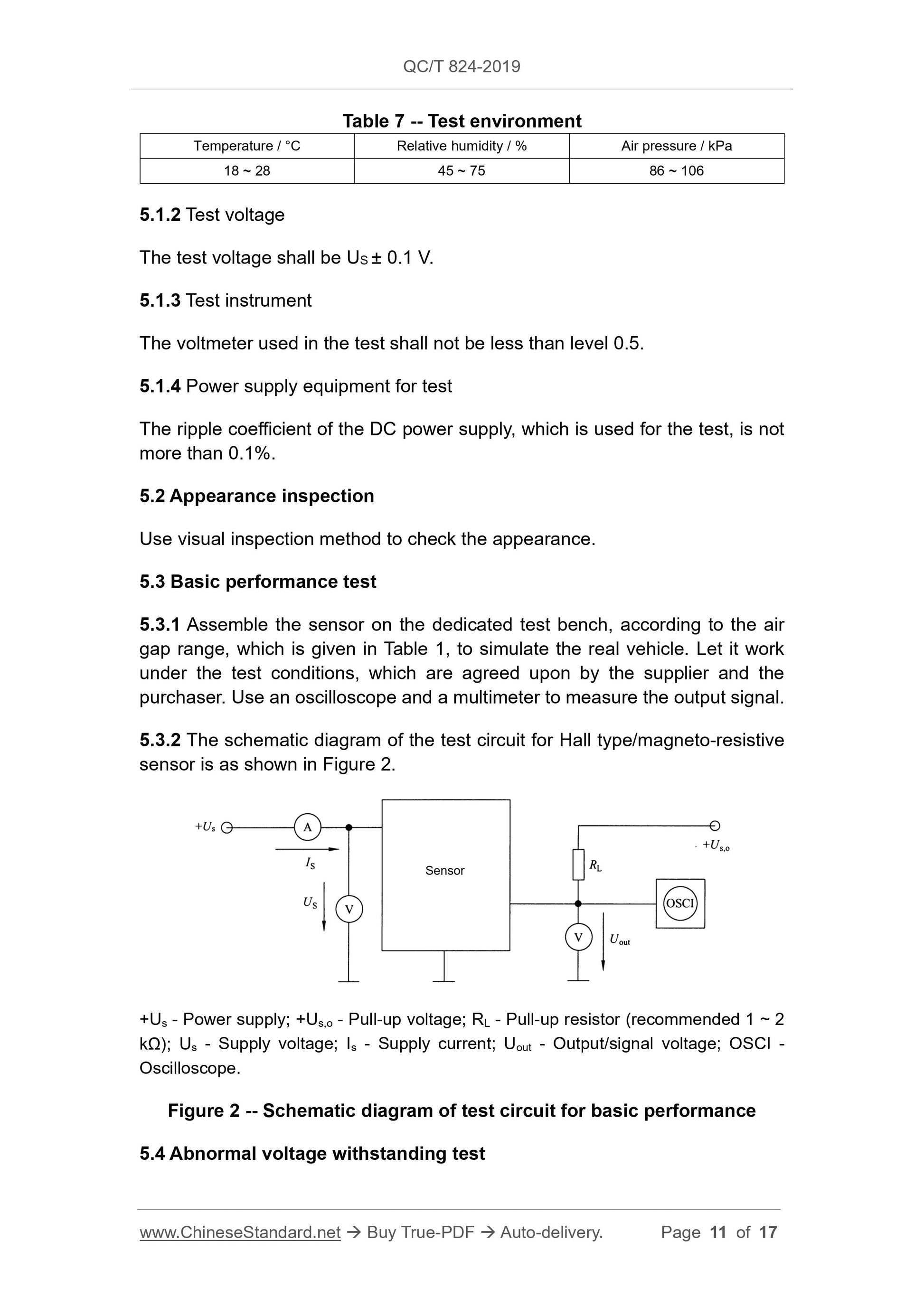

5.4.1 Power reverse polarity test
It is carried out according to the provisions of 4.7.2.3 in GB/T 28046.2-2011, wherein the reverse voltage is US.
5.4.2 Power supply overvoltage test
It is carried out according to the provisions of 4.3.1.1.2 or 4.3.2.2 in GB/T 28046.2-2011, wherein the test voltage of sensor is 1.5 US.
5.5 Insulation withstand voltage test
It is carried out according to the provisions of 4.11.2 in GB/T 28046.2-2011. 5.6 Temperature resistance test
5.6.1 Test of resistance to storage at low temperature
It is carried out according to the provisions of 5.1.1.1.2 in GB/T 28046.4-2011. 5.6.2 Test of resistance to storage at high temperature
It is carried out according to the provisions of 5.1.2.1.2 in GB/T 28046.4-2011. 5.6.3 Test of resistance to rapid temperature change
Perform 100 rapid temperature change tests, in accordance with the provisions of 5.3.2 of GB/T 28046.4-2011. The holding time of low temperature and high temperature, in each cycle, is 30 min.
5.6.4 Test of resistance to working at low temperature
It is carried out according to the provisions of 5.1.1.2.2 in GB/T 28046.4-2011. The working mode 3.2 is changed to 3.1.
Note: If the performance test is carried out outside the low-temperature box, the sample shall be taken out of the low-temperature box AND completed within 5 minutes. 5.6.5 Test of resistance to working at high temperature
It is carried out according to the provisions of 5.1.2.2.2 in GB/T 28046.4-2011. The working mode 3.2 is changed to 3.1.
Note: If the performance test is carried out outside the high-temperature box, the sample shall be taken out of the high-temperature box AND completed within 5 minutes. 5.7 Test of resistance to cyclic damp heat
It is carried out according to 5.6.2.3 of GB/T 28046.4-2011. Perform 10 cycles 5.13 Durability test
Divide the samples into two groups, to carry out the following tests, respectively (Hall/magneto-resistive sensors need to be tested in a charged state):
a) Durability at high temperature: It is carried out in accordance with the provisions of 5.1.2.2 in GB/T 28046.4-2011, under the test conditions of Table 5 or Table 6. The working mode 3.2 was changed to 3.1;
b) Durability at alternative temperature change: It is carried out in accordance with the requirements of 5.3.2.2 in GB/T 28046.4-2011, under the test
conditions in Table 5 or Table 6.
6 Inspection rules
6.1 Qualification documents and marking
The sensor can only leave the factory, after passing the inspection, AND accompanied by a product quality certificate and marking.
6.2 Exit-factory inspection
The exit-factory inspection items include the appearance and basic
performance of the sensor.
6.3 Type inspection
6.3.1 Several situations for type inspection
In one of the following situations, the sensor shall be subject to type inspection: a) Trial type qualification of new sensors;
b) After formal production, if there are major changes in structure, materials, processes, that affect the performance of the sensor;
c) For sensors that are produced in batches or in large quantities, not less than once every two years;
d) When the production of sensor is restored, after being discontinued for more than one year;
e) Where there is a big difference between the exit-factory inspection result and the last type inspection result.
f) When the national quality supervision agency requests for type inspection. Note: The electromagnetic immunity test is only applicable to a) and b) (when the circuit
