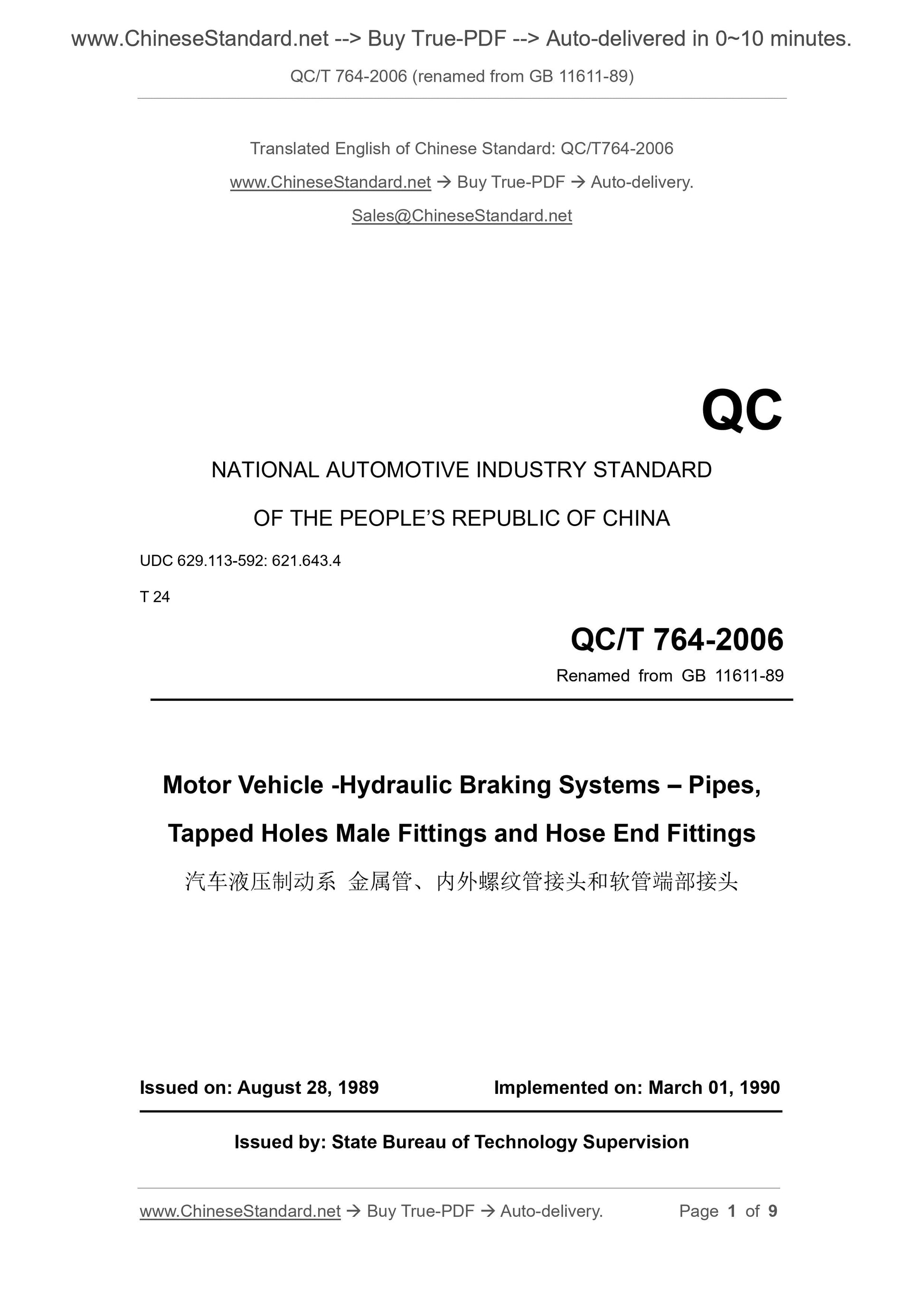

QC/T 764-2006 (renamed from GB 11611-89)
NATIONAL AUTOMOTIVE INDUSTRY STANDARD
OF THE PEOPLE’S REPUBLIC OF CHINA
UDC 629.113-592: 621.643.4
T 24
QC/T 764-2006
Renamed from GB 11611-89
Motor Vehicle -Hydraulic Braking Systems – Pipes,
Tapped Holes Male Fittings and Hose End Fittings
ISSUED ON: AUGUST 28, 1989
IMPLEMENTED ON: MARCH 01, 1990
Issued by: State Bureau of Technology Supervision

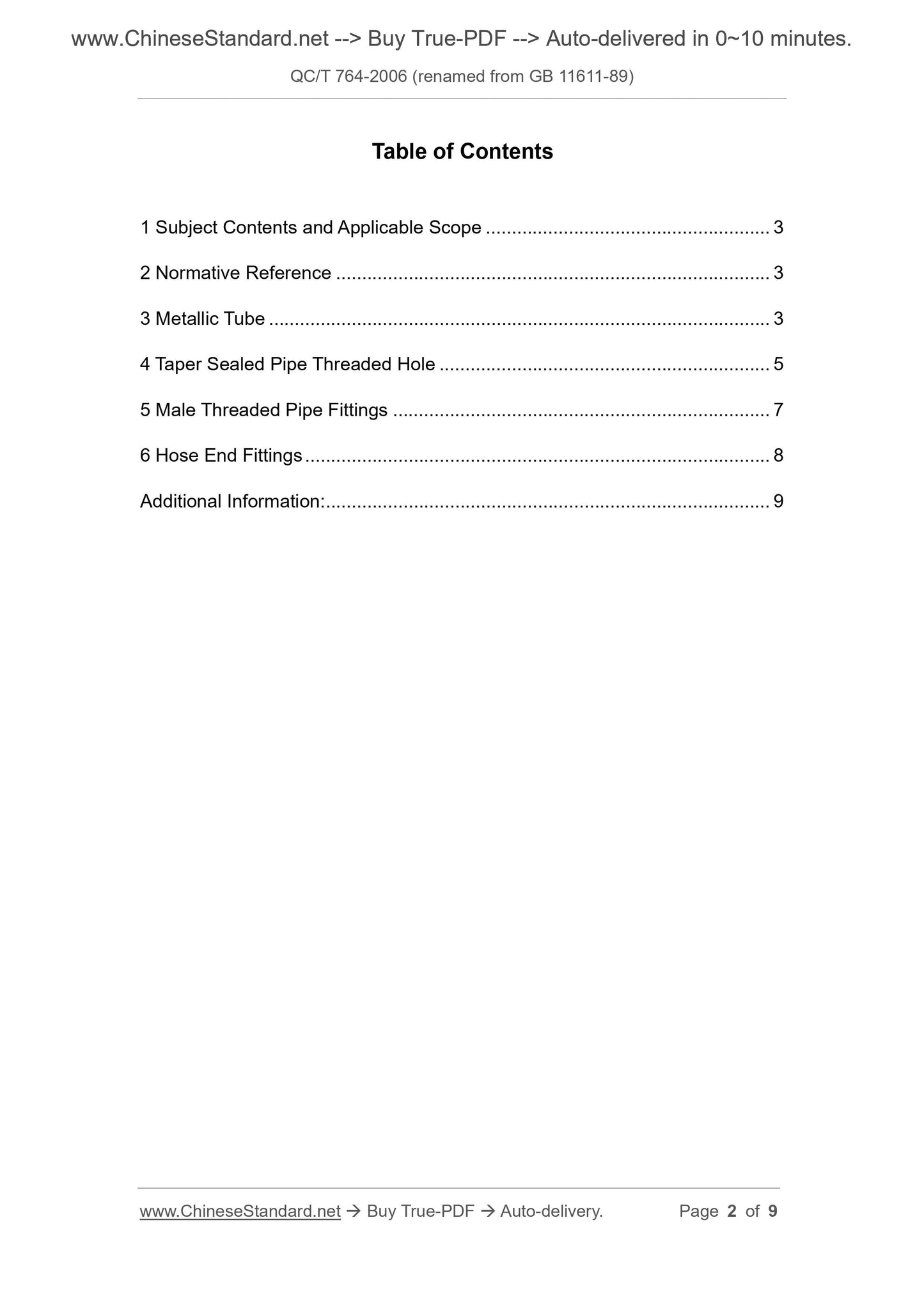

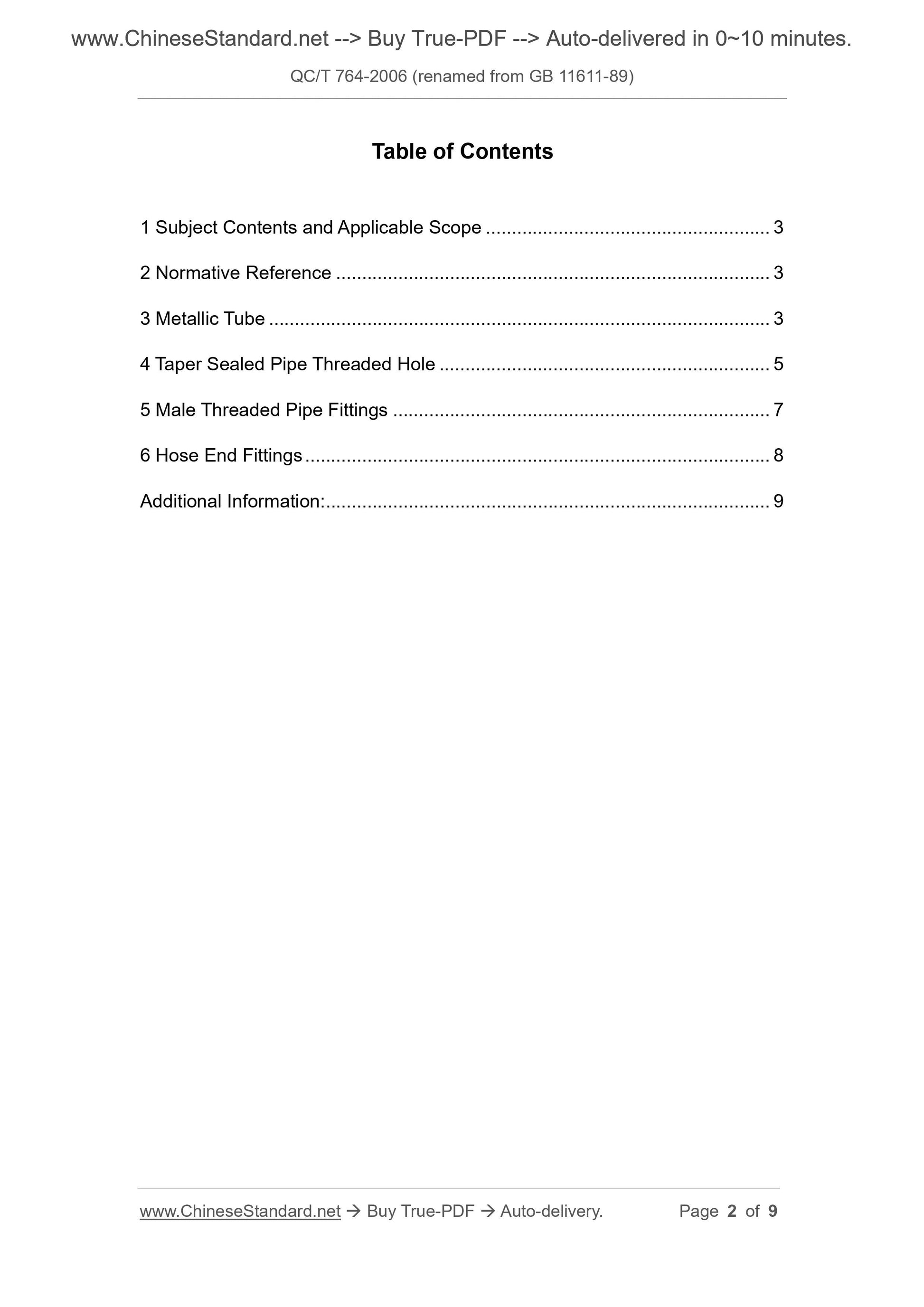

Table of Contents
1 Subject Contents and Applicable Scope ... 3
2 Normative Reference ... 3
3 Metallic Tube ... 3
4 Taper Sealed Pipe Threaded Hole ... 5
5 Male Threaded Pipe Fittings ... 7
6 Hose End Fittings ... 8
Additional Information: ... 9

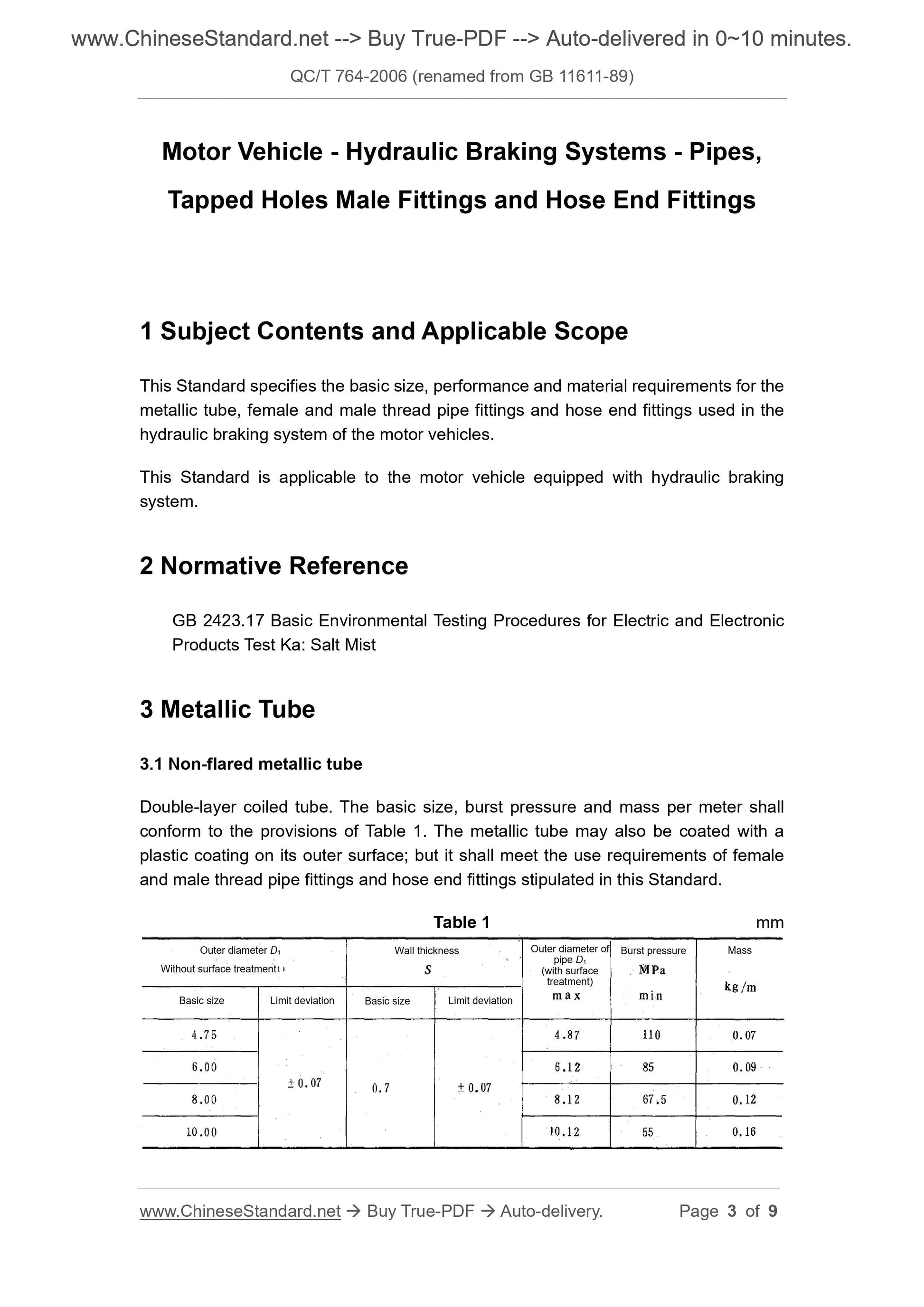

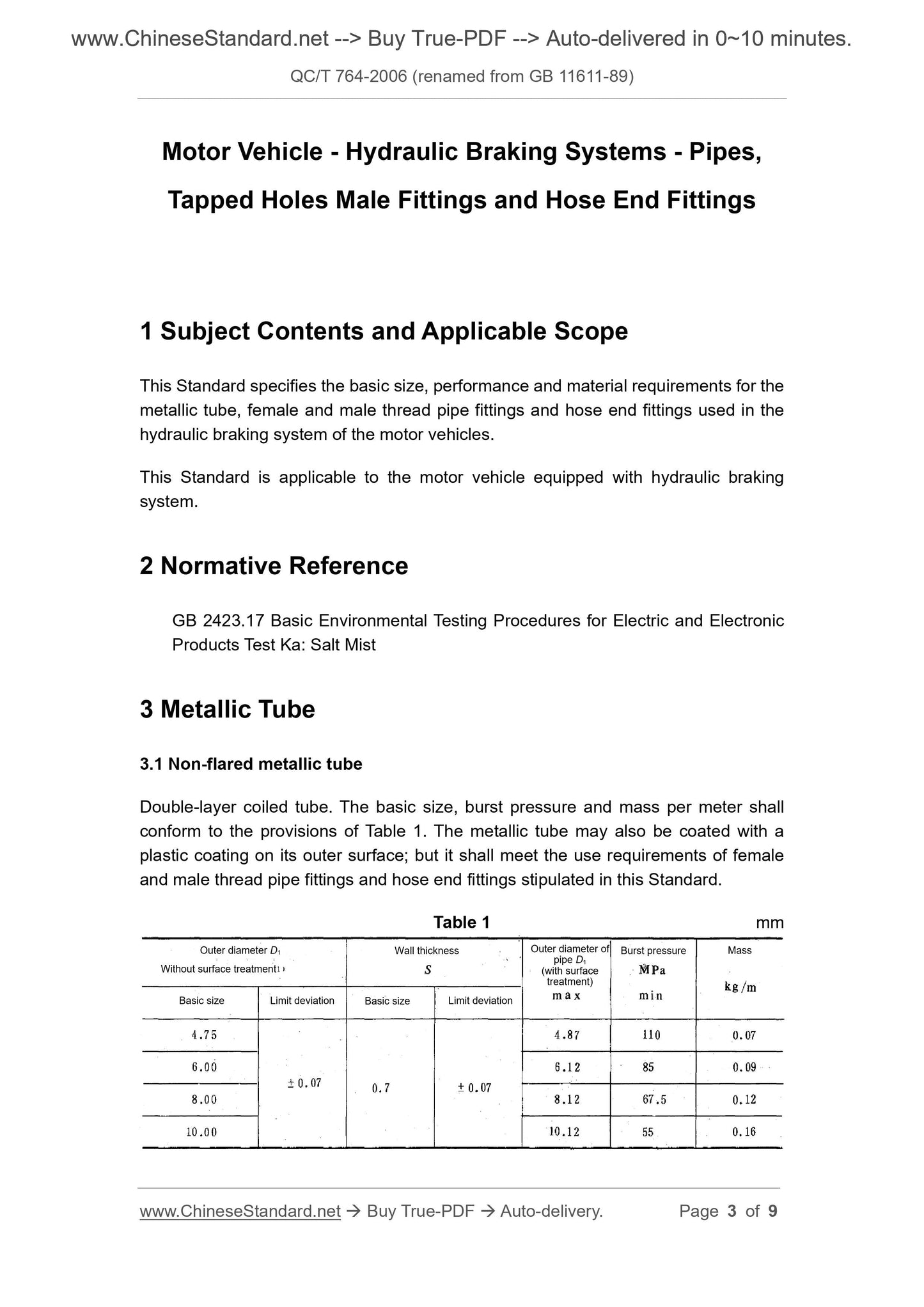

Motor Vehicle - Hydraulic Braking Systems - Pipes,
Tapped Holes Male Fittings and Hose End Fittings
1 Subject Contents and Applicable Scope
This Standard specifies the basic size, performance and material requirements for the
metallic tube, female and male thread pipe fittings and hose end fittings used in the
hydraulic braking system of the motor vehicles.
This Standard is applicable to the motor vehicle equipped with hydraulic braking
system.
2 Normative Reference
GB 2423.17 Basic Environmental Testing Procedures for Electric and Electronic
Products Test Ka: Salt Mist
3 Metallic Tube
3.1 Non-flared metallic tube
Double-layer coiled tube. The basic size, burst pressure and mass per meter shall
conform to the provisions of Table 1. The metallic tube may also be coated with a
plastic coating on its outer surface; but it shall meet the use requirements of female
and male thread pipe fittings and hose end fittings stipulated in this Standard.
Table 1 mm
Outer diameter D1
Without surface treatment
Wall thickness Outer diameter of pipe D1 (with surface
treatment)
Burst pressure Mass
Basic size Limit deviation Basic size Limit deviation

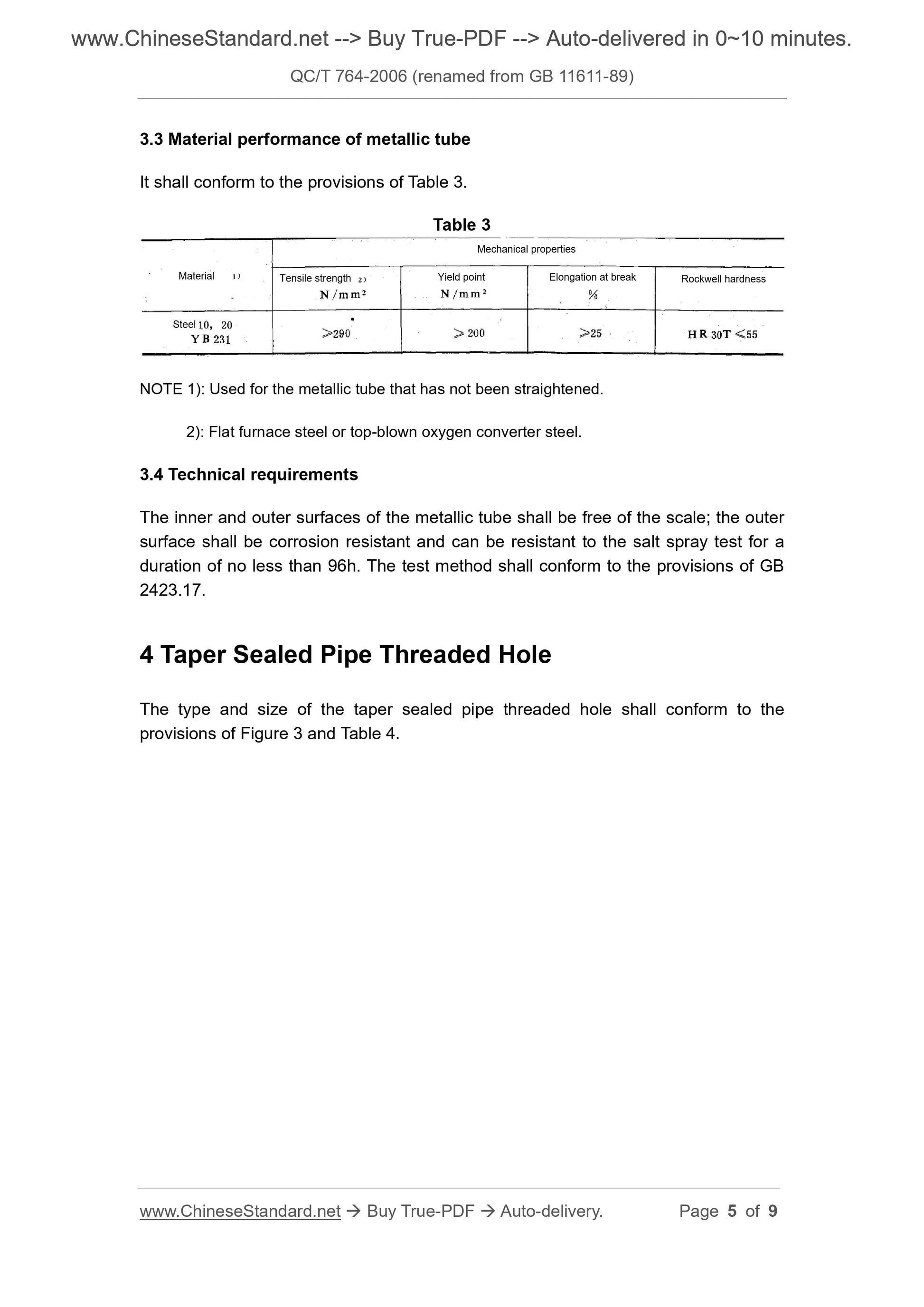

3.3 Material performance of metallic tube
It shall conform to the provisions of Table 3.
Table 3
NOTE 1): Used for the metallic tube that has not been straightened.
2): Flat furnace steel or top-blown oxygen converter steel.
3.4 Technical requirements
The inner and outer surfaces of the metallic tube shall be free of the scale; the outer
surface shall be corrosion resistant and can be resistant to the salt spray test for a
duration of no less than 96h. The test method shall conform to the provisions of GB
2423.17.
4 Taper Sealed Pipe Threaded Hole
The type and size of the taper sealed pipe threaded hole shall conform to the
provisions of Figure 3 and Table 4.
Material
Mechanical properties
Steel
Tensile strength Yield point Elongation at break Rockwell hardness
