QC/T 662-2013: Vehicle air conditioner (HFC-134a) receiver dryer

This standard specifies the technical requirements, test methods, inspection rules, markings, packaging, transportation and storage of vehicle air conditioner (HFC-134a) receiver dryer. This standard is applicable to vehicle air conditioner receiver dryer with HFC-134a as the refrigerant, working pressure at 0 ~ 2.5 MPa, effective internal volume less than 1000 mL.

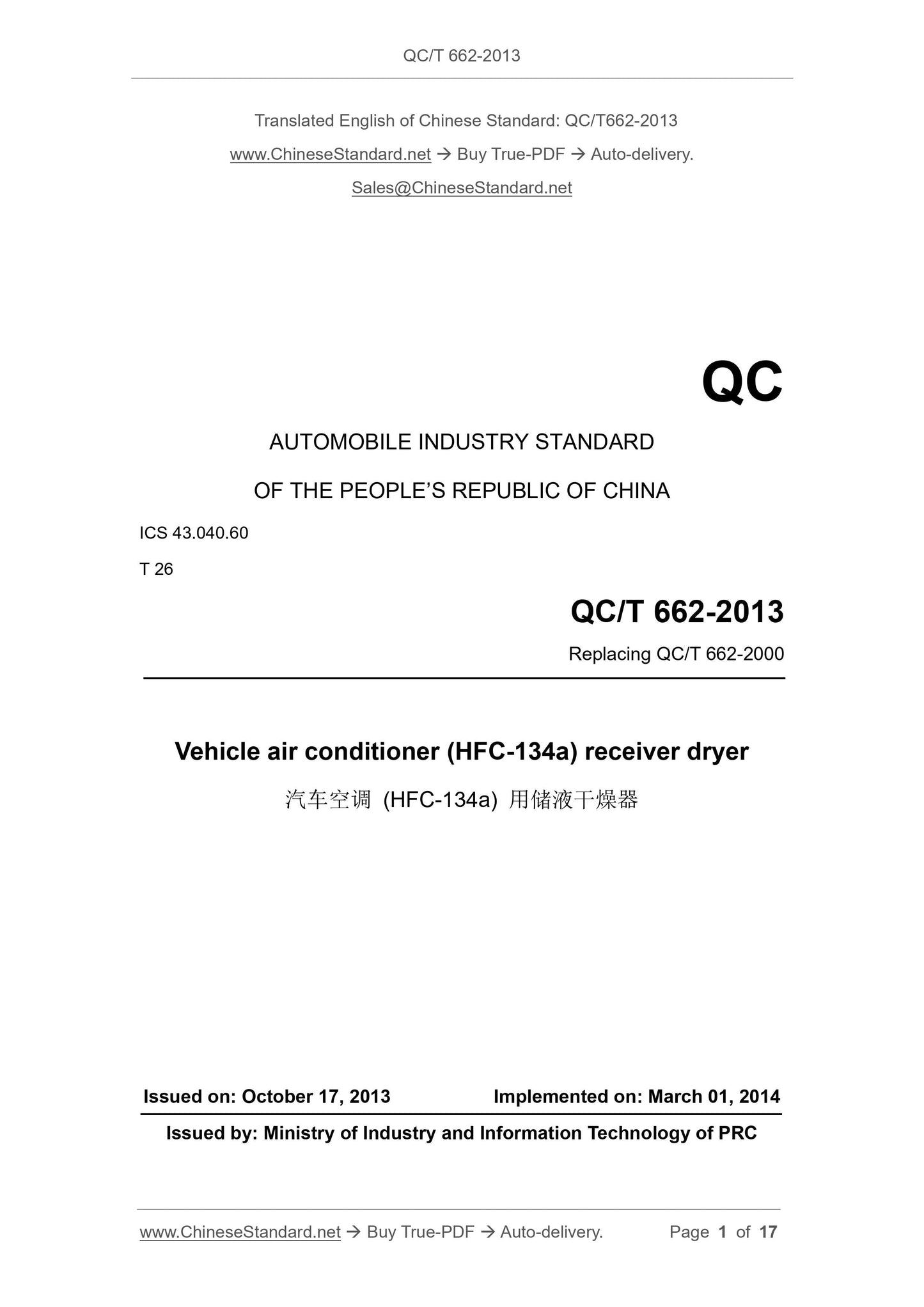

QC/T 662-2013
QC
AUTOMOBILE INDUSTRY STANDARD
OF THE PEOPLE REPUBLIC OF CHINA
ICS 43.040.60
T 26
Replacing QC/T 662-2000
Vehicle air conditioner (HFC-134a) receiver dryer
ISSUED ON: OCTOBER 17, 2013
IMPLEMENTED ON: MARCH 01, 2014
Issued by: Ministry of Industry and Information Technology of PRC

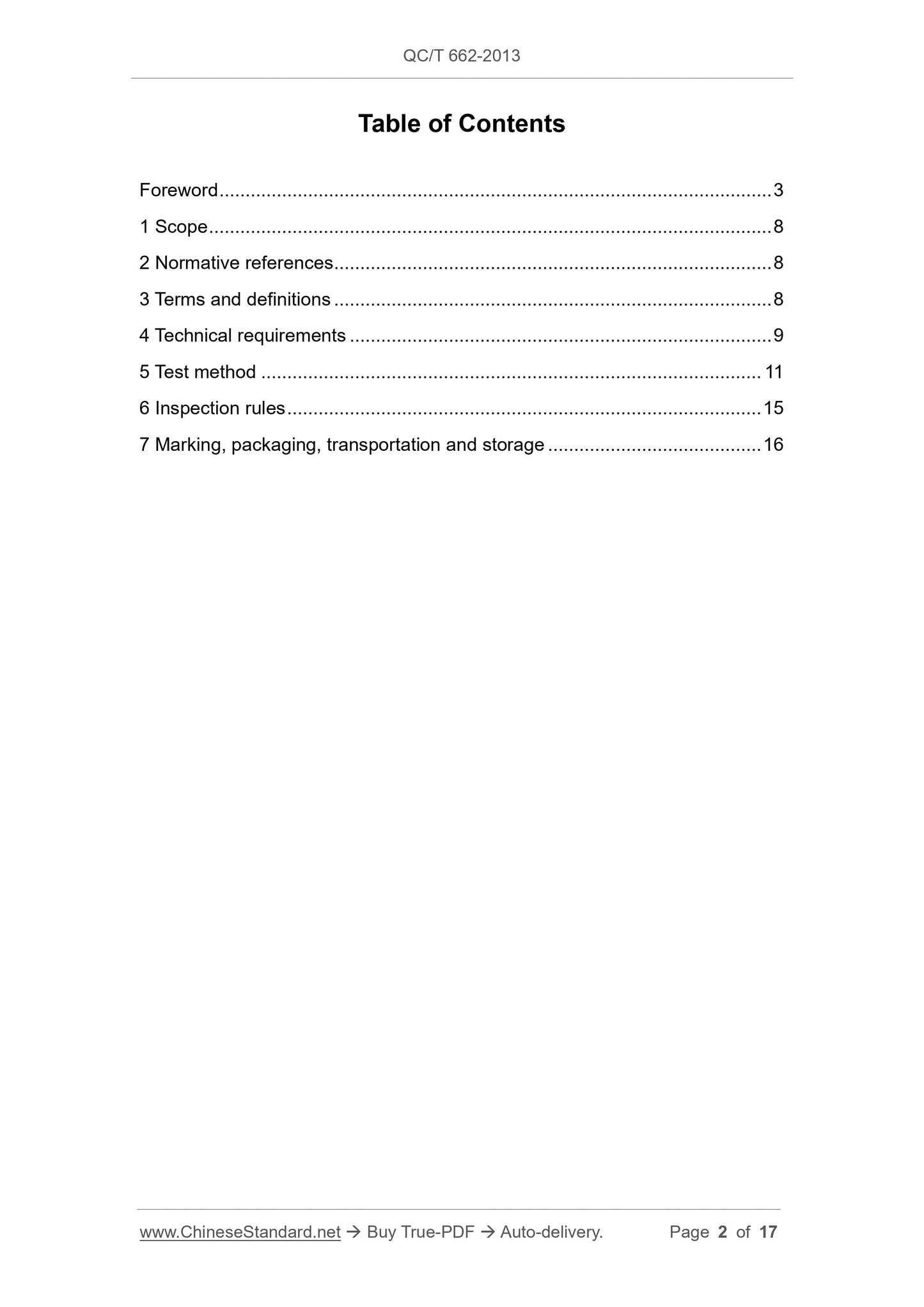

Table of Contents
Foreword ... 3
1 Scope ... 8
2 Normative references ... 8
3 Terms and definitions ... 8
4 Technical requirements ... 9
5 Test method ... 11
6 Inspection rules ... 15
7 Marking, packaging, transportation and storage ... 16
Attachment:

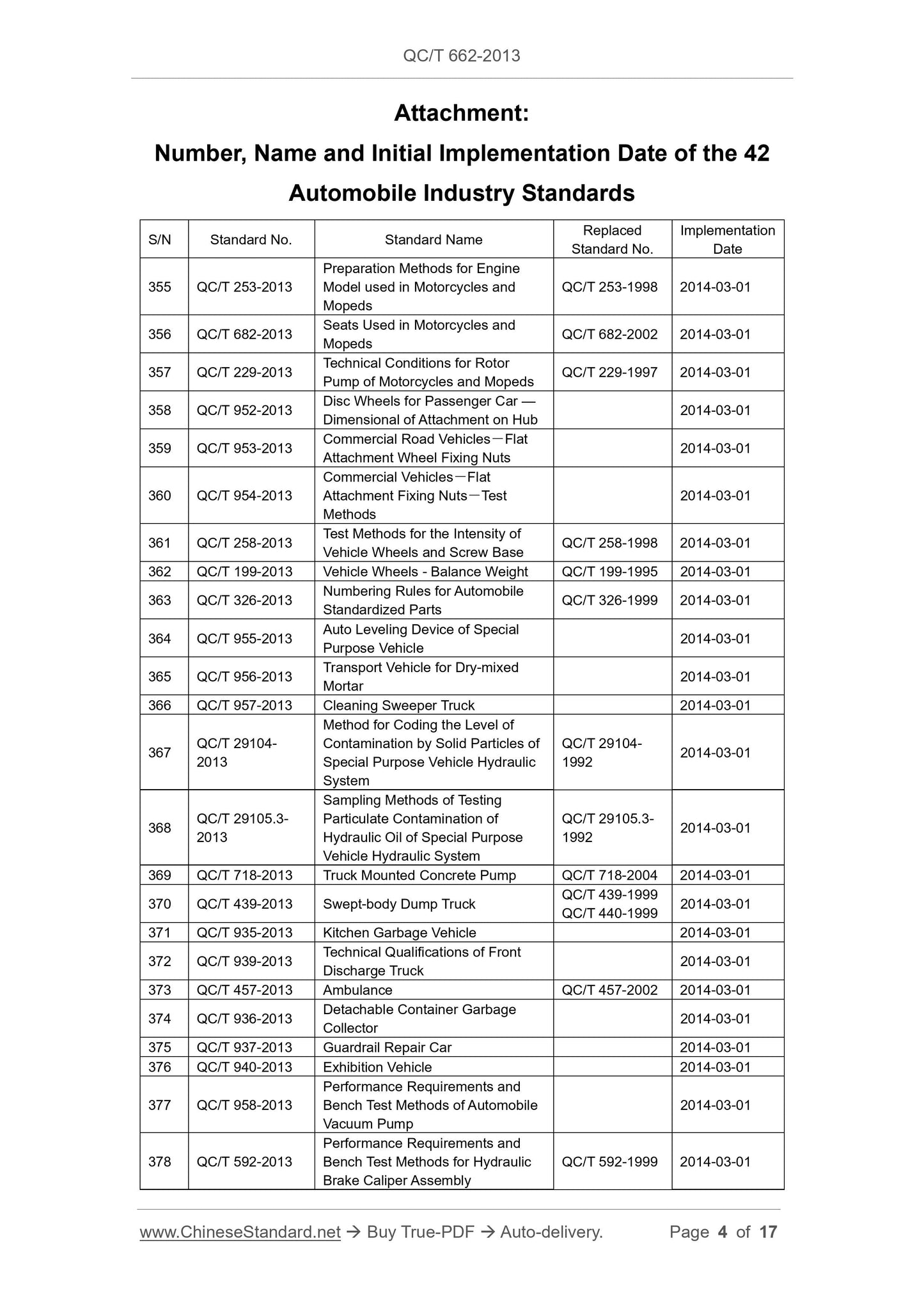

Number, Name and Initial Implementation Date of the 42
Automobile Industry Standards
S/N Standard No. Standard Name Replaced Standard No.
Implementation
Date
355 QC/T 253-2013
Preparation Methods for Engine
Model used in Motorcycles and
Mopeds
QC/T 253-1998 2014-03-01

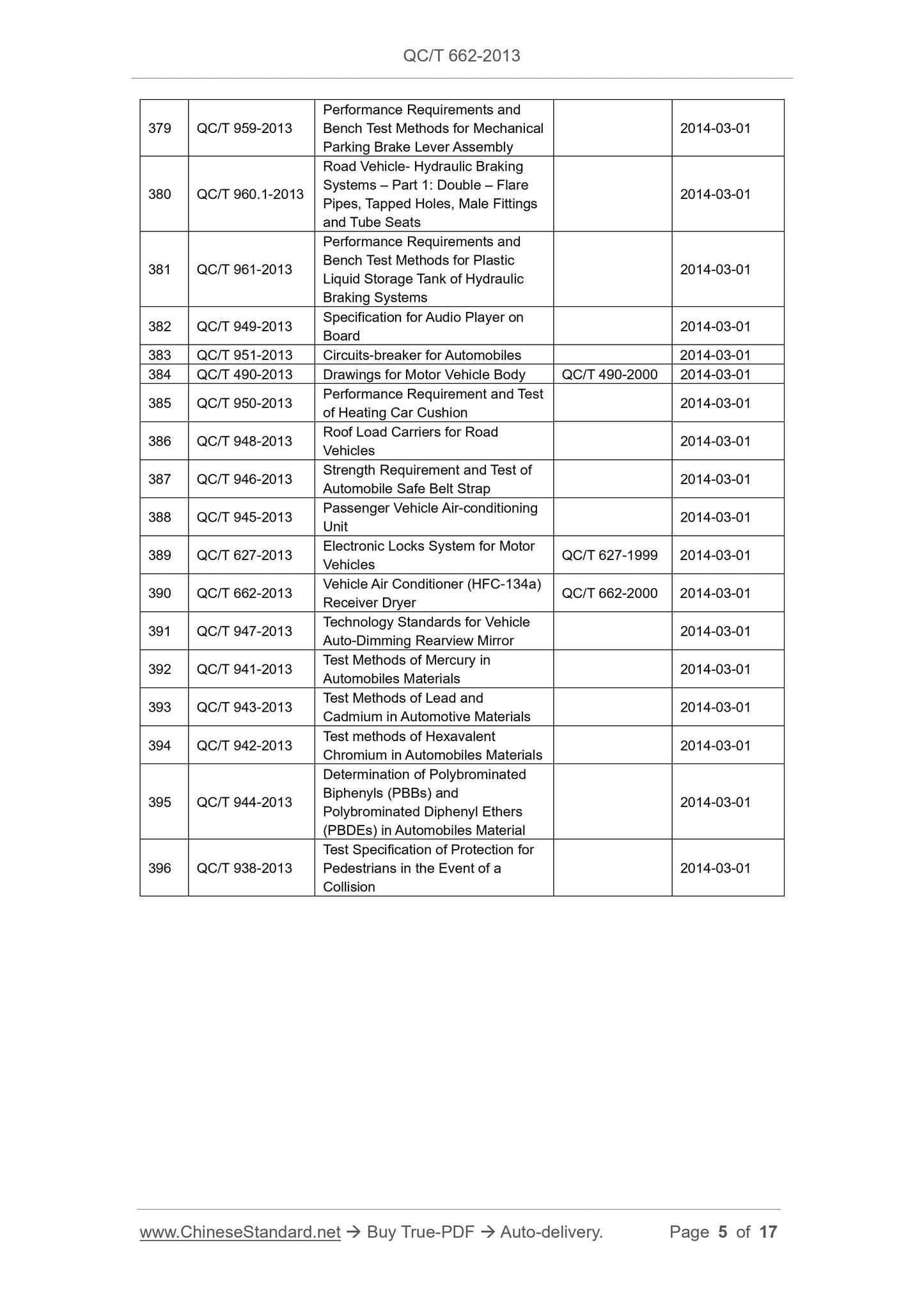

356 QC/T 682-2013 Seats Used in Motorcycles and Mopeds QC/T 682-2002 2014-03-01 357 QC/T 229-2013 Technical Conditions for Rotor Pump of Motorcycles and Mopeds QC/T 229-1997 2014-03-01 358 QC/T 952-2013 Disc Wheels for Passenger Car ?€? Dimensional of Attachment on Hub 2014-03-01 359 QC/T 953-2013 Commercial Road Vehicles???Flat Attachment Wheel Fixing Nuts 2014-03-01 360 QC/T 954-2013
Commercial Vehicles???Flat
Attachment Fixing Nuts???Test
Methods
2014-03-01
361 QC/T 258-2013 Test Methods for the Intensity of Vehicle Wheels and Screw Base QC/T 258-1998 2014-03-01 362 QC/T 199-2013 Vehicle Wheels - Balance Weight QC/T 199-1995 2014-03-01 363 QC/T 326-2013 Numbering Rules for Automobile Standardized Parts QC/T 326-1999 2014-03-01 364 QC/T 955-2013 Auto Leveling Device of Special Purpose Vehicle 2014-03-01 365 QC/T 956-2013 Transport Vehicle for Dry-mixed Mortar 2014-03-01
366 QC/T 957-2013 Cleaning Sweeper Truck 2014-03-01
367 QC/T 29104-2013
Method for Coding the Level of
Contamination by Solid Particles of
Special Purpose Vehicle Hydraulic
System
QC/T 29104-
1992 2014-03-01
368 QC/T 29105.3-2013
Sampling Methods of Testing
Particulate Contamination of
Hydraulic Oil of Special Purpose
Vehicle Hydraulic System
QC/T 29105.3-
1992 2014-03-01
369 QC/T 718-2013 Truck Mounted Concrete Pump QC/T 718-2004 2014-03-01
370 QC/T 439-2013 Swept-body Dump Truck QC/T 439-1999 QC/T 440-1999 2014-03-01 371 QC/T 935-2013 Kitchen Garbage Vehicle 2014-03-01
372 QC/T 939-2013 Technical Qualifications of Front Discharge Truck 2014-03-01 373 QC/T 457-2013 Ambulance QC/T 457-2002 2014-03-01
374 QC/T 936-2013 Detachable Container Garbage Collector 2014-03-01
375 QC/T 937-2013 Guardrail Repair Car 2014-03-01
376 QC/T 940-2013 Exhibition Vehicle 2014-03-01
377 QC/T 958-2013
Performance Requirements and
Bench Test Methods of Automobile
Vacuum Pump
2014-03-01
378 QC/T 592-2013
Performance Requirements and
Bench Test Methods for Hydraulic
Brake Caliper Assembly
QC/T 592-1999 2014-03-01

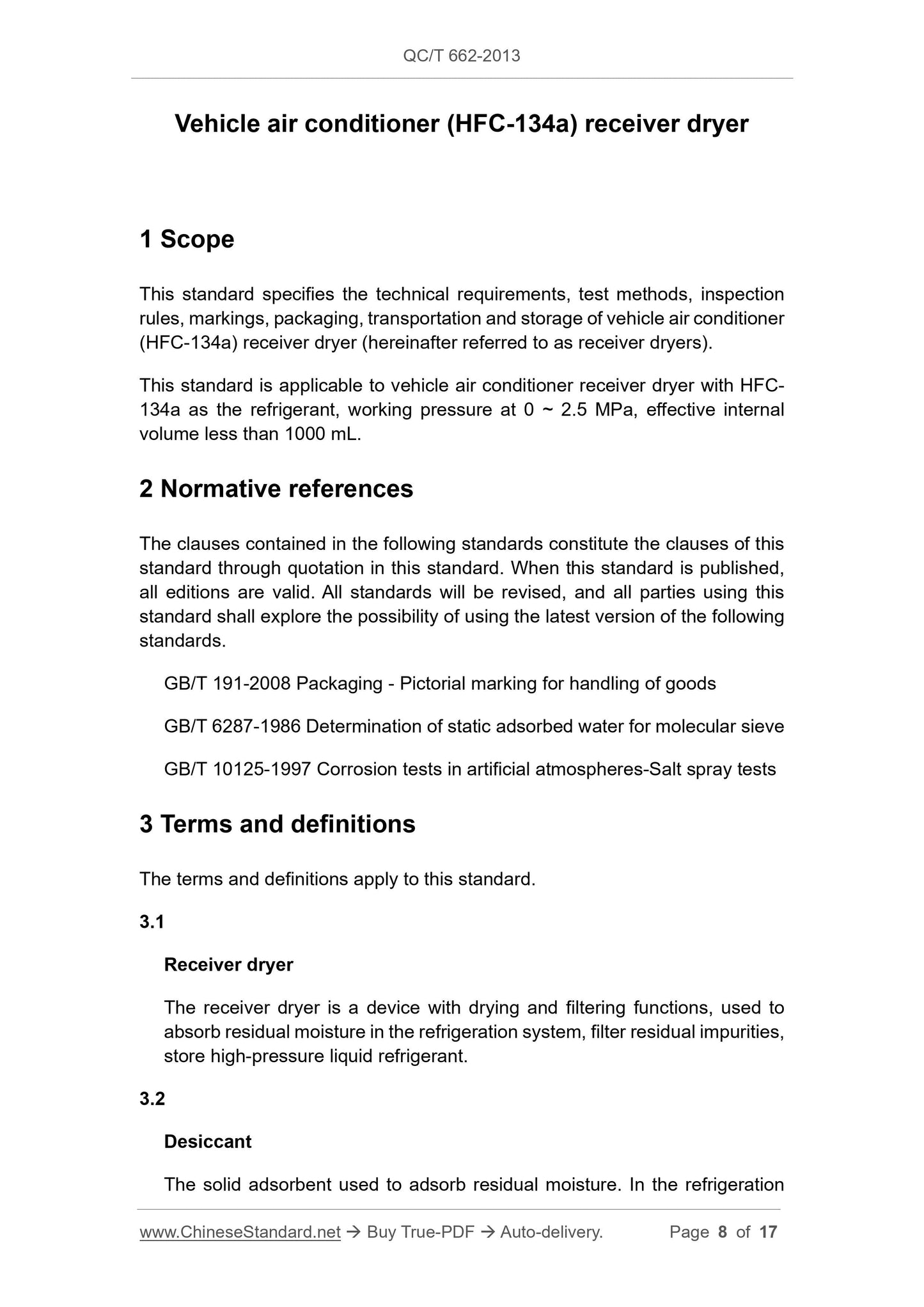

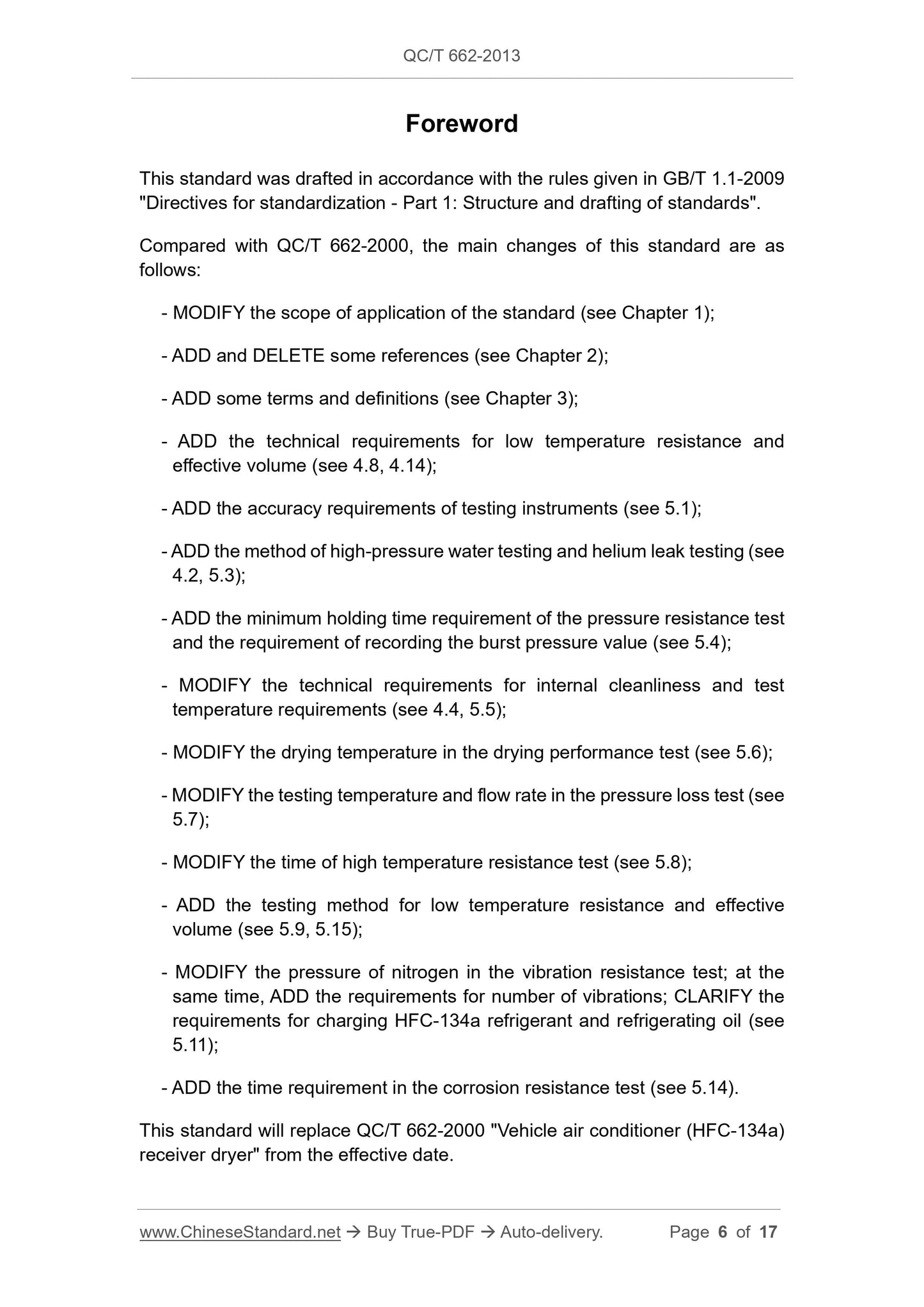

Vehicle air conditioner (HFC-134a) receiver dryer
1 Scope
This standard specifies the technical requirements, test methods, inspection rules, markings, packaging, transportation and storage of vehicle air conditioner (HFC-134a) receiver dryer (hereinafter referred to as receiver dryers). This standard is applicable to vehicle air conditioner receiver dryer with HFC- 134a as the refrigerant, working pressure at 0 ~ 2.5 MPa, effective internal volume less than 1000 mL.
2 Normative references
The clauses contained in the following standards constitute the clauses of this standard through quotation in this standard. When this standard is published, all editions are valid. All standards will be revised, and all parties using this standard shall explore the possibility of using the latest version of the following standards.
GB/T 191-2008 Packaging - Pictorial marking for handling of goods
GB/T 6287-1986 Determination of static adsorbed water for molecular sieve GB/T 10125-1997 Corrosion tests in artificial atmospheres-Salt spray tests 3 Terms and definitions
The terms and definitions apply to this standard.

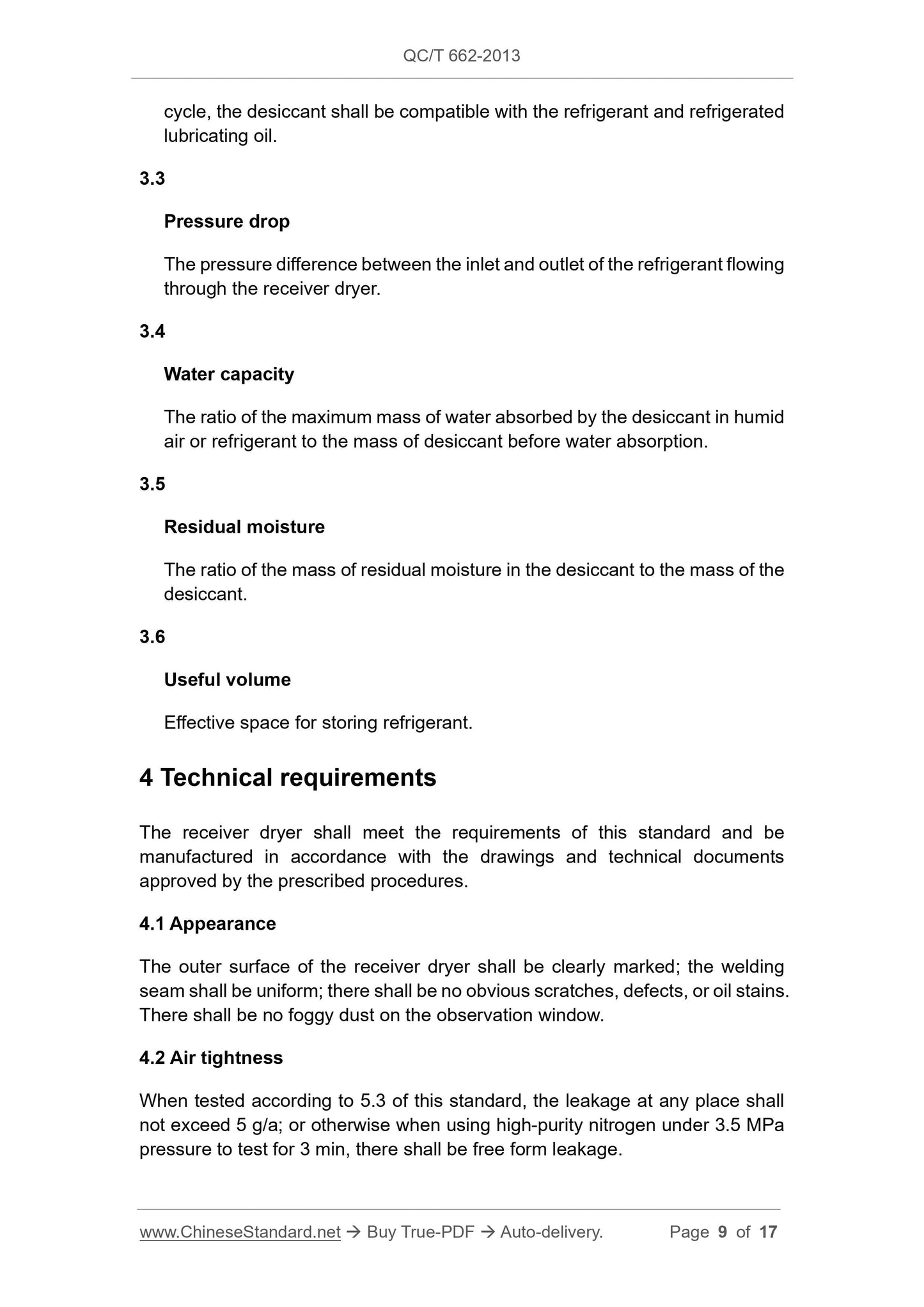

3.1
Receiver dryer
The receiver dryer is a device with drying and filtering functions, used to absorb residual moisture in the refrigeration system, filter residual impurities, store high-pressure liquid refrigerant.
3.2
Desiccant
The solid adsorbent used to adsorb residual moisture. In the refrigeration 4.3 Pressure resistance
When tested according to 5.4 of this standard, after the receiver dryer is tested under a pressure of 5.3 MPa, there shall be no leakage or obvious deformation, meanwhile it shall not be broken under a pressure of 10.5 MPa.
4.4 Cleanliness
When tested according to 5.5 of this standard, the internal impurity content shall not exceed 15 mg; the maximum solid impurity size shall not exceed 350 ??m. 4.5 Drying performance
4.5.1 When tested according to 5.6.1 of this standard, the water capacity of the desiccant is not less than 15%
4.5.2 When tested according to 5.6.2 of this standard, the residual moisture of the desiccant is not more than 2.5%.

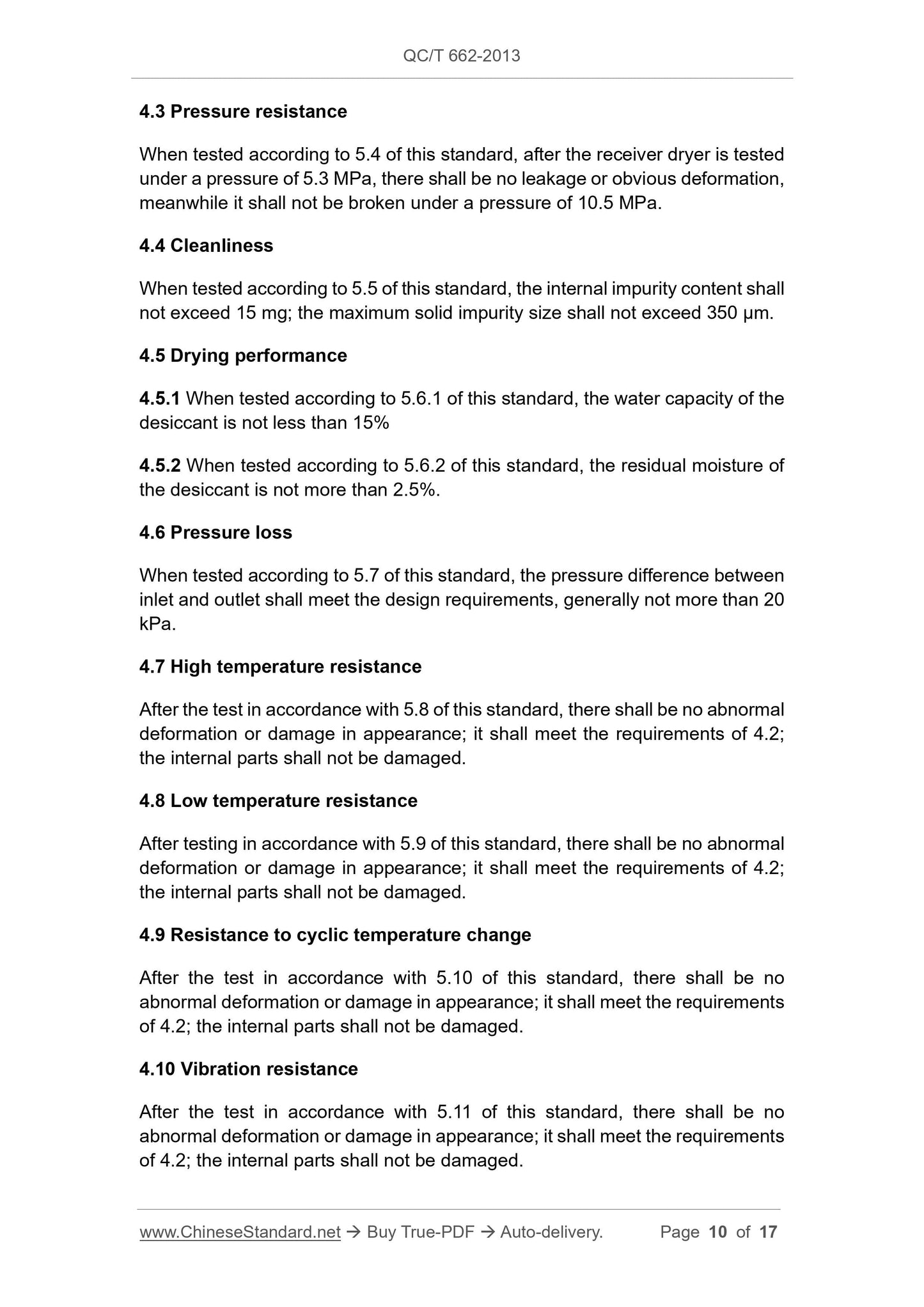

4.6 Pressure loss
When tested according to 5.7 of this standard, the pressure difference between inlet and outlet shall meet the design requirements, generally not more than 20 kPa.
4.7 High temperature resistance
After the test in accordance with 5.8 of this standard, there shall be no abnormal deformation or damage in appearance; it shall meet the requirements of 4.2; the internal parts shall not be damaged.
4.8 Low temperature resistance
After testing in accordance with 5.9 of this standard, there shall be no abnormal deformation or damage in appearance; it shall meet the requirements of 4.2; the internal parts shall not be damaged.
4.9 Resistance to cyclic temperature change
After the test in accordance with 5.10 of this standard, there shall be no abnormal deformation or damage in appearance; it shall meet the requirements of 4.2; the internal parts shall not be damaged.
4.10 Vibration resistance
After the test in accordance with 5.11 of this standard, there shall be no abnormal deformation or damage in appearance; it shall meet the requirements of 4.2; the internal parts shall not be damaged.

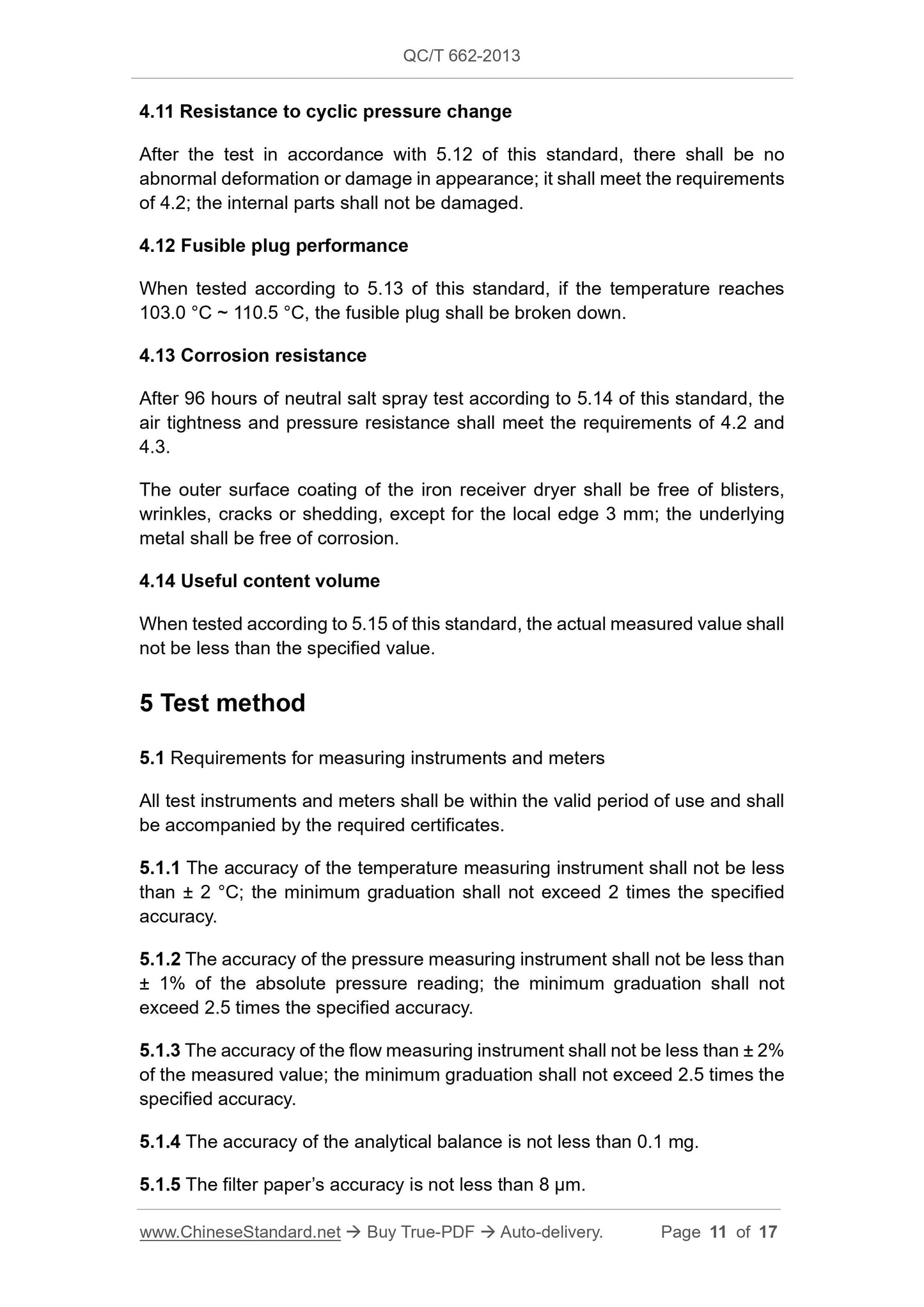

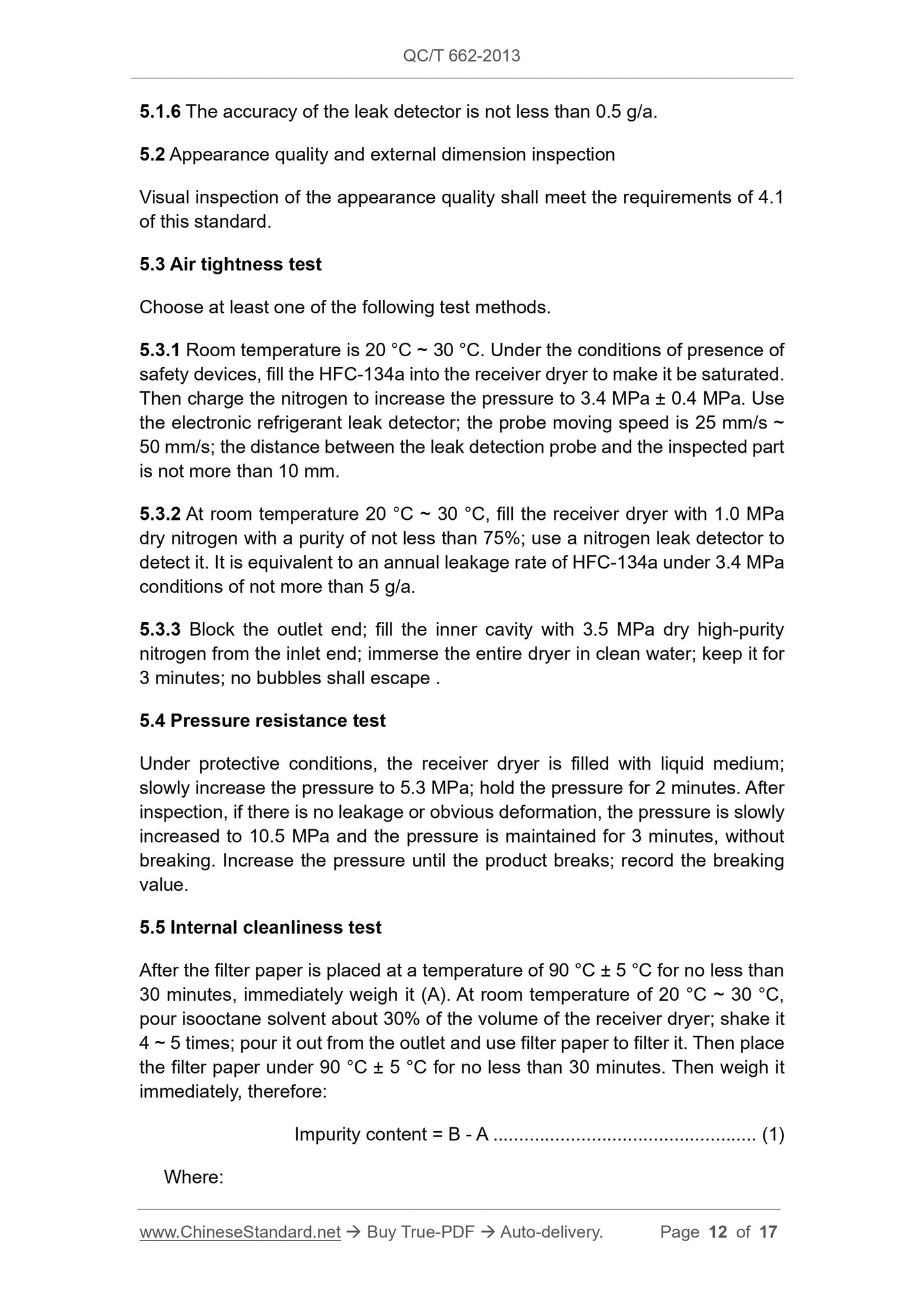

5.1.6 The accuracy of the leak detector is not less than 0.5 g/a.
5.2 Appearance quality and external dimension inspection
Visual inspection of the appearance quality shall meet the requirements of 4.1 of this standard.
5.3 Air tightness test
Choose at least one of the following test methods.
5.3.1 Room temperature is 20 ??C ~ 30 ??C. Under the conditions of presence of safety devices, fill the HFC-134a into the receiver dryer to make it be saturated. Then charge the nitrogen to increase the pressure to 3.4 MPa ?? 0.4 MPa. Use the electronic refrigerant leak detector; the probe moving speed is 25 mm/s ~ 50 mm/s; the distance between the leak detection probe and the inspected part is not more than 10 mm.
5.3.2 At room temperature 20 ??C ~ 30 ??C, fill the receiver dryer with 1.0 MPa dry nitrogen with a purity of not less than 75%; use a nitrogen leak detector to detect it. It is equivalent to an annual leakage rate of HFC-134a under 3.4 MPa conditions of not more than 5 g/a.
5.3.3 Block the outlet end; fill the inner cavity with 3.5 MPa dry high-purity nitrogen from the inlet end; immerse the entire dryer in clean water; keep it for 3 minutes; no bubbles shall escape .
5.4 Pressure resistance test
Under protective conditions, the receiver dryer is filled with liquid medium; slowly increase the pressure to 5.3 MPa; hold the pressure for 2 minutes. After inspection, if there is no leakage or obvious deformation, the pressure is slowly increased to 10.5 MPa and the pressure is maintained for 3 minutes, without breaking. Increase the pressure until the product breaks; record the breaking value.
5.5 Internal cleanliness test
After the filter paper is placed at a temperature of 90 ??C ?? 5 ??C for no less than 30 minutes, immediately weigh it (A). At room temperature of 20 ??C ~ 30 ??C, pour isooctane solvent about 30% of the volume of the receiver dryer; shake it 4 ~ 5 times; pour it out from the outlet and use filter paper to filter it. Then place the filter paper under 90 ??C ?? 5 ??C for no less than 30 minutes. Then weigh it immediately, therefore:
Impurity content = B - A ... (1)
Where:
