QC/T 658-2009 English PDF (QCT658-2009)

QC/T 658-2009 English PDF (QCT658-2009)

Regular price $145.00 USD
Regular price Sale price $145.00 USD
Sale Sold out
Shipping calculated at checkout.
Quotation: In 1-minute, 24-hr self-service. Click here QC/T 658-2009 to get it for Purchase Approval, Bank TT...

QC/T 658-2009: Air-conditioning refrigeration system performances road test method for motor vehicles

This Standard of GB/T 5591 contains the definitions related to and the general requirements to be fulfilled by combined flexible materials for electrical insulation. This Standard applies to combined flexible materials for electrical insulation, but it does not apply to those which are made using mica paper as the primary component.

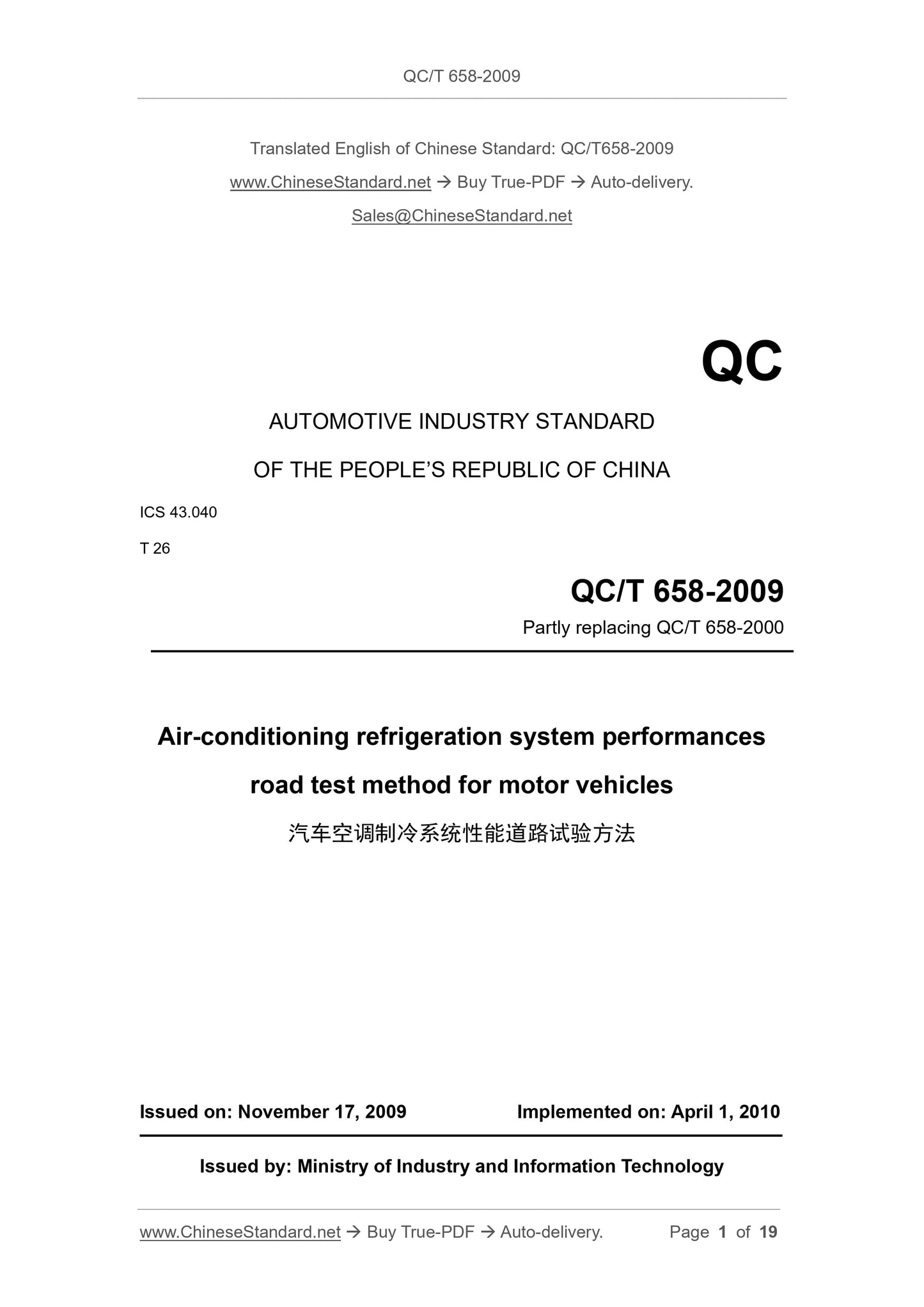

QC/T 658-2009
QC
AUTOMOTIVE INDUSTRY STANDARD
OF THE PEOPLE REPUBLIC OF CHINA
ICS 43.040
T 26
Partly replacing QC/T 658-2000
Air-conditioning refrigeration system performances
road test method for motor vehicles
ISSUED ON. NOVEMBER 17, 2009
IMPLEMENTED ON. APRIL 1, 2010
Issued by. Ministry of Industry and Information Technology
Ministry of Industry and Information Technology of the
PEOPLE Republic of China

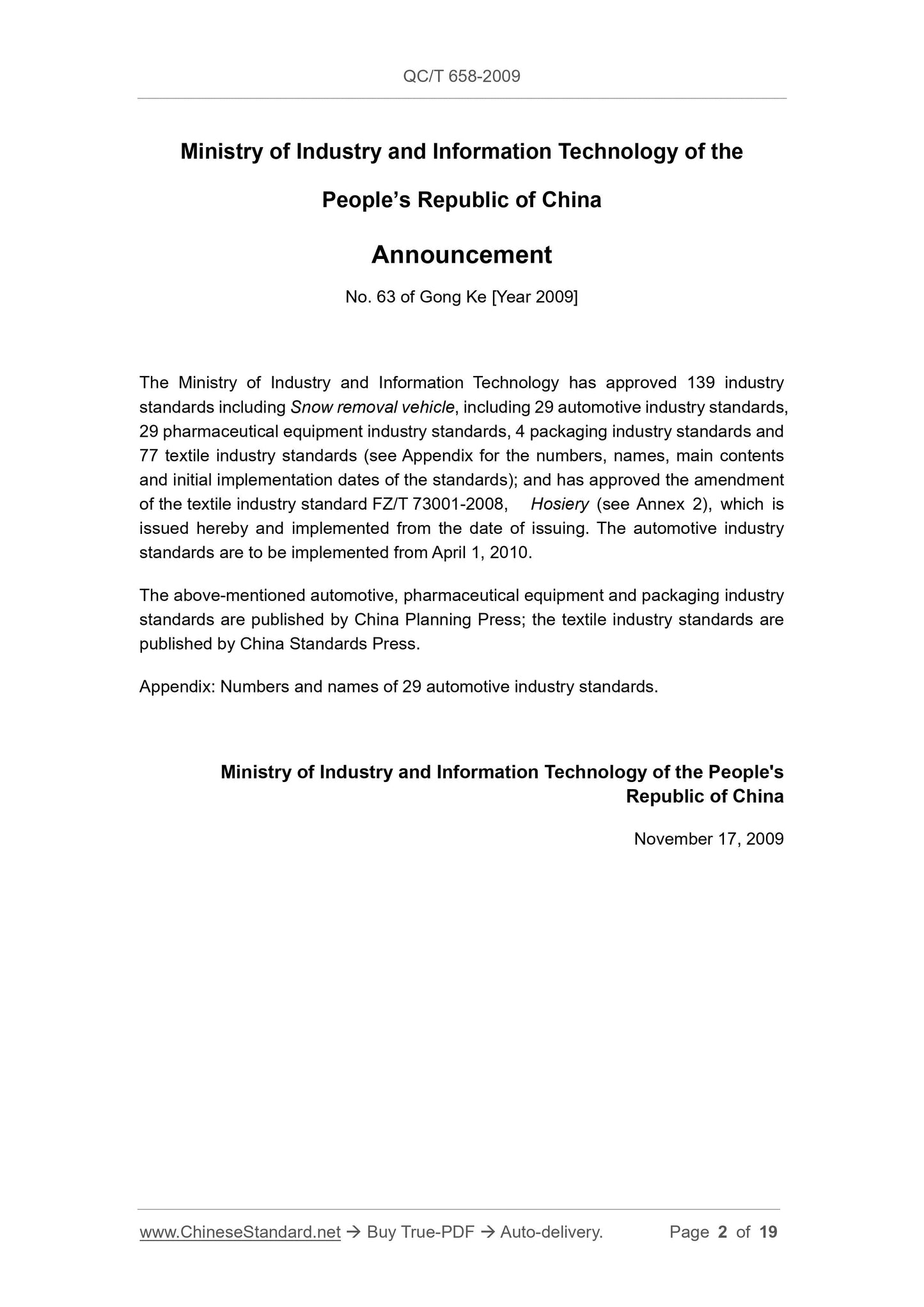

Announcement
No. 63 of Gong Ke [Year 2009]
The Ministry of Industry and Information Technology has approved 139 industry standards including Snow removal vehicle, including 29 automotive industry standards, 29 pharmaceutical equipment industry standards, 4 packaging industry standards and 77 textile industry standards (see Appendix for the numbers, names, main contents and initial implementation dates of the standards); and has approved the amendment of the textile industry standard FZ/T 73001-2008, Hosiery (see Annex 2), which is issued hereby and implemented from the date of issuing. The automotive industry standards are to be implemented from April 1, 2010.
The above-mentioned automotive, pharmaceutical equipment and packaging industry standards are published by China Planning Press; the textile industry standards are published by China Standards Press.
Appendix. Numbers and names of 29 automotive industry standards.
Ministry of Industry and Information Technology of the People's
Republic of China
November 17, 2009

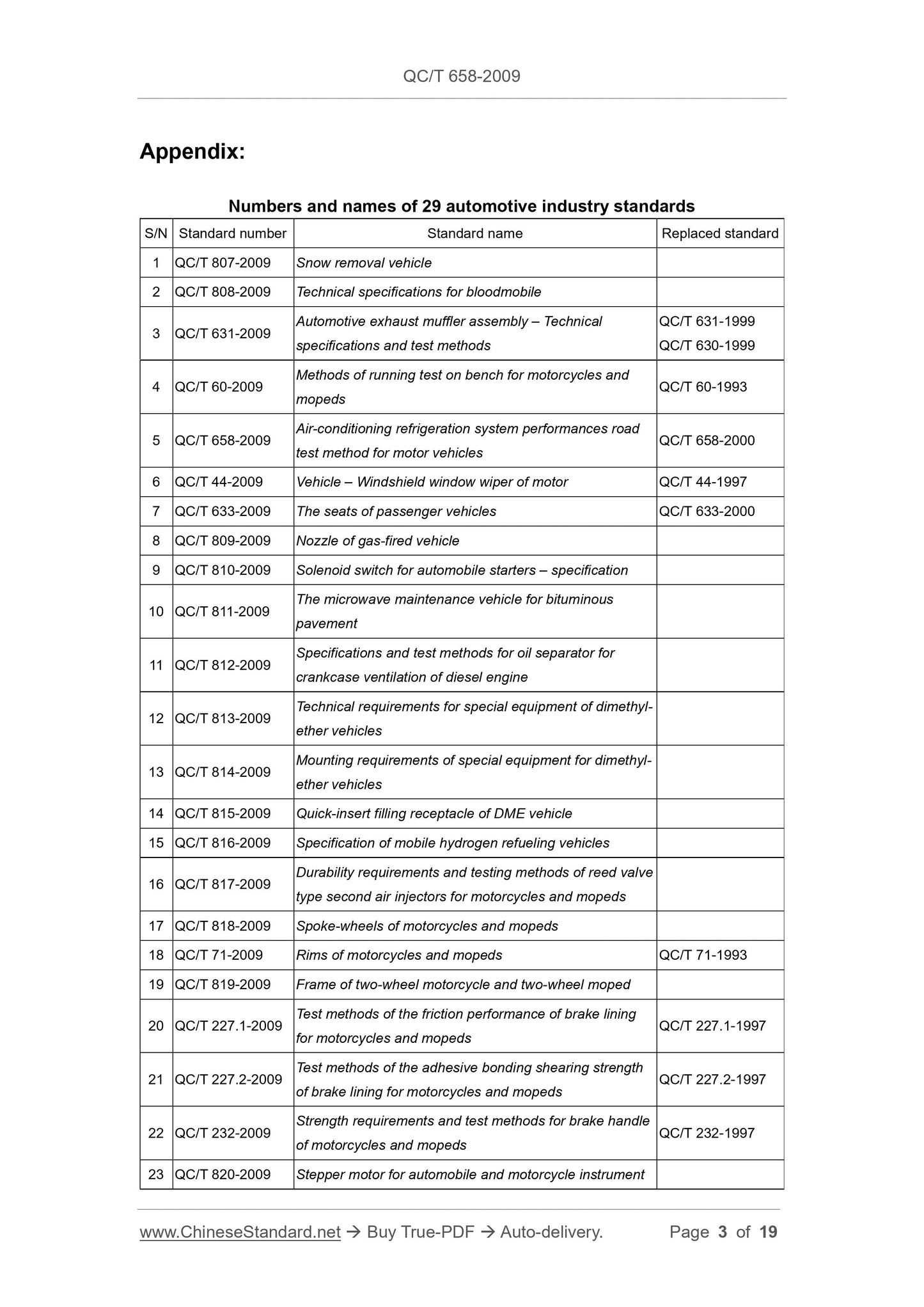

Appendix.

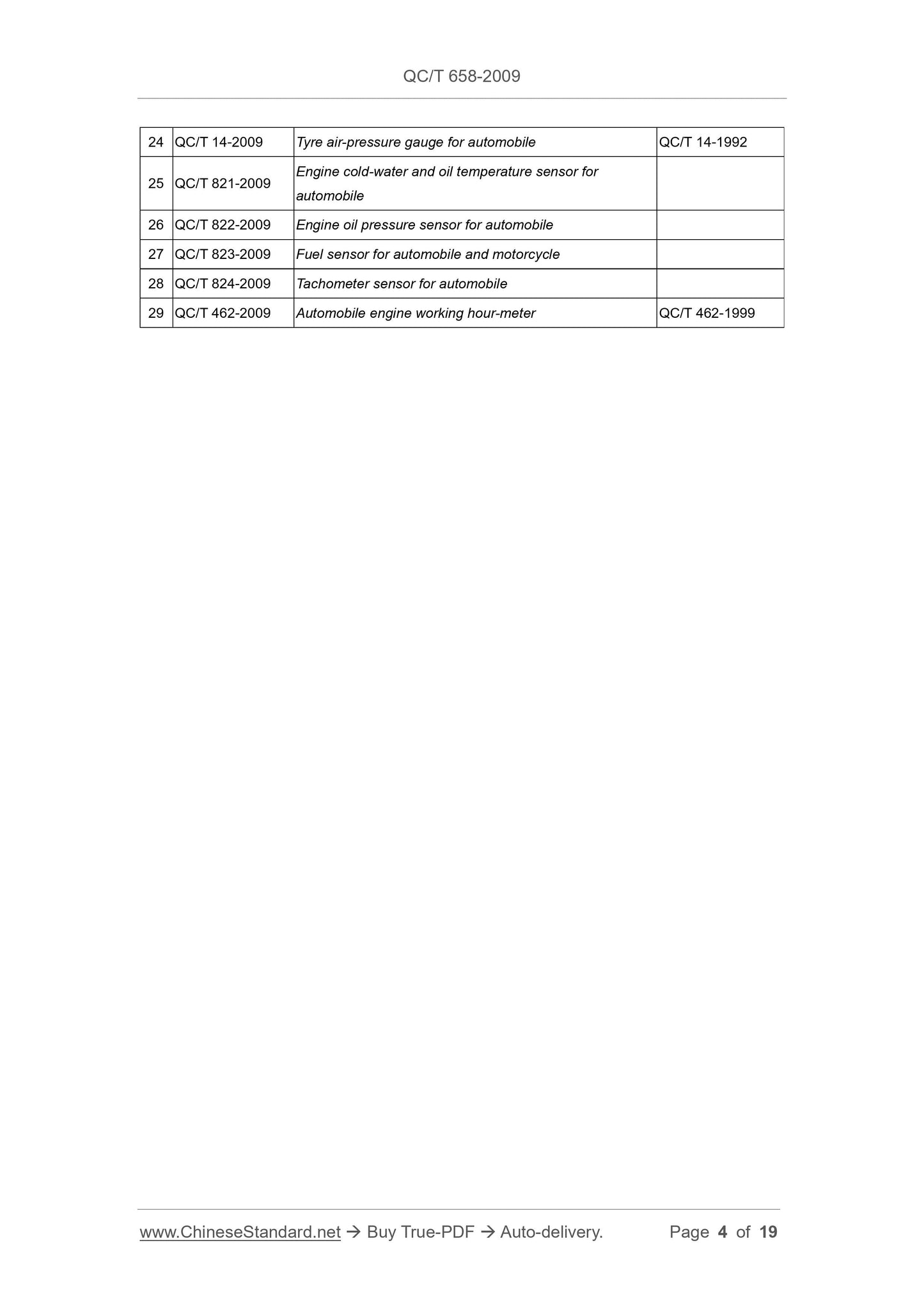

Numbers and names of 29 automotive industry standards
S/N Standard number Standard name Replaced standard
1 QC/T 807-2009 Snow removal vehicle
2 QC/T 808-2009 Technical specifications for bloodmobile
3 QC/T 631-2009 Automotive exhaust muffler assembly ?€? Technical
specifications and test methods
QC/T 631-1999
QC/T 630-1999
4 QC/T 60-2009 Methods of running test on bench for motorcycles and
mopeds
QC/T 60-1993
5 QC/T 658-2009 Air-conditioning refrigeration system performances road test method for motor vehicles
QC/T 658-2000
6 QC/T 44-2009 Vehicle ?€? Windshield window wiper of motor QC/T 44-1997
7 QC/T 633-2009 The seats of passenger vehicles QC/T 633-2000
8 QC/T 809-2009 Nozzle of gas-fired vehicle
9 QC/T 810-2009 Solenoid switch for automobile starters ?€? specification 10 QC/T 811-2009 The microwave maintenance vehicle for bituminous
pavement
11 QC/T 812-2009 Specifications and test methods for oil separator for
crankcase ventilation of diesel engine
12 QC/T 813-2009 Technical requirements for special equipment of dimethyl- ether vehicles
13 QC/T 814-2009 Mounting requirements of special equipment for dimethyl- ether vehicles
14 QC/T 815-2009 Quick-insert filling receptacle of DME vehicle
15 QC/T 816-2009 Specification of mobile hydrogen refueling vehicles
16 QC/T 817-2009 Durability requirements and testing methods of reed valve type second air injectors for motorcycles and mopeds
17 QC/T 818-2009 Spoke-wheels of motorcycles and mopeds
18 QC/T 71-2009 Rims of motorcycles and mopeds QC/T 71-1993
19 QC/T 819-2009 Frame of two-wheel motorcycle and two-wheel moped
20 QC/T 227.1-2009 Test methods of the friction performance of brake lining for motorcycles and mopeds
QC/T 227.1-1997
21 QC/T 227.2-2009 Test methods of the adhesive bonding shearing strength of brake lining for motorcycles and mopeds
QC/T 227.2-1997
22 QC/T 232-2009 Strength requirements and test methods for brake handle of motorcycles and mopeds
QC/T 232-1997

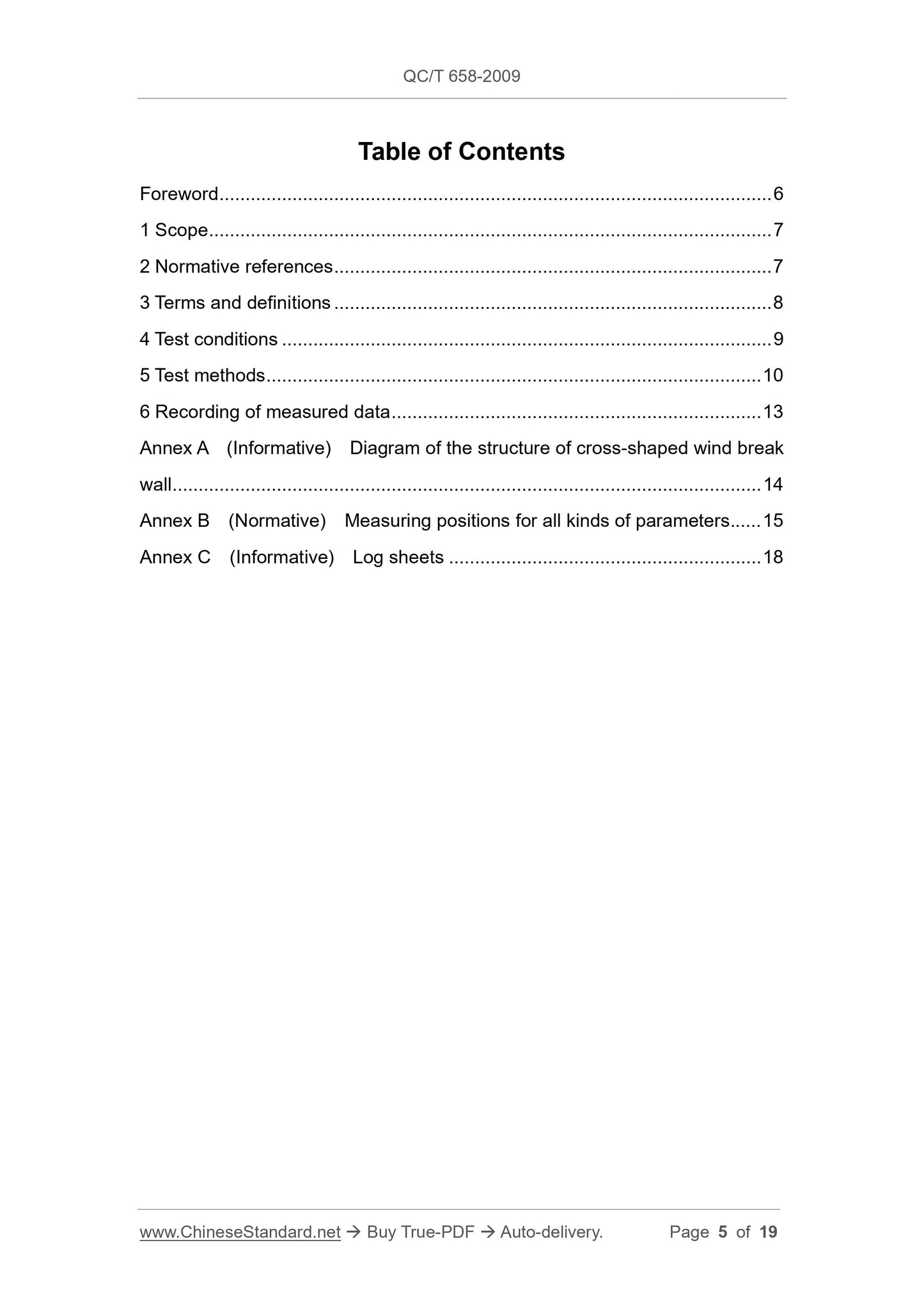

23 QC/T 820-2009 Stepper motor for automobile and motorcycle instrument Table of Contents
Foreword ... 6
1 Scope ... 7
2 Normative references ... 7
3 Terms and definitions ... 8
4 Test conditions ... 9
5 Test methods ... 10
6 Recording of measured data ... 13
Annex A (Informative) Diagram of the structure of cross-shaped wind break wall ... 14
Annex B (Normative) Measuring positions for all kinds of parameters ... 15 Annex C (Informative) Log sheets ... 18
Air-conditioning refrigeration system performances
road test method for motor vehicles

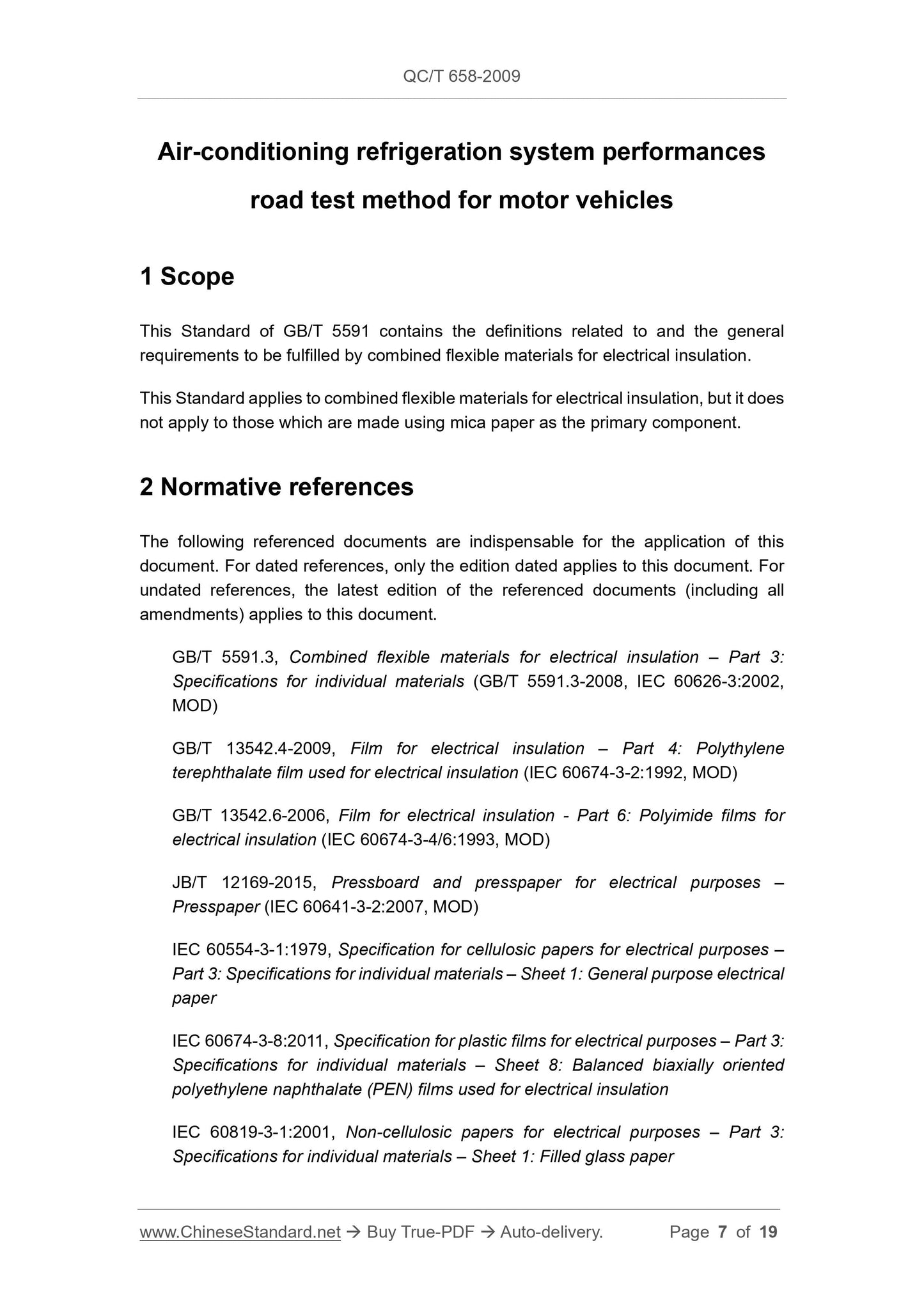

1 Scope
This Standard of GB/T 5591 contains the definitions related to and the general requirements to be fulfilled by combined flexible materials for electrical insulation. This Standard applies to combined flexible materials for electrical insulation, but it does not apply to those which are made using mica paper as the primary component. 2 Normative references
The following referenced documents are indispensable for the application of this document. For dated references, only the edition dated applies to this document. For undated references, the latest edition of the referenced documents (including all amendments) applies to this document.
GB/T 5591.3, Combined flexible materials for electrical insulation ?€? Part 3. Specifications for individual materials (GB/T 5591.3-2008, IEC 60626-3.2002, MOD)
GB/T 13542.4-2009, Film for electrical insulation ?€? Part 4. Polythylene terephthalate film used for electrical insulation (IEC 60674-3-2.1992, MOD) GB/T 13542.6-2006, Film for electrical insulation - Part 6. Polyimide films for electrical insulation (IEC 60674-3-4/6.1993, MOD)
JB/T 12169-2015, Pressboard and presspaper for electrical purposes ?€?
Presspaper (IEC 60641-3-2.2007, MOD)
IEC 60554-3-1.1979, Specification for cellulosic papers for electrical purposes ?€? Part 3. Specifications for individual materials ?€? Sheet 1. General purpose electrical paper
IEC 60674-3-8.2011, Specification for plastic films for electrical purposes ?€? Part 3. Specifications for individual materials ?€? Sheet 8. Balanced biaxially oriented polyethylene naphthalate (PEN) films used for electrical insulation
IEC 60819-3-1.2001, Non-cellulosic papers for electrical purposes ?€? Part 3. Specifications for individual materials ?€? Sheet 1. Filled glass paper
IEC 60819-3-2.2001, Non-cellulosic papers for electrical purposes ?€? Part 3. Specifications for individual materials ?€? Sheet 2. Hybrid inorganic-organic paper IEC 60819-3-3.2008, Non-cellulosic papers for electrical purposes ?€? Part 3. Specifications for individual materials ?€? Sheet 3. Unfilled aramid (aromatic polyamide) papers
IEC 60819-3-4.2001, Non-cellulosic papers for electrical purposes ?€? Part 3. Specifications for individual materials ?€? Sheet 4. Aramid fibre paper containing not more than 50% of mica particles

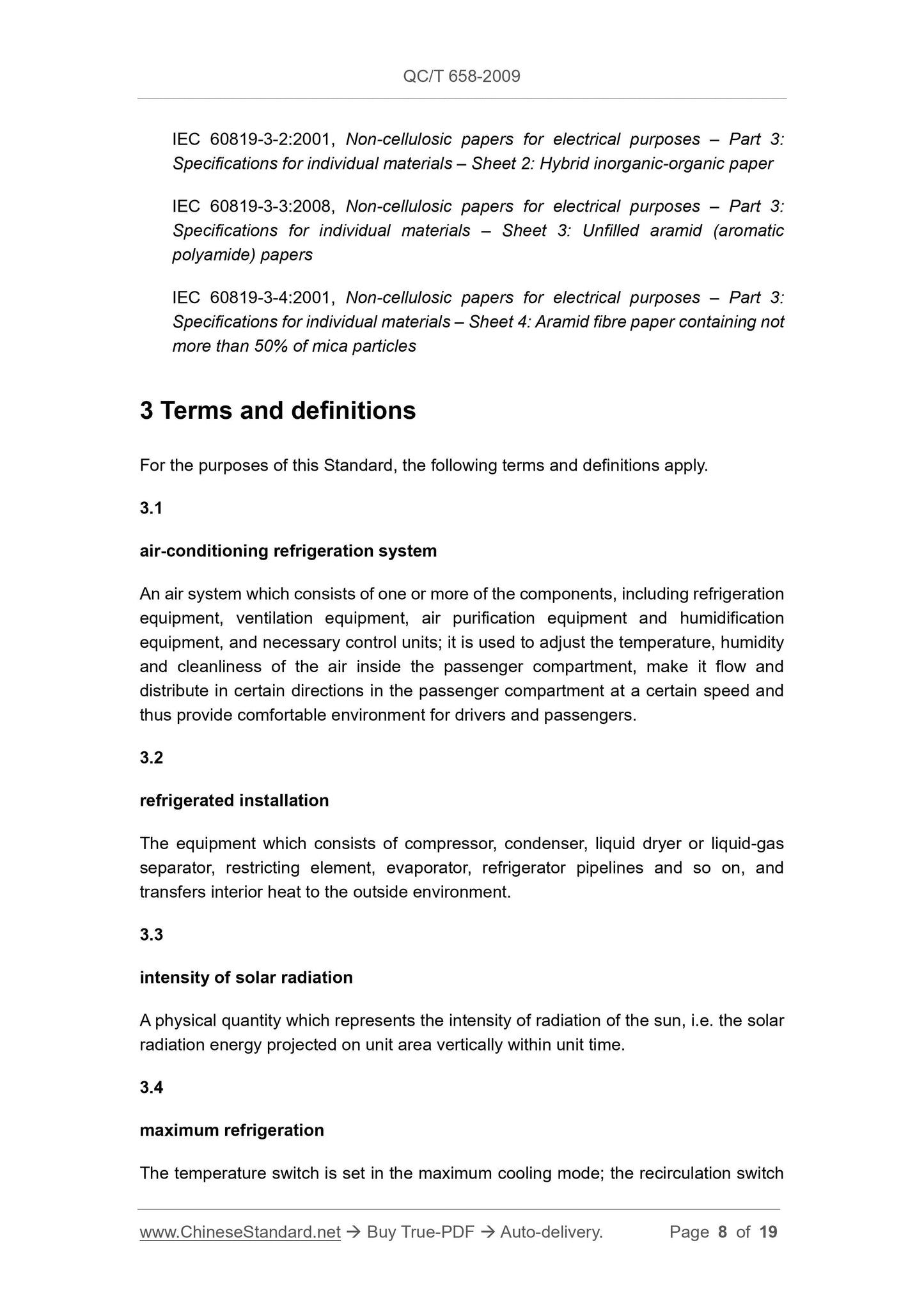

3 Terms and definitions
For the purposes of this Standard, the following terms and definitions apply. 3.1
air-conditioning refrigeration system
An air system which consists of one or more of the components, including refrigeration equipment, ventilation equipment, air purification equipment and humidification equipment, and necessary control units; it is used to adjust the temperature, humidity and cleanliness of the air inside the passenger compartment, make it flow and distribute in certain directions in the passenger compartment at a certain speed and thus provide comfortable environment for drivers and passengers.
3.2
refrigerated installation
The equipment which consists of compressor, condenser, liquid dryer or liquid-gas separator, restricting element, evaporator, refrigerator pipelines and so on, and transfers interior heat to the outside environment.
3.3
intensity of solar radiation
A physical quantity which represents the intensity of radiation of the sun, i.e. the solar radiation energy projected on unit area vertically within unit time.
3.4
maximum refrigeration

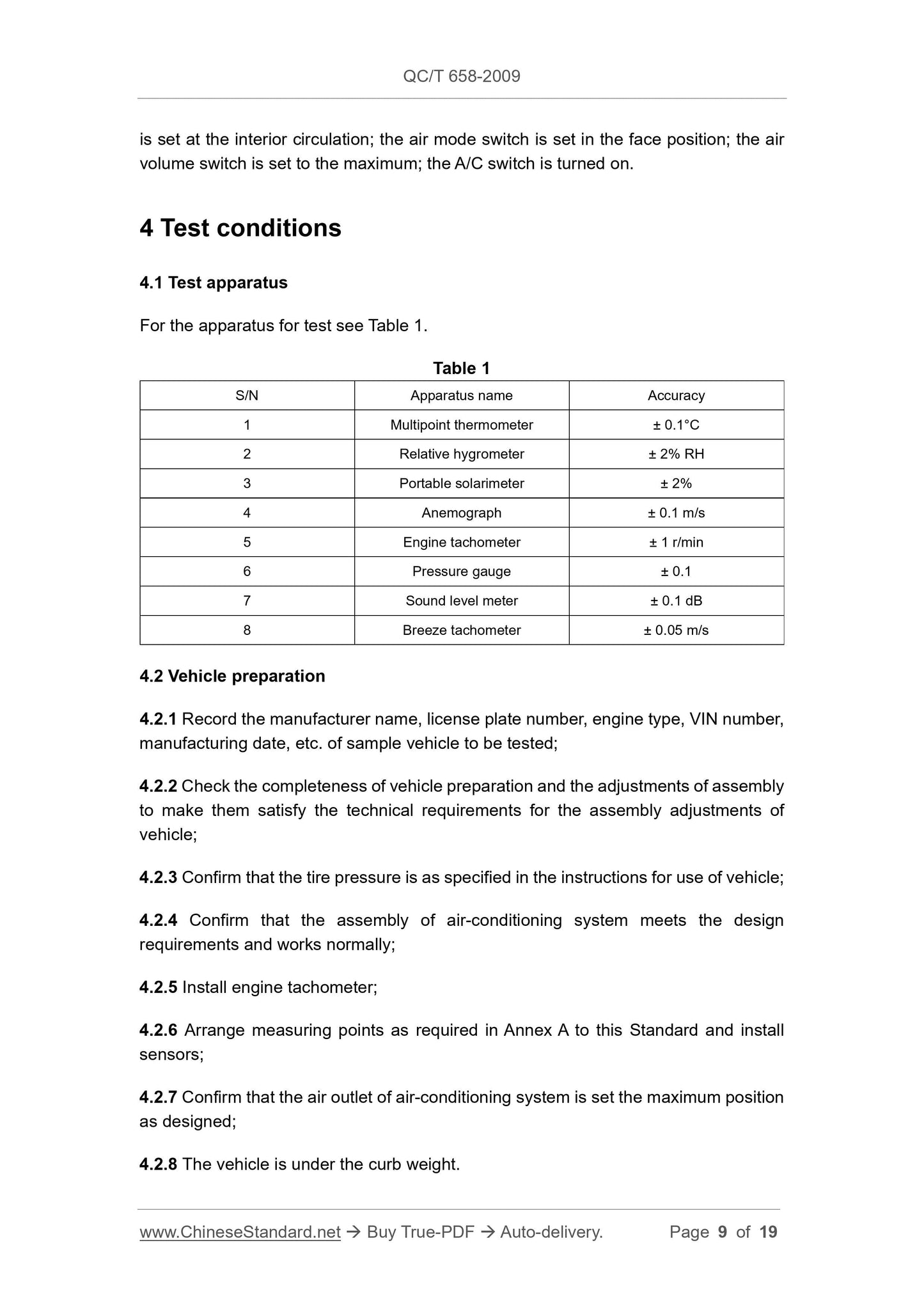

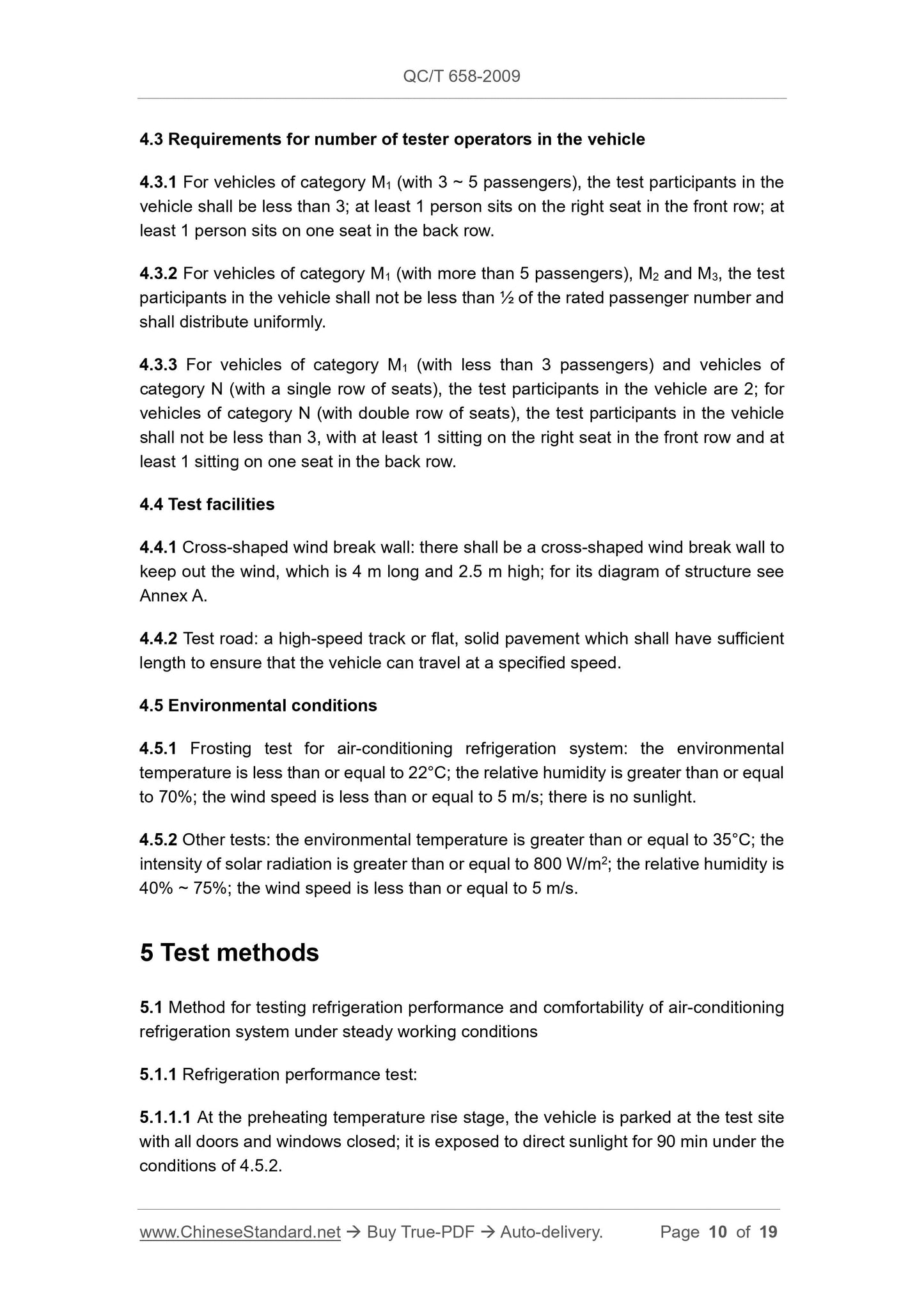

The temperature switch is set in the maximum cooling mode; the recirculation switch 4.3 Requirements for number of tester operators in the vehicle
4.3.1 For vehicles of category M1 (with 3 ~ 5 passengers), the test participants in the vehicle shall be less than 3; at least 1 person sits on the right seat in the front row; at least 1 person sits on one seat in the back row.
4.3.2 For vehicles of category M1 (with more than 5 passengers), M2 and M3, the test participants in the vehicle shall not be less than ?? of the rated passenger number and shall distribute uniformly.
4.3.3 For vehicles of category M1 (with less than 3 passengers) and vehicles of category N (with a single row of seats), the test participants in the vehicle are 2; for vehicles of category N (with double row of seats), the test participants in the vehicle shall not be less than 3, with at least 1 sitting on the right seat in the front row and at least 1 sitting on one seat in the back row.
4.4 Test facilities
4.4.1 Cross-shaped wind break wall. there shall be a cross-shaped wind break wall to keep out the wind, which is 4 m long and 2.5 m high; for its diagram of structure see Annex A.
4.4.2 Test road. a high-speed track or flat, solid pavement which shall have sufficient length to ensure that the vehicle can travel at a specified speed.
4.5 Environmental conditions
4.5.1 Frosting test for air-conditioning refrigeration system. the environmental temperature is less than or equal to 22??C; the relative humidity is greater than or equal to 70%; the wind speed is less than or equal to 5 m/s; there is no sunlight. 4.5.2 Other tests. the environmental temperature is greater than or equal to 35??C; the intensity of solar radiation is greater than or equal to 800 W/m2; the relative humidity is 40% ~ 75%; the wind speed is less than or equal to 5 m/s.
5 Test methods
5.1 Method for testing refrigeration performance and comfortability of air-conditioning refrigeration system under steady working conditions

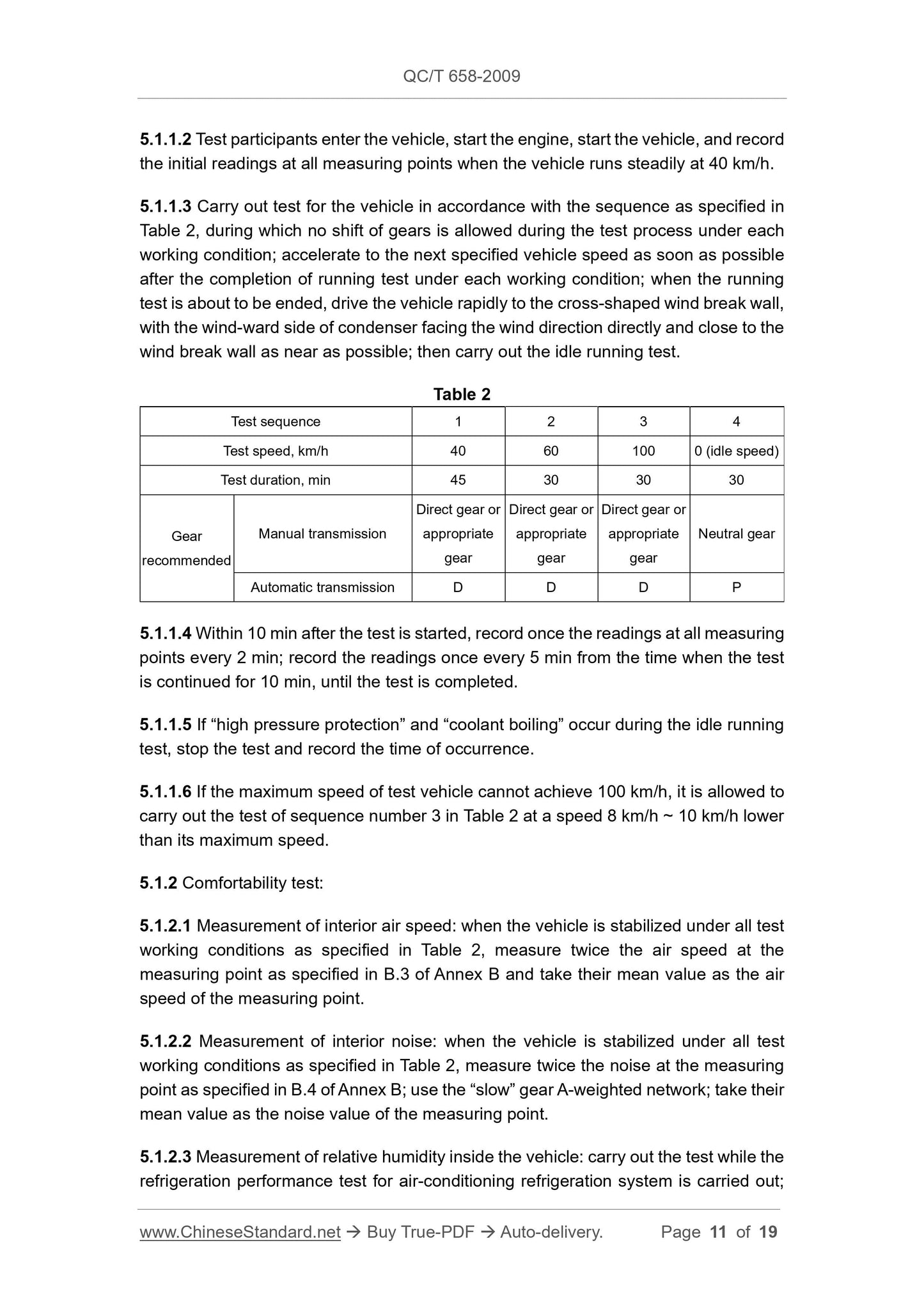

5.1.1 Refrigeration performance test.
5.1.1.1 At the preheating temperature rise stage, the vehicle is parked at the test site with all doors and windows closed; it is exposed to direct sunlight for 90 min under the conditions of 4.5.2.

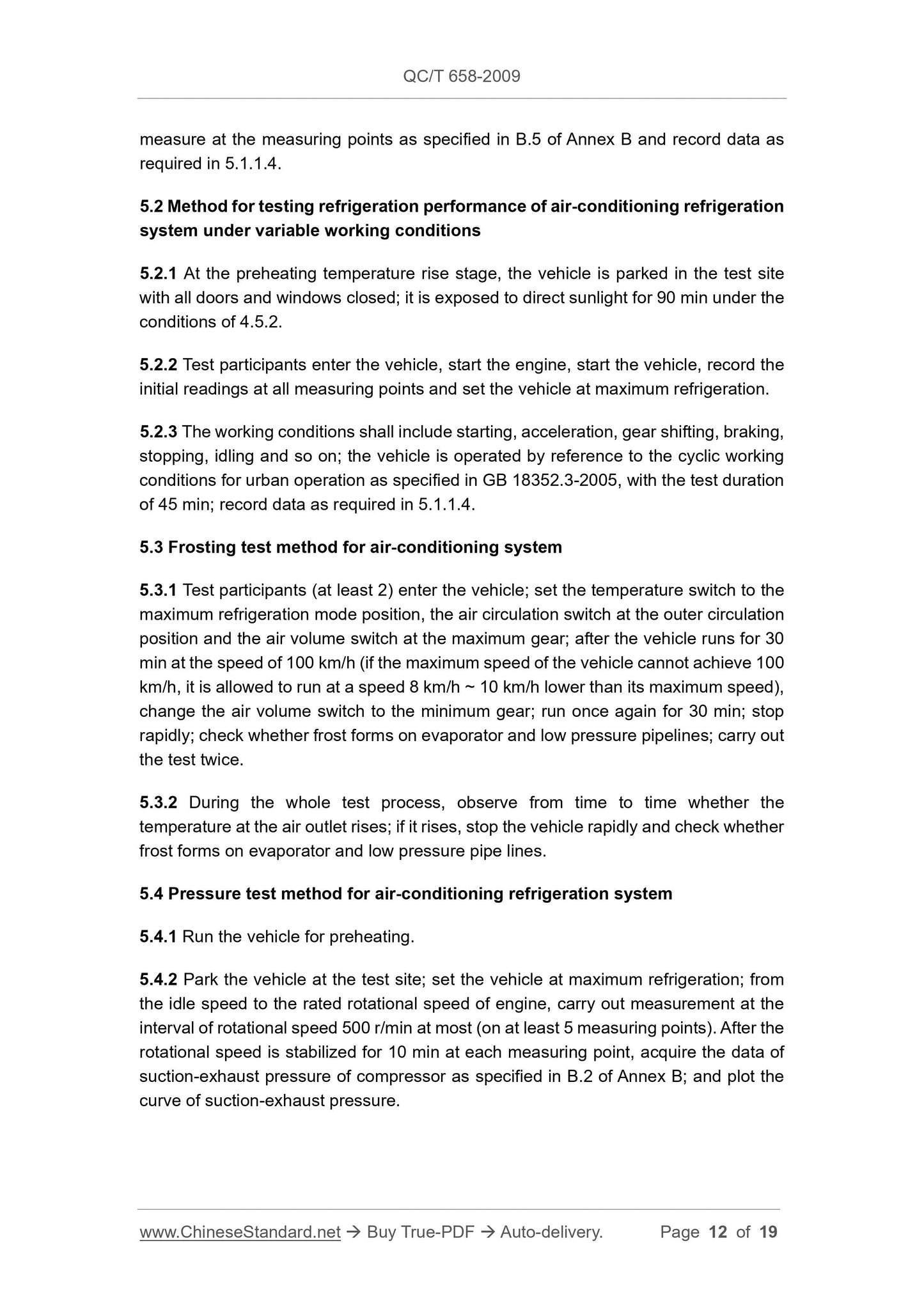

measure at the measuring points as specified in B.5 of Annex B and record data as required in 5.1.1.4.
5.2 Method for testing refrigeration performance of air-conditioning refrigeration system under variable working conditions
5.2.1 At the preheating temperature rise stage, the vehicle is parked in the test site with all doors and windows closed; it is exposed to direct sunlight for 90 min under the conditions of 4.5.2.
5.2.2 Test participants enter the vehicle, start the engine, start the vehicle, record the initial readings at all measuring points and set the vehicle at maximum refrigeration. 5.2.3 The working conditions shall include starting, acceleration, gear shifting, braking, stopping, idling and so on; the vehicle is operated by reference to the cyclic working conditions for urban operation as specified in GB 18352.3-2005, with the test duration of 45 min; record data as required in 5.1.1.4.
5.3 Frosting test method for air-conditioning system
5.3.1 Test participants (at least 2) enter the vehicle; set the temperature switch to the maximum refrigeration mode position, the air circulation switch at the outer circulation position and the air volume switch at the maximum gear; after the vehicle runs for 30 min at the speed of 100 km/h (if the maximum speed of the vehicle cannot achieve 100 km/h, it is allowed to run at a speed 8 km/h ~ 10 km/h lower than its maximum speed), change the air volume switch to the minimum gear; run once again for 30 min; stop rapidly; check whether frost forms on evaporator and low pressure pipelines; carry out the test twice.
5.3.2 During the whole test process, observe from time to time whether the temperature at the air outlet rises; if it rises, stop the vehicle rapidly and check whether frost forms on evaporator and low pressure pipe lines.
5.4 Pressure test method for air-conditioning refrigeration system
5.4.1 Run the vehicle for preheating.
5.4.2 Park the vehicle at the test site; set the vehicle at maximum refrigeration; from the idle speed to the rated rotational speed of engine, carry out measurement at the interval of rotational speed 500 r/min at most (on at least 5 measuring points). After the rotational speed is stabilized for 10 min at each measuring point, acquire the data of suction-exhaust pressure of compressor as specified in B.2 of Annex B; and plot the curve of suction-exhaust pressure.
Annex C
(Informative)
Log sheets
Manufacturer name. Plate number.
Vehicle type. Engine type.
VIP number. Manufacturing date.
Test start time. Test end time.
Rated passenger number. Test passenger number.
Test site. Weather description.
Environmental temperature. ??C Solar radiation intensity. W/m2
Relative humidity. % Air speed. m/s
C.1 Measured results of refrigeration performance during running at a constant speed
Table C.1
S/N Measuring point 0 min 2 min 4 min 6 min 8 min 10 min 15 min ...
C.2 Measured results of air speed inside the vehicle
Table C.2
Vehicle speed
Measured result (m/s)
Idle
speed
Mean
value
(km/h)
Mean
value
(km/h)
