QC/T 658-2000: Automobile Air-Conditioned Vehicle Cooling Performance Test Method

This Standard specifies the test method for cooling performance of automotive air conditioners under the full-vehicle state and thermal environment. It specifies three test methods, namely, indoor environment simulation, outdoor static and outdoor driving. These three methods are independent from one another, one or more methods are allowed to be selected for testing.

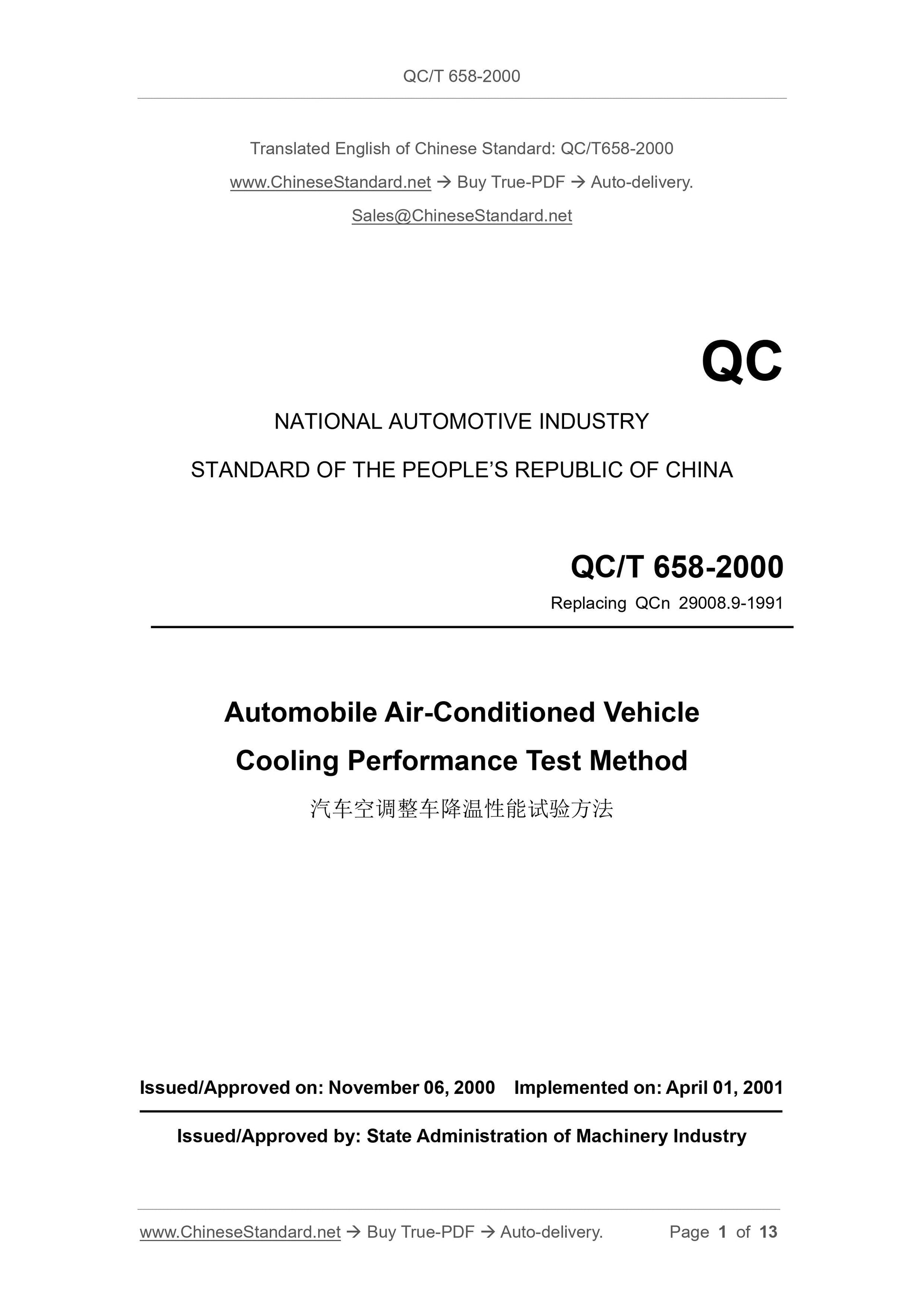

QC/T 658-2000
QC
NATIONAL AUTOMOTIVE INDUSTRY
STANDARD OF THE PEOPLE REPUBLIC OF CHINA
Replacing QCn 29008.9-1991
Automobile Air-Conditioned Vehicle
Cooling Performance Test Method
ISSUED/APPROVED ON. NOVEMBER 06, 2000
IMPLEMENTED ON. APRIL 01, 2001
Issued/Approved by. State Administration of Machinery Industry

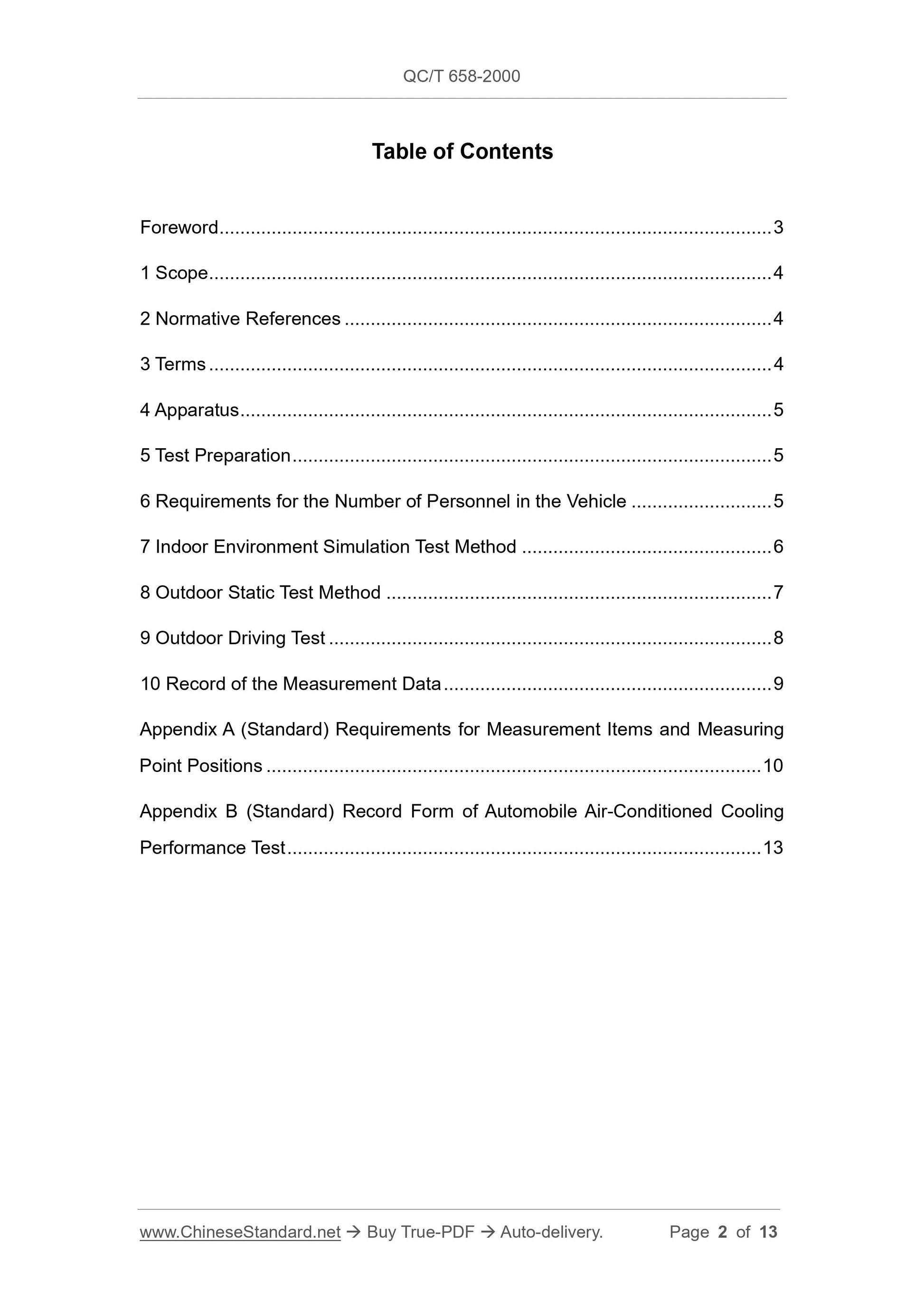

Table of Contents
Foreword ... 3
1 Scope ... 4
2 Normative References ... 4
3 Terms ... 4
4 Apparatus ... 5
5 Test Preparation ... 5
6 Requirements for the Number of Personnel in the Vehicle ... 5

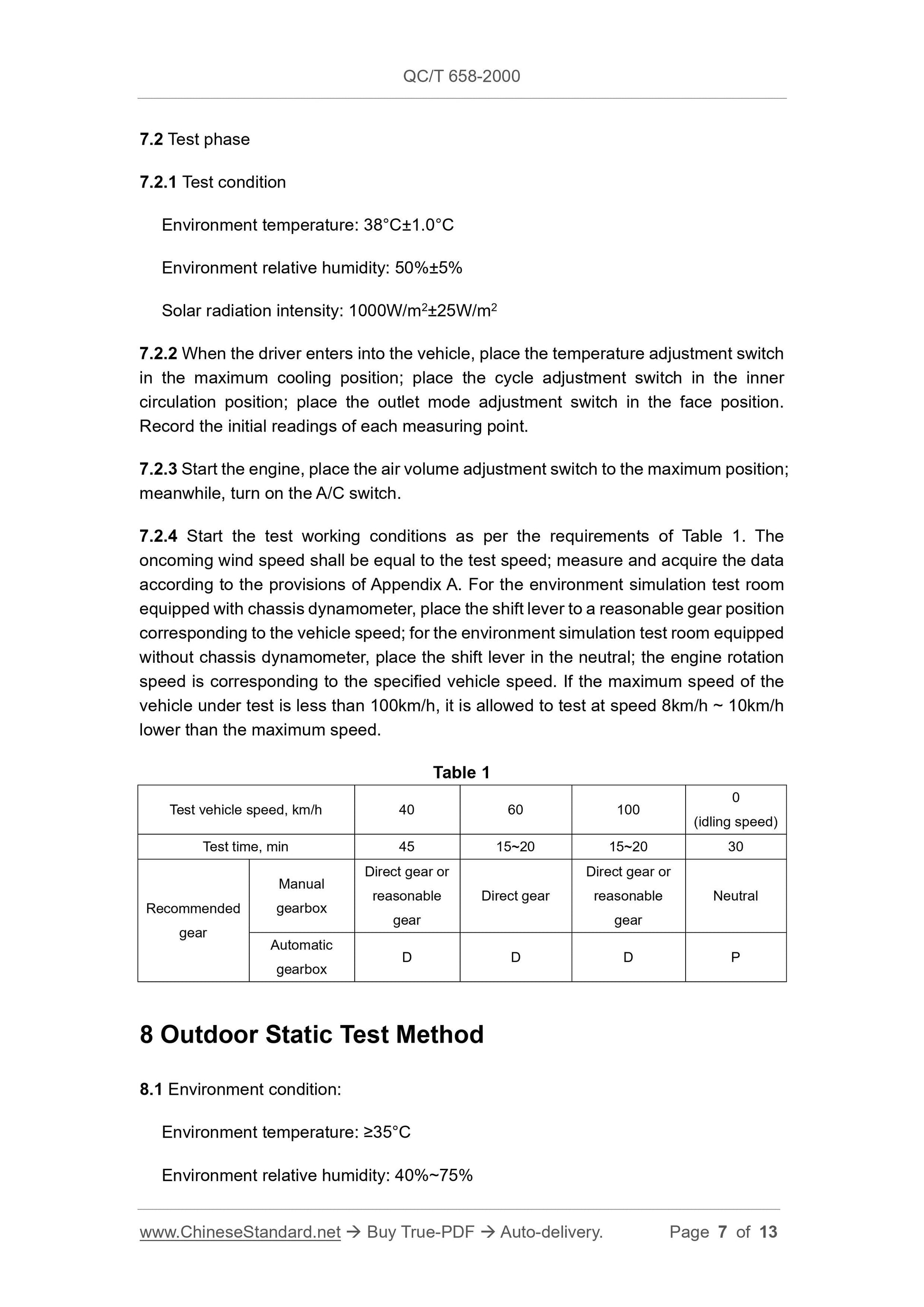

7 Indoor Environment Simulation Test Method ... 6
8 Outdoor Static Test Method ... 7

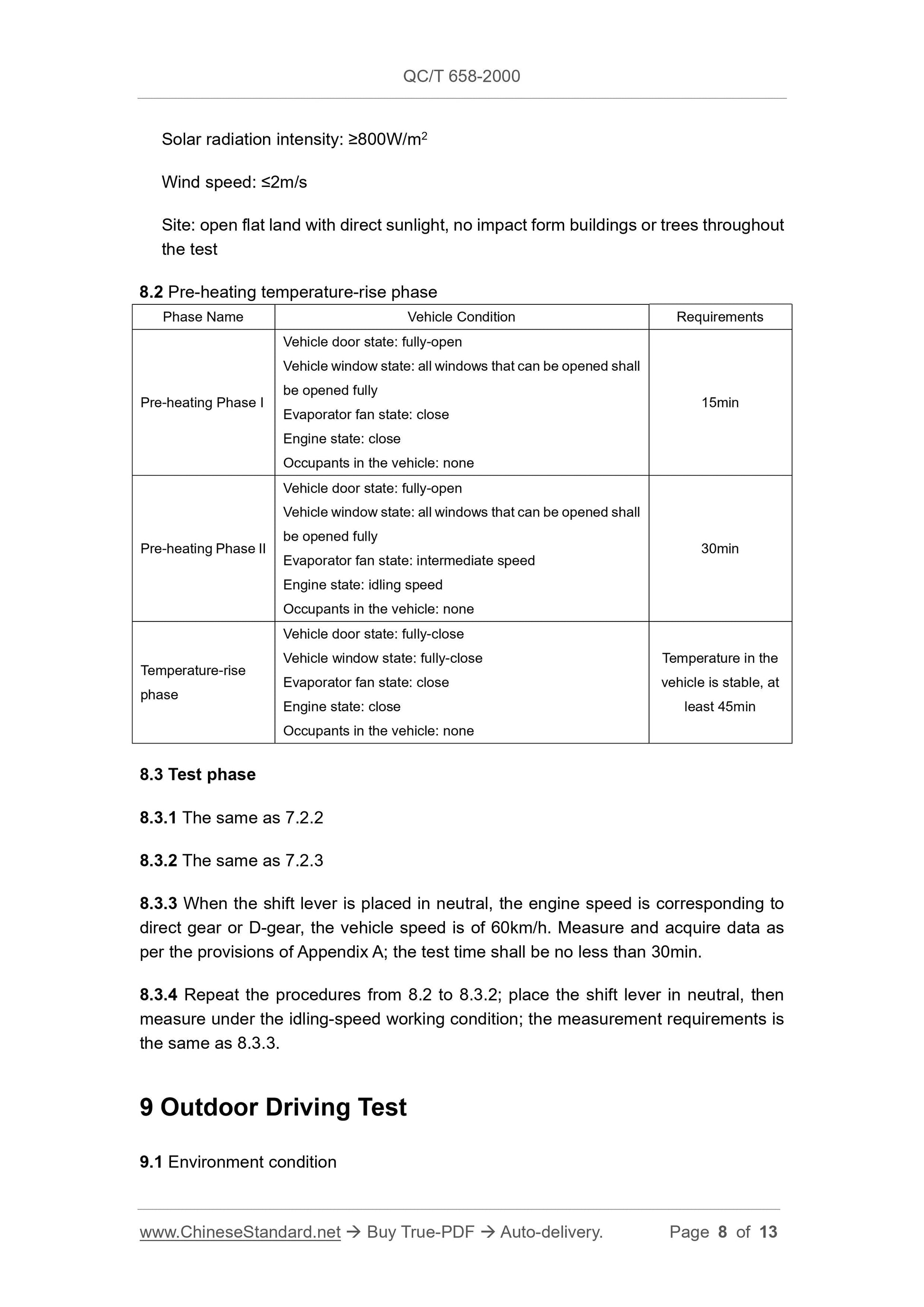

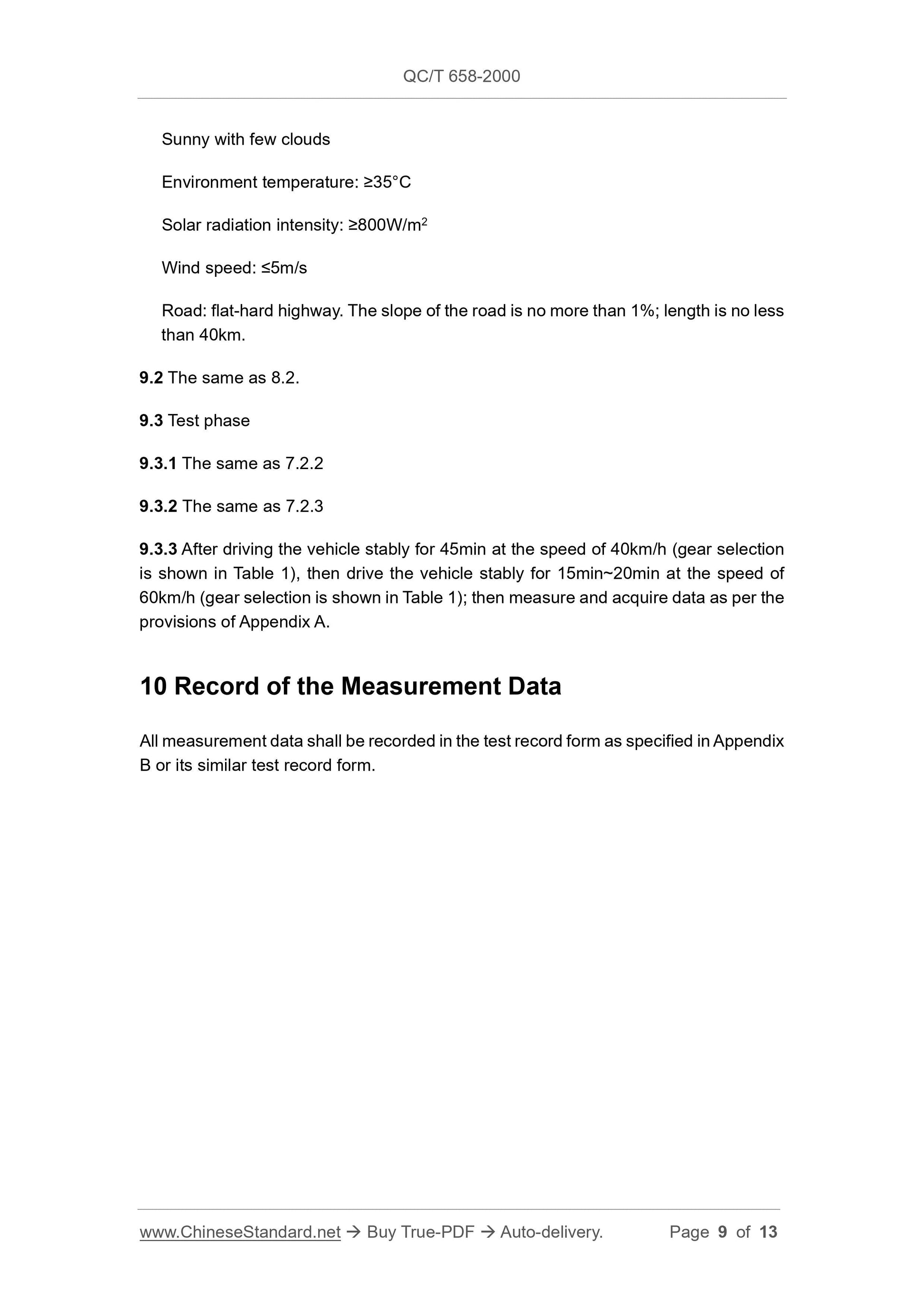

9 Outdoor Driving Test ... 8
10 Record of the Measurement Data ... 9
Appendix A (Standard) Requirements for Measurement Items and Measuring
Point Positions ... 10
Appendix B (Standard) Record Form of Automobile Air-Conditioned Cooling Performance Test ... 13

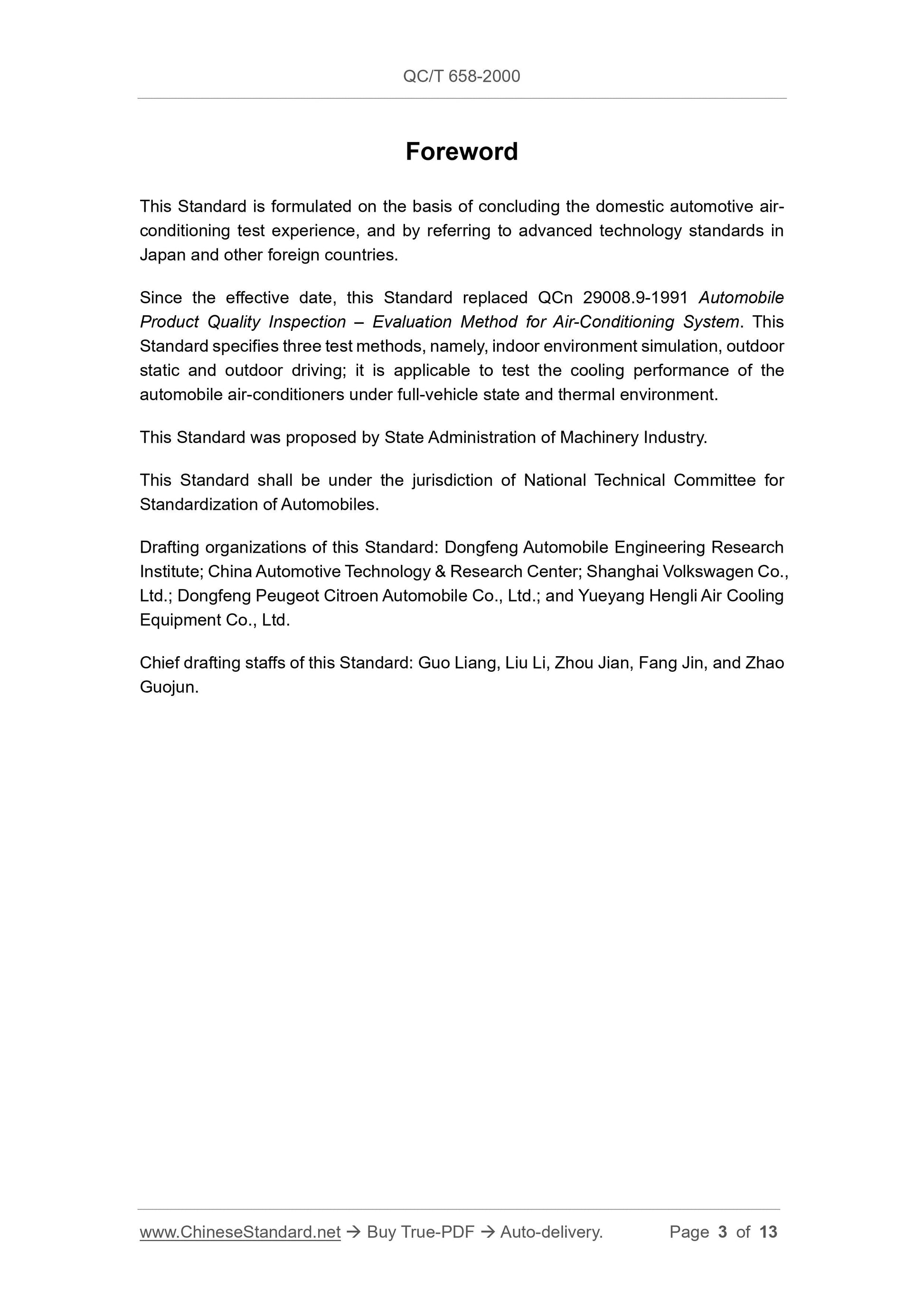

Foreword
This Standard is formulated on the basis of concluding the domestic automotive air- conditioning test experience, and by referring to advanced technology standards in Japan and other foreign countries.
Since the effective date, this Standard replaced QCn 29008.9-1991 Automobile Product Quality Inspection ?€? Evaluation Method for Air-Conditioning System. This Standard specifies three test methods, namely, indoor environment simulation, outdoor static and outdoor driving; it is applicable to test the cooling performance of the automobile air-conditioners under full-vehicle state and thermal environment. This Standard was proposed by State Administration of Machinery Industry. This Standard shall be under the jurisdiction of National Technical Committee for Standardization of Automobiles.
Drafting organizations of this Standard. Dongfeng Automobile Engineering Research Institute; China Automotive Technology and Research Center; Shanghai Volkswagen Co., Ltd.; Dongfeng Peugeot Citroen Automobile Co., Ltd.; and Yueyang Hengli Air Cooling Equipment Co., Ltd.
Chief drafting staffs of this Standard. Guo Liang, Liu Li, Zhou Jian, Fang Jin, and Zhao Guojun.

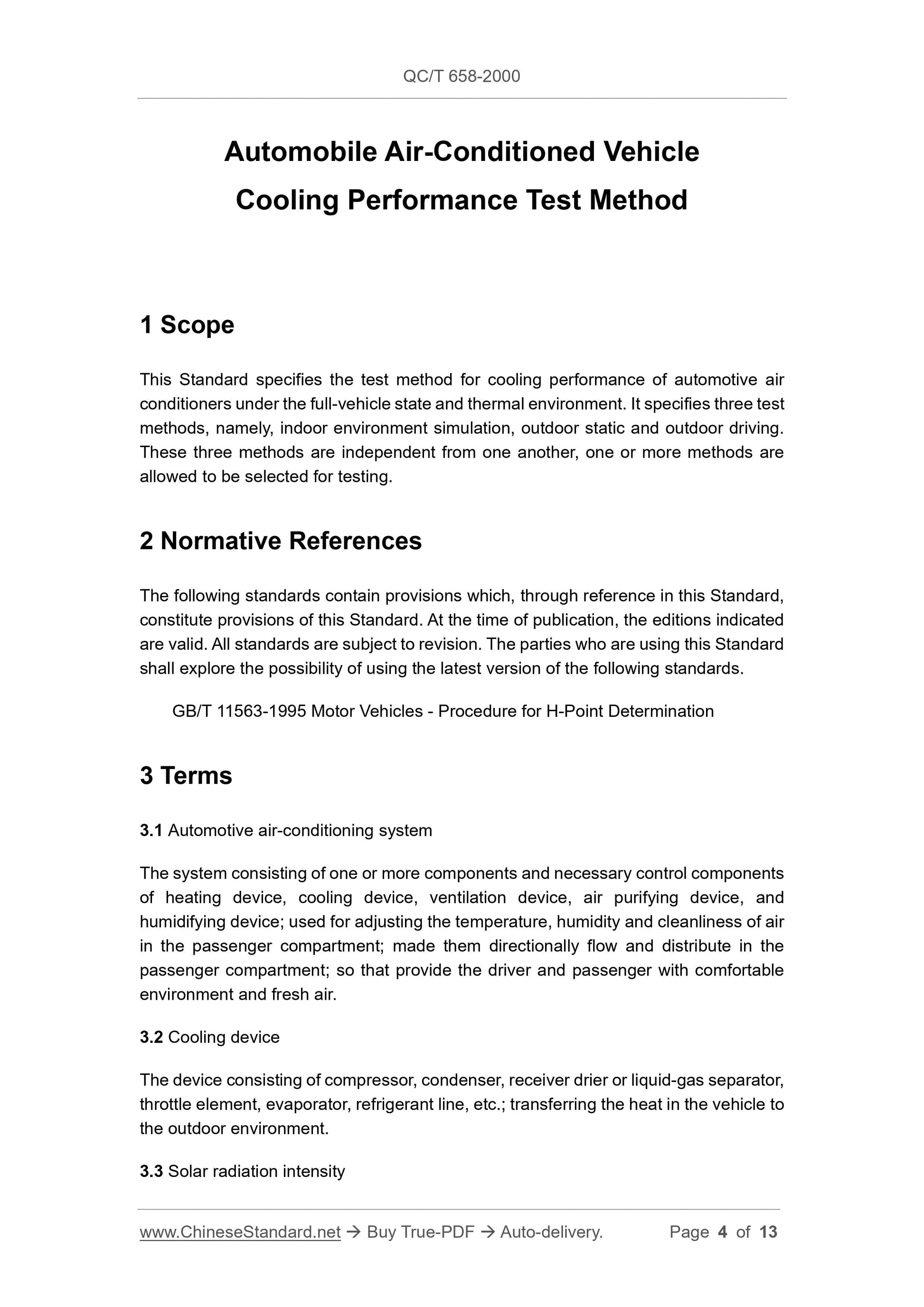

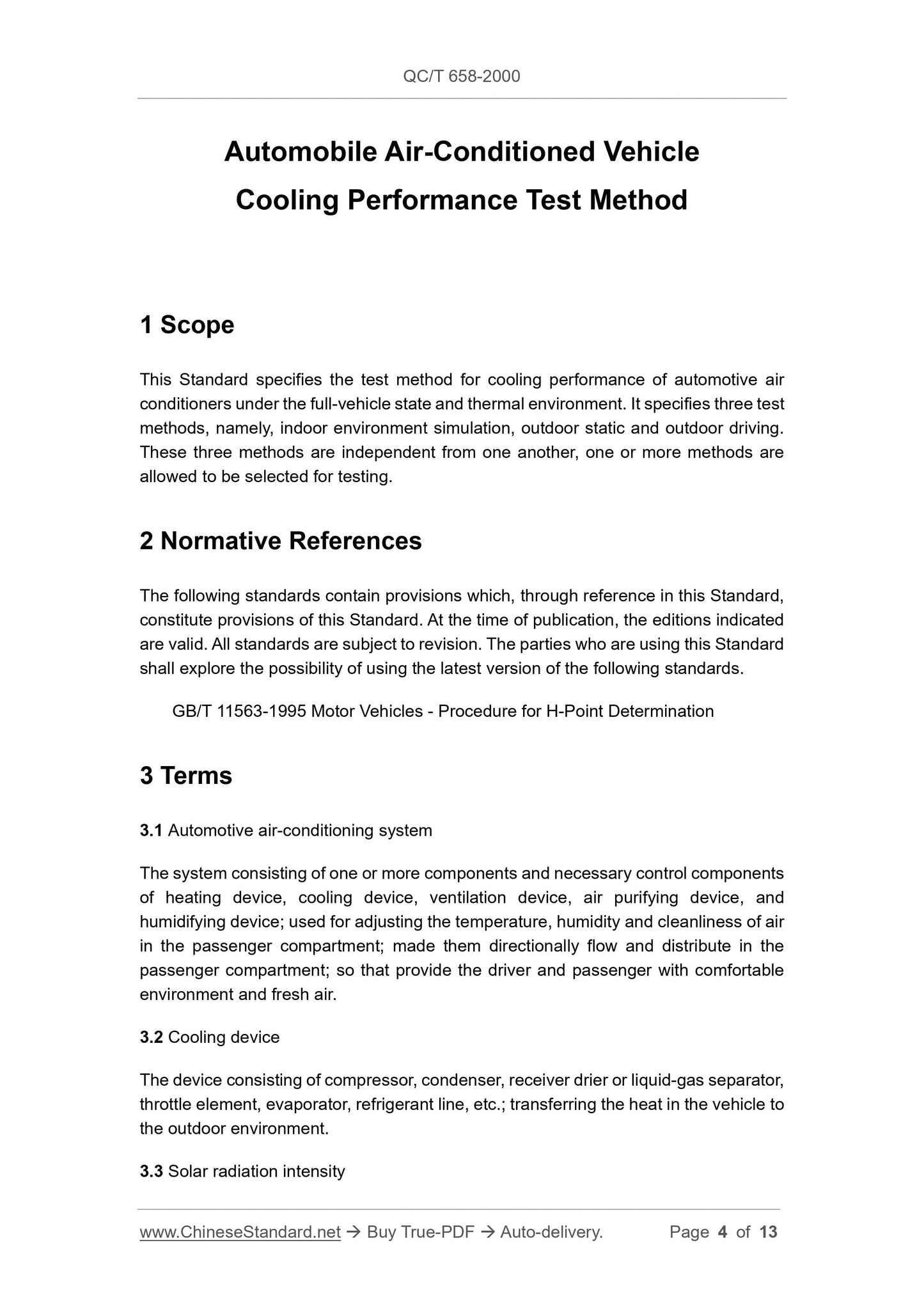

Automobile Air-Conditioned Vehicle
Cooling Performance Test Method
1 Scope
This Standard specifies the test method for cooling performance of automotive air conditioners under the full-vehicle state and thermal environment. It specifies three test methods, namely, indoor environment simulation, outdoor static and outdoor driving. These three methods are independent from one another, one or more methods are allowed to be selected for testing.
2 Normative References
The following standards contain provisions which, through reference in this Standard, constitute provisions of this Standard. At the time of publication, the editions indicated are valid. All standards are subject to revision. The parties who are using this Standard shall explore the possibility of using the latest version of the following standards. GB/T 11563-1995 Motor Vehicles - Procedure for H-Point Determination
3 Terms
3.1 Automotive air-conditioning system
The system consisting of one or more components and necessary control components of heating device, cooling device, ventilation device, air purifying device, and humidifying device; used for adjusting the temperature, humidity and cleanliness of air in the passenger compartment; made them directionally flow and distribute in the passenger compartment; so that provide the driver and passenger with comfortable environment and fresh air.
3.2 Cooling device
The device consisting of compressor, condenser, receiver drier or liquid-gas separator, throttle element, evaporator, refrigerant line, etc.; transferring the heat in the vehicle to the outdoor environment.
3.3 Solar radiation intensity
The radiant power illuminated at a bin on a point of the surface is divided by the area of the bin.

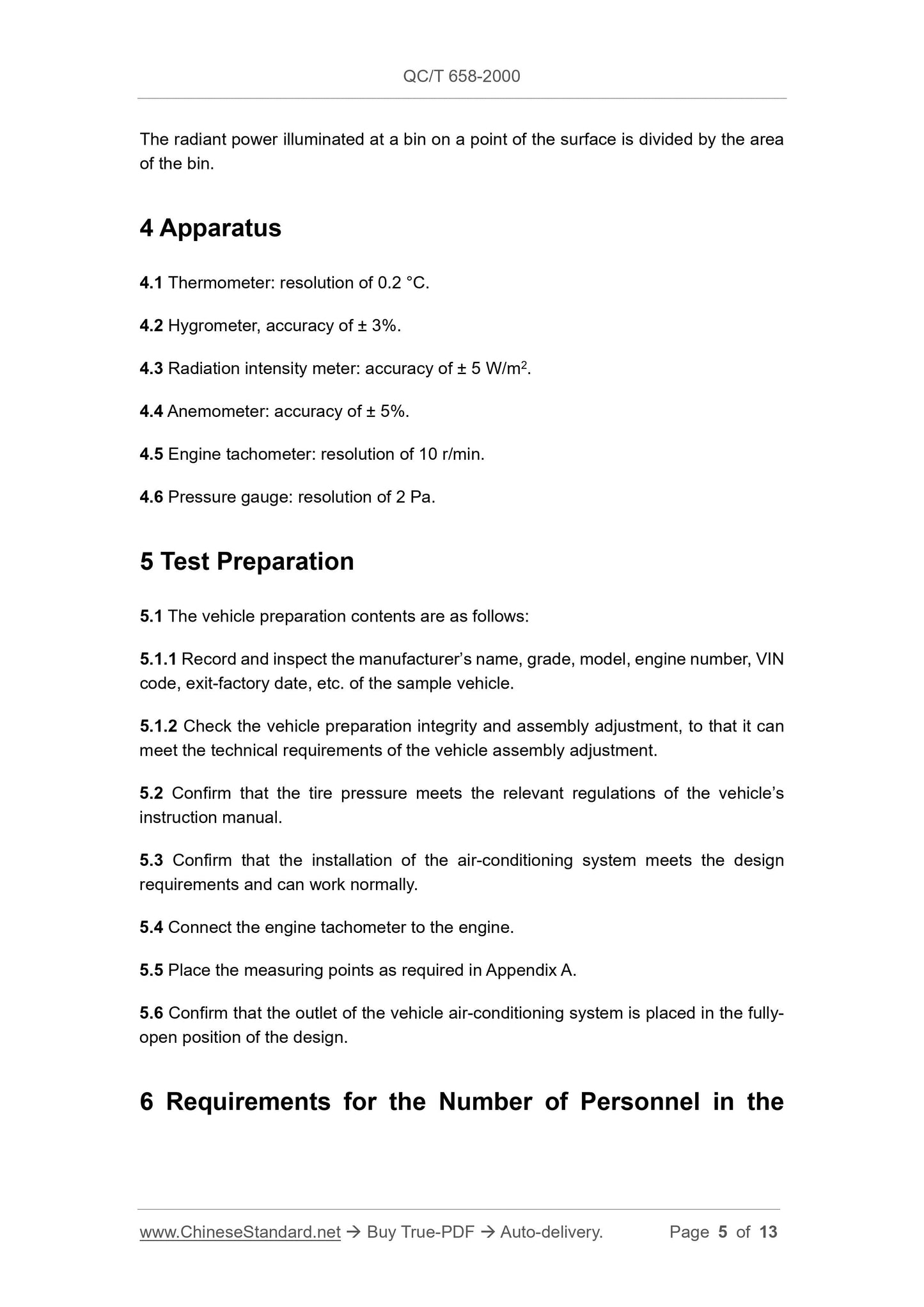

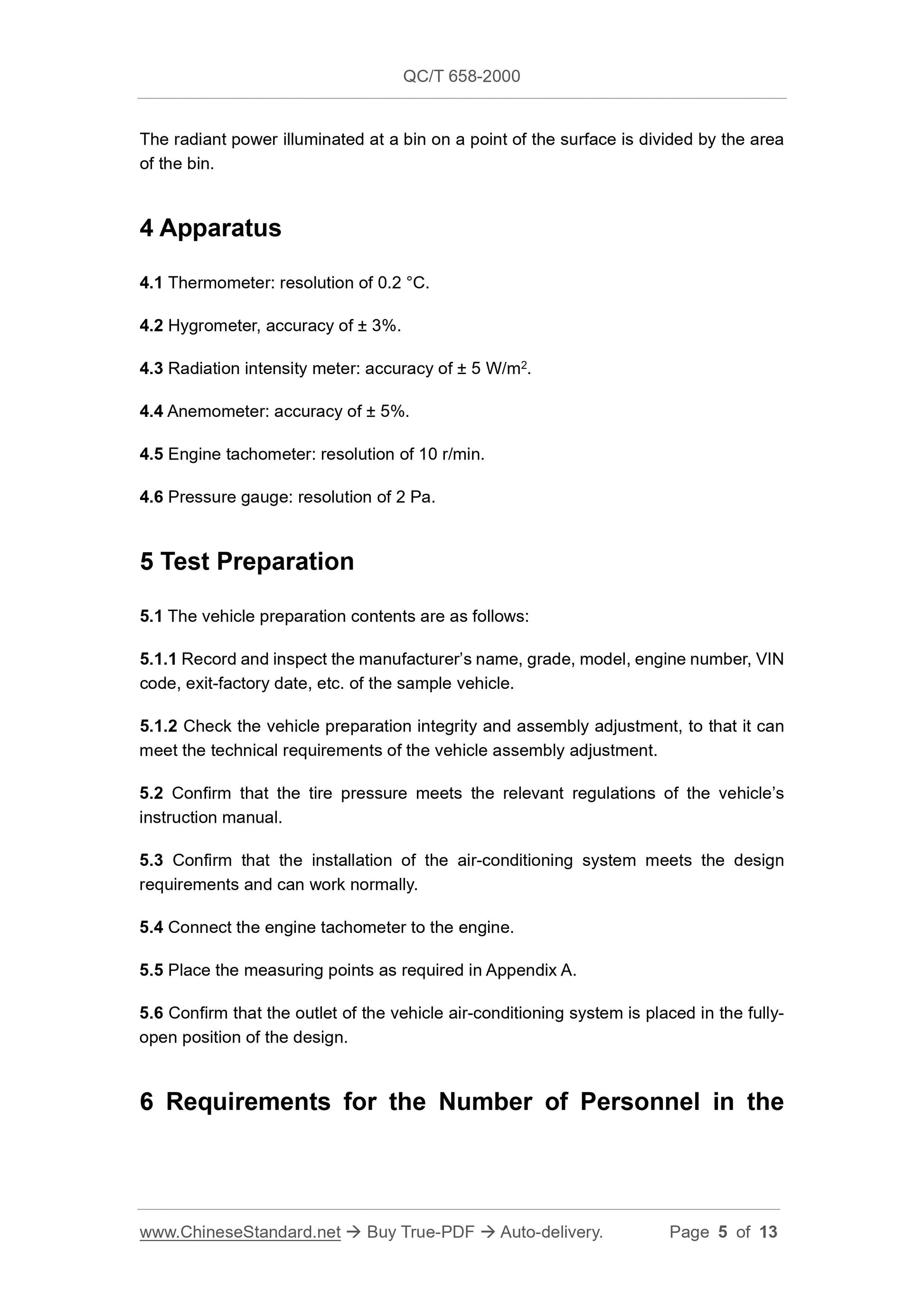

4 Apparatus
4.1 Thermometer. resolution of 0.2 ??C.
4.2 Hygrometer, accuracy of ?? 3%.
4.3 Radiation intensity meter. accuracy of ?? 5 W/m2.
4.4 Anemometer. accuracy of ?? 5%.
4.5 Engine tachometer. resolution of 10 r/min.
4.6 Pressure gauge. resolution of 2 Pa.
5 Test Preparation
5.1 The vehicle preparation contents are as follows.
5.1.1 Record and inspect the manufacturer?€?s name, grade, model, engine number, VIN code, exit-factory date, etc. of the sample vehicle.
5.1.2 Check the vehicle preparation integrity and assembly adjustment, to that it can meet the technical requirements of the vehicle assembly adjustment.
5.2 Confirm that the tire pressure meets the relevant regulations of the vehicle?€?s instruction manual.
5.3 Confirm that the installation of the air-conditioning system meets the design requirements and can work normally.
5.4 Connect the engine tachometer to the engine.
5.5 Place the measuring points as required in Appendix A.
5.6 Confirm that the outlet of the vehicle air-conditioning system is placed in the fully- open position of the design.

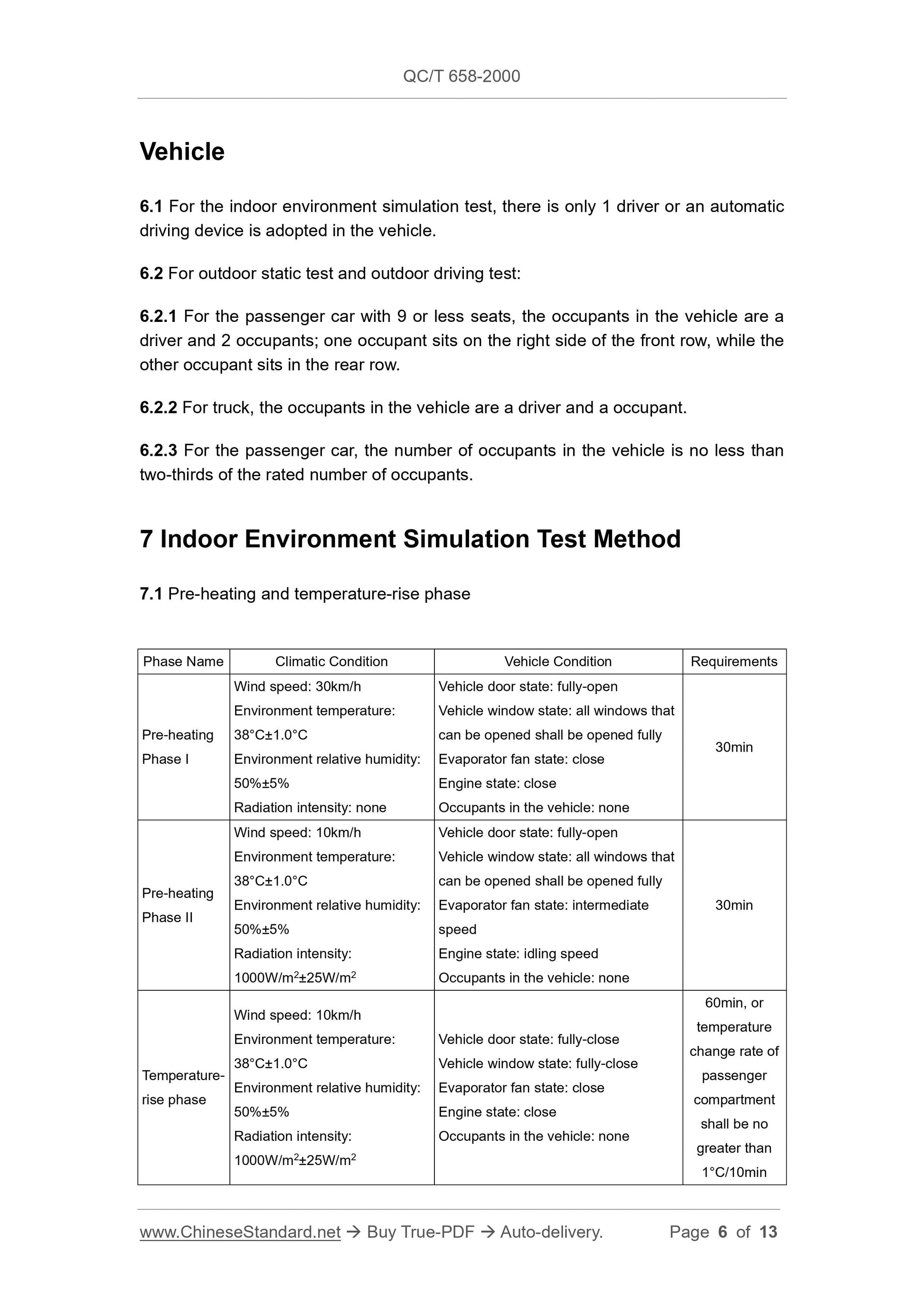

6 Requirements for the Number of Personnel in the

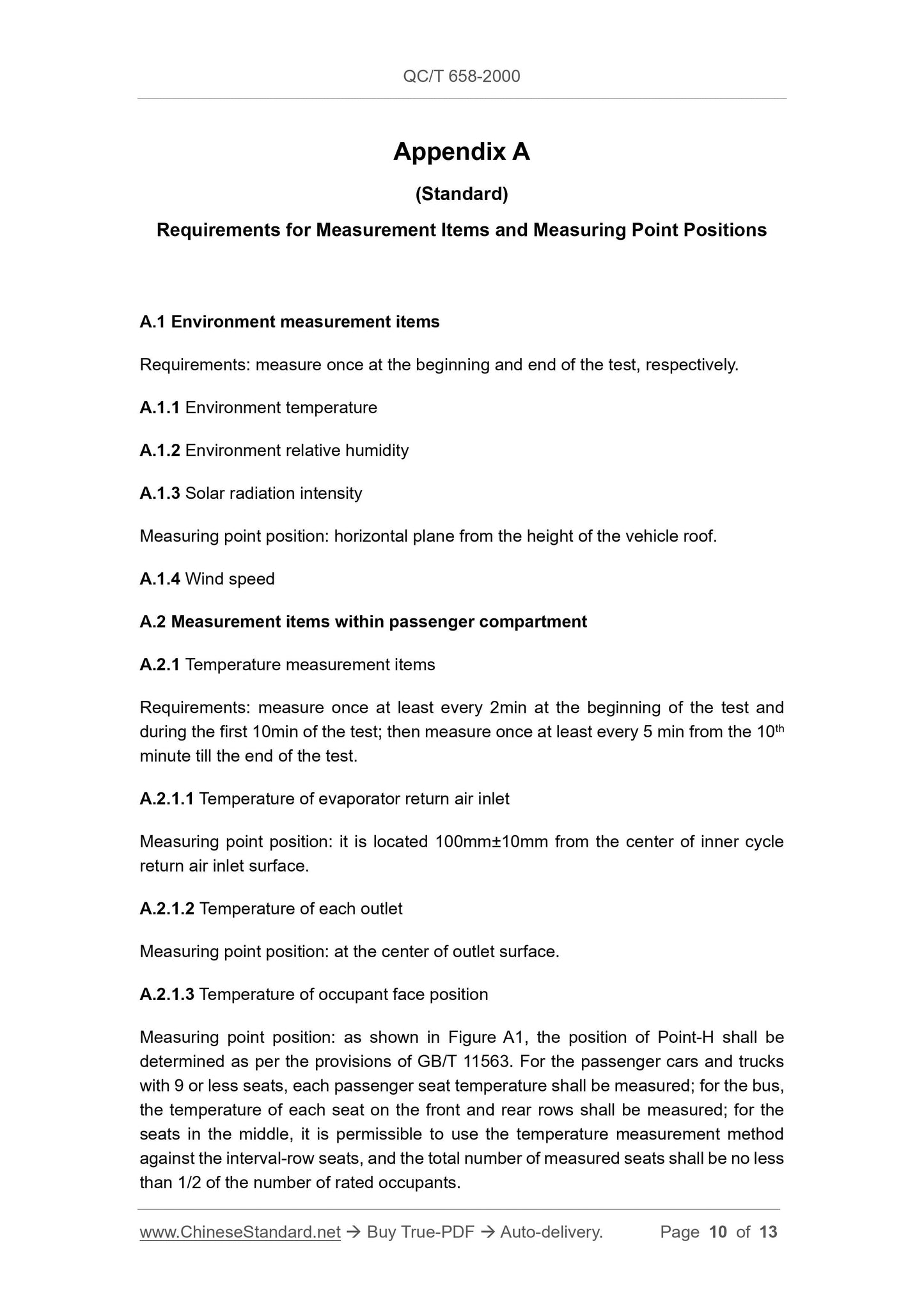

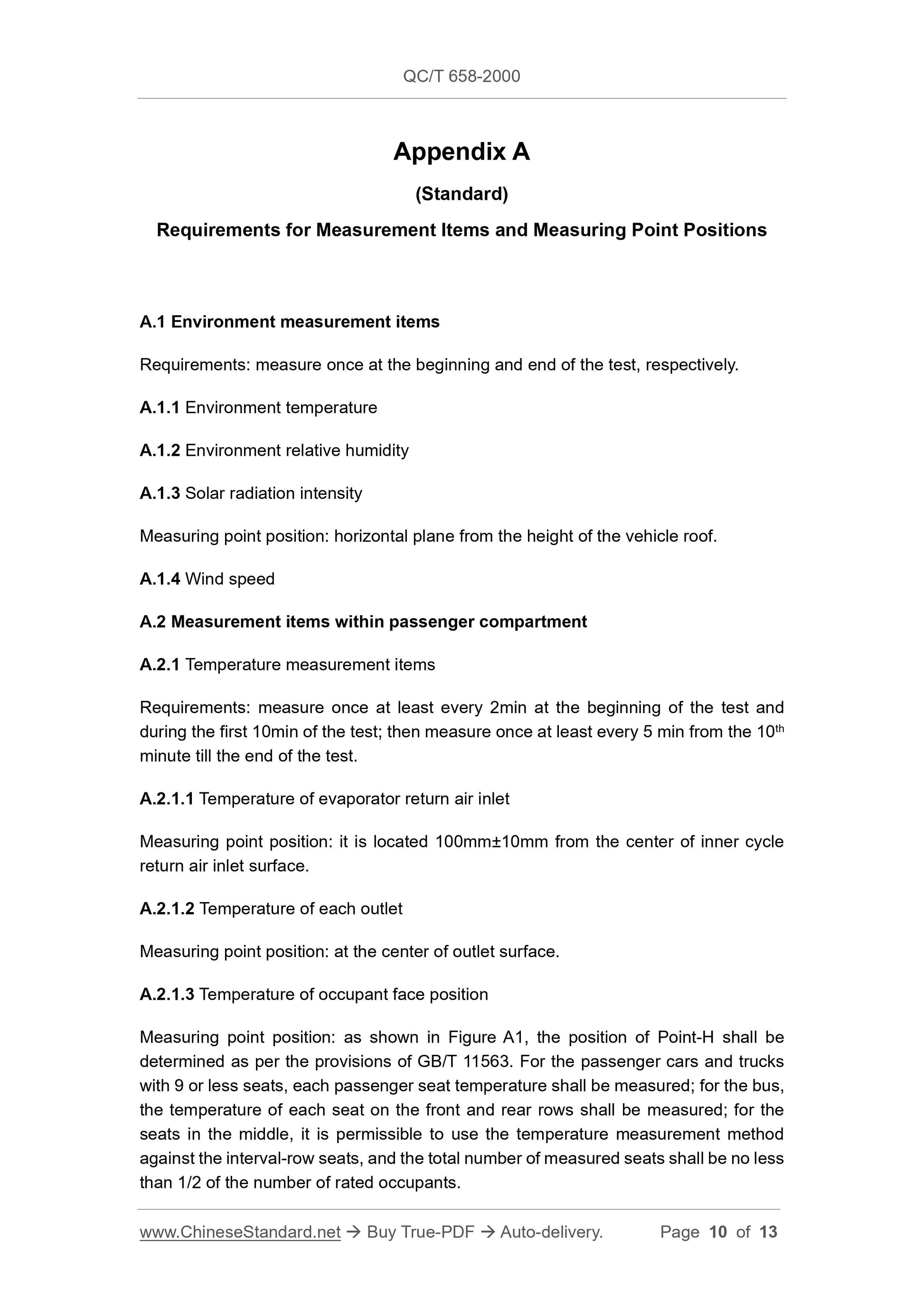

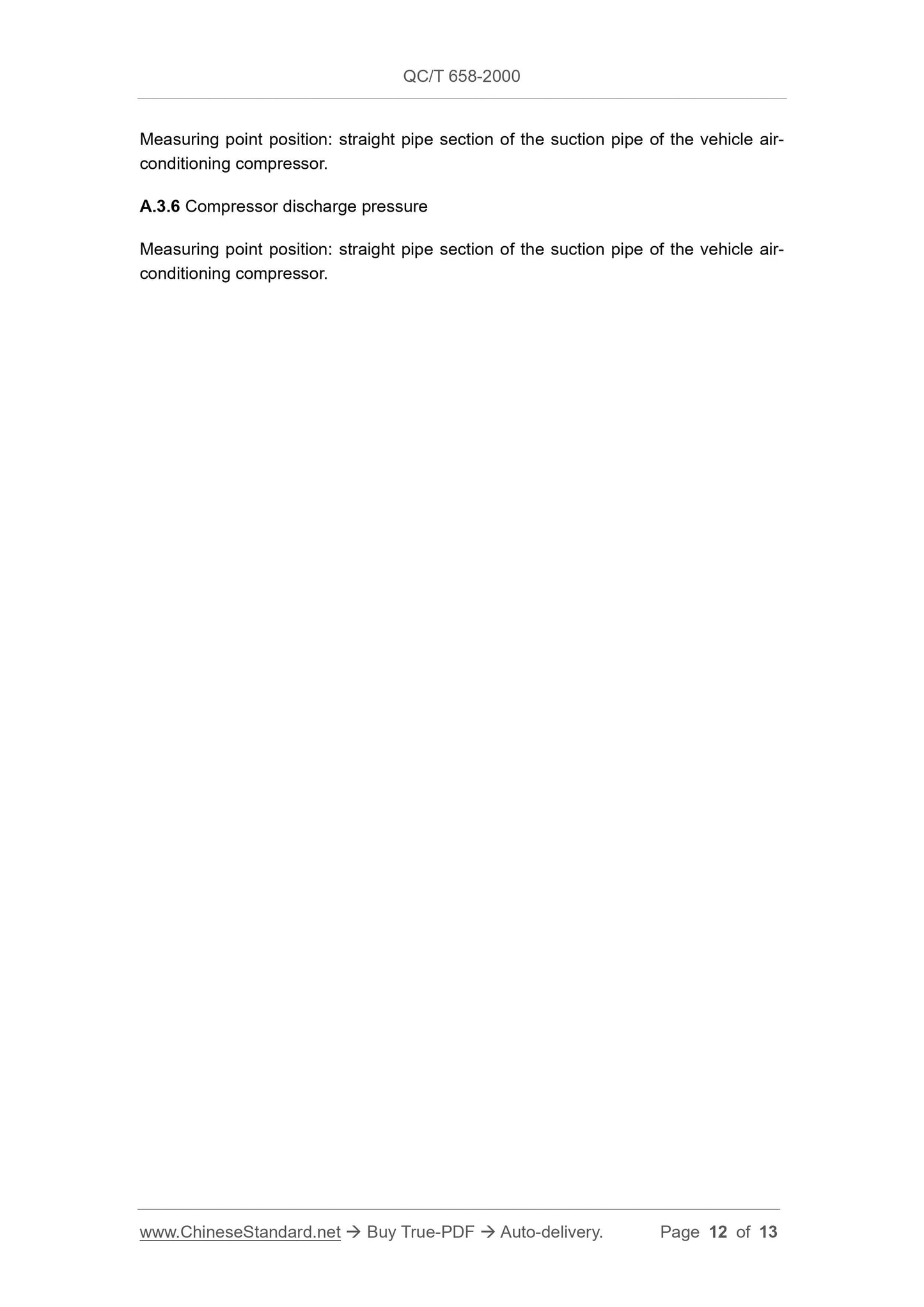

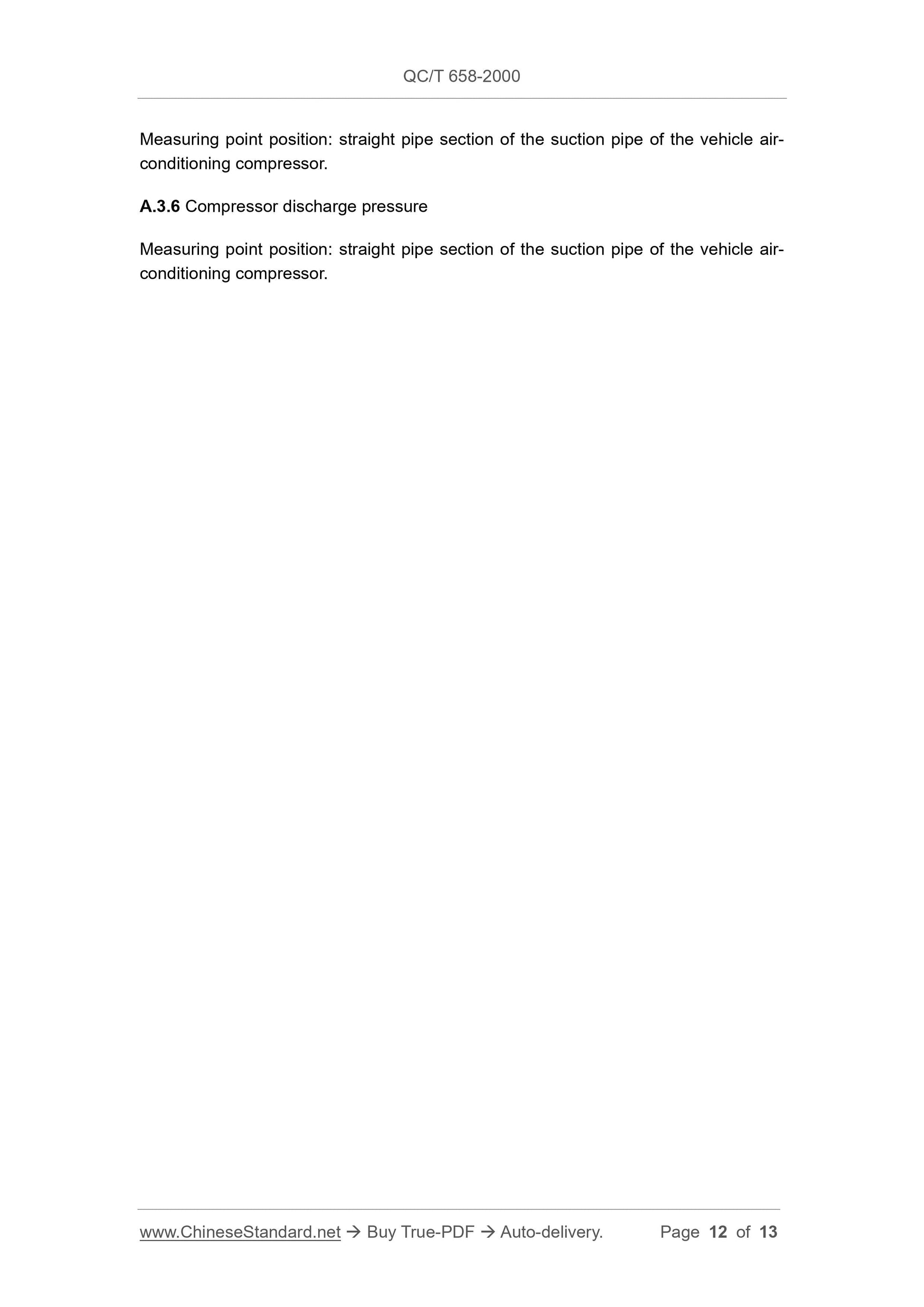

Appendix A
(Standard)
Requirements for Measurement Items and Measuring Point Positions
A.1 Environment measurement items
Requirements. measure once at the beginning and end of the test, respectively. A.1.1 Environment temperature
A.1.2 Environment relative humidity
A.1.3 Solar radiation intensity
Measuring point position. horizontal plane from the height of the vehicle roof. A.1.4 Wind speed
A.2 Measurement items within passenger compartment
A.2.1 Temperature measurement items
Requirements. measure once at least every 2min at the beginning of the test and during the first 10min of the test; then measure once at least every 5 min from the 10th minute till the end of the test.
A.2.1.1 Temperature of evaporator return air inlet
Measuring point position. it is located 100mm??10mm from the center of inner cycle return air inlet surface.
A.2.1.2 Temperature of each outlet
Measuring point position. at the center of outlet surface.
A.2.1.3 Temperature of occupant face position

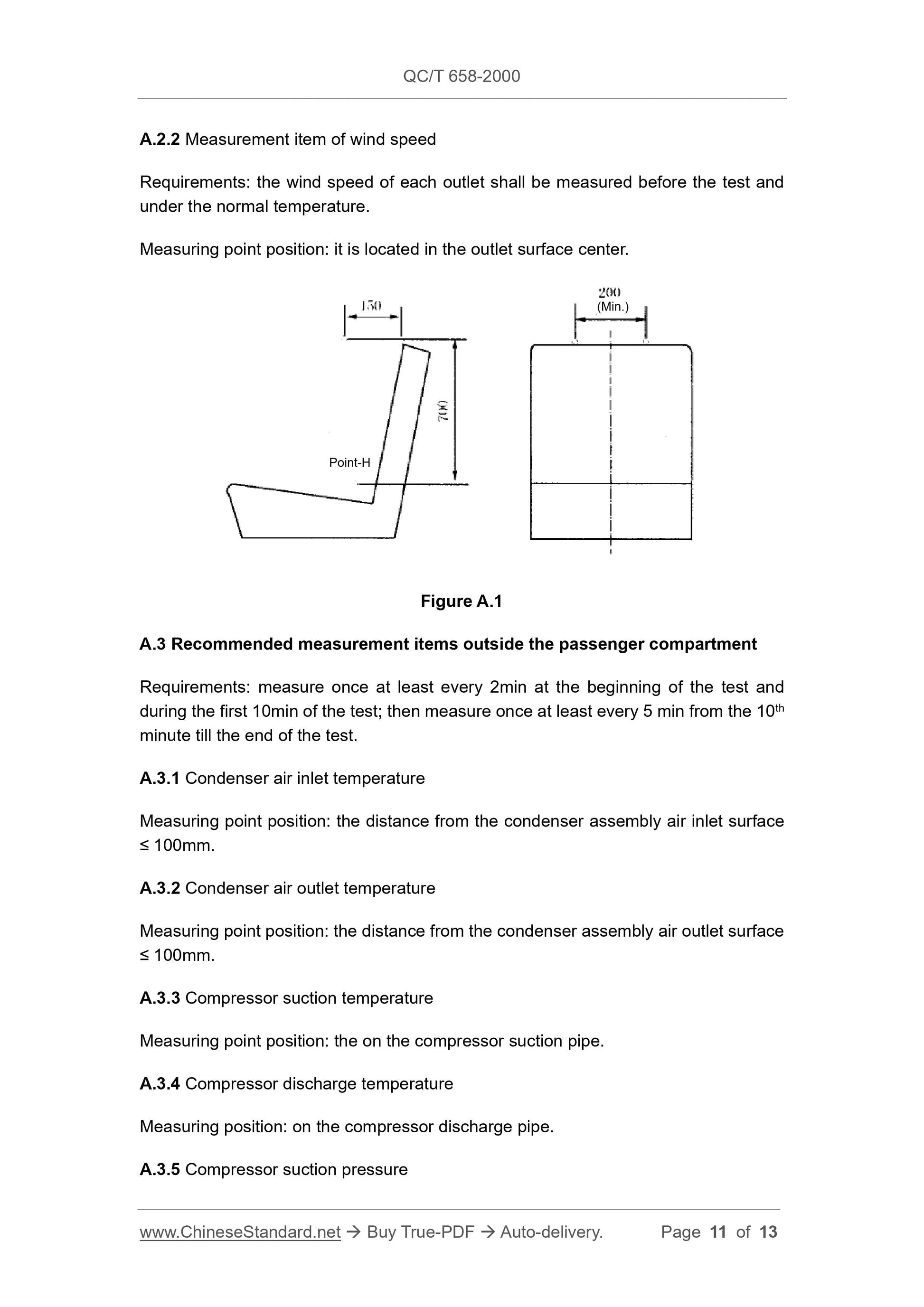

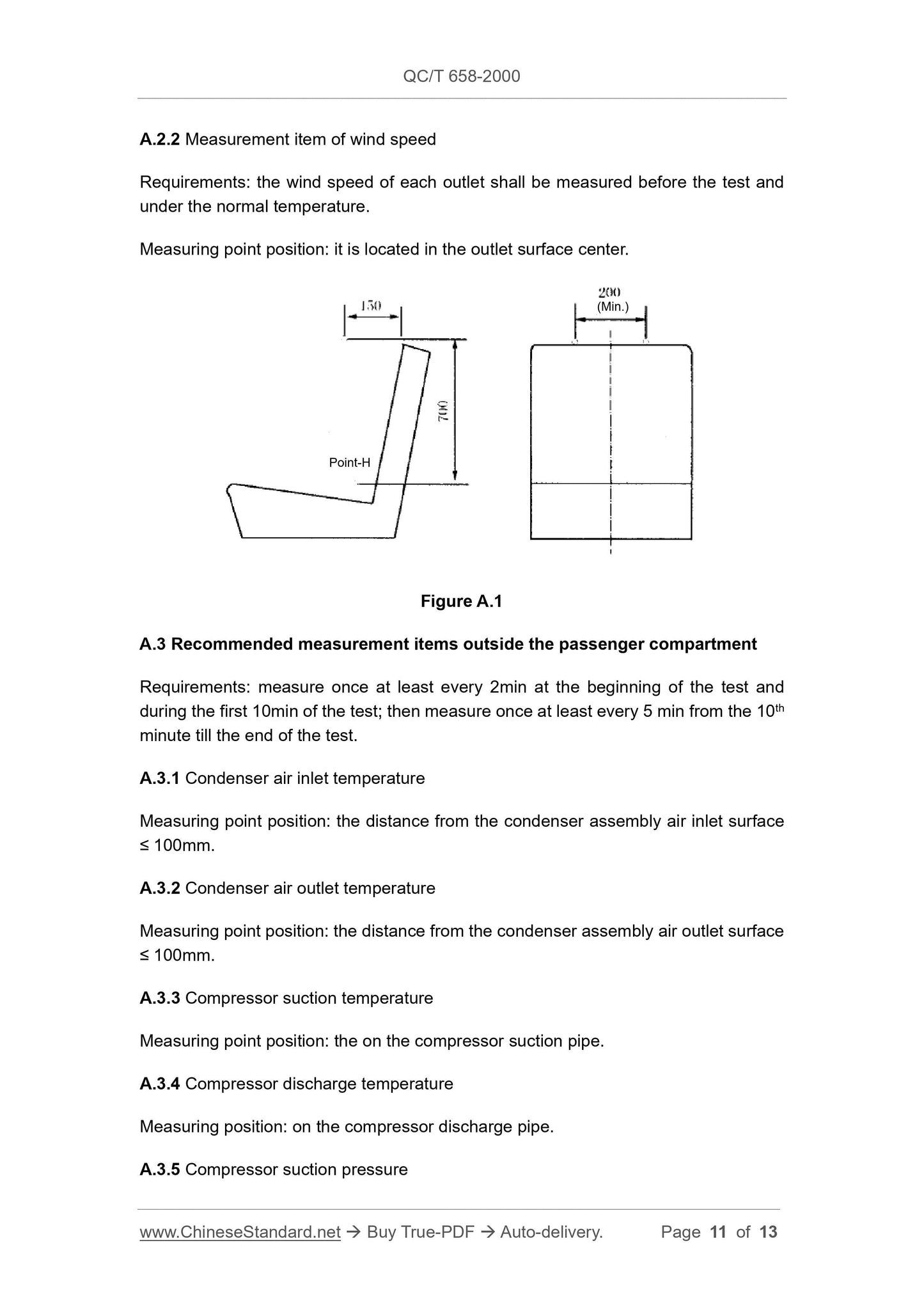

Measuring point position. as shown in Figure A1, the position of Point-H shall be determined as per the provisions of GB/T 11563. For the passenger cars and trucks with 9 or less seats, each passenger seat temperature shall be measured; for the bus, the temperature of each seat on the front and rear rows shall be measured; for the seats in the middle, it is permissible to use the temperature measurement method against the interval-row seats, and the total number of measured seats shall be no less than 1/2 of the number of rated occupants.
