This Standard specifies the performance requirements and test methods for steering universal joint assemblies of motor vehicles. This Standard applies to steering universal joint assemblies of motor vehicles.

QC/T 647-2013
AUTOMOTIVE INDUSTRY STANDARD
OF THE PEOPLE’S REPUBLIC OF CHINA
ICS 43.040.50
T 23
Replacing QC/T 647-2000
Motor vehicles - Steering universal joint -
Performance requirements and test methods
ISSUED ON: APRIL 25, 2013
IMPLEMENTED ON: SEPTEMBER 01, 2013
Issued by: Ministry of Industry and Information Technology of the
People's Republic of China

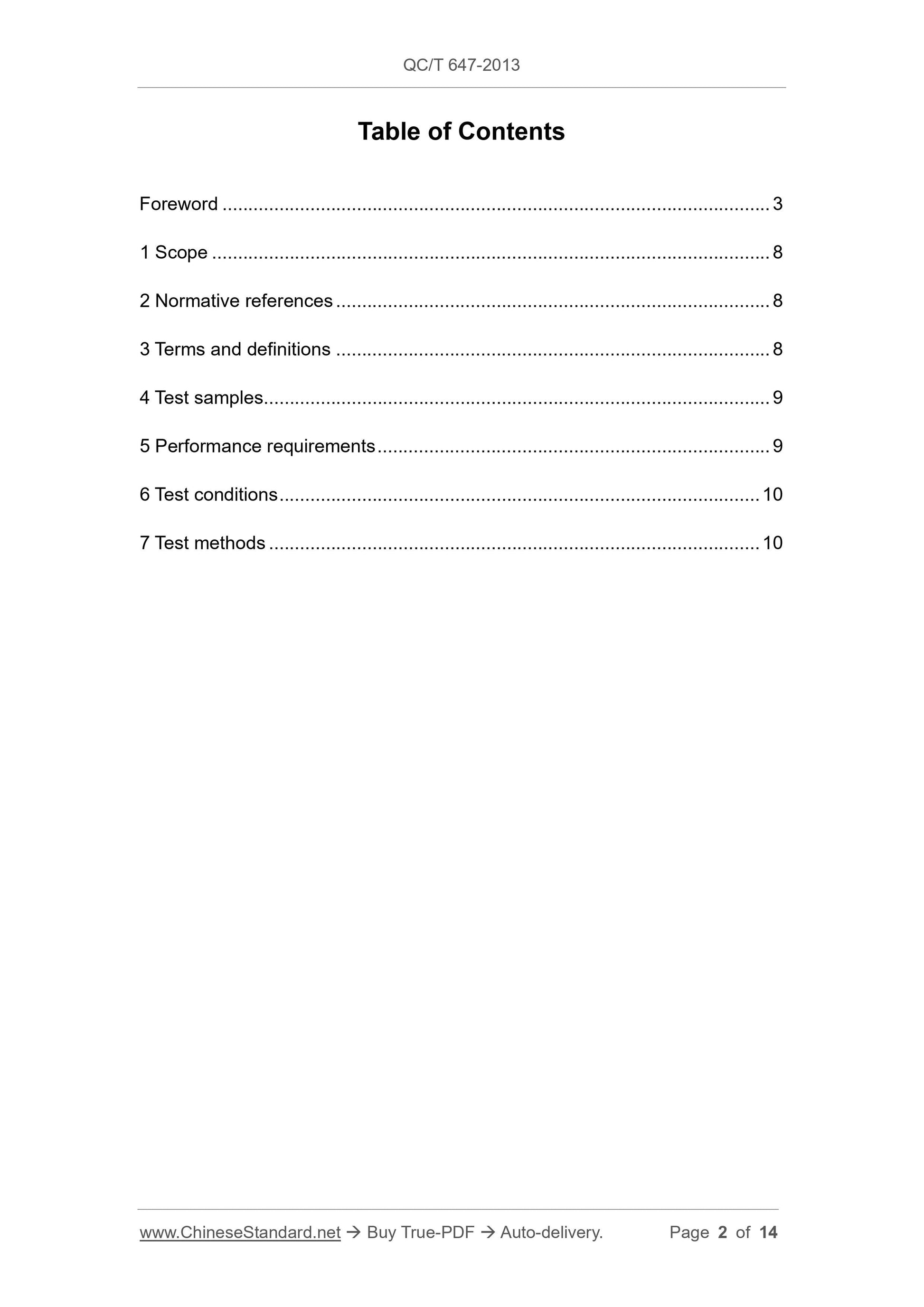

Table of Contents
Foreword ... 3
1 Scope ... 8
2 Normative references ... 8
3 Terms and definitions ... 8
4 Test samples ... 9
5 Performance requirements ... 9
6 Test conditions ... 10
7 Test methods ... 10
Announcement
Ministry of Industry and Information Technology of the
People's Republic of China
No.23 2013

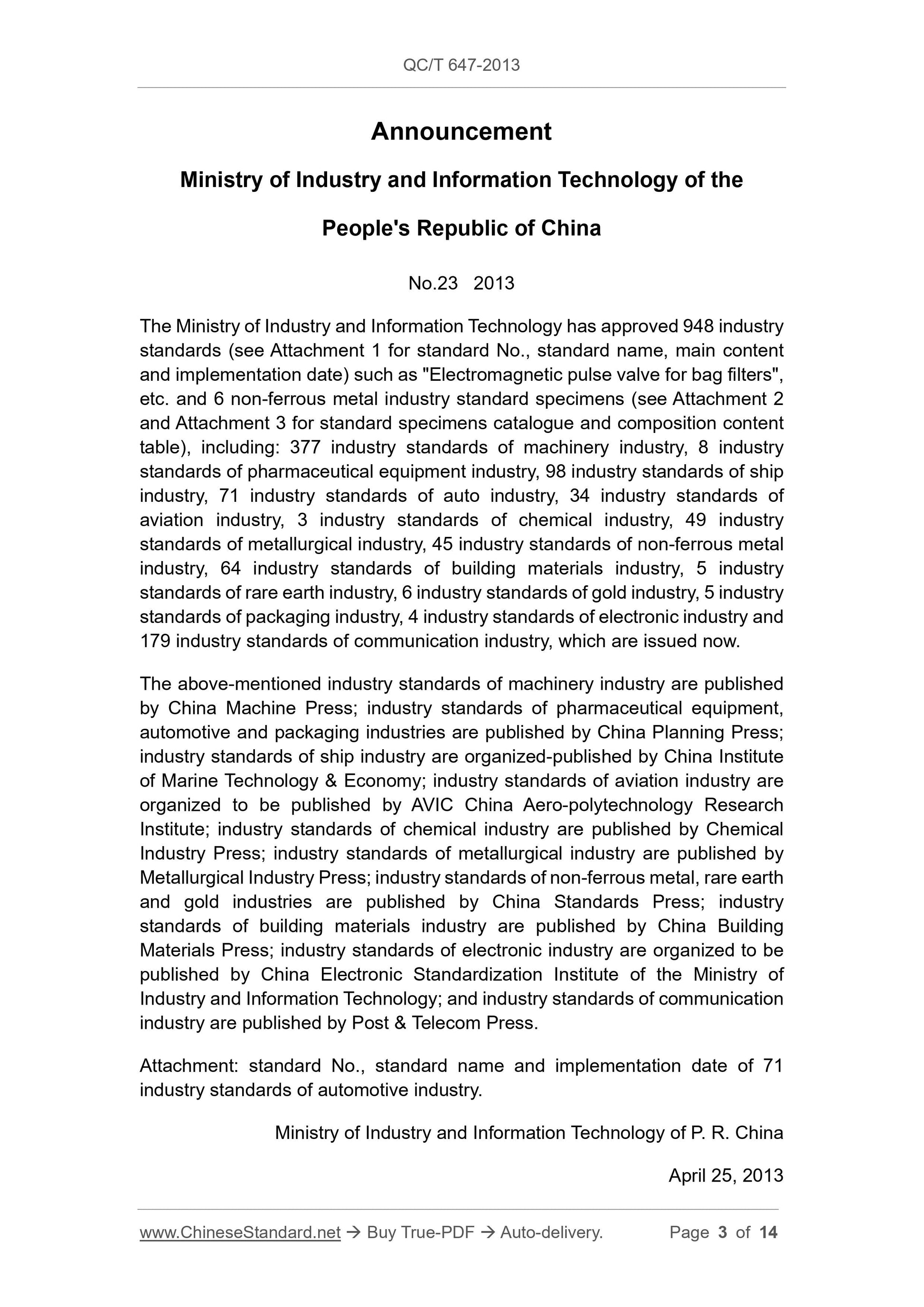

The Ministry of Industry and Information Technology has approved 948 industry standards (see Attachment 1 for standard No., standard name, main content and implementation date) such as "Electromagnetic pulse valve for bag filters", etc. and 6 non-ferrous metal industry standard specimens (see Attachment 2 and Attachment 3 for standard specimens catalogue and composition content table), including: 377 industry standards of machinery industry, 8 industry standards of pharmaceutical equipment industry, 98 industry standards of ship industry, 71 industry standards of auto industry, 34 industry standards of aviation industry, 3 industry standards of chemical industry, 49 industry standards of metallurgical industry, 45 industry standards of non-ferrous metal industry, 64 industry standards of building materials industry, 5 industry standards of rare earth industry, 6 industry standards of gold industry, 5 industry standards of packaging industry, 4 industry standards of electronic industry and 179 industry standards of communication industry, which are issued now. The above-mentioned industry standards of machinery industry are published by China Machine Press; industry standards of pharmaceutical equipment, automotive and packaging industries are published by China Planning Press; industry standards of ship industry are organized-published by China Institute of Marine Technology & Economy; industry standards of aviation industry are organized to be published by AVIC China Aero-polytechnology Research
Institute; industry standards of chemical industry are published by Chemical Industry Press; industry standards of metallurgical industry are published by Metallurgical Industry Press; industry standards of non-ferrous metal, rare earth and gold industries are published by China Standards Press; industry
standards of building materials industry are published by China Building Materials Press; industry standards of electronic industry are organized to be published by China Electronic Standardization Institute of the Ministry of Industry and Information Technology; and industry standards of communication industry are published by Post & Telecom Press.
Attachment: standard No., standard name and implementation date of 71
industry standards of automotive industry.
Ministry of Industry and Information Technology of P. R. China
April 25, 2013
requirements and test methods
494 QC/T 647-2013
Motor vehicles - Steering
universal joint - Performance
requirements and test methods
QC/T 647-2000 2013-09-01
495 QC/T 905-2013 Protecting facility for automotive 2013-09-01
496 QC/T 47-2013 Automobile seat terminology QC/T 47-1992 2013-09-01
497 QC/T 906-2013
Technical Requirements And Test
Methods of Hemp Fiber Board
For Automobile Interior Trim
2013-09-01
498 QC/T 907-2013 Methods of testing performance of radiators for automobile 2013-09-01 499 QC/T 29061-2013 Engineering specification for auto engine wax thermostat QC/T 29061-
1992 2013-09-01
500 QC/T 908-2013 Horse vehicle 2013-09-01
501 QC/T 909-2013 Mobile mixing semi-trailer for bitumen-cement-mortar 2013-09-01 502 QC/T 910-2013 Glass transport semi-trailer 2013-09-01
503 QC/T 911-2013 Power supply vehicle 2013-09-01
504 QC/T 912-2013
Technical requirements for
matching of towing vehicle and
semi-trailer
2013-09-01
505 QC/T 913-2013
General technical specifications
for platform trailer with hydraulic
suspension
2013-09-01
506 QC/T 914-2013 Engineering approval evaluation program of dimethyl ether vehicle 2013-09-01 507 QC/T 915-2013 DME steel cylinder multivalve for vehicle 2013-09-01
508 QC/T 916-2013
Specifications for mono-fuel
DME engines of heavy-duty
vehicles
2013-09-01
509 QC/T 917-2013 Manual valve for gas vehicle 2013-09-01
510 QC/T 918-2013 Test methods of petrol filter for automobiles 2013-09-01 511 QC/T 48-2013
Specifications of petrol filter
assembly for automotive engines
with electronically controlled
petrol injection system
QC/T 48-1992 2013-09-01
512 QC/T 919-2013 Test methods of luboil for automobiles 2013-09-01
513 QC/T 920-2013 Specifications of full-flow luboil filter assembly for automobiles 2013-09-01 514 QC/T 921-2013
Specification and test methods of
by-pass centrifugal luboil filters
for automobiles
2013-09-01
515 QC/T 922-2013 Specifications of paper element for automobile air filters 2013-09-01 516 QC/T 923-2013 Specifications of fuel prefilter assembly for automotive diesels 2013-09-01 517 QC/T 287-2013 Dimensions of fuel filter paper element for vehicles QC/T 287-1999 2013-09-01 518 QC/T 625-2013 Metallic coatings and conversion coatings for automobile QC/T 625-1999 2013-09-01 519 QC/T 721-2013 Non-electrolytically applied zinc flake coatings for automobile QC/T 721-2004 2013-09-01 520 QC/T 927-2013 Flange coupling connectors 2013-09-01

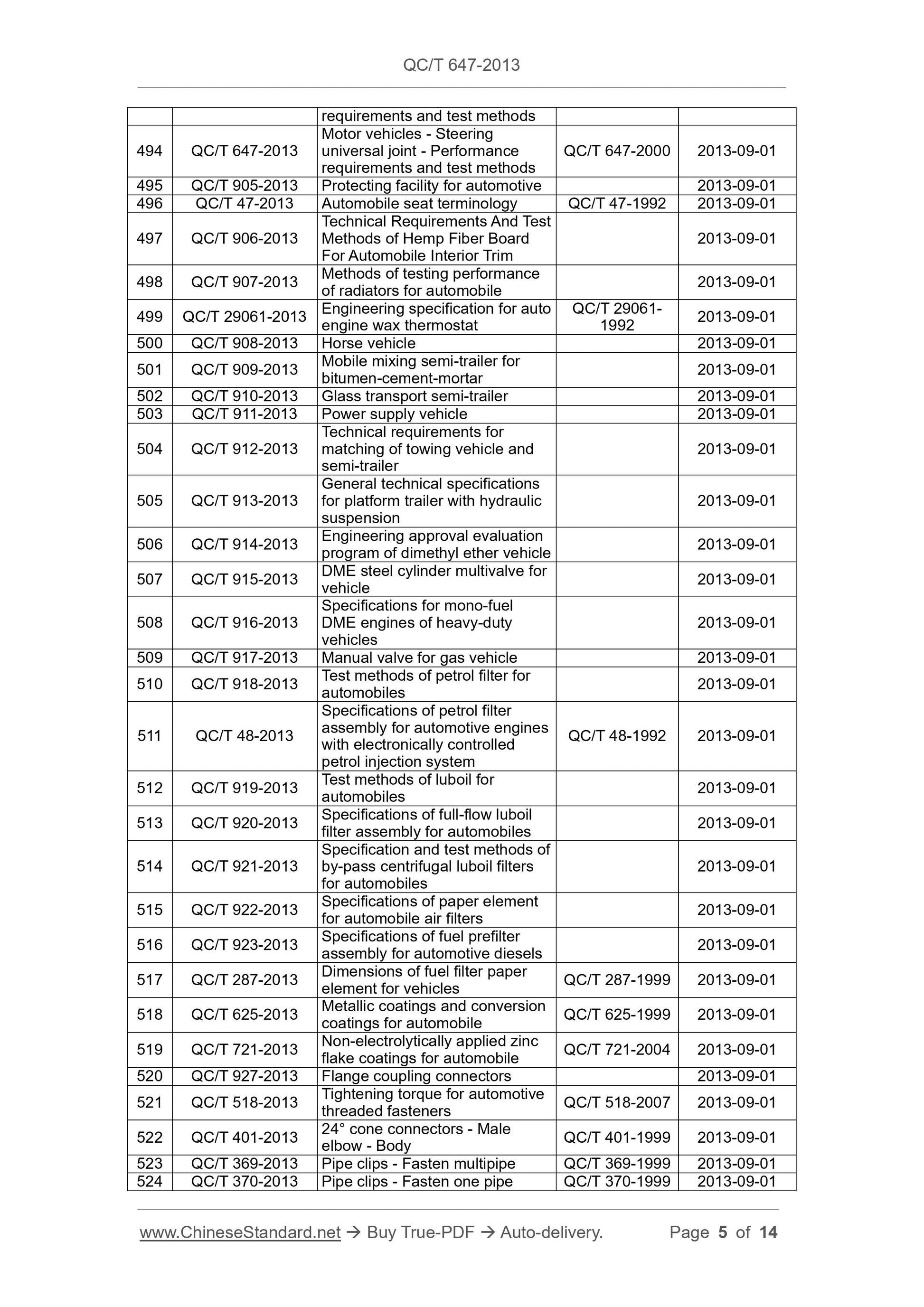

521 QC/T 518-2013 Tightening torque for automotive threaded fasteners QC/T 518-2007 2013-09-01 522 QC/T 401-2013 24° cone connectors - Male elbow - Body QC/T 401-1999 2013-09-01 523 QC/T 369-2013 Pipe clips - Fasten multipipe QC/T 369-1999 2013-09-01 524 QC/T 370-2013 Pipe clips - Fasten one pipe QC/T 370-1999 2013-09-01 Foreword

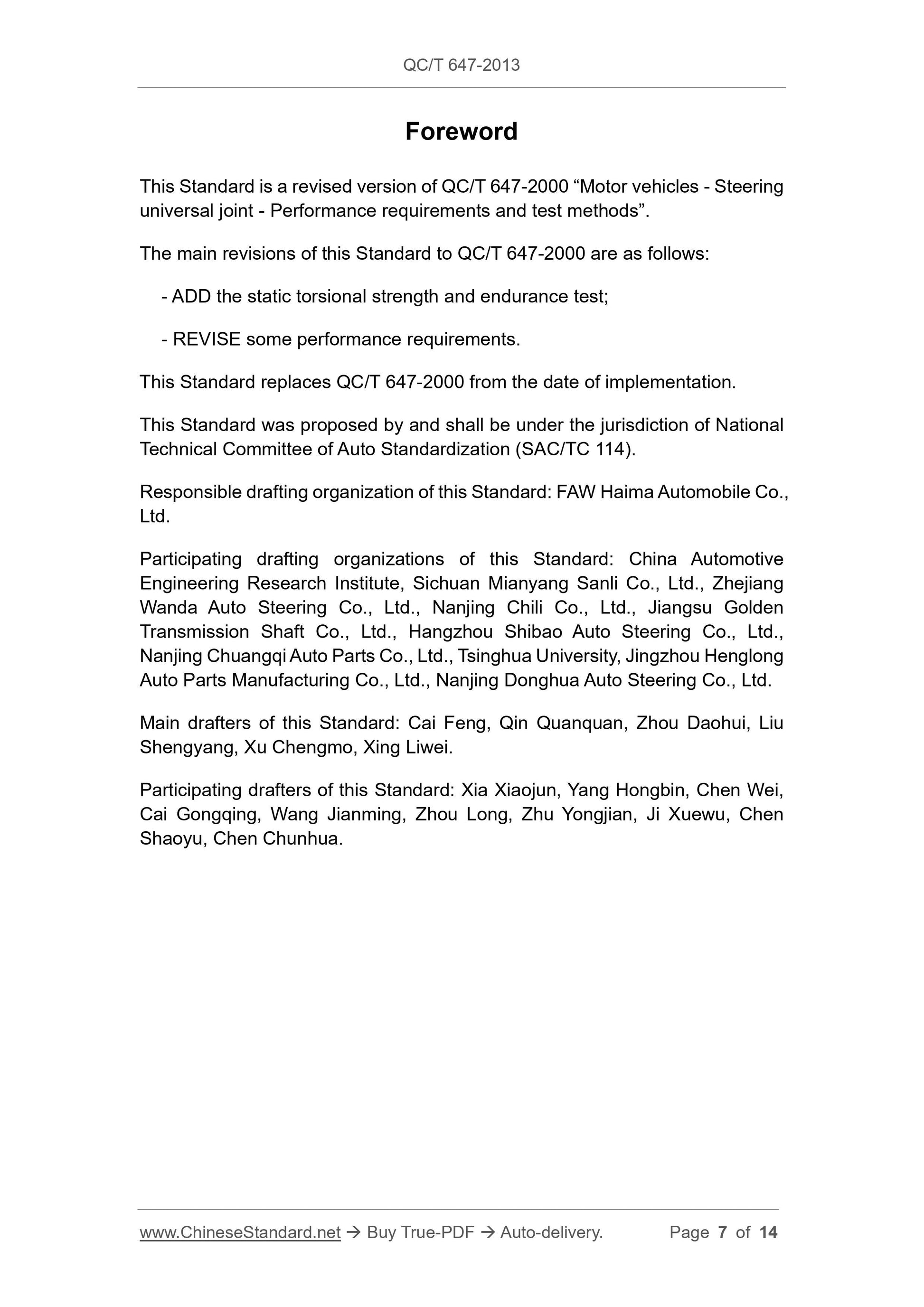

This Standard is a revised version of QC/T 647-2000 “Motor vehicles - Steering universal joint - Performance requirements and test methods”.
The main revisions of this Standard to QC/T 647-2000 are as follows:
- ADD the static torsional strength and endurance test;
- REVISE some performance requirements.
This Standard replaces QC/T 647-2000 from the date of implementation.
This Standard was proposed by and shall be under the jurisdiction of National Technical Committee of Auto Standardization (SAC/TC 114).
Responsible drafting organization of this Standard: FAW Haima Automobile Co., Ltd.
Participating drafting organizations of this Standard: China Automotive Engineering Research Institute, Sichuan Mianyang Sanli Co., Ltd., Zhejiang Wanda Auto Steering Co., Ltd., Nanjing Chili Co., Ltd., Jiangsu Golden
Transmission Shaft Co., Ltd., Hangzhou Shibao Auto Steering Co., Ltd.,
Nanjing Chuangqi Auto Parts Co., Ltd., Tsinghua University, Jingzhou Henglong Auto Parts Manufacturing Co., Ltd., Nanjing Donghua Auto Steering Co., Ltd. Main drafters of this Standard: Cai Feng, Qin Quanquan, Zhou Daohui, Liu Shengyang, Xu Chengmo, Xing Liwei.
Participating drafters of this Standard: Xia Xiaojun, Yang Hongbin, Chen Wei, Cai Gongqing, Wang Jianming, Zhou Long, Zhu Yongjian, Ji Xuewu, Chen
Shaoyu, Chen Chunhua.

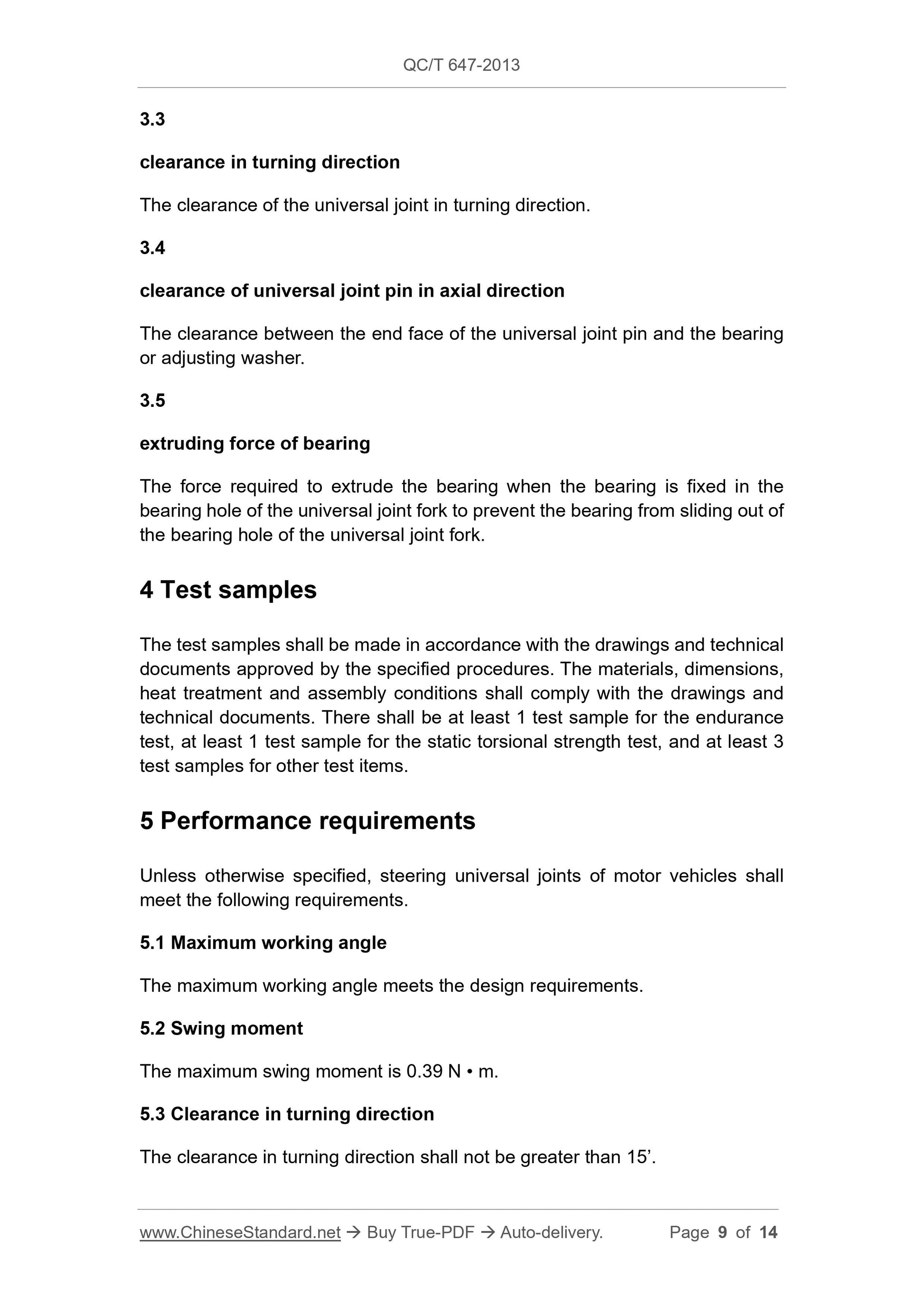

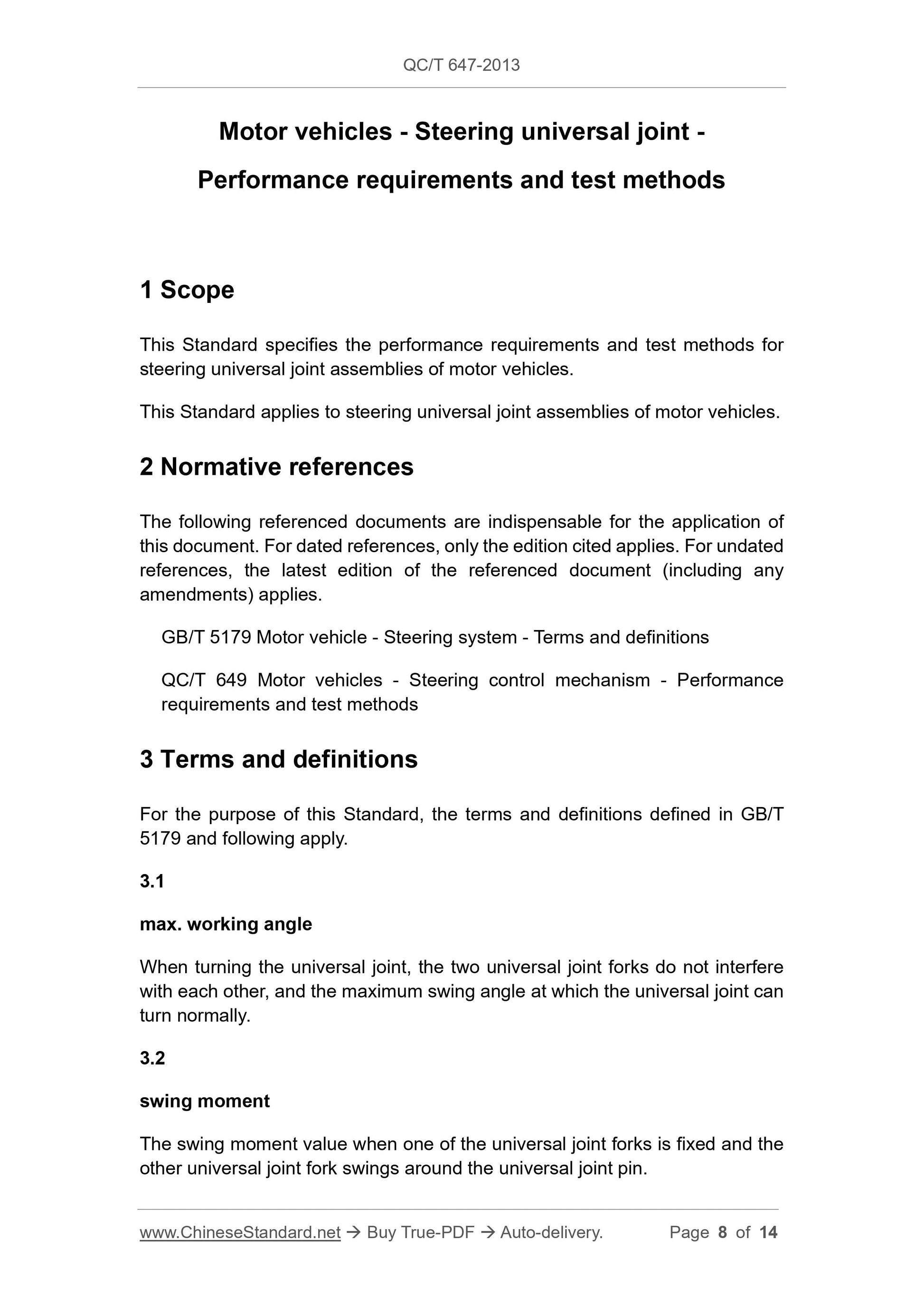

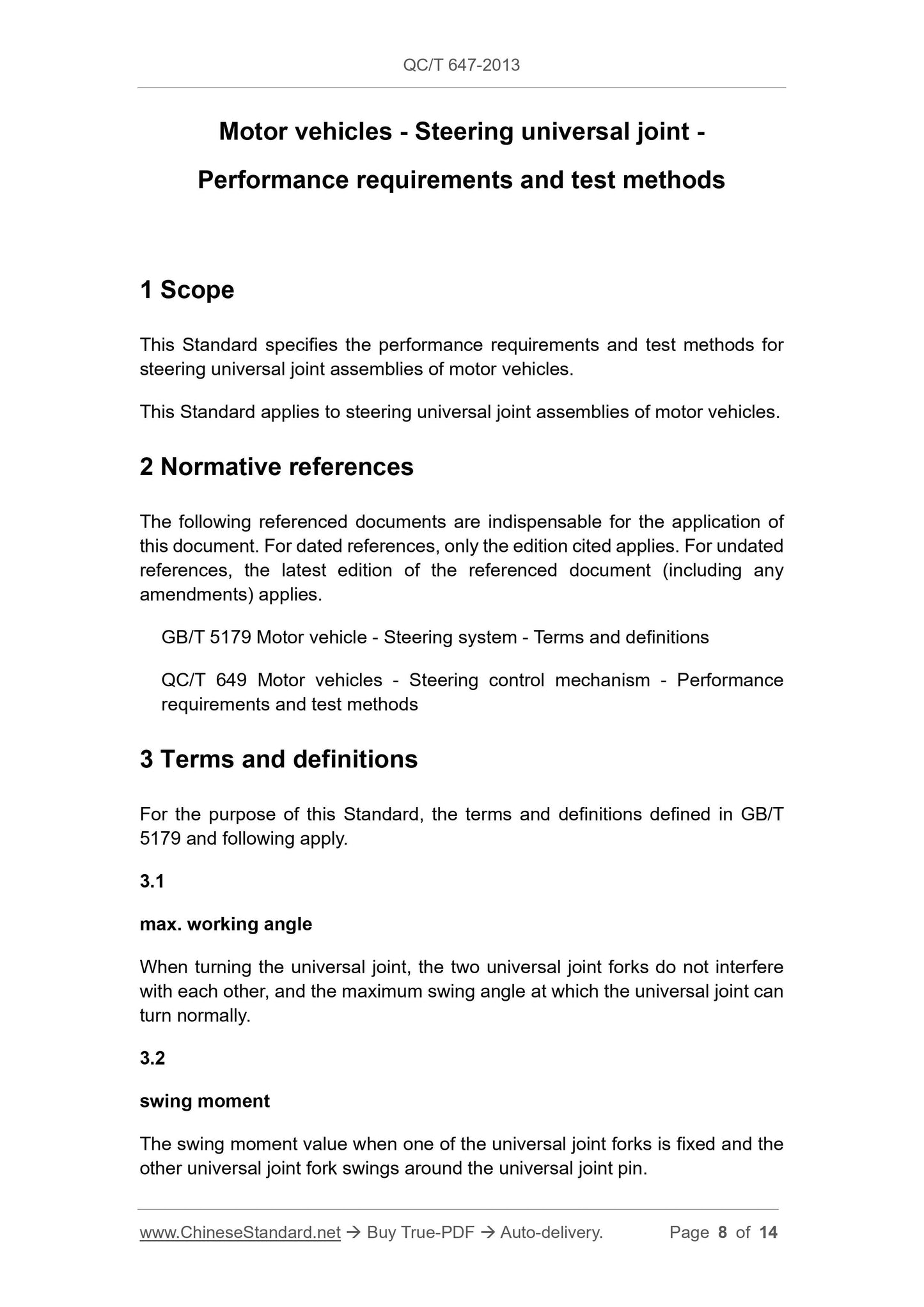

3.3
