QC/T 605-2022: C-type clips

This document specifies the type, size, and technical conditions of C-type clips for automobiles. This document is applicable to C-type clips, which have a diameter of D = 6 mm, D = 9 mm, D1 = ????10 in the mounting hole of the body sheet or base hole of D1 = M10, D1 = 7/16'', AND a connection thickness S = 5.5 mm ~ 35.0 mm or S1 = 5.5 mm ~ 32.0 mm.
QC/T 605-2022
QC
AUTOMOBILE INDUSTRY STANDARD
OF THE PEOPLE REPUBLIC OF CHINA
ICS 43.040
CCS T 33
Replacing QC/T 605-1999
C-type clips
C?????????
ISSUED ON: APRIL 08, 2022
IMPLEMENTED ON: OCTOBER 01, 2022
Issued by: Ministry of Industry and Information Technology of PRC

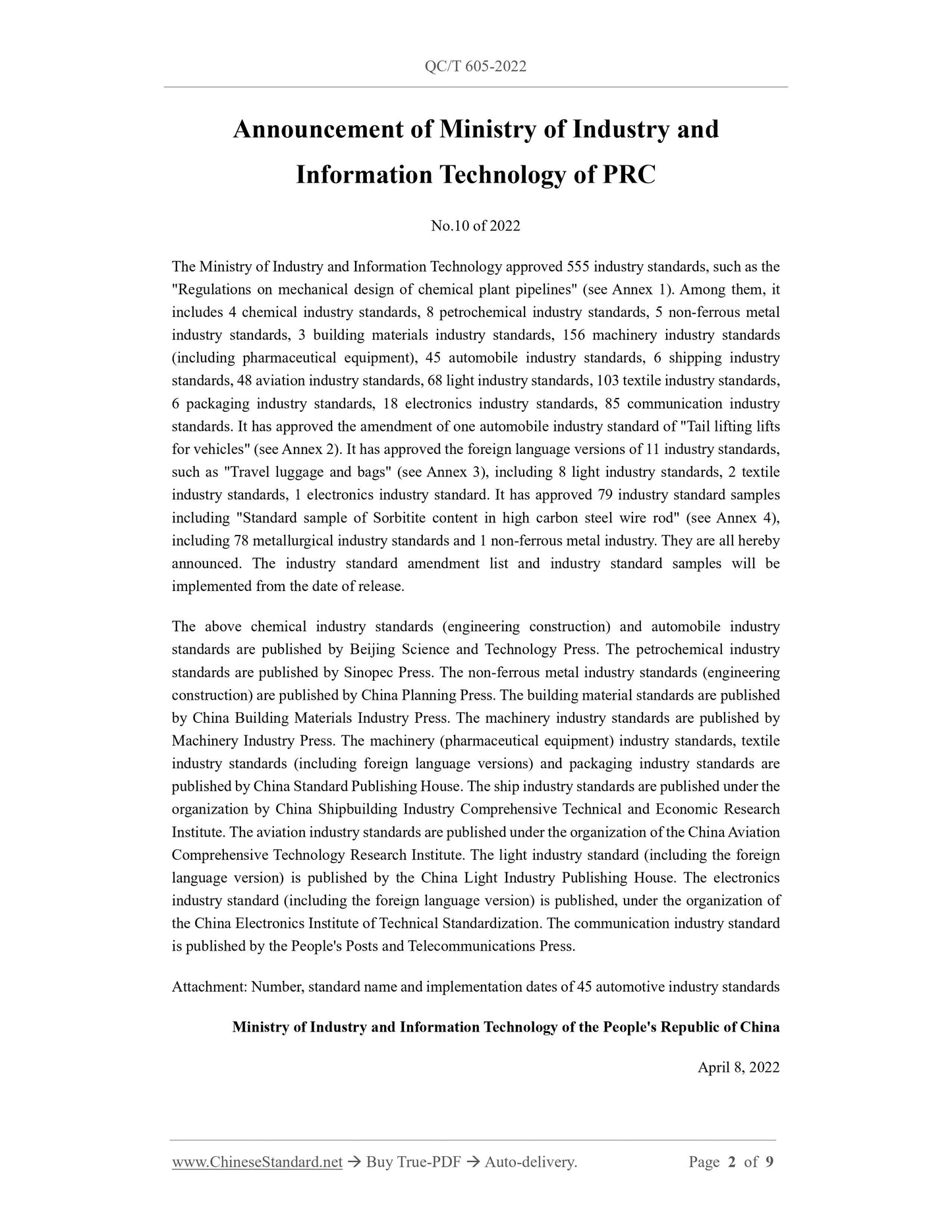

Announcement of Ministry of Industry and
Information Technology of PRC
No.10 of 2022
The Ministry of Industry and Information Technology approved 555 industry standards, such as the "Regulations on mechanical design of chemical plant pipelines" (see Annex 1). Among them, it includes 4 chemical industry standards, 8 petrochemical industry standards, 5 non-ferrous metal industry standards, 3 building materials industry standards, 156 machinery industry standards (including pharmaceutical equipment), 45 automobile industry standards, 6 shipping industry standards, 48 aviation industry standards, 68 light industry standards, 103 textile industry standards, 6 packaging industry standards, 18 electronics industry standards, 85 communication industry standards. It has approved the amendment of one automobile industry standard of "Tail lifting lifts for vehicles" (see Annex 2). It has approved the foreign language versions of 11 industry standards, such as "Travel luggage and bags" (see Annex 3), including 8 light industry standards, 2 textile industry standards, 1 electronics industry standard. It has approved 79 industry standard samples including "Standard sample of Sorbitite content in high carbon steel wire rod" (see Annex 4), including 78 metallurgical industry standards and 1 non-ferrous metal industry. They are all hereby announced. The industry standard amendment list and industry standard samples will be implemented from the date of release.
The above chemical industry standards (engineering construction) and automobile industry standards are published by Beijing Science and Technology Press. The petrochemical industry standards are published by Sinopec Press. The non-ferrous metal industry standards (engineering construction) are published by China Planning Press. The building material standards are published by China Building Materials Industry Press. The machinery industry standards are published by Machinery Industry Press. The machinery (pharmaceutical equipment) industry standards, textile industry standards (including foreign language versions) and packaging industry standards are published by China Standard Publishing House. The ship industry standards are published under the organization by China Shipbuilding Industry Comprehensive Technical and Economic Research Institute. The aviation industry standards are published under the organization of the China Aviation Comprehensive Technology Research Institute. The light industry standard (including the foreign language version) is published by the China Light Industry Publishing House. The electronics industry standard (including the foreign language version) is published, under the organization of the China Electronics Institute of Technical Standardization. The communication industry standard is published by the People's Posts and Telecommunications Press.

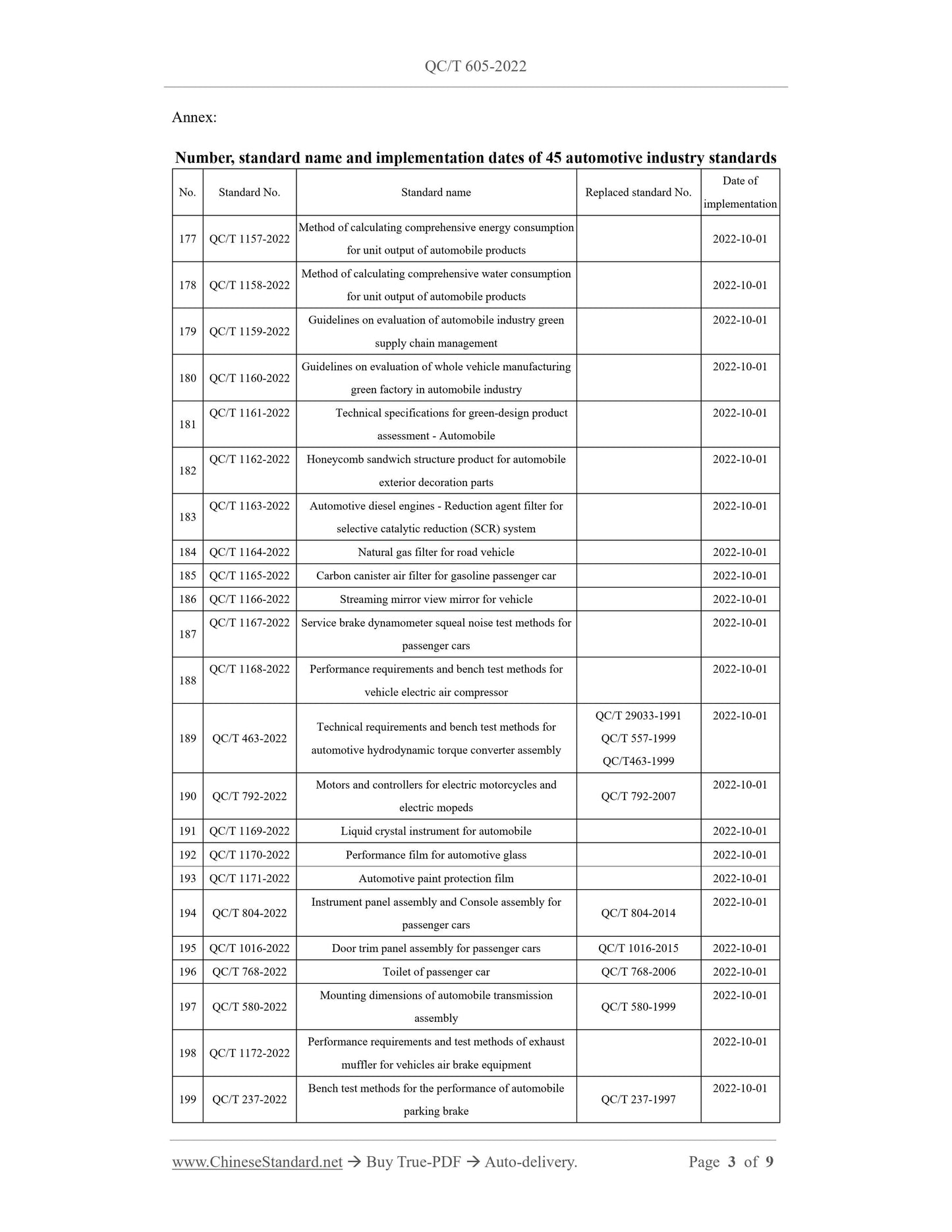

Attachment: Number, standard name and implementation dates of 45 automotive industry standards Ministry of Industry and Information Technology of the People's Republic of China April 8, 2022

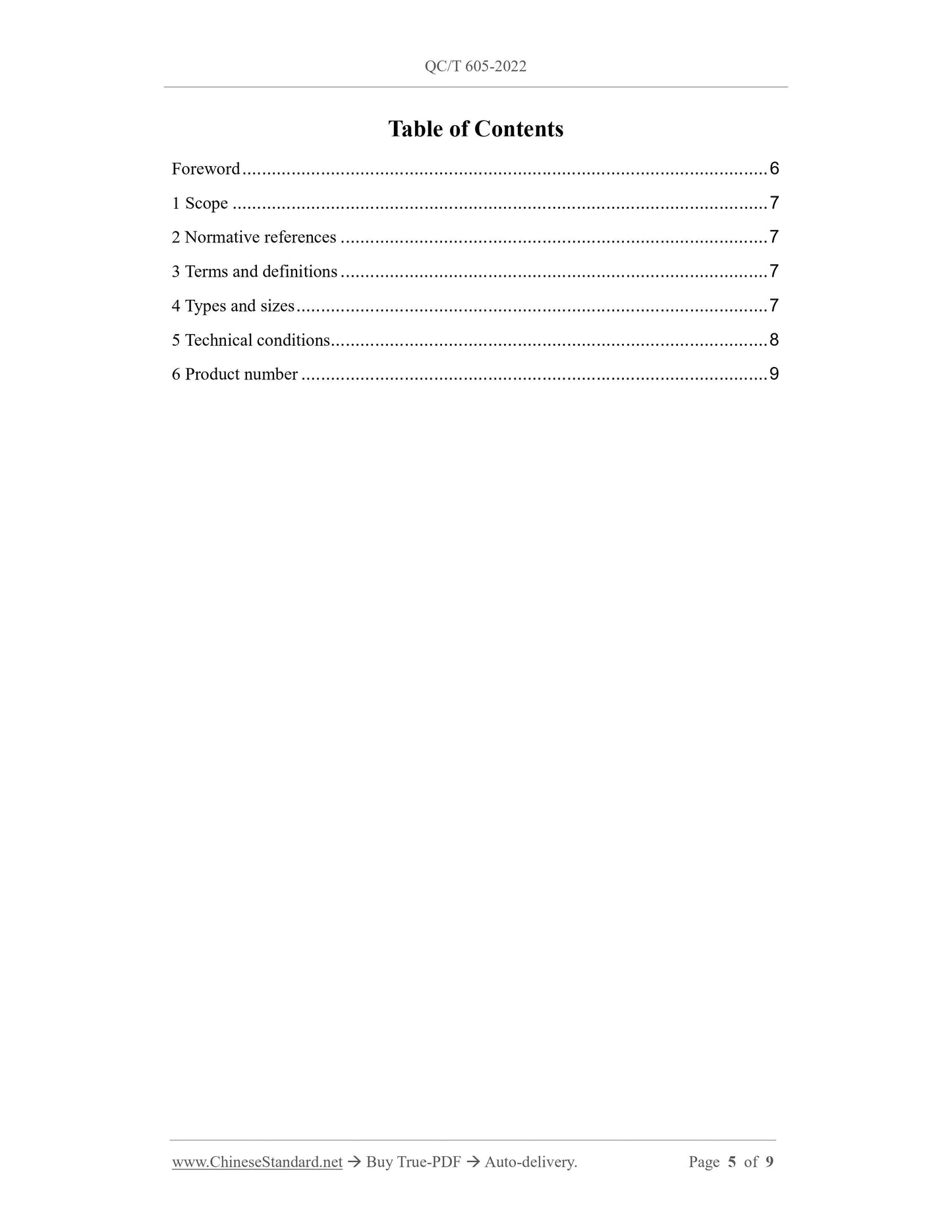

Table of Contents
Foreword ... 6
1 Scope ... 7
2 Normative references ... 7
3 Terms and definitions ... 7
4 Types and sizes ... 7
5 Technical conditions ... 8
6 Product number ... 9

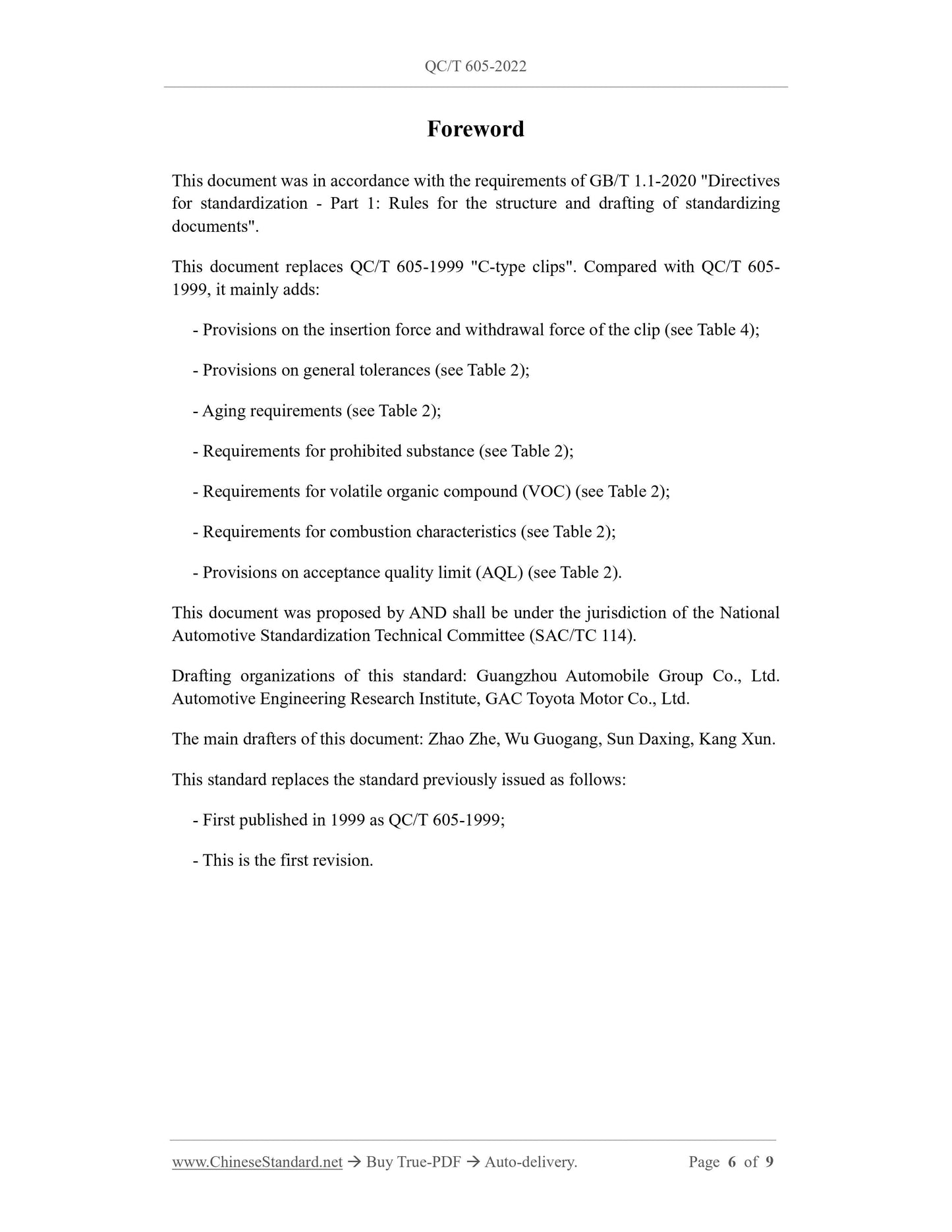

Foreword
This document was in accordance with the requirements of GB/T 1.1-2020 "Directives for standardization - Part 1: Rules for the structure and drafting of standardizing documents".
This document replaces QC/T 605-1999 "C-type clips". Compared with QC/T 605- 1999, it mainly adds:
- Provisions on the insertion force and withdrawal force of the clip (see Table 4); - Provisions on general tolerances (see Table 2);
- Aging requirements (see Table 2);
- Requirements for prohibited substance (see Table 2);
- Requirements for volatile organic compound (VOC) (see Table 2);
- Requirements for combustion characteristics (see Table 2);
- Provisions on acceptance quality limit (AQL) (see Table 2).
This document was proposed by AND shall be under the jurisdiction of the National Automotive Standardization Technical Committee (SAC/TC 114).
Drafting organizations of this standard: Guangzhou Automobile Group Co., Ltd. Automotive Engineering Research Institute, GAC Toyota Motor Co., Ltd.
The main drafters of this document: Zhao Zhe, Wu Guogang, Sun Daxing, Kang Xun. This standard replaces the standard previously issued as follows:
- First published in 1999 as QC/T 605-1999;
- This is the first revision.
C-type clips
1 Scope
This document specifies the type, size, and technical conditions of C-type clips for automobiles.
This document is applicable to C-type clips, which have a diameter of D = 6 mm, D = 9 mm, D1 = ??10 in the mounting hole of the body sheet or base hole of D1 = M10, D1 = 7/16'', AND a connection thickness S = 5.5 mm ~ 35.0 mm or S1 = 5.5 mm ~ 32.0 mm.
2 Normative references
The contents of the following documents constitute the essential provisions of this document through normative references in the text. Among them, for dated references, only the version corresponding to the date is applicable to this document; for undated references, the latest version (including all amendments) is applicable to this document. GB/T 90.1-2002 Fasteners - Acceptance inspection
GB/T 90.2-2002 Fasteners - Marking and packaging
GB 8410 Flammability of automotive interior materials
GB/T 30512 Requirements for prohibited substances on automobiles
QC/T 15 General test method for automobile plastic products
QC/T 326 Coding rules for automotive standardized parts
QC/T 29017 Automotive molded plastic parts without individual tolerance limit the size of the deviation
3 Terms and definitions
This document does not have terms and definitions that need to be defined. 4 Types and sizes

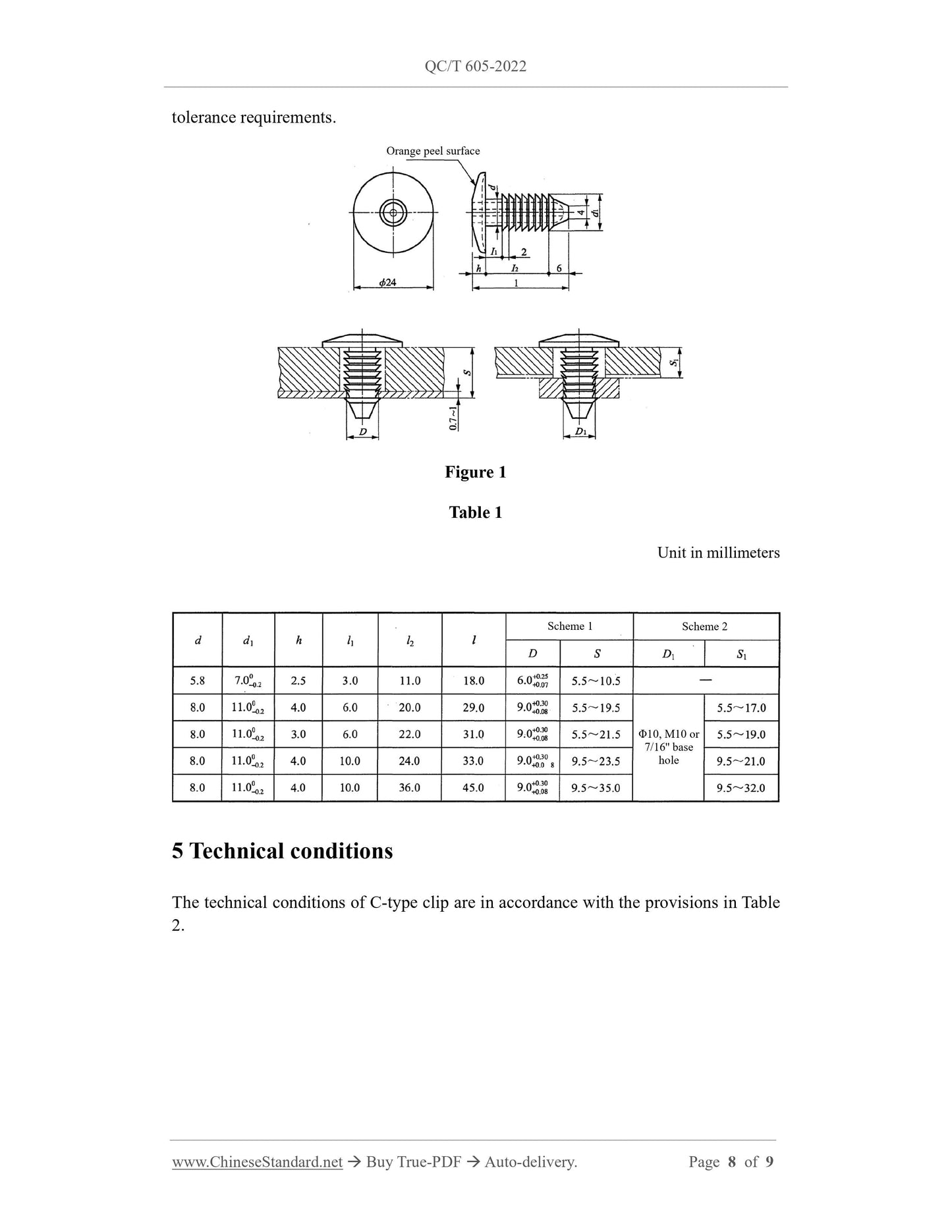

See Figure 1 for the type and size of C-type clip. See Table 1 for relevant data and
