QC/T 488-2000: Vehicle fuel tank cap, fuel filler

This Standard specifies the type, connection size, relevant technical requirements, test methods, inspection rules, marking, package, transportation, storage for the automobile fuel tank cap and refill opening. This Standard is applicable to the automobile fuel tank cap and refill opening.

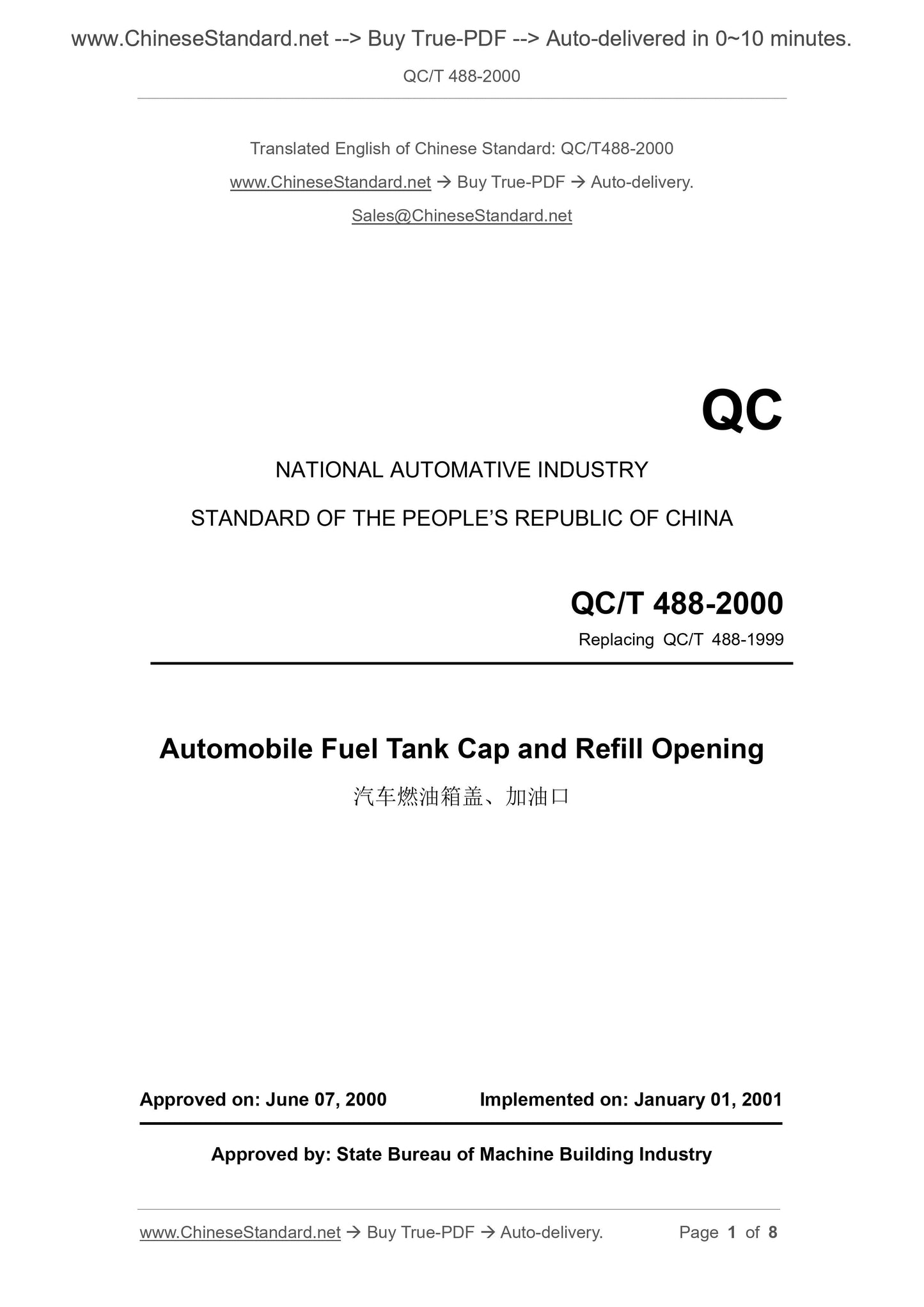

QC/T 488-2000
NATIONAL AUTOMATIVE INDUSTRY
STANDARD OF THE PEOPLE REPUBLIC OF CHINA
Replacing QC/T 488-1999
Automobile Fuel Tank Cap and Refill Opening
APPROVED ON: JUNE 07, 2000
IMPLEMENTED ON: JANUARY 01, 2001
Approved by: State Bureau of Machine Building Industry

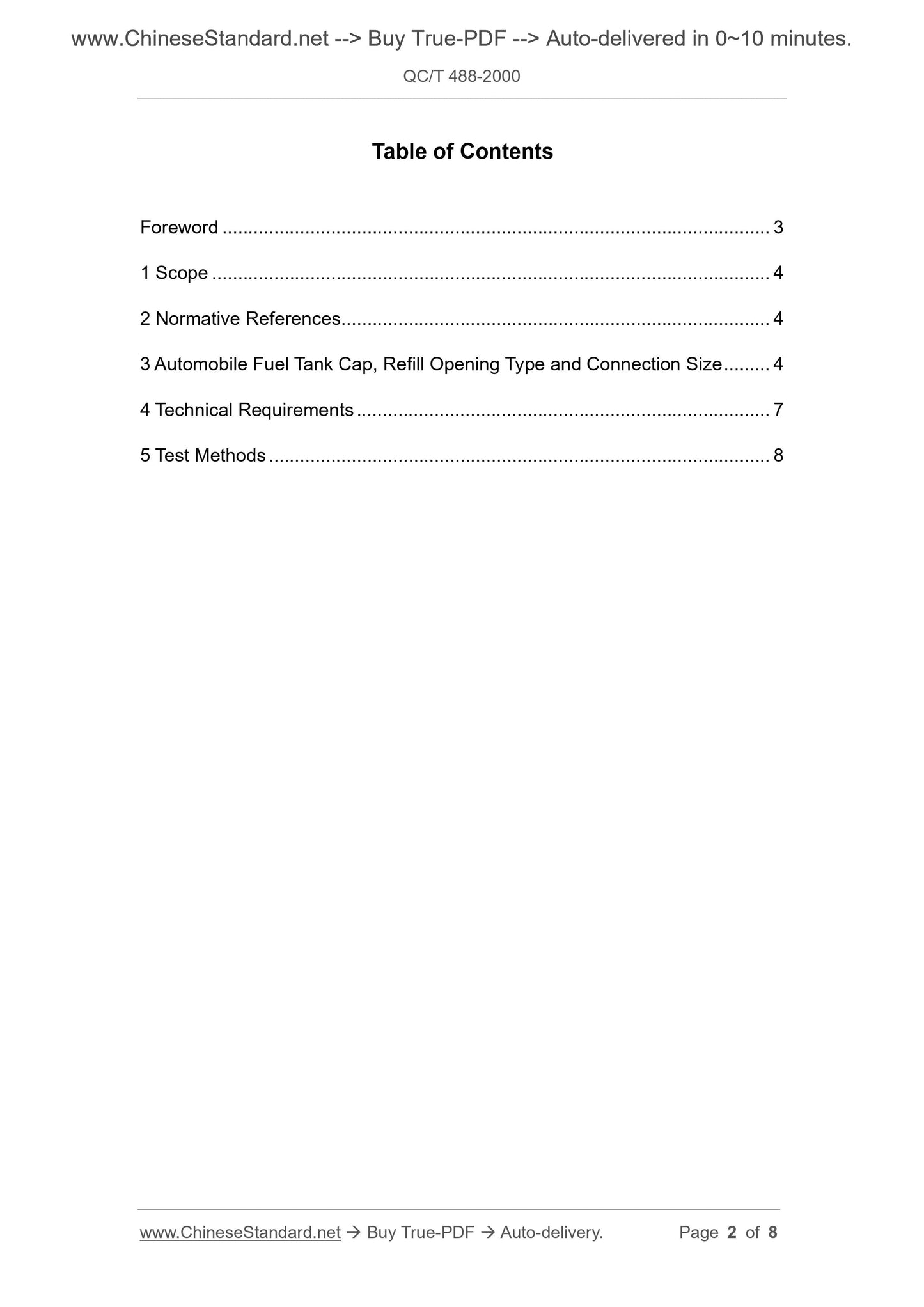

Table of Contents
Foreword ... 3
1 Scope ... 4
2 Normative References ... 4
3 Automobile Fuel Tank Cap, Refill Opening Type and Connection Size ... 4 4 Technical Requirements ... 7
5 Test Methods ... 8
Automobile Fuel Tank Cap and Refill Opening
1 Scope
This Standard specifies the type, connection size, relevant technical requirements, test methods, inspection rules, marking, package, transportation, storage for the automobile fuel tank cap and refill opening.
This Standard is applicable to the automobile fuel tank cap and refill opening. 2 Normative References
The following standards contain provisions which, through reference in this Standard, constitute provisions of this Standard. At the time of publication, the editions indicated are valid. All standards are subject to revision. The parties who are using this Standard shall explore the possibility of using the latest version of the following standards. GB 18296-2001 Safety Property Requirements and Test Methods for Automobile Fuel Tank
GB/T 1690-1992 Rubber, Vulcanized - Determination of the Effect of Liquids QC/T 644-2000 Technical Conditions of Automotive Metal Fuel Tank
3 Automobile Fuel Tank Cap, Refill Opening Type and
Connection Size
The fuel tank cap and refill opening can be divided into groove-type and thread-type. 3.1 The groove-type fuel tank cap, refill opening type and connection size shall be implemented as per Figures 1~4 and Table 1.
Table 2 ?€? Size Series of Thread-Type Fuel Tank Cap and Refill Opening mm 4 Technical Requirements
4.1 After the fuel tank cap and refill opening are locked, they must have reliable sealing performance, and conform to the provisions of 4.6 in QC/T 644.
4.2 After the fuel tank cap and refill opening are locked, they must have sound self- locking and anti-loose performance, and conform to the corresponding provisions of 4.12 in QC/T 644.
4.3 The housing of the fuel tank cap shall have anti-slip pattern or handle, which shall be firmly connected with other parts of the fuel tank cap. When assembling and disassembling the fuel tank cap, other joints shall not be loose.
4.4 The gasket of the fuel tank cap shall use the oil resistant rubber with Shore A hardness (40~60) HA. After the oil resistance is implemented as stipulated in 5.4, the percentage change in volume is in the range of -5%~+5%; hardness change value (Shore A) is in the range of (-7~+5) HA.
4.5 For the fuel tank cap equipped with intake valve, its valve performance shall conform to the provisions of QC/T 644.
4.6 For the fuel tank cap equipped with safety valve, its valve performance shall conform to the provisions of GB 18296.
NOTE 1: In case the integrate sealing is ensured after the fuel tank cap is locked with refill opening, the protective cover, anti-theft lock, and other structures can be added. NTOE 2: The shape of fuel tank cap and the structures of intake valve, safety valve and gasket are not specified; which shall be determined through the negotiation between the supplier and Item Size series
Type
Refill opening Fuel tank cap
Female thread
Male thread
Ordinary thread
Trapezoidal thread
Ordinary thread
Trapezoidal thread
Note: the female and male thread shall be classified according to the thread type of the refill opening.
