QC/T 417.3-2001 English PDF (QCT417.3-2001)

QC/T 417.3-2001 English PDF (QCT417.3-2001)

Regular price $270.00 USD
Regular price Sale price $270.00 USD
Sale Sold out
Shipping calculated at checkout.
Quotation: 24-hr self-service. Click QC/T 417.3-2001
See Chinese contents: QC/T 417.3-2001

QC/T 417.3-2001: Road Vehicles - Connections for On-board Electrical Wiring Harnesses - Part 3: Taps for Single-pole Connections - Dimensions and Specific Requirements

This standard specifies the size and special requirements of tabs for single-pole connections. This standard is applicable to tabs for single-pole connections of electrical wiring harnesses, such as socket given in Appendix A. This standard is also applicable to separate connectors, which are used for maintenance on vehicles.

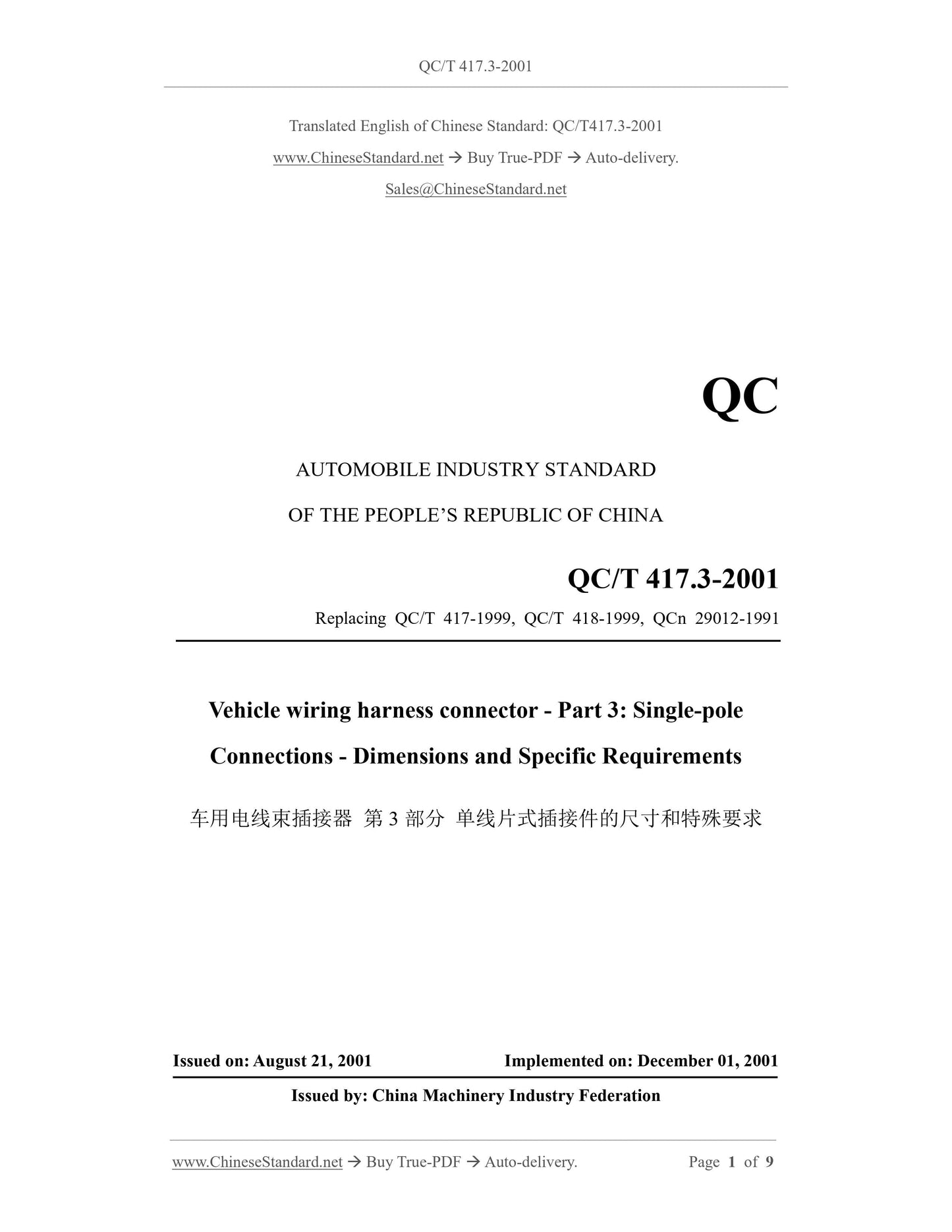

QC/T 417.3-2001
QC
AUTOMOBILE INDUSTRY STANDARD
OF THE PEOPLE REPUBLIC OF CHINA
Replacing QC/T 417-1999, QC/T 418-1999, QCn 29012-1991
Vehicle wiring harness connector - Part 3: Single-pole
Connections - Dimensions and Specific Requirements
ISSUED ON: AUGUST 21, 2001
IMPLEMENTED ON: DECEMBER 01, 2001
Issued by: China Machinery Industry Federation

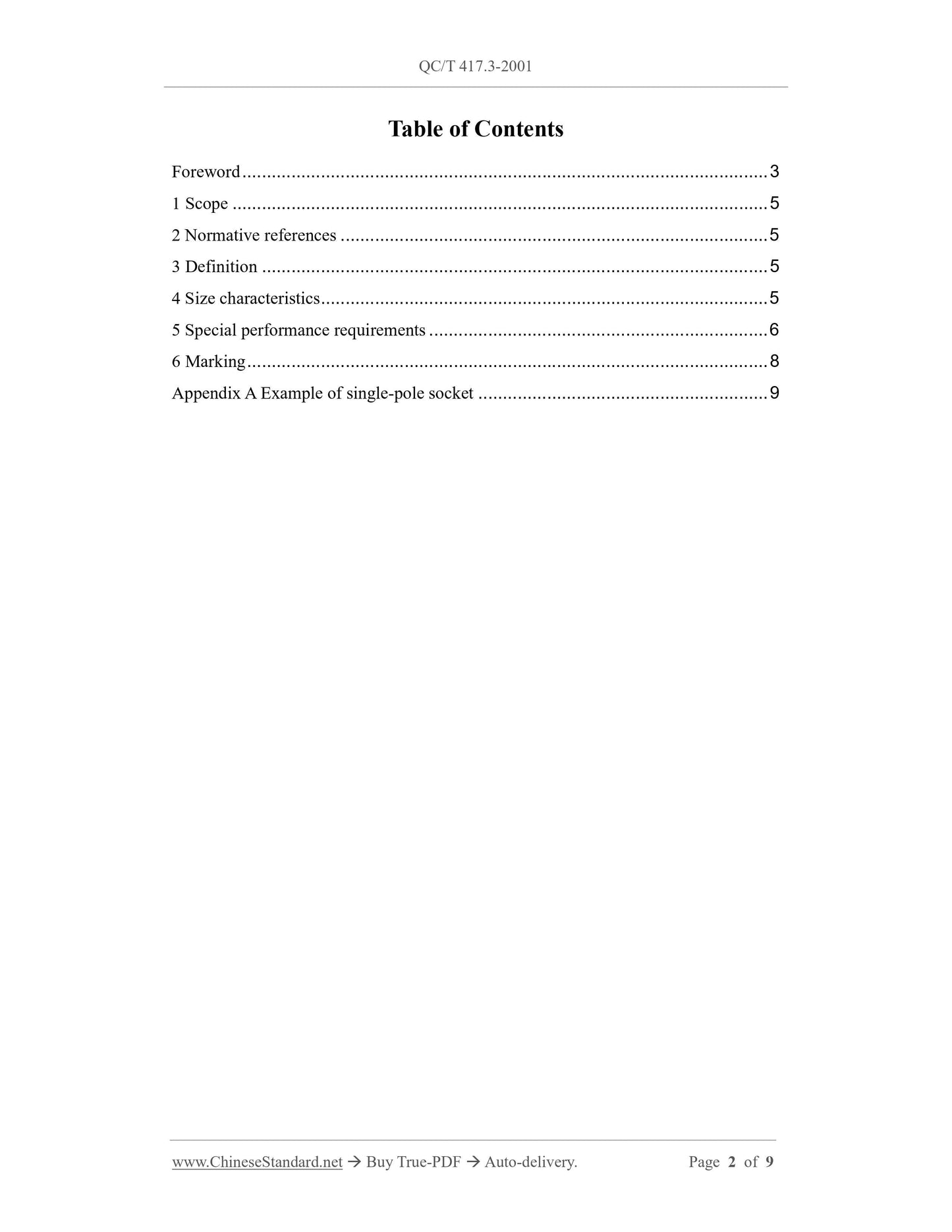

Table of Contents
Foreword ... 3
1 Scope ... 5
2 Normative references ... 5
3 Definition ... 5
4 Size characteristics ... 5
5 Special performance requirements ... 6
6 Marking ... 8
Appendix A Example of single-pole socket ... 9

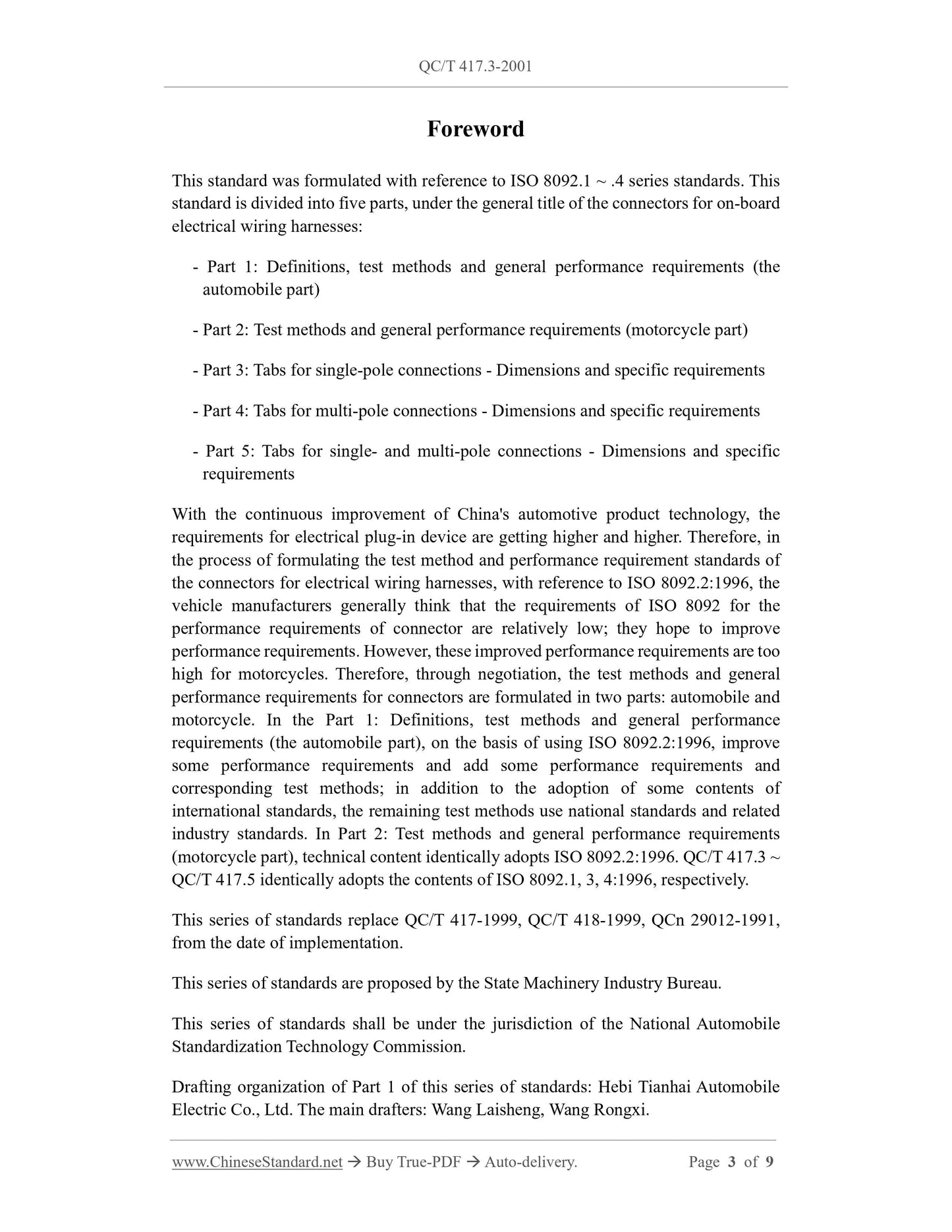

Foreword
This standard was formulated with reference to ISO 8092.1 ~ .4 series standards. This standard is divided into five parts, under the general title of the connectors for on-board electrical wiring harnesses:
- Part 1: Definitions, test methods and general performance requirements (the automobile part)
- Part 2: Test methods and general performance requirements (motorcycle part) - Part 3: Tabs for single-pole connections - Dimensions and specific requirements - Part 4: Tabs for multi-pole connections - Dimensions and specific requirements - Part 5: Tabs for single- and multi-pole connections - Dimensions and specific requirements
With the continuous improvement of China's automotive product technology, the requirements for electrical plug-in device are getting higher and higher. Therefore, in the process of formulating the test method and performance requirement standards of the connectors for electrical wiring harnesses, with reference to ISO 8092.2:1996, the vehicle manufacturers generally think that the requirements of ISO 8092 for the performance requirements of connector are relatively low; they hope to improve performance requirements. However, these improved performance requirements are too high for motorcycles. Therefore, through negotiation, the test methods and general performance requirements for connectors are formulated in two parts: automobile and motorcycle. In the Part 1: Definitions, test methods and general performance requirements (the automobile part), on the basis of using ISO 8092.2:1996, improve some performance requirements and add some performance requirements and corresponding test methods; in addition to the adoption of some contents of international standards, the remaining test methods use national standards and related industry standards. In Part 2: Test methods and general performance requirements (motorcycle part), technical content identically adopts ISO 8092.2:1996. QC/T 417.3 ~ QC/T 417.5 identically adopts the contents of ISO 8092.1, 3, 4:1996, respectively. This series of standards replace QC/T 417-1999, QC/T 418-1999, QCn 29012-1991, from the date of implementation.
This series of standards are proposed by the State Machinery Industry Bureau. This series of standards shall be under the jurisdiction of the National Automobile Standardization Technology Commission.
Drafting organization of Part 1 of this series of standards: Hebi Tianhai Automobile Electric Co., Ltd. The main drafters: Wang Laisheng, Wang Rongxi.

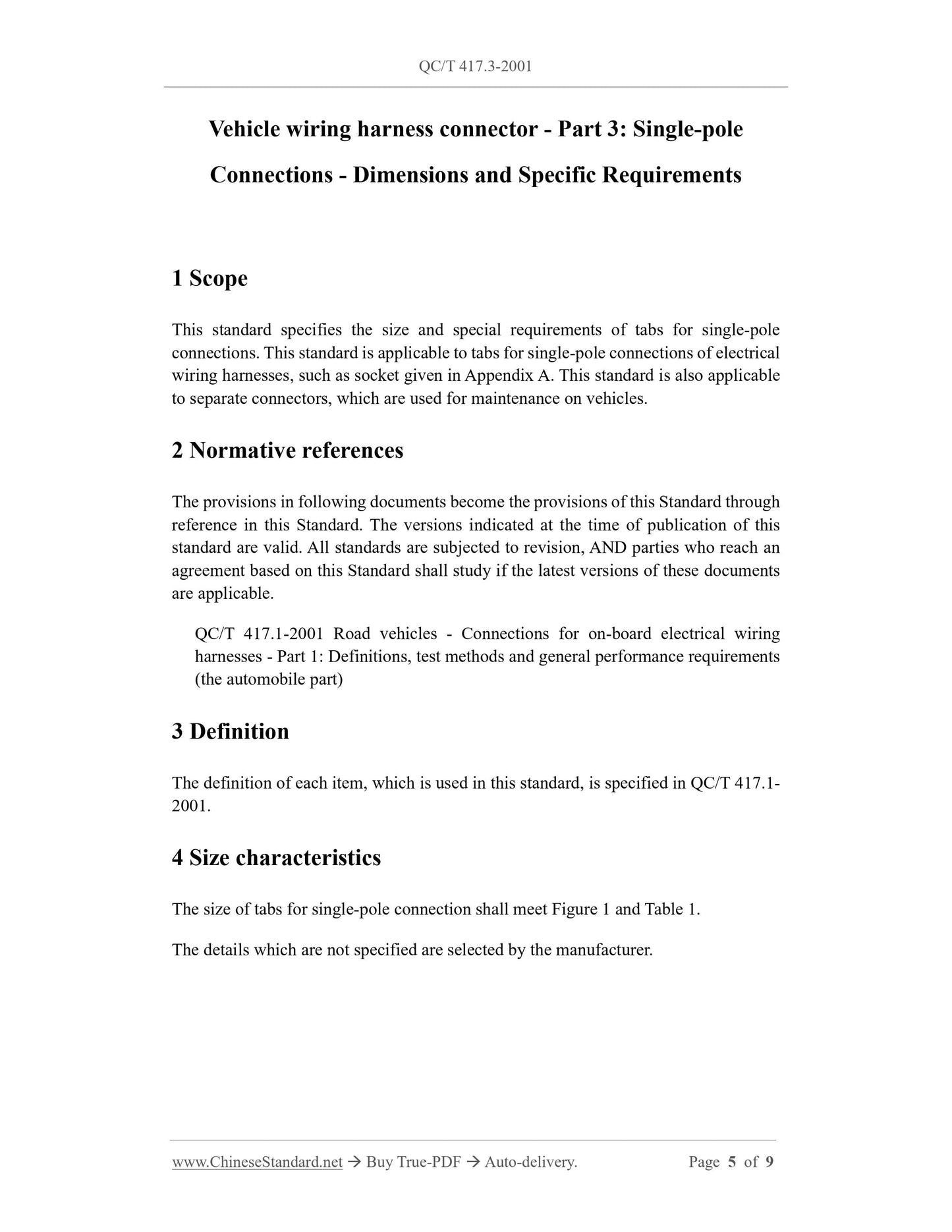

Vehicle wiring harness connector - Part 3: Single-pole
Connections - Dimensions and Specific Requirements
1 Scope
This standard specifies the size and special requirements of tabs for single-pole connections. This standard is applicable to tabs for single-pole connections of electrical wiring harnesses, such as socket given in Appendix A. This standard is also applicable to separate connectors, which are used for maintenance on vehicles.
2 Normative references
The provisions in following documents become the provisions of this Standard through reference in this Standard. The versions indicated at the time of publication of this standard are valid. All standards are subjected to revision, AND parties who reach an agreement based on this Standard shall study if the latest versions of these documents are applicable.
QC/T 417.1-2001 Road vehicles - Connections for on-board electrical wiring harnesses - Part 1: Definitions, test methods and general performance requirements (the automobile part)
3 Definition
The definition of each item, which is used in this standard, is specified in QC/T 417.1- 2001.
4 Size characteristics
The size of tabs for single-pole connection shall meet Figure 1 and Table 1. The details which are not specified are selected by the manufacturer.
