Q/CT 2299-2010: Technical Requirements for Field-mountable Optical Connector of China Telecom
Q/CT 2299-2010 Technical Requirements for Field-mountable Optical Connector of
China Telecom

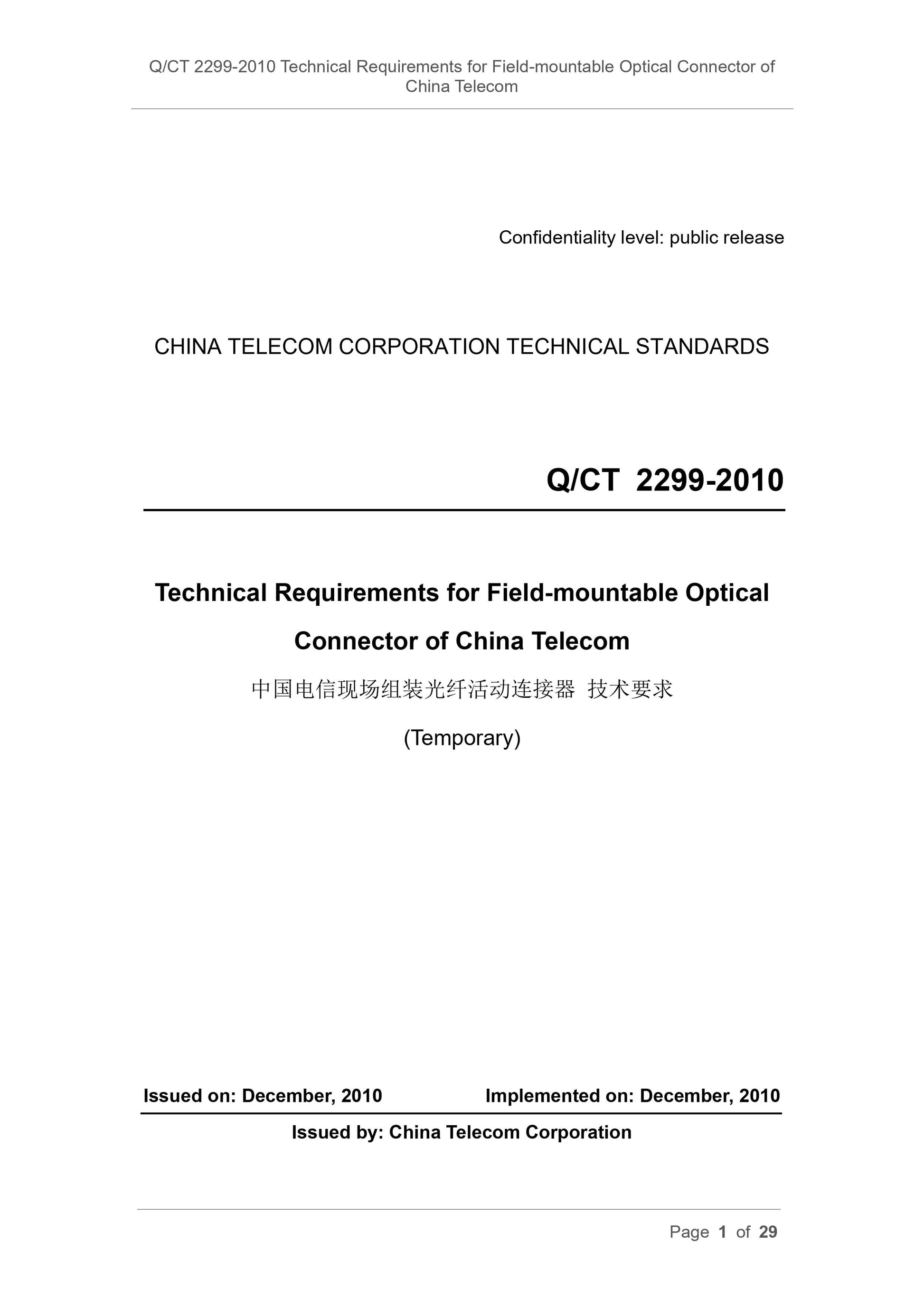

Page 1 of 29
Confidentiality level: public release
CHINA TELECOM CORPORATION TECHNICAL STANDARDS
Q/CT 2299-2010
Technical Requirements for Field-mountable Optical
Connector of China Telecom
(Temporary)
ISSUED ON: DECEMBER, 2010
IMPLEMENTED ON: DECEMBER, 2010
Issued by: China Telecom Corporation
China Telecom
Page 2 of 29

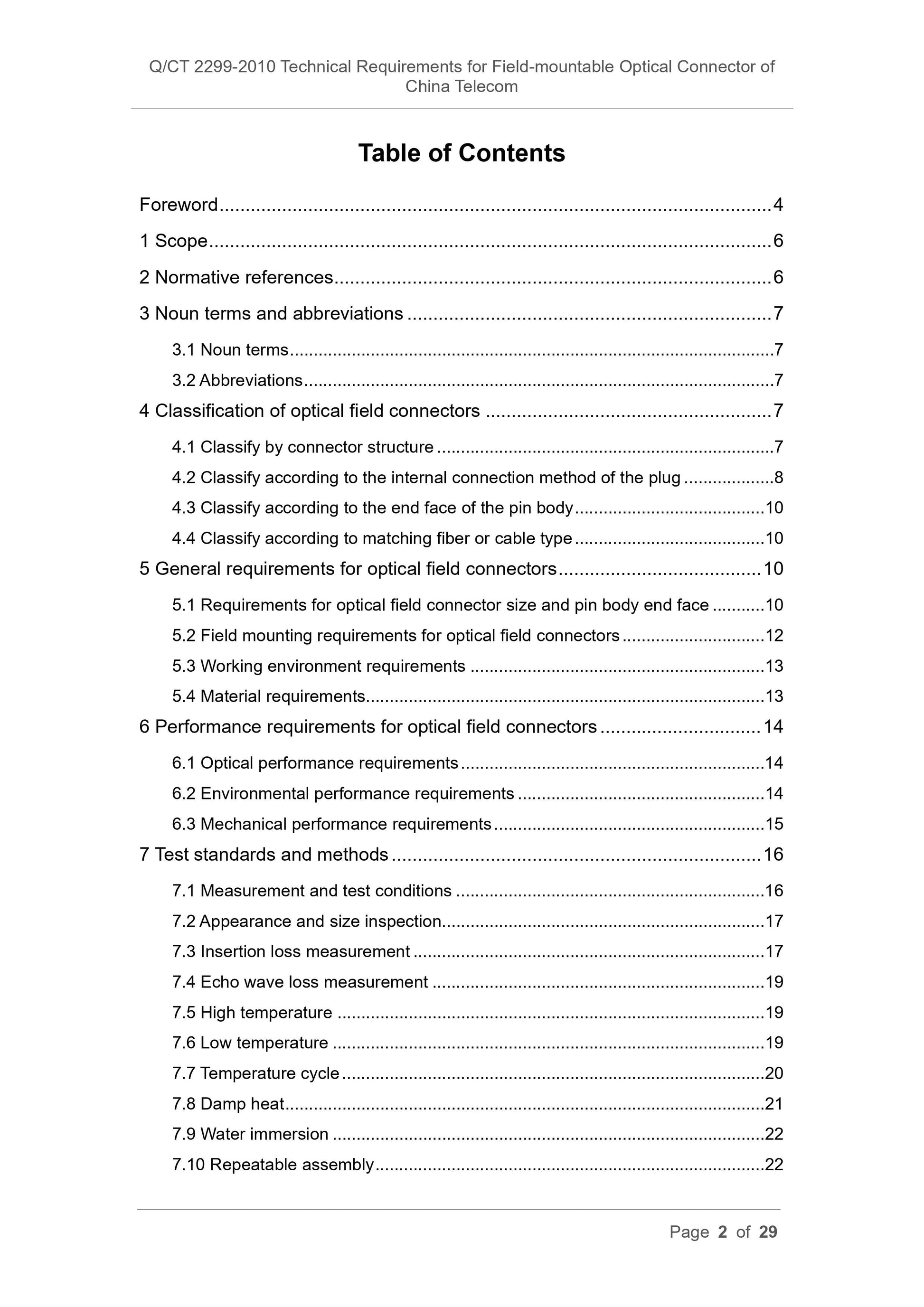

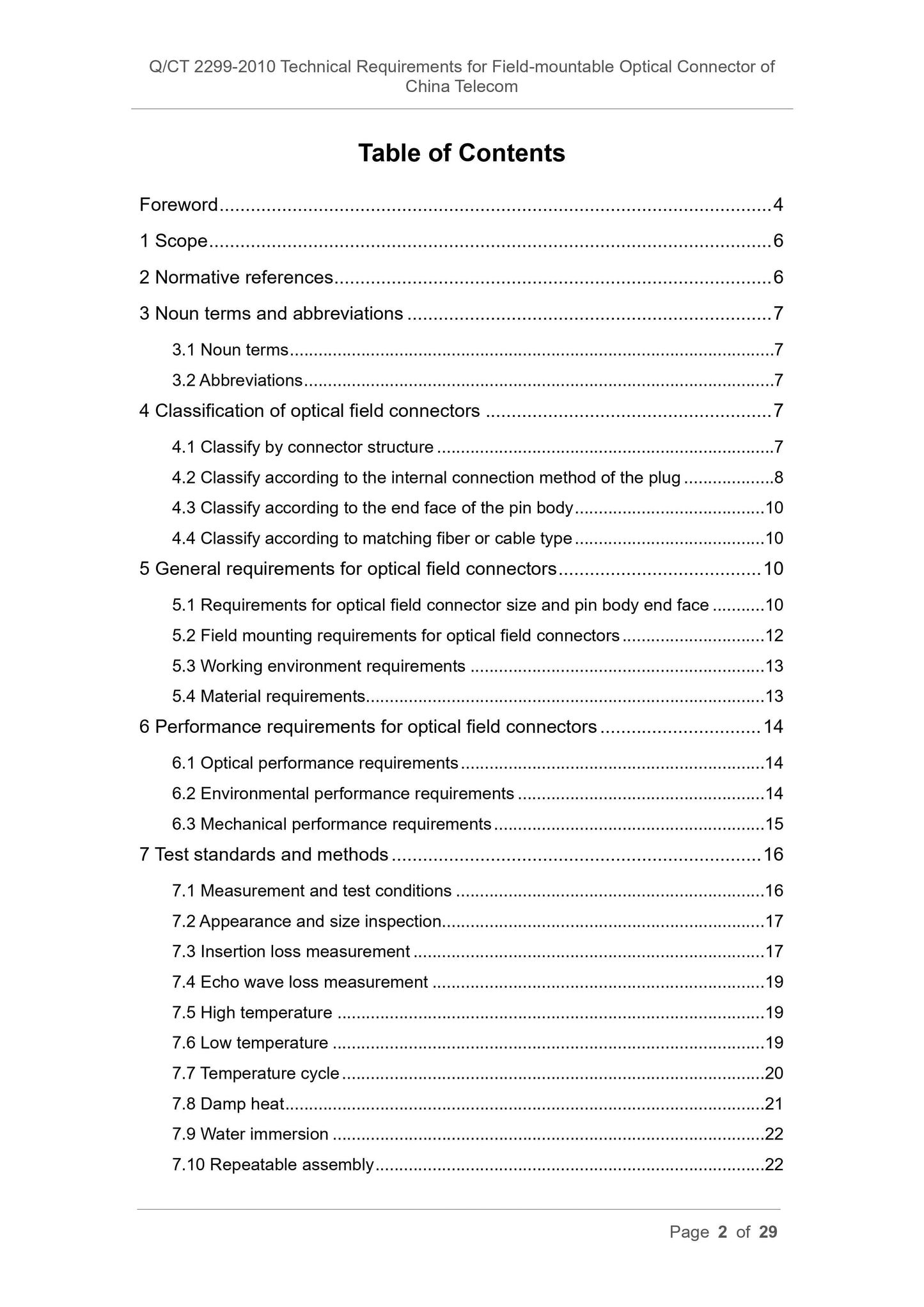

Table of Contents
Foreword ... 4
1 Scope ... 6
2 Normative references ... 6
3 Noun terms and abbreviations ... 7
3.1 Noun terms ... 7
3.2 Abbreviations ... 7
4 Classification of optical field connectors ... 7
4.1 Classify by connector structure ... 7
4.2 Classify according to the internal connection method of the plug ... 8
4.3 Classify according to the end face of the pin body ... 10
4.4 Classify according to matching fiber or cable type ... 10
5 General requirements for optical field connectors ... 10
5.1 Requirements for optical field connector size and pin body end face ... 10
5.2 Field mounting requirements for optical field connectors ... 12
5.3 Working environment requirements ... 13
5.4 Material requirements... 13
6 Performance requirements for optical field connectors ... 14
6.1 Optical performance requirements ... 14
6.2 Environmental performance requirements ... 14
6.3 Mechanical performance requirements ... 15
7 Test standards and methods ... 16
7.1 Measurement and test conditions ... 16
7.2 Appearance and size inspection ... 17
7.3 Insertion loss measurement ... 17

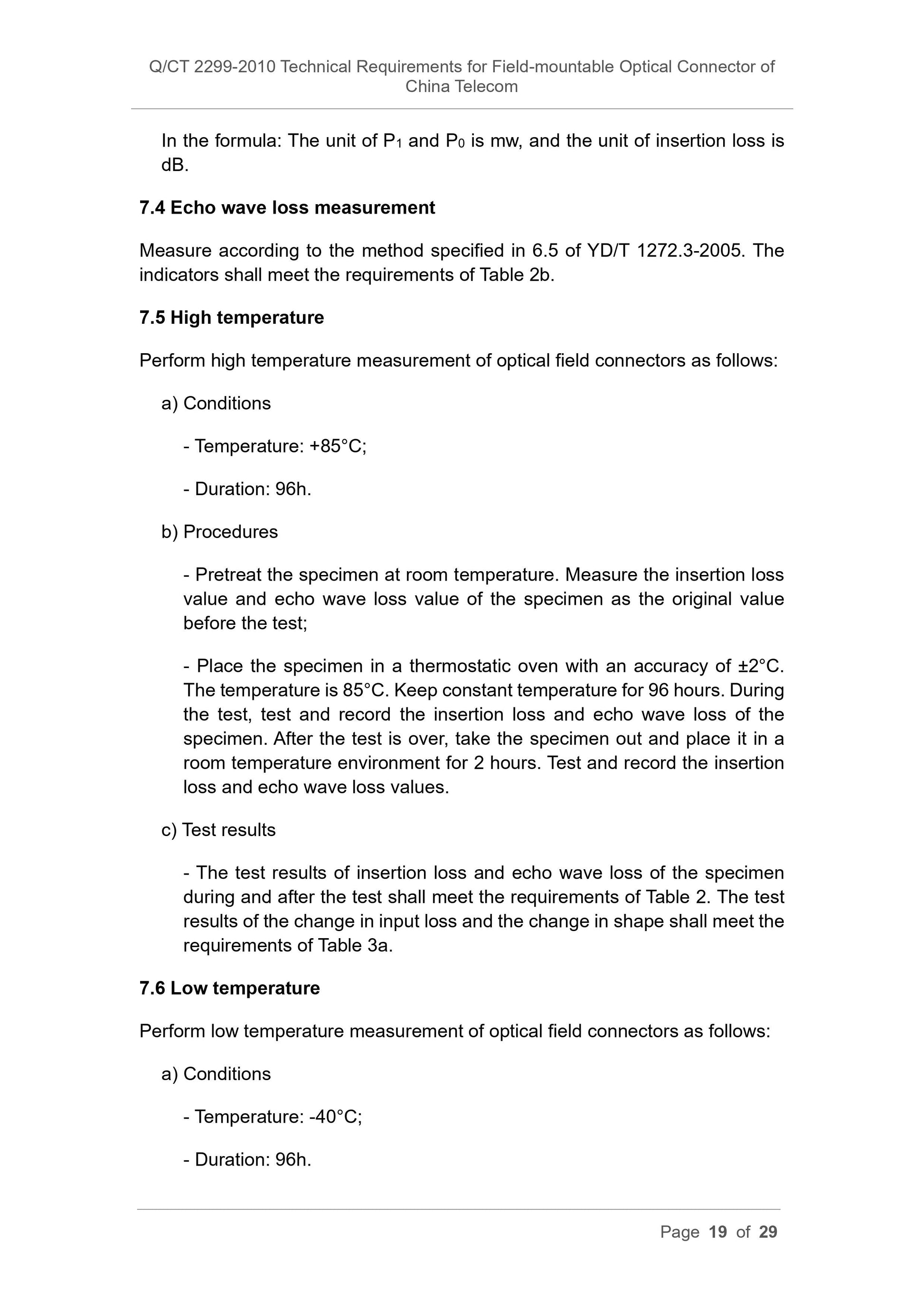

7.4 Echo wave loss measurement ... 19
7.5 High temperature ... 19
7.6 Low temperature ... 19

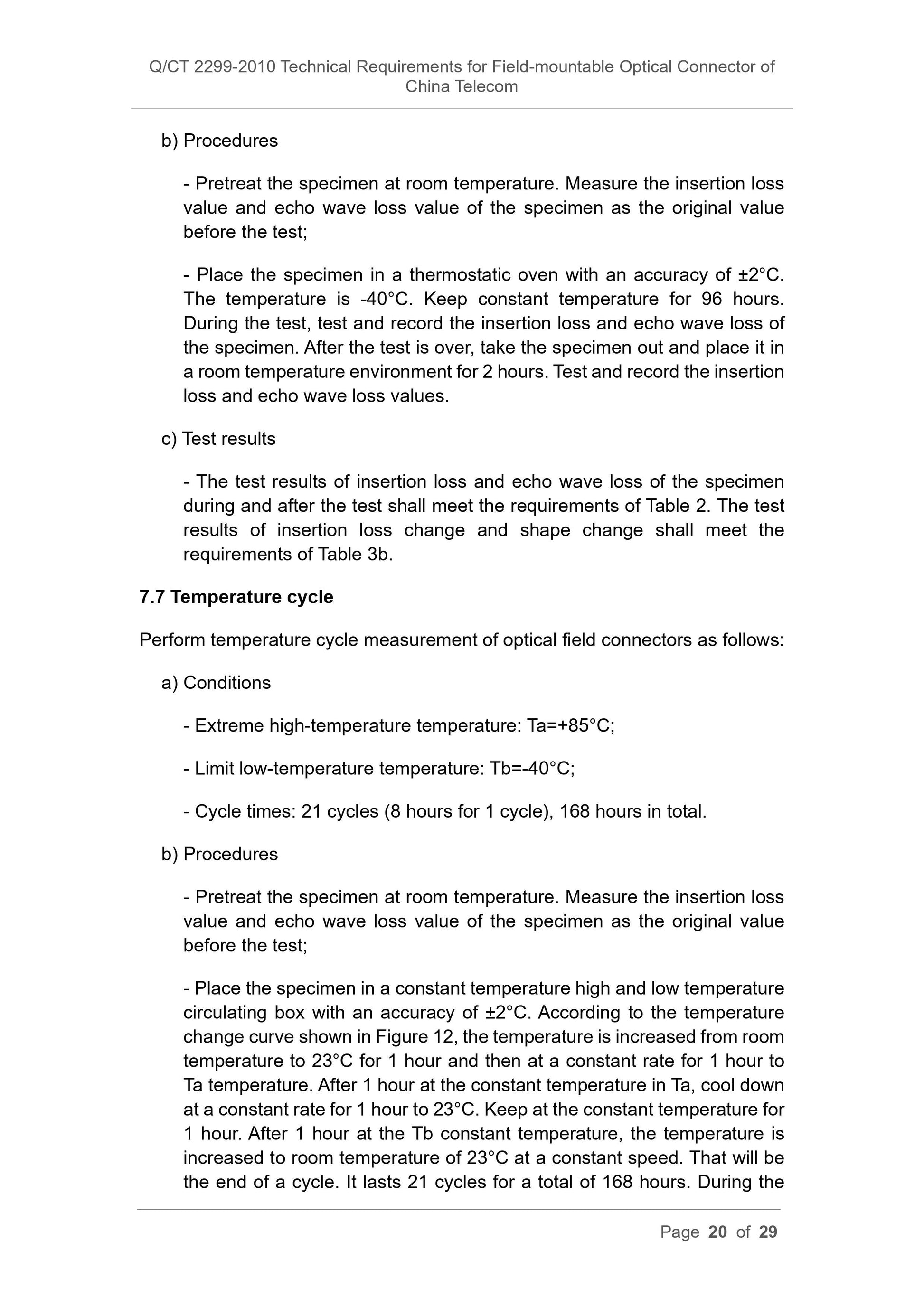

7.7 Temperature cycle ... 20
7.8 Damp heat ... 21

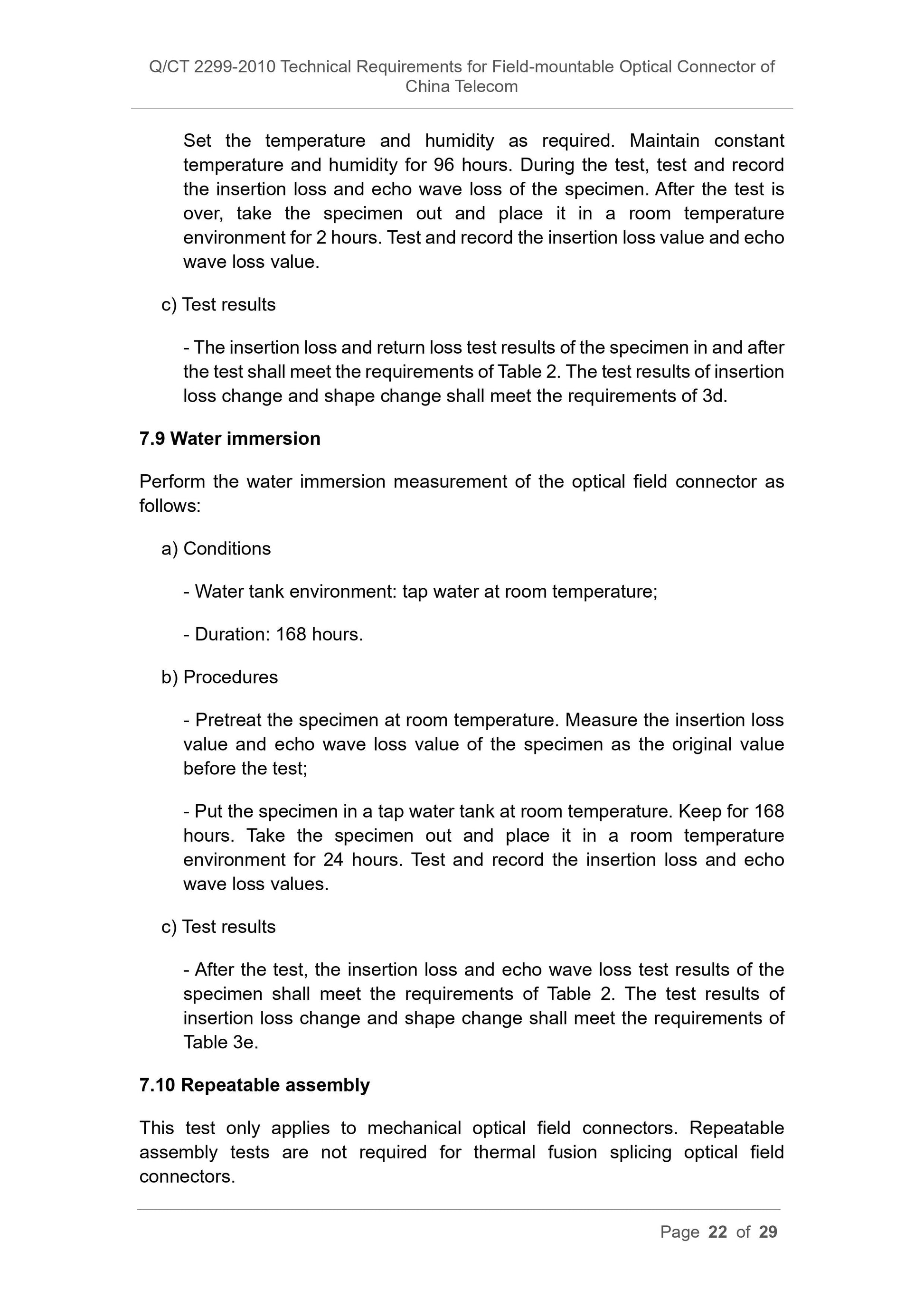

7.9 Water immersion ... 22
7.10 Repeatable assembly ... 22
China Telecom

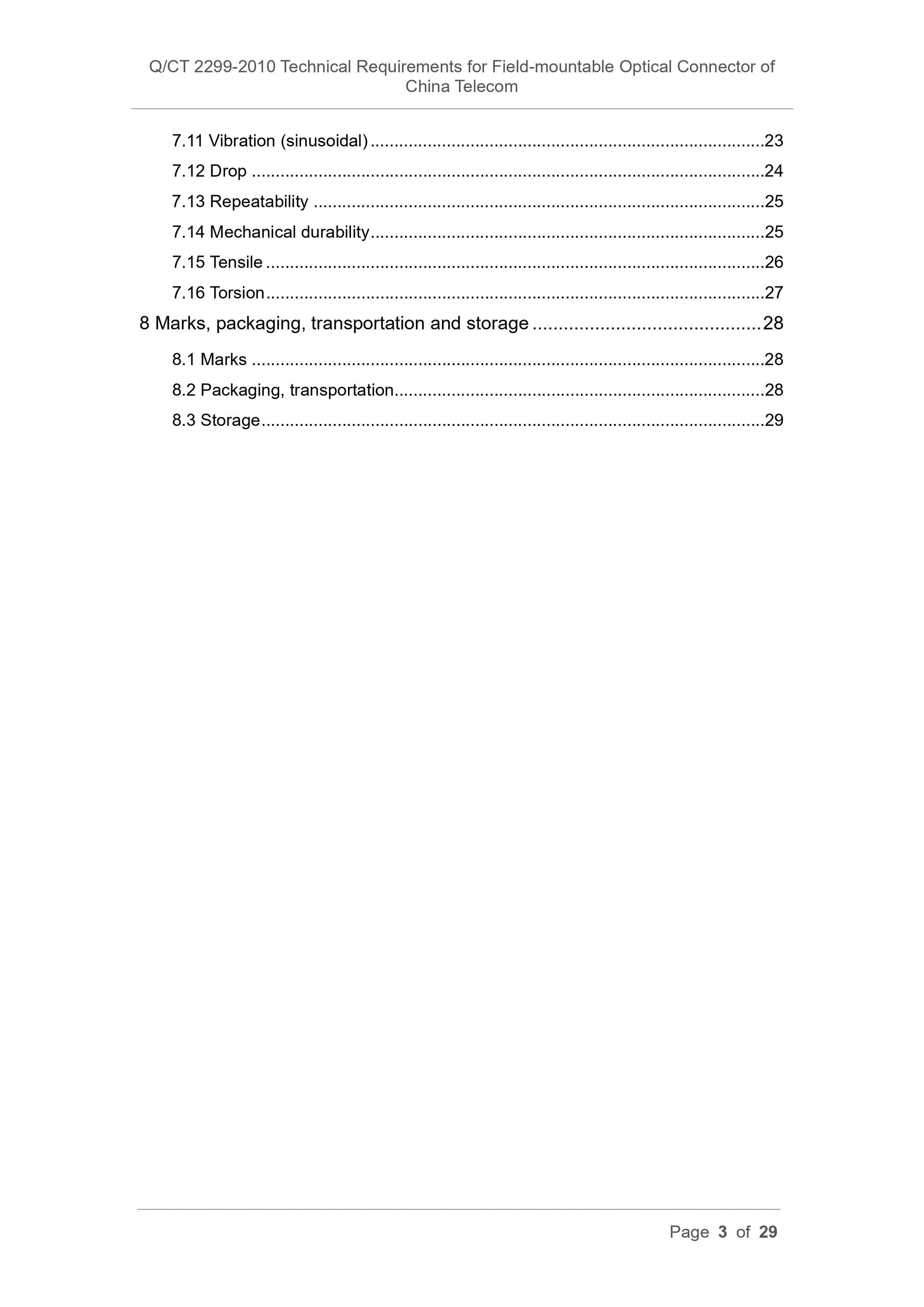

Page 3 of 29

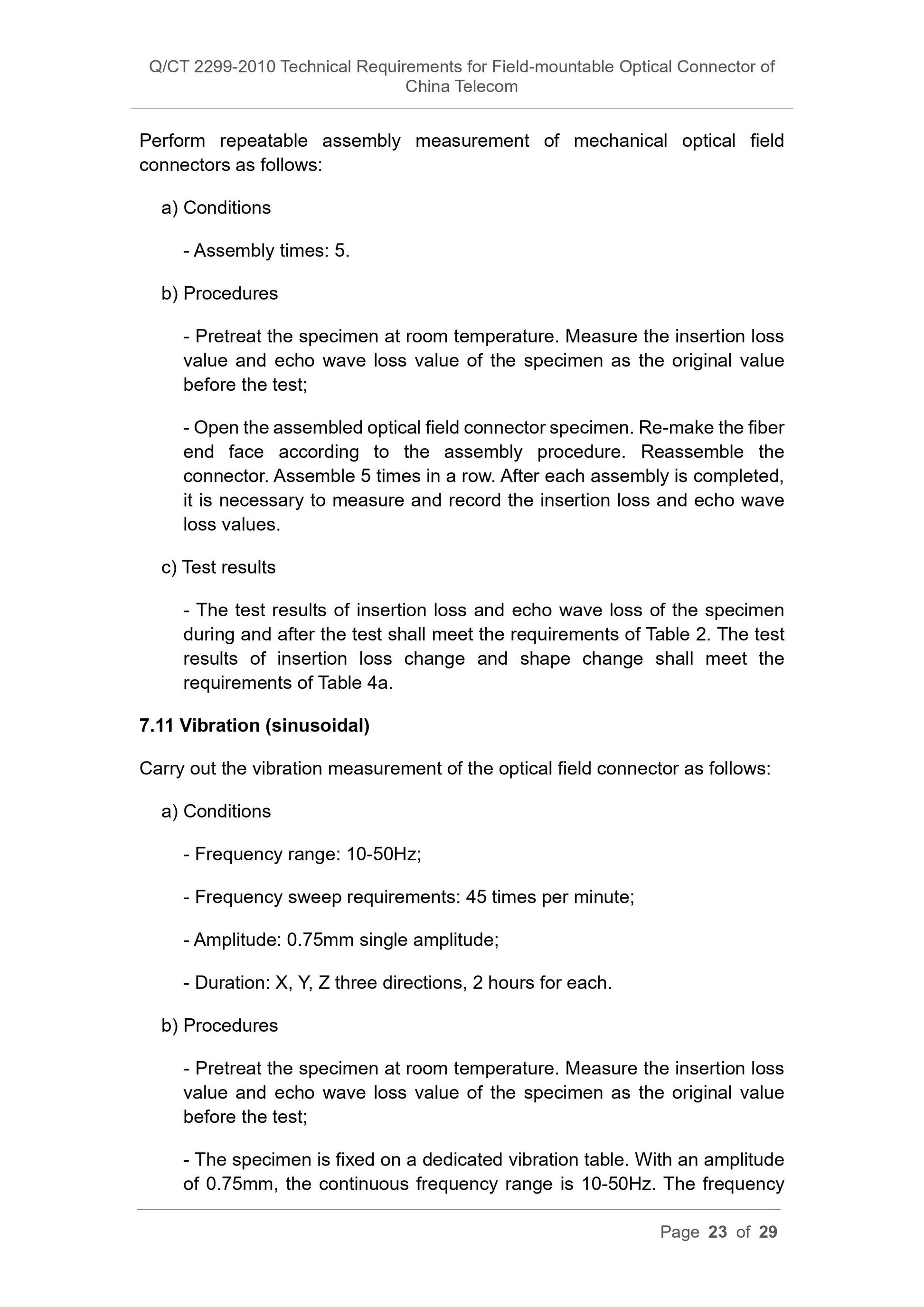

7.11 Vibration (sinusoidal) ... 23
7.12 Drop ... 24
7.13 Repeatability ... 25
7.14 Mechanical durability ... 25

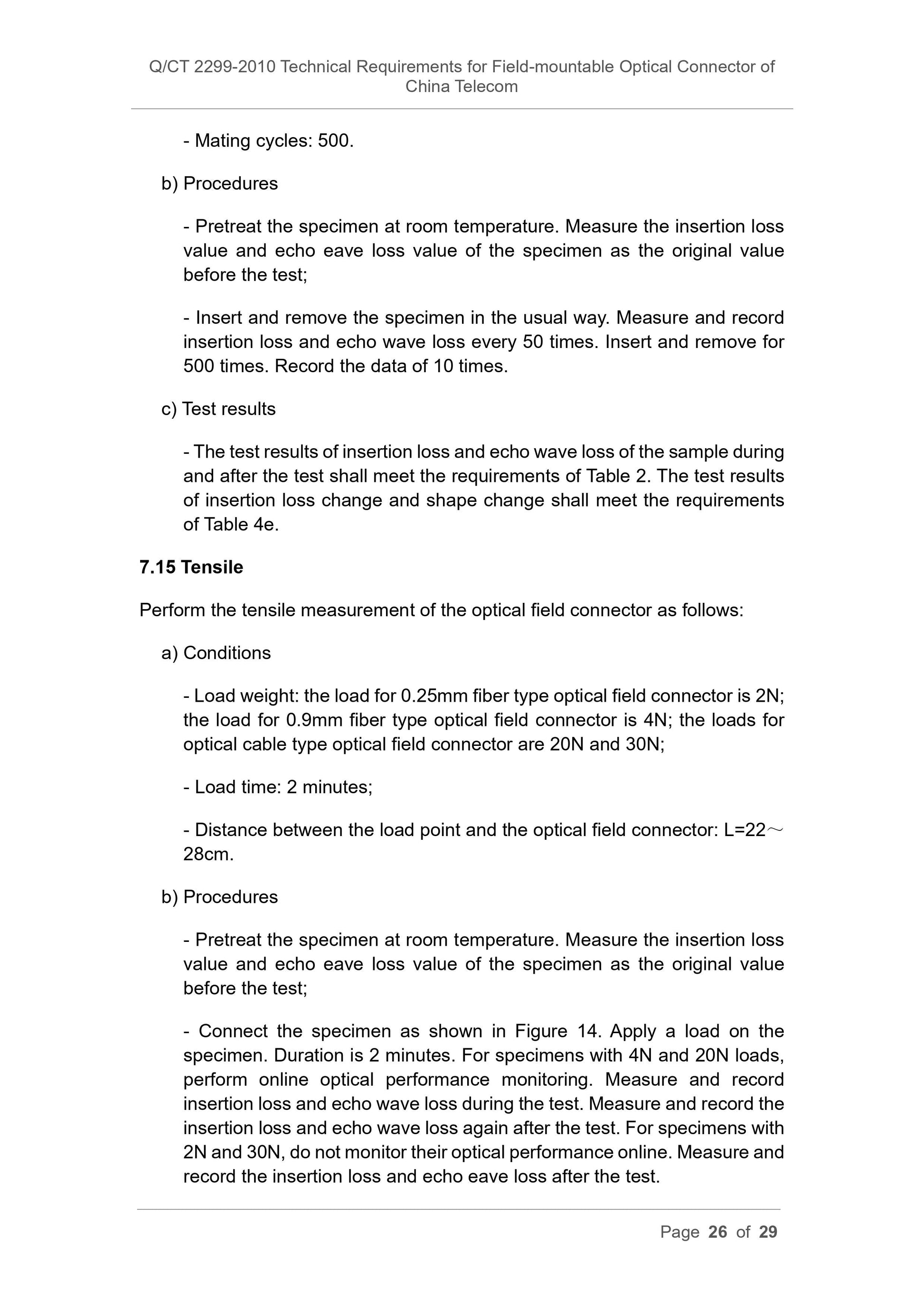

7.15 Tensile ... 26
7.16 Torsion ... 27
8 Marks, packaging, transportation and storage ... 28
8.1 Marks ... 28
8.2 Packaging, transportation ... 28
8.3 Storage ... 29
China Telecom

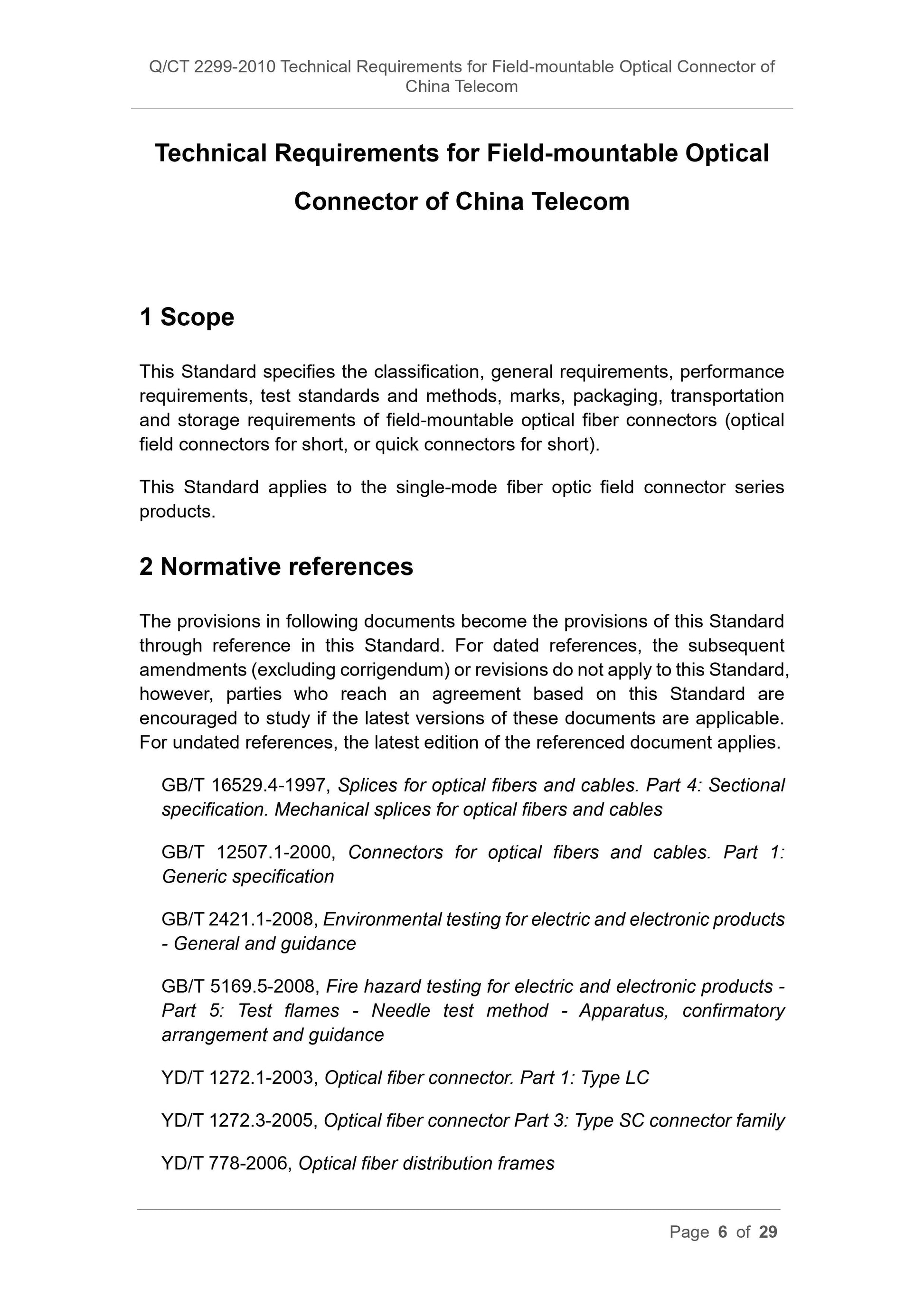

Page 6 of 29
Technical Requirements for Field-mountable Optical
Connector of China Telecom
1 Scope
This Standard specifies the classification, general requirements, performance
requirements, test standards and methods, marks, packaging, transportation
and storage requirements of field-mountable optical fiber connectors (optical
field connectors for short, or quick connectors for short).
This Standard applies to the single-mode fiber optic field connector series
products.
2 Normative references
The provisions in following documents become the provisions of this Standard
through reference in this Standard. For dated references, the subsequent
amendments (excluding corrigendum) or revisions do not apply to this Standard,
however, parties who reach an agreement based on this Standard are
encouraged to study if the latest versions of these documents are applicable.
For undated references, the latest edition of the referenced document applies.
GB/T 16529.4-1997, Splices for optical fibers and cables. Part 4: Sectional
specification. Mechanical splices for optical fibers and cables
GB/T 12507.1-2000, Connectors for optical fibers and cables. Part 1:
Generic specification
GB/T 2421.1-2008, Environmental testing for electric and electronic products
- General and guidance
GB/T 5169.5-2008, Fire hazard testing for electric and electronic products -
Part 5: Test flames - Needle test method - Apparatus, confirmatory
arrangement and guidance
YD/T 1272.1-2003, Optical fiber connector. Part 1: Type LC
YD/T 1272.3-2005, Optical fiber connector Part 3: Type SC connector family
YD/T 778-2006, Optical fiber distribution frames
China Telecom

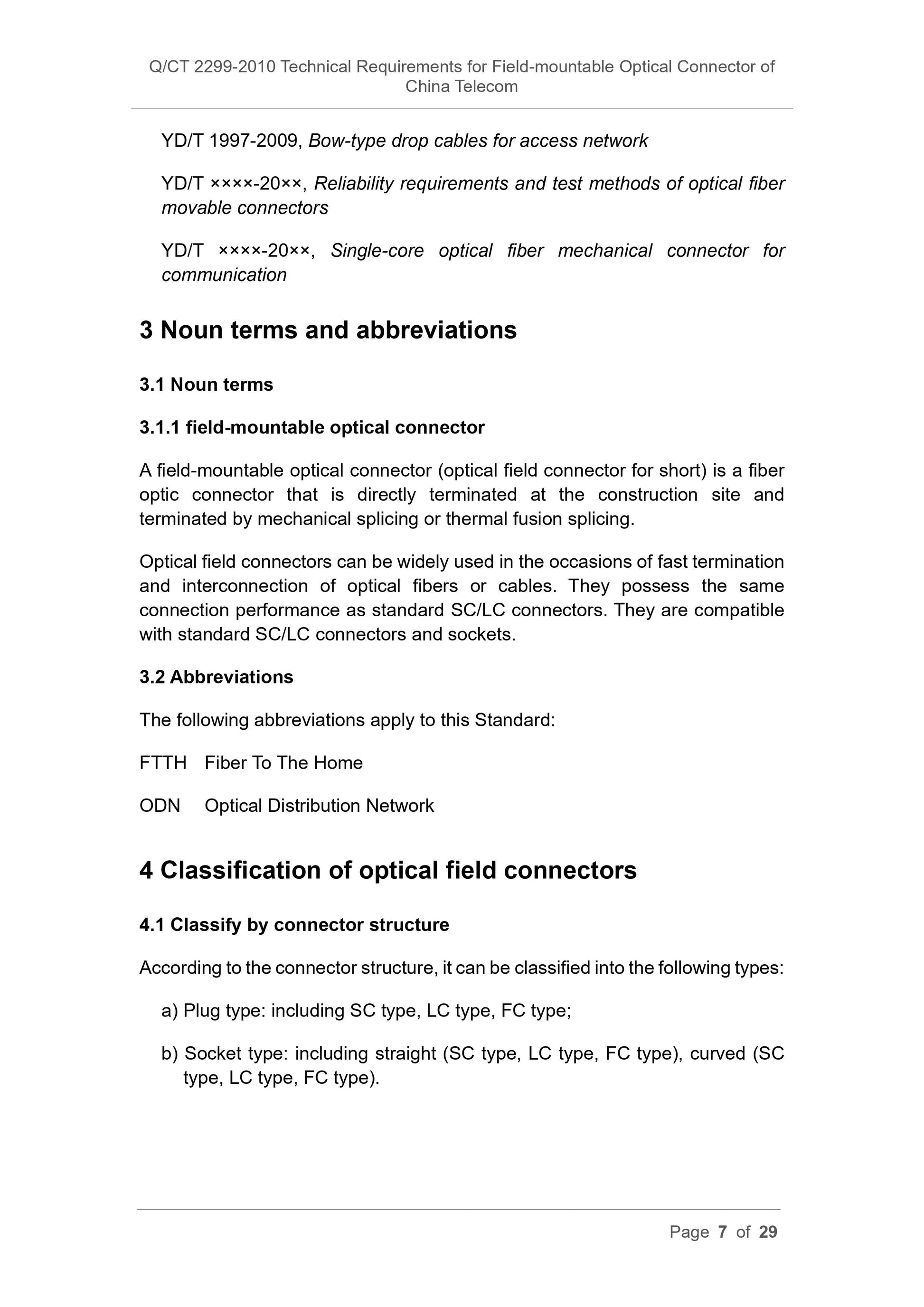

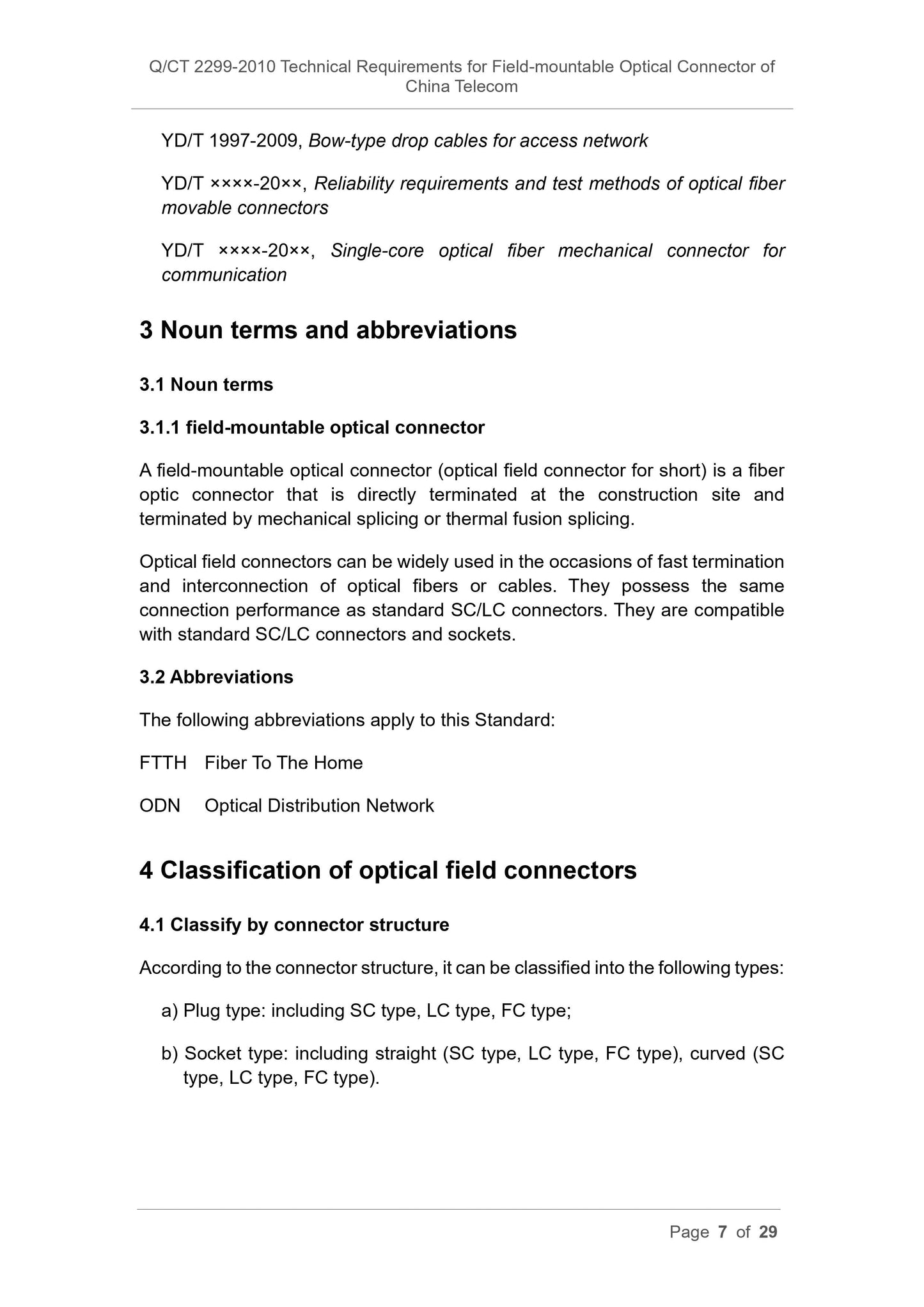

Page 7 of 29
YD/T 1997-2009, Bow-type drop cables for access network
YD/T ××××-20××, Reliability requirements and test methods of optical fiber
movable connectors
YD/T ××××-20××, Single-core optical fiber mechanical connector for
communication
3 Noun terms and abbreviations
3.1 Noun terms
3.1.1 field-mountable optical connector
A field-mountable optical connector (optical field connector for short) is a fiber
optic connector that is directly terminated at the construction site and
terminated by mechanical splicing or thermal fusion splicing.
Optical field connectors can be widely used in the occasions of fast termination
and interconnection of optical fibers or cables. They possess the same
connection performance as standard SC/LC connectors. They are compatible
with standard SC/LC connectors and sockets.
3.2 Abbreviations
The following abbreviations apply to this Standard:
FTTH Fiber To The Home
ODN Optical Distribution Network
4 Classification of optical field connectors
4.1 Classify by connector structure
According to the connector structure, it can be classified into the following types:
a) Plug type: including SC type, LC type, FC type;
b) Socket type: including straight (SC type, LC type, FC type), curved (SC
type, LC type, FC type).
China Telecom

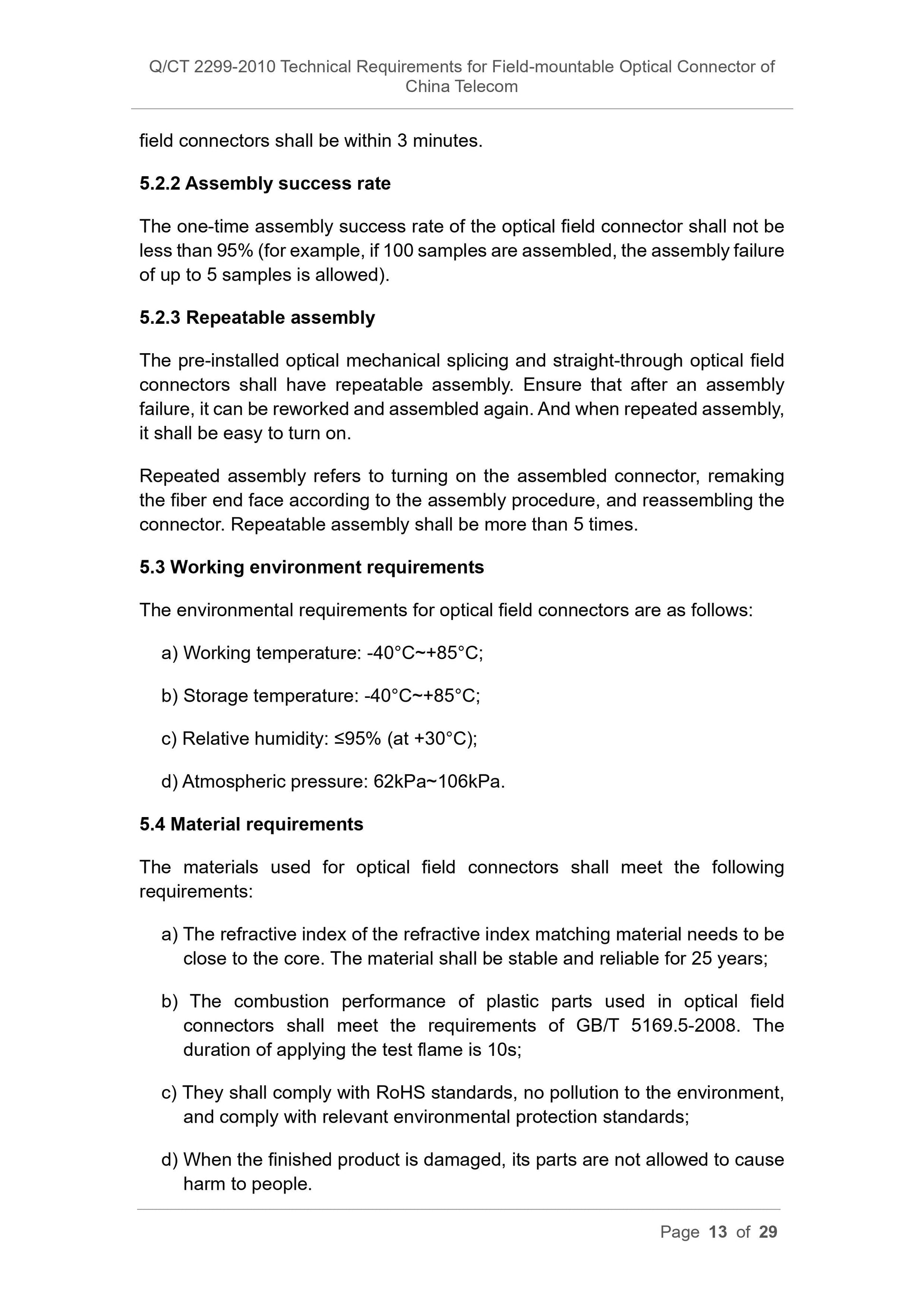

Page 13 of 29
field connectors shall be within 3 minutes.
5.2.2 Assembly success rate
The one-time assembly success rate of the optical field connector shall not be
less than 95% (for example, if 100 samples are assembled, the assembly failure
of up to 5 samples is allowed).
5.2.3 Repeatable assembly
The pre-installed optical mechanical splicing and straight-through optical field
connectors shall have repeatable assembly. Ensure that after an assembly
failure, it can be reworked and assembled again. And when repeated assembly,
it shall be easy to turn on.
Repeated assembly refers to turning on the assembled connector, remaking
the fiber end face according to the assembly procedure, and reassembling the
connector. Repeatable assembly shall be more than 5 times.
5.3 Working environment requirements
The environmental requirements for optical field connectors are as follows:
a) Working temperature: -40°C~+85°C;
b) Storage temperature: -40°C~+85°C;
c) Relative humidity: ≤95% (at +30°C);
d) Atmospheric pressure: 62kPa~106kPa.
5.4 Material requirements
The materials used for optical field connectors shall meet the following
requirements:
a) The refractive index of the refractive index matching material needs to be
close to the core. The material shall be stable and reliable for 25 years;
b) The combustion performance of plastic parts used in optical field
connectors shall meet the requirements of GB/T 5169.5-2008. The
duration of applying the test flame is 10s;
c) They shall comply with RoHS standards, no pollution to the environment,
and comply with relevant environmental protection standards;
d) When the finished product is damaged, its parts are not allowed to cause
harm to people.
China Telecom

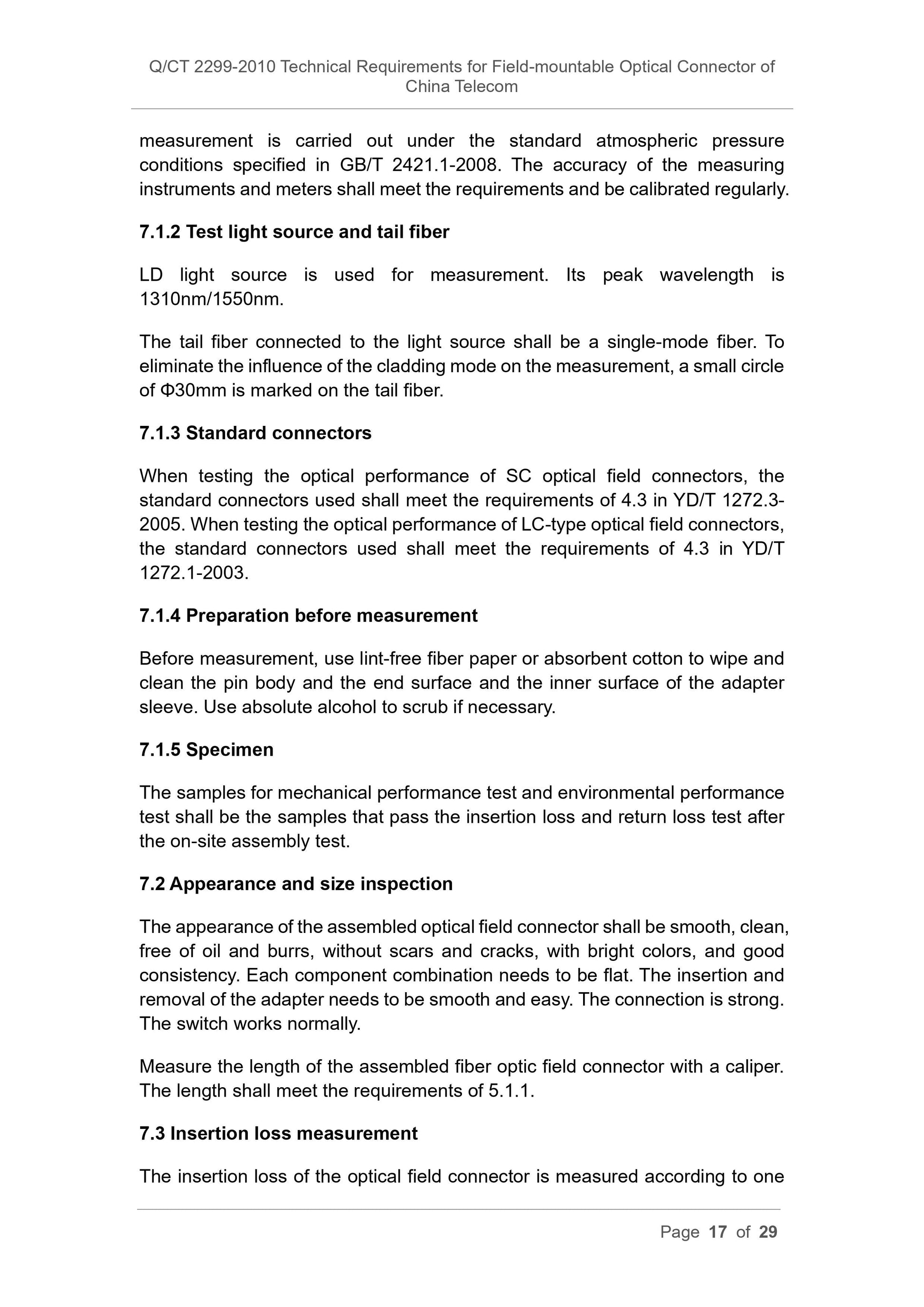

Page 17 of 29
measurement is carried out under the standard atmospheric pressure
conditions specified in GB/T 2421.1-2008. The accuracy of the measuring
instruments and meters shall meet the requirements and be calibrated regularly.
7.1.2 Test light source and tail fiber
LD light source is used for measurement. Its peak wavelength is
1310nm/1550nm.
The tail fiber connected to the light source shall be a single-mode fiber. To
eliminate the influence of the cladding mode on the measurement, a s...
