QC/T 2-2017: Formats of automotive product drawing

This Standard specifies the format and filling rules of the automotive product drawing. This Standard is applicable to the making of the automotive product drawing.

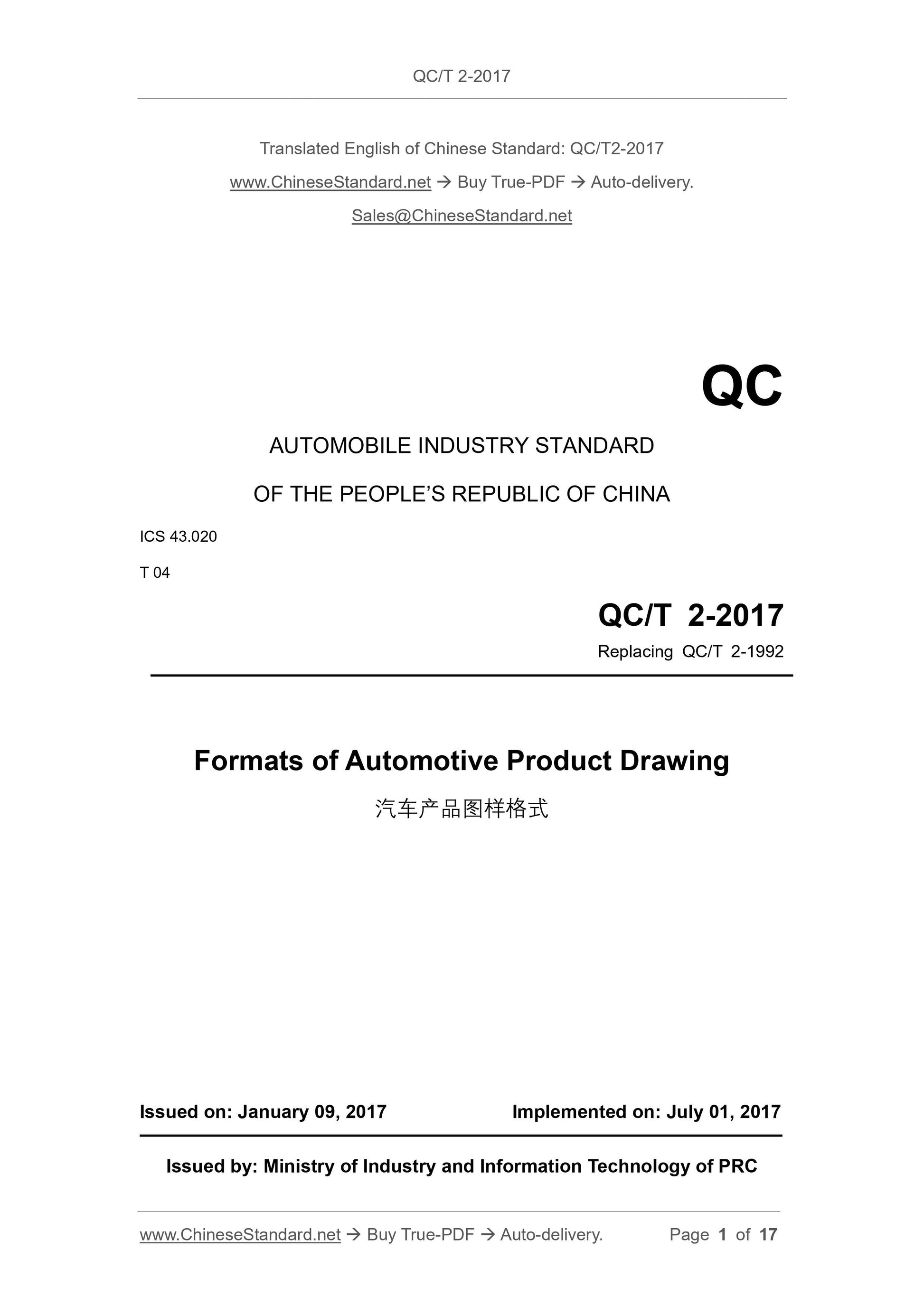

QC/T 2-2017
AUTOMOBILE INDUSTRY STANDARD
OF THE PEOPLE REPUBLIC OF CHINA
ICS 43.020
T 04
Replacing QC/T 2-1992
Formats of Automotive Product Drawing
ISSUED ON: JANUARY 09, 2017
IMPLEMENTED ON: JULY 01, 2017
Issued by: Ministry of Industry and Information Technology of PRC

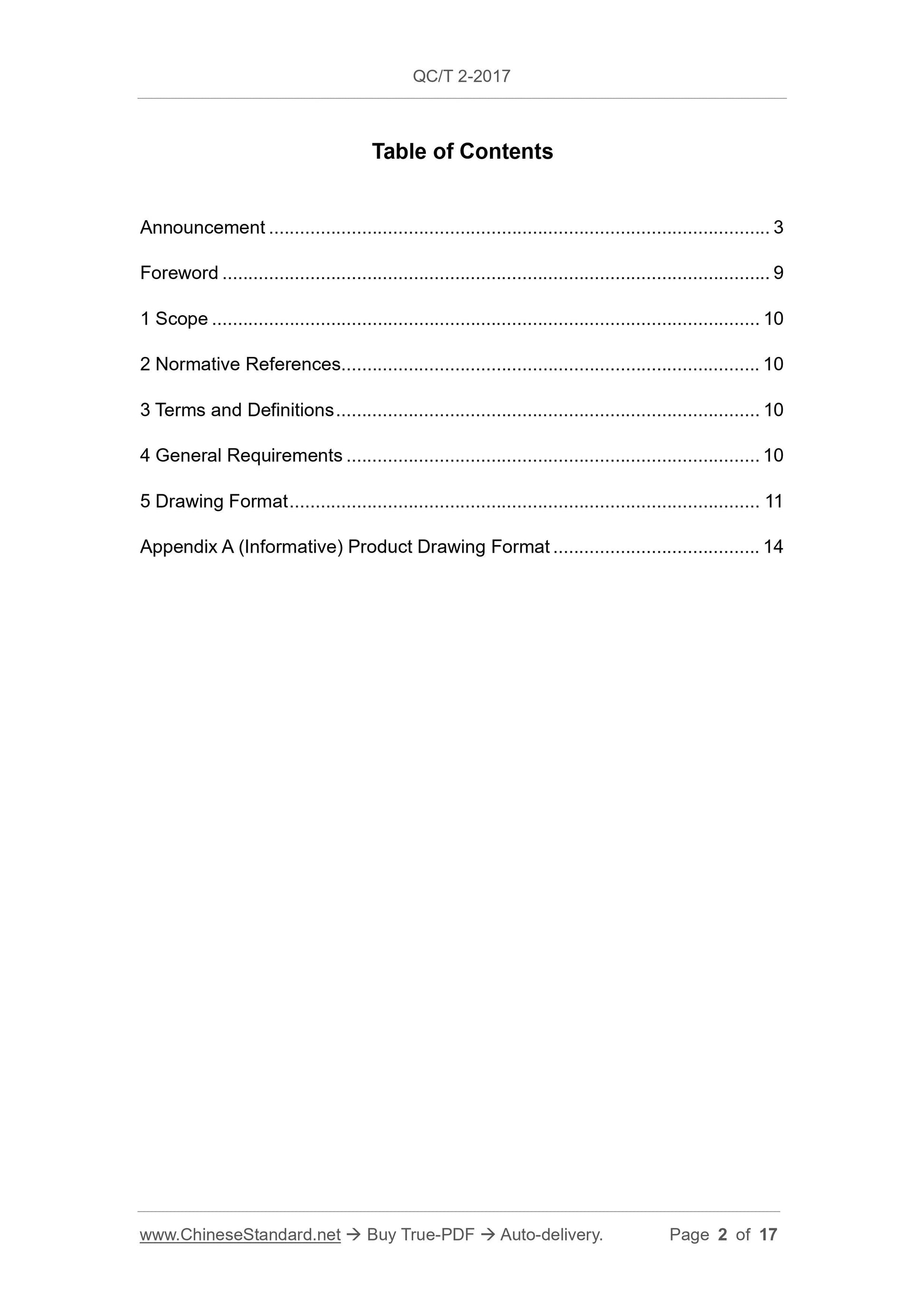

Table of Contents

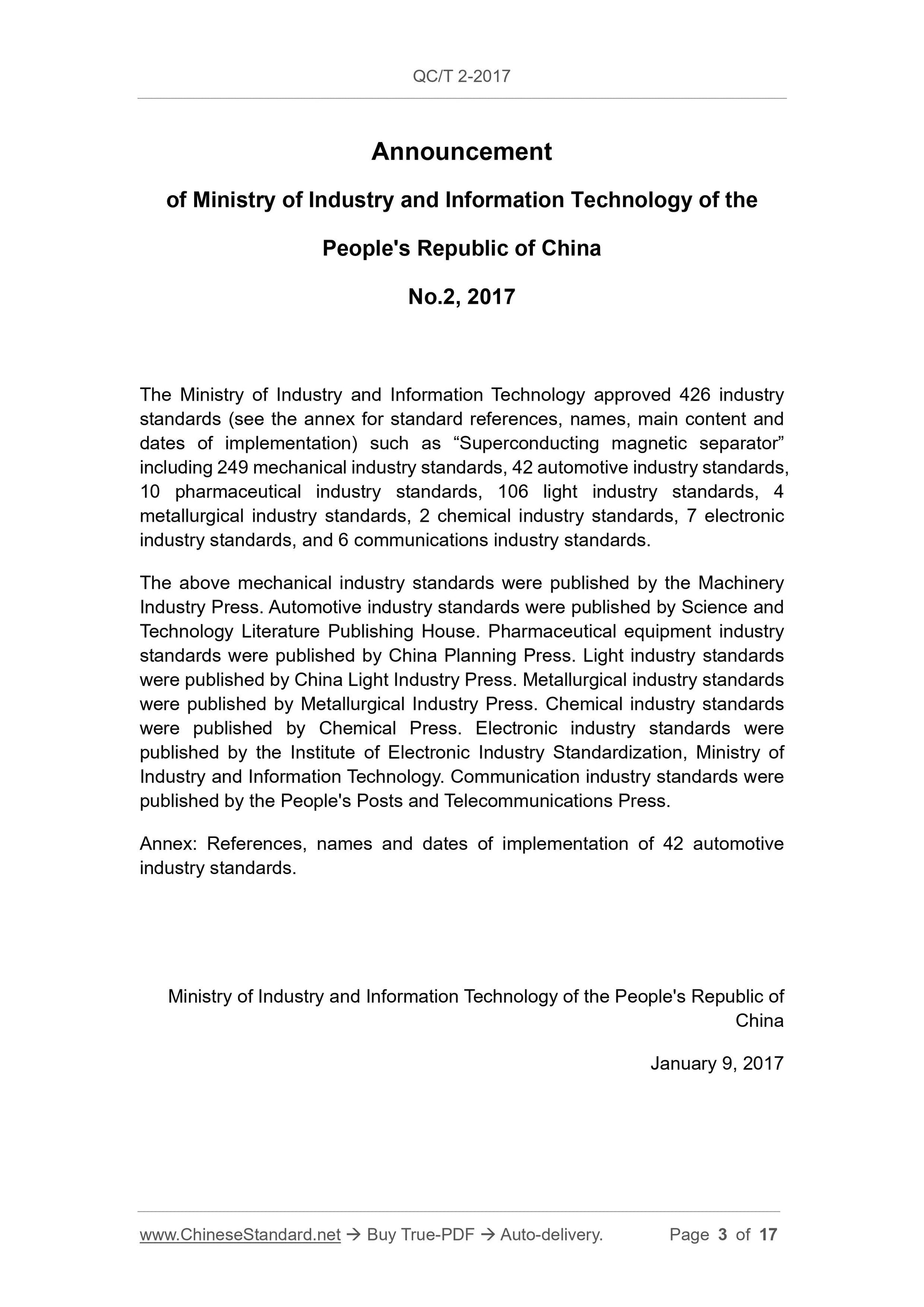

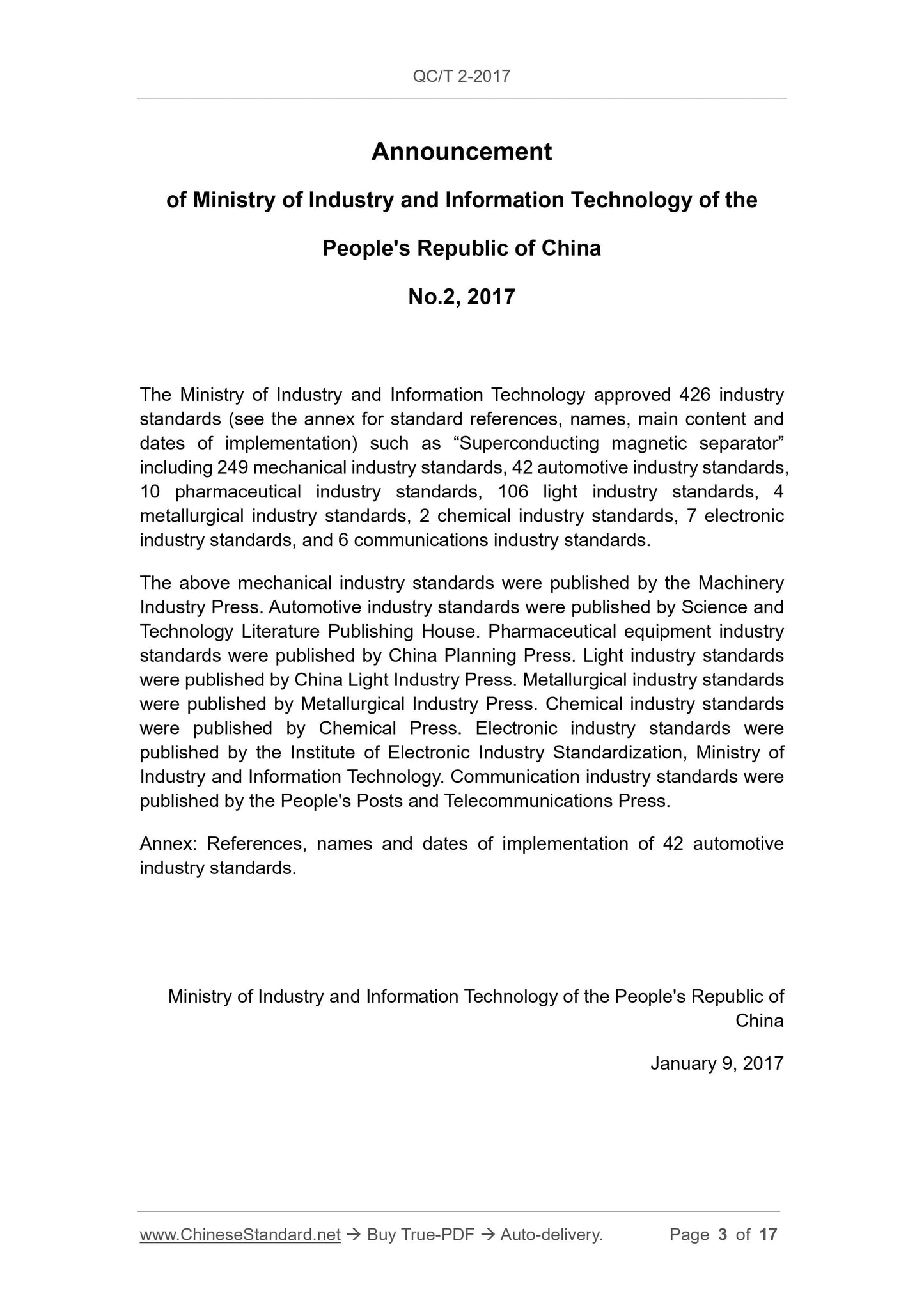

Announcement ... 3

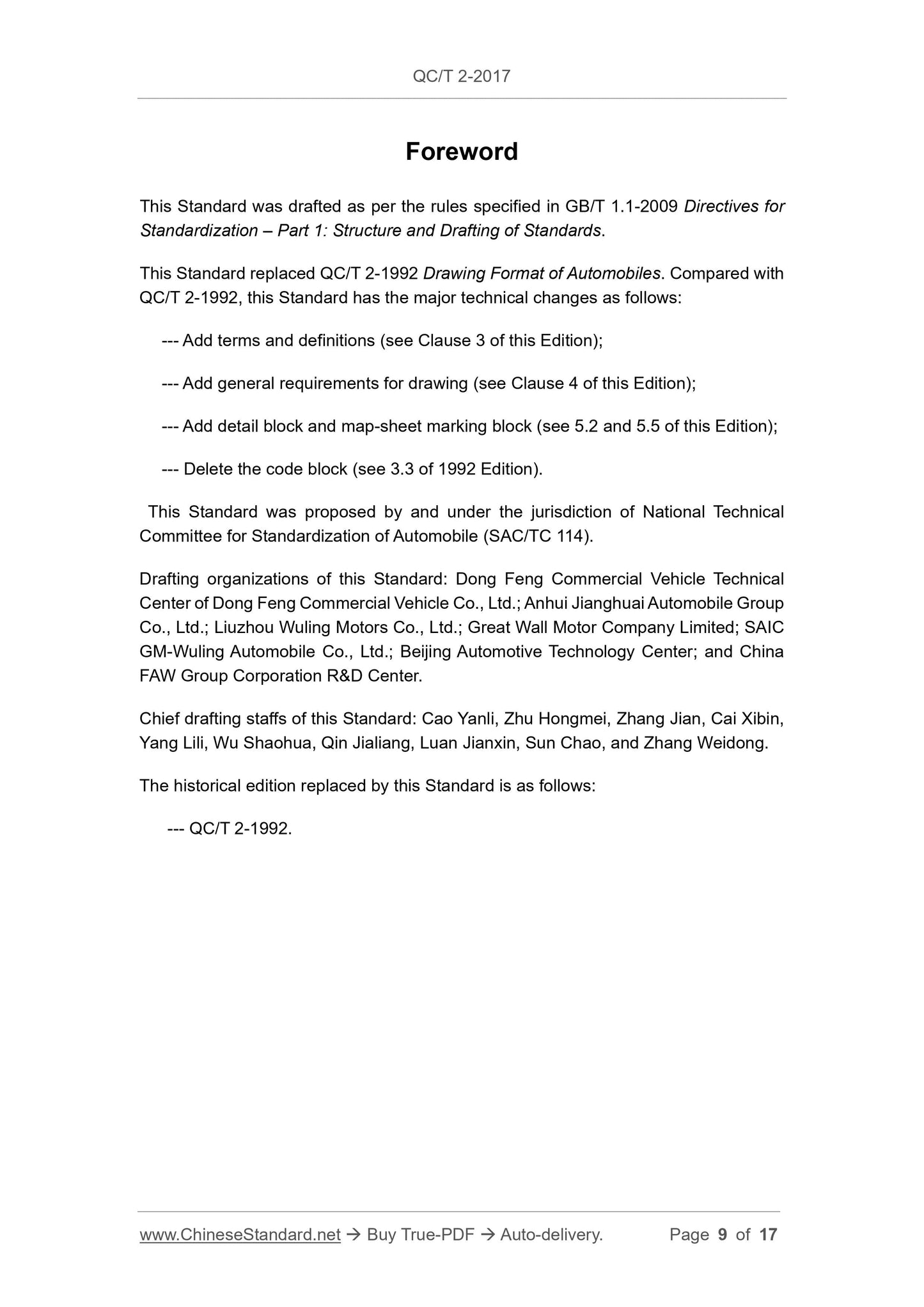

Foreword ... 9
1 Scope ... 10
2 Normative References ... 10
3 Terms and Definitions ... 10
4 General Requirements ... 10
5 Drawing Format ... 11
Appendix A (Informative) Product Drawing Format ... 14

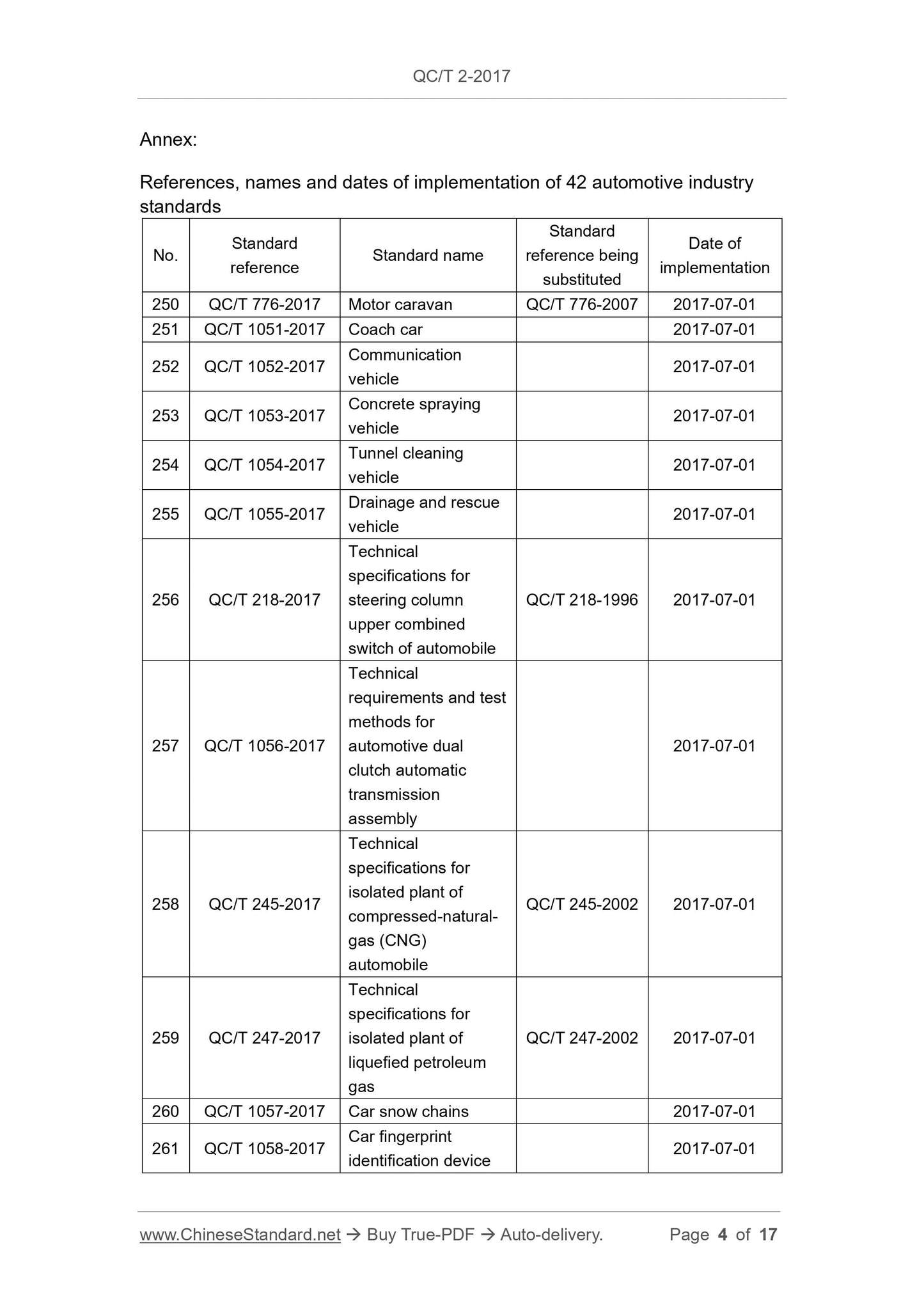

Annex:
References, names and dates of implementation of 42 automotive industry standards

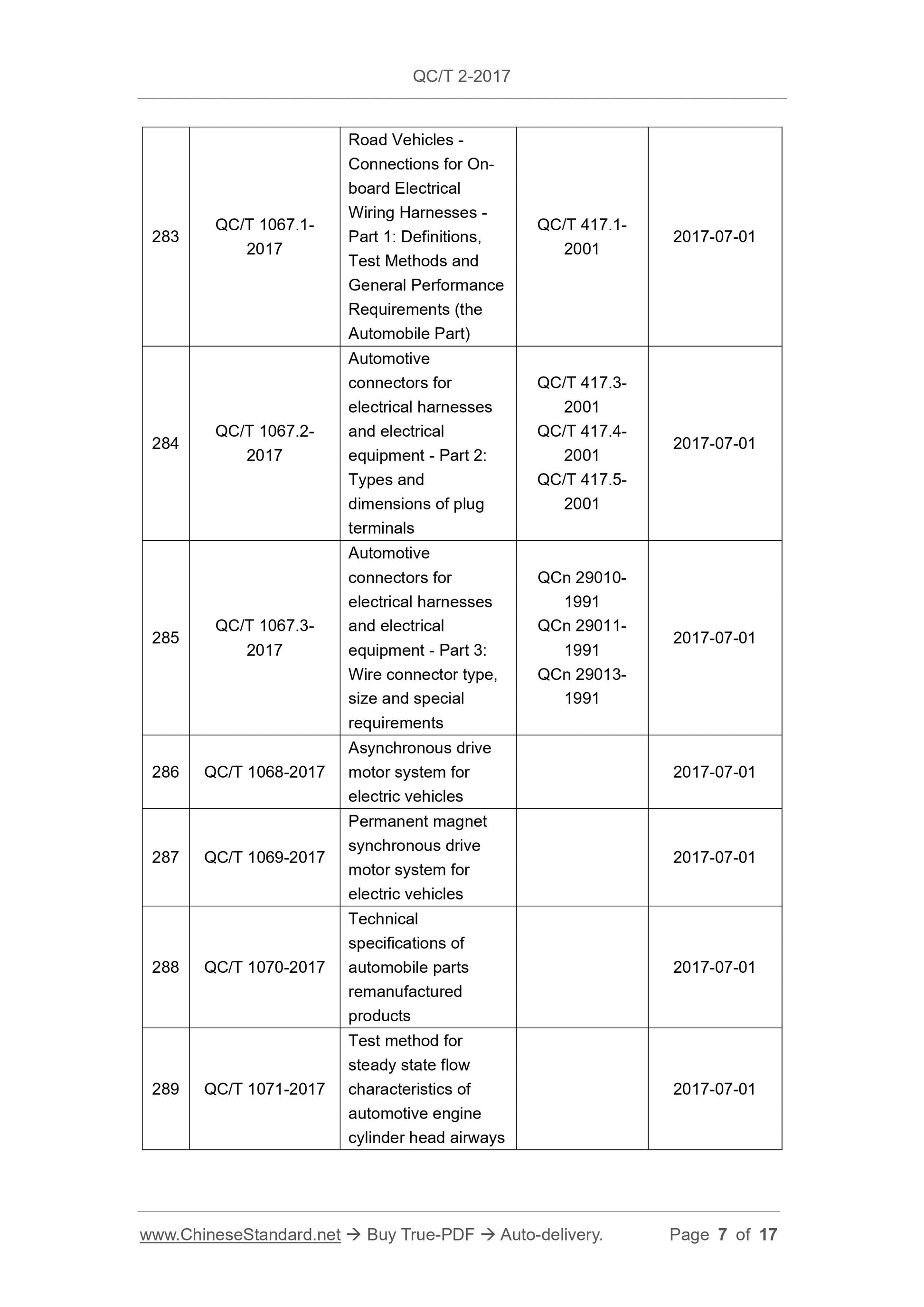

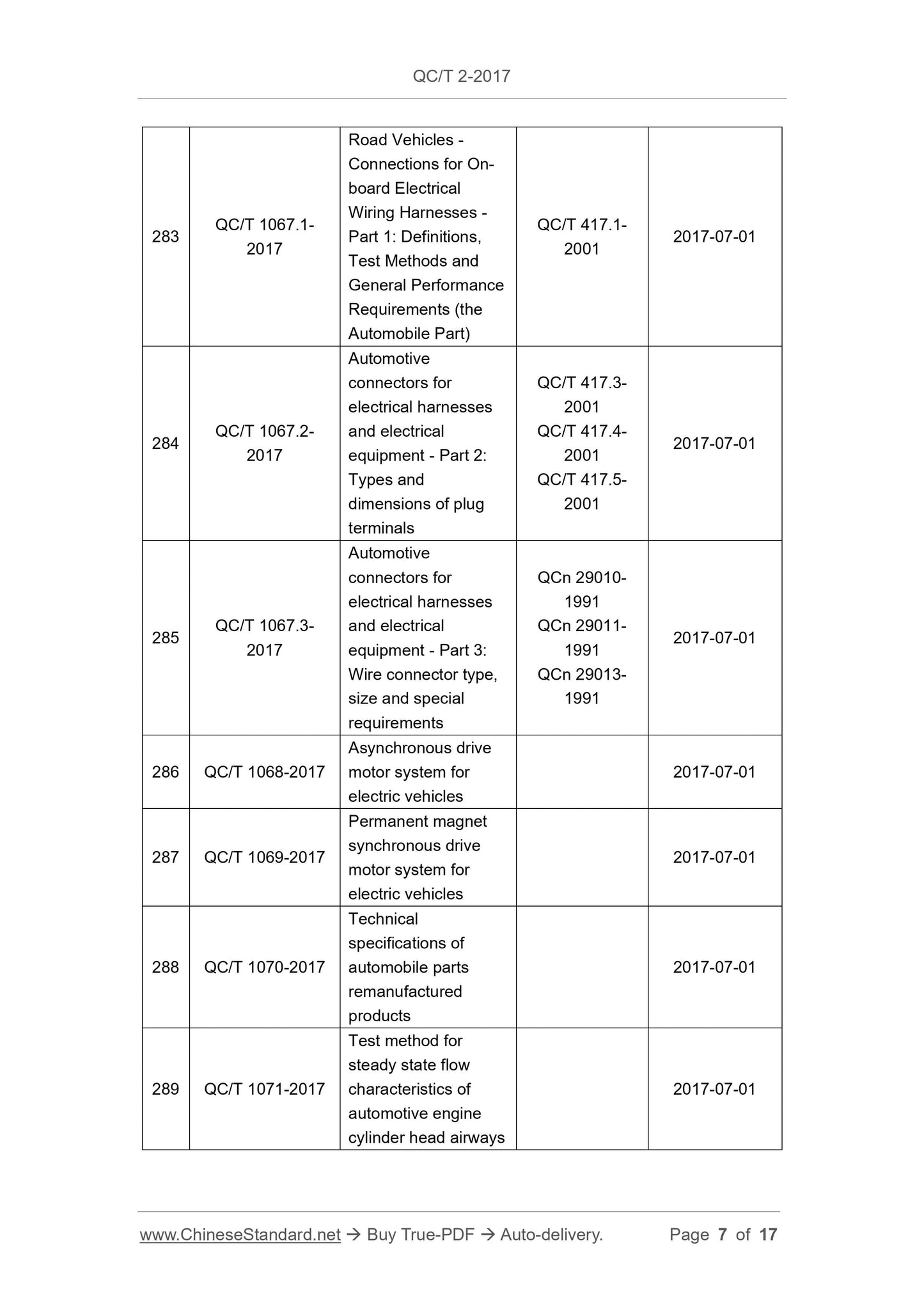

No. Standard reference Standard name
Standard
reference being
substituted
Date of
implementation
250 QC/T 776-2017 Motor caravan QC/T 776-2007 2017-07-01
251 QC/T 1051-2017 Coach car 2017-07-01
252 QC/T 1052-2017 Communication vehicle 2017-07-01
253 QC/T 1053-2017 Concrete spraying vehicle 2017-07-01
254 QC/T 1054-2017 Tunnel cleaning vehicle 2017-07-01
255 QC/T 1055-2017 Drainage and rescue vehicle 2017-07-01
256 QC/T 218-2017
Technical
specifications for
steering column
upper combined
switch of automobile
QC/T 218-1996 2017-07-01
257 QC/T 1056-2017
Technical
requirements and test
methods for
automotive dual
clutch automatic
transmission
assembly
2017-07-01
258 QC/T 245-2017
Technical
specifications for
isolated plant of
compressed-natural-
gas (CNG)
automobile
QC/T 245-2002 2017-07-01
259 QC/T 247-2017
Technical
specifications for
isolated plant of
liquefied petroleum
gas
QC/T 247-2002 2017-07-01
260 QC/T 1057-2017 Car snow chains 2017-07-01
261 QC/T 1058-2017 Car fingerprint identification device 2017-07-01

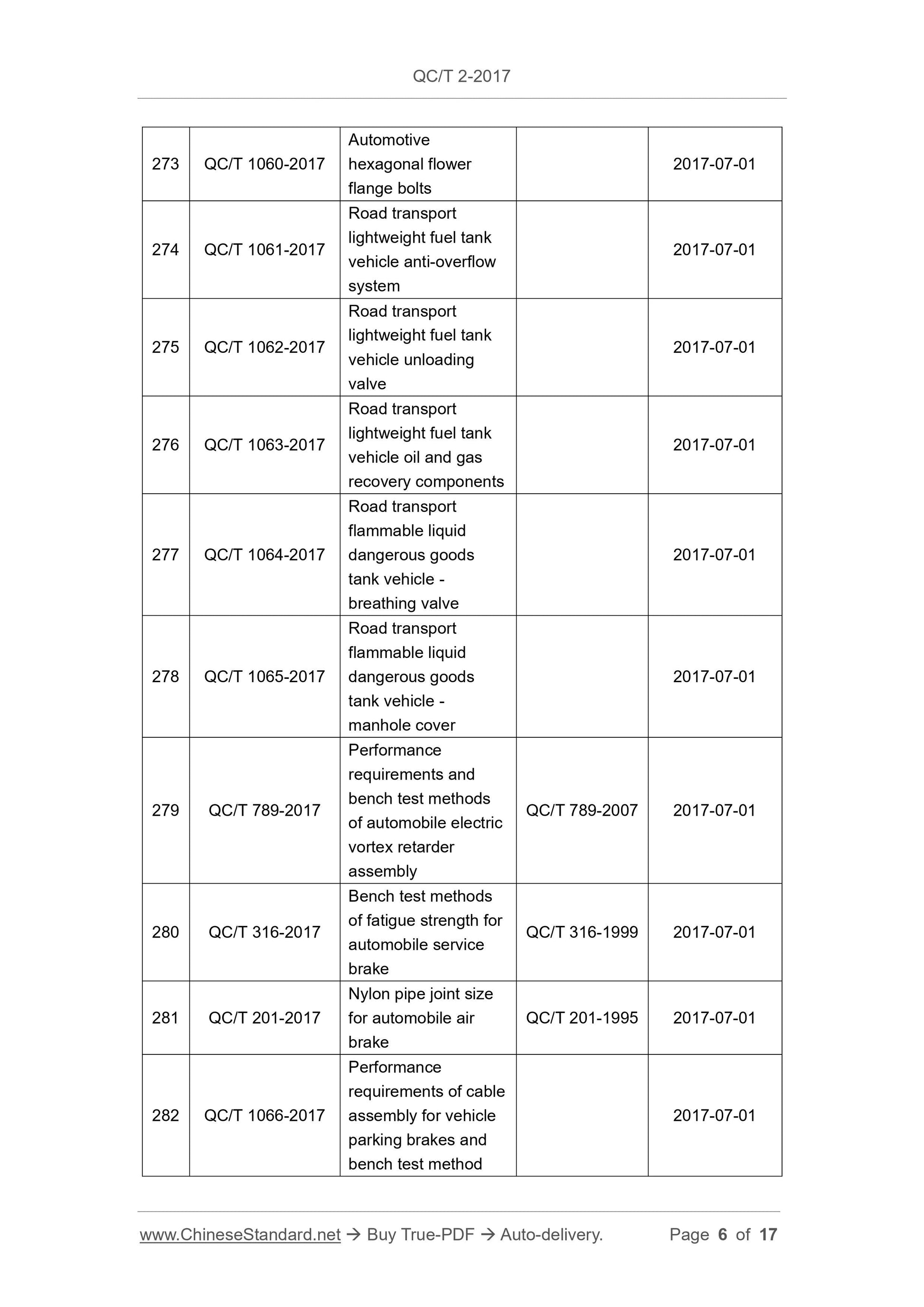

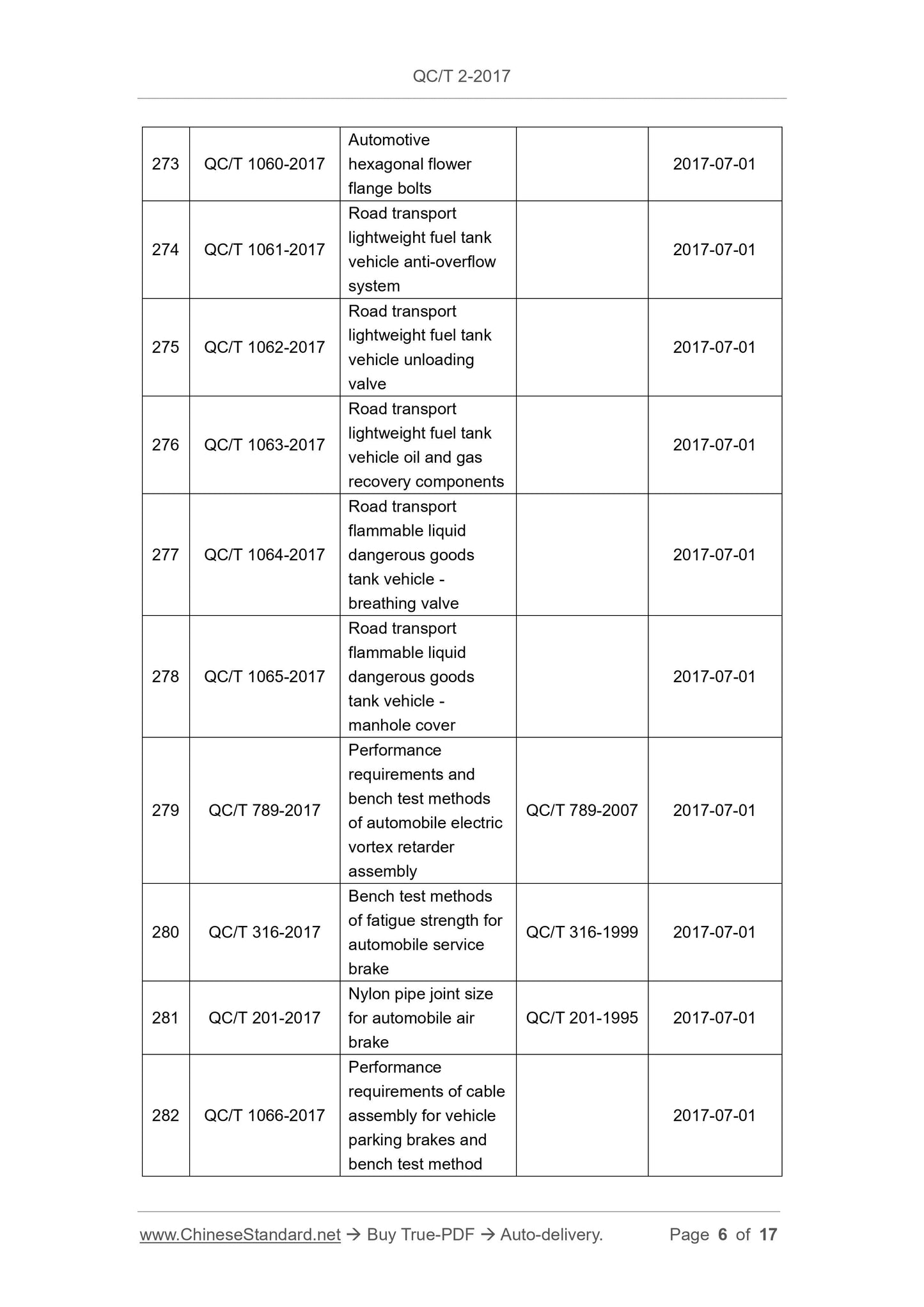

273 QC/T 1060-2017
Automotive
hexagonal flower
flange bolts
2017-07-01
274 QC/T 1061-2017
Road transport
lightweight fuel tank
vehicle anti-overflow
system
2017-07-01
275 QC/T 1062-2017
Road transport
lightweight fuel tank
vehicle unloading
valve
2017-07-01
276 QC/T 1063-2017
Road transport
lightweight fuel tank
vehicle oil and gas
recovery components
2017-07-01
277 QC/T 1064-2017
Road transport
flammable liquid
dangerous goods
tank vehicle -
breathing valve
2017-07-01
278 QC/T 1065-2017
Road transport
flammable liquid
dangerous goods
tank vehicle -
manhole cover
2017-07-01
279 QC/T 789-2017
Performance
requirements and
bench test methods
of automobile electric
vortex retarder
assembly
QC/T 789-2007 2017-07-01
280 QC/T 316-2017
Bench test methods
of fatigue strength for
automobile service
brake
QC/T 316-1999 2017-07-01
281 QC/T 201-2017
Nylon pipe joint size
for automobile air
brake
QC/T 201-1995 2017-07-01
282 QC/T 1066-2017
Performance
requirements of cable
assembly for vehicle
parking brakes and
bench test method
2017-07-01

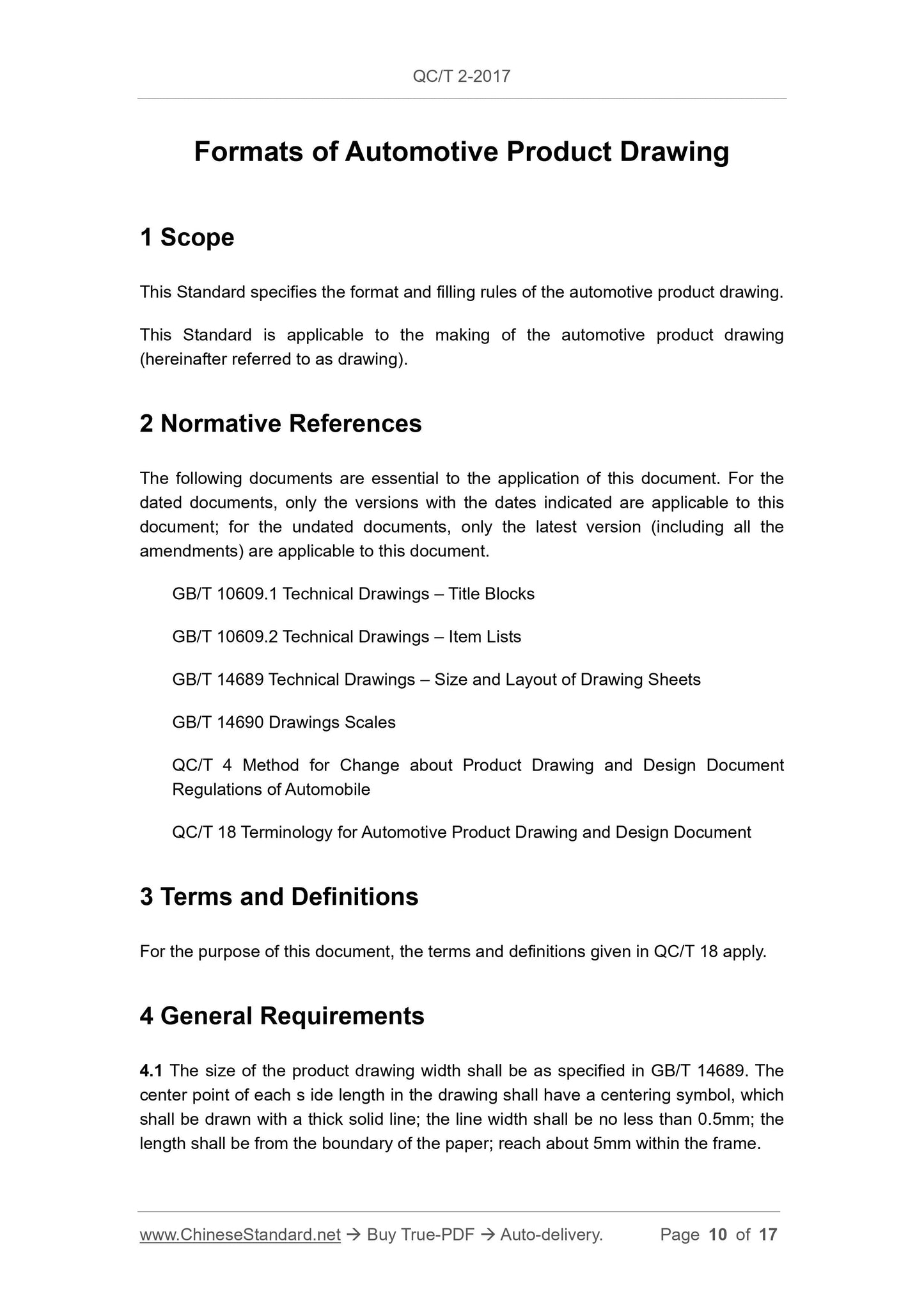

Formats of Automotive Product Drawing
1 Scope
This Standard specifies the format and filling rules of the automotive product drawing. This Standard is applicable to the making of the automotive product drawing (hereinafter referred to as drawing).
2 Normative References
The following documents are essential to the application of this document. For the dated documents, only the versions with the dates indicated are applicable to this document; for the undated documents, only the latest version (including all the amendments) are applicable to this document.
GB/T 10609.1 Technical Drawings ?€? Title Blocks
GB/T 10609.2 Technical Drawings ?€? Item Lists
GB/T 14689 Technical Drawings ?€? Size and Layout of Drawing Sheets
GB/T 14690 Drawings Scales
QC/T 4 Method for Change about Product Drawing and Design Document
Regulations of Automobile
QC/T 18 Terminology for Automotive Product Drawing and Design Document
3 Terms and Definitions
For the purpose of this document, the terms and definitions given in QC/T 18 apply. 4 General Requirements

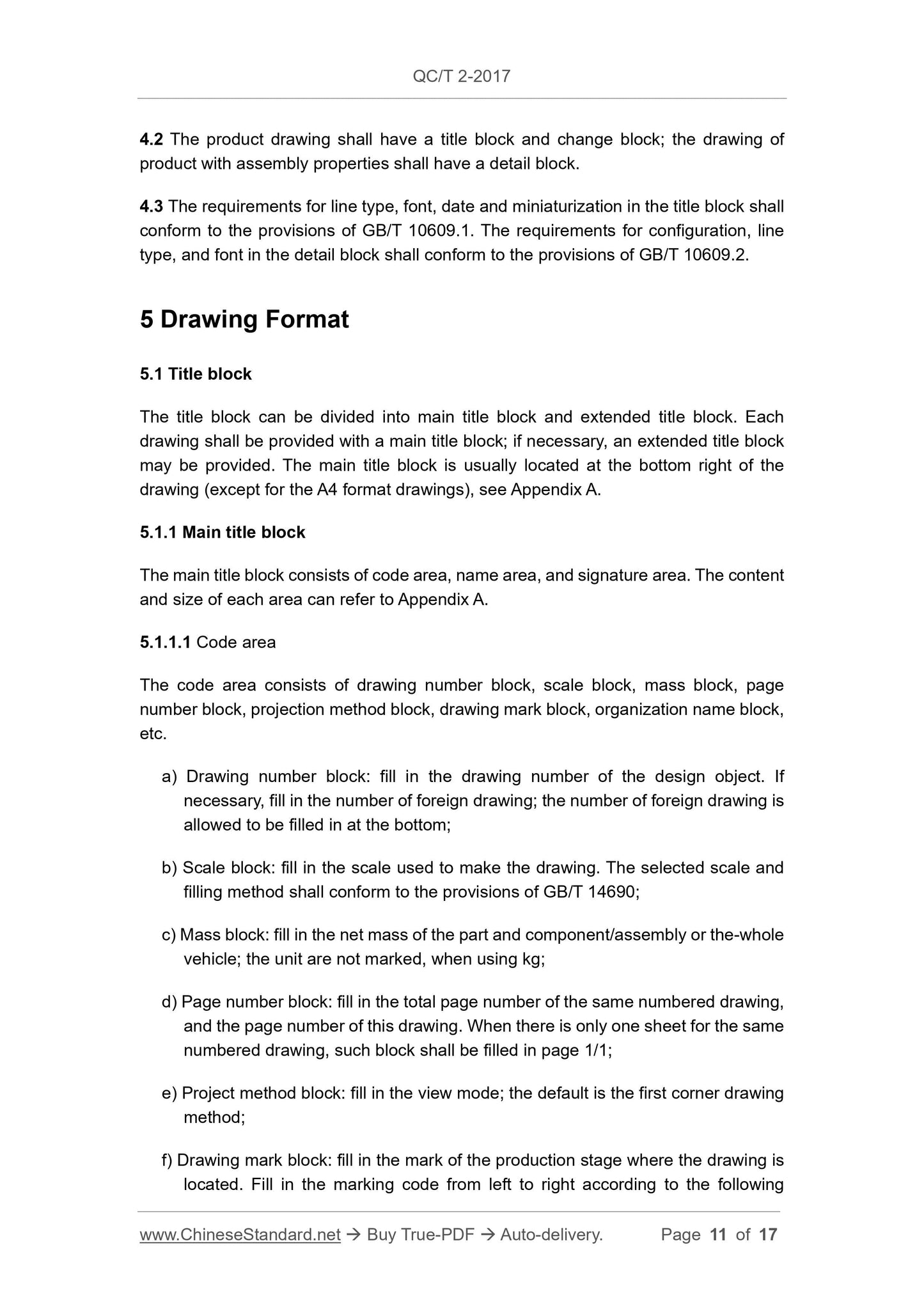

4.1 The size of the product drawing width shall be as specified in GB/T 14689. The center point of each s ide length in the drawing shall have a centering symbol, which shall be drawn with a thick solid line; the line width shall be no less than 0.5mm; the length shall be from the boundary of the paper; reach about 5mm within the frame. symbols;

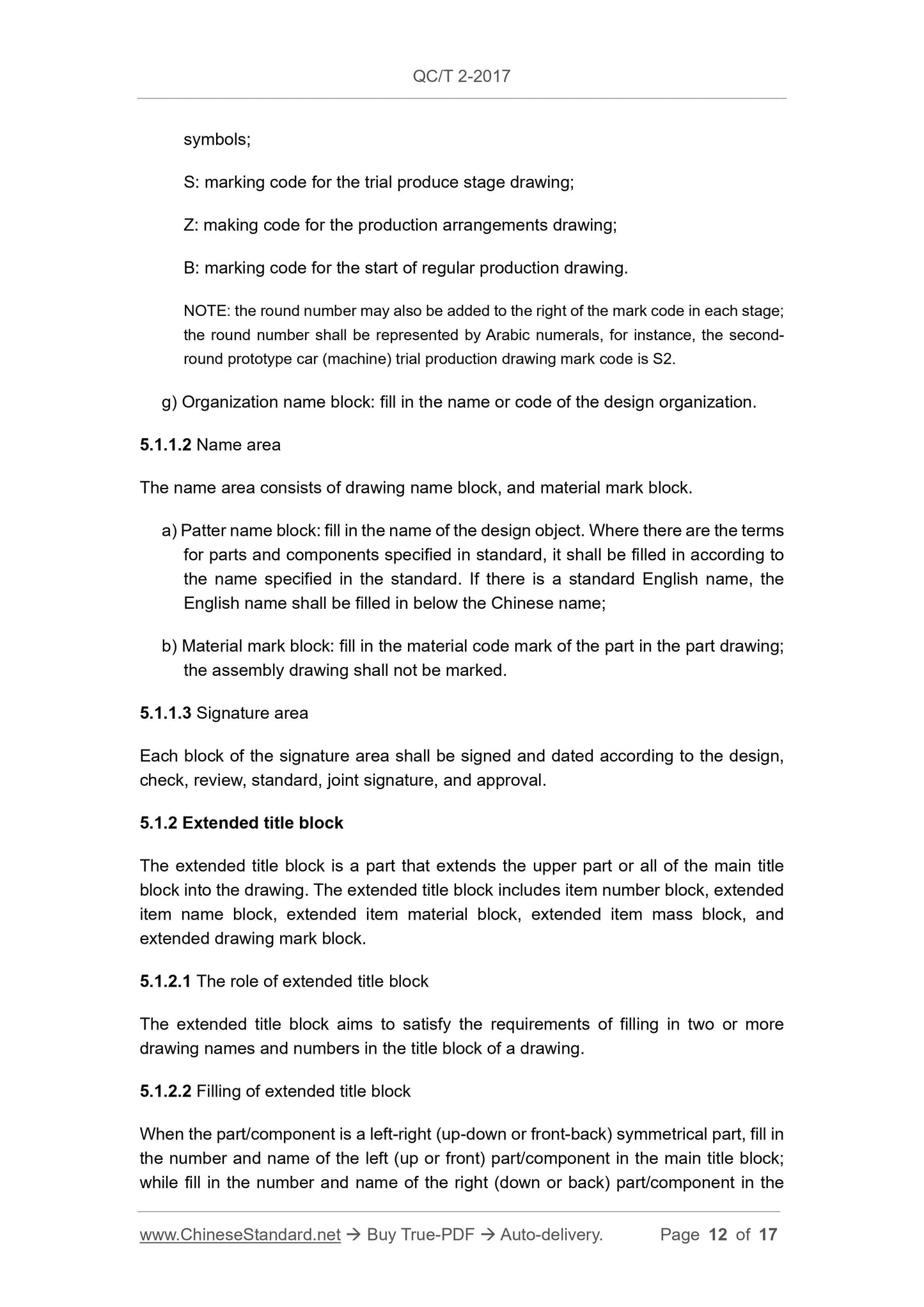

S: marking code for the trial produce stage drawing;
Z: making code for the production arrangements drawing;
B: marking code for the start of regular production drawing.
NOTE: the round number may also be added to the right of the mark code in each stage; the round number shall be represented by Arabic numerals, for instance, the second- round prototype car (machine) trial production drawing mark code is S2. g) Organization name block: fill in the name or code of the design organization. 5.1.1.2 Name area
The name area consists of drawing name block, and material mark block.
a) Patter name block: fill in the name of the design object. Where there are the terms for parts and components specified in standard, it shall be filled in according to the name specified in the standard. If there is a standard English name, the English name shall be filled in below the Chinese name;
b) Material mark block: fill in the material code mark of the part in the part drawing; the assembly drawing shall not be marked.
5.1.1.3 Signature area
Each block of the signature area shall be signed and dated according to the design, check, review, standard, joint signature, and approval.
5.1.2 Extended title block
The extended title block is a part that extends the upper part or all of the main title block into the drawing. The extended title block includes item number block, extended item name block, extended item material block, extended item mass block, and extended drawing mark block.
5.1.2.1 The role of extended title block
The extended title block aims to satisfy the requirements of filling in two or more drawing names and numbers in the title block of a drawing.
5.1.2.2 Filling of extended title block
When the part/component is a left-right (up-down or front-back) symmetrical part, fill in the number and name of the left (up or front) part/component in the main title block; while fill in the number and name of the right (down or back) part/component in the
