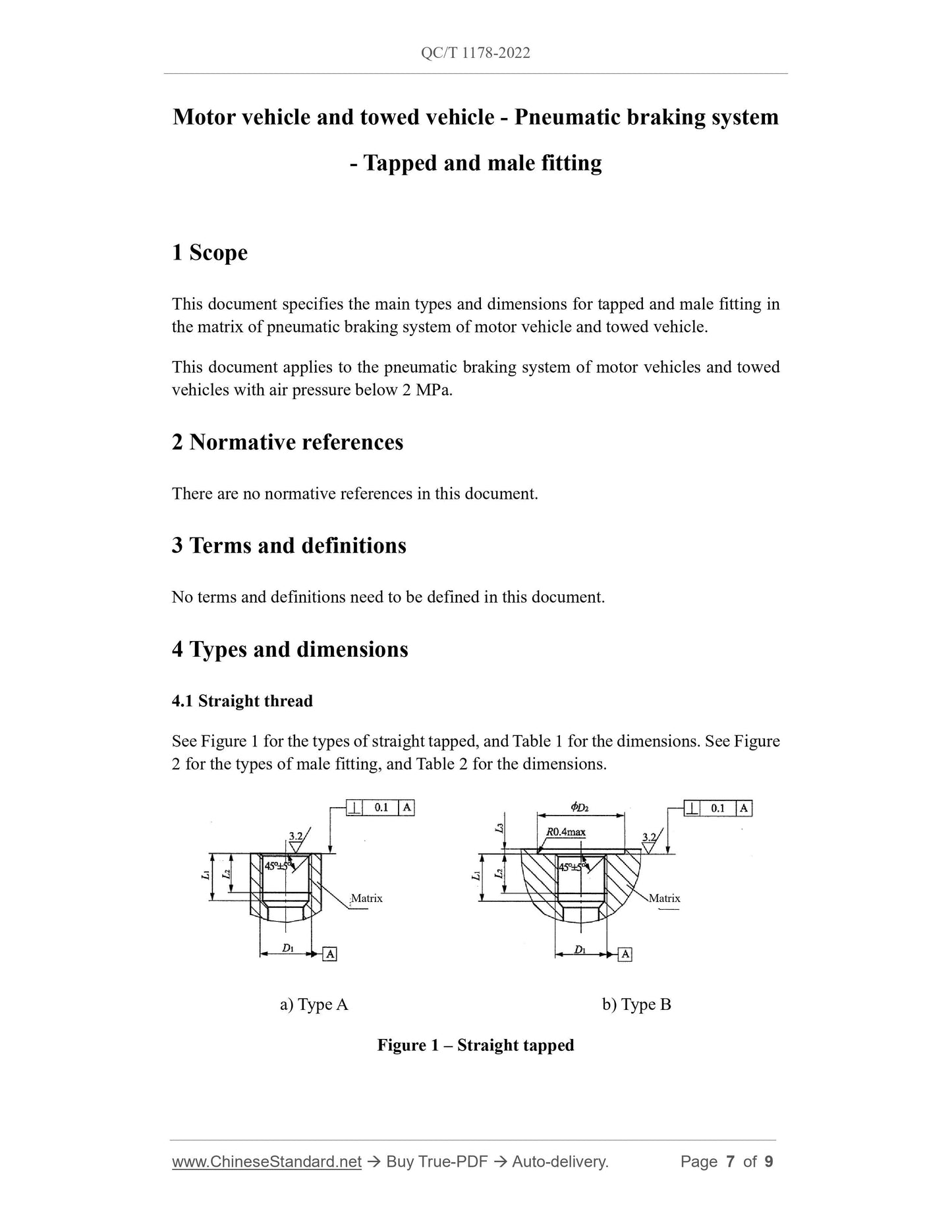

This document specifies the main types and dimensions for tapped and male fitting in the matrix of pneumatic braking system of motor vehicle and towed vehicle. This document applies to the pneumatic braking system of motor vehicles and towed vehicles with air pressure below 2 MPa.
Basic Data
Standard ID
QC/T 1178-2022 (QC/T1178-2022)
Description (Translated English)
Motor vehicle and towed vehicle-Pneumatic braking system - Tapped and male fitting
Sector / Industry
Automobile and Vehicle Industry Standard (Recommended)
Classification of Chinese Standard
T24
Word Count Estimation
11,173
Date of Issue
2022-04-08
Date of Implementation
2022-10-01
Issuing agency(ies)
Ministry of Industry and Information Technology
Summary
This standard specifies the main types and dimensions of base body threaded holes and pipe joints in the air brake system of automobiles and trailers. This standard applies to the air brake system of automobiles and trailers with air pressure below 2 MPa.
