QC/T 1146-2021: Technical specifications of methanol fuel engine

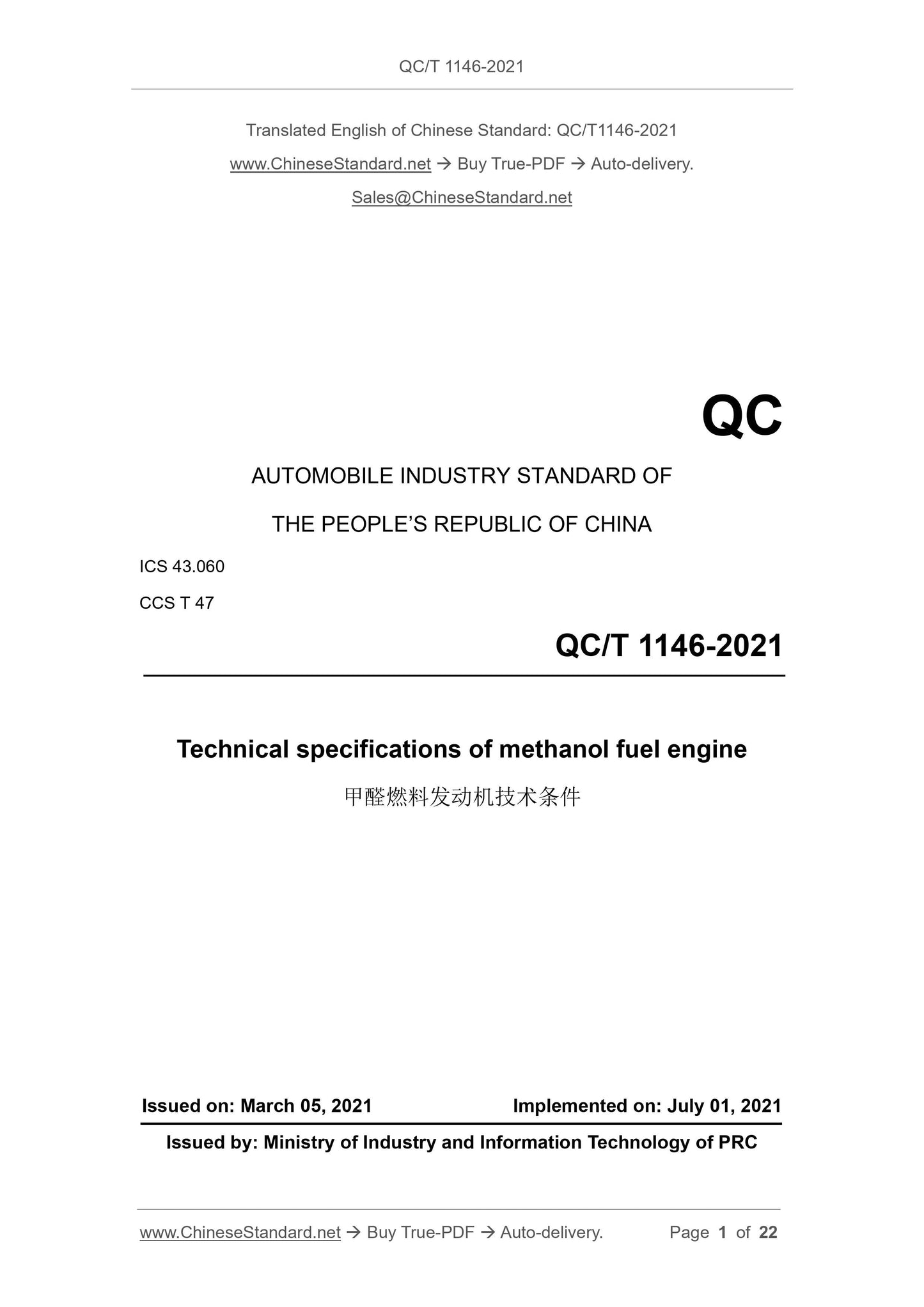

QC/T 1146-2021
QC
AUTOMOBILE INDUSTRY STANDARD OF
THE PEOPLE’S REPUBLIC OF CHINA
ICS 43.060
CCS T 47
Technical specifications of methanol fuel engine
ISSUED ON: MARCH 05, 2021
IMPLEMENTED ON: JULY 01, 2021
Issued by: Ministry of Industry and Information Technology of PRC

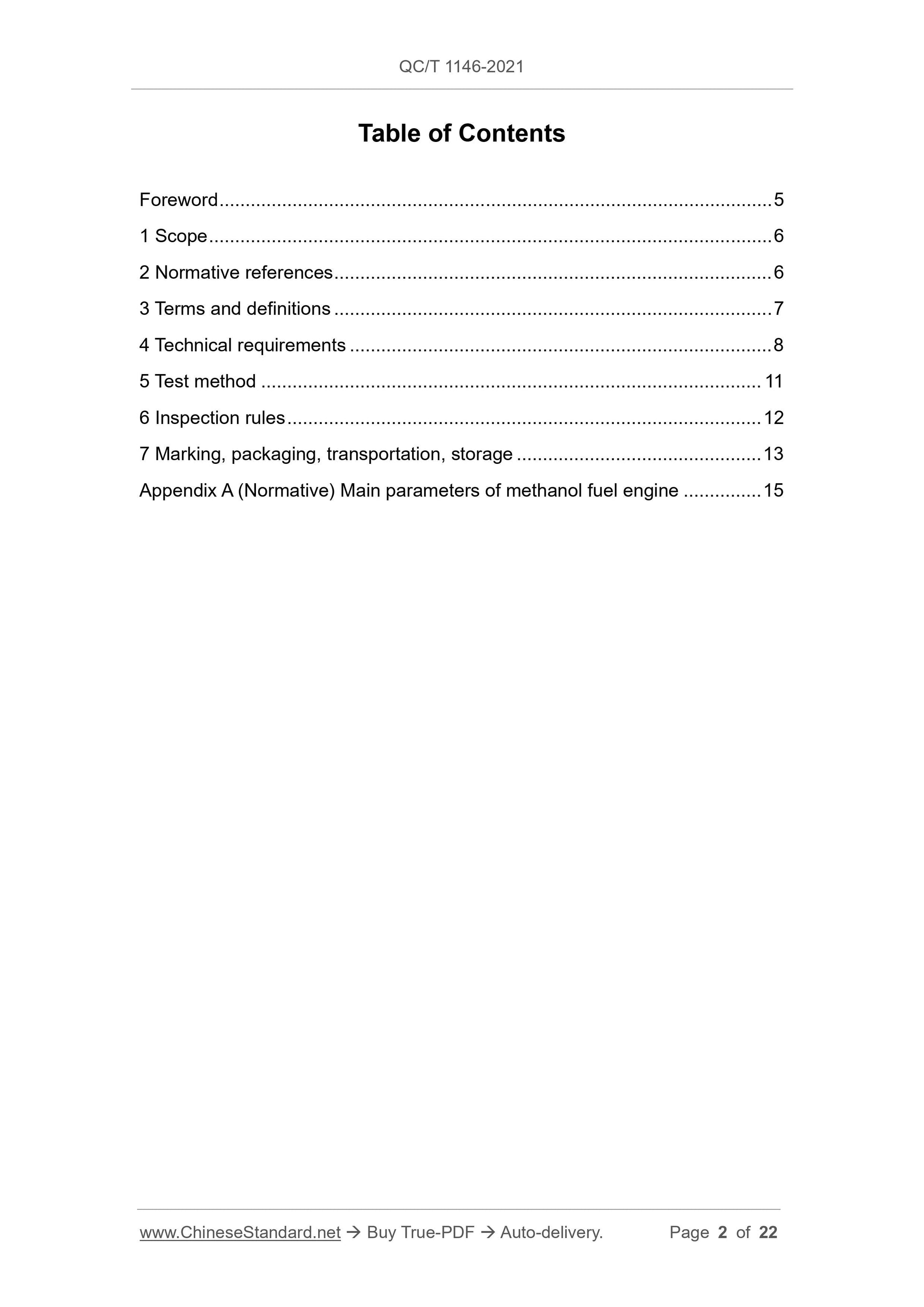

Table of Contents

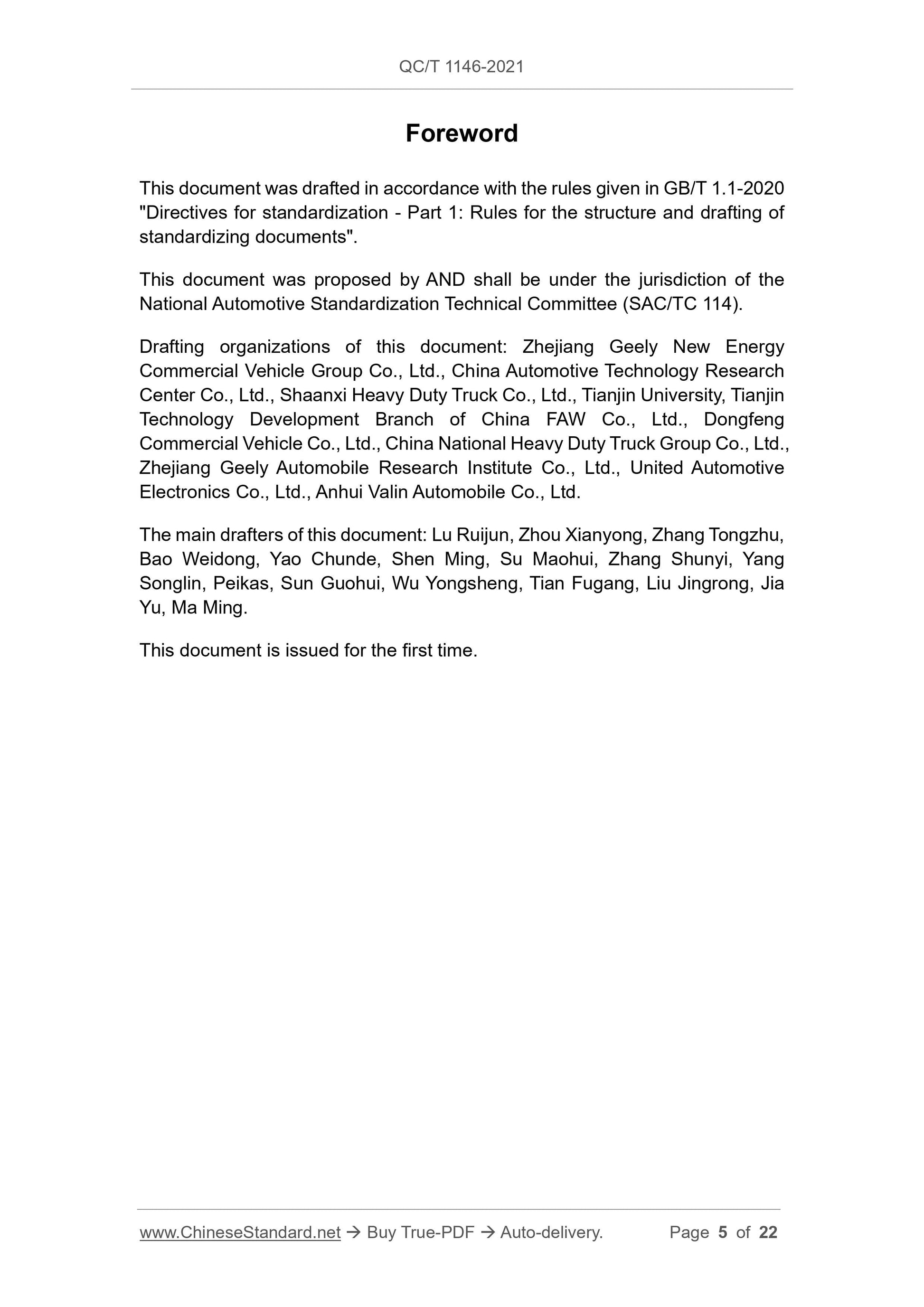

Foreword ... 5
1 Scope ... 6
2 Normative references ... 6
3 Terms and definitions ... 7

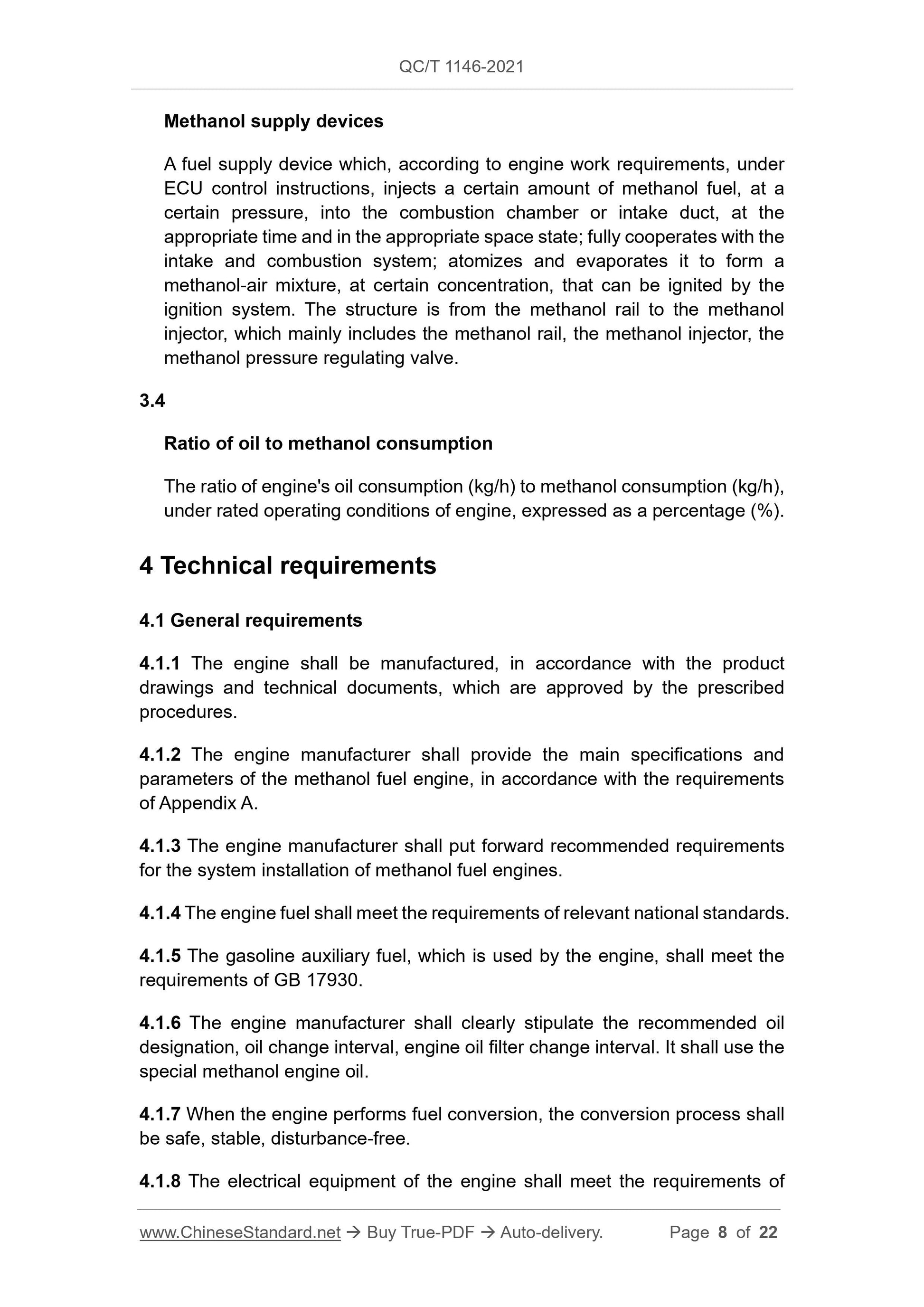

4 Technical requirements ... 8

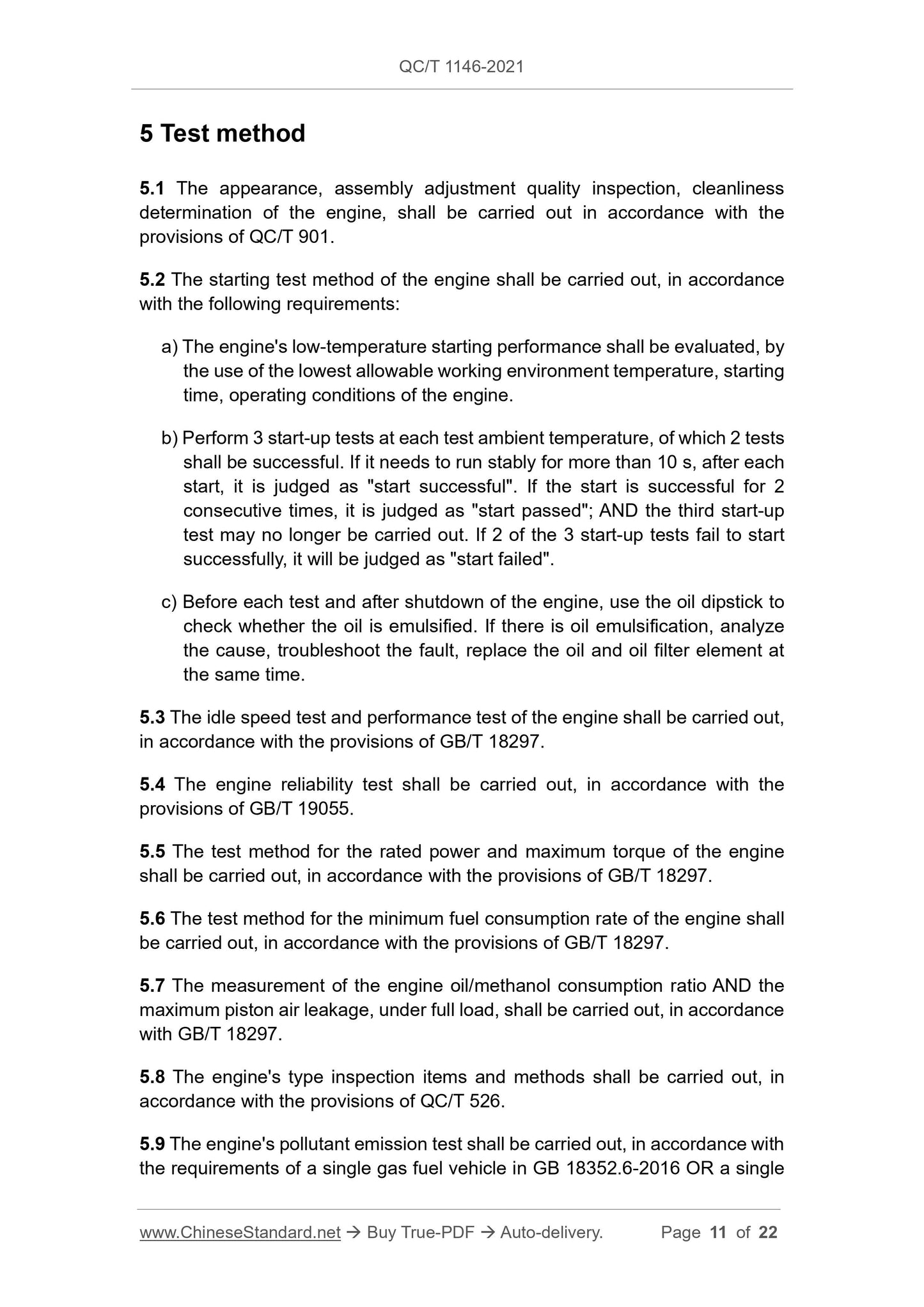

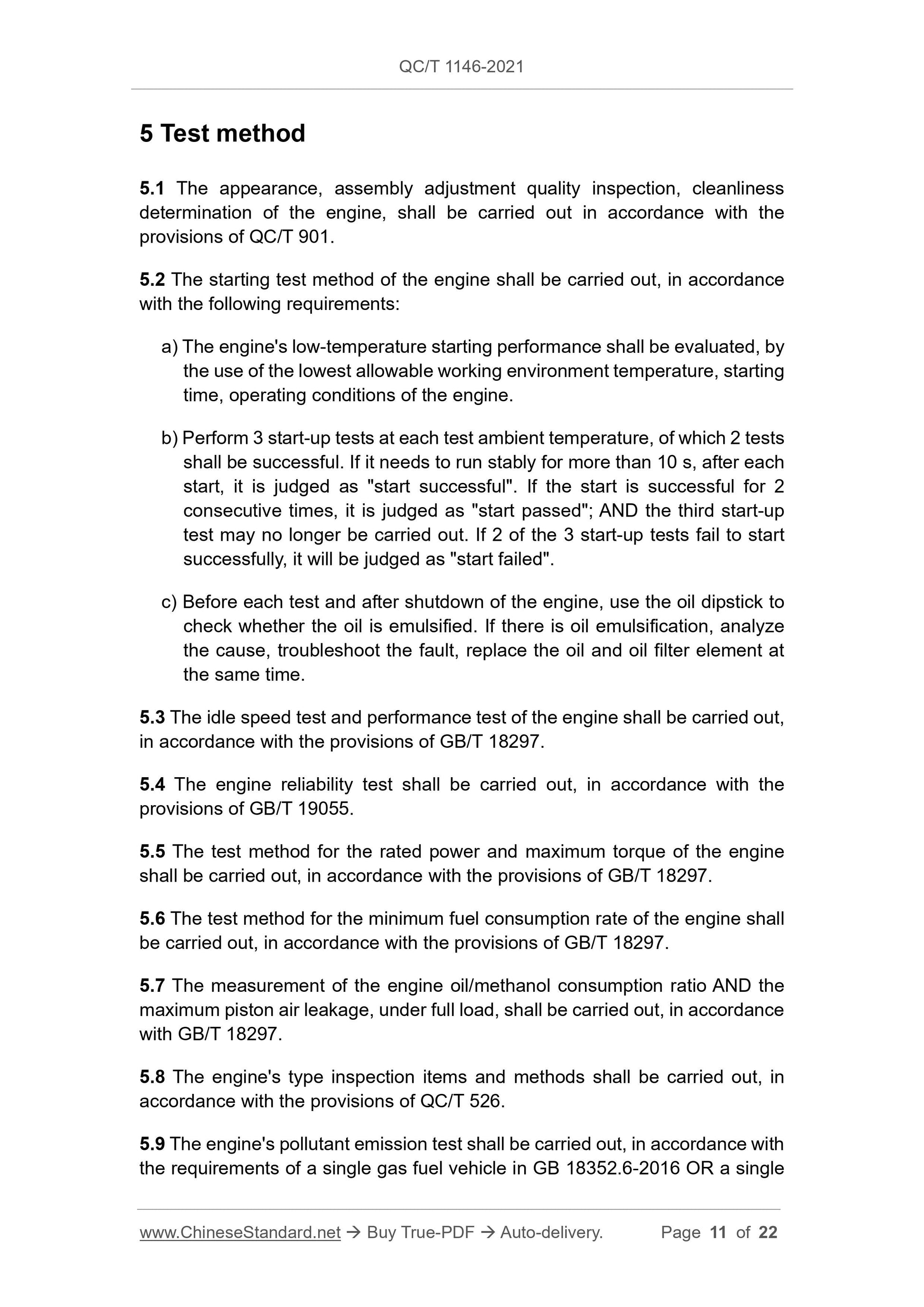

5 Test method ... 11
6 Inspection rules ... 12
7 Marking, packaging, transportation, storage ... 13
Appendix A (Normative) Main parameters of methanol fuel engine ... 15

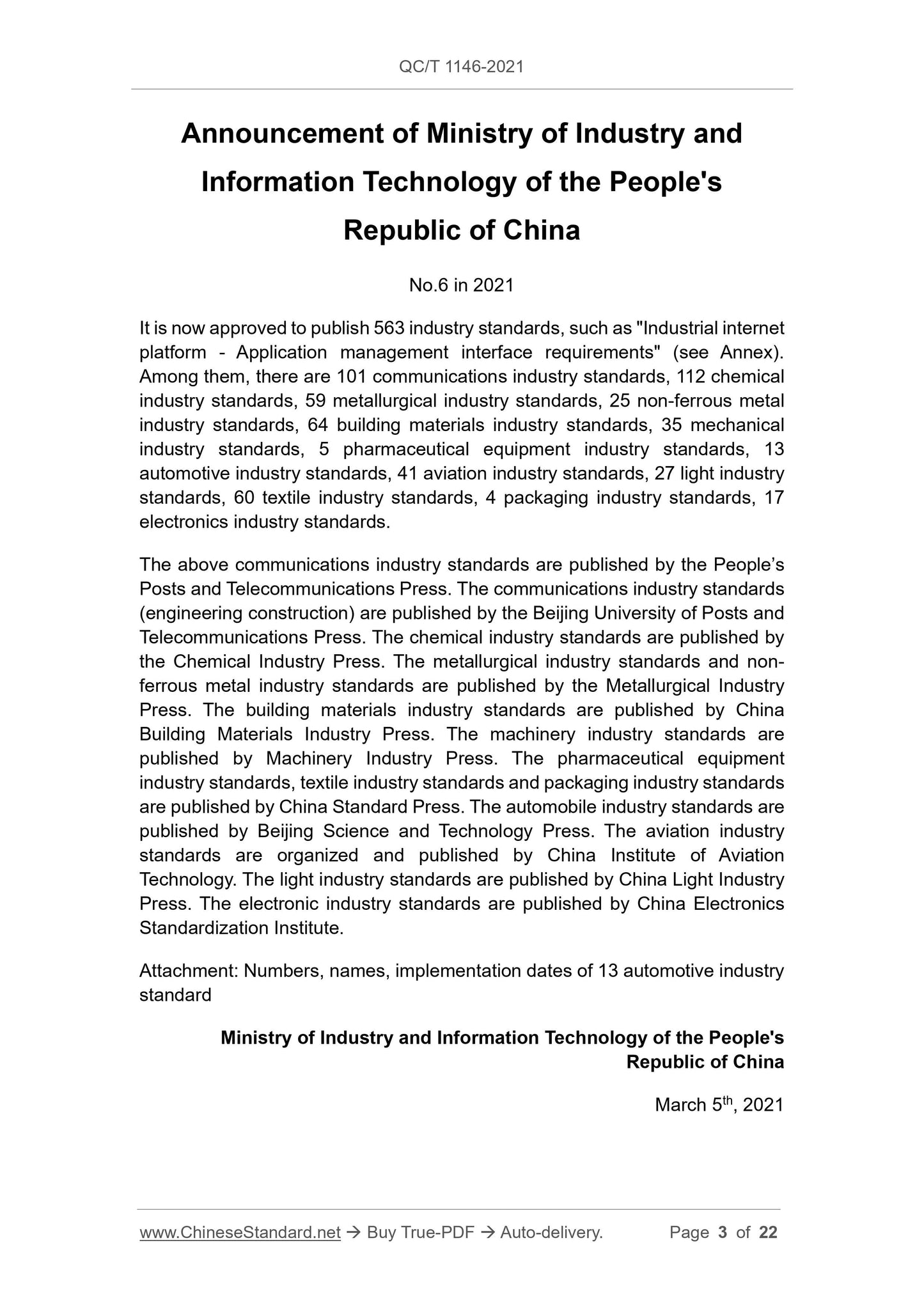

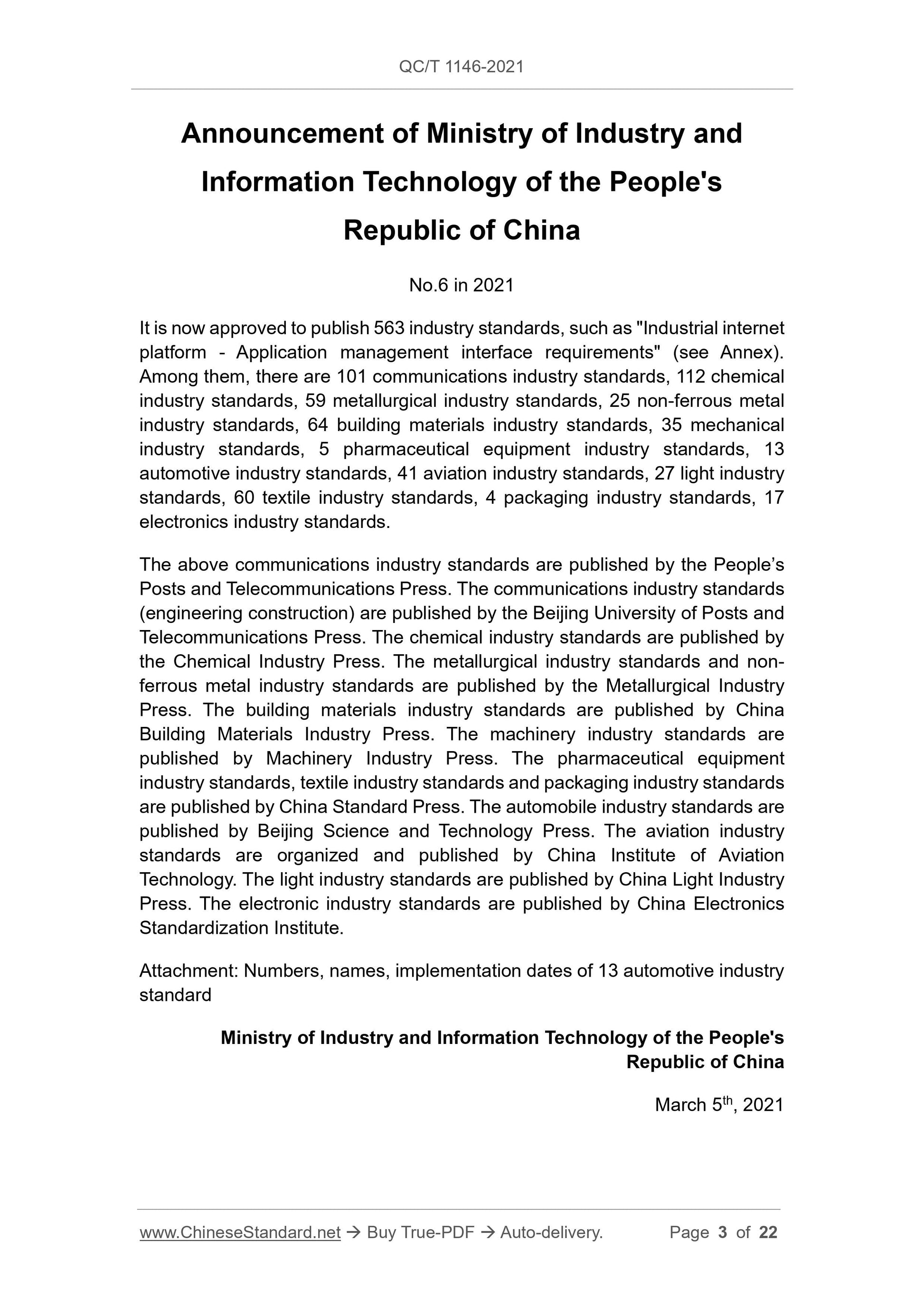

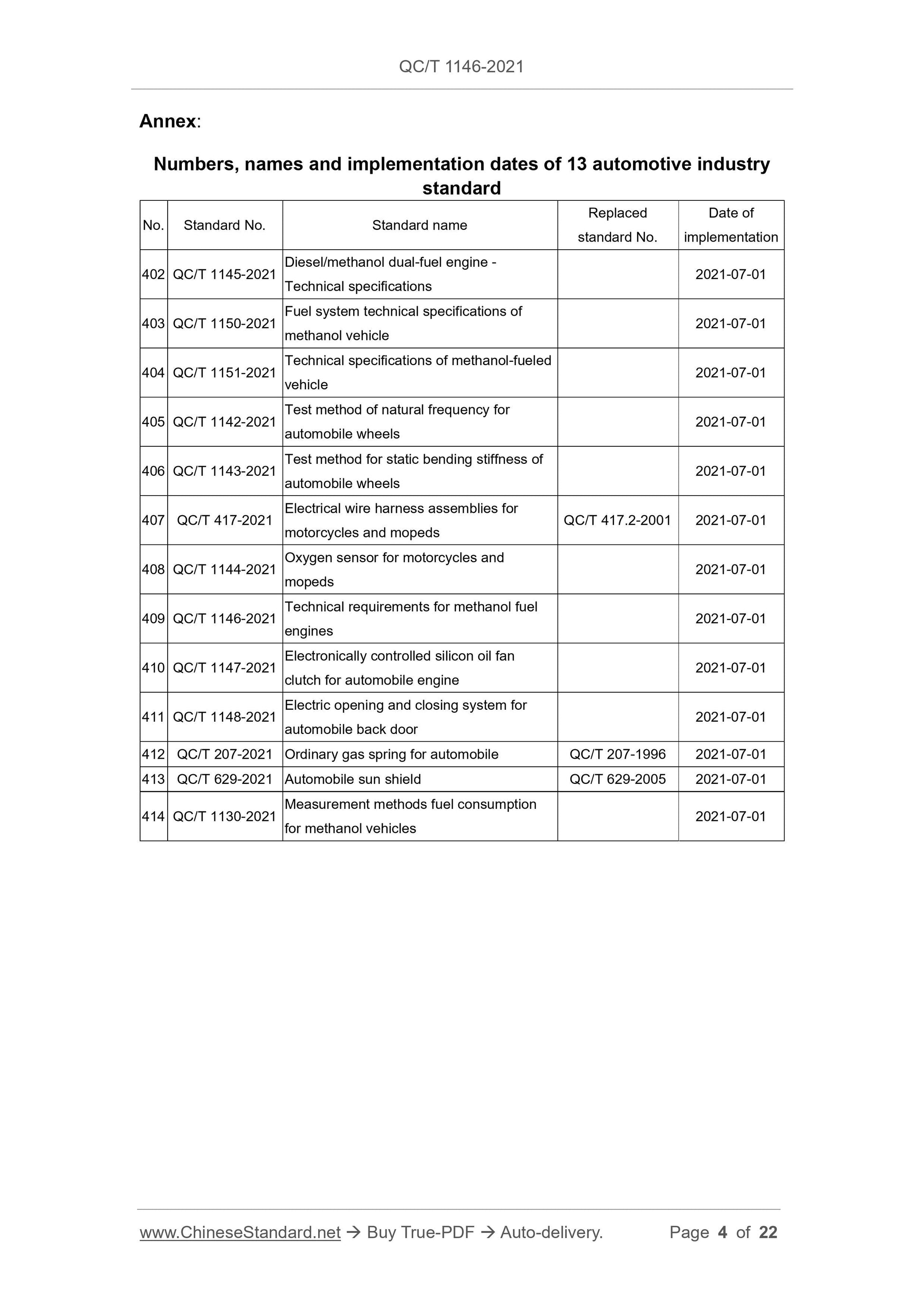

Annex:
Numbers, names and implementation dates of 13 automotive industry
standard
No. Standard No. Standard name
Replaced
standard No.
Date of
implementation
402 QC/T 1145-2021
Diesel/methanol dual-fuel engine -
Technical specifications
2021-07-01
403 QC/T 1150-2021
Fuel system technical specifications of
methanol vehicle
2021-07-01
404 QC/T 1151-2021
Technical specifications of methanol-fueled
vehicle
2021-07-01
405 QC/T 1142-2021
Test method of natural frequency for
automobile wheels
2021-07-01
406 QC/T 1143-2021
Test method for static bending stiffness of
automobile wheels
2021-07-01
407 QC/T 417-2021
Electrical wire harness assemblies for
motorcycles and mopeds
QC/T 417.2-2001 2021-07-01
408 QC/T 1144-2021
Oxygen sensor for motorcycles and
mopeds
2021-07-01
409 QC/T 1146-2021
Technical requirements for methanol fuel
engines
2021-07-01
410 QC/T 1147-2021
Electronically controlled silicon oil fan
clutch for automobile engine
2021-07-01
411 QC/T 1148-2021
Electric opening and closing system for
automobile back door
2021-07-01
412 QC/T 207-2021 Ordinary gas spring for automobile QC/T 207-1996 2021-07-01
413 QC/T 629-2021 Automobile sun shield QC/T 629-2005 2021-07-01
414 QC/T 1130-2021
Measurement methods fuel consumption
for methanol vehicles
2021-07-01

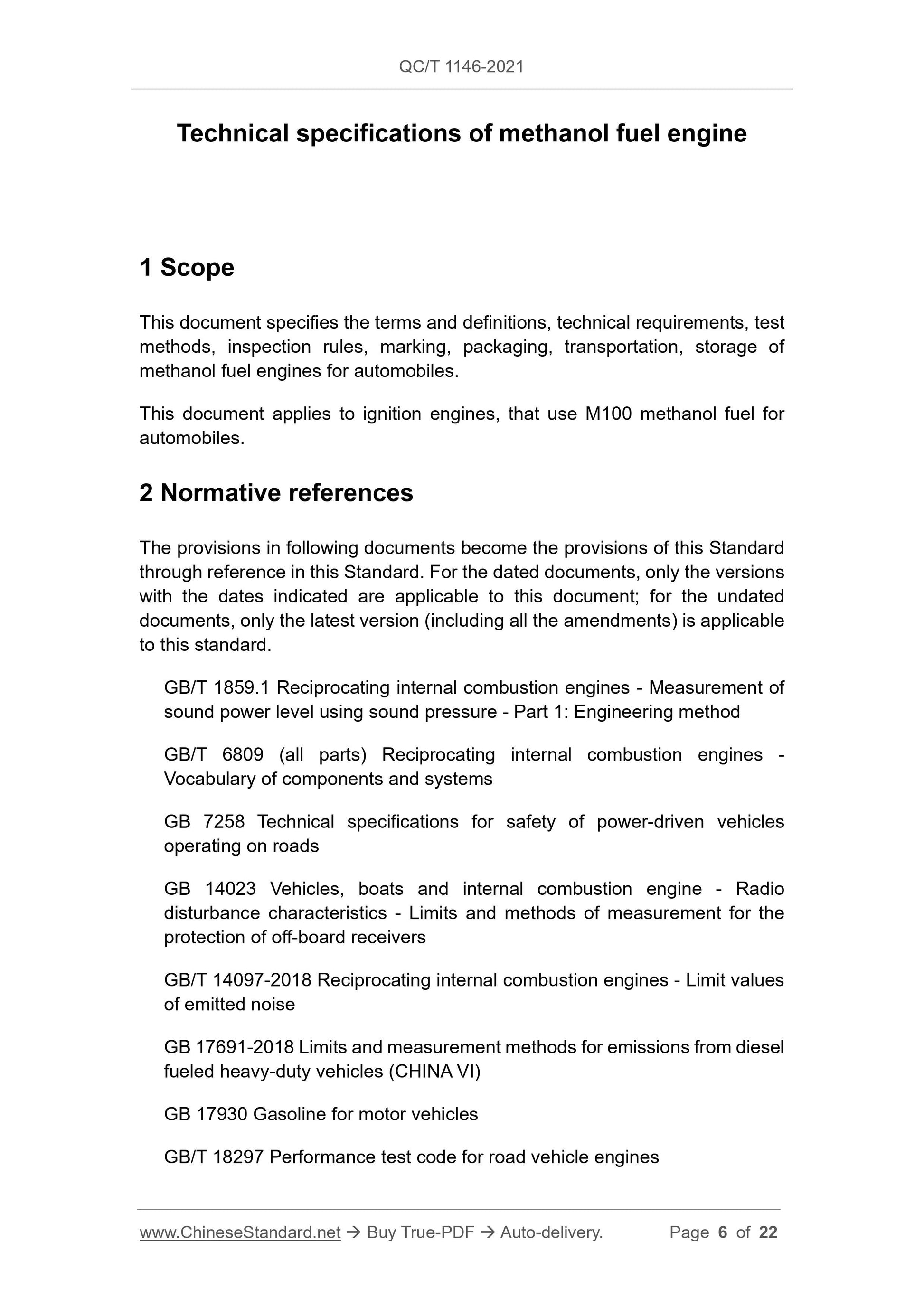

Technical specifications of methanol fuel engine
1 Scope
This document specifies the terms and definitions, technical requirements, test
methods, inspection rules, marking, packaging, transportation, storage of
methanol fuel engines for automobiles.
This document applies to ignition engines, that use M100 methanol fuel for
automobiles.
2 Normative references
The provisions in following documents become the provisions of this Standard
through reference in this Standard. For the dated documents, only the versions
with the dates indicated are applicable to this document; for the undated
documents, only the latest version (including all the amendments) is applicable
to this standard.
GB/T 1859.1 Reciprocating internal combustion engines - Measurement of
sound power level using sound pressure - Part 1: Engineering method
GB/T 6809 (all parts) Reciprocating internal combustion engines -
Vocabulary of components and systems
GB 7258 Technical specifications for safety of power-driven vehicles
operating on roads
GB 14023 Vehicles, boats and internal combustion engine - Radio
disturbance characteristics - Limits and methods of measurement for the
protection of off-board receivers
GB/T 14097-2018 Reciprocating internal combustion engines - Limit values
of emitted noise
GB 17691-2018 Limits and measurement methods for emissions from diesel
fueled heavy-duty vehicles (CHINA VI)
GB 17930 Gasoline for motor vehicles
GB/T 18297 Performance test code for road vehicle engines
GB 18352.6-2016 Limits and measurement methods for emissions from
light-duty vehicles (CHINA 6)
GB/T 19055 Reliability test methods for motor vehicle engines
GB/T 20651.2 Reciprocating internal combustion engines - Safety - Part 2:
Ignition engine
GB/T 23510 Fuel methanol for motor vehicles
GB/T 28046.2 Road vehicles - Environmental conditions and testing for
electrical and electronic equipment - Part 2: Electrical loads
GB/T 28046.3 Road vehicles - Environmental conditions and testing for
electrical and electronic equipment - Part 3: Mechanical loads
GB/T 28046.4 Road vehicles - Environmental conditions and testing for
electrical and electronic equipment - Part 4: Climatic loads
QC/T 471 Specifications for auto diesel engines
QC/T 526 Automobile engine - Engineering approval evaluation program
QC/T 901 Quality inspection and evaluation method of automobile engine
products

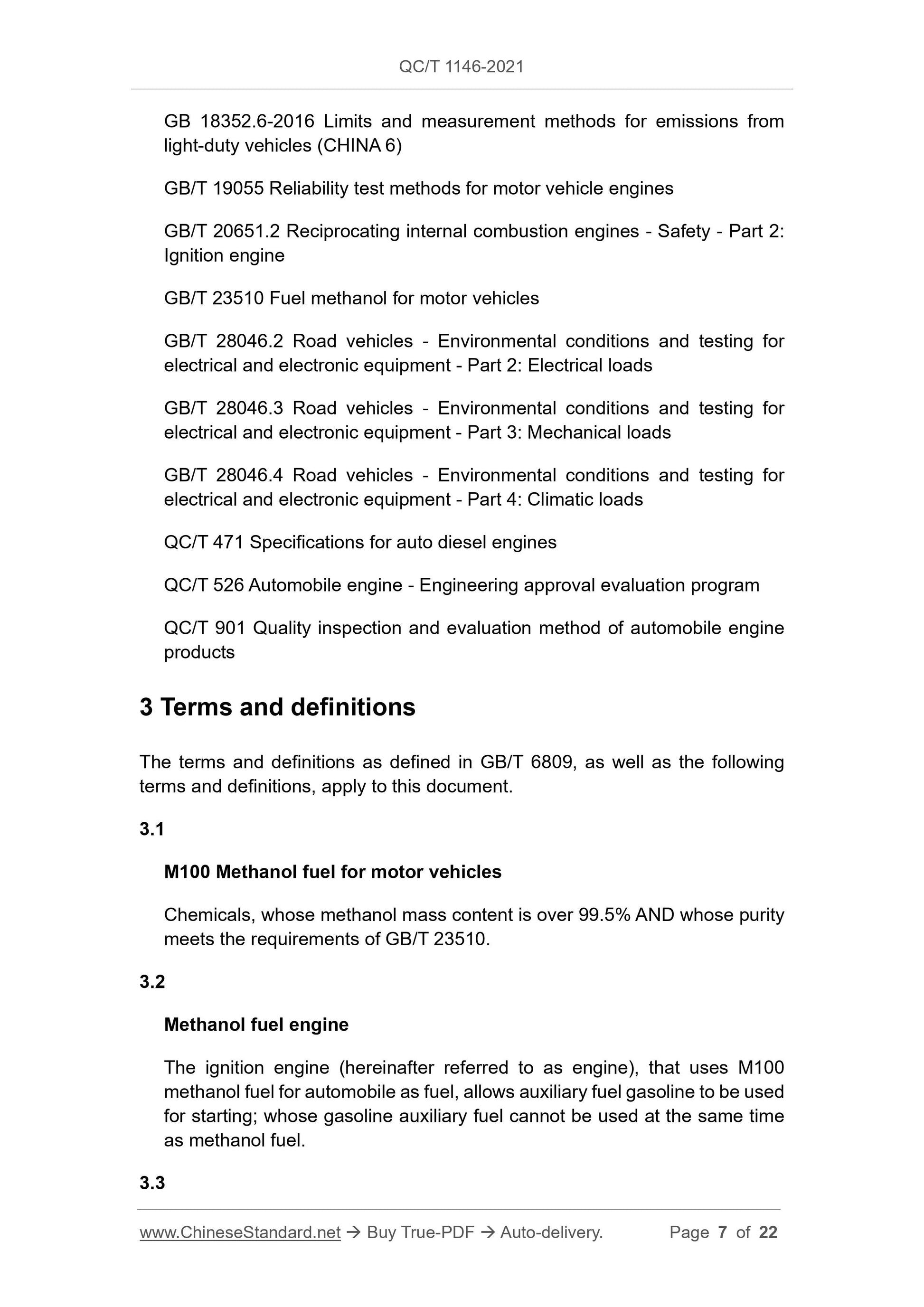

3 Terms and definitions
The terms and definitions as defined in GB/T 6809, as well as the following
terms and definitions, apply to this document.
3.1
M100 Methanol fuel for motor vehicles
Chemicals, whose methanol mass content is over 99.5% AND whose purity
meets the requirements of GB/T 23510.
3.2
Methanol fuel engine
The ignition engine (hereinafter referred to as engine), that uses M100
methanol fuel for automobile as fuel, allows auxiliary fuel gasoline to be used
for starting; whose gasoline auxiliary fuel cannot be used at the same time
as methanol fuel.
3.3

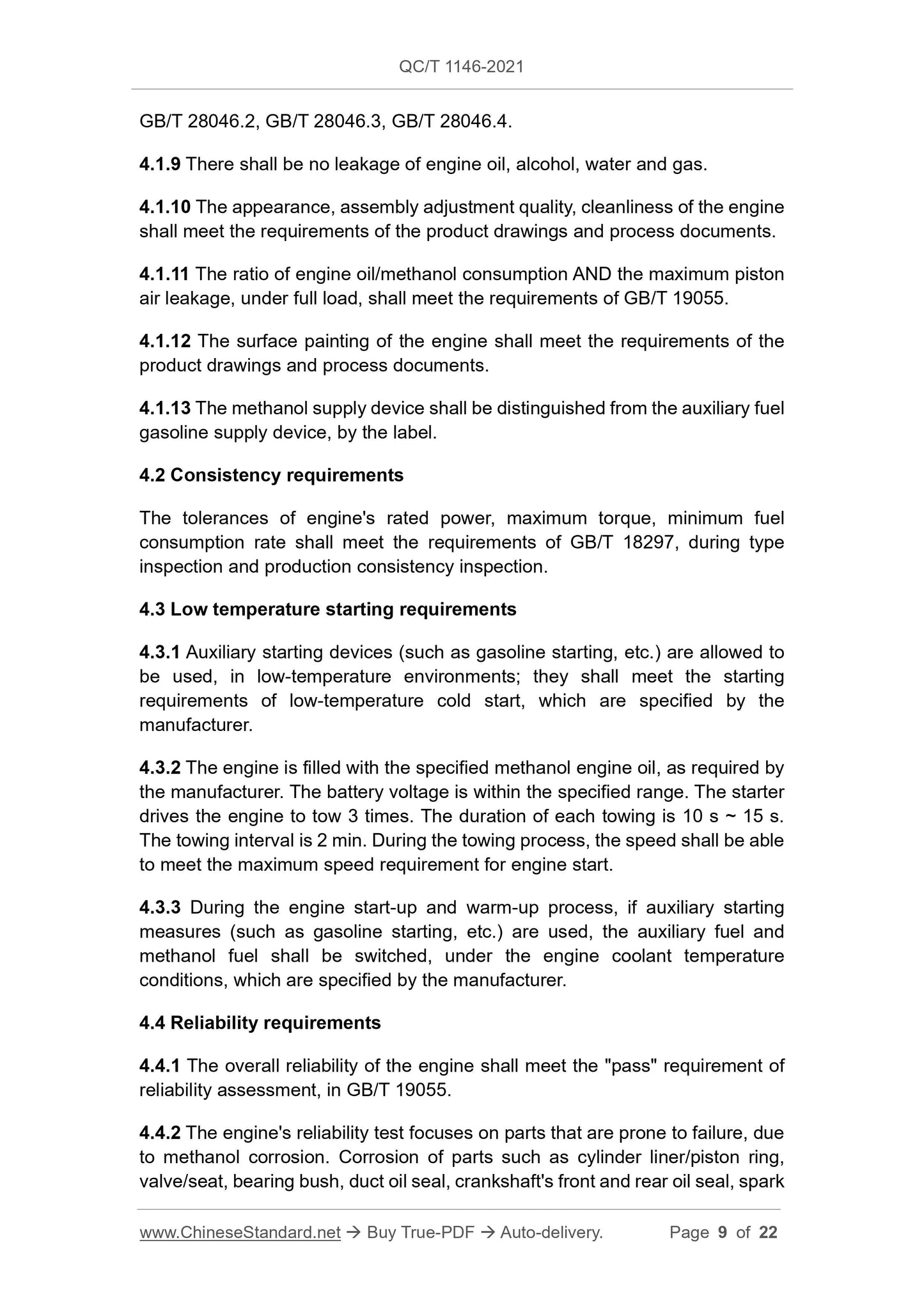

GB/T 28046.2, GB/T 28046.3, GB/T 28046.4.
4.1.9 There shall be no leakage of engine oil, alcohol, water and gas.
4.1.10 The appearance, assembly adjustment quality, cleanliness of the engine
shall meet the requirements of the product drawings and process documents.
4.1.11 The ratio of engine oil/methanol consumption AND the maximum piston
air leakage, under full load, shall meet the requirements of GB/T 19055.
4.1.12 The surface painting of the engine shall meet the requirements of the
product drawings and process documents.
4.1.13 The methanol supply device shall be distinguished from the auxiliary fuel
gasoline supply device, by the label.
4.2 Consistency requirements
The tolerances of engine's rated power, maximum torque, minimum fuel
consumption rate shall meet the requirements of GB/T 18297, during type
inspection and production consistency inspection.
4.3 Low temperature starting requirements
4.3.1 Auxiliary starting devices (such as gasoline starting, etc.) are allowed to
be used, in low-temperature environments; they shall meet the starting
requirements of low-temperature cold start, which are specified by the
manufacturer.
4.3.2 The engine is filled with the specified methanol engine oil, as required by
the manufacturer. The battery voltage is within the specified range. The starter
drives the engine to tow 3 times. The duration of each towing is 10 s ~ 15 s.
The towing interval is 2 min. During the towing process, the speed shall be able
to meet the maximum speed requirement for engine start.
4.3.3 During the engine start-up and warm-up process, if auxiliary starting
measures (such as gasoline starting, etc.) are used, the auxiliary fuel and
methanol fuel shall be switched, under the engine coolant temperature
conditions, which are specified by the manufacturer.
4.4 Reliability requirements
4.4.1 The overall reliability of the engine shall meet the "pass" requirement of
reliability assessment, in GB/T 19055.
4.4.2 The engine's reliability test focuses on parts that are prone to failure, due
to methanol corrosion. Corrosion of parts such as cylinder liner/piston ring,
valve/seat, bearing bush, duct oil seal, crankshaft's front and rear oil seal, spark
plug, methanol injector, cylinder head, intake pipe, supercharger, catalytic
converter, EGR system, crankcase ventilation system, etc., may cause failure.
4....
