QC/T 1101-2019: Electric heater for electric vehicle

This Standard specifies the terms and definitions, requirements, test methods, inspection rules, marking, packaging, transportation, and storage of electric heater for electric vehicle.

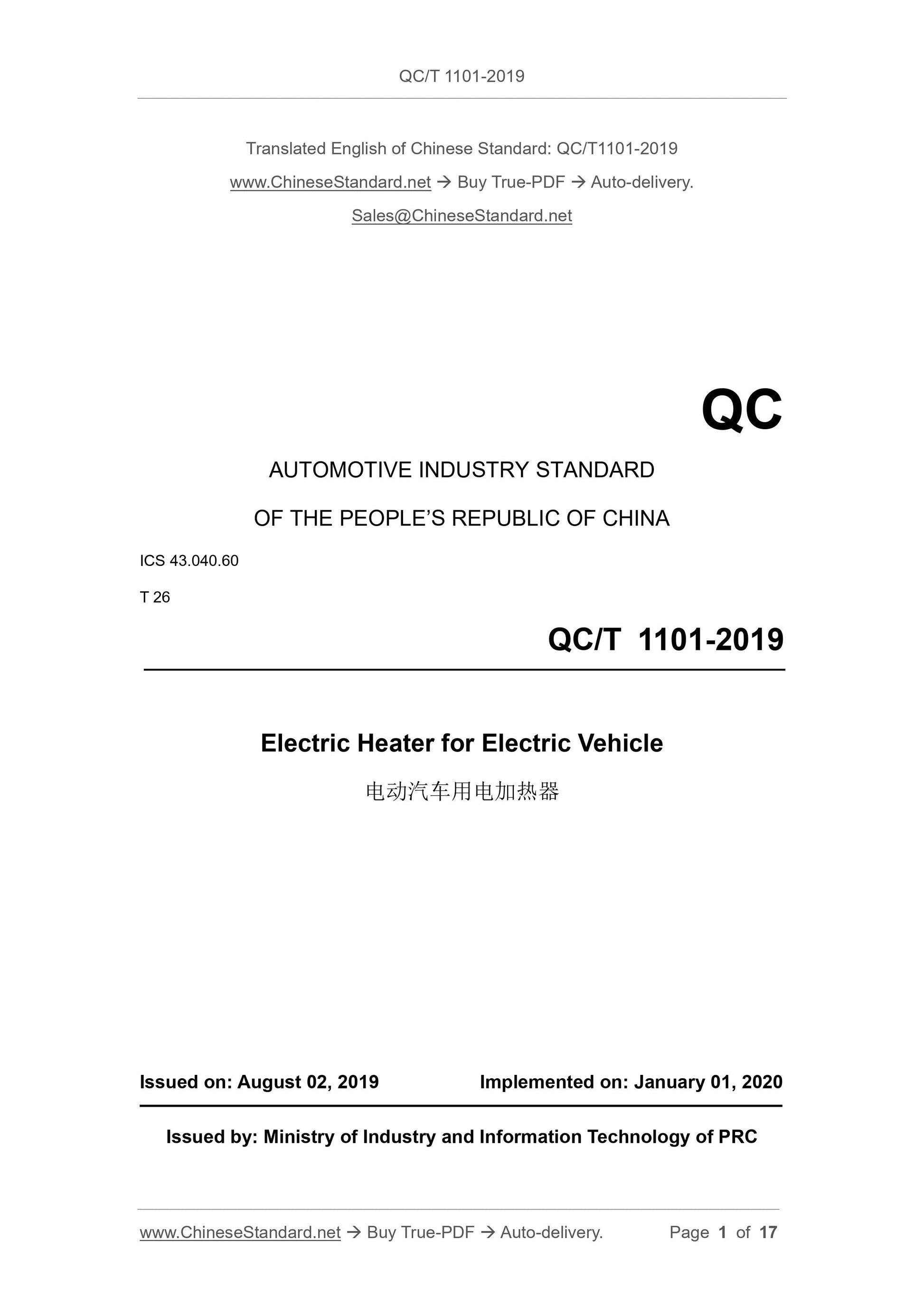

QC/T 1101-2019
QC
AUTOMOTIVE INDUSTRY STANDARD
OF THE PEOPLE REPUBLIC OF CHINA
ICS 43.040.60
T 26
Electric Heater for Electric Vehicle
ISSUED ON: AUGUST 02, 2019
IMPLEMENTED ON: JANUARY 01, 2020
Issued by: Ministry of Industry and Information Technology of PRC

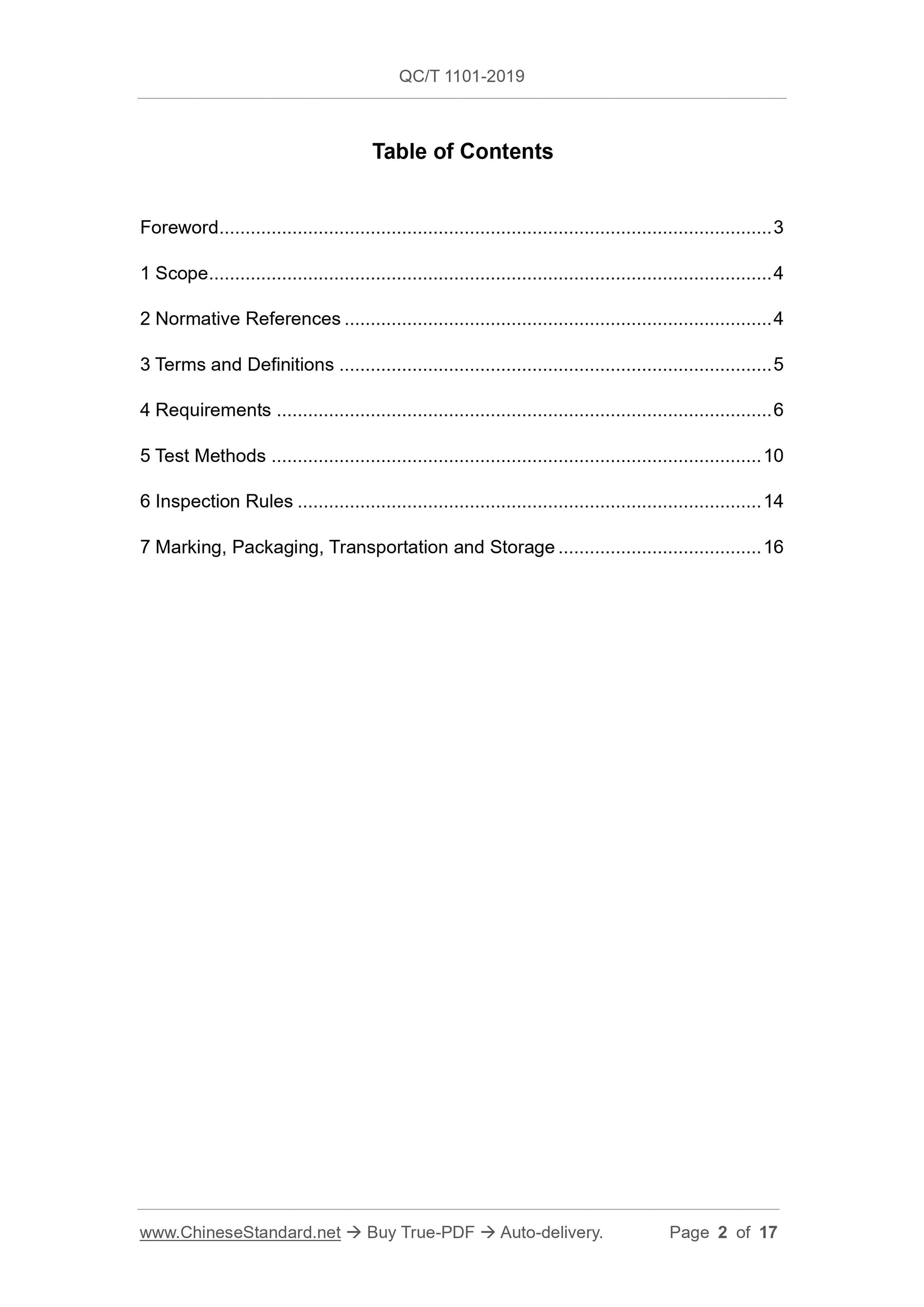

Table of Contents
Foreword ... 3
1 Scope ... 4
2 Normative References ... 4
3 Terms and Definitions ... 5
4 Requirements ... 6
5 Test Methods ... 10
6 Inspection Rules ... 14
7 Marking, Packaging, Transportation and Storage ... 16

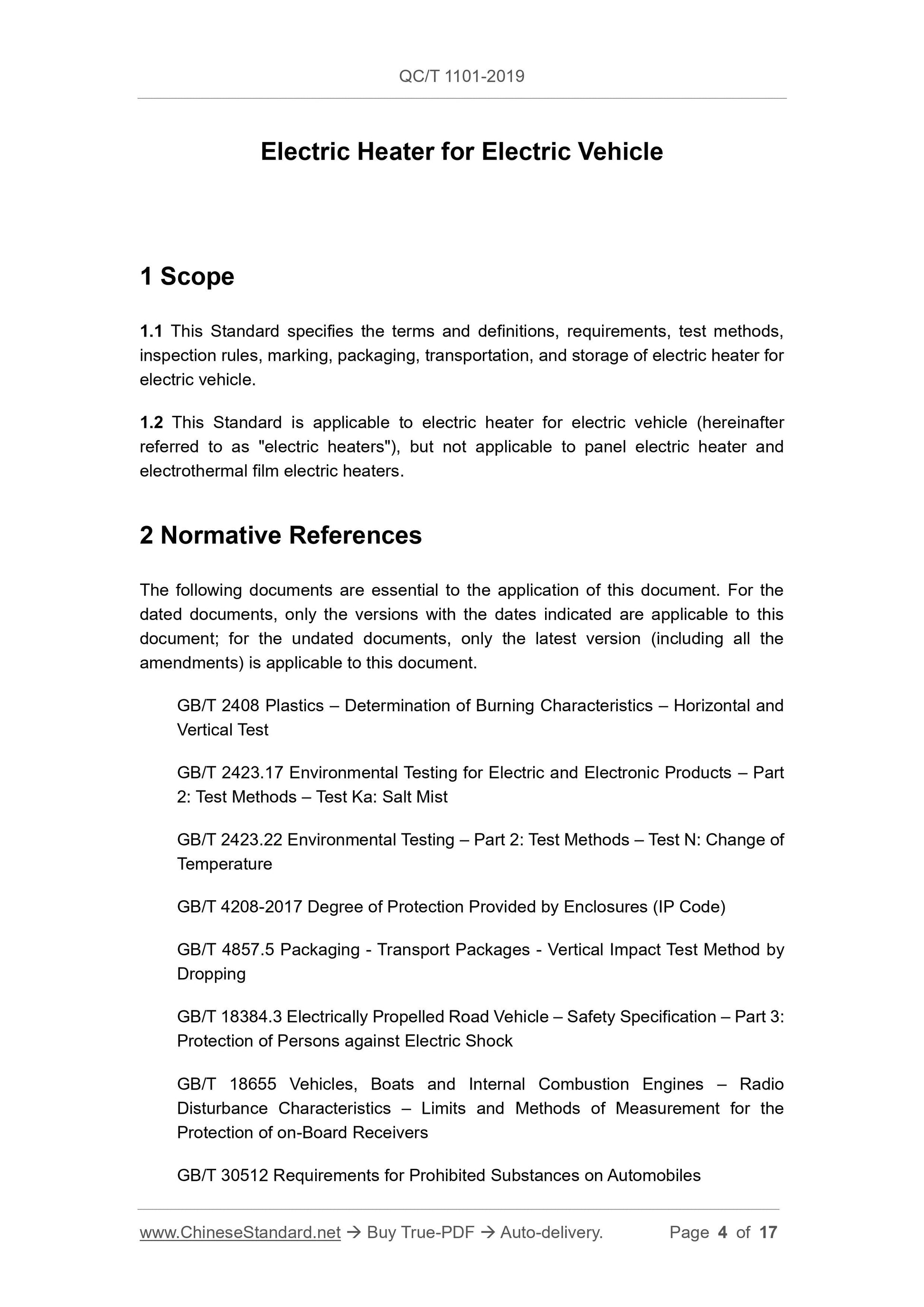

Electric Heater for Electric Vehicle
1 Scope
1.1 This Standard specifies the terms and definitions, requirements, test methods, inspection rules, marking, packaging, transportation, and storage of electric heater for electric vehicle.
1.2 This Standard is applicable to electric heater for electric vehicle (hereinafter referred to as "electric heaters"), but not applicable to panel electric heater and electrothermal film electric heaters.
2 Normative References
The following documents are essential to the application of this document. For the dated documents, only the versions with the dates indicated are applicable to this document; for the undated documents, only the latest version (including all the amendments) is applicable to this document.
GB/T 2408 Plastics ?€? Determination of Burning Characteristics ?€? Horizontal and Vertical Test
GB/T 2423.17 Environmental Testing for Electric and Electronic Products ?€? Part 2: Test Methods ?€? Test Ka: Salt Mist
GB/T 2423.22 Environmental Testing ?€? Part 2: Test Methods ?€? Test N: Change of Temperature
GB/T 4208-2017 Degree of Protection Provided by Enclosures (IP Code)
GB/T 4857.5 Packaging - Transport Packages - Vertical Impact Test Method by Dropping
GB/T 18384.3 Electrically Propelled Road Vehicle ?€? Safety Specification ?€? Part 3: Protection of Persons against Electric Shock
GB/T 18655 Vehicles, Boats and Internal Combustion Engines ?€? Radio
Disturbance Characteristics ?€? Limits and Methods of Measurement for the Protection of on-Board Receivers
GB/T 30512 Requirements for Prohibited Substances on Automobiles

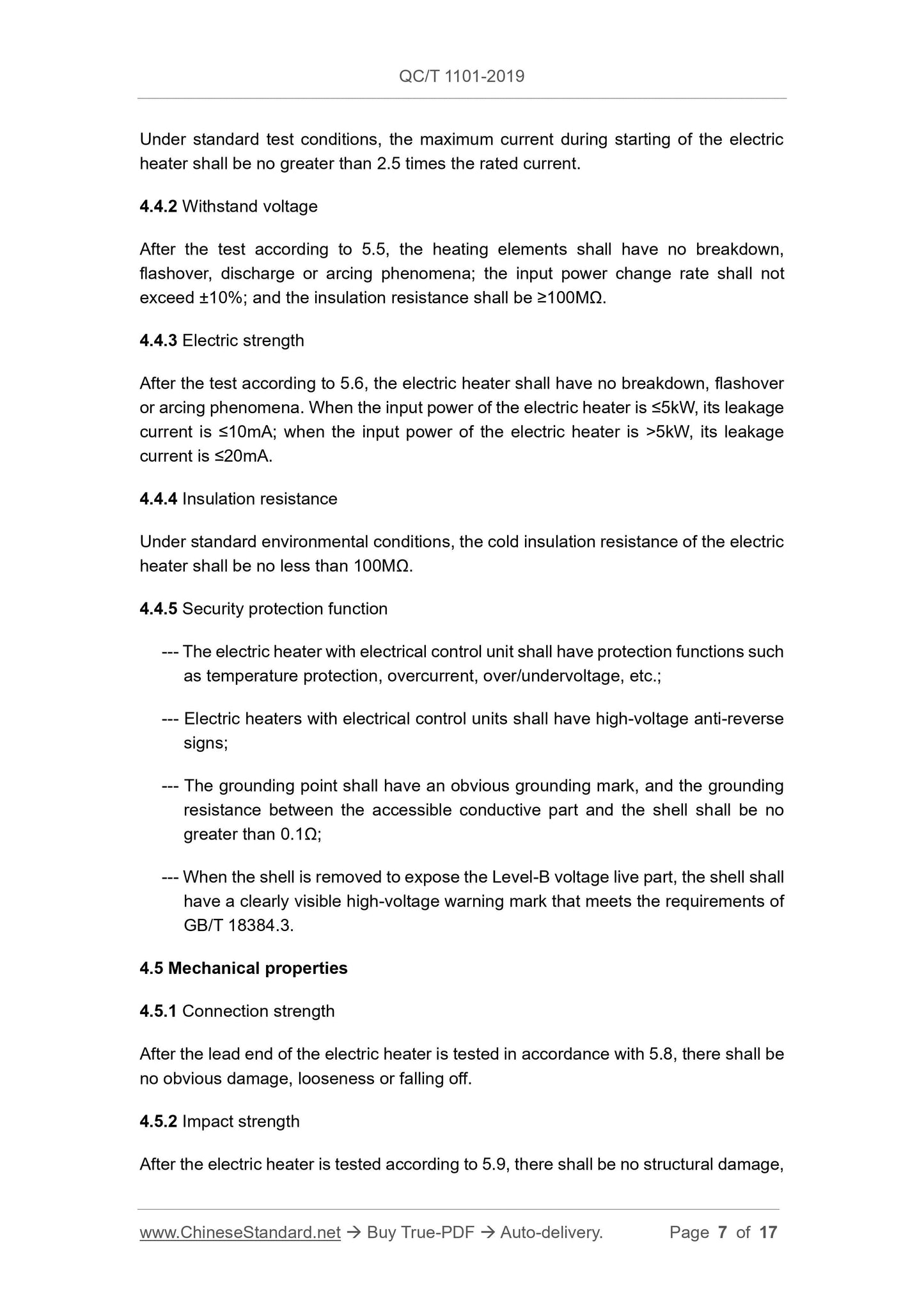

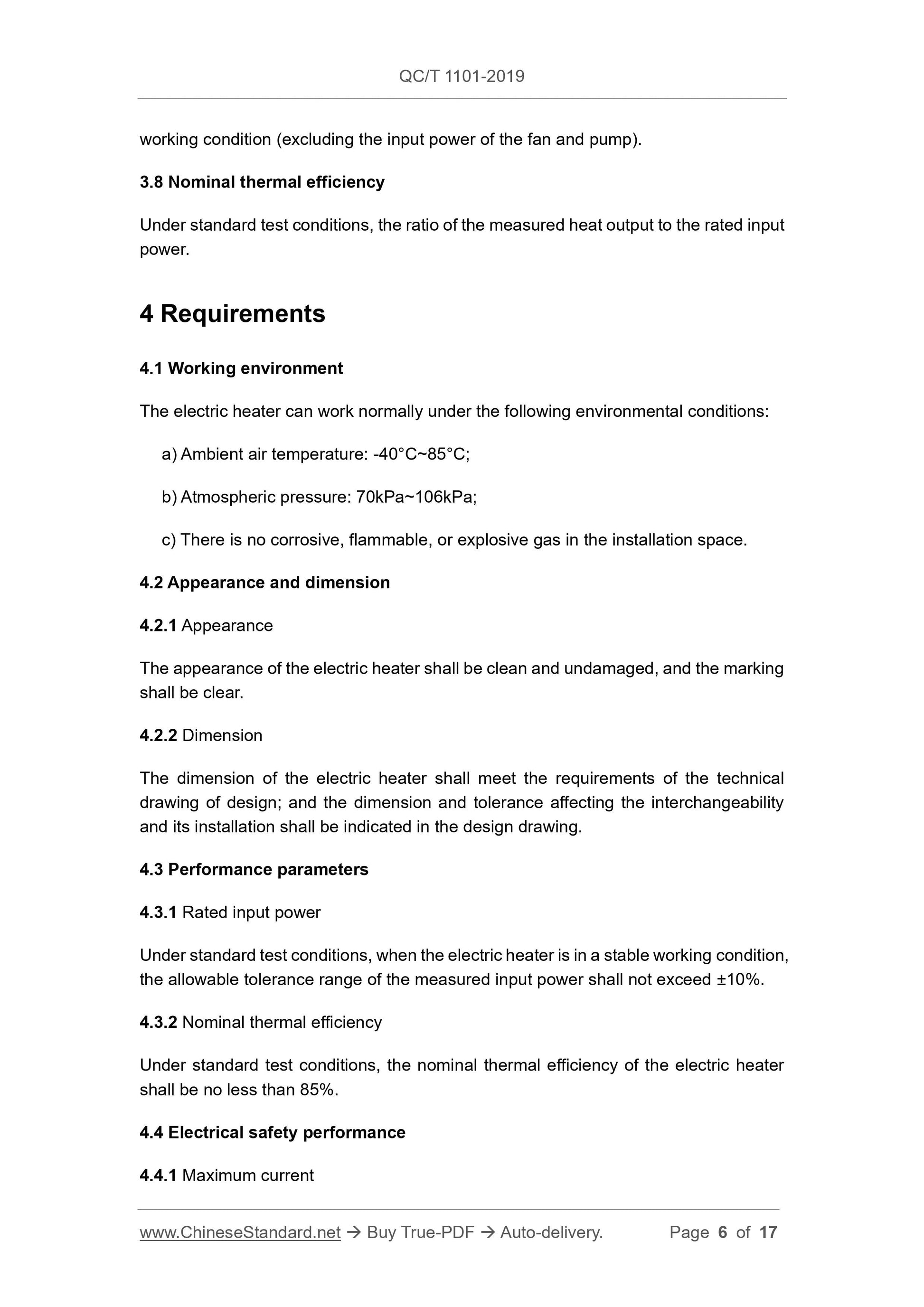

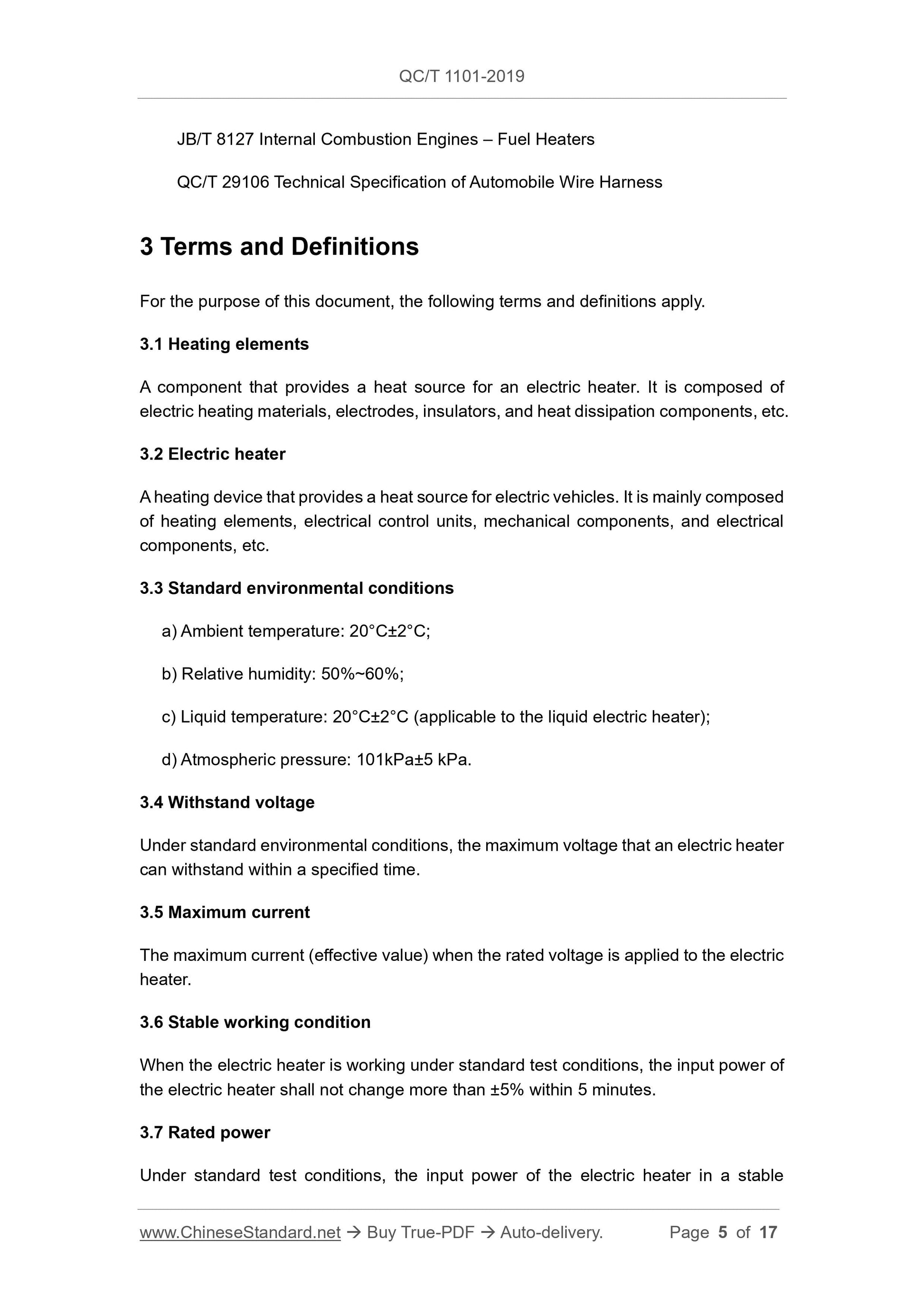

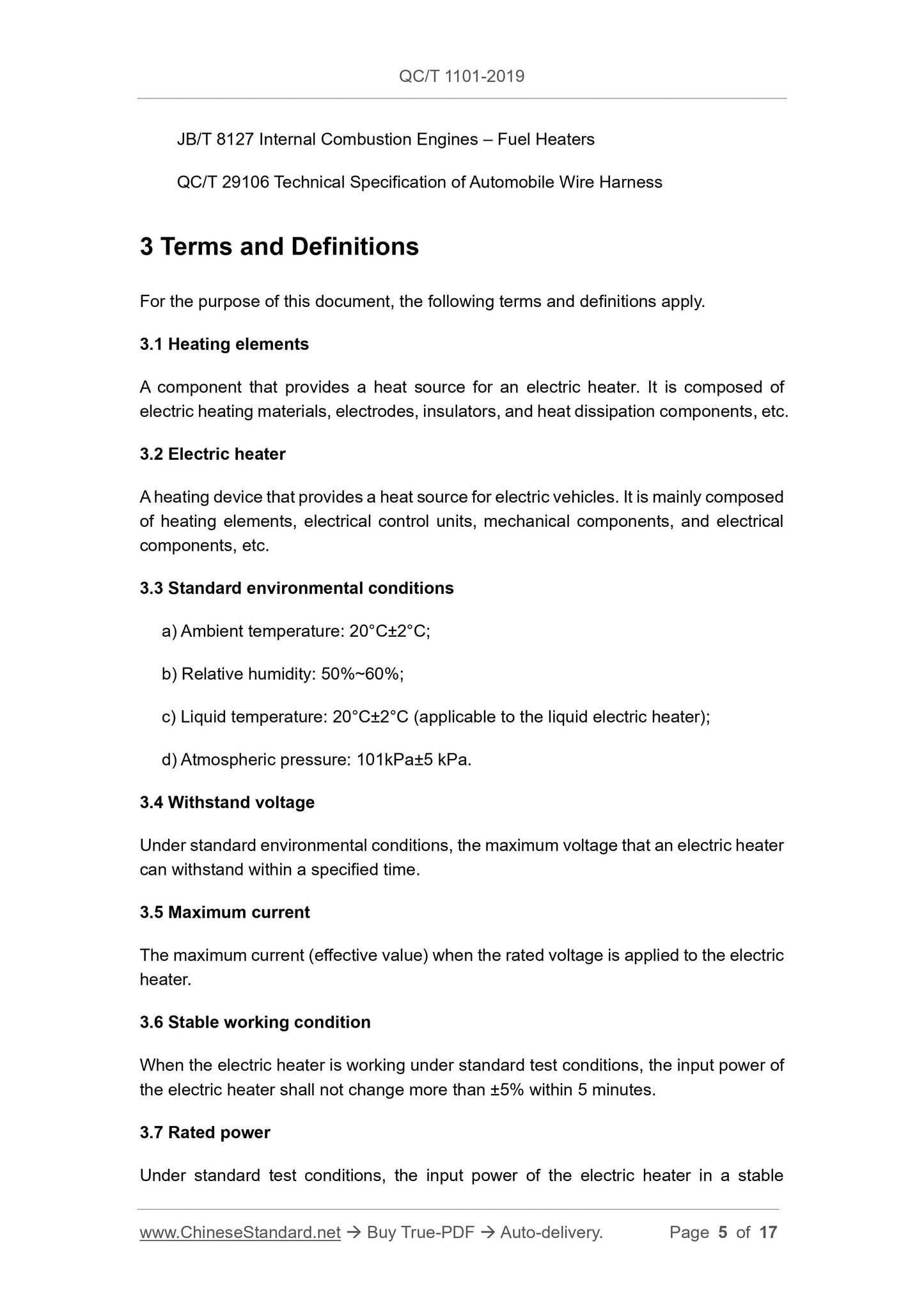

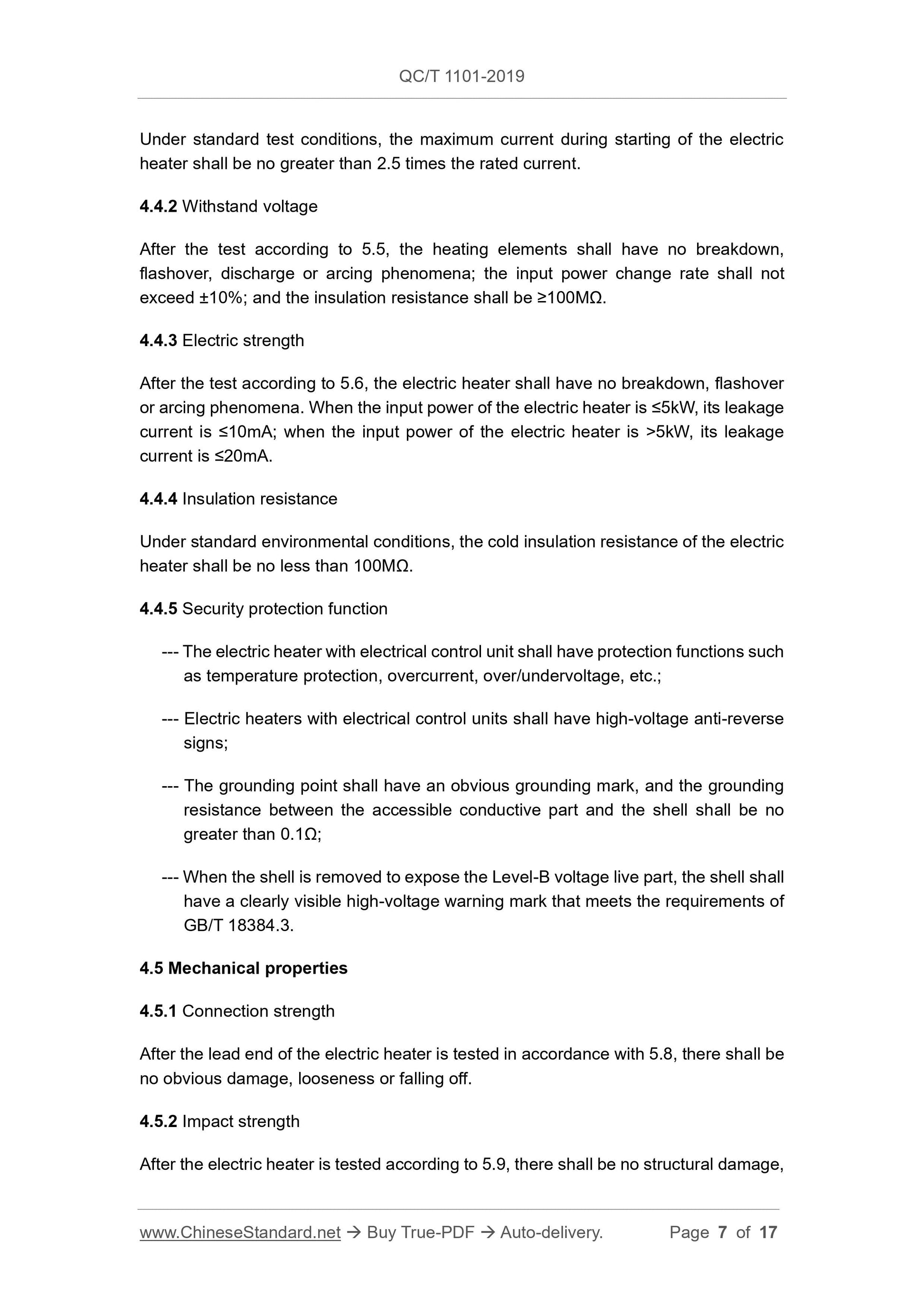

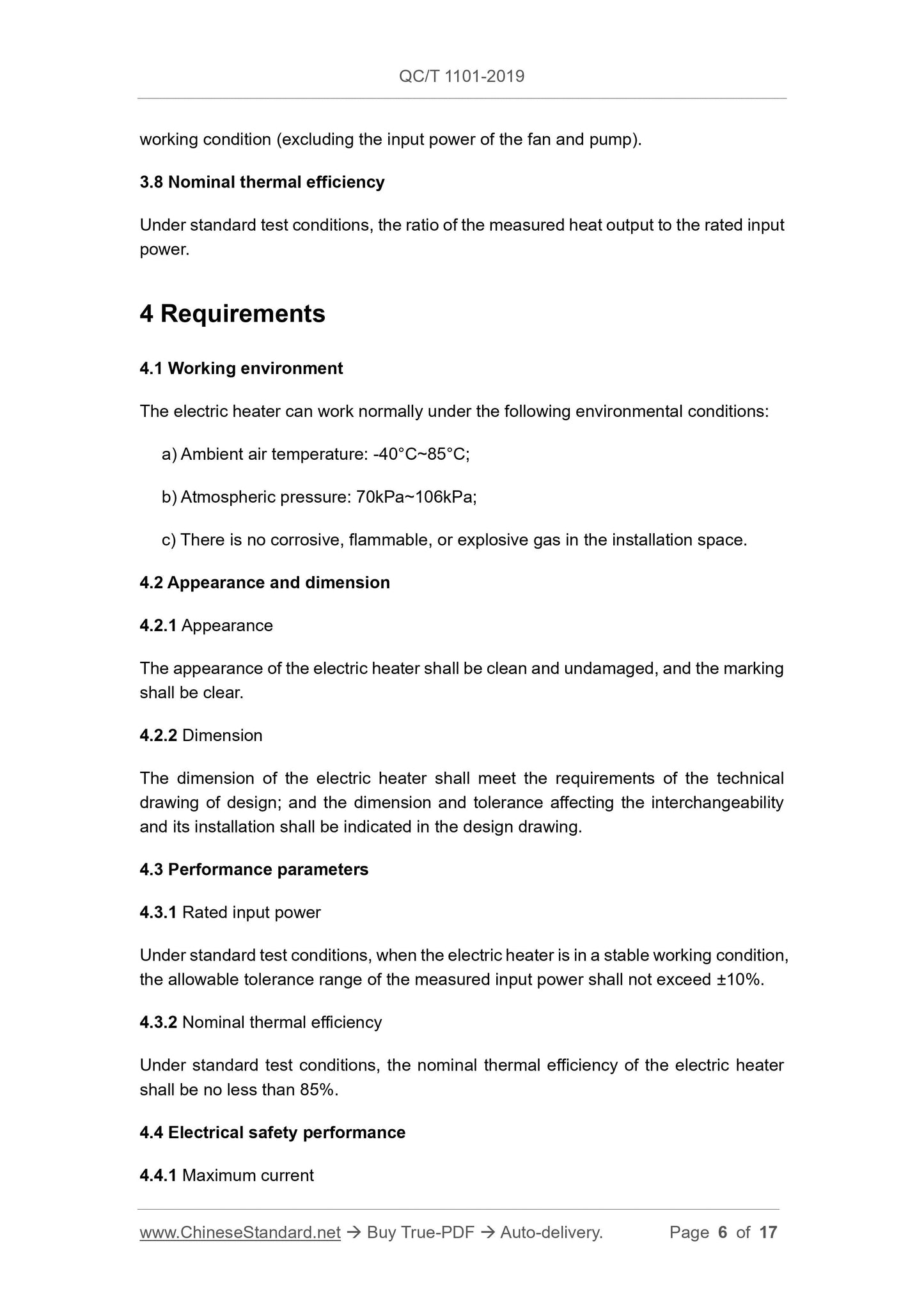

the input power change shall not exceed ??10%, and the electrical safety performance shall meet the requirements of 4.4.
4.5.3 Vibration
After the electric heater is tested according to 5.10, there shall be no structural damage, the input power change shall not exceed ??10%, and the electrical safety performance shall meet the requirements of 4.4.
4.5.4 Drop performance
After the electric heater in the factory-packed state drops from a height of 1000mm according to the test method in 5.11, there shall be no obviously damage; its input power change shall not exceed ??10%, and the electrical safety performance shall meet the requirements of 4.4.

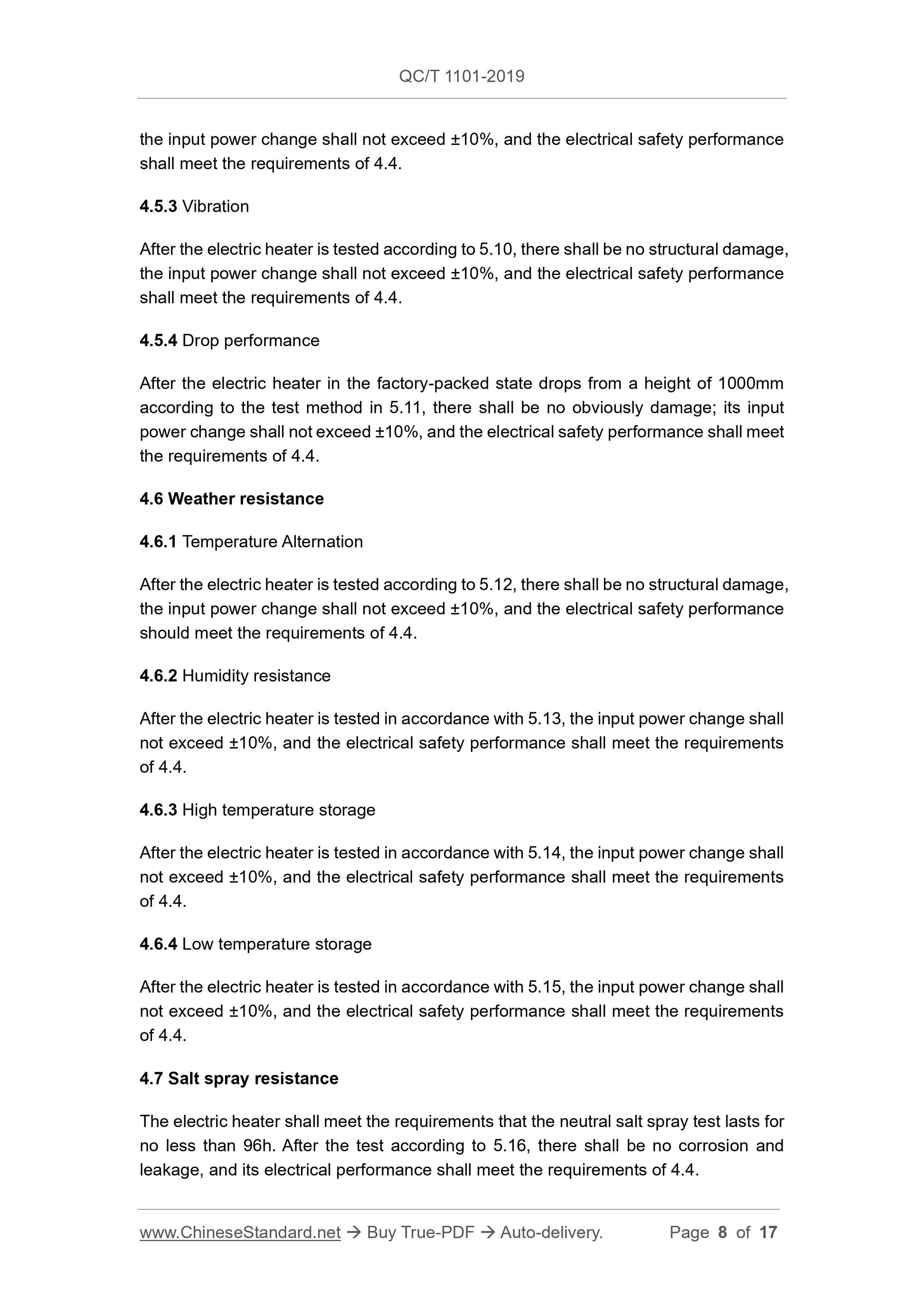

4.6 Weather resistance
4.6.1 Temperature Alternation
After the electric heater is tested according to 5.12, there shall be no structural damage, the input power change shall not exceed ??10%, and the electrical safety performance should meet the requirements of 4.4.
4.6.2 Humidity resistance
After the electric heater is tested in accordance with 5.13, the input power change shall not exceed ??10%, and the electrical safety performance shall meet the requirements of 4.4.
4.6.3 High temperature storage
After the electric heater is tested in accordance with 5.14, the input power change shall not exceed ??10%, and the electrical safety performance shall meet the requirements of 4.4.
4.6.4 Low temperature storage
After the electric heater is tested in accordance with 5.15, the input power change shall not exceed ??10%, and the electrical safety performance shall meet the requirements of 4.4.
4.7 Salt spray resistance
The electric heater shall meet the requirements that the neutral salt spray test lasts for no less than 96h. After the test according to 5.16, there shall be no corrosion and leakage, and its electrical performance shall meet the requirements of 4.4. The liquid electric heater is filled with 0.2MPa air pressure and pressure is maintained for 120s.

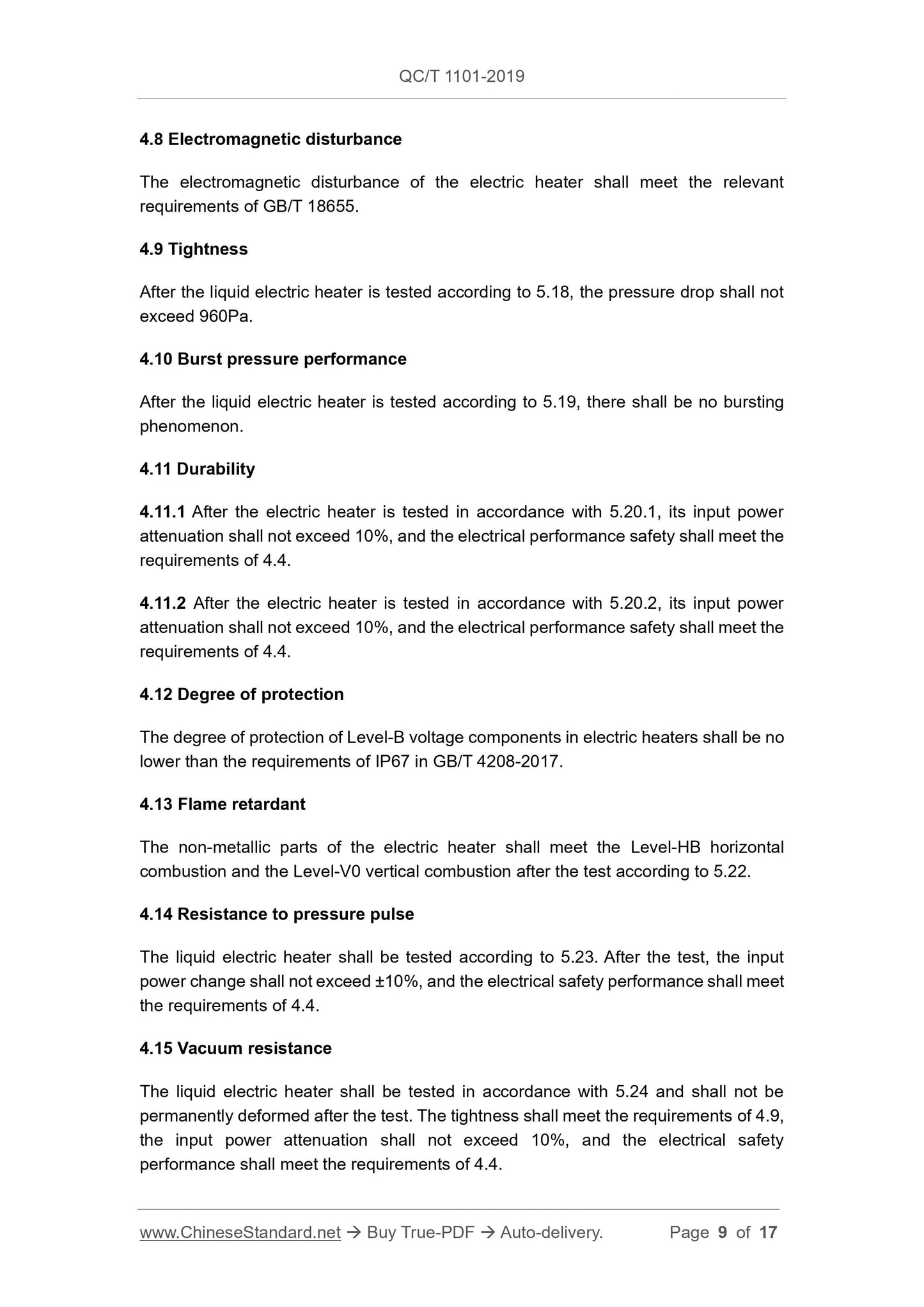

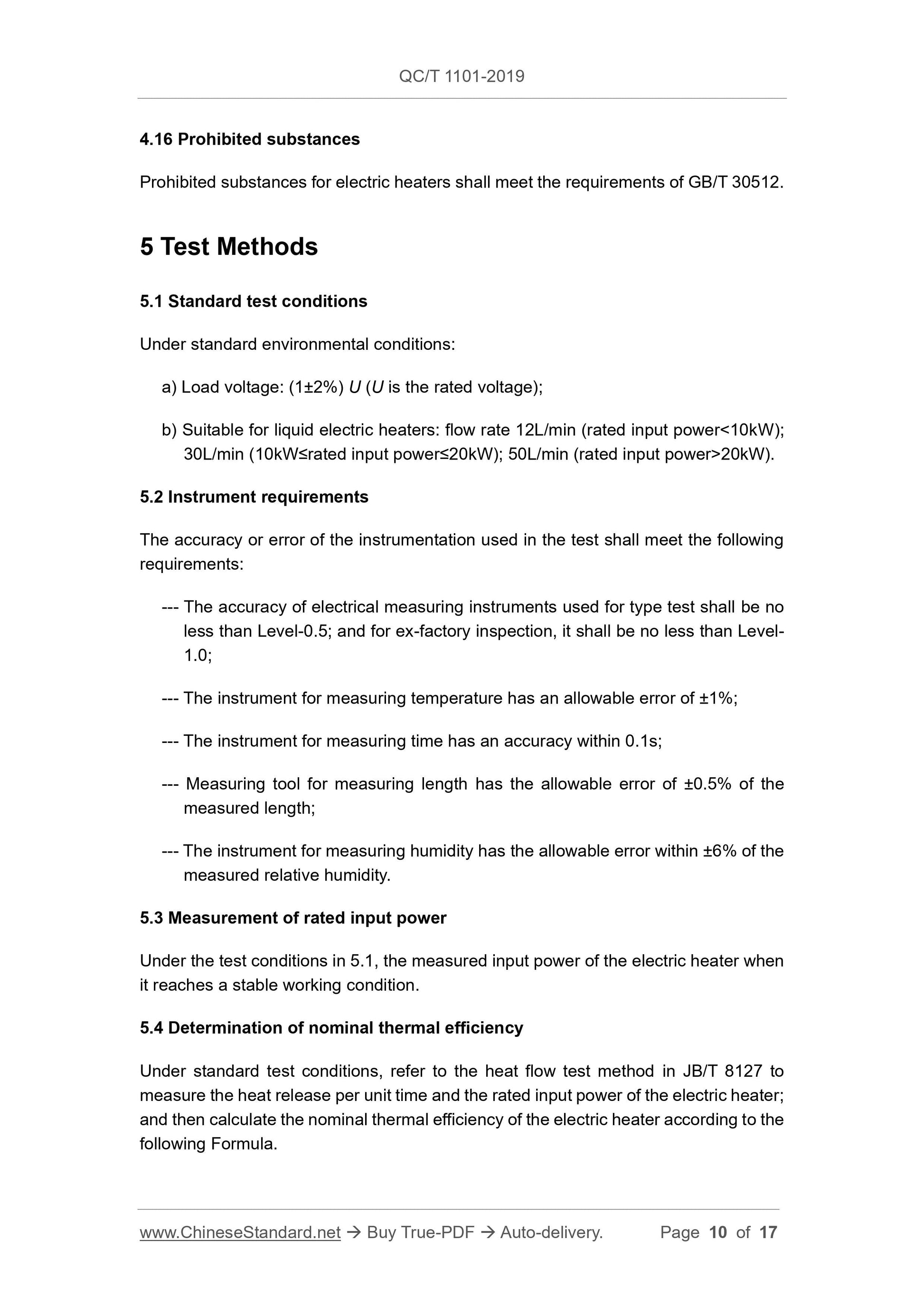

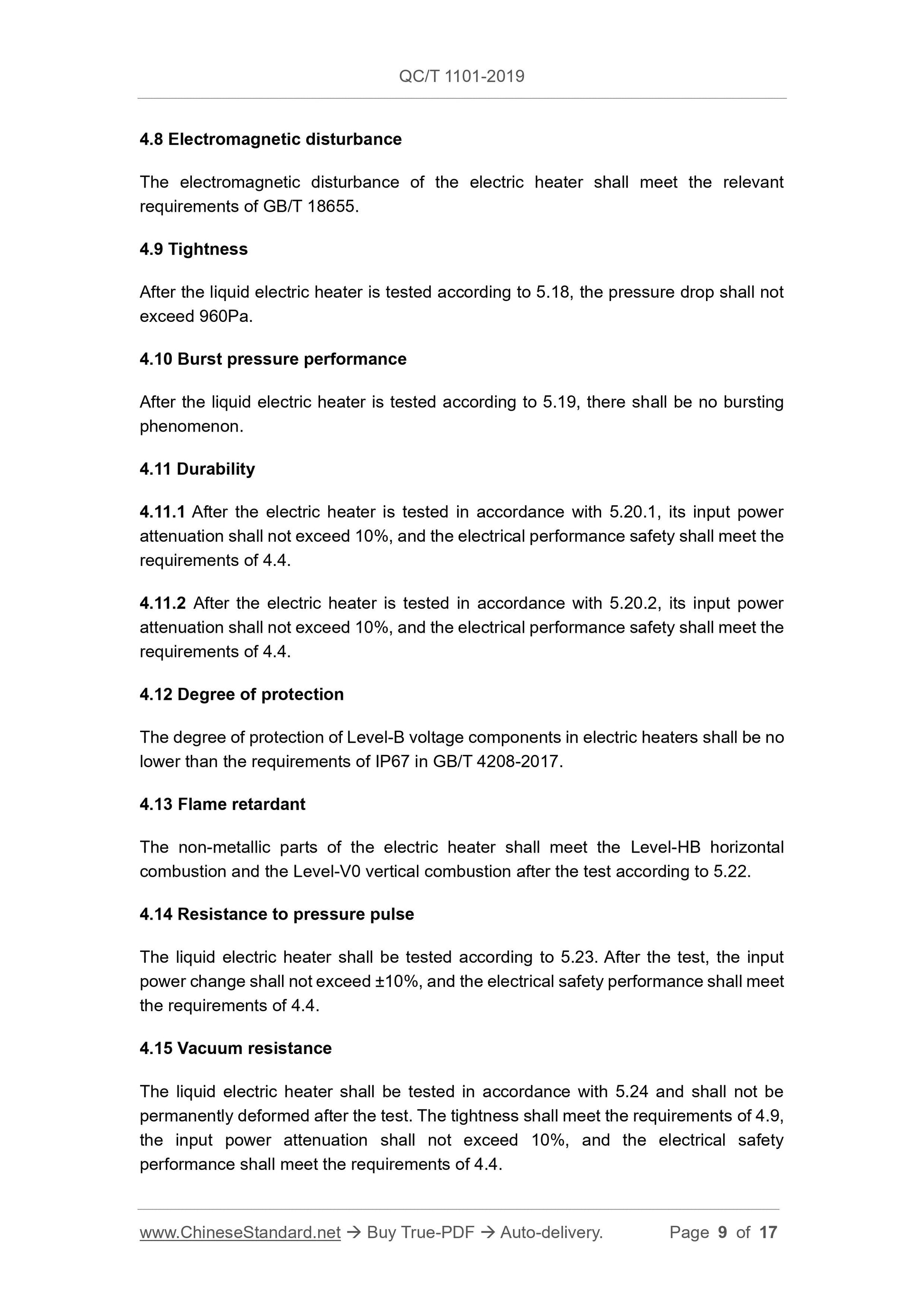

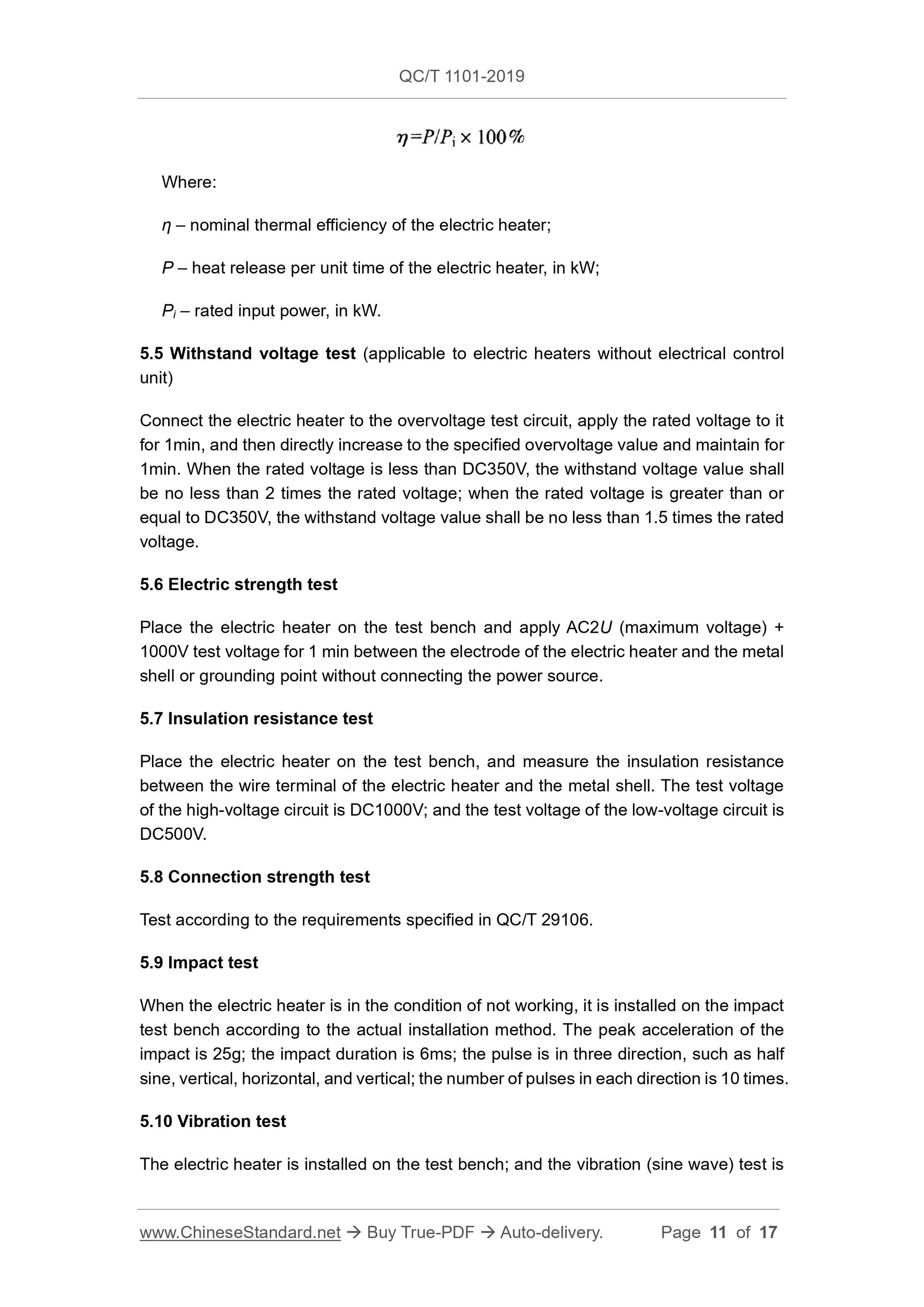

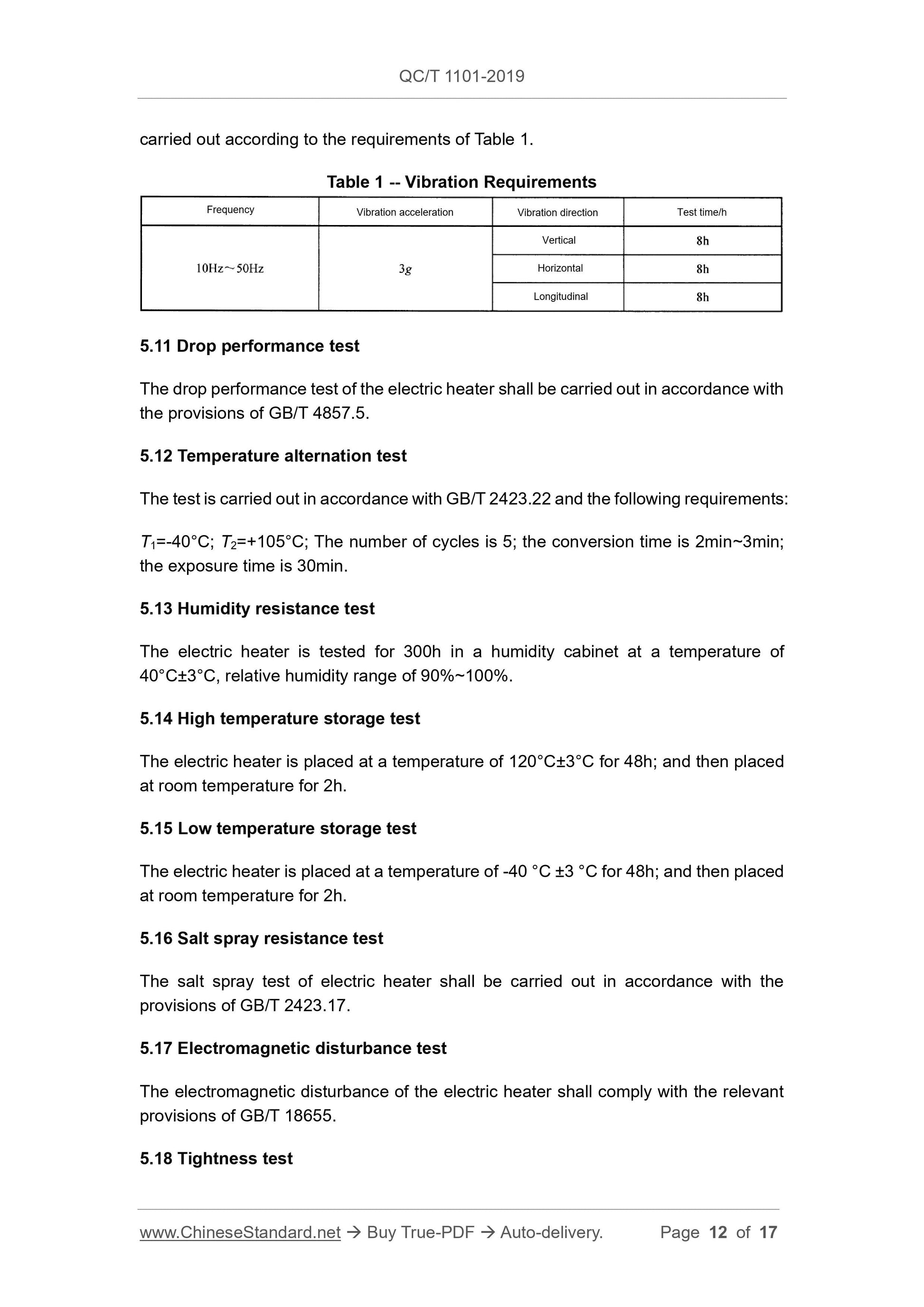

5.19 Burst pressure test
The liquid electric heater is filled with 0.5MPa air pressure and pressure is maintained for 30s.
5.20 Durability test
Load voltage of electric heater: (1.15??2%) U (U is the rated voltage).
5.20.1 Under normal working conditions, place the electric heater on the test device and work continuously for 1000h.
5.20.2 Under normal working conditions, place the electric heater on the test device. After the electric heater is energized for the 1min, then switched off for 1 min; and it shall be switched on and off for 10 000 times.
5.21 Protection level test
The protection test of Level-B voltage components of electric heaters shall be carried out in accordance with the provisions of GB/T 4208.
5.22 Flame-retardant test
The flame-retardant test of non-metallic parts of electric heaters shall be carried out in accordance with the provisions of GB/T 2408.
5.23 Pressure impulse resistance test
When the liquid electric heater is at a liquid temperature of 100??C ?? 5??C, the number of pressure alternations shall be 20 000 times, the alternating pressure is 0.02MPa ~0.25MPa, and the alternating frequency is 1Hz.
5.24 Vacuum resistance test
Apply a pressure of -90kPa inside the liquid electric heater, release the vacuum after maintaining the pressure for 60s, and repeat for 5 times.
5.25 Prohibited substance test
The detection of prohibited substances shall be carried out in accordance with the provisions of GB/T 30512.
