QC/T 1096-2018: Bench test methods of fatigue life for torsion beam rear axle of passenger cars

This standard specifies the bench test method for the fatigue life of torsion beam rear axles for passenger cars. This standard applies to torsion beam rear axles for passenger vehicles, which are powered by internal combustion engines.

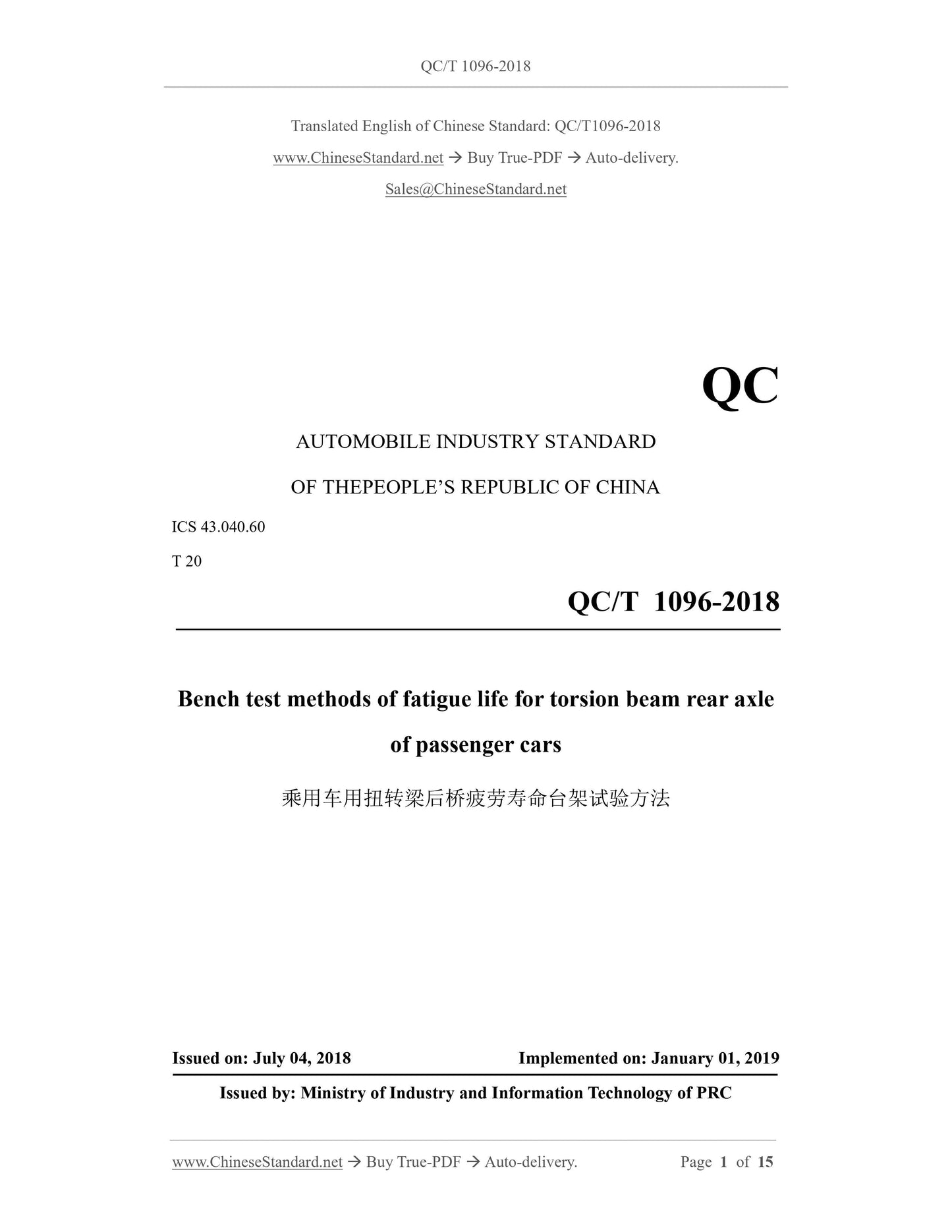

QC/T 1096-2018
QC
AUTOMOBILE INDUSTRY STANDARD
OF THEPEOPLE REPUBLIC OF CHINA
ICS 43.040.60
T 20
Bench test methods of fatigue life for torsion beam rear axle
of passenger cars
ISSUED ON: JULY 04, 2018
IMPLEMENTED ON: JANUARY 01, 2019
Issued by: Ministry of Industry and Information Technology of PRC

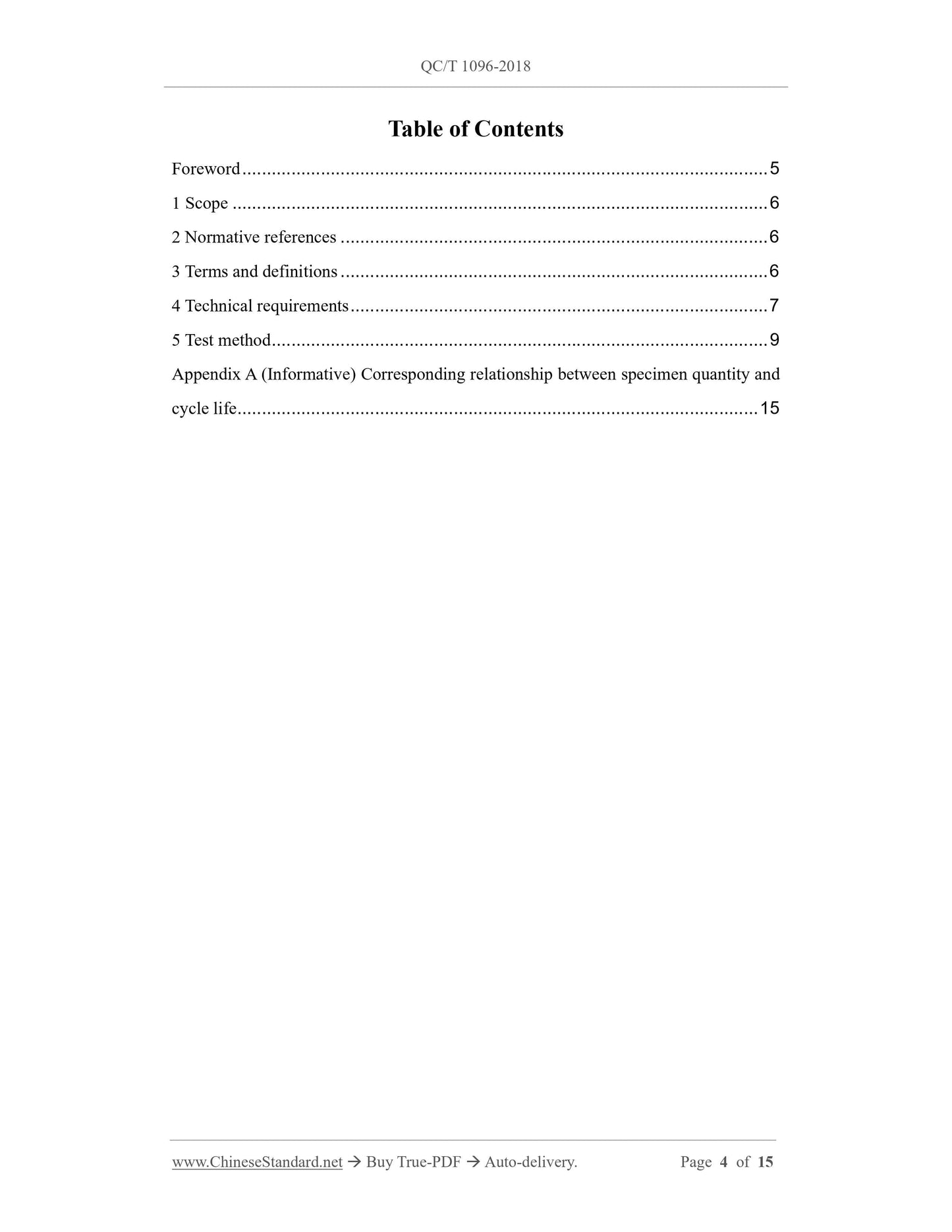

Table of Contents
Foreword ... 5
1 Scope ... 6
2 Normative references ... 6
3 Terms and definitions ... 6
4 Technical requirements ... 7
5 Test method ... 9
Appendix A (Informative) Corresponding relationship between specimen quantity and cycle life ... 15

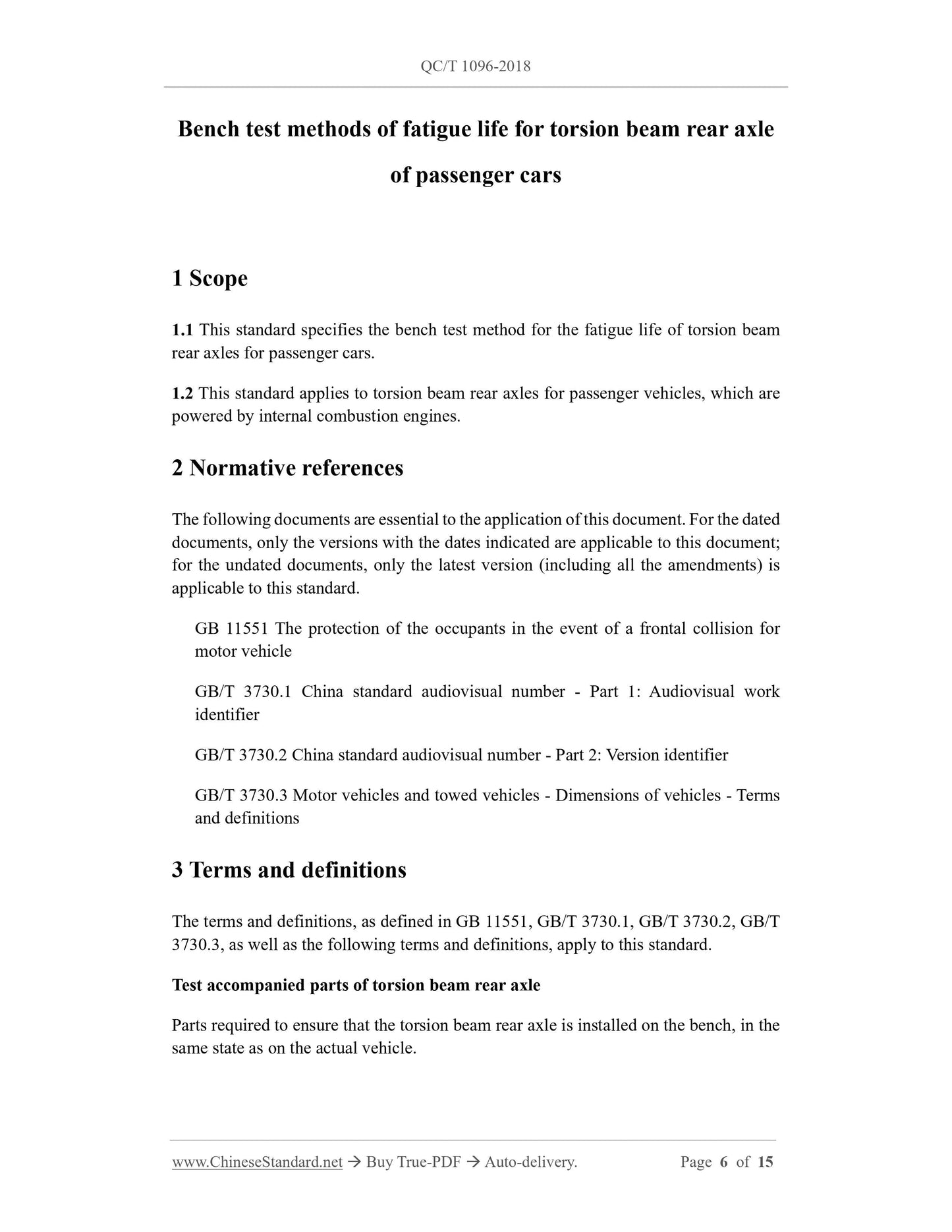

Bench test methods of fatigue life for torsion beam rear axle
of passenger cars
1 Scope
1.1 This standard specifies the bench test method for the fatigue life of torsion beam rear axles for passenger cars.
1.2 This standard applies to torsion beam rear axles for passenger vehicles, which are powered by internal combustion engines.
2 Normative references
The following documents are essential to the application of this document. For the dated documents, only the versions with the dates indicated are applicable to this document; for the undated documents, only the latest version (including all the amendments) is applicable to this standard.
GB 11551 The protection of the occupants in the event of a frontal collision for motor vehicle
GB/T 3730.1 China standard audiovisual number - Part 1: Audiovisual work identifier
GB/T 3730.2 China standard audiovisual number - Part 2: Version identifier GB/T 3730.3 Motor vehicles and towed vehicles - Dimensions of vehicles - Terms and definitions
3 Terms and definitions
The terms and definitions, as defined in GB 11551, GB/T 3730.1, GB/T 3730.2, GB/T 3730.3, as well as the following terms and definitions, apply to this standard. Test accompanied parts of torsion beam rear axle
Parts required to ensure that the torsion beam rear axle is installed on the bench, in the same state as on the actual vehicle.

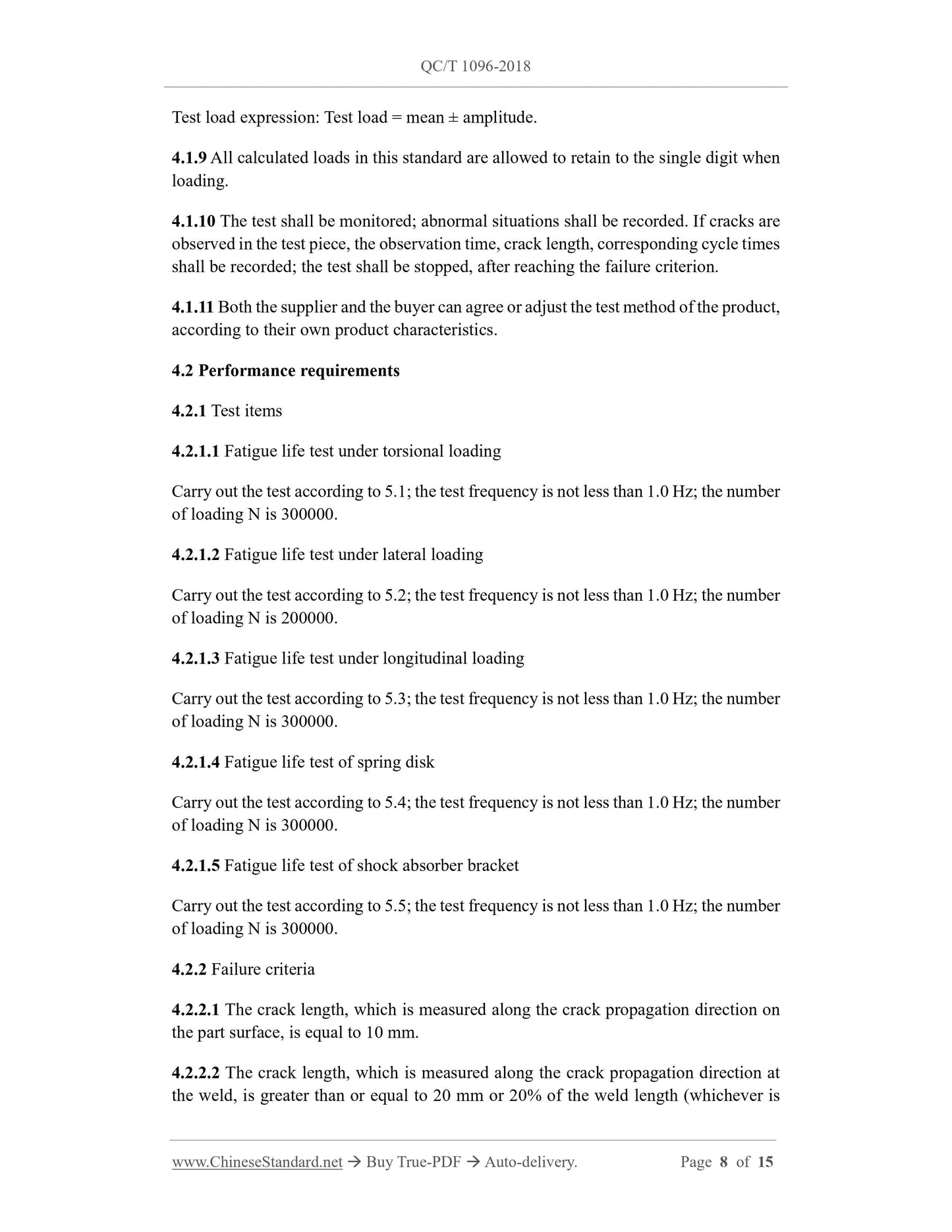

Test load expression: Test load = mean ?? amplitude.
4.1.9 All calculated loads in this standard are allowed to retain to the single digit when loading.
4.1.10 The test shall be monitored; abnormal situations shall be recorded. If cracks are observed in the test piece, the observation time, crack length, corresponding cycle times shall be recorded; the test shall be stopped, after reaching the failure criterion. 4.1.11 Both the supplier and the buyer can agree or adjust the test method of the product, according to their own product characteristics.
4.2 Performance requirements
4.2.1 Test items
4.2.1.1 Fatigue life test under torsional loading
Carry out the test according to 5.1; the test frequency is not less than 1.0 Hz; the number of loading N is 300000.
4.2.1.2 Fatigue life test under lateral loading
Carry out the test according to 5.2; the test frequency is not less than 1.0 Hz; the number of loading N is 200000.
4.2.1.3 Fatigue life test under longitudinal loading
Carry out the test according to 5.3; the test frequency is not less than 1.0 Hz; the number of loading N is 300000.
4.2.1.4 Fatigue life test of spring disk
Carry out the test according to 5.4; the test frequency is not less than 1.0 Hz; the number of loading N is 300000.
4.2.1.5 Fatigue life test of shock absorber bracket
Carry out the test according to 5.5; the test frequency is not less than 1.0 Hz; the number of loading N is 300000.
4.2.2 Failure criteria
4.2.2.1 The crack length, which is measured along the crack propagation direction on the part surface, is equal to 10 mm.
4.2.2.2 The crack length, which is measured along the crack propagation direction at the weld, is greater than or equal to 20 mm or 20% of the weld length (whichever is smaller).
4.2.3 Evaluation indicators

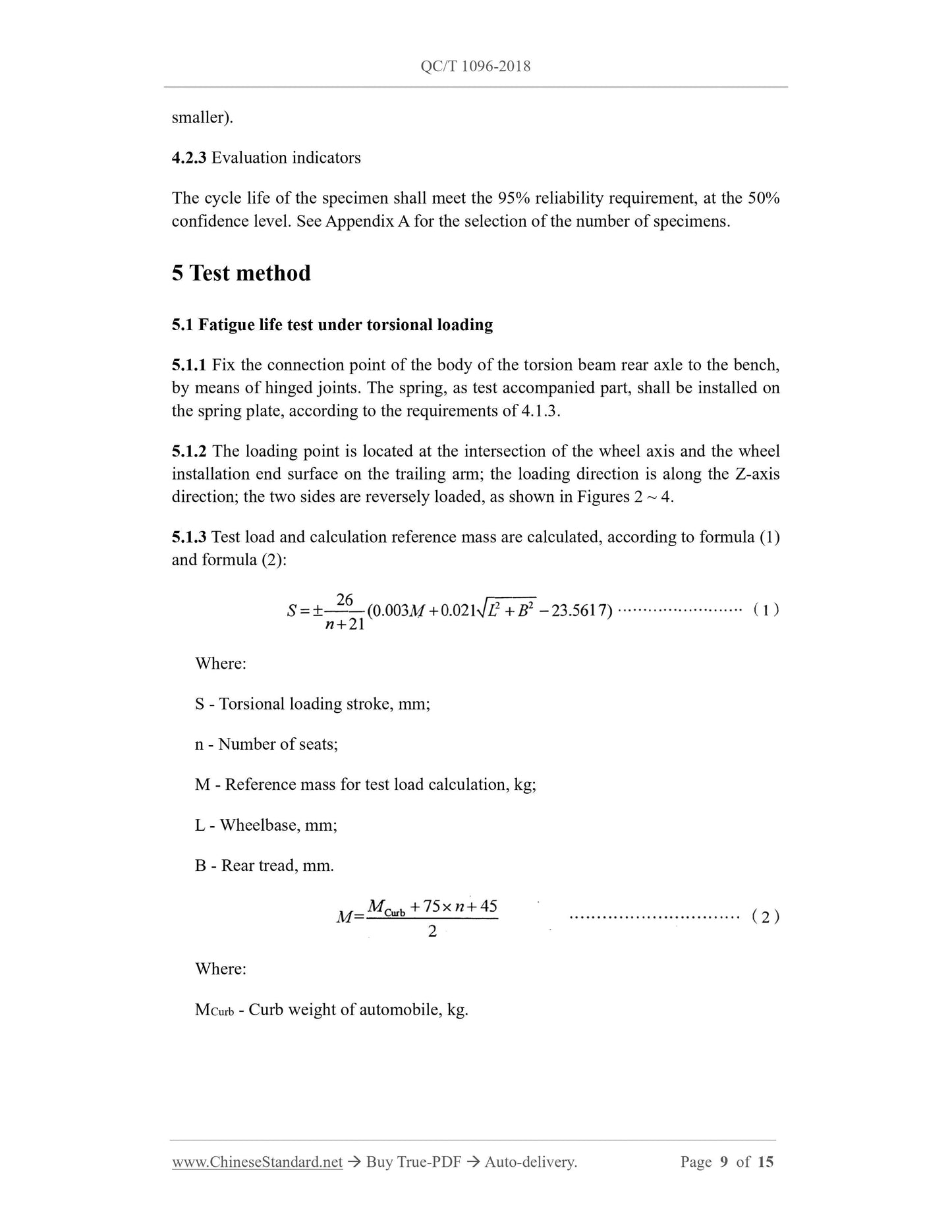

The cycle life of the specimen shall meet the 95% reliability requirement, at the 50% confidence level. See Appendix A for the selection of the number of specimens. 5 Test method
5.1 Fatigue life test under torsional loading
5.1.1 Fix the connection point of the body of the torsion beam rear axle to the bench, by means of hinged joints. The spring, as test accompanied part, shall be installed on the spring plate, according to the requirements of 4.1.3.
5.1.2 The loading point is located at the intersection of the wheel axis and the wheel installation end surface on the trailing arm; the loading direction is along the Z-axis direction; the two sides are reversely loaded, as shown in Figures 2 ~ 4. 5.1.3 Test load and calculation reference mass are calculated, according to formula (1) and formula (2):
Where:
S - Torsional loading stroke, mm;
n - Number of seats;
M - Reference mass for test load calculation, kg;
L - Wheelbase, mm;
B - Rear tread, mm.
Where:
MCurb - Curb weight of automobile, kg.
