QC/T 1083-2017: Controller for automobile electrical power steering

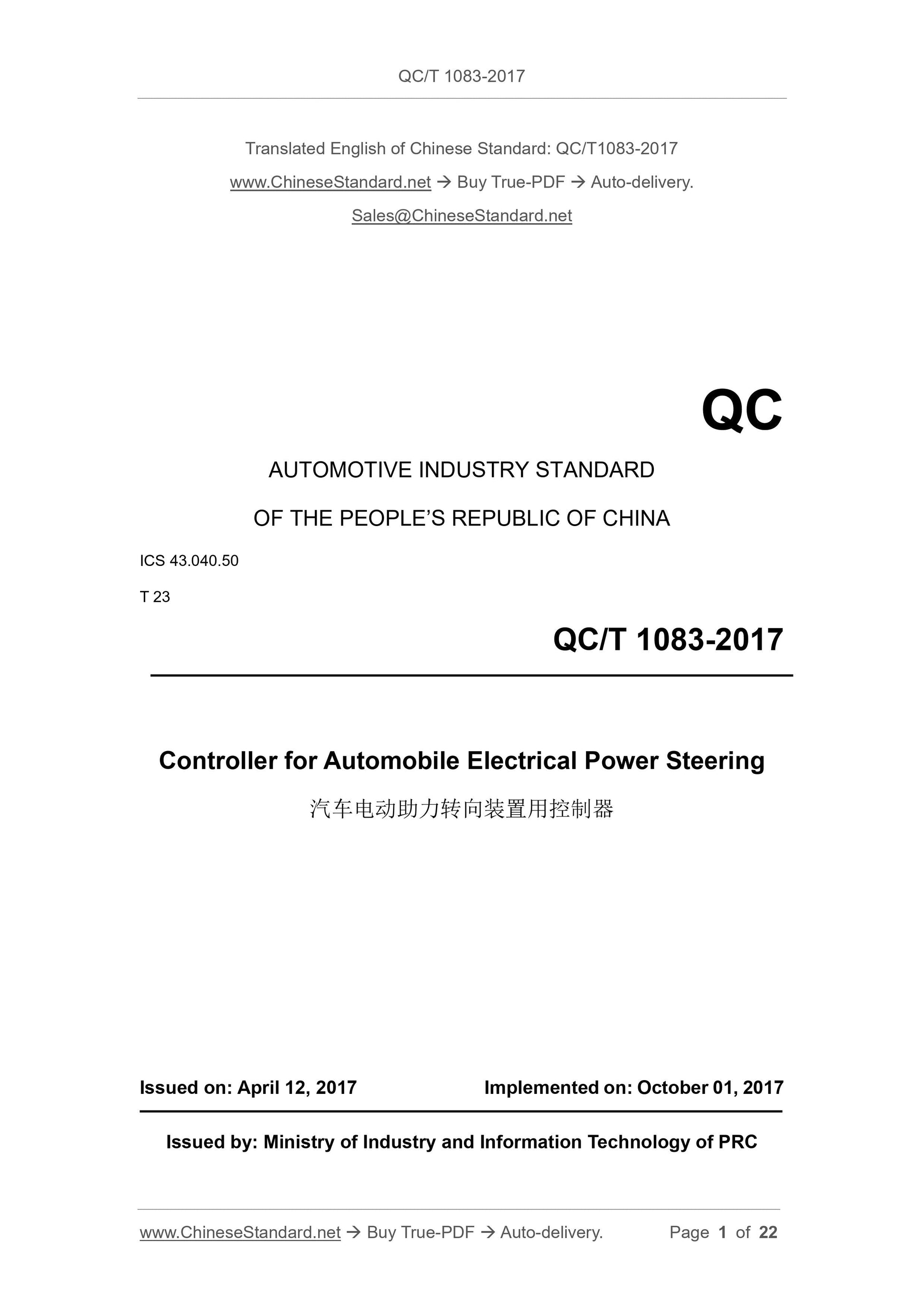

QC/T 1083-2017
AUTOMOTIVE INDUSTRY STANDARD
OF THE PEOPLE’S REPUBLIC OF CHINA
ICS 43.040.50
T 23
Controller for Automobile Electrical Power Steering
ISSUED ON: APRIL 12, 2017
IMPLEMENTED ON: OCTOBER 01, 2017
Issued by: Ministry of Industry and Information Technology of PRC

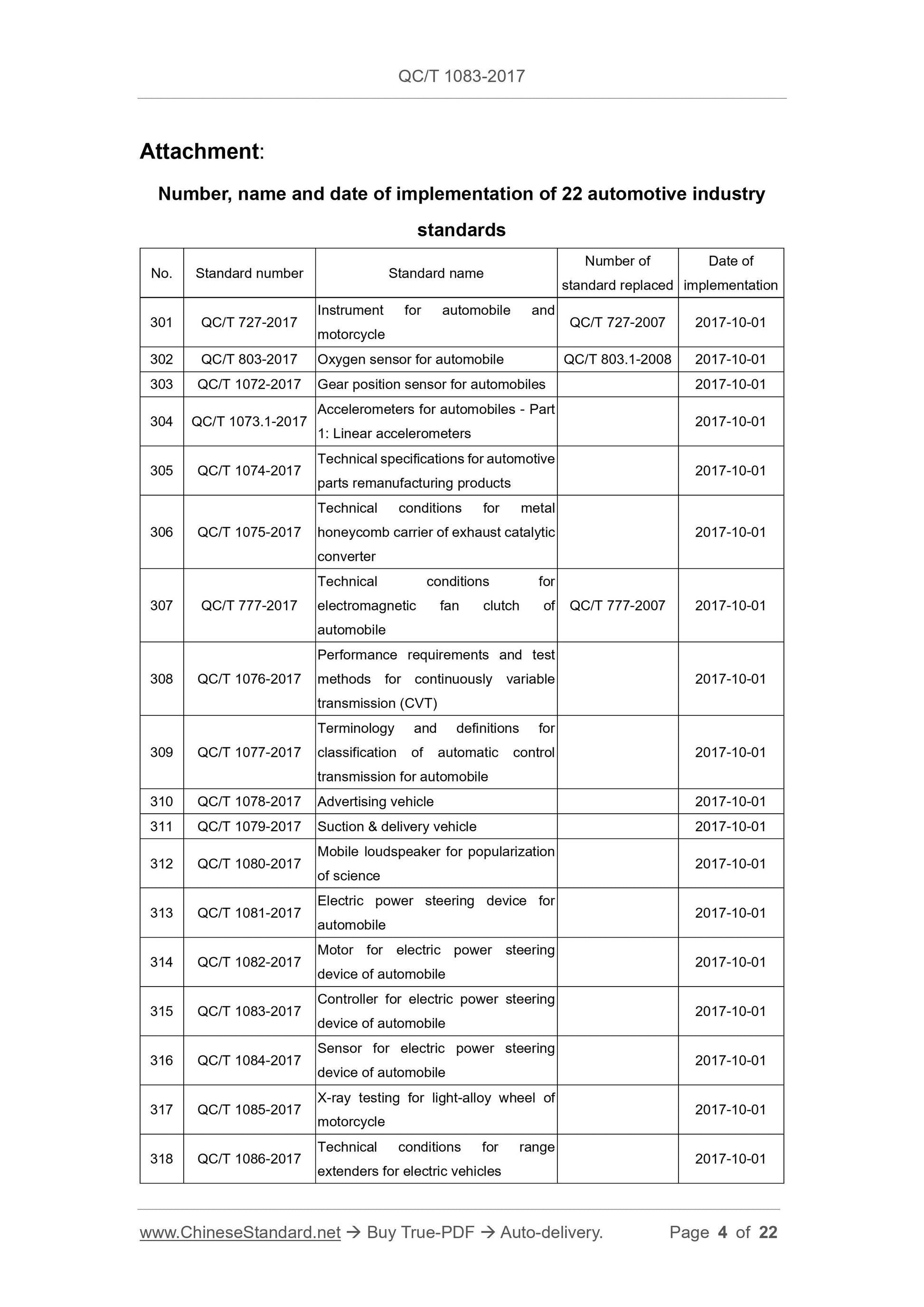

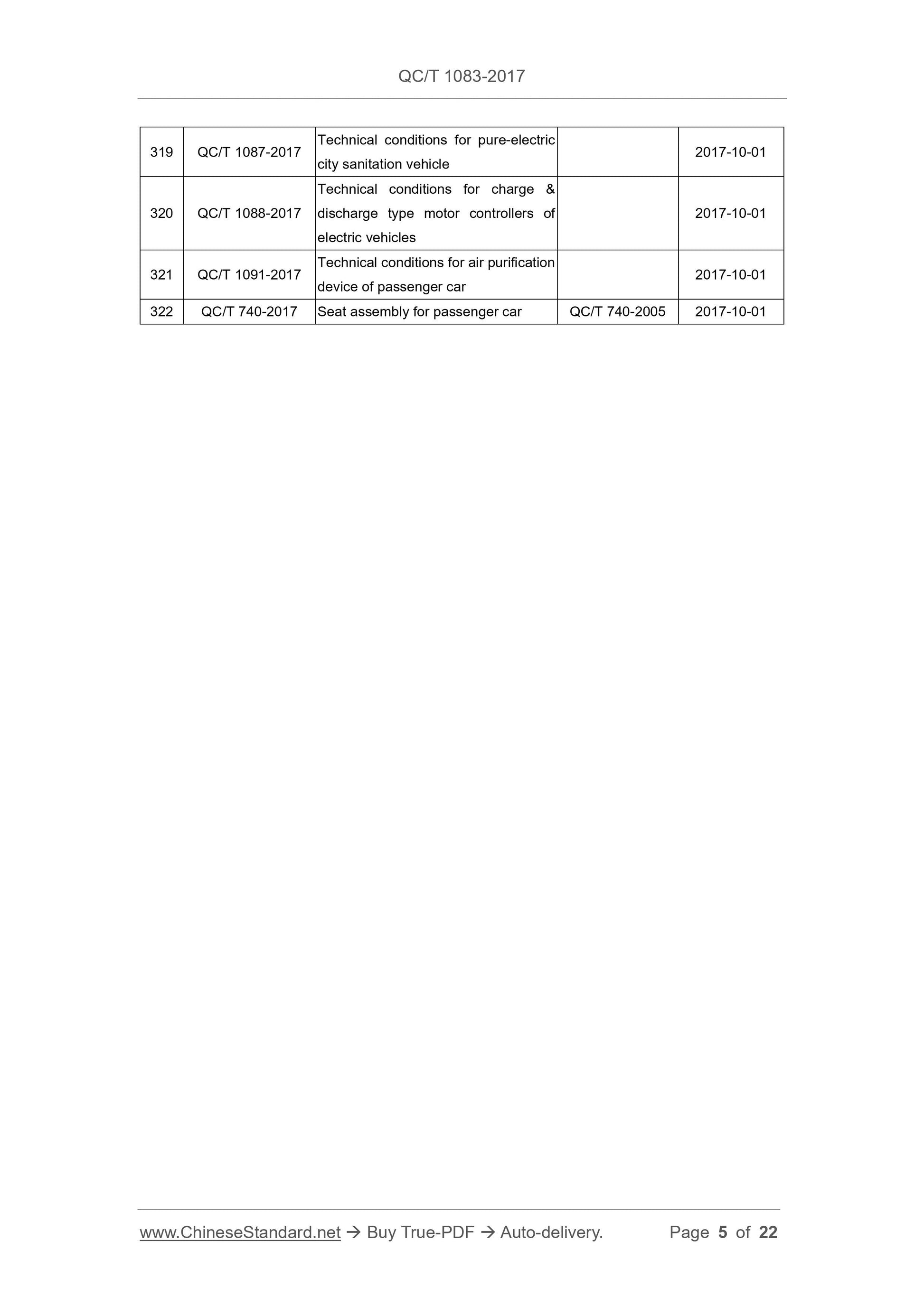

Attachment:
Number, name and date of implementation of 22 automotive industry
standards
No. Standard number Standard name Number of standard replaced
Date of
implementation
301 QC/T 727-2017 Instrument for automobile and motorcycle QC/T 727-2007 2017-10-01
302 QC/T 803-2017 Oxygen sensor for automobile QC/T 803.1-2008 2017-10-01
303 QC/T 1072-2017 Gear position sensor for automobiles 2017-10-01
304 QC/T 1073.1-2017 Accelerometers for automobiles - Part 1: Linear accelerometers 2017-10-01
305 QC/T 1074-2017 Technical specifications for automotive parts remanufacturing products 2017-10-01
306 QC/T 1075-2017
Technical conditions for metal
honeycomb carrier of exhaust catalytic
converter
2017-10-01
307 QC/T 777-2017
Technical conditions for
electromagnetic fan clutch of
automobile
QC/T 777-2007 2017-10-01
308 QC/T 1076-2017
Performance requirements and test
methods for continuously variable
transmission (CVT)
2017-10-01
309 QC/T 1077-2017
Terminology and definitions for
classification of automatic control
transmission for automobile
2017-10-01
310 QC/T 1078-2017 Advertising vehicle 2017-10-01
311 QC/T 1079-2017 Suction and delivery vehicle 2017-10-01
312 QC/T 1080-2017 Mobile loudspeaker for popularization of science 2017-10-01
313 QC/T 1081-2017 Electric power steering device for automobile 2017-10-01
314 QC/T 1082-2017 Motor for electric power steering device of automobile 2017-10-01
315 QC/T 1083-2017 Controller for electric power steering device of automobile 2017-10-01
316 QC/T 1084-2017 Sensor for electric power steering device of automobile 2017-10-01
317 QC/T 1085-2017 X-ray testing for light-alloy wheel of motorcycle 2017-10-01
318 QC/T 1086-2017 Technical conditions for range extenders for electric vehicles 2017-10-01

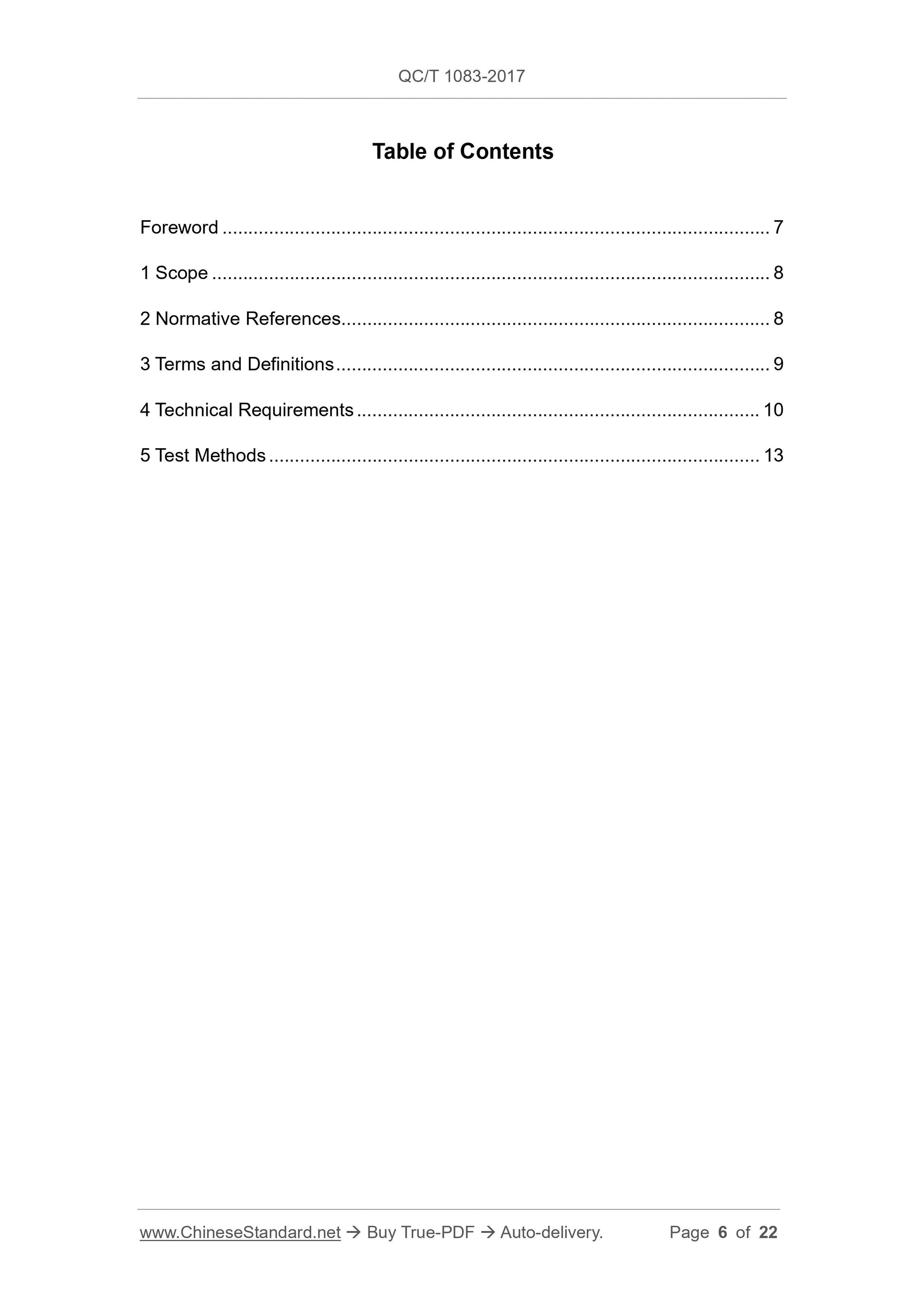

Table of Contents
Foreword ... 7
1 Scope ... 8
2 Normative References ... 8
3 Terms and Definitions ... 9
4 Technical Requirements ... 10
5 Test Methods ... 13
Controller for Automobile Electrical Power Steering

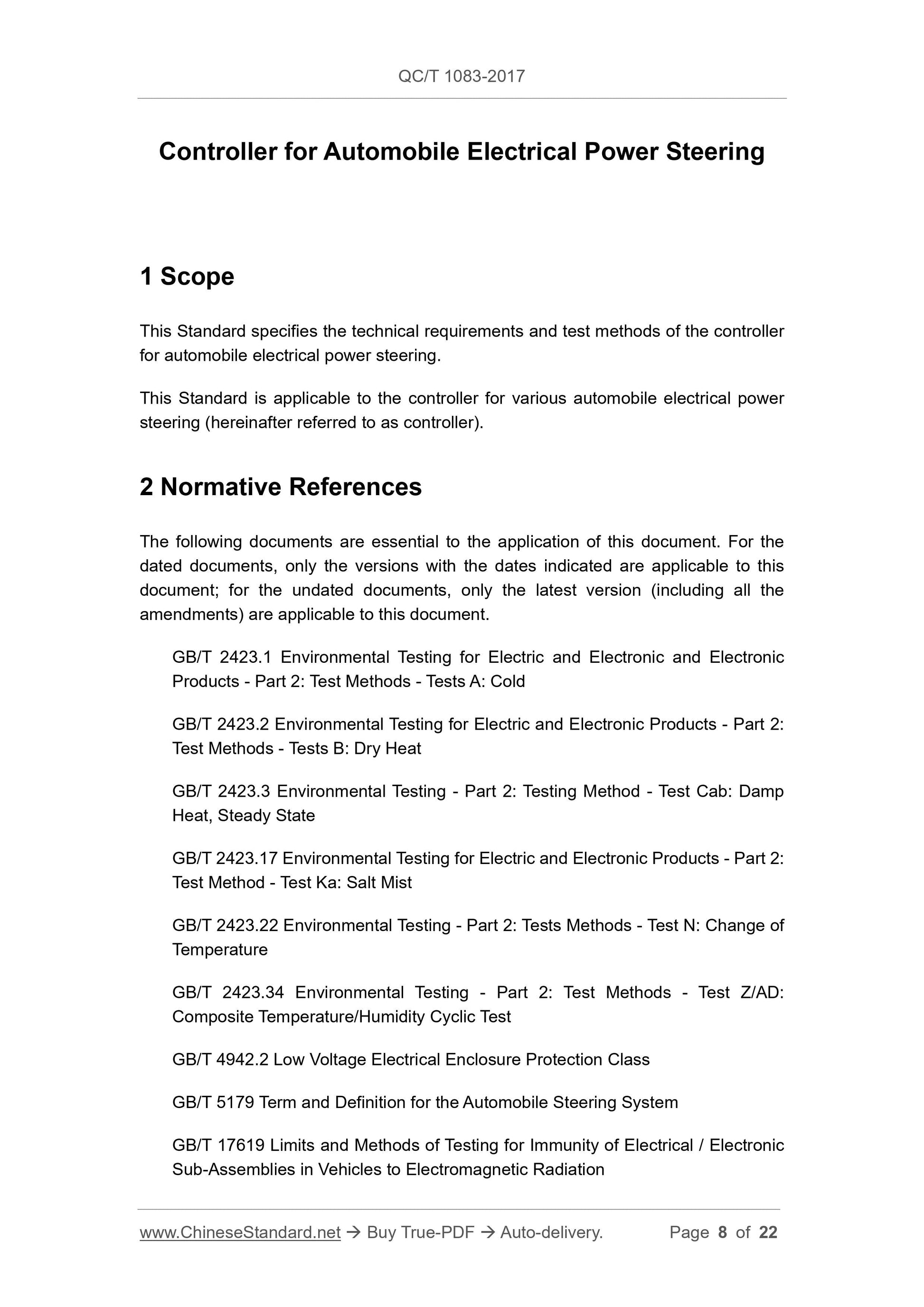

1 Scope
This Standard specifies the technical requirements and test methods of the controller
for automobile electrical power steering.
This Standard is applicable to the controller for various automobile electrical power
steering (hereinafter referred to as controller).
2 Normative References
The following documents are essential to the application of this document. For the
dated documents, only the versions with the dates indicated are applicable to this
document; for the undated documents, only the latest version (including all the
amendments) are applicable to this document.
GB/T 2423.1 Environmental Testing for Electric and Electronic and Electronic
Products - Part 2: Test Methods - Tests A: Cold
GB/T 2423.2 Environmental Testing for Electric and Electronic Products - Part 2:
Test Methods - Tests B: Dry Heat
GB/T 2423.3 Environmental Testing - Part 2: Testing Method - Test Cab: Damp
Heat, Steady State
GB/T 2423.17 Environmental Testing for Electric and Electronic Products - Part 2:
Test Method - Test Ka: Salt Mist
GB/T 2423.22 Environmental Testing - Part 2: Tests Methods - Test N: Change of
Temperature
GB/T 2423.34 Environmental Testing - Part 2: Test Methods - Test Z/AD:
Composite Temperature/Humidity Cyclic Test
GB/T 4942.2 Low Voltage Electrical Enclosure Protection Class
GB/T 5179 Term and Definition for the Automobile Steering System
GB/T 17619 Limits and Methods of Testing for Immunity of Electrical / Electronic
Sub-Assemblies in Vehicles to Electromagnetic Radiation

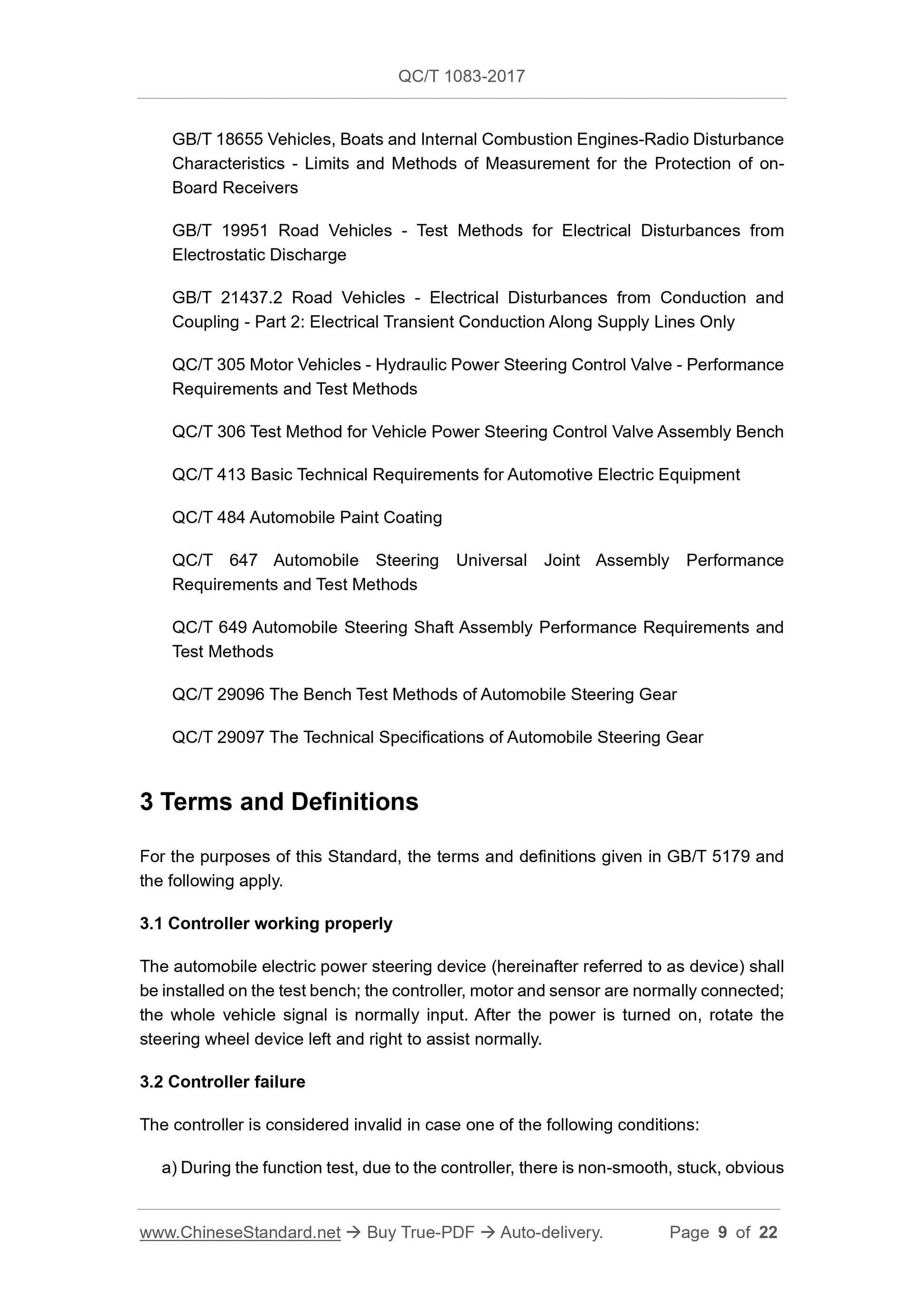

GB/T 18655 Vehicles, Boats and Internal Combustion Engines-Radio Disturbance
Characteristics - Limits and Methods of Measurement for the Protection of on-
Board Receivers
GB/T 19951 Road Vehicles - Test Methods for Electrical Disturbances from
Electrostatic Discharge
GB/T 21437.2 Road Vehicles - Electrical Disturbances from Conduction and
Coupling - Part 2: Electrical Transient Conduction Along Supply Lines Only
QC/T 305 Motor Vehicles - Hydraulic Power Steering Control Valve - Performance
Requirements and Test Methods
QC/T 306 Test Method for Vehicle Power Steering Control Valve Assembly Bench
QC/T 413 Basic Technical Requirements for Automotive Electric Equipment
QC/T 484 Automobile Paint Coating
QC/T 647 Automobile Steering Universal Joint Assembly Performance
Requirements and Test Methods
QC/T 649 Automobile Steering Shaft Assembly Performance Requirements and
Test Methods
QC/T 29096 The Bench Test Methods of Automobile Steering Gear
QC/T 29097 The Technical Specifications of Automobile Steering Gear
3 Terms and Definitions
For the purposes of this Standard, the terms and definitions given in GB/T 5179 and
the following apply.
3.1 Controller working properly
The automobile electric power steering device (hereinafter referred to as device) shall
be installed on the test bench; the controller, motor and sensor are normally connected;
the whole vehicle signal is normally input. After the power is turned on, rotate the
steering wheel device left and right to assist normally.

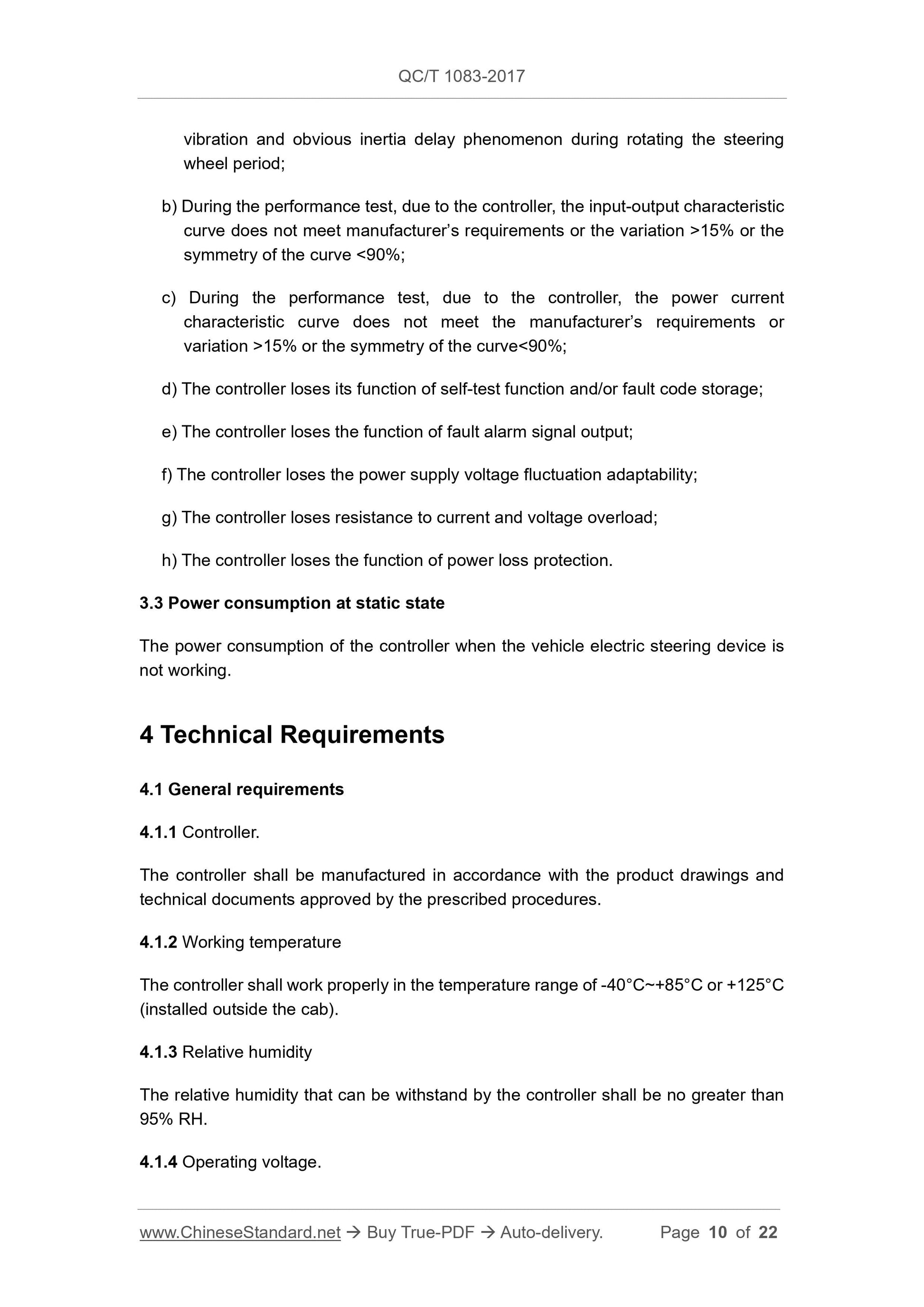

3.2 Controller failure
The controller is considered invalid in case one of the following conditions:
a) During the function test, due to the controller, there is non-smooth, stuck, obvious

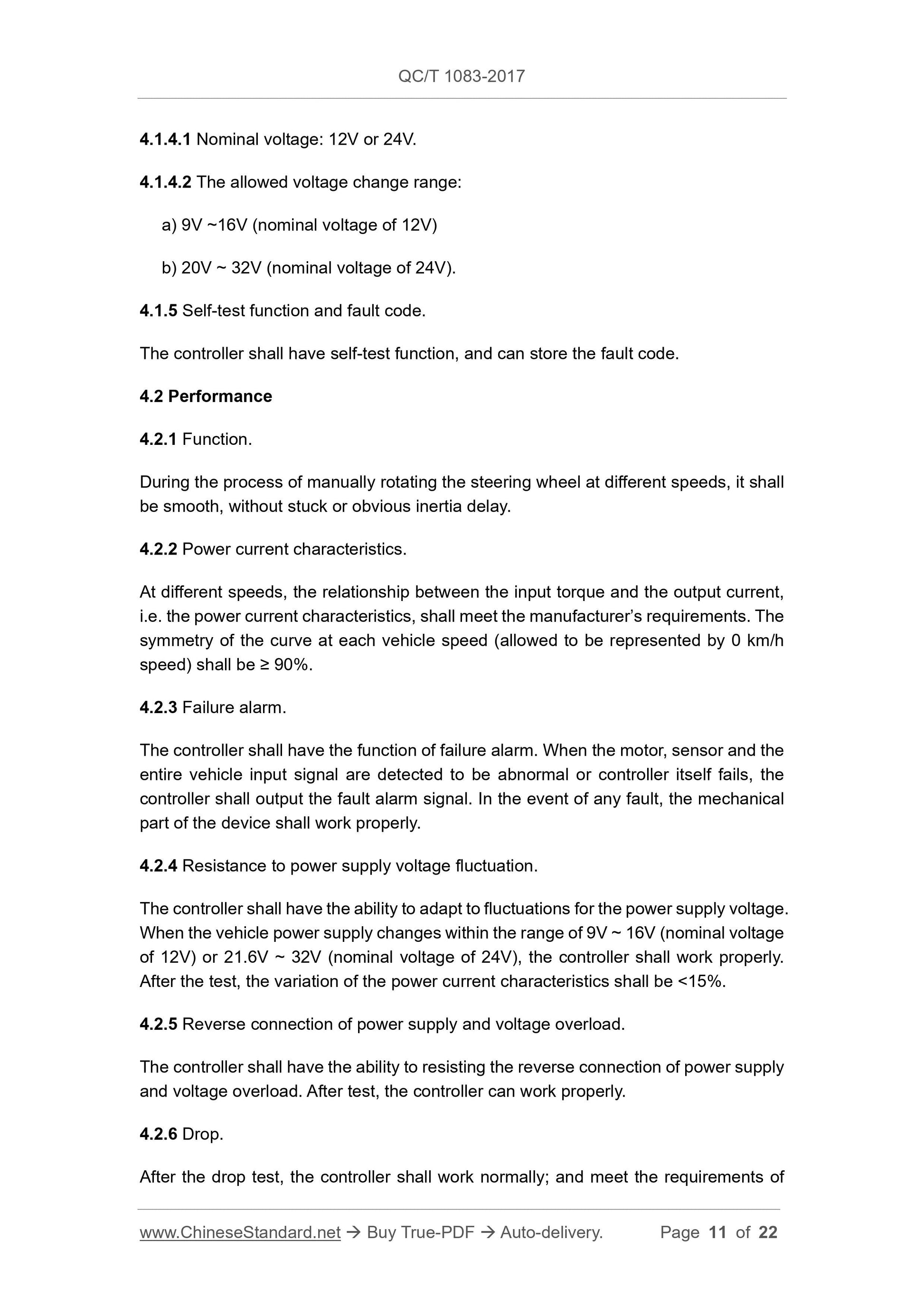

4.1.4.1 Nominal voltage: 12V or 24V.
4.1.4.2 The allowed voltage change range:
a) 9V ~16V (nominal voltage of 12V)
b) 20V ~ 32V (nominal voltage of 24V).
4.1.5 Self-test function and fault code.
The controller shall have self-test function, and can store the fault code.
4.2 Performance
4.2.1 Function.
During the process of manually rotating the steering wheel at different speeds, it shall
be smooth, without stuck or obvious inertia delay.
4.2.2 Power current characteristics.
At different speeds, the relationship between the input torque and the output current,
i.e. the power current characteristics, shall meet the manufacturer’s requirements. The
symmetry of the curve at each vehicle speed (allowed to be represented by 0 km/h
speed) shall be ≥ 90%.
4.2.3 Failure alarm.
The controller shall have the function of failure alarm. When the motor, sensor and the
entire vehicle input signal are detected to be abnormal or controller itself fails, the
controller shall output the fault alarm signal. In the event of any fault, the mechanical
part of the device shall work properly.
4.2.4 Resistance to power supply voltage fluctuation.
The controller shall have the ability to adapt to fluctuations for the power supply voltage.
When the vehicle power supply changes within the range of 9V ~ 16V (nominal voltage
of 12V) or 21.6V ~ 32V (nominal voltage of 24V), the controller shall work properly.
After the test, the variation of the power current characteristics shall be < 15%.
4.2.5 Reverse connection of power supply and voltage overload.
The controller shall have the ability to resisting the reverse connection of power supply
and voltage overload. After test, the controller can work properly.
4.2.6 Drop.
After the drop test, the controller shall work normally; and meet the requirements of

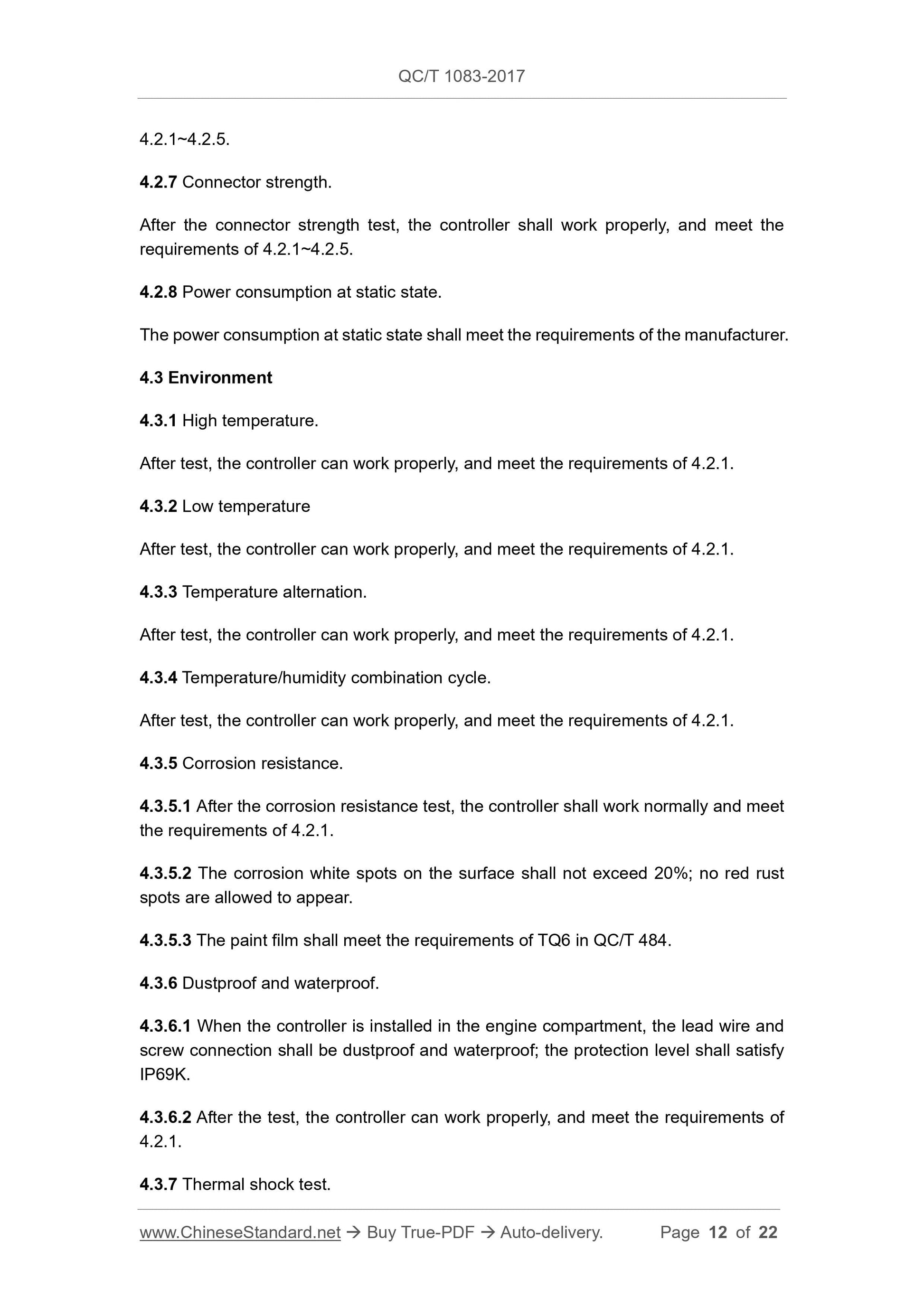

After the test, the controller can work properly, and m...
