QB/T 4976-2016: Particular requirements for transportation of room air-conditioner employed the flammable refrigerants

This standard specifies the safety requirements related to the land transportation of room air-conditioner employed the flammable refrigerants (hereinafter shortly referred to as air conditioner) after exit-factory. This standard applies to the room air-conditioner products as defined in GB/T 7725.

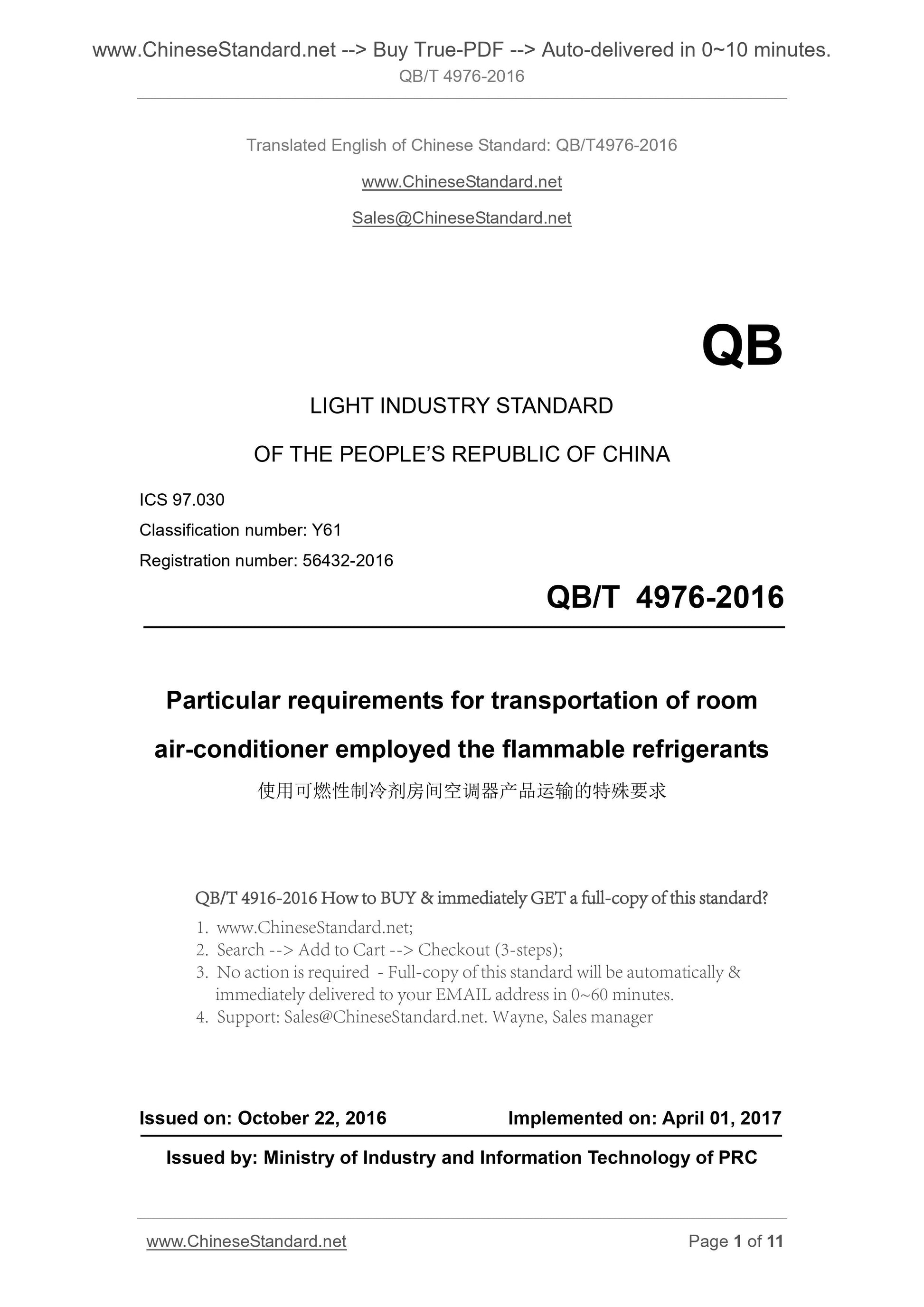

QB/T 4976-2016
QB
LIGHT INDUSTRY STANDARD
OF THE PEOPLE REPUBLIC OF CHINA
ICS 97.030
Classification number. Y61
Registration number. 56432-2016
Particular requirements for transportation of room
air-conditioner employed the flammable refrigerants
ISSUED ON. OCTOBER 22, 2016
IMPLEMENTED ON. APRIL 01, 2017
Issued by. Ministry of Industry and Information Technology of PRC
3. No action is required - Full-copy of this standard will be automatically and immediately delivered to your EMAIL address in 0~60 minutes.

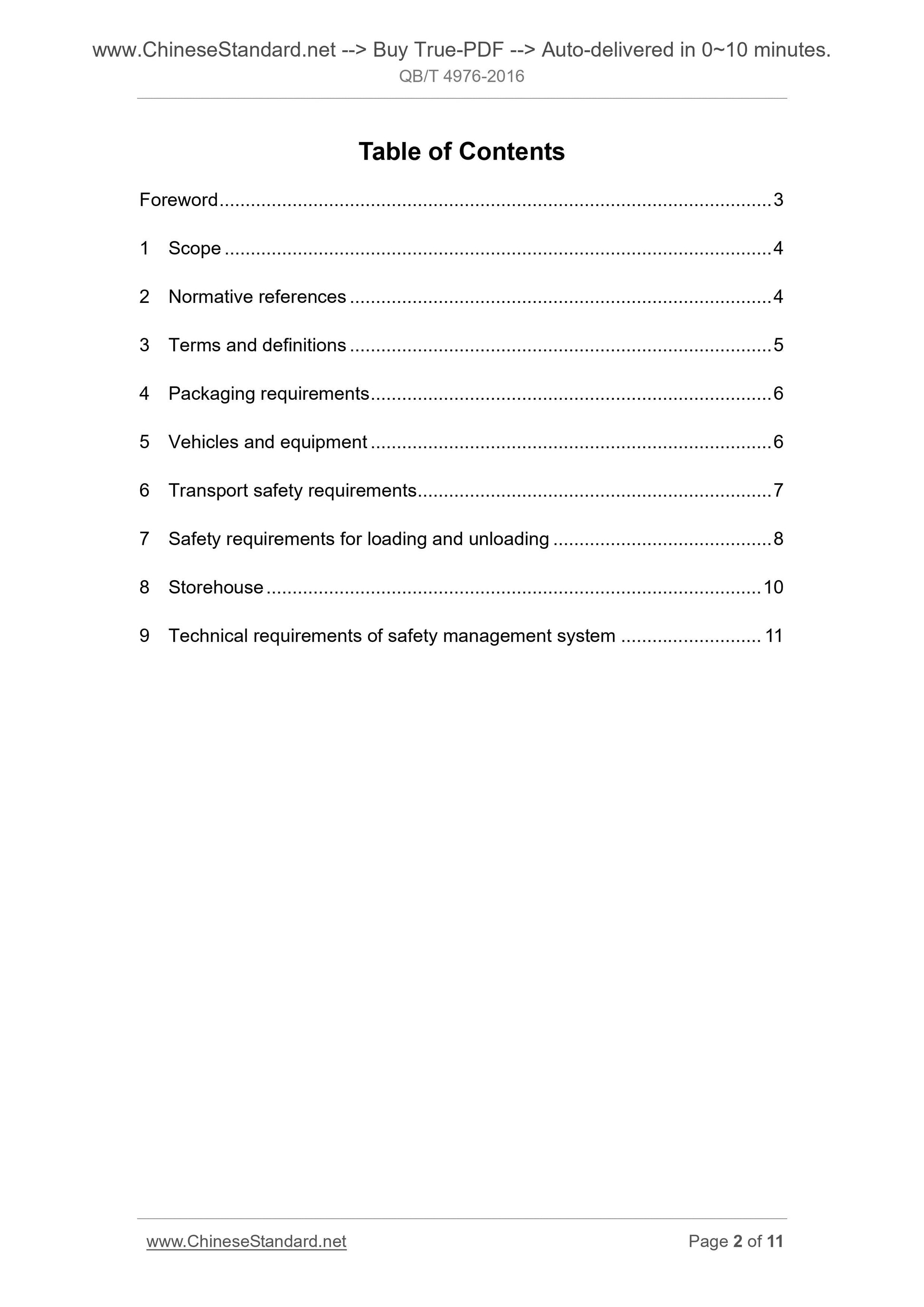

Table of Contents
Foreword ... 3
1 Scope ... 4
2 Normative references ... 4
3 Terms and definitions ... 5
4 Packaging requirements ... 6
5 Vehicles and equipment ... 6
6 Transport safety requirements ... 7
7 Safety requirements for loading and unloading ... 8
8 Storehouse ... 10
9 Technical requirements of safety management system ... 11

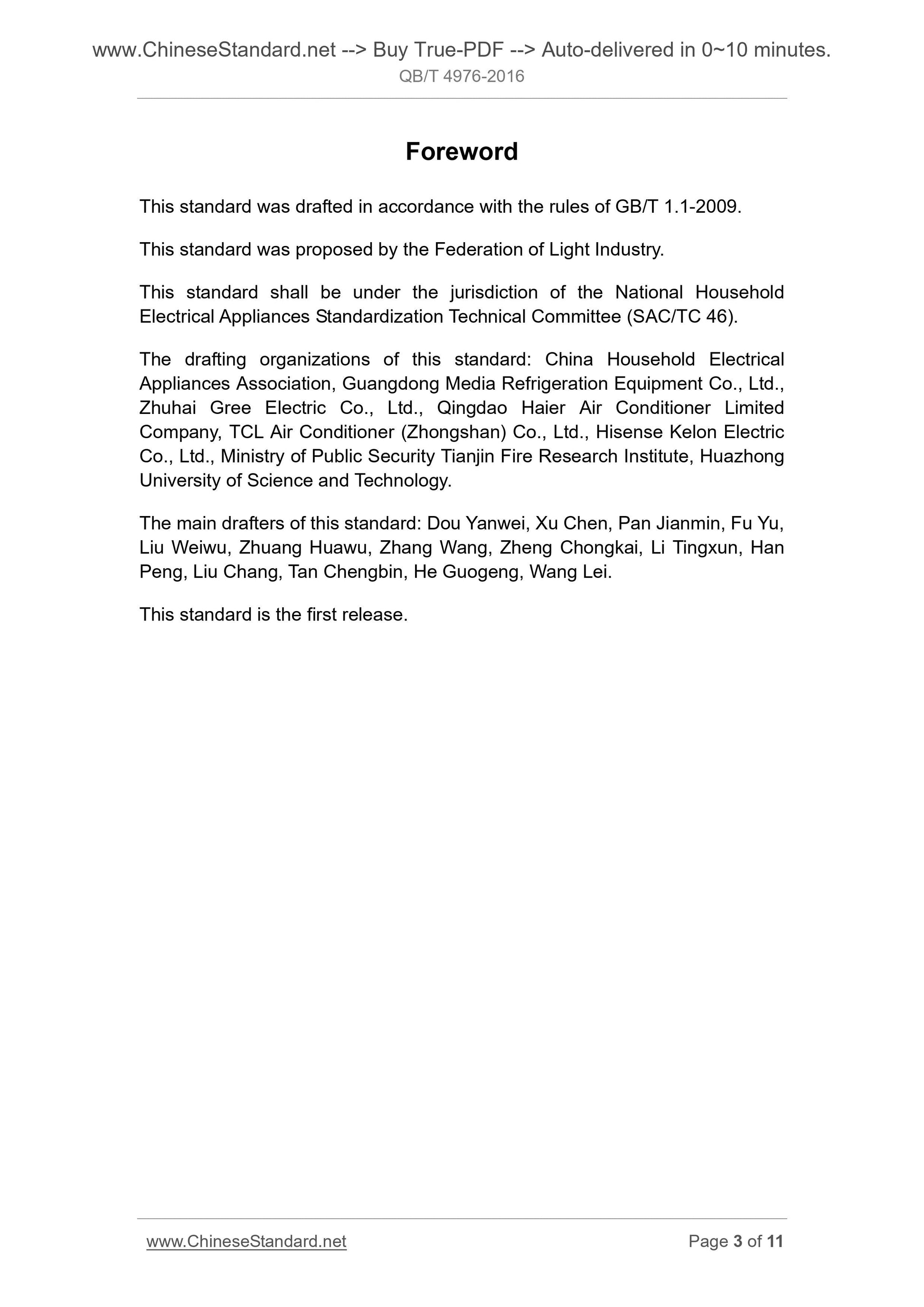

Foreword
This standard was drafted in accordance with the rules of GB/T 1.1-2009. This standard was proposed by the Federation of Light Industry.
This standard shall be under the jurisdiction of the National Household Electrical Appliances Standardization Technical Committee (SAC/TC 46).
The drafting organizations of this standard. China Household Electrical Appliances Association, Guangdong Media Refrigeration Equipment Co., Ltd., Zhuhai Gree Electric Co., Ltd., Qingdao Haier Air Conditioner Limited
Company, TCL Air Conditioner (Zhongshan) Co., Ltd., Hisense Kelon Electric Co., Ltd., Ministry of Public Security Tianjin Fire Research Institute, Huazhong University of Science and Technology.
The main drafters of this standard. Dou Yanwei, Xu Chen, Pan Jianmin, Fu Yu, Liu Weiwu, Zhuang Huawu, Zhang Wang, Zheng Chongkai, Li Tingxun, Han
Peng, Liu Chang, Tan Chengbin, He Guogeng, Wang Lei.
This standard is the first release.

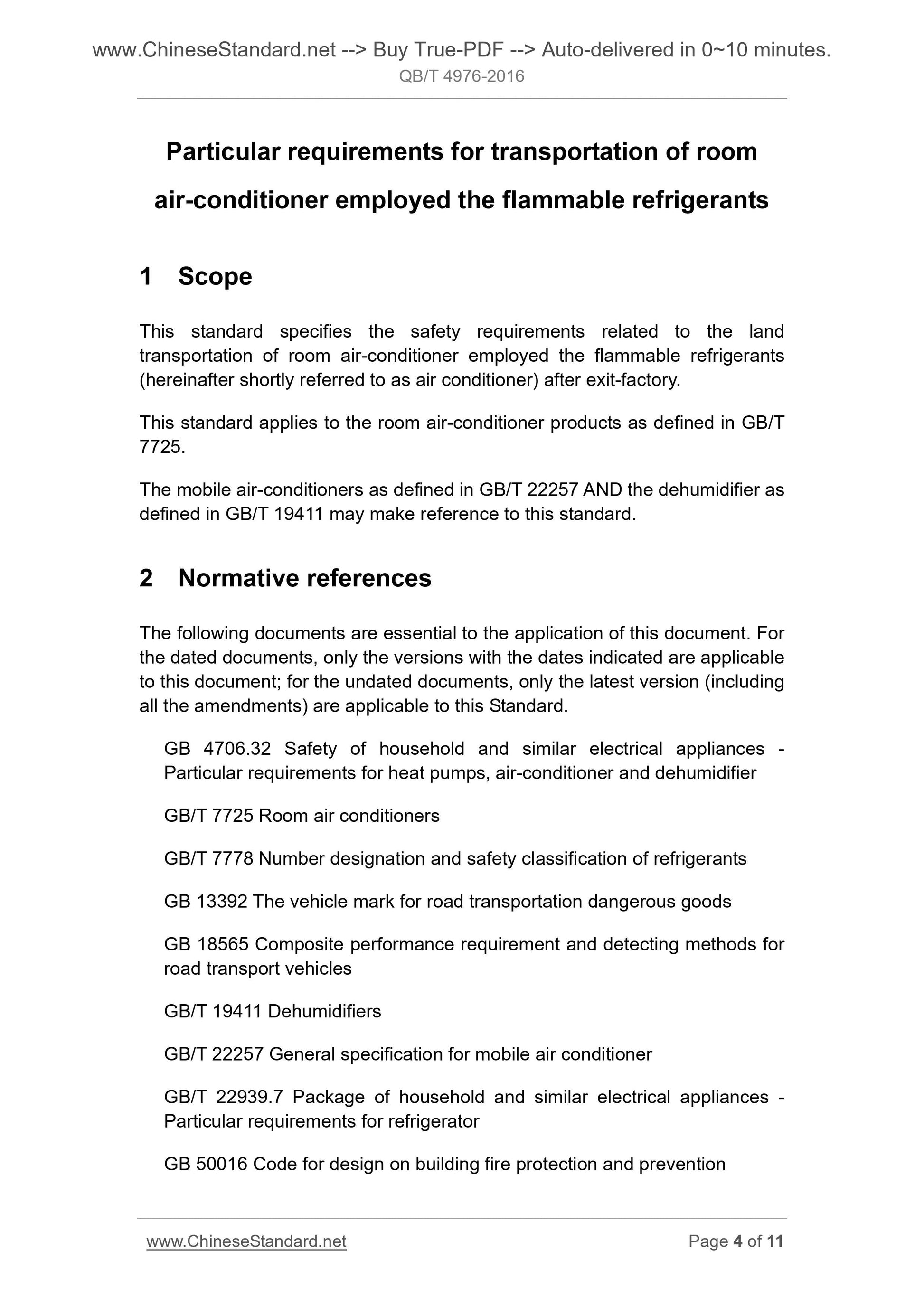

Particular requirements for transportation of room
air-conditioner employed the flammable refrigerants
1 Scope
This standard specifies the safety requirements related to the land
transportation of room air-conditioner employed the flammable refrigerants (hereinafter shortly referred to as air conditioner) after exit-factory. This standard applies to the room air-conditioner products as defined in GB/T 7725.
The mobile air-conditioners as defined in GB/T 22257 AND the dehumidifier as defined in GB/T 19411 may make reference to this standard.
2 Normative references
The following documents are essential to the application of this document. For the dated documents, only the versions with the dates indicated are applicable to this document; for the undated documents, only the latest version (including all the amendments) are applicable to this Standard.
GB 4706.32 Safety of household and similar electrical appliances -
Particular requirements for heat pumps, air-conditioner and dehumidifier GB/T 7725 Room air conditioners
GB/T 7778 Number designation and safety classification of refrigerants
GB 13392 The vehicle mark for road transportation dangerous goods
GB 18565 Composite performance requirement and detecting methods for
road transport vehicles
GB/T 19411 Dehumidifiers
GB/T 22257 General specification for mobile air conditioner
GB/T 22939.7 Package of household and similar electrical appliances -
Particular requirements for refrigerator
GB 50016 Code for design on building fire protection and prevention

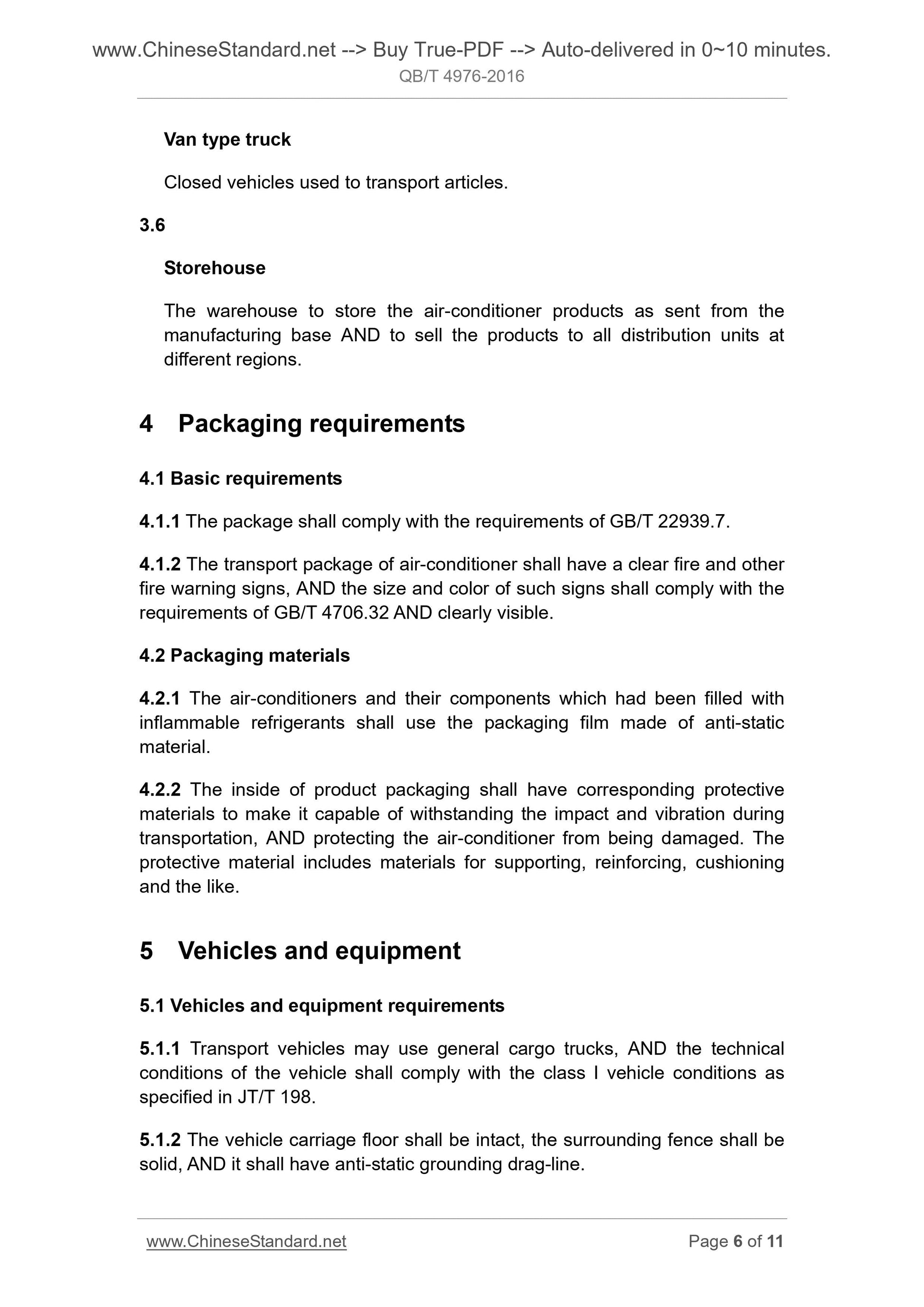

Van type truck
Closed vehicles used to transport articles.
3.6
Storehouse
The warehouse to store the air-conditioner products as sent from the
manufacturing base AND to sell the products to all distribution units at different regions.
4 Packaging requirements
4.1 Basic requirements
4.1.1 The package shall comply with the requirements of GB/T 22939.7.
4.1.2 The transport package of air-conditioner shall have a clear fire and other fire warning signs, AND the size and color of such signs shall comply with the requirements of GB/T 4706.32 AND clearly visible.
4.2 Packaging materials
4.2.1 The air-conditioners and their components which had been filled with inflammable refrigerants shall use the packaging film made of anti-static material.
4.2.2 The inside of product packaging shall have corresponding protective materials to make it capable of withstanding the impact and vibration during transportation, AND protecting the air-conditioner from being damaged. The protective material includes materials for supporting, reinforcing, cushioning and the like.
5 Vehicles and equipment
5.1 Vehicles and equipment requirements
5.1.1 Transport vehicles may use general cargo trucks, AND the technical conditions of the vehicle shall comply with the class I vehicle conditions as specified in JT/T 198.
5.1.2 The vehicle carriage floor shall be intact, the surrounding fence shall be solid, AND it shall have anti-static grounding drag-line.

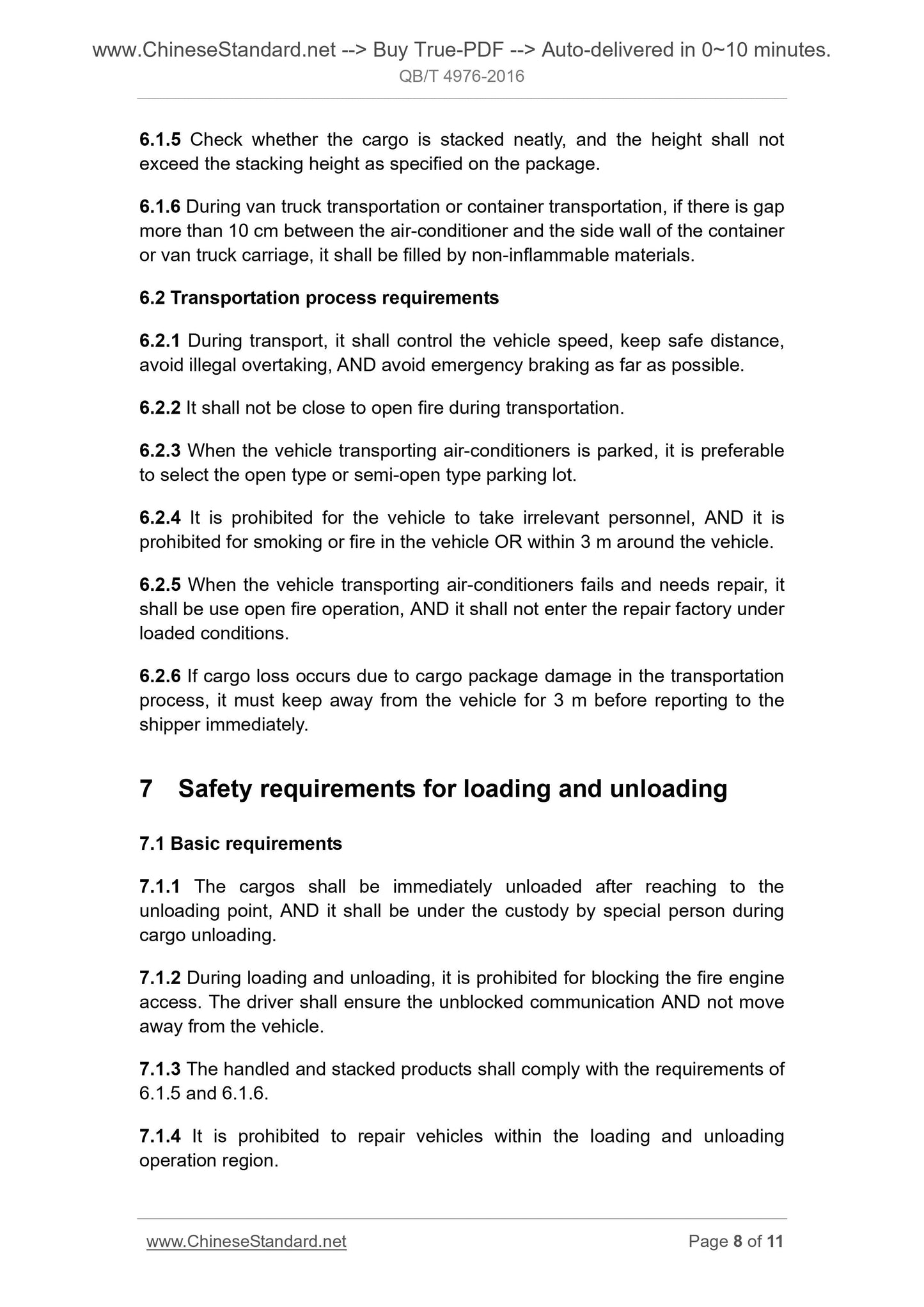

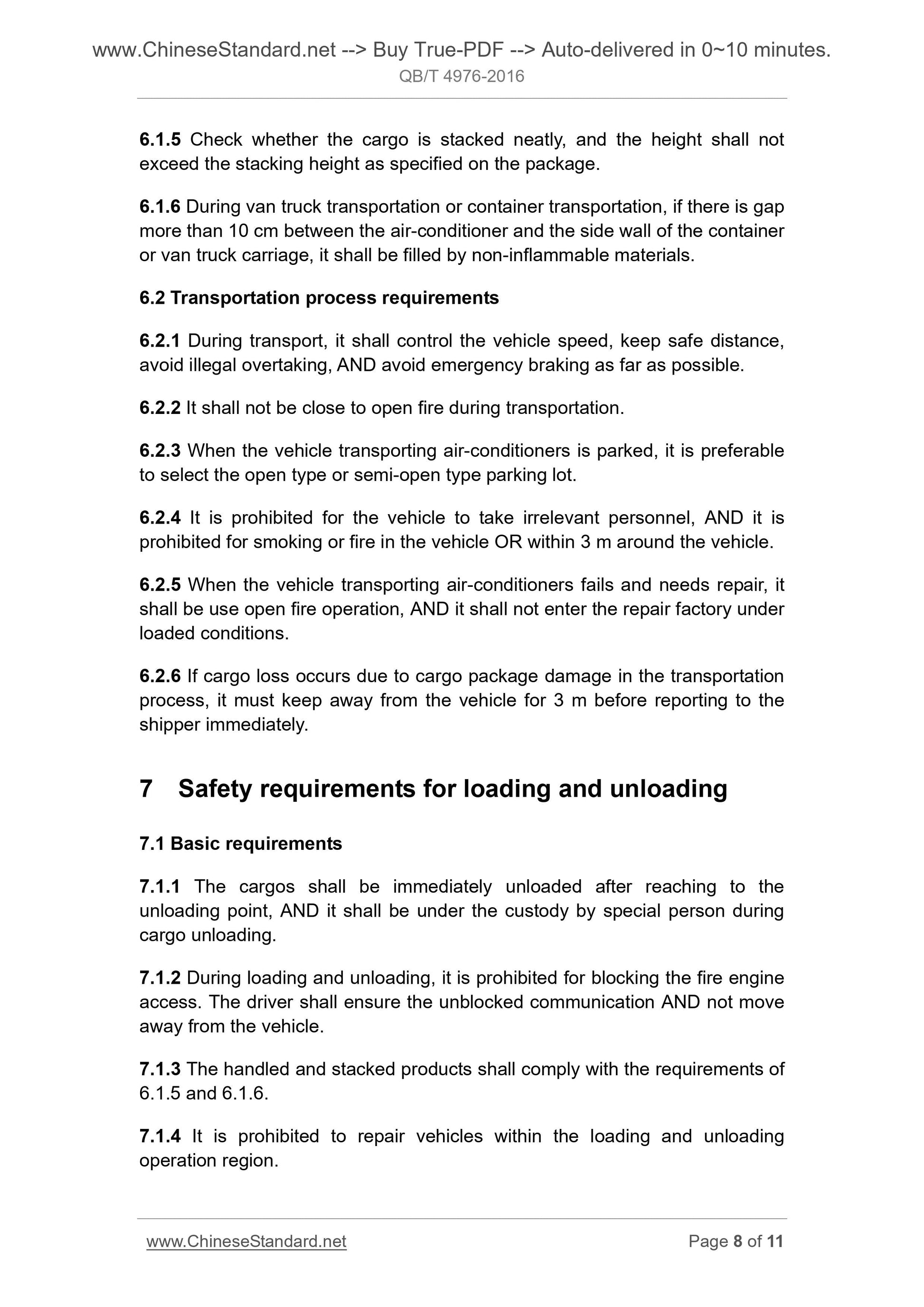

6.1.5 Check whether the cargo is stacked neatly, and the height shall not exceed the stacking height as specified on the package.
6.1.6 During van truck transportation or container transportation, if there is gap more than 10 cm between the air-conditioner and the side wall of the container or van truck carriage, it shall be filled by non-inflammable materials. 6.2 Transportation process requirements
6.2.1 During transport, it shall control the vehicle speed, keep safe distance, avoid illegal overtaking, AND avoid emergency braking as far as possible. 6.2.2 It shall not be close to open fire during transportation.
6.2.3 When the vehicle transporting air-conditioners is parked, it is preferable to select the open type or semi-open type parking lot.
6.2.4 It is prohibited for the vehicle to take irrelevant personnel, AND it is prohibited for smoking or fire in the vehicle OR within 3 m around the vehicle. 6.2.5 When the vehicle transporting air-conditioners fails and needs repair, it shall be use open fire operation, AND it shall not enter the repair factory under loaded conditions.
6.2.6 If cargo loss occurs due to cargo package damage in the transportation process, it must keep away from the vehicle for 3 m before reporting to the shipper immediately.
7 Safety requirements for loading and unloading
7.1 Basic requirements
7.1.1 The cargos shall be immediately unloaded after reaching to the
unloading point, AND it shall be under the custody by special person during cargo unloading.
7.1.2 During loading and unloading, it is prohibited for blocking the fire engine access. The driver shall ensure the unblocked communication AND not move away from the vehicle.
7.1.3 The handled and stacked products shall comply with the requirements of 6.1.5 and 6.1.6.
7.1.4 It is prohibited to repair vehicles within the loading and unloading operation region.

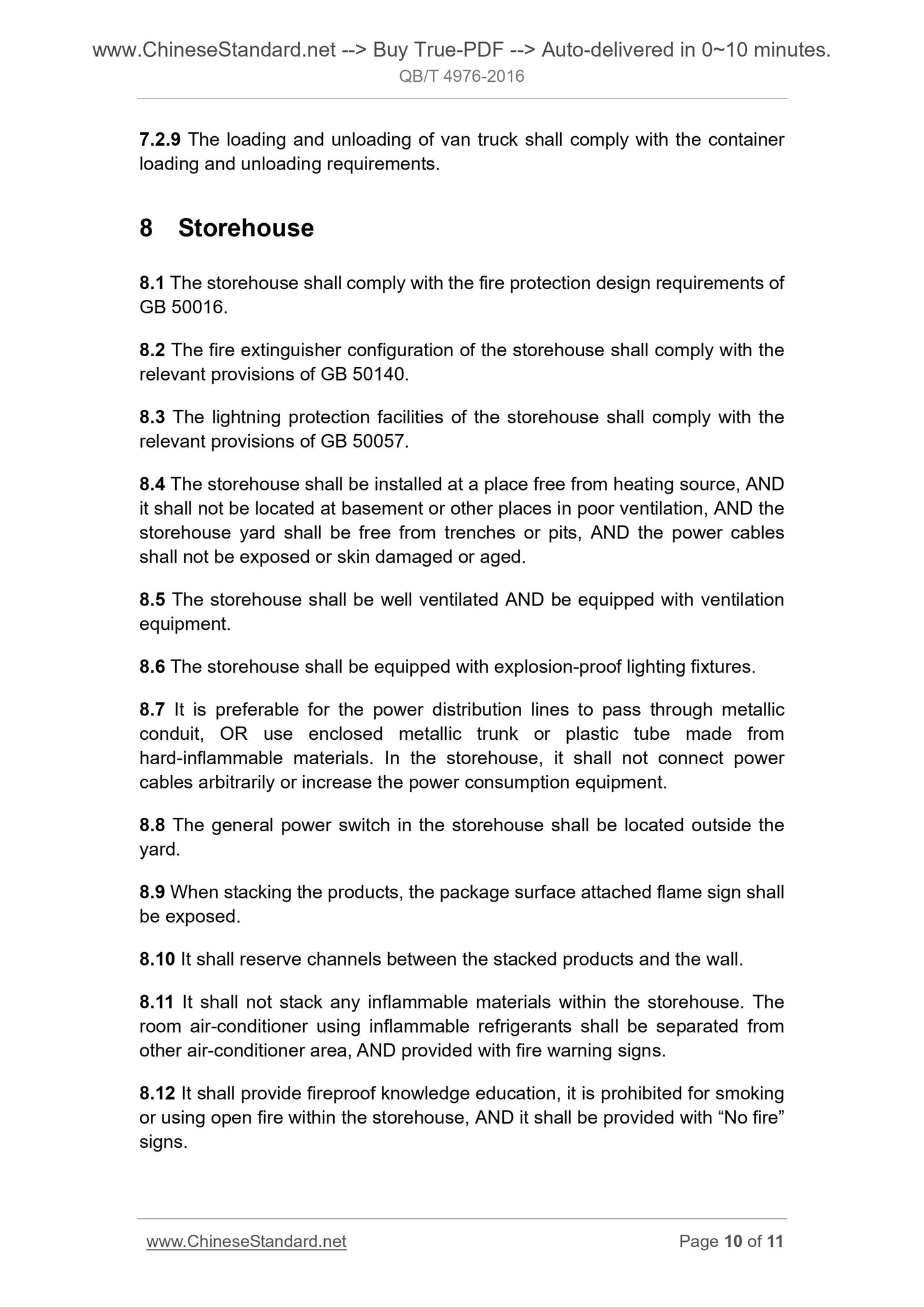

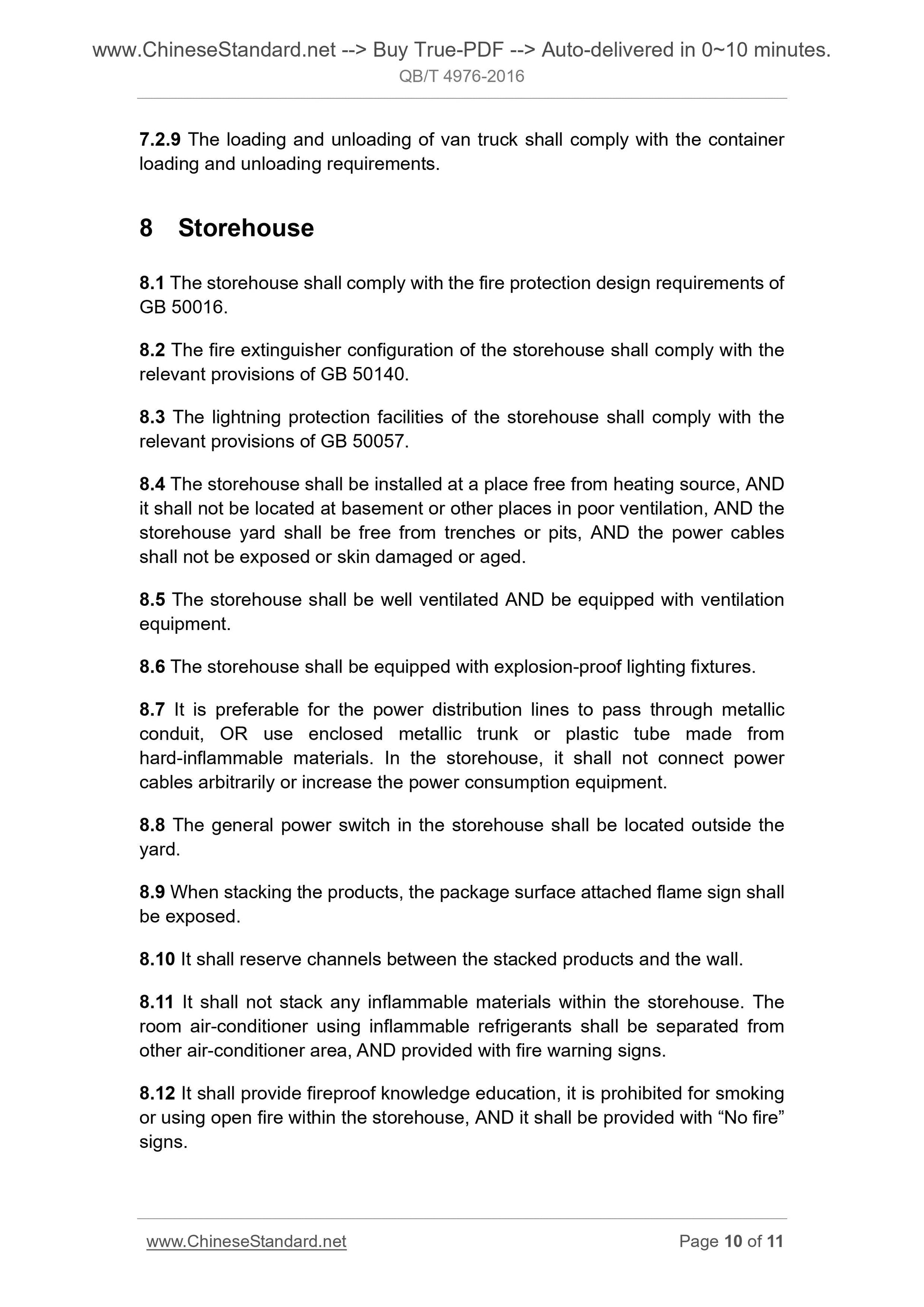

7.2.9 The loading and unloading of van truck shall comply with the container loading and unloading requirements.
8 Storehouse
8.1 The storehouse shall comply with the fire protection design requirements of GB 50016.
8.2 The fire extinguisher configuration of the storehouse shall comply with the relevant provisions of GB 50140.
8.3 The lightning protection facilities of the storehouse shall comply with the relevant provisions of GB 50057.
8.4 The storehouse shall be installed at a place free from heating source, AND it shall not be located at basement or other places in poor ventilation, AND the storehouse yard shall be free from trenches or pits, AND the power cables shall not be exposed or skin damaged or aged.
8.5 The storehouse shall be well ventilated AND be equipped with ventilation equipment.
8.6 The storehouse shall be equipped with explosion-proof lighting fixtures. 8.7 It is preferable for the power distribution lines to pass through metallic conduit, OR use enclosed metallic trunk or plastic tube made from
hard-inflammable materials. In the storehouse, it shall not connect power cables arbitrarily or increase the power consumption equipment.
8.8 The general power switch in the storehouse shall be located outside the yard.
8.9 When stacking the products, the package surface attached flame sign shall be exposed.
8.10 It shall reserve channels between the stacked products and the wall. 8.11 It shall not stack any inflammable materials within the storehouse. The room air-conditioner using inflammable refrigerants shall be separated from other air-conditioner area, AND provided with fire warning signs.
8.12 It shall provide fireproof knowledge education, it is prohibited for smoking or using open fire within the storehouse, AND it shall be provided with ?€?No fire?€? signs.
