QB/T 4096.22-2011: Performance of room heaters for household and similar purposes. Part 22: Particular requirements for fan heaters

This chapter of QB/T 4096-2010 is replaced by the following contents: This Part specifies the terms and definition, product classification, requirements, testing methods, inspection rules, as well as marking, packaging, transportation, storage of fan heaters for household and similar purposes.

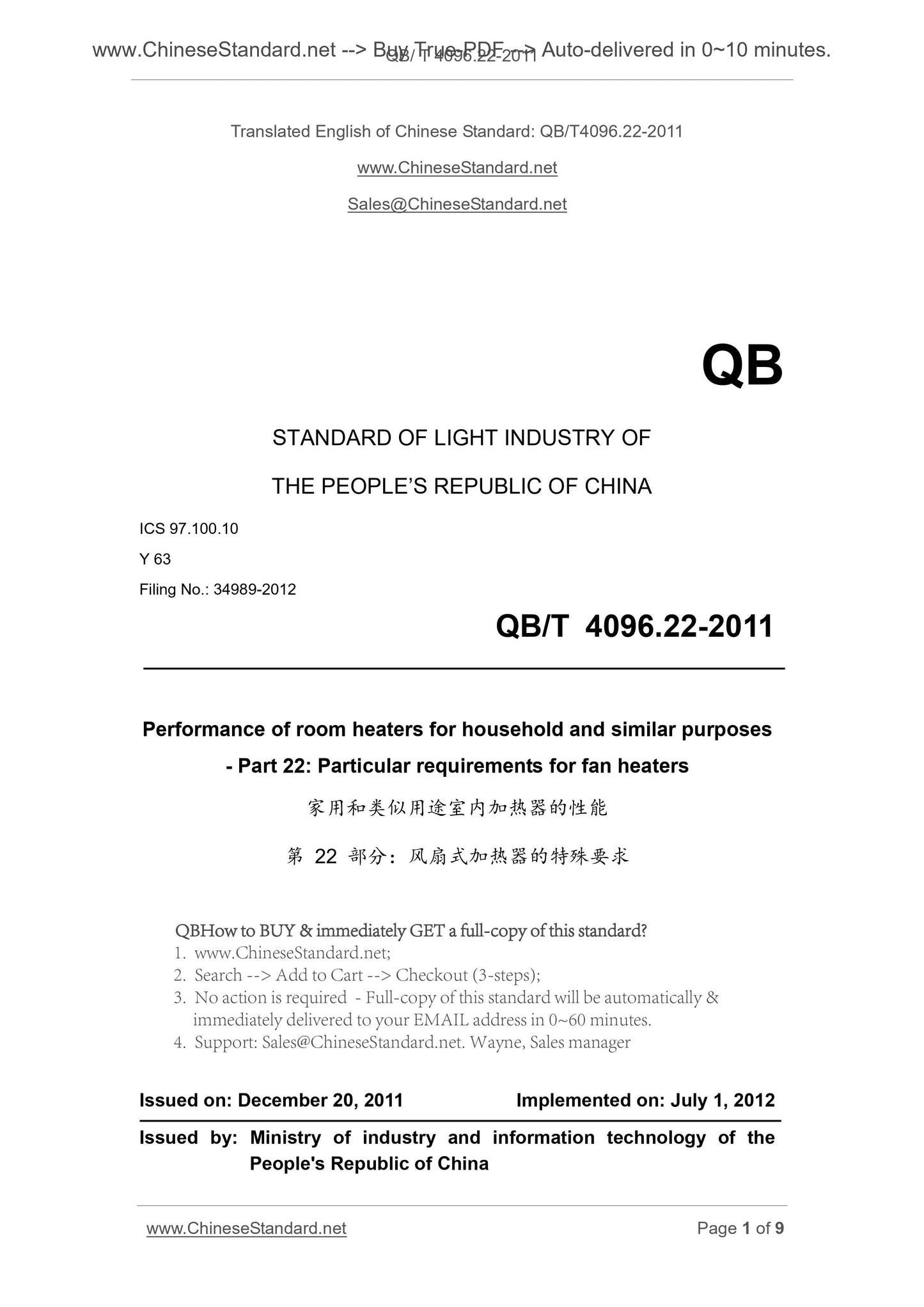

QB/ T 4096.22-2011
QB
STANDARD OF LIGHT INDUSTRY OF
THE PEOPLE REPUBLIC OF CHINA
ICS 97.100.10
Y 63
Filing No.. 34989-2012
Performance of room heaters for household and similar purposes
- Part 22. Particular requirements for fan heaters
ISSUED ON. DECEMBER 20, 2011
IMPLEMENTED ON. JULY 1, 2012
Issued by. Ministry of industry and information technology of the
People's Republic of China
3. No action is required - Full-copy of this standard will be automatically and immediately delivered to your EMAIL address in 0~60 minutes.

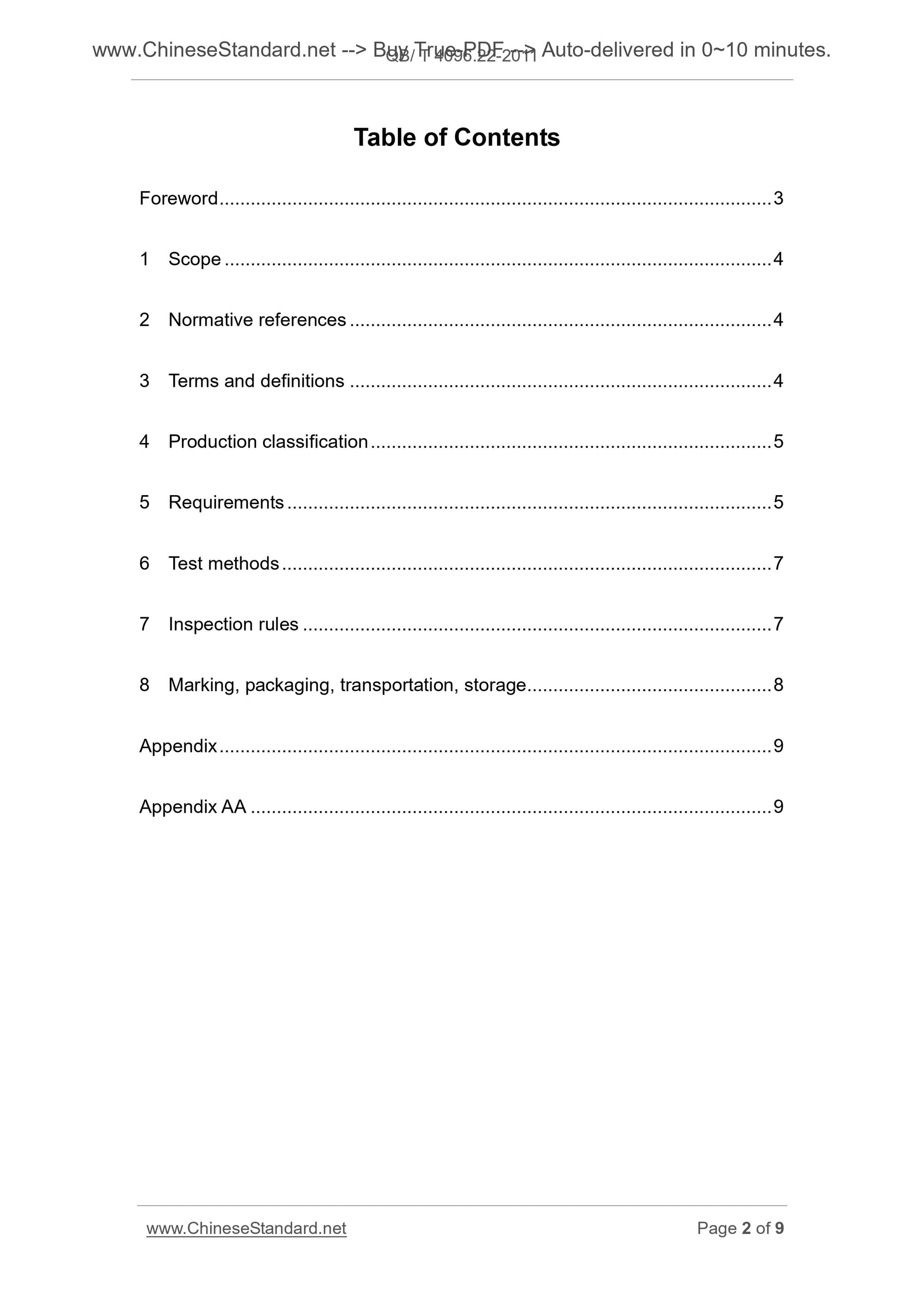

Table of Contents
Foreword ... 3
1 Scope ... 4
2 Normative references ... 4
3 Terms and definitions ... 4
4 Production classification ... 5
5 Requirements ... 5
6 Test methods ... 7
7 Inspection rules ... 7
8 Marking, packaging, transportation, storage ... 8
Appendix ... 9
Appendix AA ... 9
Foreword
QB/T 4096 is the first part of the series of performance standards for household and similar indoor heaters. It is a general requirement. This part is QB/T 4096.22-2011 Performance of room heaters for household and similar purposes - Part 22. Particular requirements for fan heaters.
This Part should be used together with QB/T 4096-2010 Performance of room heaters for household and similar purposes - Part 1. General requirements. This part is formed by modification or addition of QB/T 4096-2010. Where it states "applicable", it means that the corresponding provisions in QB 4096-2010 apply to this part; where it states "replacement", it means that the provisions in this part shall prevail; where is states ?€?modification?€?, it means that the modified content of the related provisions in the corresponding clauses of QB/T 4096-2010 shall prevail, and the rest content of the clause is still applicable; where it states ?€?addition?€?, it means that the additional provisions in this part shall, at the same time, meet the related provisions in QB/T 4096-2010.
The additional provisions of QB/T 4096 will be numbered from 101.
This Part was proposed by the China Light Industry Federation.
This Part shall be under the jurisdiction of the National Household Electrical Standardization Technical Committee (SAC/TC46).
Main drafting organizations of this Part. SINGFUN Group Co., Ltd., Ningbo SINGFUN Electrical Manufacturing Co., Ltd., Guangdong Midea Environmental Electrical Manufacturing Co., Ltd.
Drafting organizations of this Part. Shenzhen LIAN Industrial Co. Ltd., Emmett (Shenzhen) Electric Co. Ltd., China Institute of Electrical Appliances, Ningbo Product Quality Supervision and Inspection Institute, China Electrical Science Research Institute, Zhejiang Quality and Technical Supervision and Inspection Institute, Guangzhou Qi Kai Testing Technology Research Institute, National Infrared and Industrial Electrothermal Products Quality Supervision and Inspection Center. Main drafters of this Part. Fang Qinglian, Zhu Yongguo, Nie Yong, Ma Dejun, Tian Hongtao, Luo Lizhen, Bao Jun, Xu Yanrong, Zhao Qi, Su Tao, Chen Yonghua, Zeng Yu.
Performance of room heaters for household and similar purposes
- Part 22. Particular requirements for fan heaters
1 Scope
This chapter of QB/T 4096-2010 is replaced by the following contents.
This Part specifies the terms and definition, product classification, requirements, testing methods, inspection rules, as well as marking, packaging, transportation, storage of fan heaters for household and similar purposes (hereinafter ?€?heaters?€?). This part is applicable to heaters ?€? for single-phase appliance, the rated-voltage is not more than 250V; for other appliances, the rated-voltage is not more than 480V; the heaters are used in household or similar venues. The heaters can be portable, fixed, standing etc.
This part is not applicable to.
- Heaters installed in the structure of a building;
- Central heating system;
- Heaters connecting air ducts;
- Wallpaper, blanket, curtain or tube with flexible electric heating components; - Household room heaters of thermal storage type;
- Bathroom electric heater (bathroom heat lamp fixture).
2 Normative references
This chapter of QB/T 4096-2010 is applicable.
3 Terms and definitions
This chapter of QB/T 4096-2010 is applicable.

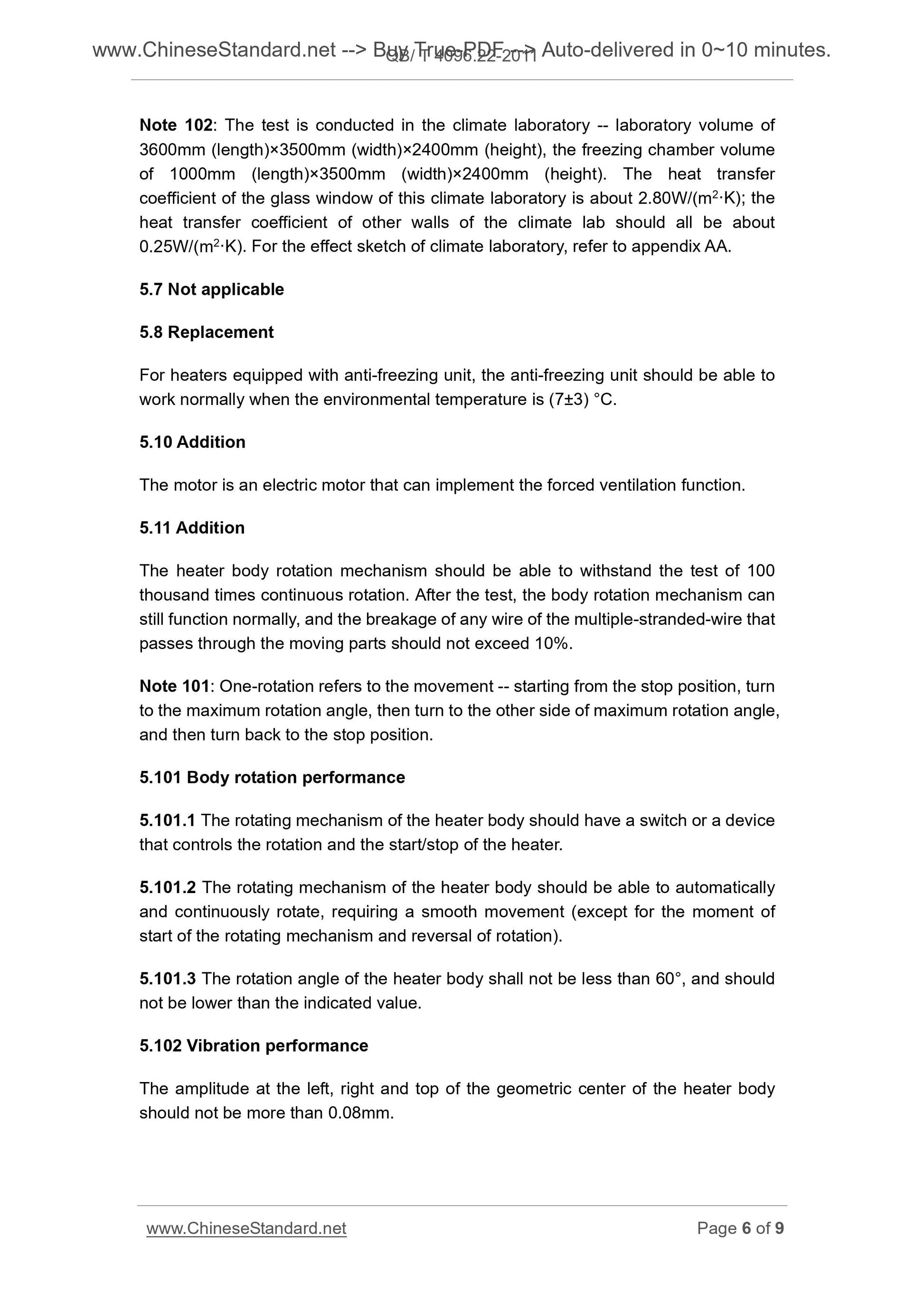

Note 102. The test is conducted in the climate laboratory -- laboratory volume of 3600mm (length)??3500mm (width)??2400mm (height), the freezing chamber volume of 1000mm (length)??3500mm (width)??2400mm (height). The heat transfer
coefficient of the glass window of this climate laboratory is about 2.80W/(m2???K); the heat transfer coefficient of other walls of the climate lab should all be about 0.25W/(m2???K). For the effect sketch of climate laboratory, refer to appendix AA. 5.7 Not applicable
5.8 Replacement
For heaters equipped with anti-freezing unit, the anti-freezing unit should be able to work normally when the environmental temperature is (7??3) ??C.
5.10 Addition
The motor is an electric motor that can implement the forced ventilation function. 5.11 Addition
The heater body rotation mechanism should be able to withstand the test of 100 thousand times continuous rotation. After the test, the body rotation mechanism can still function normally, and the breakage of any wire of the multiple-stranded-wire that passes through the moving parts should not exceed 10%.
Note 101. One-rotation refers to the movement -- starting from the stop position, turn to the maximum rotation angle, then turn to the other side of maximum rotation angle, and then turn back to the stop position.
5.101 Body rotation performance
5.101.1 The rotating mechanism of the heater body should have a switch or a device that controls the rotation and the start/stop of the heater.
5.101.2 The rotating mechanism of the heater body should be able to automatically and continuously rotate, requiring a smooth movement (except for the moment of start of the rotating mechanism and reversal of rotation).
5.101.3 The rotation angle of the heater body shall not be less than 60??, and should not be lower than the indicated value.
5.102 Vibration performance
The amplitude at the left, right and top of the geometric center of the heater body should not be more than 0.08mm.
