QB/T 4055.1-2010: Cermet casing of watches - Part 1: Oxide cermet casings

QBT 4055.1-2010 specifies the terms and definitions, technical requirements, test methods, inspection rules and marking, packaging, transportation and storage of oxide cermet casings of watches. This Part applies to the casings which use zirconia (ZrO2) as the main composition of Oxide cermet. Casings which use other ingredients may also reference to this Standard.

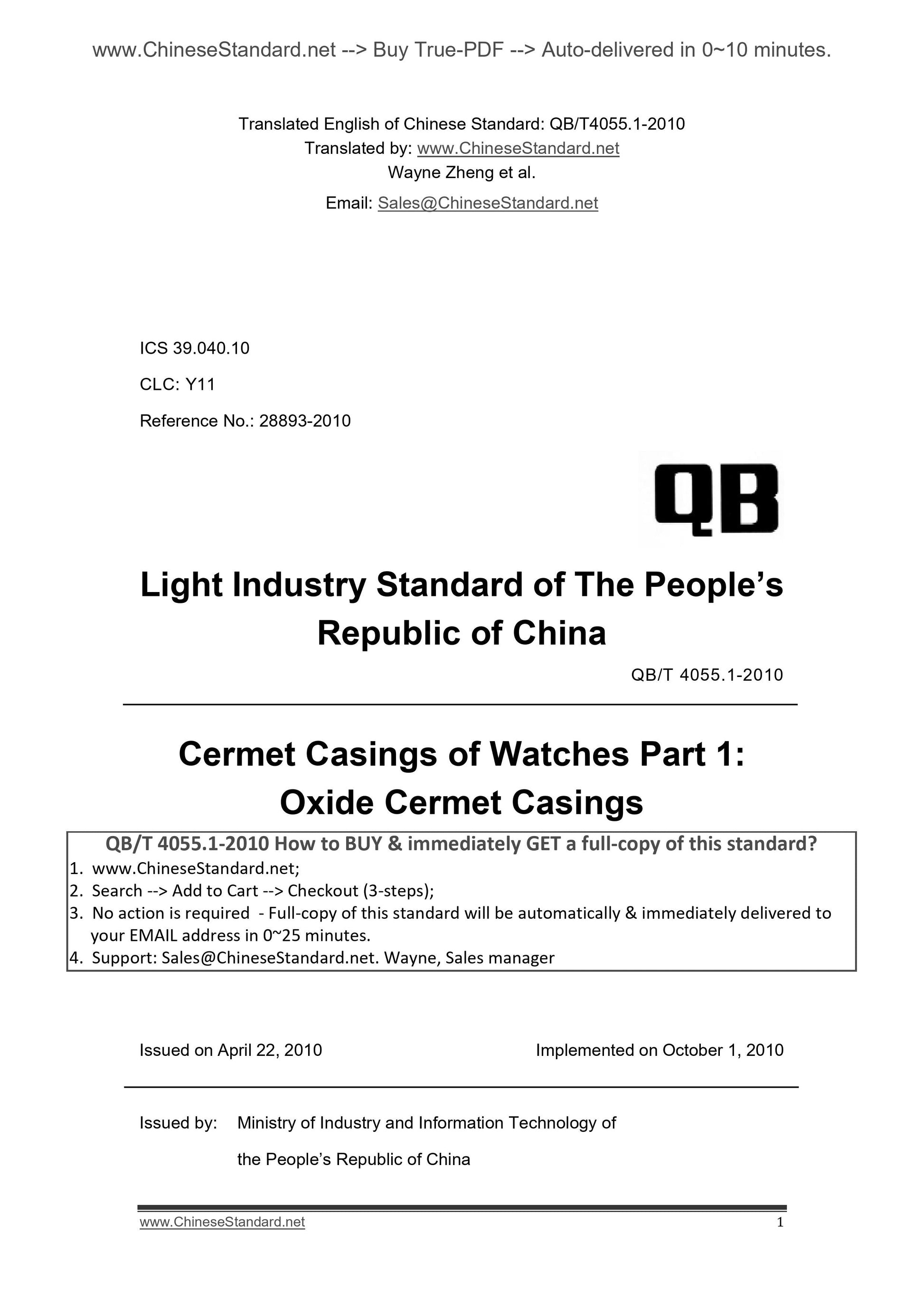

QB/T 4055.1-2010
ICS 39.040.10
CLC. Y11
Reference No.. 28893-2010
Light Industry Standard of The PEOPLE
Republic of China
Cermet Casings of Watches Part 1.
Oxide Cermet Casings
Issued on April 22, 2010 Implemented on October 1, 2010
Issued by. Ministry of Industry and Information Technology of
the PEOPLE Republic of China

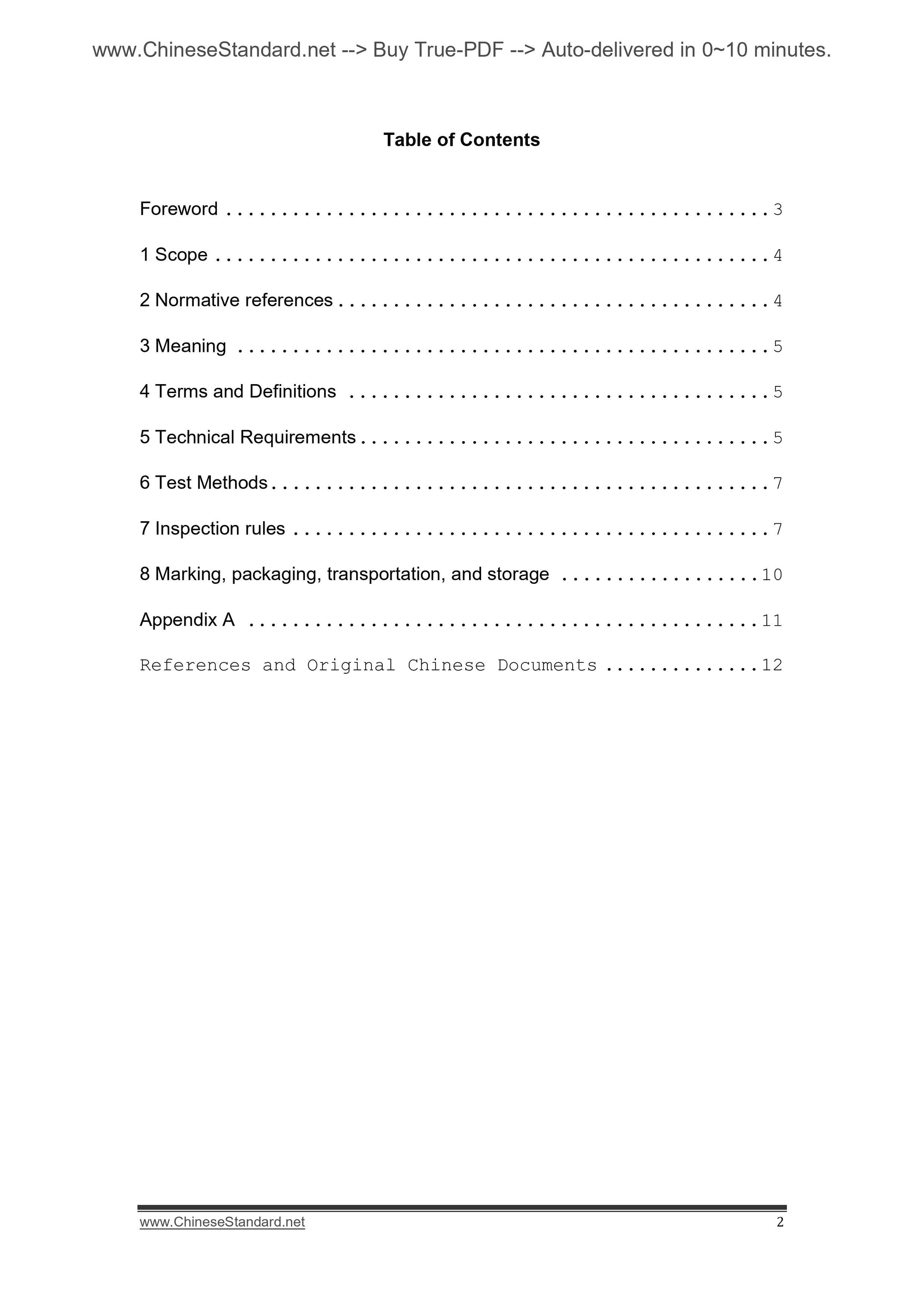

Table of Contents
Foreword ... 3
1 Scope ... 4
2 Normative references ... 4
3 Meaning ... 5
4 Terms and Definitions ... 5
5 Technical Requirements ... 5
6 Test Methods ... 7
7 Inspection rules ... 7
8 Marking, packaging, transportation, and storage ... 10
Appendix A ... 11
References and Original Chinese Documents ... 12

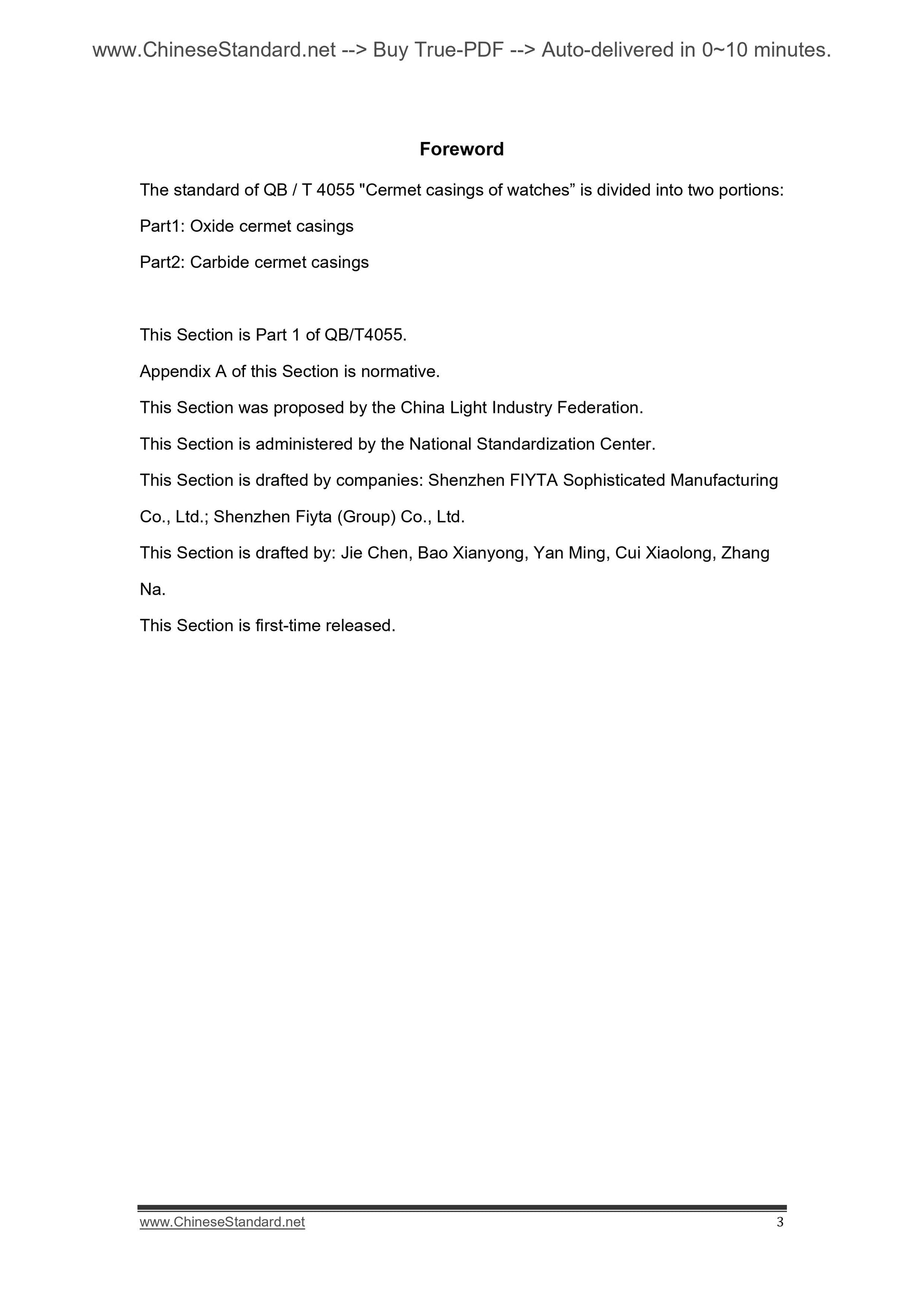

Foreword
The standard of QB / T 4055 "Cermet casings of watches?€? is divided into two portions. Part1. Oxide cermet casings
Part2. Carbide cermet casings
This Section is Part 1 of QB/T4055.
Appendix A of this Section is normative.
This Section was proposed by the China Light Industry Federation.
This Section is administered by the National Standardization Center.
This Section is drafted by companies. Shenzhen FIYTA Sophisticated Manufacturing Co., Ltd.; Shenzhen Fiyta (Group) Co., Ltd.
This Section is drafted by. Jie Chen, Bao Xianyong, Yan Ming, Cui Xiaolong, Zhang Na.
This Section is first-time released.
Cermet casings of watches Part 1. Oxide cermet casings

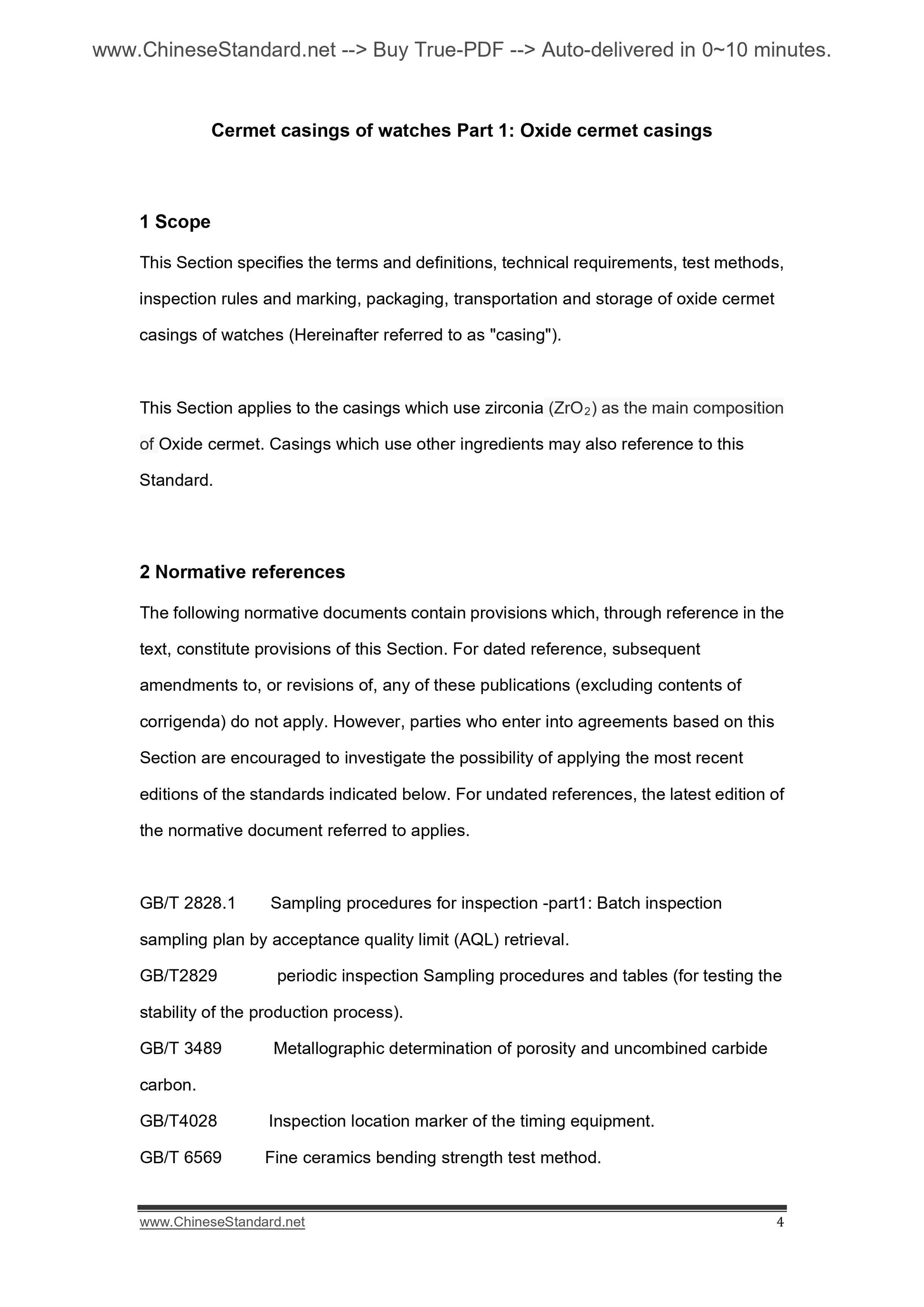

1 Scope
This Section specifies the terms and definitions, technical requirements, test methods, inspection rules and marking, packaging, transportation and storage of oxide cermet casings of watches (Hereinafter referred to as "casing").
This Section applies to the casings which use zirconia (ZrO2) as the main composition of Oxide cermet. Casings which use other ingredients may also reference to this Standard.
2 Normative references
The following normative documents contain provisions which, through reference in the text, constitute provisions of this Section. For dated reference, subsequent amendments to, or revisions of, any of these publications (excluding contents of corrigenda) do not apply. However, parties who enter into agreements based on this Section are encouraged to investigate the possibility of applying the most recent editions of the standards indicated below. For undated references, the latest edition of the normative document referred to applies.
GB/T 2828.1 Sampling procedures for inspection -part1. Batch inspection sampling plan by acceptance quality limit (AQL) retrieval.
GB/T2829 periodic inspection Sampling procedures and tables (for testing the stability of the production process).
GB/T 3489 Metallographic determination of porosity and uncombined carbide carbon.
GB/T4028 Inspection location marker of the timing equipment.
GB/T 6569 Fine ceramics bending strength test method.
GB/T 7997 Carbide Vickers hardness test method.
GB/T 10700 Fine ceramics elastic modulus test method for bending method. GB/T 14256 Timing of academic language -Part2. technical and commercial definitions
QB/T 1901.2 Cases and accessories gold alloy coverings - Part2. purity, thickness, corrosion resistance and bonding strength.

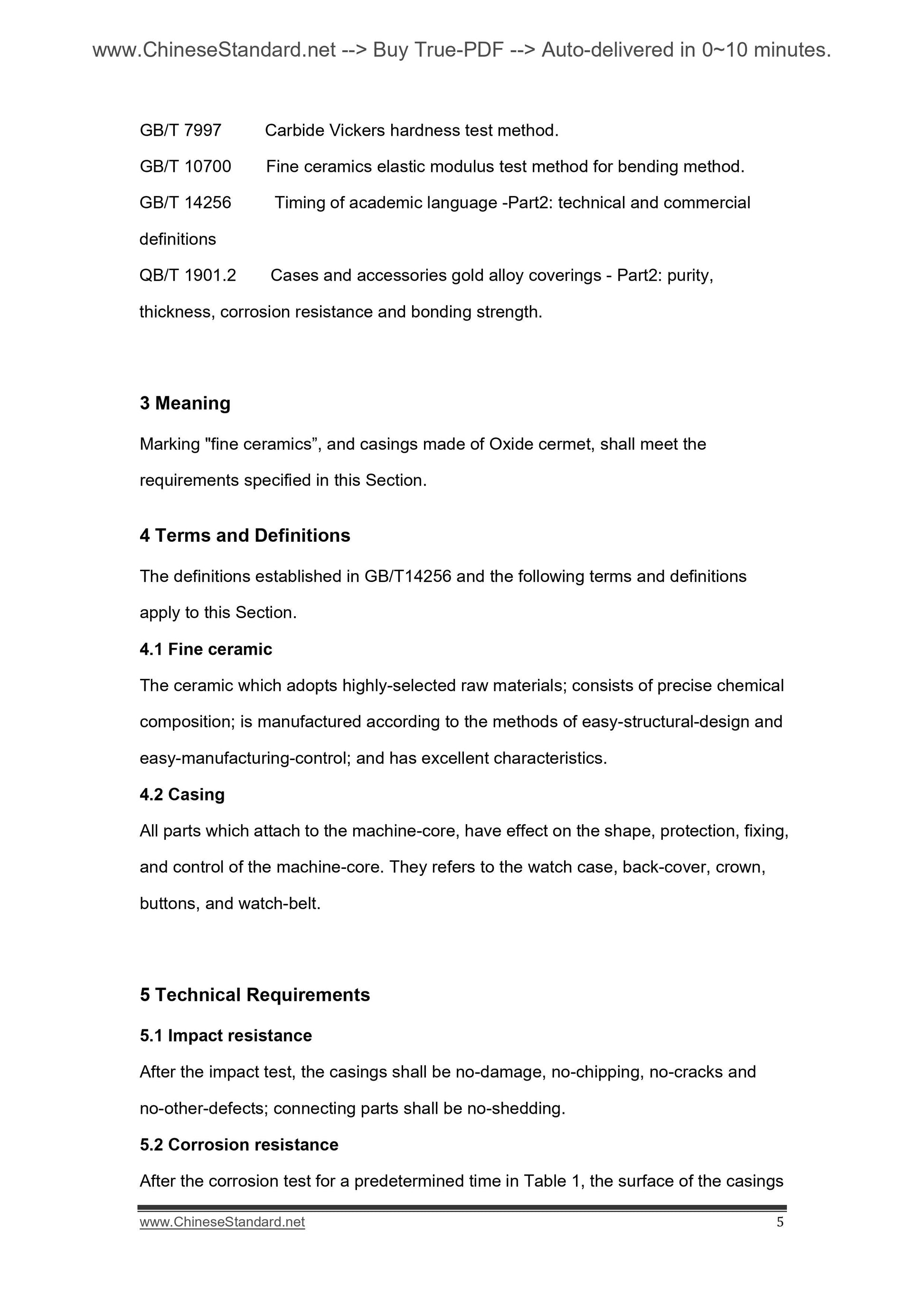

3 Meaning
Marking "fine ceramics?€?, and casings made of Oxide cermet, shall meet the requirements specified in this Section.
4 Terms and Definitions
The definitions established in GB/T14256 and the following terms and definitions apply to this Section.
4.1 Fine ceramic
The ceramic which adopts highly-selected raw materials; consists of precise chemical composition; is manufactured according to the methods of easy-structural-design and easy-manufacturing-control; and has excellent characteristics.
4.2 Casing
All parts which attach to the machine-core, have effect on the shape, protection, fixing, and control of the machine-core. They refers to the watch case, back-cover, crown, buttons, and watch-belt.
5 Technical Requirements
5.1 Impact resistance
After the impact test, the casings shall be no-damage, no-chipping, no-cracks and no-other-defects; connecting parts shall be no-shedding.
5.2 Corrosion resistance
After the corrosion test for a predetermined time in Table 1, the surface of the casings C) When the product design, structure, processes, materials have significant changes or when the product transfers production.
D) When National Quality Supervision and Inspection agency calls for the type inspection.

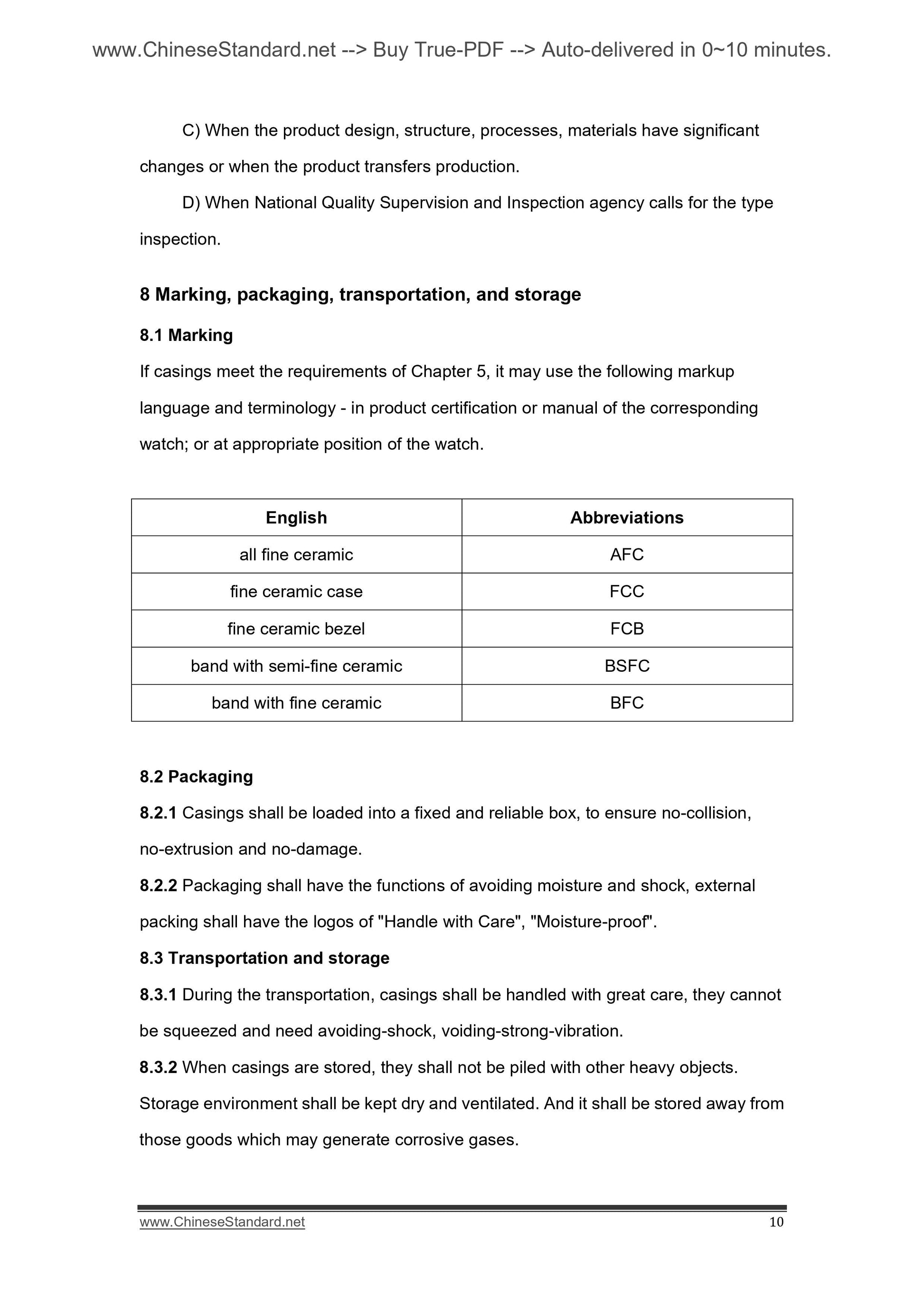

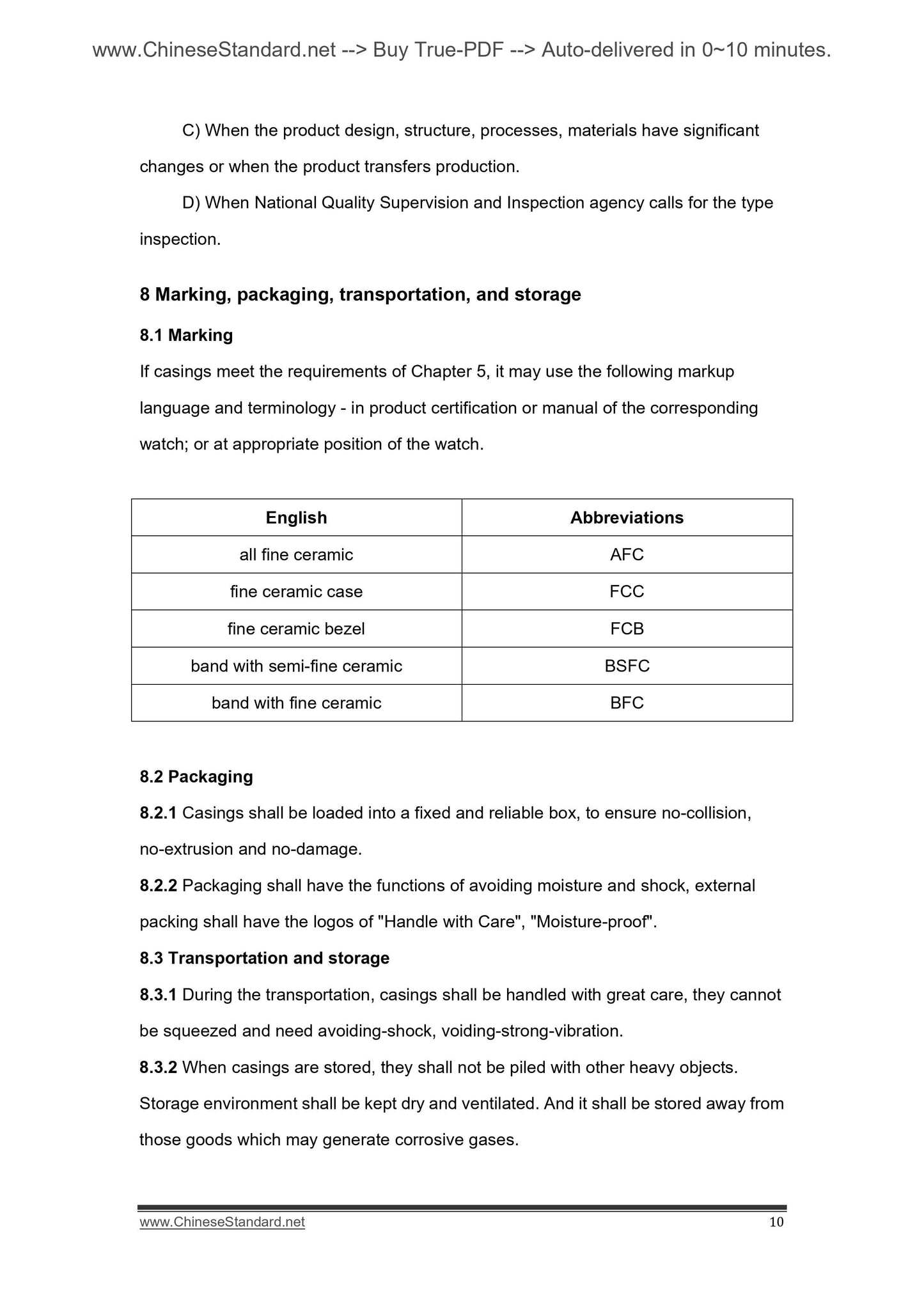

8 Marking, packaging, transportation, and storage
8.1 Marking
If casings meet the requirements of Chapter 5, it may use the following markup language and terminology - in product certification or manual of the corresponding watch; or at appropriate position of the watch.
English Abbreviations
all fine ceramic AFC
fine ceramic case FCC
fine ceramic bezel FCB
band with semi-fine ceramic BSFC
band with fine ceramic BFC
8.2 Packaging
8.2.1 Casings shall be loaded into a fixed and reliable box, to ensure no-collision, no-extrusion and no-damage.
8.2.2 Packaging shall have the functions of avoiding moisture and shock, external packing shall have the logos of "Handle with Care", "Moisture-proof".
8.3 Transportation and storage
8.3.1 During the transportation, casings shall be handled with great care, they cannot be squeezed and need avoiding-shock, voiding-strong-vibration.
8.3.2 When casings are stored, they shall not be piled with other heavy objects. Storage environment shall be kept dry and ventilated. And it shall be stored away from those goods which may generate corrosive gases.

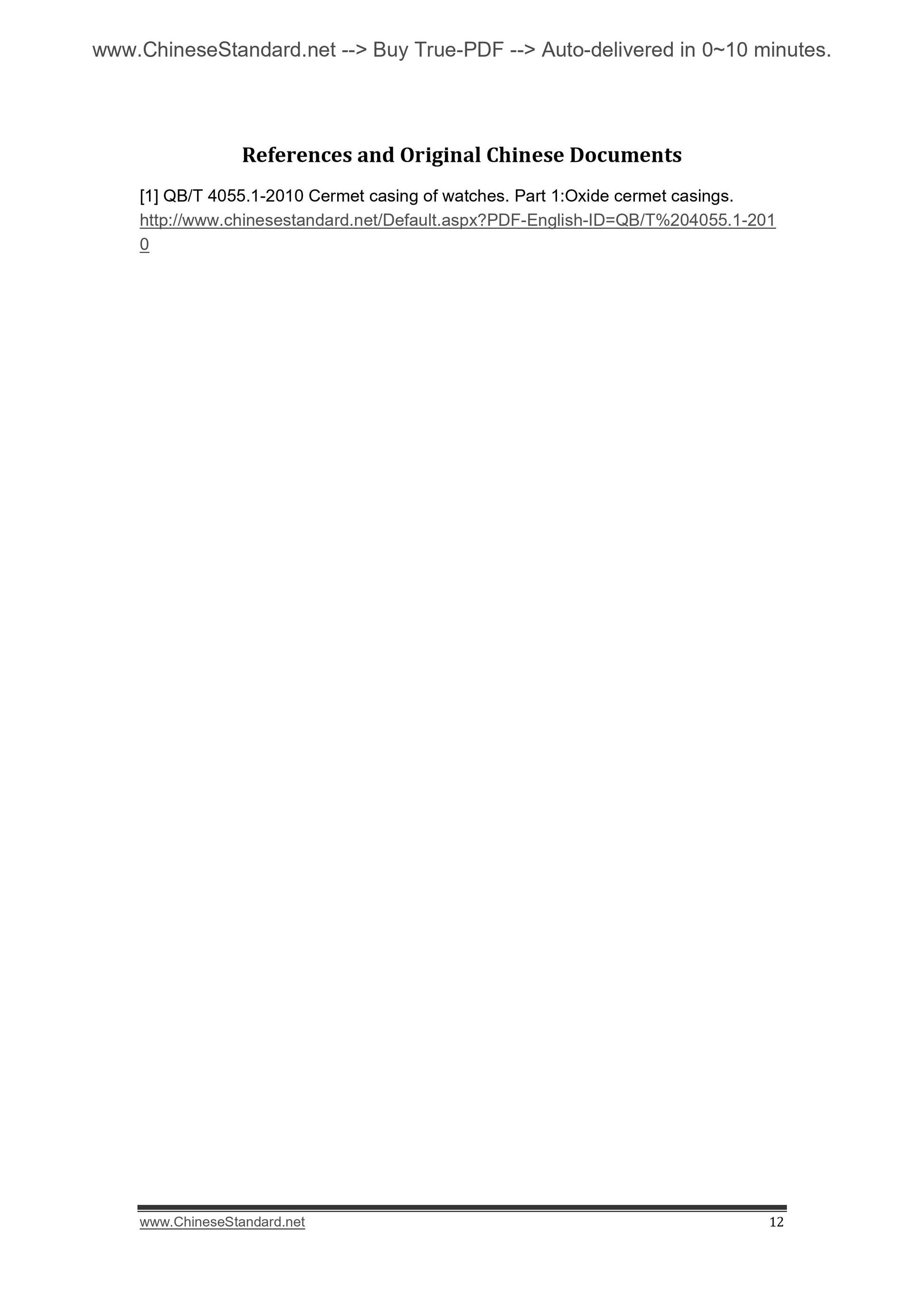

References and Original Chinese Documents
[1] QB/T 4055.1-2010 Cermet casing of watches. Part 1.Oxide cermet casings.
