QB/T 2922-2018: Case and bag - Test method for shaking impact

This Standard specifies the principle, devices and test methods for shaking impact test of case and bag. This Standard is applicable to various daily cases and bags.

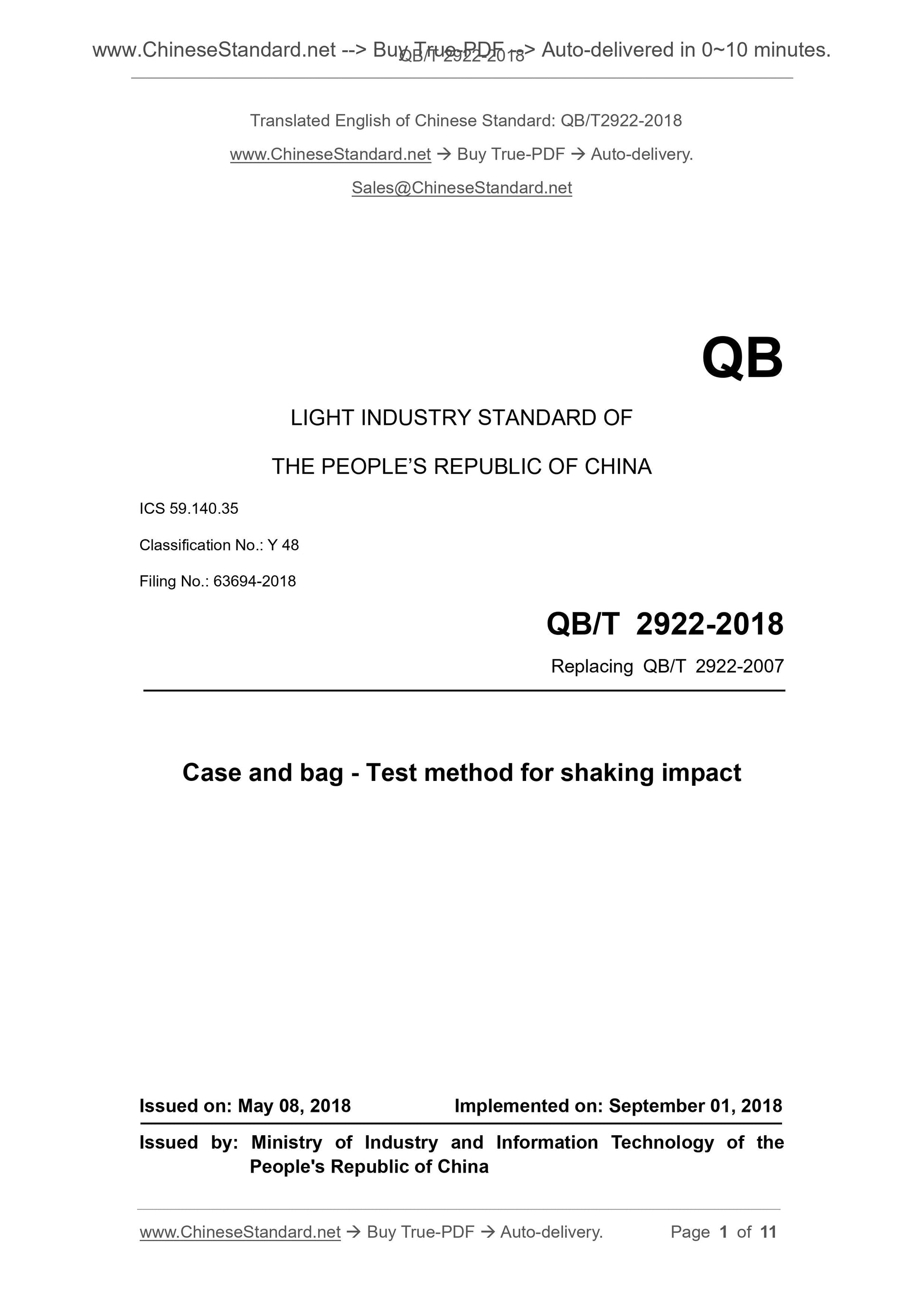

QB/T 2922-2018
QB
LIGHT INDUSTRY STANDARD OF
THE PEOPLE REPUBLIC OF CHINA
ICS 59.140.35
Classification No.. Y 48
Filing No.. 63694-2018
Replacing QB/T 2922-2007
Case and bag - Test method for shaking impact
ISSUED ON. MAY 08, 2018
IMPLEMENTED ON. SEPTEMBER 01, 2018
Issued by. Ministry of Industry and Information Technology of the
People's Republic of China

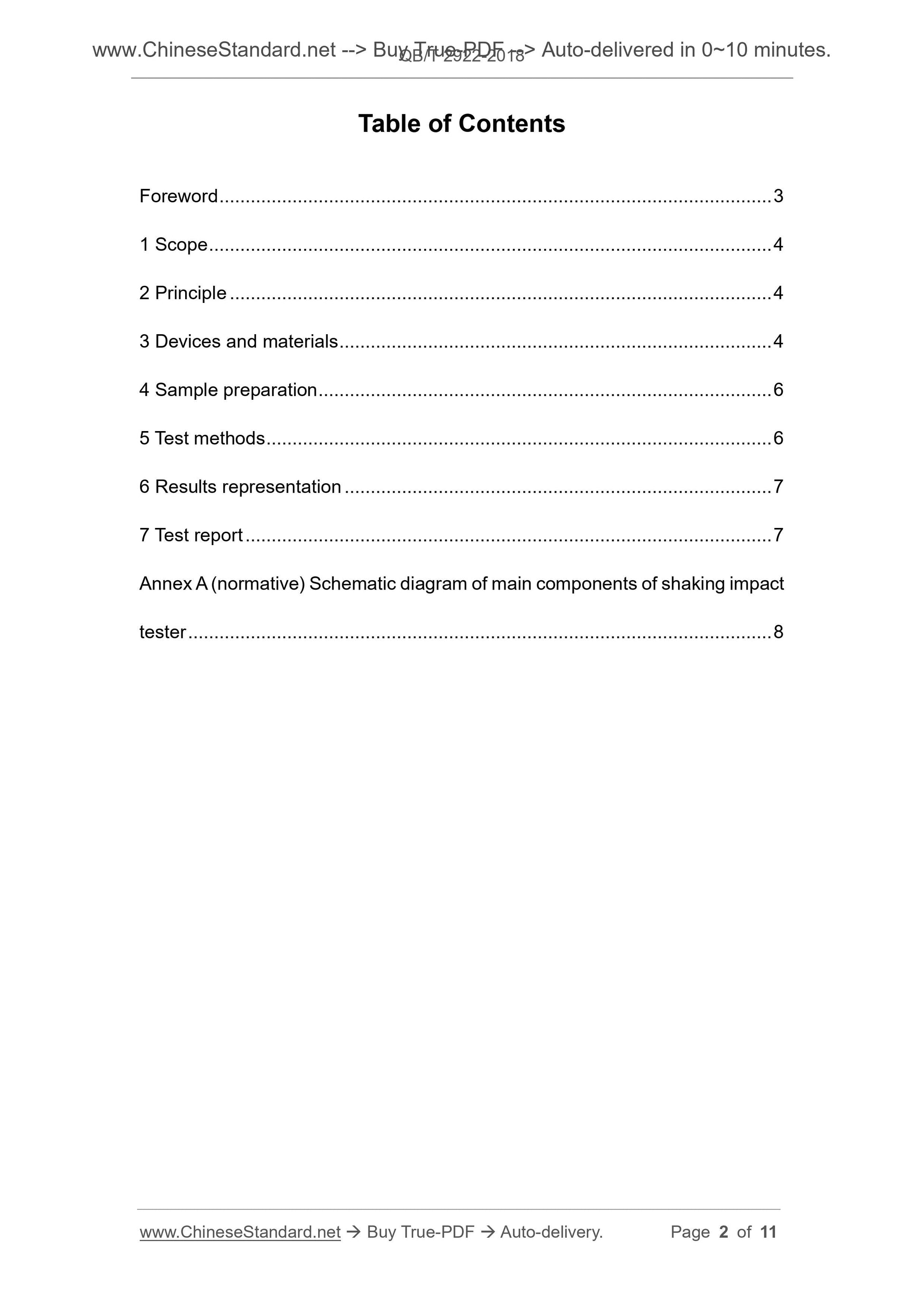

Table of Contents
Foreword ... 3
1 Scope ... 4
2 Principle ... 4
3 Devices and materials ... 4
4 Sample preparation ... 6
5 Test methods ... 6
6 Results representation ... 7
7 Test report ... 7
Annex A (normative) Schematic diagram of main components of shaking impact tester ... 8

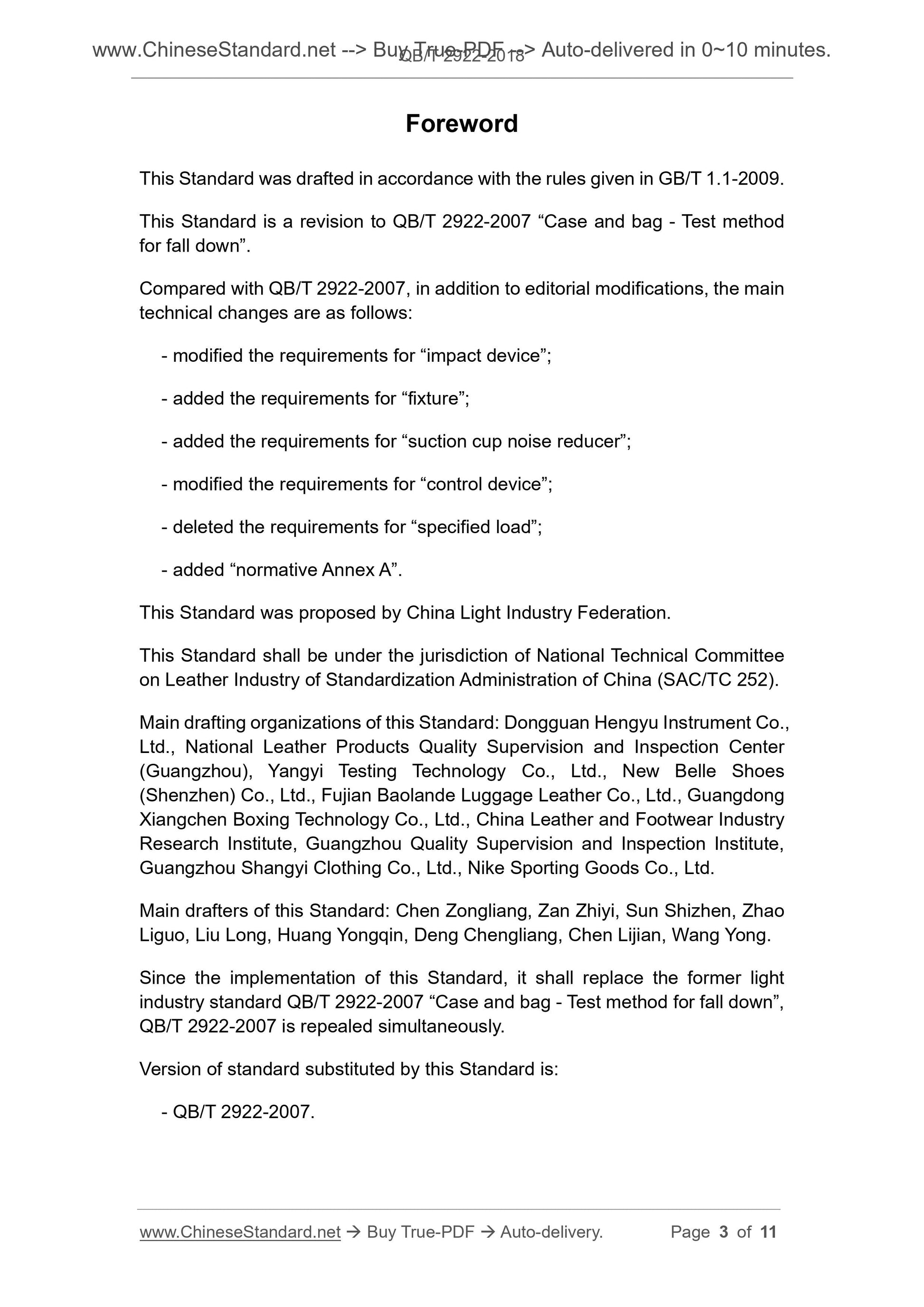

Foreword
This Standard was drafted in accordance with the rules given in GB/T 1.1-2009. This Standard is a revision to QB/T 2922-2007 ?€?Case and bag - Test method for fall down?€?.
Compared with QB/T 2922-2007, in addition to editorial modifications, the main technical changes are as follows.
- modified the requirements for ?€?impact device?€?;
- added the requirements for ?€?fixture?€?;
- added the requirements for ?€?suction cup noise reducer?€?;
- modified the requirements for ?€?control device?€?;
- deleted the requirements for ?€?specified load?€?;
- added ?€?normative Annex A?€?.
This Standard was proposed by China Light Industry Federation.
This Standard shall be under the jurisdiction of National Technical Committee on Leather Industry of Standardization Administration of China (SAC/TC 252). Main drafting organizations of this Standard. Dongguan Hengyu Instrument Co., Ltd., National Leather Products Quality Supervision and Inspection Center (Guangzhou), Yangyi Testing Technology Co., Ltd., New Belle Shoes
(Shenzhen) Co., Ltd., Fujian Baolande Luggage Leather Co., Ltd., Guangdong Xiangchen Boxing Technology Co., Ltd., China Leather and Footwear Industry Research Institute, Guangzhou Quality Supervision and Inspection Institute, Guangzhou Shangyi Clothing Co., Ltd., Nike Sporting Goods Co., Ltd.
Main drafters of this Standard. Chen Zongliang, Zan Zhiyi, Sun Shizhen, Zhao Liguo, Liu Long, Huang Yongqin, Deng Chengliang, Chen Lijian, Wang Yong. Since the implementation of this Standard, it shall replace the former light industry standard QB/T 2922-2007 ?€?Case and bag - Test method for fall down?€?, QB/T 2922-2007 is repealed simultaneously.
Version of standard substituted by this Standard is.
- QB/T 2922-2007.
Case and bag - Test method for shaking impact

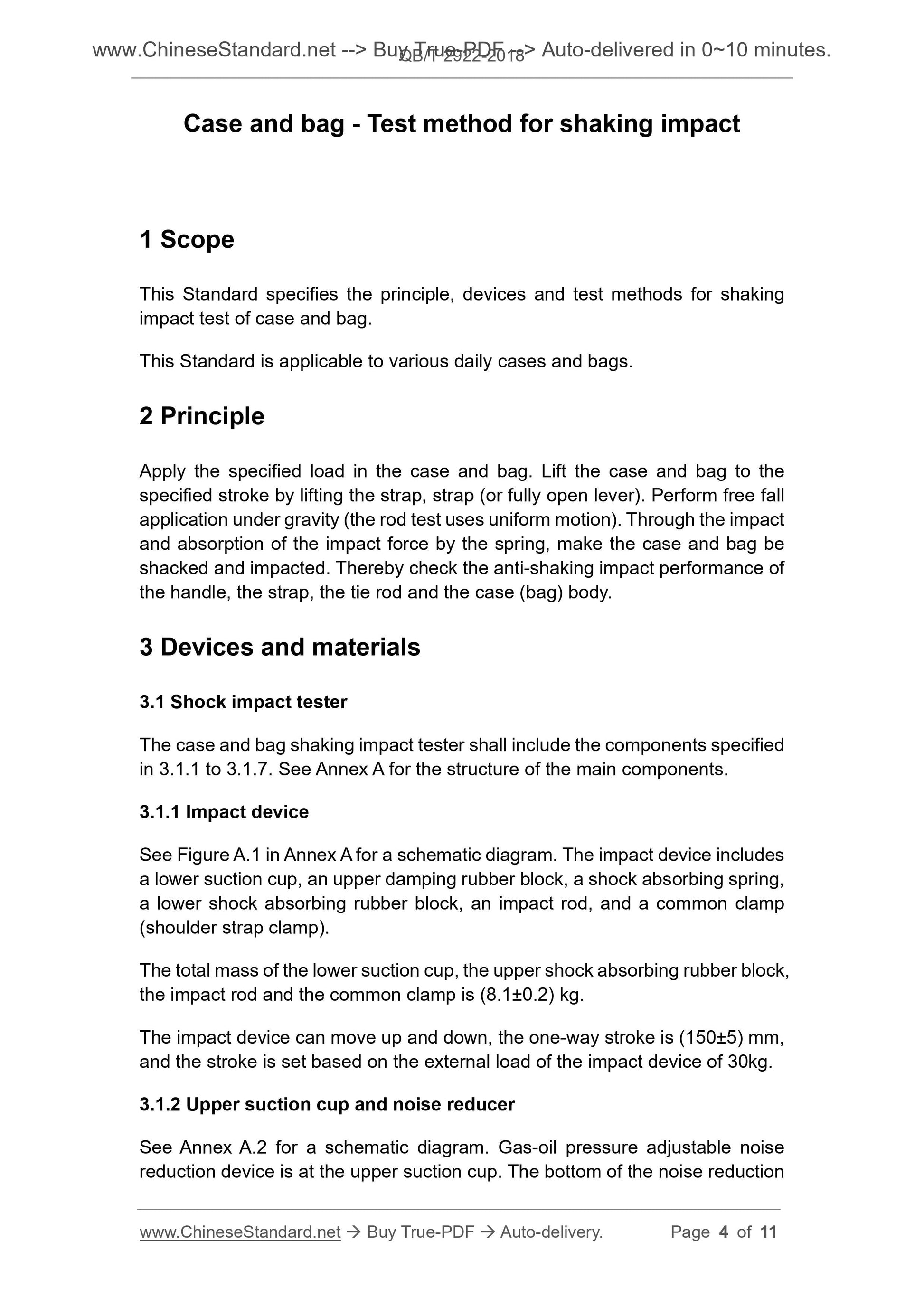

1 Scope
This Standard specifies the principle, devices and test methods for shaking impact test of case and bag.
This Standard is applicable to various daily cases and bags.
2 Principle
Apply the specified load in the case and bag. Lift the case and bag to the specified stroke by lifting the strap, strap (or fully open lever). Perform free fall application under gravity (the rod test uses uniform motion). Through the impact and absorption of the impact force by the spring, make the case and bag be shacked and impacted. Thereby check the anti-shaking impact performance of the handle, the strap, the tie rod and the case (bag) body.
3 Devices and materials
3.1 Shock impact tester
The case and bag shaking impact tester shall include the components specified in 3.1.1 to 3.1.7. See Annex A for the structure of the main components. 3.1.1 Impact device
See Figure A.1 in Annex A for a schematic diagram. The impact device includes a lower suction cup, an upper damping rubber block, a shock absorbing spring, a lower shock absorbing rubber block, an impact rod, and a common clamp (shoulder strap clamp).
The total mass of the lower suction cup, the upper shock absorbing rubber block, the impact rod and the common clamp is (8.1??0.2) kg.
The impact device can move up and down, the one-way stroke is (150??5) mm, and the stroke is set based on the external load of the impact device of 30kg. 3.1.2 Upper suction cup and noise reducer
See Annex A.2 for a schematic diagram. Gas-oil pressure adjustable noise reduction device is at the upper suction cup. The bottom of the noise reduction 4 Sample preparation

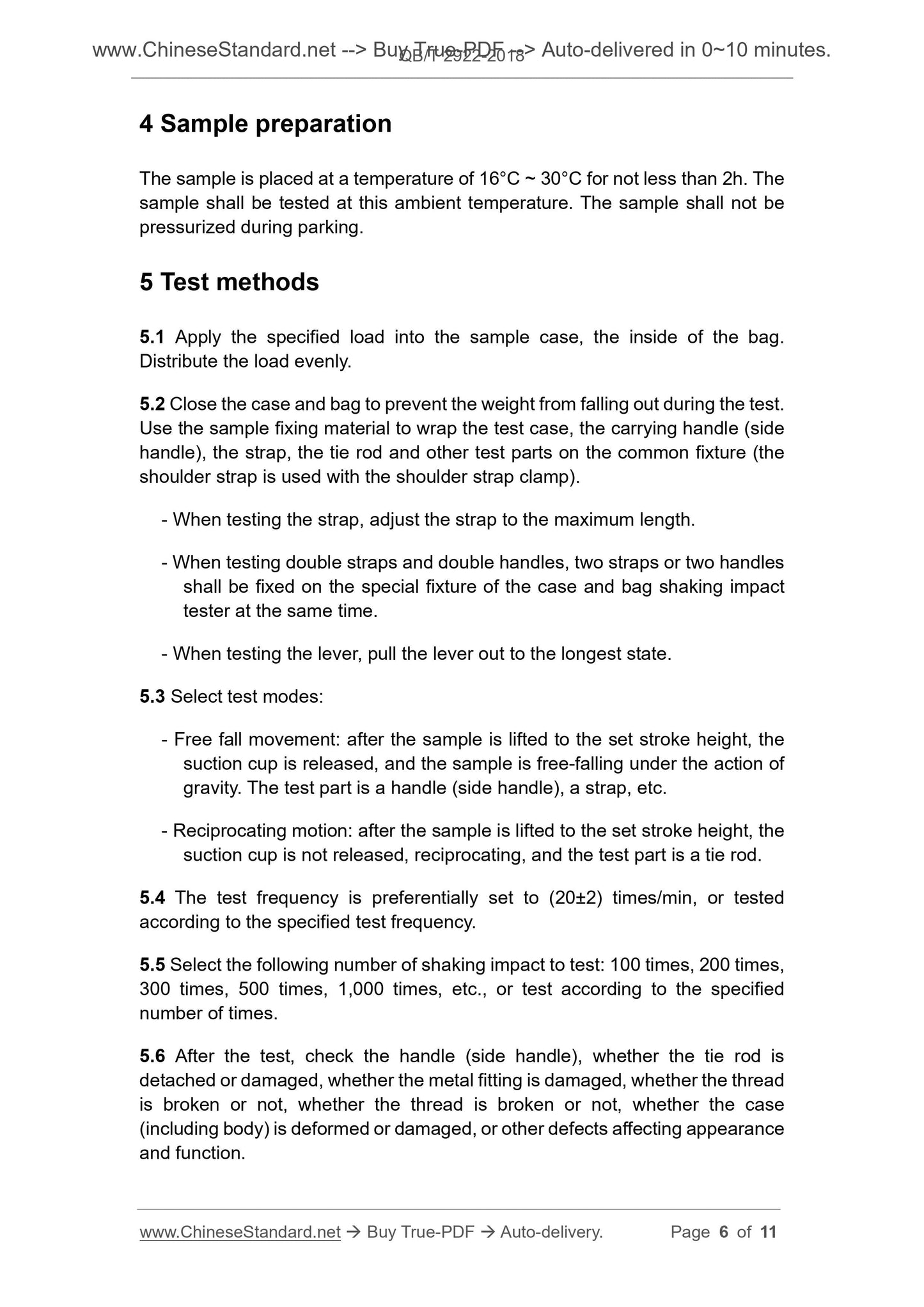

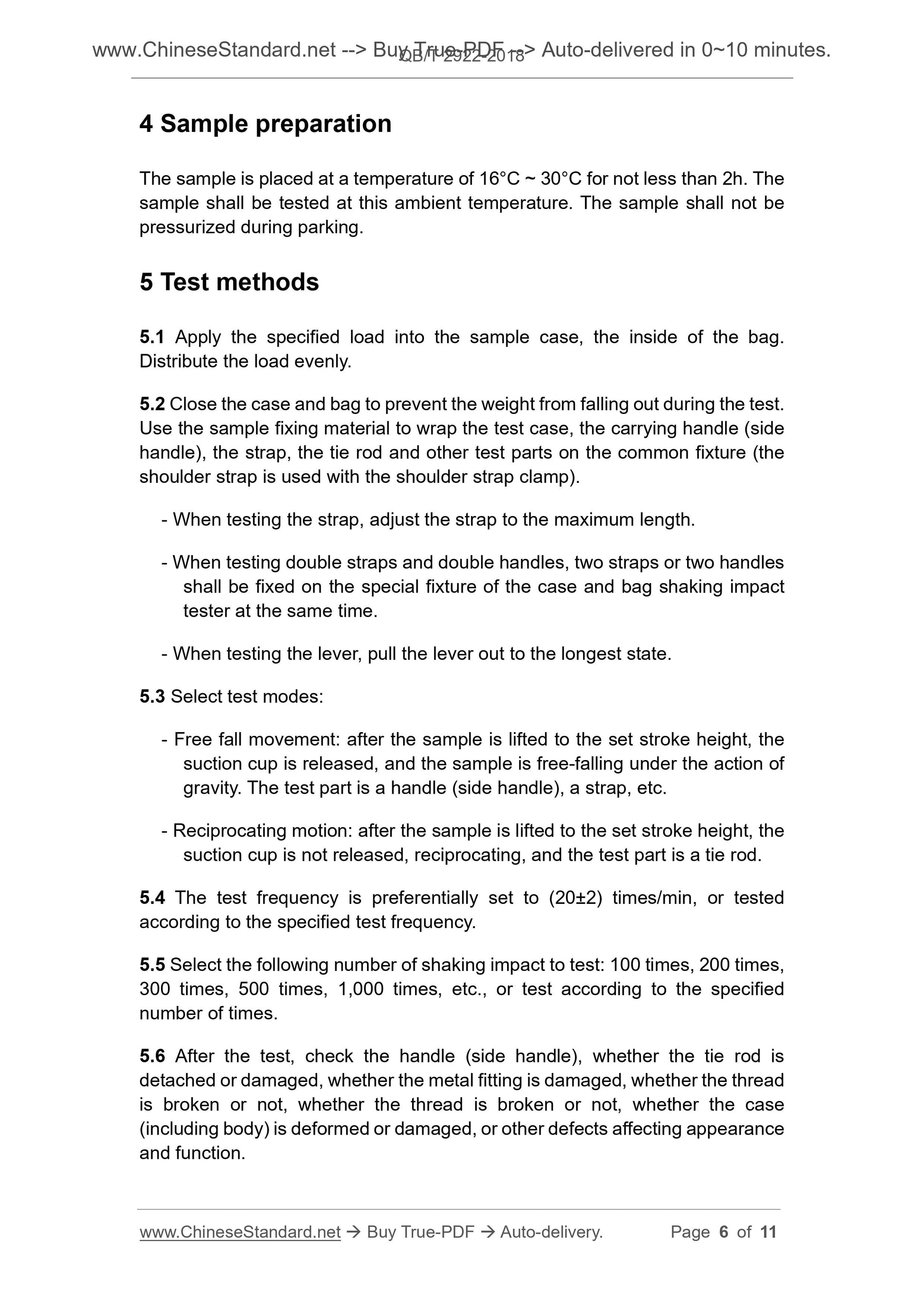

The sample is placed at a temperature of 16??C ~ 30??C for not less than 2h. The sample shall be tested at this ambient temperature. The sample shall not be pressurized during parking.
5 Test methods
5.1 Apply the specified load into the sample case, the inside of the bag. Distribute the load evenly.
5.2 Close the case and bag to prevent the weight from falling out during the test. Use the sample fixing material to wrap the test case, the carrying handle (side handle), the strap, the tie rod and other test parts on the common fixture (the shoulder strap is used with the shoulder strap clamp).
- When testing the strap, adjust the strap to the maximum length.
- When testing double straps and double handles, two straps or two handles shall be fixed on the special fixture of the case and bag shaking impact tester at the same time.
- When testing the lever, pull the lever out to the longest state.
5.3 Select test modes.
- Free fall movement. after the sample is lifted to the set stroke height, the suction cup is released, and the sample is free-falling under the action of gravity. The test part is a handle (side handle), a strap, etc.
- Reciprocating motion. after the sample is lifted to the set stroke height, the suction cup is not released, reciprocating, and the test part is a tie rod. 5.4 The test frequency is preferentially set to (20??2) times/min, or tested according to the specified test frequency.
5.5 Select the following number of shaking impact to test. 100 times, 200 times, 300 times, 500 times, 1,000 times, etc., or test according to the specified number of times.
5.6 After the test, check the handle (side handle), whether the tie rod is detached or damaged, whether the metal fitting is damaged, whether the thread is broken or not, whether the thread is broken or not, whether the case (including body) is deformed or damaged, or other defects affecting appearance and function.
