QB/T 2002.2-2018: Hardware fitting of leather products-Specification of sprayed coating

This part of QB/T 2002 specifies the terms and definitions, classification, requirements, test methods, inspection rules for the sprayed coating of hardware fitting of leather products. This section applies to all kinds of the sprayed coating of hardware fitting of leather products. Other organic coatings can make reference to this part.

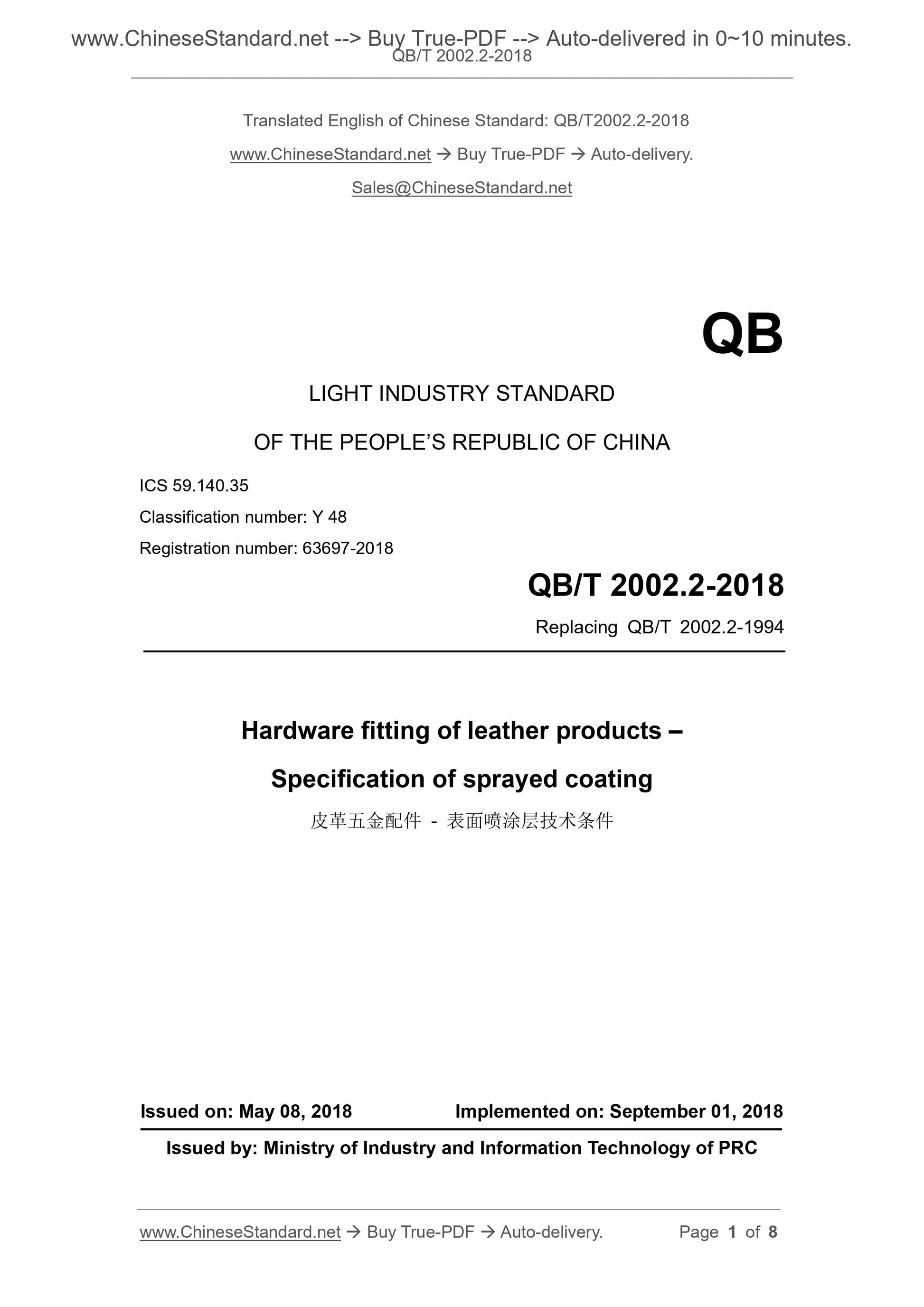

QB/T 2002.2-2018
QB
LIGHT INDUSTRY STANDARD
OF THE PEOPLE REPUBLIC OF CHINA
ICS 59.140.35
Classification number. Y 48
Registration number. 63697-2018
Replacing QB/T 2002.2-1994
Hardware fitting of leather products ?€?
Specification of sprayed coating
ISSUED ON. MAY 08, 2018
IMPLEMENTED ON. SEPTEMBER 01, 2018
Issued by. Ministry of Industry and Information Technology of PRC

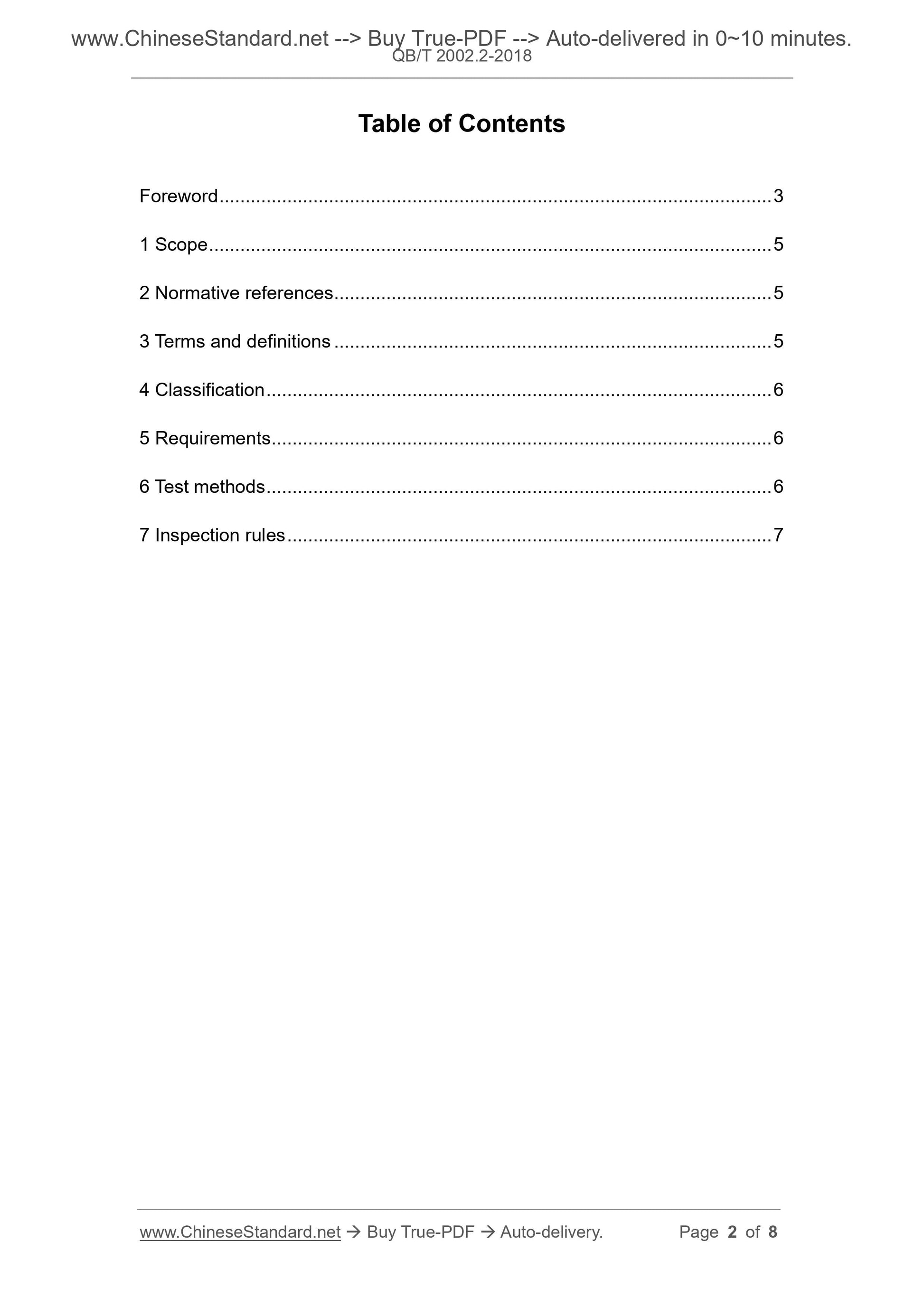

Table of Contents
Foreword ... 3
1 Scope ... 5
2 Normative references ... 5
3 Terms and definitions ... 5
4 Classification ... 6
5 Requirements ... 6
6 Test methods ... 6
7 Inspection rules ... 7

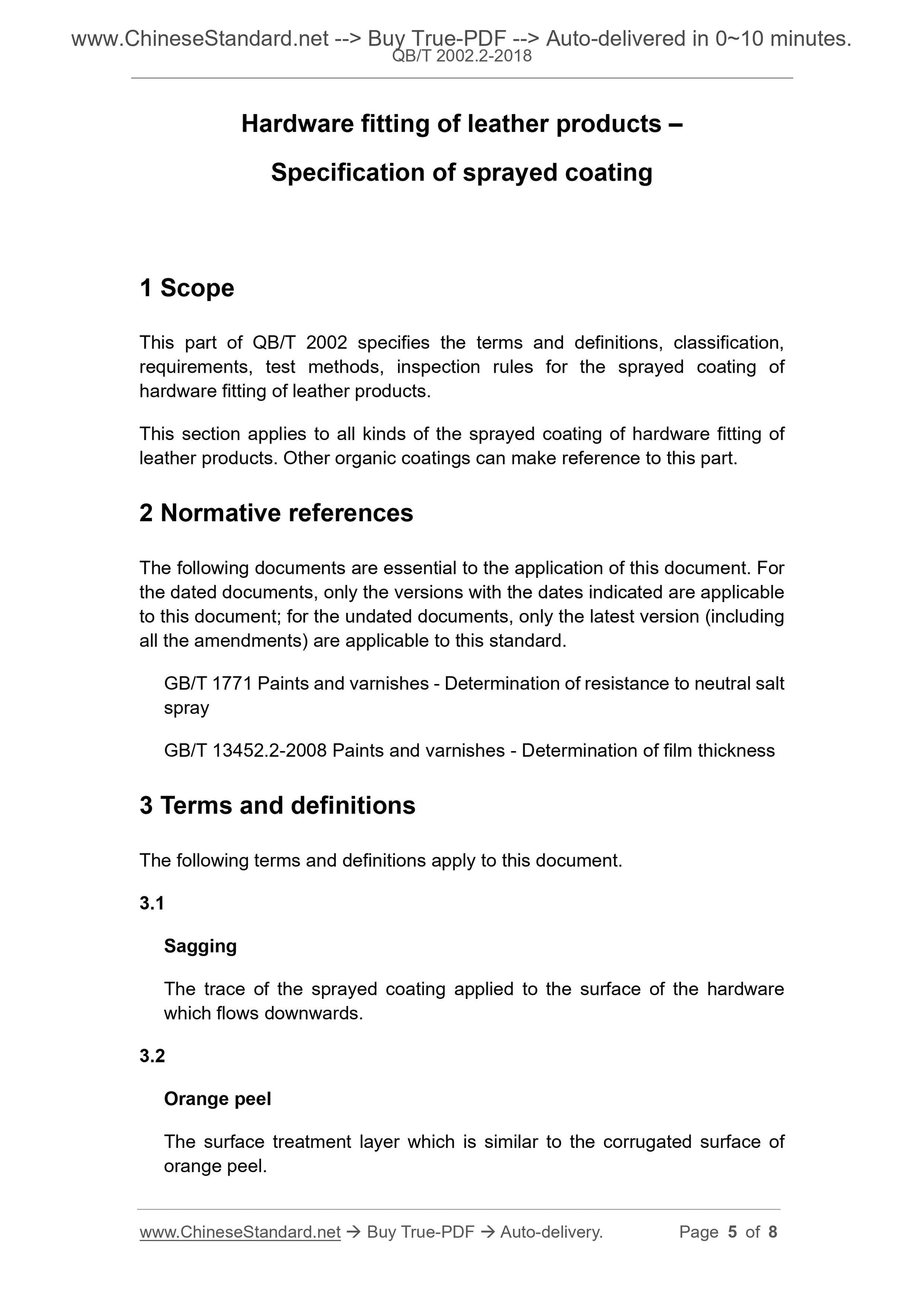

Hardware fitting of leather products ?€?
Specification of sprayed coating
1 Scope
This part of QB/T 2002 specifies the terms and definitions, classification, requirements, test methods, inspection rules for the sprayed coating of hardware fitting of leather products.
This section applies to all kinds of the sprayed coating of hardware fitting of leather products. Other organic coatings can make reference to this part. 2 Normative references
The following documents are essential to the application of this document. For the dated documents, only the versions with the dates indicated are applicable to this document; for the undated documents, only the latest version (including all the amendments) are applicable to this standard.
GB/T 1771 Paints and varnishes - Determination of resistance to neutral salt spray
GB/T 13452.2-2008 Paints and varnishes - Determination of film thickness 3 Terms and definitions
The following terms and definitions apply to this document.
3.1
Sagging
The trace of the sprayed coating applied to the surface of the hardware which flows downwards.
3.2
Orange peel
The surface treatment layer which is similar to the corrugated surface of orange peel.

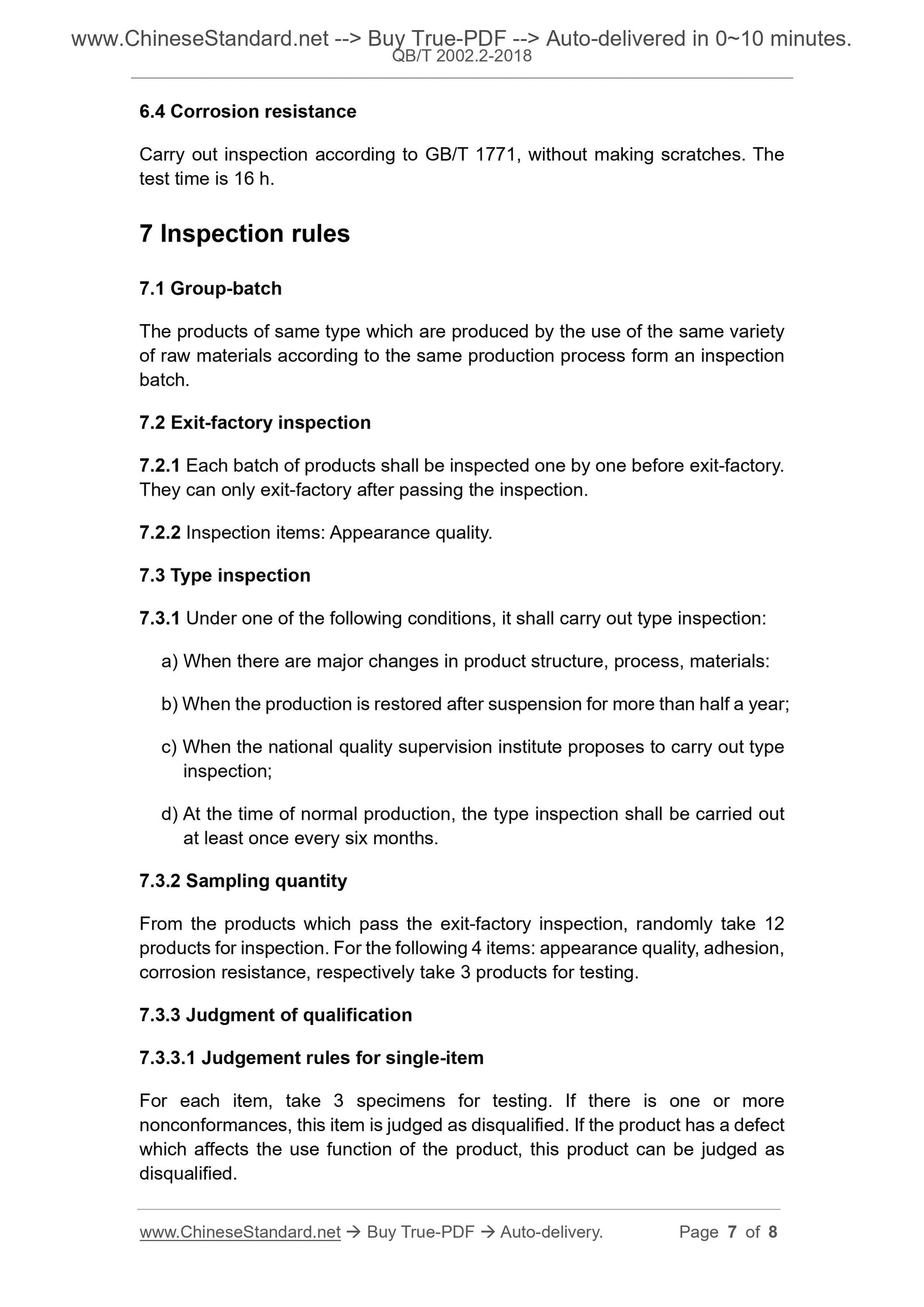

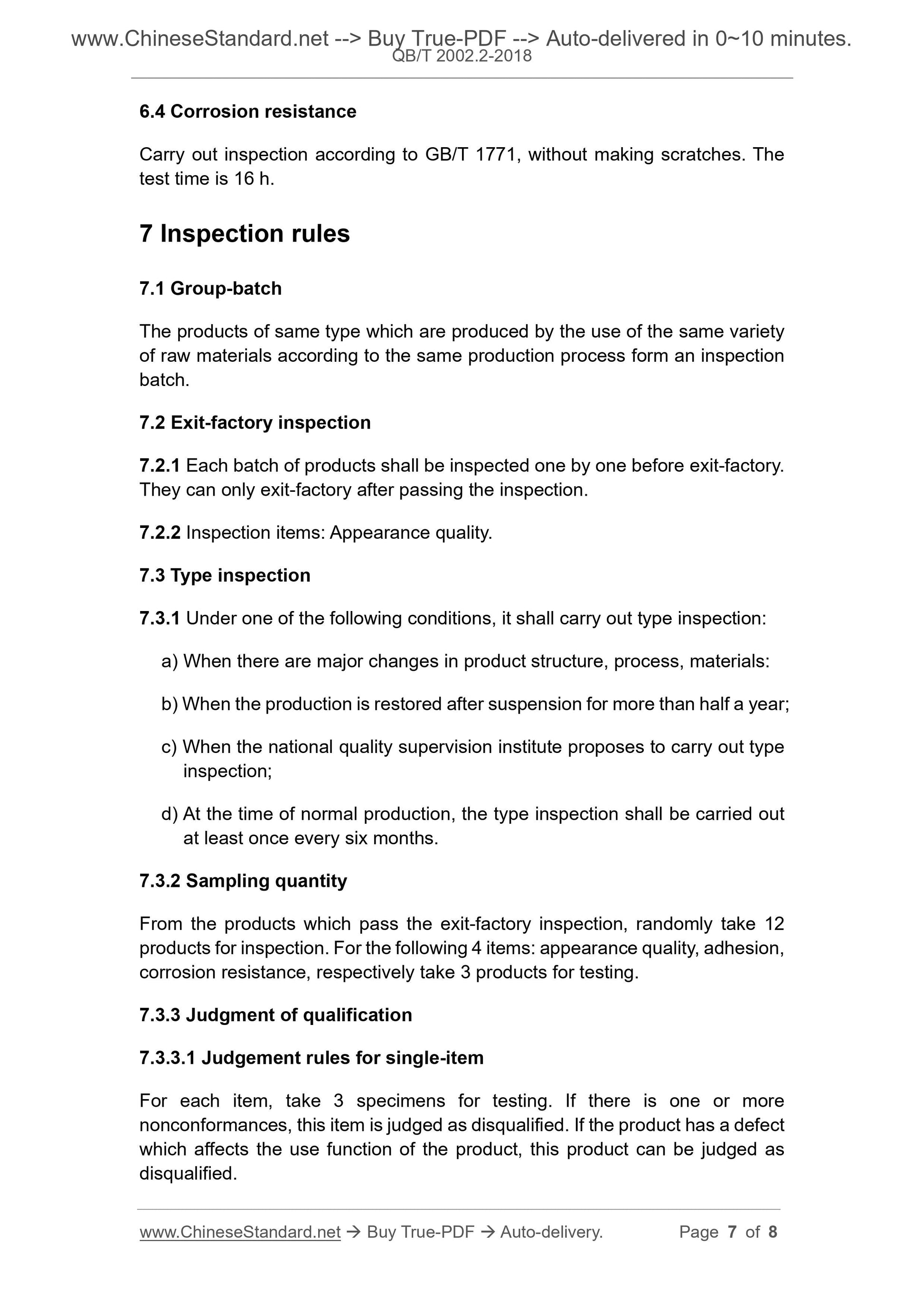

6.4 Corrosion resistance
Carry out inspection according to GB/T 1771, without making scratches. The test time is 16 h.
7 Inspection rules
7.1 Group-batch
The products of same type which are produced by the use of the same variety of raw materials according to the same production process form an inspection batch.
7.2 Exit-factory inspection
7.2.1 Each batch of products shall be inspected one by one before exit-factory. They can only exit-factory after passing the inspection.
7.2.2 Inspection items. Appearance quality.
7.3 Type inspection
7.3.1 Under one of the following conditions, it shall carry out type inspection. a) When there are major changes in product structure, process, materials. b) When the production is restored after suspension for more than half a year; c) When the national quality supervision institute proposes to carry out type inspection;
d) At the time of normal production, the type inspection shall be carried out at least once every six months.
7.3.2 Sampling quantity
From the products which pass the exit-factory inspection, randomly take 12 products for inspection. For the following 4 items. appearance quality, adhesion, corrosion resistance, respectively take 3 products for testing.
7.3.3 Judgment of qualification
7.3.3.1 Judgement rules for single-item
For each item, take 3 specimens for testing. If there is one or more
nonconformances, this item is judged as disqualified. If the product has a defect which affects the use function of the product, this product can be judged as disqualified.
