QB/T 1333-2018: Handbag and Knapsack
This Standard specifies the requirements, test methods, inspection rules, marking, packaging, transportation, storage, quality certificate and order forms (or contracts) for copper-steel composite sheets and strips. This Standard applies to copper-steel composite sheets and strips for general industrial use.

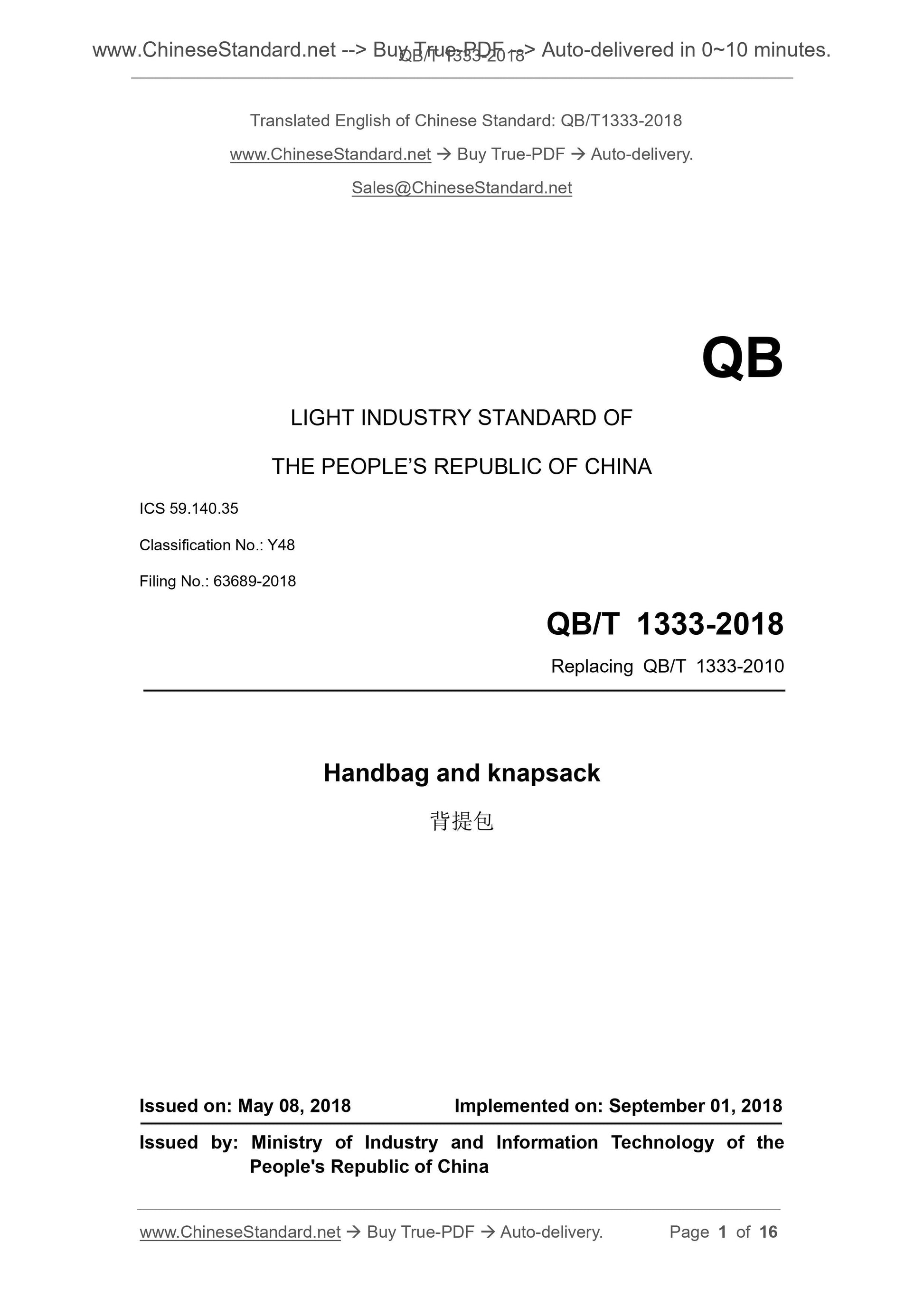

QB/T 1333-2018
QB
LIGHT INDUSTRY STANDARD OF
THE PEOPLE’S REPUBLIC OF CHINA
ICS 59.140.35
Classification No.. Y48
Filing No.. 63689-2018
Replacing QB/T 1333-2010
Handbag and knapsack
背提包
ISSUED ON. MAY 08, 2018
IMPLEMENTED ON. SEPTEMBER 01, 2018
Issued by. Ministry of Industry and Information Technology of the
People's Republic of China

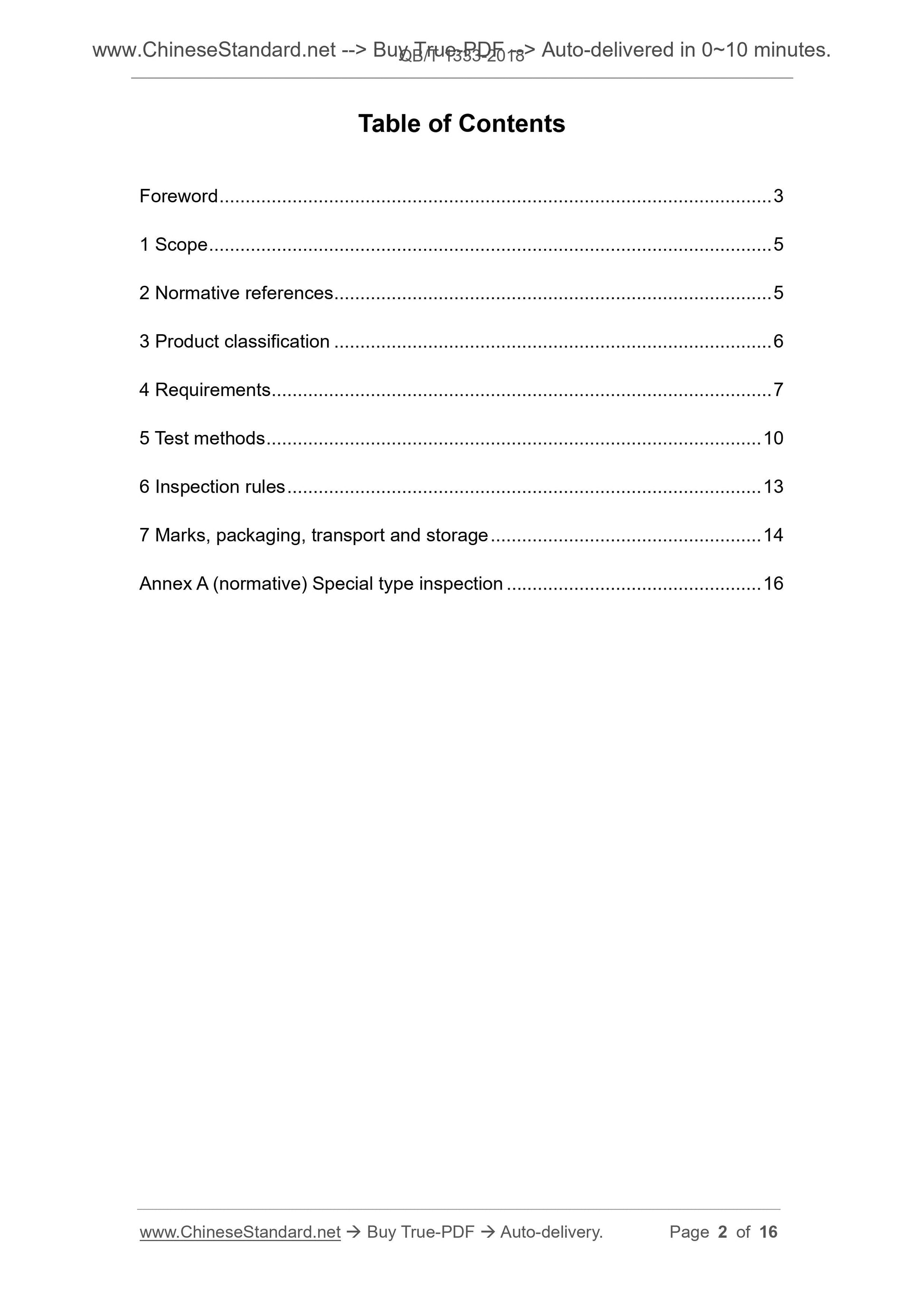

Table of Contents
Foreword ... 3
1 Scope ... 5
2 Normative references ... 5
3 Product classification ... 6
4 Requirements ... 7
5 Test methods ... 10
6 Inspection rules ... 13
7 Marks, packaging, transport and storage ... 14
Annex A (normative) Special type inspection ... 16

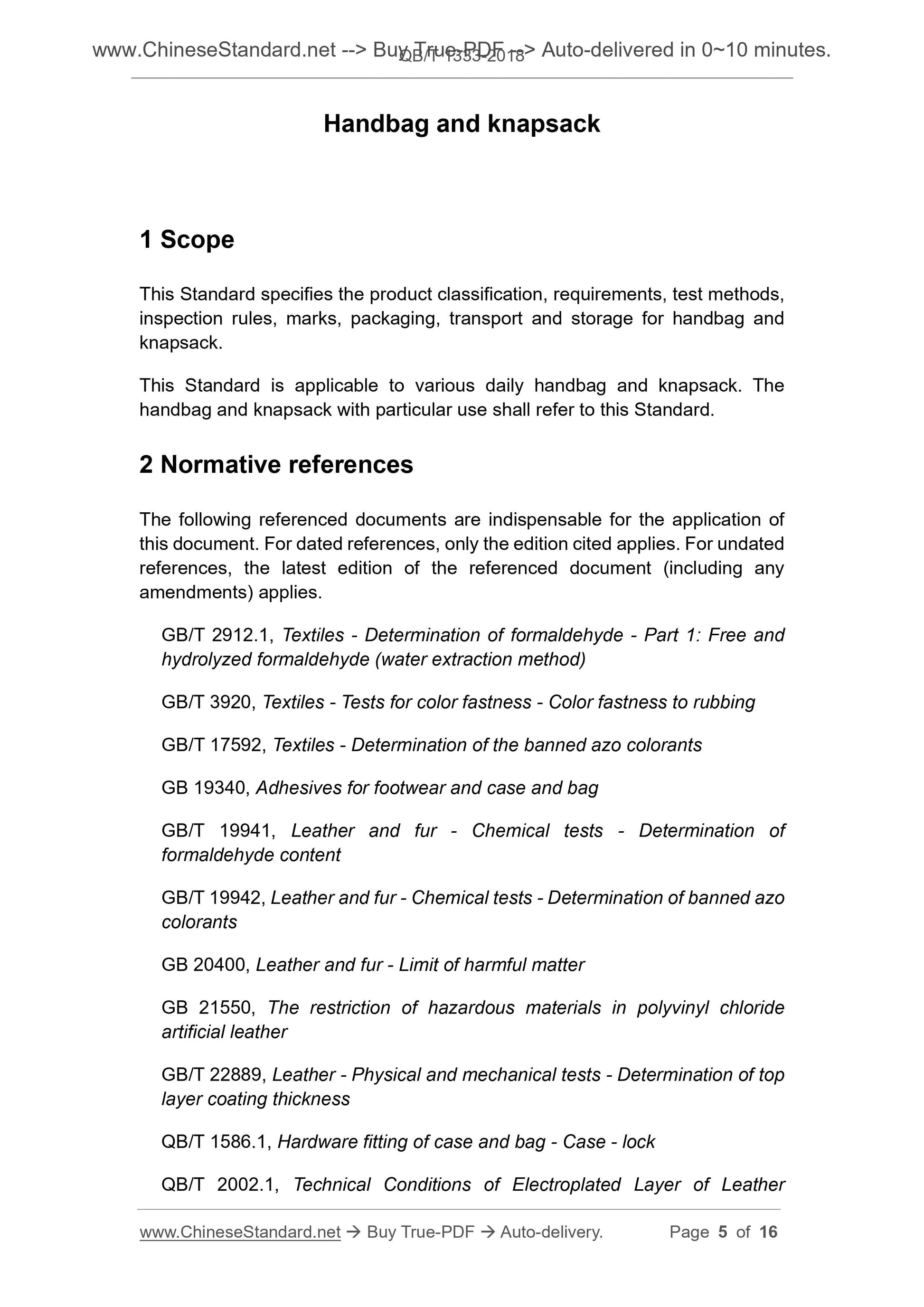

Handbag and knapsack
1 Scope
This Standard specifies the product classification, requirements, test methods, inspection rules, marks, packaging, transport and storage for handbag and knapsack.
This Standard is applicable to various daily handbag and knapsack. The
handbag and knapsack with particular use shall refer to this Standard.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies.
GB/T 2912.1, Textiles - Determination of formaldehyde - Part 1. Free and hydrolyzed formaldehyde (water extraction method)
GB/T 3920, Textiles - Tests for color fastness - Color fastness to rubbing GB/T 17592, Textiles - Determination of the banned azo colorants
GB 19340, Adhesives for footwear and case and bag
GB/T 19941, Leather and fur - Chemical tests - Determination of
formaldehyde content
GB/T 19942, Leather and fur - Chemical tests - Determination of banned azo colorants
GB 20400, Leather and fur - Limit of harmful matter
GB 21550, The restriction of hazardous materials in polyvinyl chloride
artificial leather
GB/T 22889, Leather - Physical and mechanical tests - Determination of top layer coating thickness

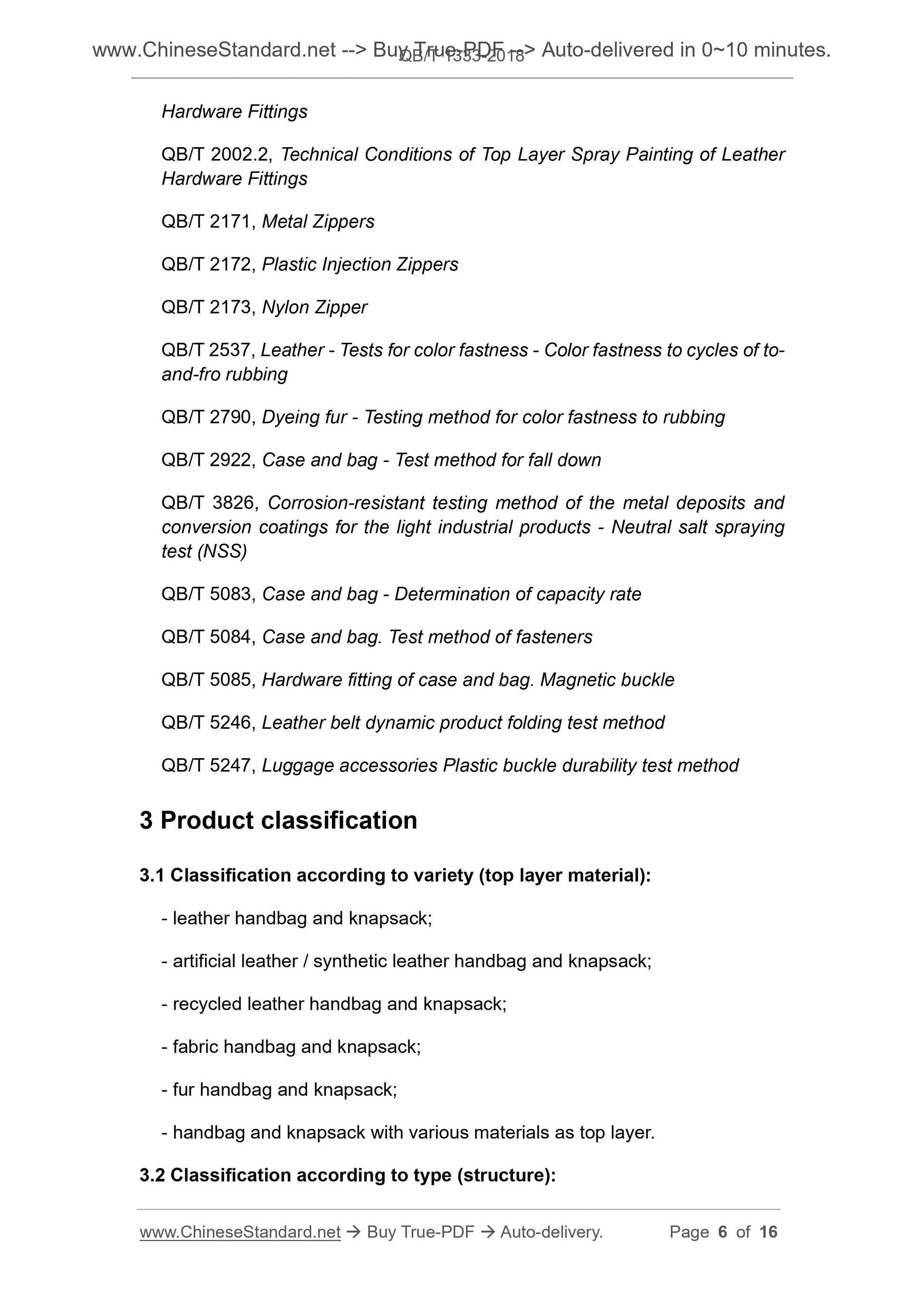

QB/T 1586.1, Hardware fitting of case and bag - Case - lock
QB/T 2002.1, Technical Conditions of Electroplated Layer of Leather
Hardware Fittings
QB/T 2002.2, Technical Conditions of Top Layer Spray Painting of Leather Hardware Fittings
QB/T 2171, Metal Zippers
QB/T 2172, Plastic Injection Zippers
QB/T 2173, Nylon Zipper
QB/T 2537, Leather - Tests for color fastness - Color fastness to cycles of to- and-fro rubbing
QB/T 2790, Dyeing fur - Testing method for color fastness to rubbing
QB/T 2922, Case and bag - Test method for fall down
QB/T 3826, Corrosion-resistant testing method of the metal deposits and conversion coatings for the light industrial products - Neutral salt spraying test (NSS)
QB/T 5083, Case and bag - Determination of capacity rate
QB/T 5084, Case and bag. Test method of fasteners
QB/T 5085, Hardware fitting of case and bag. Magnetic buckle
QB/T 5246, Leather belt dynamic product folding test method
QB/T 5247, Luggage accessories Plastic buckle durability test method
3 Product classification
3.1 Classification according to variety (top layer material).
- leather handbag and knapsack;
- artificial leather/synthetic leather handbag and knapsack;
- recycled leather handbag and knapsack;
- fabric handbag and knapsack;
- fur handbag and knapsack;
- handbag and knapsack with various materials as top layer.
3.2 Classification according to type (structure).
< 16~20 4 5
>20 5 6
NOTE. Specified load does not include the weight of the bag body.

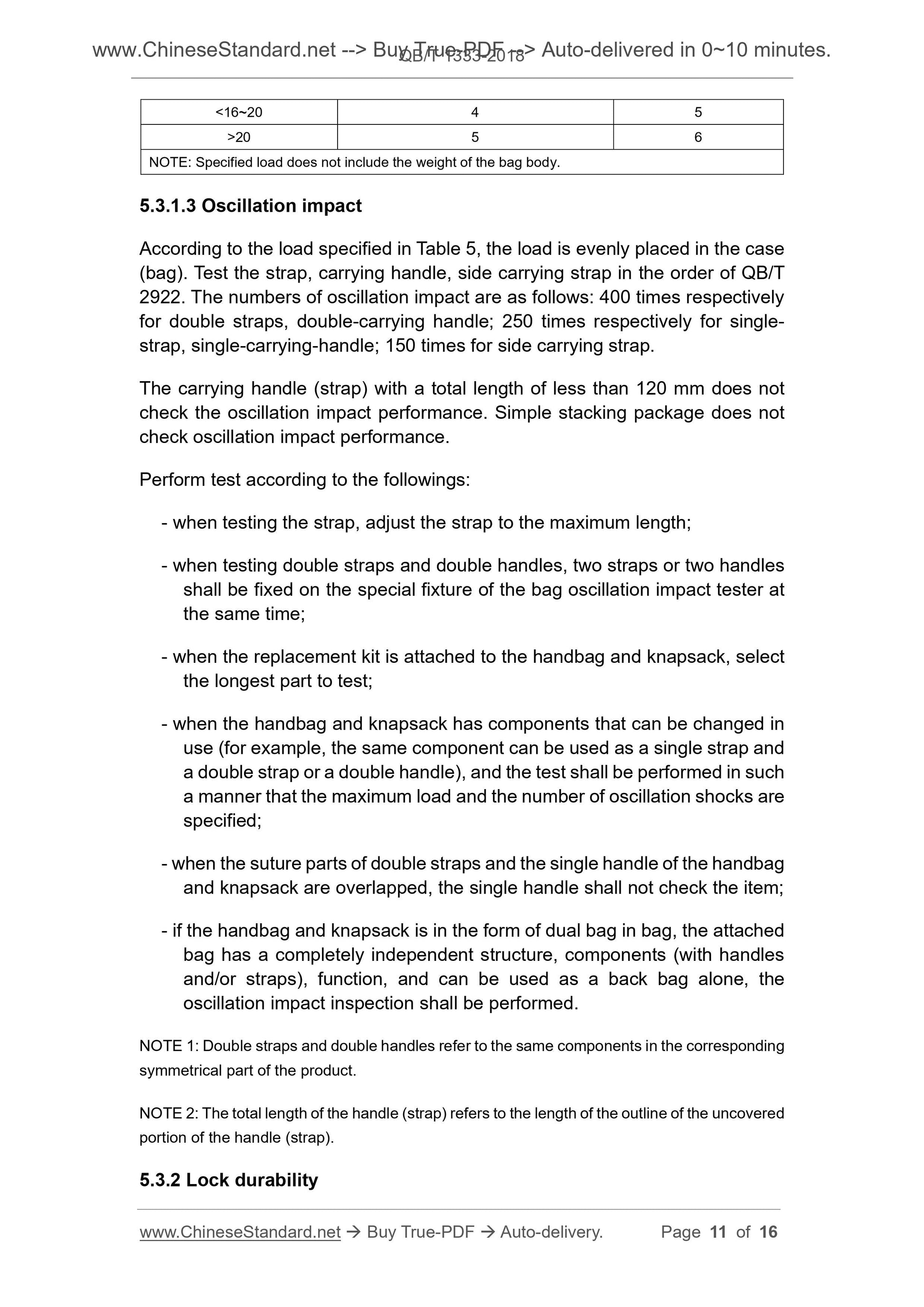

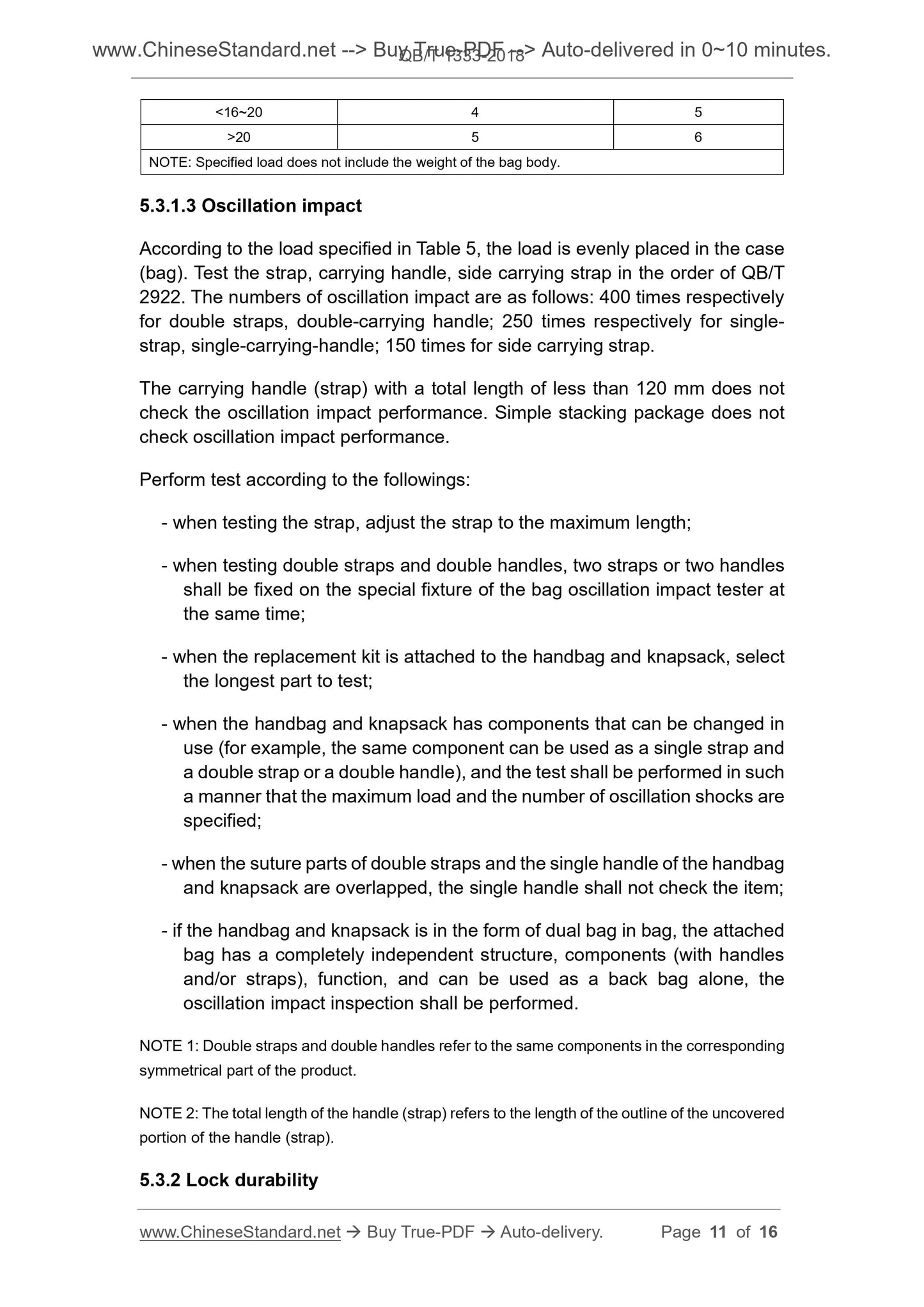

5.3.1.3 Oscillation impact
According to the load specified in Table 5, the load is evenly placed in the case (bag). Test the strap, carrying handle, side carrying strap in the order of QB/T 2922. The numbers of oscillation impact are as follows. 400 times respectively for double straps, double-carrying handle; 250 times respectively for single- strap, single-carrying-handle; 150 times for side carrying strap.
The carrying handle (strap) with a total length of less than 120 mm does not check the oscillation impact performance. Simple stacking package does not check oscillation impact performance.
Perform test according to the followings.
- when testing the strap, adjust the strap to the maximum length;
- when testing double straps and double handles, two straps or two handles shall be fixed on the special fixture of the bag oscillation impact tester at the same time;
- when the replacement kit is attached to the handbag and knapsack, select the longest part to test;
- when the handbag and knapsack has components that can be changed in
use (for example, the same component can be used as a single strap and
a double strap or a double handle), and the test shall be performed in such a manner that the maximum load and the number of oscillation shocks are specified;
- when the suture parts of double straps and the single handle of the handbag and knapsack are overlapped, the single handle shall not check the item; - if the handbag and knapsack is in the form of dual bag in bag, the attached bag has a completely independent structure, components (with handles
and/or straps), function, and can be used as a back bag alone, the
oscillation impact inspection shall be performed.
NOTE 1. Double straps and double handles refer to the same components in the corresponding symmetrical part of the product.
NOTE 2. The total length of the handle (strap) refers to the length of the outline of the uncovered portion of the handle (strap).
5.3.2 Lock durability

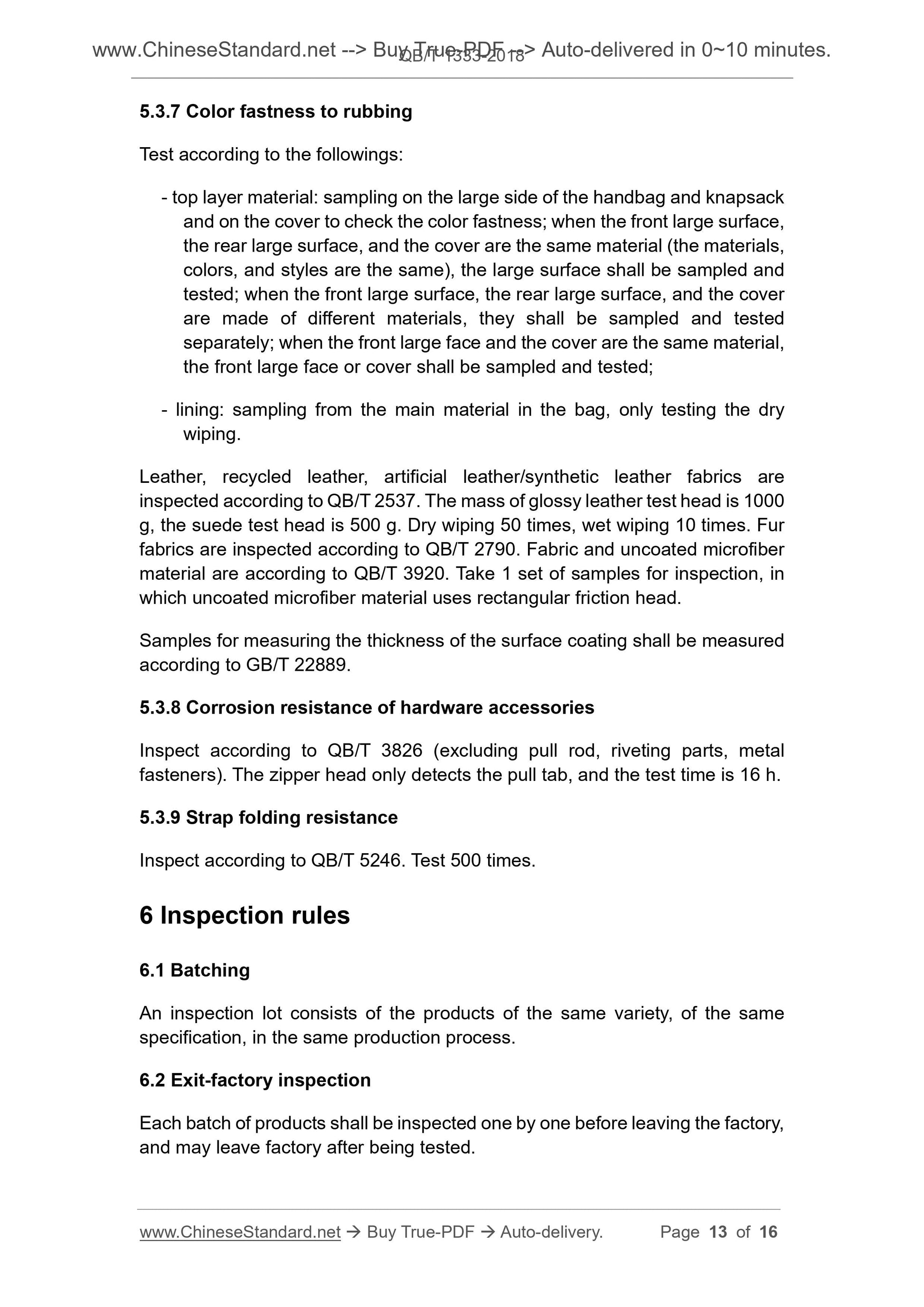

5.3.7 Color fastness to rubbing
Test according to the followings.
- top layer material. sampling on the large side of the handbag and knapsack and on the cover to check the color fastness; when the front large surface, the rear large surface, and the cover are the same material (the materials, colors, and styles are the same), the large surface shall be sampled and tested; when the front large surface, the rear large surface, and the cover are made of different materials, they shall be sampled and tested
separately; when the front large face and the cover are the same material, the front large face or cover shall be sampled and tested;
- lining. sampling from the main material in the bag, only testing the dry wiping.
Leather, recycled leather, artificial leather/synthetic leather fabrics are inspected according to QB/T 2537. The mass of glossy leather test head is 1000 g, the suede test head is 500 g. Dry wiping 50 times, wet wiping 10 times. Fur fabrics are inspected according to QB/T 2790. Fabric and uncoated microfiber material are according to QB/T 3920. Take 1 set of samples for inspection, in which uncoated microfiber material uses rectangular friction head.
Samples for measuring the thickness of the surface coating shall be measured according to GB/T 22889.
5.3.8 Corrosion resistance of hardware accessories
Inspect according to QB/T 3826 (excluding pull rod, riveting parts, metal fasteners). The zipper head only detects the pull tab, and the test time is 16 h. 5.3.9 Strap folding resistance
Inspect according to QB/T 5246. Test 500 times.
6 Inspection rules
6.1 Batching
An inspection lot consists of the products of the same variety, of the same specification, in the same production process.
6.2 Exit-factory inspection
Each batch of products shall be inspected one by one before leaving the factory, and may leave factory after being tested.

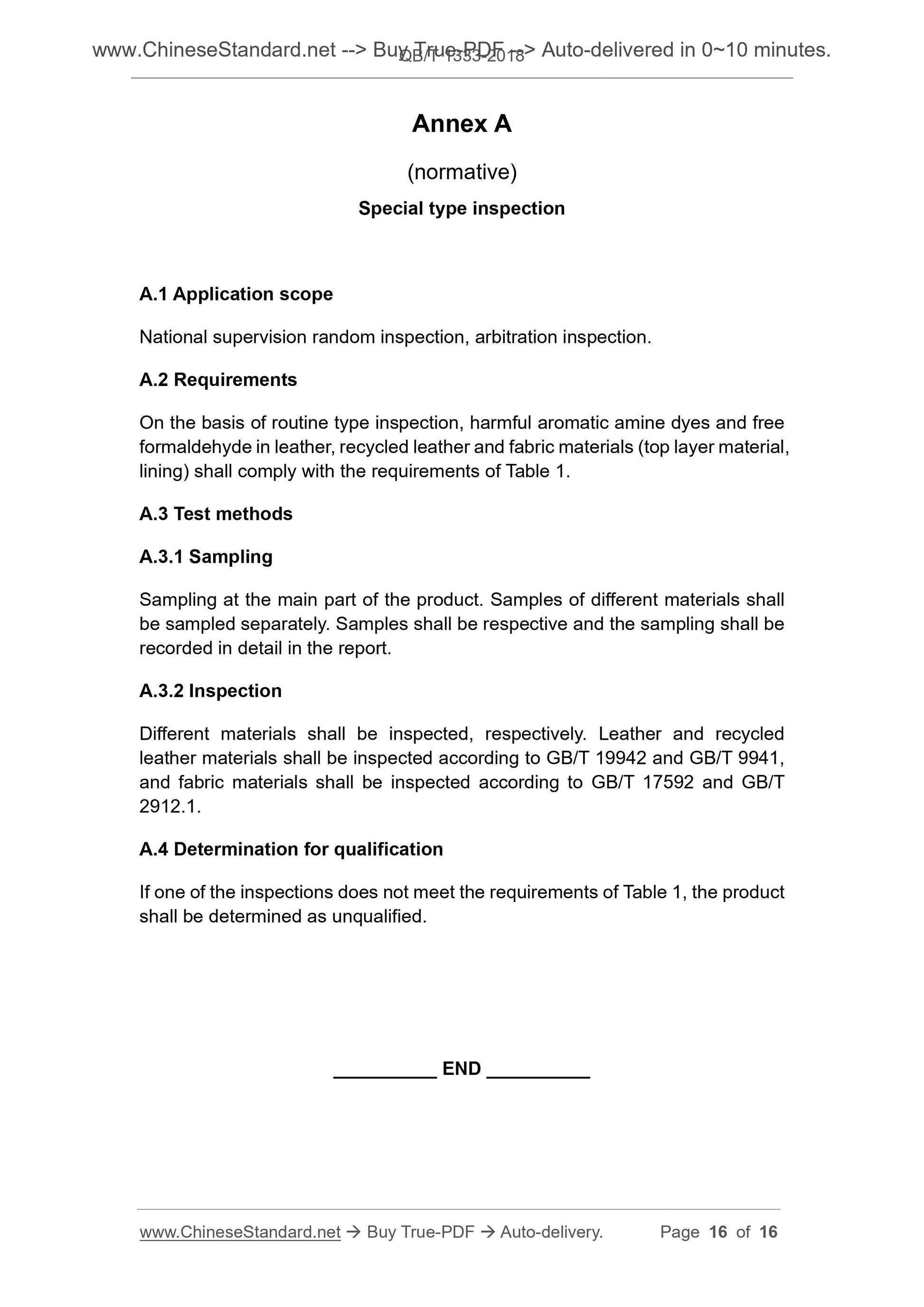

Annex A
(normative)
Special type inspection
A.1 Application scope
National supervision random inspection, arbitration inspection.
A.2 Requirements
On the basis of routine type inspection, harmful aromatic amine dyes and free formaldehyde in leather, recycled leather and fabric materials (top layer material, lining) shall comply with the requirements of Table 1.
A.3 Test methods
A.3.1 Sampling
Sampling at the main part of the product. Samples of different materials shall be sampled separately. Samples shall be respective and the sampling shall be recorded in detail in the report.
A.3.2 Inspection
Different materials shall be inspected, respectively. Leather and recycled leather materials shall be inspected according to GB/T 19942 and GB/T 9941, and fabric materials shall be inspected according to GB/T 17592 and GB/T 2912.1.
A.4 Determination for qualification
If one of the inspections does not meet the requirements of Table 1, the product shall be determined as unqualified.
