Q/BQB 665-2018: 08Ni3DR and 06Ni9DR steel plates for low temperature pressure vessels

This Standard specifies the dimension, shape, technical requirements, inspection and test, marking and quality certificate, etc. of 08Ni3DR and 06Ni9DR steel plate for low temperature pressure vessels.

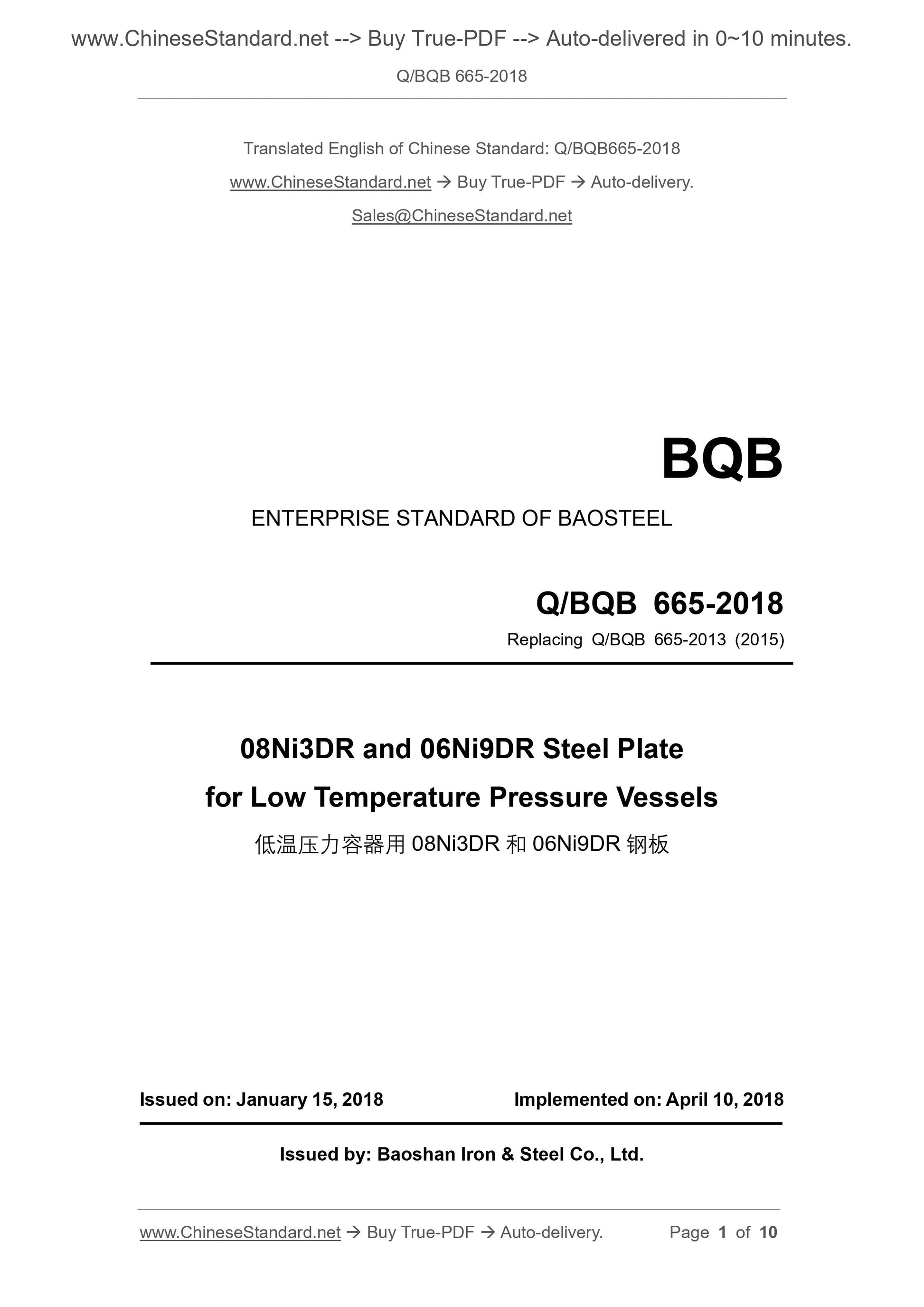

Q/BQB 665-2018
ENTERPRISE STANDARD OF BAOSTEEL
Replacing Q/BQB 665-2013 (2015)
08Ni3DR and 06Ni9DR Steel Plate
for Low Temperature Pressure Vessels
ISSUED ON: JANUARY 15, 2018
IMPLEMENTED ON: APRIL 10, 2018
Issued by: Baoshan Iron and Steel Co., Ltd.

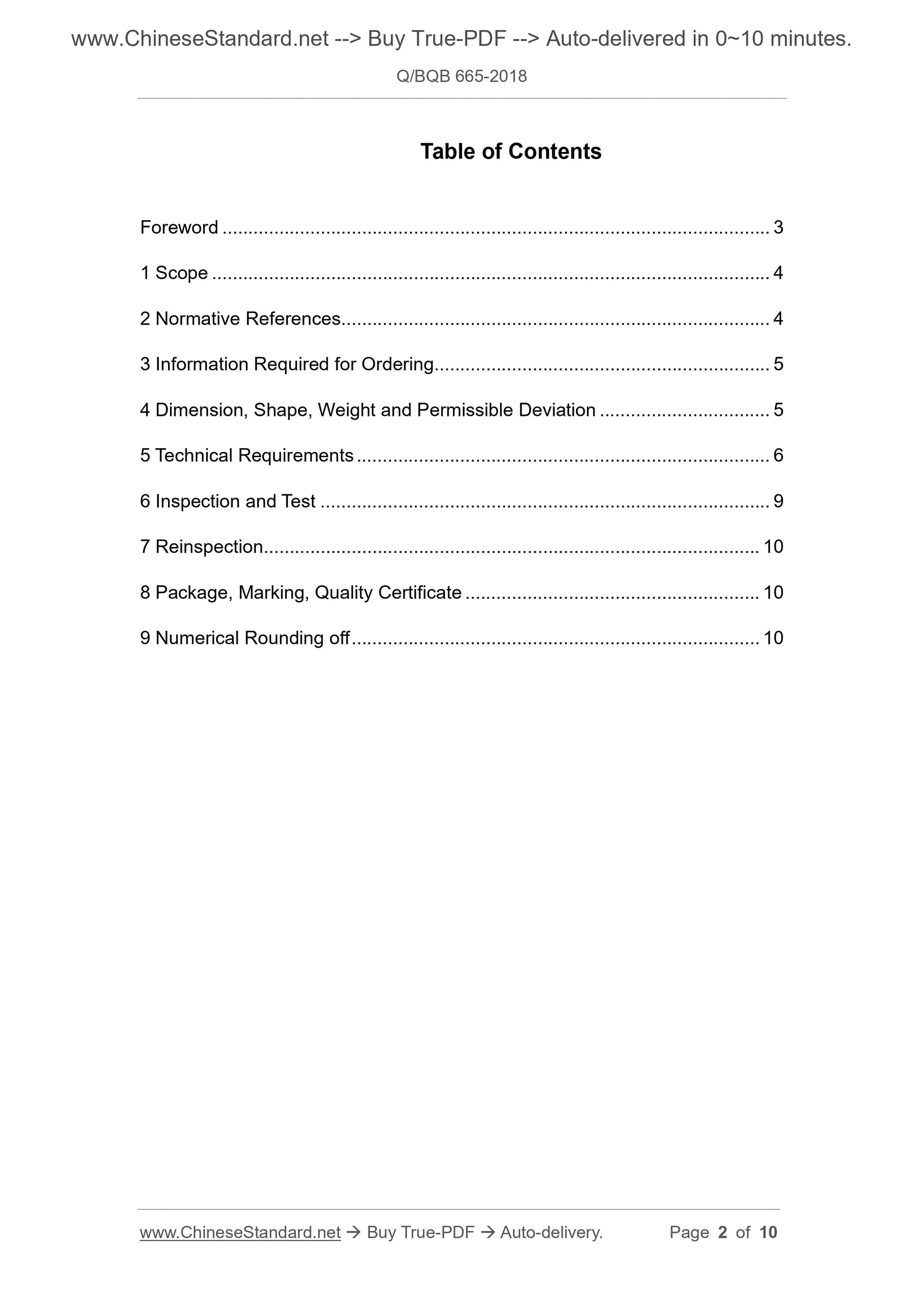

Table of Contents
Foreword ... 3
1 Scope ... 4
2 Normative References ... 4
3 Information Required for Ordering ... 5
4 Dimension, Shape, Weight and Permissible Deviation ... 5
5 Technical Requirements ... 6
6 Inspection and Test ... 9
7 Reinspection ... 10
8 Package, Marking, Quality Certificate ... 10
9 Numerical Rounding off ... 10

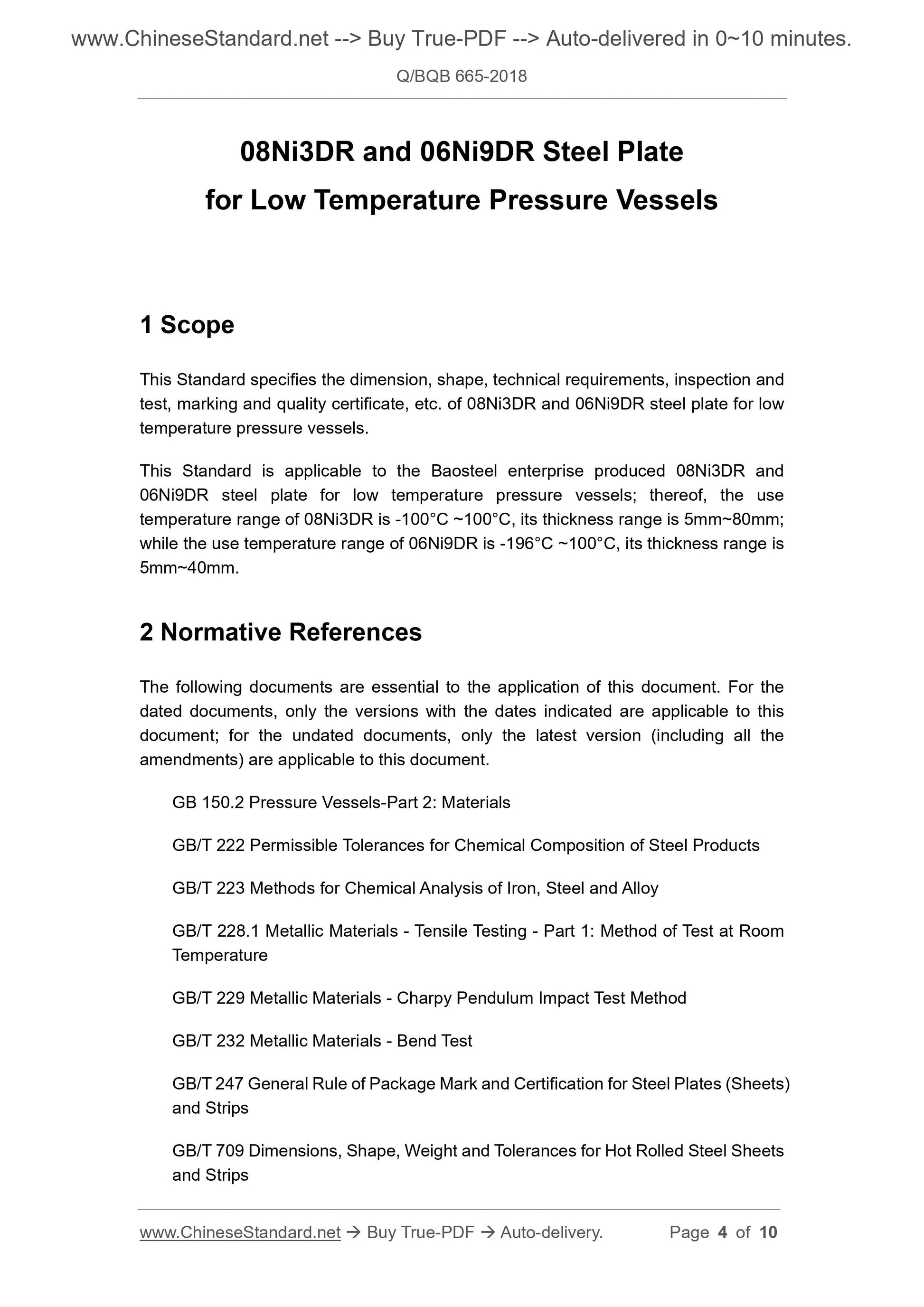

08Ni3DR and 06Ni9DR Steel Plate
for Low Temperature Pressure Vessels
1 Scope
This Standard specifies the dimension, shape, technical requirements, inspection and test, marking and quality certificate, etc. of 08Ni3DR and 06Ni9DR steel plate for low temperature pressure vessels.
This Standard is applicable to the Baosteel enterprise produced 08Ni3DR and 06Ni9DR steel plate for low temperature pressure vessels; thereof, the use temperature range of 08Ni3DR is -100??C ~100??C, its thickness range is 5mm~80mm; while the use temperature range of 06Ni9DR is -196??C ~100??C, its thickness range is 5mm~40mm.
2 Normative References
The following documents are essential to the application of this document. For the dated documents, only the versions with the dates indicated are applicable to this document; for the undated documents, only the latest version (including all the amendments) are applicable to this document.
GB 150.2 Pressure Vessels-Part 2: Materials
GB/T 222 Permissible Tolerances for Chemical Composition of Steel Products GB/T 223 Methods for Chemical Analysis of Iron, Steel and Alloy
GB/T 228.1 Metallic Materials - Tensile Testing - Part 1: Method of Test at Room Temperature
GB/T 229 Metallic Materials - Charpy Pendulum Impact Test Method
GB/T 232 Metallic Materials - Bend Test
GB/T 247 General Rule of Package Mark and Certification for Steel Plates (Sheets) and Strips
GB/T 709 Dimensions, Shape, Weight and Tolerances for Hot Rolled Steel Sheets and Strips

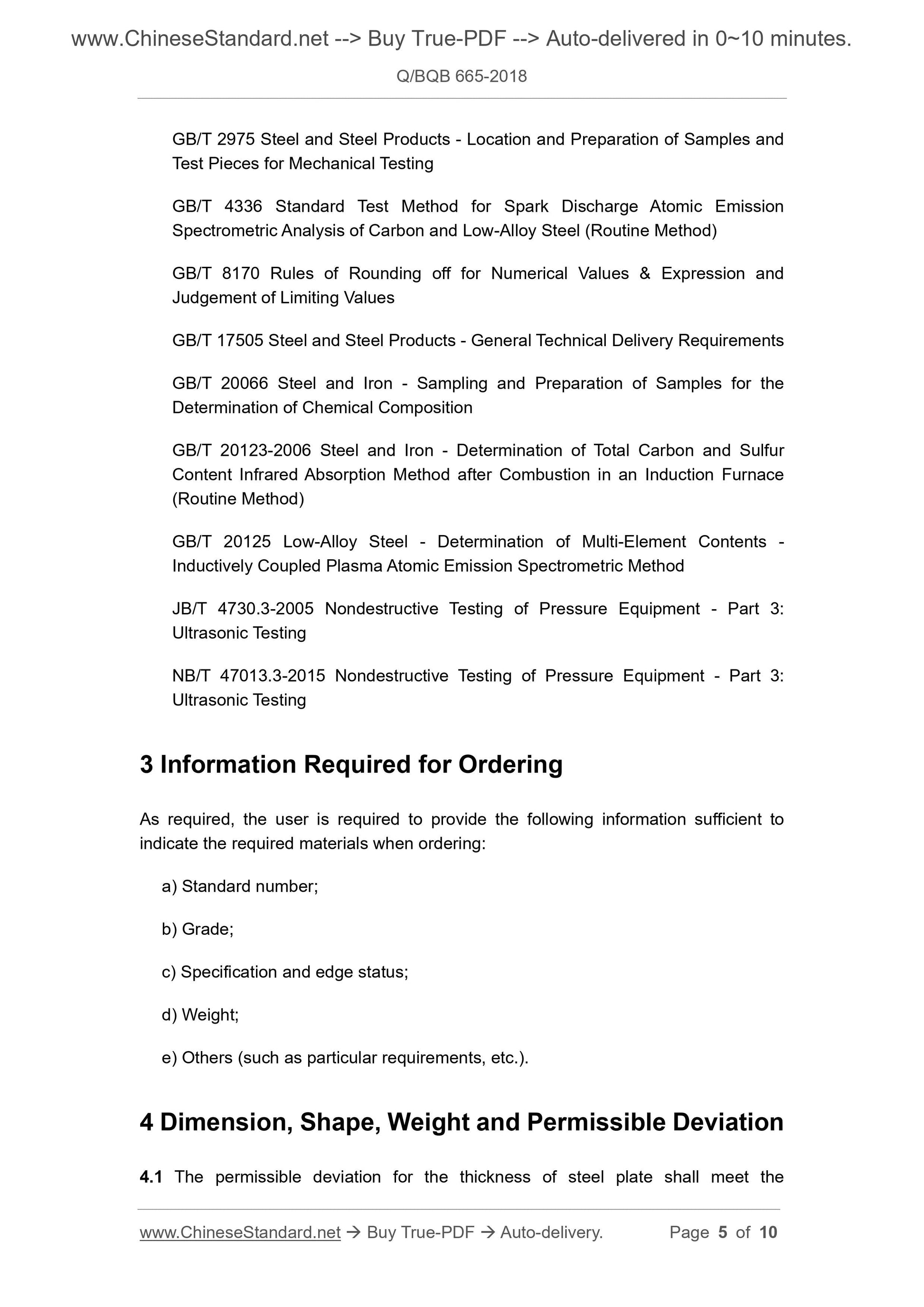

GB/T 2975 Steel and Steel Products - Location and Preparation of Samples and Test Pieces for Mechanical Testing
GB/T 4336 Standard Test Method for Spark Discharge Atomic Emission
Spectrometric Analysis of Carbon and Low-Alloy Steel (Routine Method)
GB/T 8170 Rules of Rounding off for Numerical Values and Expression and
Judgement of Limiting Values
GB/T 17505 Steel and Steel Products - General Technical Delivery Requirements GB/T 20066 Steel and Iron - Sampling and Preparation of Samples for the Determination of Chemical Composition
GB/T 20123-2006 Steel and Iron - Determination of Total Carbon and Sulfur Content Infrared Absorption Method after Combustion in an Induction Furnace (Routine Method)
GB/T 20125 Low-Alloy Steel - Determination of Multi-Element Contents -
Inductively Coupled Plasma Atomic Emission Spectrometric Method
JB/T 4730.3-2005 Nondestructive Testing of Pressure Equipment - Part 3: Ultrasonic Testing
NB/T 47013.3-2015 Nondestructive Testing of Pressure Equipment - Part 3: Ultrasonic Testing
3 Information Required for Ordering
As required, the user is required to provide the following information sufficient to indicate the required materials when ordering:
a) Standard number;
b) Grade;
c) Specification and edge status;
d) Weight;
e) Others (such as particular requirements, etc.).
4 Dimension, Shape, Weight and Permissible Deviation
4.1 The permissible deviation for the thickness of steel plate shall meet the 5.3.2 With the consent of the purchaser, the 08Ni3DR steel plate with thickness greater than 60mm can be delivered by normalizing, then accelerated cooling and tempering (indicated by symbols ?€?NT?€?); thereof, the tempering temperature shall be no lower than 600??C.
5.3.3 06Ni9DR steel plate is delivered in state of quenching and tempering (indicated by symbols ?€?QT?€?). For the steel plate with thickness no greater than 12mm, twice normalizing plus tempering (indicated by symbols ?€?NNT?€?) is allowed. Thereof, tempering temperature shall be no lower than 540??C.
5.3.4 As required, allow the supplier to perform re-heat treatment; the number of quenching or normalizing for re-heat treatment shall be no more than twice; the number of tempering is not limited.
5.3.5 Normally, the edge state of the steel plate is delivered by shearing or flame cutting. 5.4 Mechanical and process properties
5.4.1 The mechanical and process properties of steel plate shall conform to the provisions of Table 2.
5.4.2 Impact absorption energy is the average value of the test results for three specimens in one group; allowing the test result of one of the specimens to be less than the specified value; but no less than 70% of the specified value.
5.4.3 For the steel plate with thickness less than 12mm, the Charpy impact test shall adopt the auxiliary specimen. For the steel plate with thickness >8mm~< 12mm, the dimension of the auxiliary specimen is 7.5mm??10mm??55mm; its test result shall be no less than 75% of the specified value in Table 2. For the steel plate with thickness 6mm~8mm, the dimension of the auxiliary specimen is 5mm??10mm??55mm; its test result shall be no less than 50% of the specified value in Table 2. For the steel plate with thickness 5mm~< 6mm, the dimension of the auxiliary specimen is
2.5mm??10mm??55mm; its test result shall be no less than 25% specified value in Table 2.
5.4.4 After the bending test, the outer surface of the specimen shall be free of the visible cracks.
