Q/BQB 311-2014: Continuously hot-rolled high yield strength steel sheet and strip for cold forming

This Standard specifies the dimensions, shapes, technical requirements, inspection and testing, packaging, marks and inspection documents of continuously hot-rolled high yield strength steel sheet and strip for cold forming. This Standard is applicable to continuously hot-rolled high yield strength steel sheet and strip for cold forming manufactured by Baoshan Iron and Steel Co., Ltd., as well as transversely cut steel sheet and the longitudinally cut steel strip, hereinafter referred to as steel sheet and strip.
Q/BQB 311-2014
BQB
Baoshan Iron and Steel Co., Ltd. Enterprise Standard
Replacing Q/BQB 311-2009
Continuously hot-rolled high yield
strength steel sheet and strip for cold forming
ISSUED ON. MAY 05, 2014
IMPLEMENTED ON. SEPTEMBER 01, 2014
Issued by. Baoshan Iron and Steel Co., Ltd.
Table of Contents
Foreword ... 3
1 Scope ... 4
2 Normative references ... 4
3 Classification and codes ... 5
4 Ordering information ... 5
5 Dimensions, shapes, weight and allowable deviation ... 6
6 Technical requirements ... 6
7 Inspection and testing ... 8
8 Packaging, marks and inspection documents ... 10
9 Numerical rounding rule ... 10
10 Appendix ... 10
Annex A (informative) Comparison table between this Standard and related standards on similar designations ... 11
Foreword
This Standard was drafted in accordance with the rules given in GB/T 1.1-2009 ?€?Directives for standardization - Part 1. Structure and drafting of standards?€?. This Standard was formulated based on EN 10149-2.2013, SEW 092.95, SAE
J1392.2008 and ISO 6930-1.2001 and the actual situation of Baoshan Iron and Steel.
This Standard replaces Q/BQB 311-2009.
Compared with Q/BQB 311-2009, the main changes are as follows.
- updated the version of normative references;
- modified Table A.1 of Annex A for a comparison table between this Standard and related standards on similar designations;
- other editorial modifications.
This Standard was proposed by Baoshan Iron and Steel Co., Ltd.
Manufacturing Management Department.
This Standard shall be under the jurisdiction of Baoshan Iron and Steel Co., Ltd. Manufacturing Management Department.
Main drafting organization of this Standard. Baoshan Iron and Steel Co., Ltd. Manufacturing Management Department.
Main drafter of this Standard. Han Yu.
Versions of standard substituted by this Standard are. Q/BQB 311-2007,
Q/BQB 311-2009.
Continuously hot-rolled high yield
strength steel sheet and strip for cold forming
1 Scope
This Standard specifies the dimensions, shapes, technical requirements, inspection and testing, packaging, marks and inspection documents of
continuously hot-rolled high yield strength steel sheet and strip for cold forming. This Standard is applicable to continuously hot-rolled high yield strength steel sheet and strip for cold forming manufactured by Baoshan Iron and Steel Co., Ltd., as well as transversely cut steel sheet and the longitudinally cut steel strip, hereinafter referred to as steel sheet and strip.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies.
GB/T 222-2006, Permissible Tolerances for Chemical Composition of Steel Products
GB/T 223, Steel and iron - Determination of hydrogen content
GB/T 228.1-2010, Metallic materials - Tensile testing - Part 1. Method of test at room temperature
GB/T 232-2010, Metallic materials - Bend test
GB/T 2975-1998, Steel and Steel Products - Location and Preparation of
Test Pieces for Mechanical Testing
GB/T 4336-2002, Standard Test Method for Spark Discharge Atomic
Emission Spectrometric Analysis of Carbon and Low-Alloy Steel (Routine
Method)
GB/T 8170-2008, Rules of rounding off for numerical values and expression and judgement of limiting values
GB/T 20066-2006, Steel and Iron-Sampling and Preparation of Samples for c) designation, surface treatment method and surface quality level;
d) specifications and size (thickness) accuracy;
e) edge state;
f) usage;
g) inspection document type.
4.2 Omission in the order contract
4.2.1 When surface treatment is not specified, the product shall be delivered in rolled surface.
4.2.2 For hot-rolled steel sheets and strips, when dimensional accuracy is not stated, the product is delivered in the normal thickness accuracy of Q/BQB 301. When the edge state is not specified, the steel strip shall be delivered in a non- cut state, and the steel sheet is delivered in a trimmed state.
4.2.3 For hot-rolled pickled steel sheets and strips, the product shall be delivered in Q/BQB 301 with higher thickness accuracy. When the edge state and surface quality level are not stated, whether they are oiled, the product shall be delivered in trimming state, higher surface and oiling. When the inner diameter of steel coil is not stated, the product shall be delivered in steel coil inner diameter of 610mm.
5 Dimensions, shapes, weight and allowable deviation
The dimensions, shapes, weight and allowable deviation of steel sheet and strip shall comply with Q/BQB 301.
6 Technical requirements
6.1 Designation and chemical composition
6.1.1 The designation and chemical composition of the steel (melting analysis) shall comply with the requirements of Table 2.
6.1.2 The allowable deviation of the chemical composition of the finished steel sheet and strip shall comply with GB/T 222.
6.2 Smelting method
The steel used for steel sheet and strip is aluminum killed steel smelted by oxygen converter.

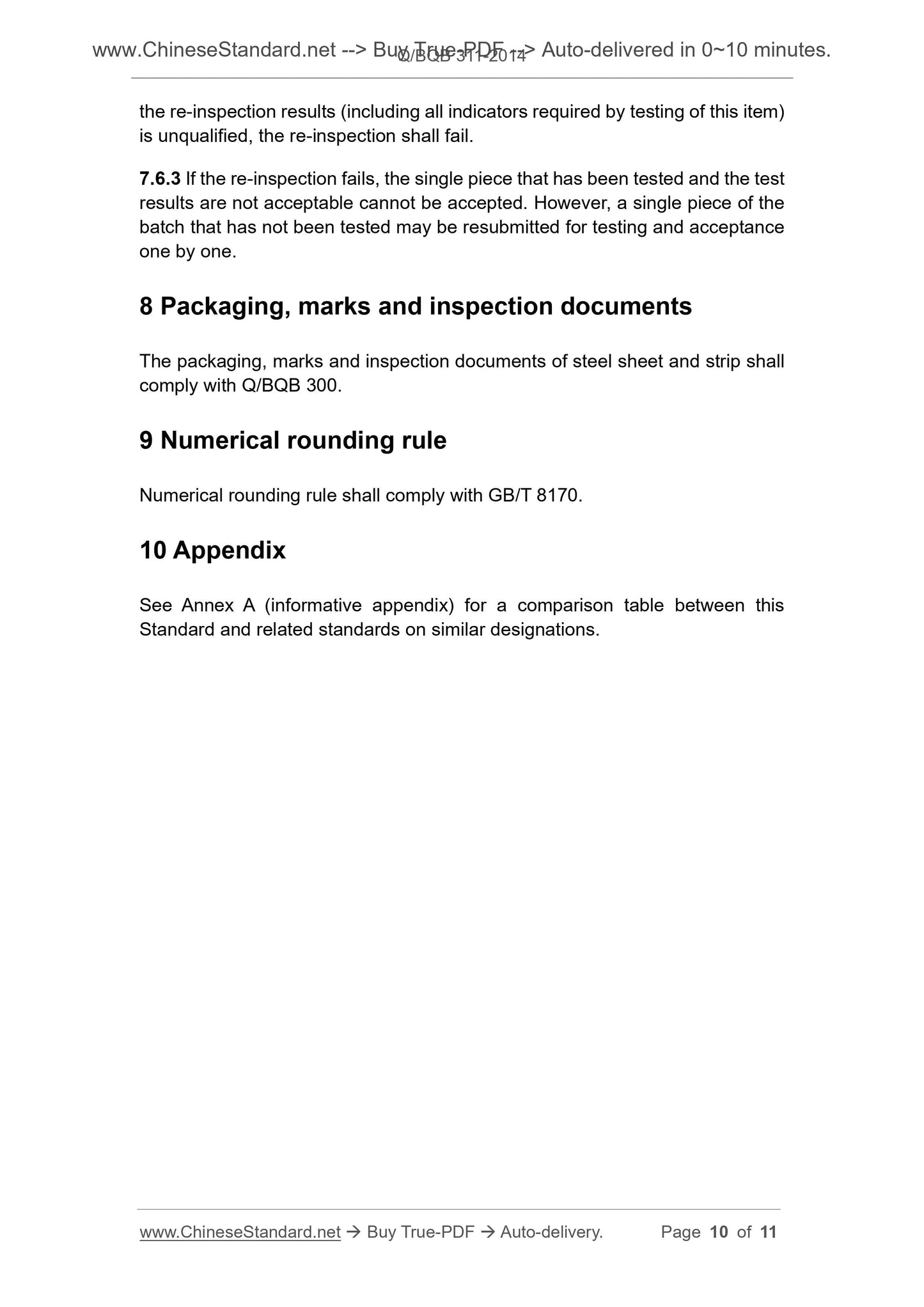

the re-inspection results (including all indicators required by testing of this item) is unqualified, the re-inspection shall fail.
7.6.3 If the re-inspection fails, the single piece that has been tested and the test results are not acceptable cannot be accepted. However, a single piece of the batch that has not been tested may be resubmitted for testing and acceptance one by one.
8 Packaging, marks and inspection documents
The packaging, marks and inspection documents of steel sheet and strip shall comply with Q/BQB 300.
9 Numerical rounding rule
Numerical rounding rule shall comply with GB/T 8170.
10 Appendix
See Annex A (informative appendix) for a comparison table between this
Standard and related standards on similar designations.
