Q/BQB 203-2009 English PDF (QBQB203-2009)

Q/BQB 203-2009 English PDF (QBQB203-2009)

Regular price $270.00 USD
Regular price Sale price $270.00 USD
Sale Sold out
Shipping calculated at checkout.
Quotation: 24-hr self-service. Click Q/BQB 203-2009
See Chinese contents: Q/BQB 203-2009

Q/BQB 203-2009: Seamless steel tubes for pipes, containers and equipment structure

This standard specifies the size, shape, weight, technical requirements, inspection and testing, packaging, marking and inspection documents of seamless steel pipe for pipeline, vessel and equipment structure.

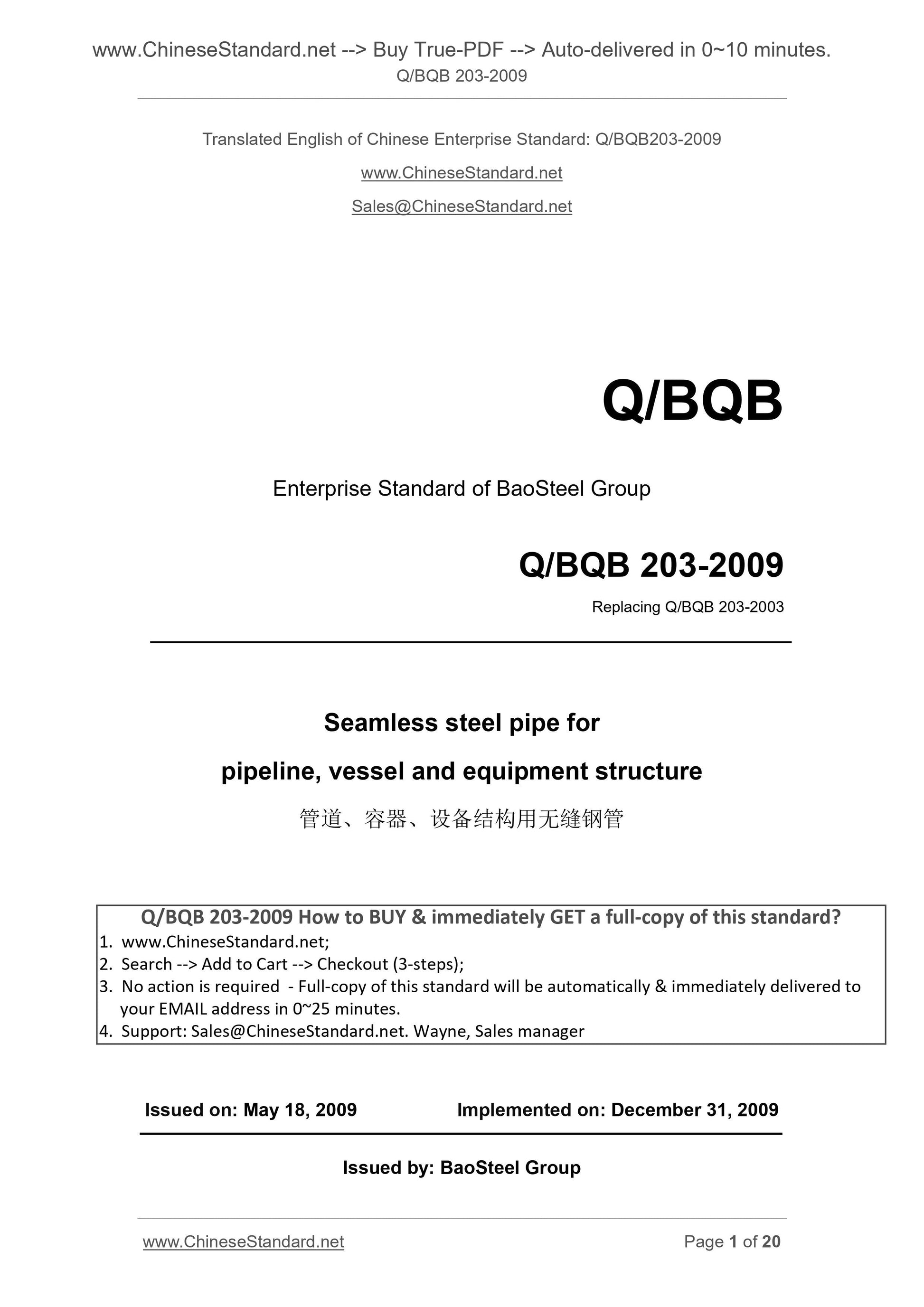

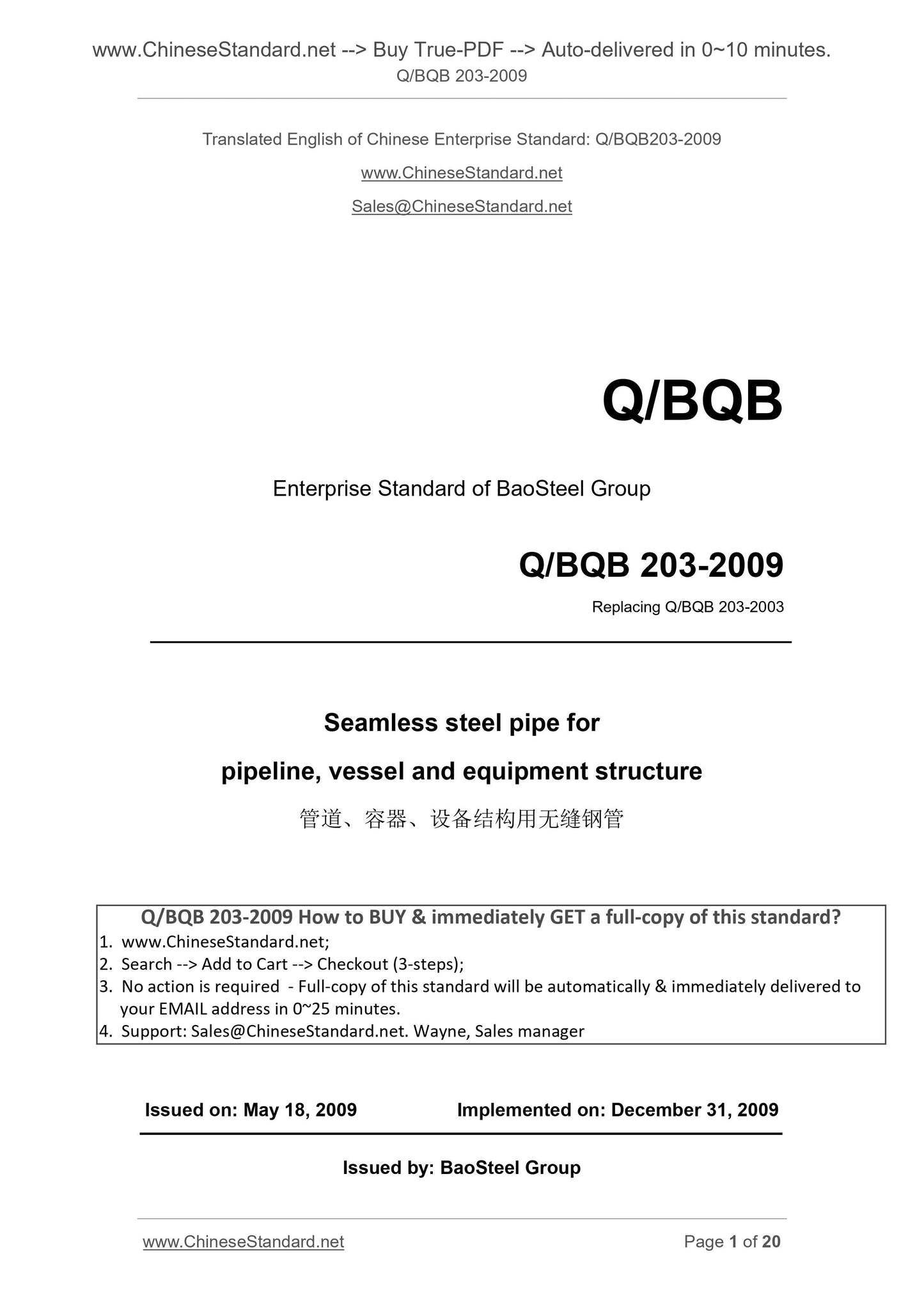

Q/BQB 203-2009
Q/BQB
Enterprise Standard of BaoSteel Group
Replacing Q/BQB 203-2003
Seamless steel pipe for
pipeline, vessel and equipment structure
ISSUED ON. MAY 18, 2009
IMPLEMENTED ON. DECEMBER 31, 2009
Issued by. BaoSteel Group

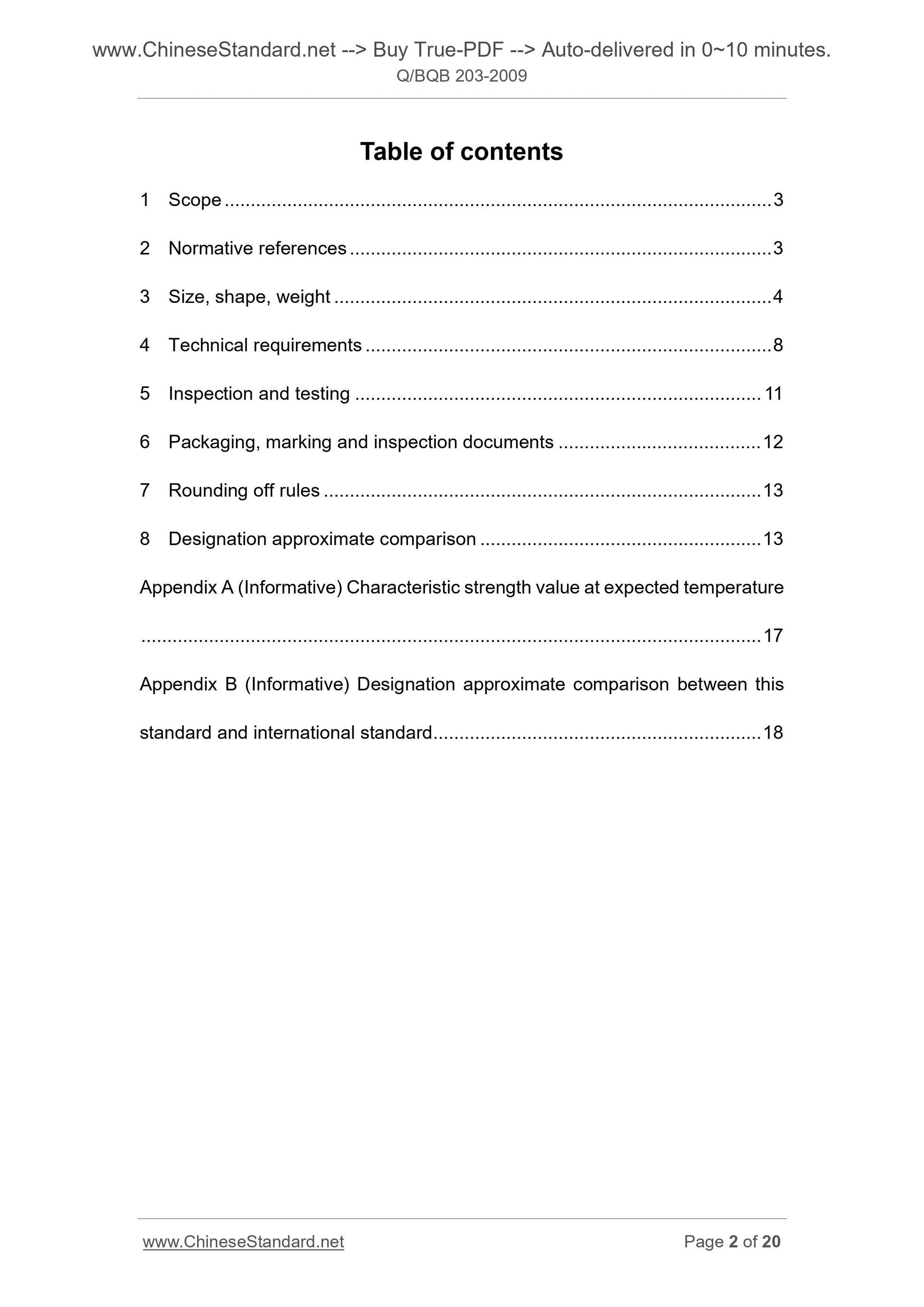

Table of contents
1 Scope ... 3
2 Normative references ... 3
3 Size, shape, weight ... 4
4 Technical requirements ... 8
5 Inspection and testing ... 11
6 Packaging, marking and inspection documents ... 12
7 Rounding off rules ... 13
8 Designation approximate comparison ... 13
Appendix A (Informative) Characteristic strength value at expected temperature ... 17
Appendix B (Informative) Designation approximate comparison between this standard and international standard ... 18

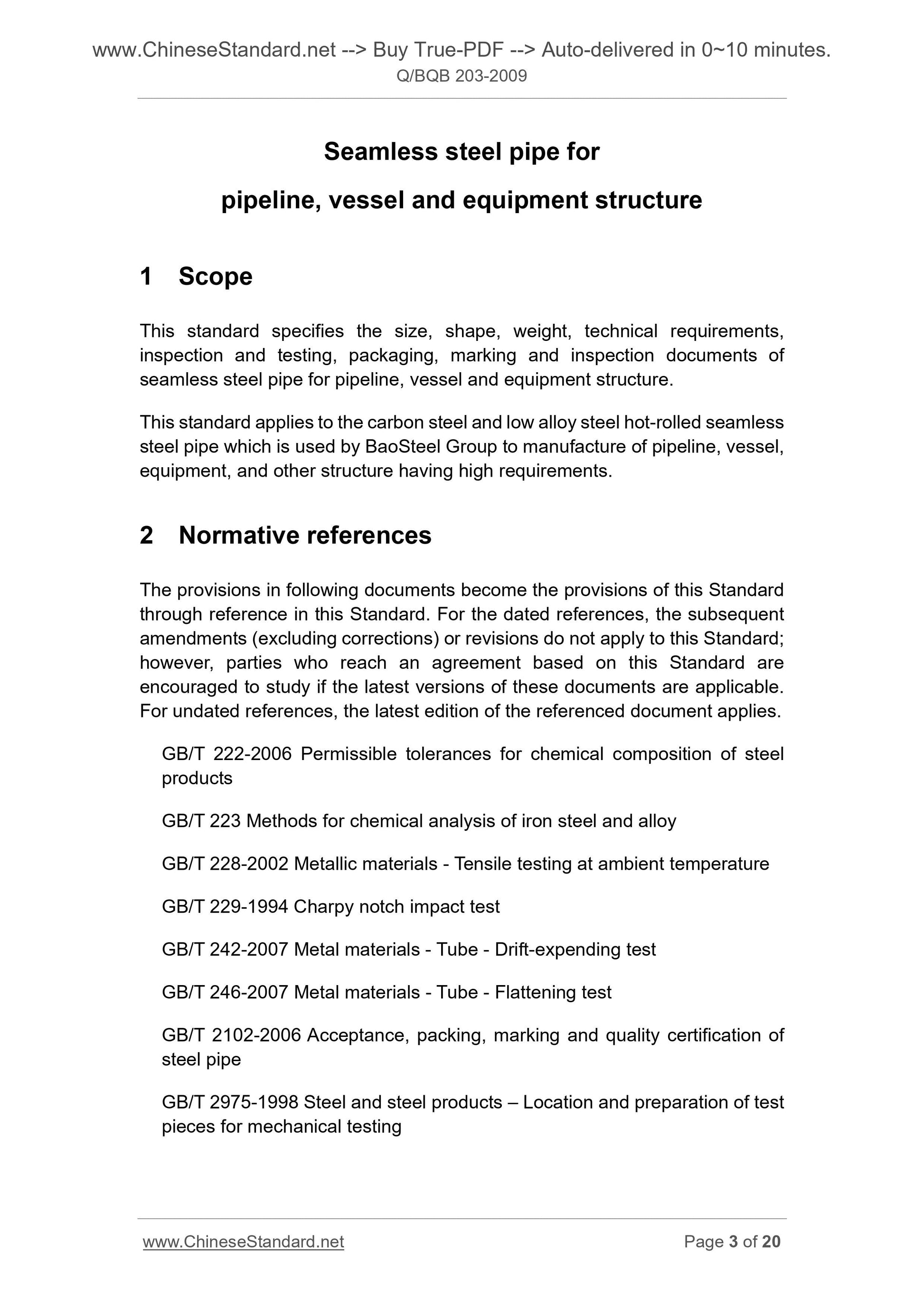

Seamless steel pipe for
pipeline, vessel and equipment structure
1 Scope
This standard specifies the size, shape, weight, technical requirements, inspection and testing, packaging, marking and inspection documents of
seamless steel pipe for pipeline, vessel and equipment structure.
This standard applies to the carbon steel and low alloy steel hot-rolled seamless steel pipe which is used by BaoSteel Group to manufacture of pipeline, vessel, equipment, and other structure having high requirements.
2 Normative references
The provisions in following documents become the provisions of this Standard through reference in this Standard. For the dated references, the subsequent amendments (excluding corrections) or revisions do not apply to this Standard; however, parties who reach an agreement based on this Standard are
encouraged to study if the latest versions of these documents are applicable. For undated references, the latest edition of the referenced document applies. GB/T 222-2006 Permissible tolerances for chemical composition of steel
products
GB/T 223 Methods for chemical analysis of iron steel and alloy
GB/T 228-2002 Metallic materials - Tensile testing at ambient temperature GB/T 229-1994 Charpy notch impact test
GB/T 242-2007 Metal materials - Tube - Drift-expending test
GB/T 246-2007 Metal materials - Tube - Flattening test
GB/T 2102-2006 Acceptance, packing, marking and quality certification of steel pipe
GB/T 2975-1998 Steel and steel products ?€? Location and preparation of test pieces for mechanical testing

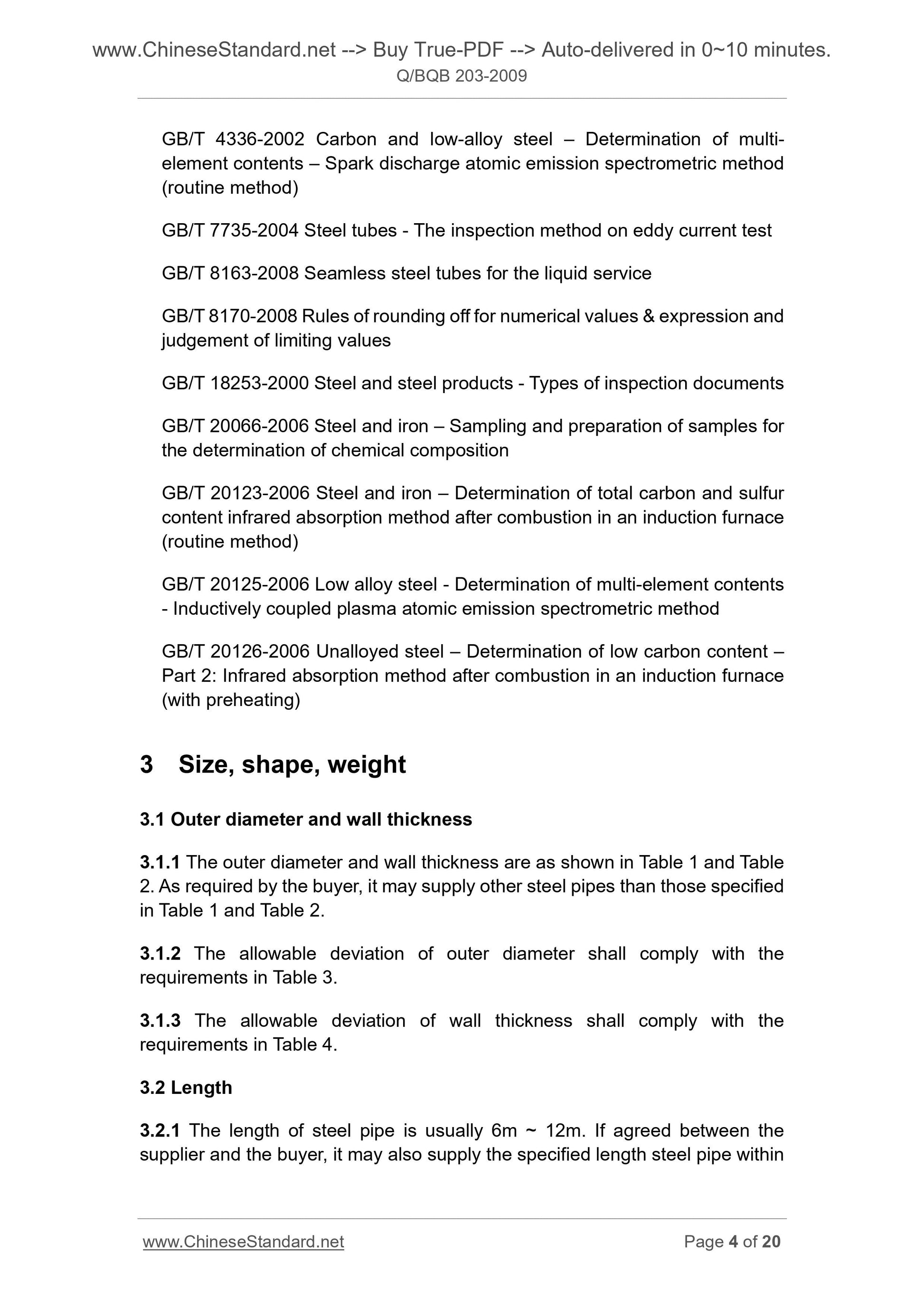

GB/T 4336-2002 Carbon and low-alloy steel ?€? Determination of multi-
element contents ?€? Spark discharge atomic emission spectrometric method (routine method)
GB/T 7735-2004 Steel tubes - The inspection method on eddy current test GB/T 8163-2008 Seamless steel tubes for the liquid service
GB/T 8170-2008 Rules of rounding off for numerical values and expression and judgement of limiting values
GB/T 18253-2000 Steel and steel products - Types of inspection documents GB/T 20066-2006 Steel and iron ?€? Sampling and preparation of samples for the determination of chemical composition
GB/T 20123-2006 Steel and iron ?€? Determination of total carbon and sulfur content infrared absorption method after combustion in an induction furnace (routine method)
GB/T 20125-2006 Low alloy steel - Determination of multi-element contents - Inductively coupled plasma atomic emission spectrometric method
GB/T 20126-2006 Unalloyed steel ?€? Determination of low carbon content ?€? Part 2. Infrared absorption method after combustion in an induction furnace (with preheating)
3 Size, shape, weight
3.1 Outer diameter and wall thickness
3.1.1 The outer diameter and wall thickness are as shown in Table 1 and Table 2. As required by the buyer, it may supply other steel pipes than those specified in Table 1 and Table 2.
3.1.2 The allowable deviation of outer diameter shall comply with the
requirements in Table 3.
3.1.3 The allowable deviation of wall thickness shall comply with the
requirements in Table 4.
3.2 Length

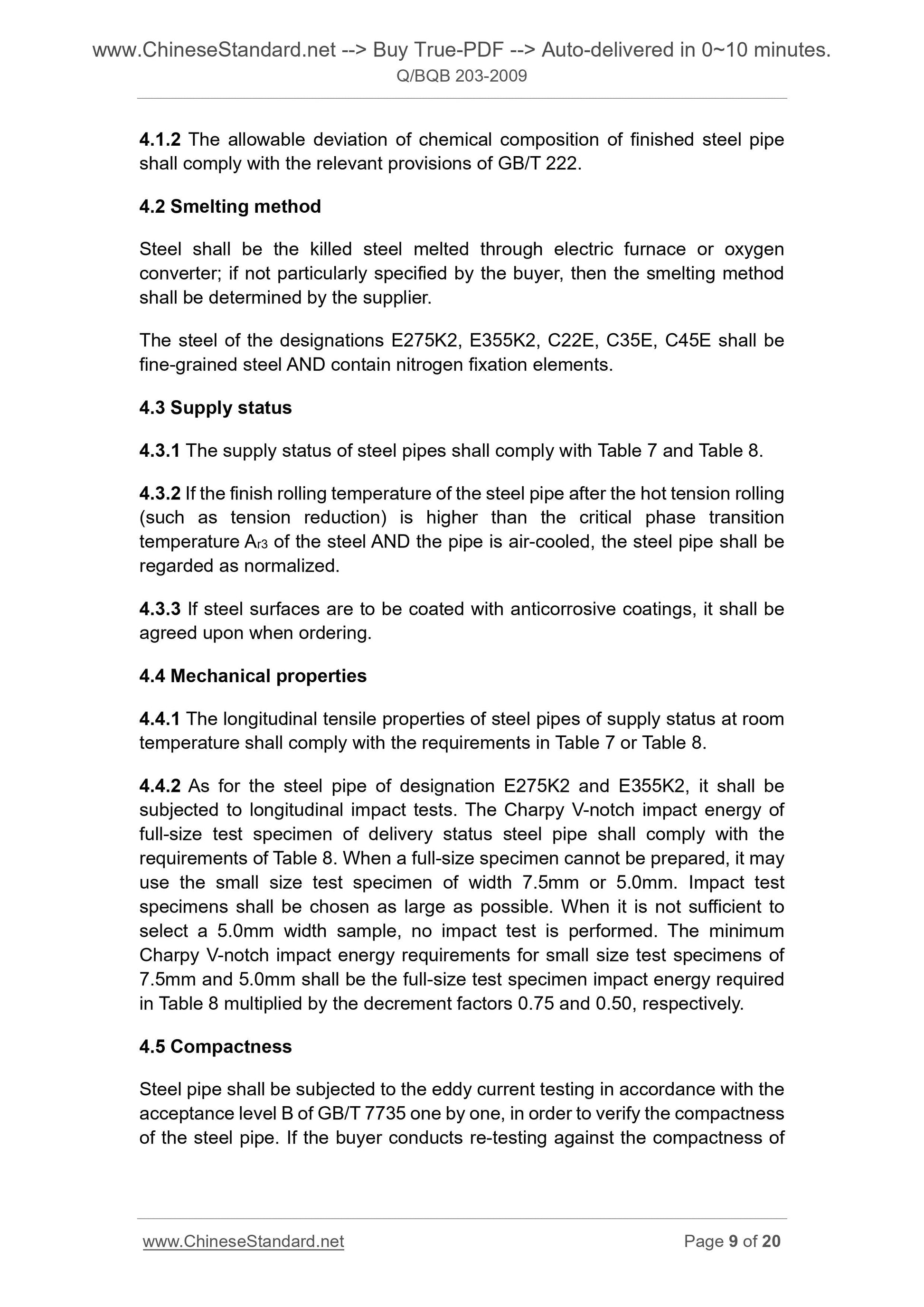

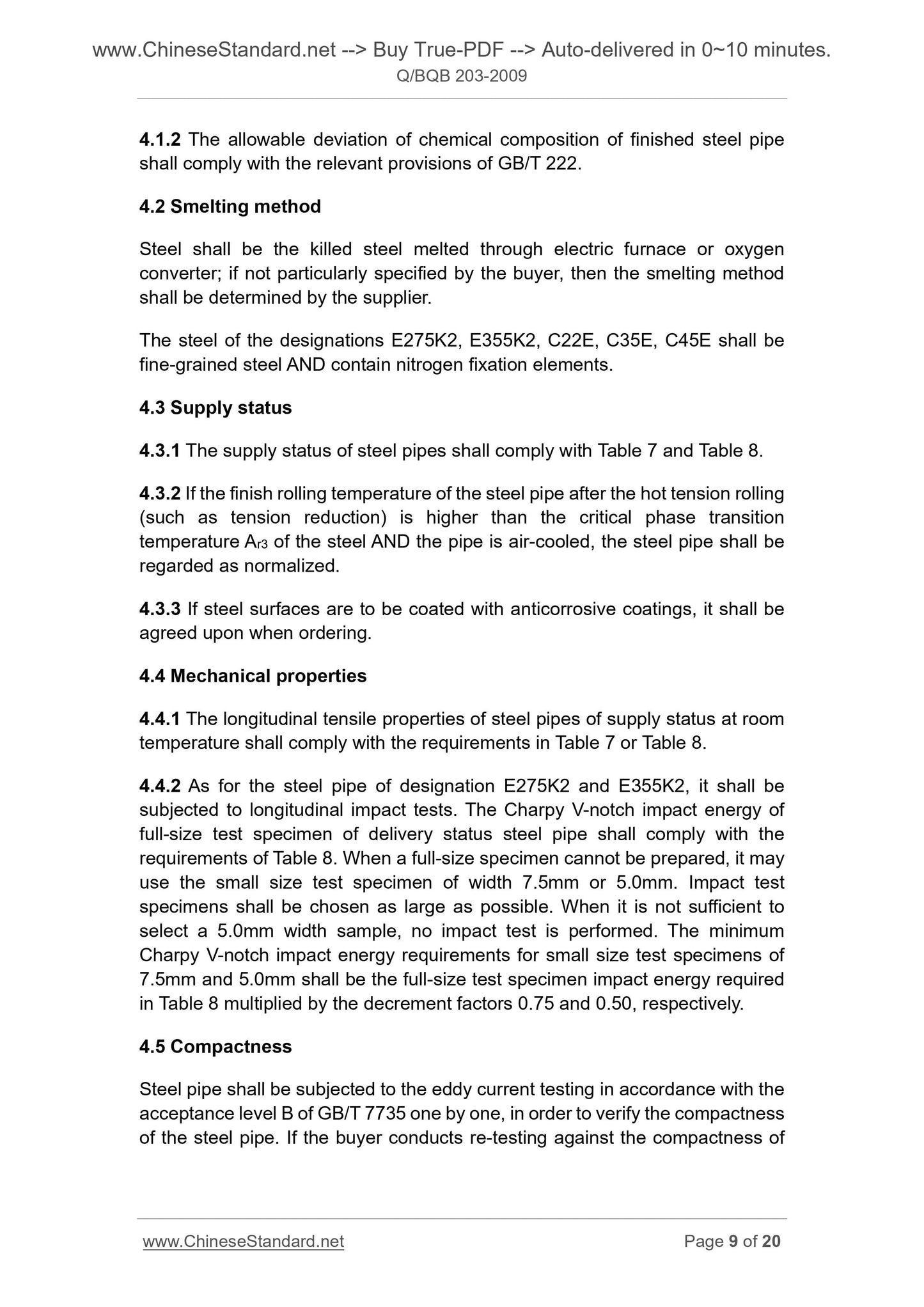

3.2.1 The length of steel pipe is usually 6m ~ 12m. If agreed between the supplier and the buyer, it may also supply the specified length steel pipe within 4.1.2 The allowable deviation of chemical composition of finished steel pipe shall comply with the relevant provisions of GB/T 222.
4.2 Smelting method
Steel shall be the killed steel melted through electric furnace or oxygen converter; if not particularly specified by the buyer, then the smelting method shall be determined by the supplier.
The steel of the designations E275K2, E355K2, C22E, C35E, C45E shall be fine-grained steel AND contain nitrogen fixation elements.
4.3 Supply status
4.3.1 The supply status of steel pipes shall comply with Table 7 and Table 8. 4.3.2 If the finish rolling temperature of the steel pipe after the hot tension rolling (such as tension reduction) is higher than the critical phase transition temperature Ar3 of the steel AND the pipe is air-cooled, the steel pipe shall be regarded as normalized.
4.3.3 If steel surfaces are to be coated with anticorrosive coatings, it shall be agreed upon when ordering.
4.4 Mechanical properties
4.4.1 The longitudinal tensile properties of steel pipes of supply status at room temperature shall comply with the requirements in Table 7 or Table 8.
4.4.2 As for the steel pipe of designation E275K2 and E355K2, it shall be subjected to longitudinal impact tests. The Charpy V-notch impact energy of full-size test specimen of delivery status steel pipe shall comply with the requirements of Table 8. When a full-size specimen cannot be prepared, it may use the small size test specimen of width 7.5mm or 5.0mm. Impact test
specimens shall be chosen as large as possible. When it is not sufficient to select a 5.0mm width sample, no impact test is performed. The minimum
Charpy V-notch impact energy requirements for small size test specimens of 7.5mm and 5.0mm shall be the full-size test specimen impact energy required in Table 8 multiplied by the decrement factors 0.75 and 0.50, respectively. 4.5 Compactness
Steel pipe shall be subjected to the eddy current testing in accordance with the acceptance level B of GB/T 7735 one by one, in order to verify the compactness of the steel pipe. If the buyer conducts re-testing against the compactness of It is allowed for the presence of slight raised, sunken or shallow roll marks due to the manufacturing method, BUT the outer diameter and wall thickness of the steel pipe must be within the allowable dimensional tolerances, without affecting the serviceability of the steel pipe.

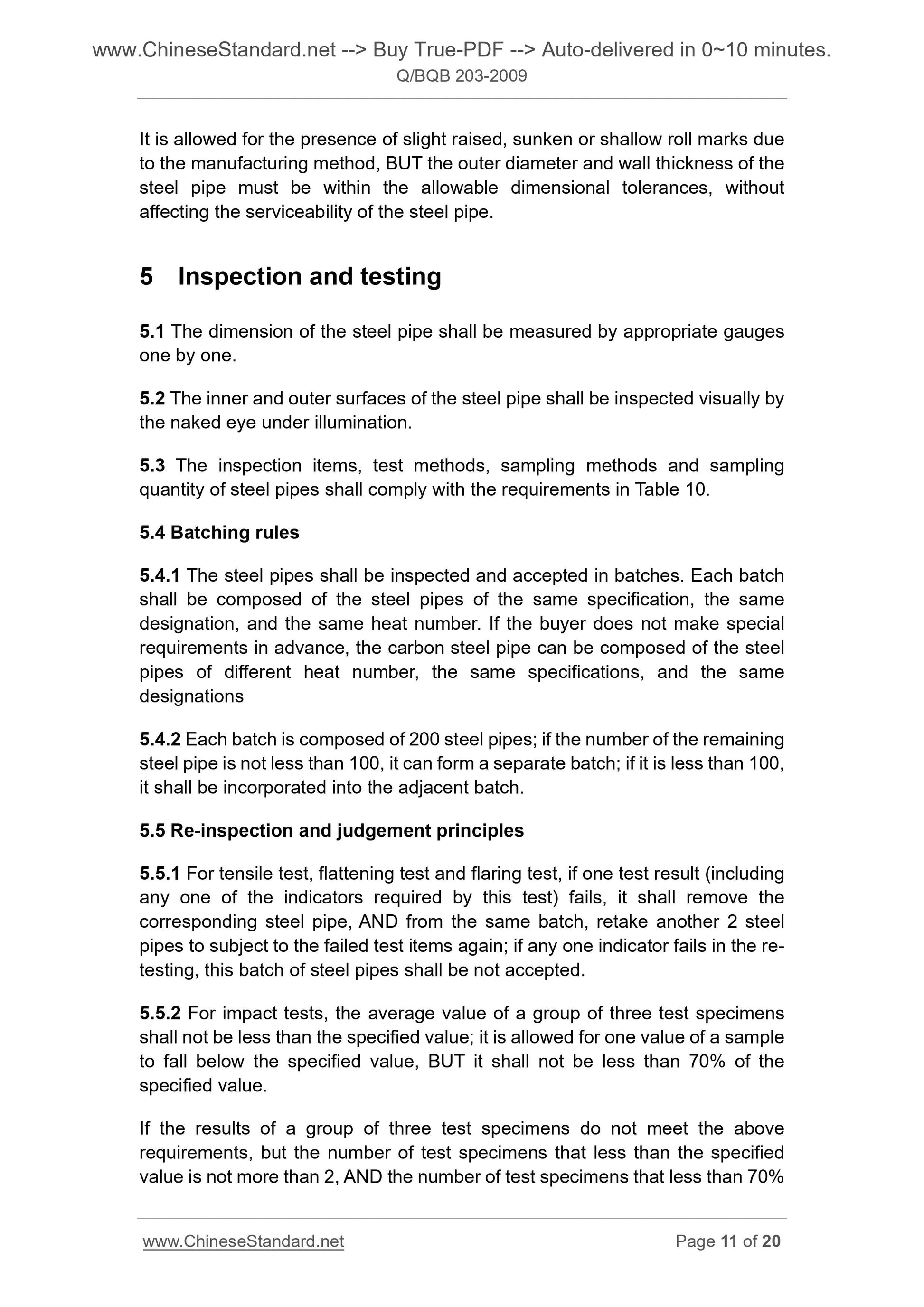

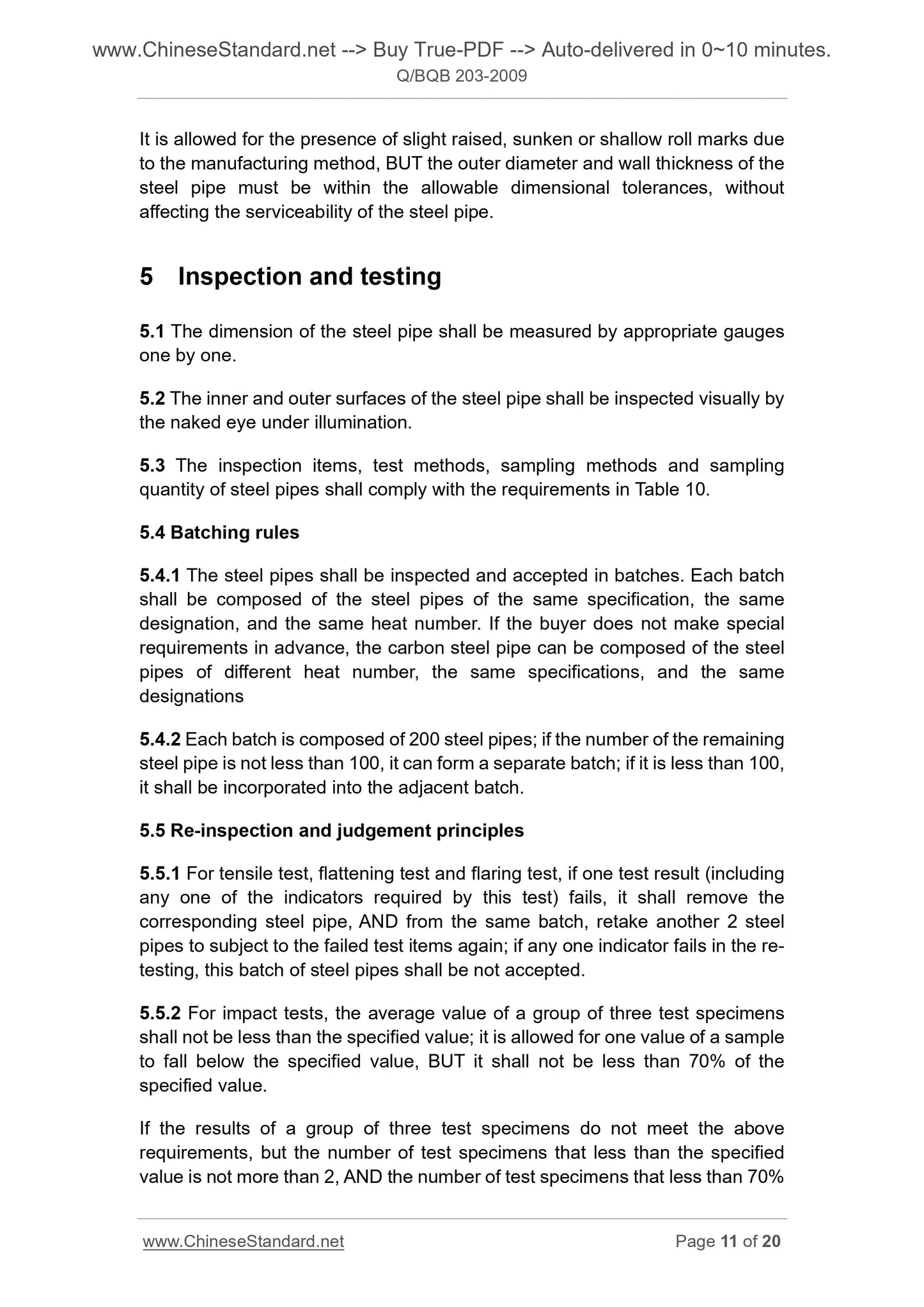

5 Inspection and testing
5.1 The dimension of the steel pipe shall be measured by appropriate gauges one by one.
5.2 The inner and outer surfaces of the steel pipe shall be inspected visually by the naked eye under illumination.
5.3 The inspection items, test methods, sampling methods and sampling
quantity of steel pipes shall comply with the requirements in Table 10. 5.4 Batching rules
5.4.1 The steel pipes shall be inspected and accepted in batches. Each batch shall be composed of the steel pipes of the same specification, the same designation, and the same heat number. If the buyer does not make special requirements in advance, the carbon steel pipe can be composed of the steel pipes of different heat number, the same specifications, and the same
designations
5.4.2 Each batch is composed of 200 steel pipes; if the number of the remaining steel pipe is not less than 100, it can form a separate batch; if it is less than 100, it shall be incorporated into the adjacent batch.
5.5 Re-inspection and judgement principles
5.5.1 For tensile test, flattening test and flaring test, if one test result (including any one of the indicators required by this test) fails, it shall remove the corresponding steel pipe, AND from the same batch, retake another 2 steel pipes to subject to the failed test items again; if any one indicator fails in the re- testing, this batch of steel pipes shall be not accepted.
5.5.2 For impact tests, the average value of a group of three test specimens shall not be less than the specified value; it is allowed for one value of a sample to fall below the specified value, BUT it shall not be less than 70% of the specified value.

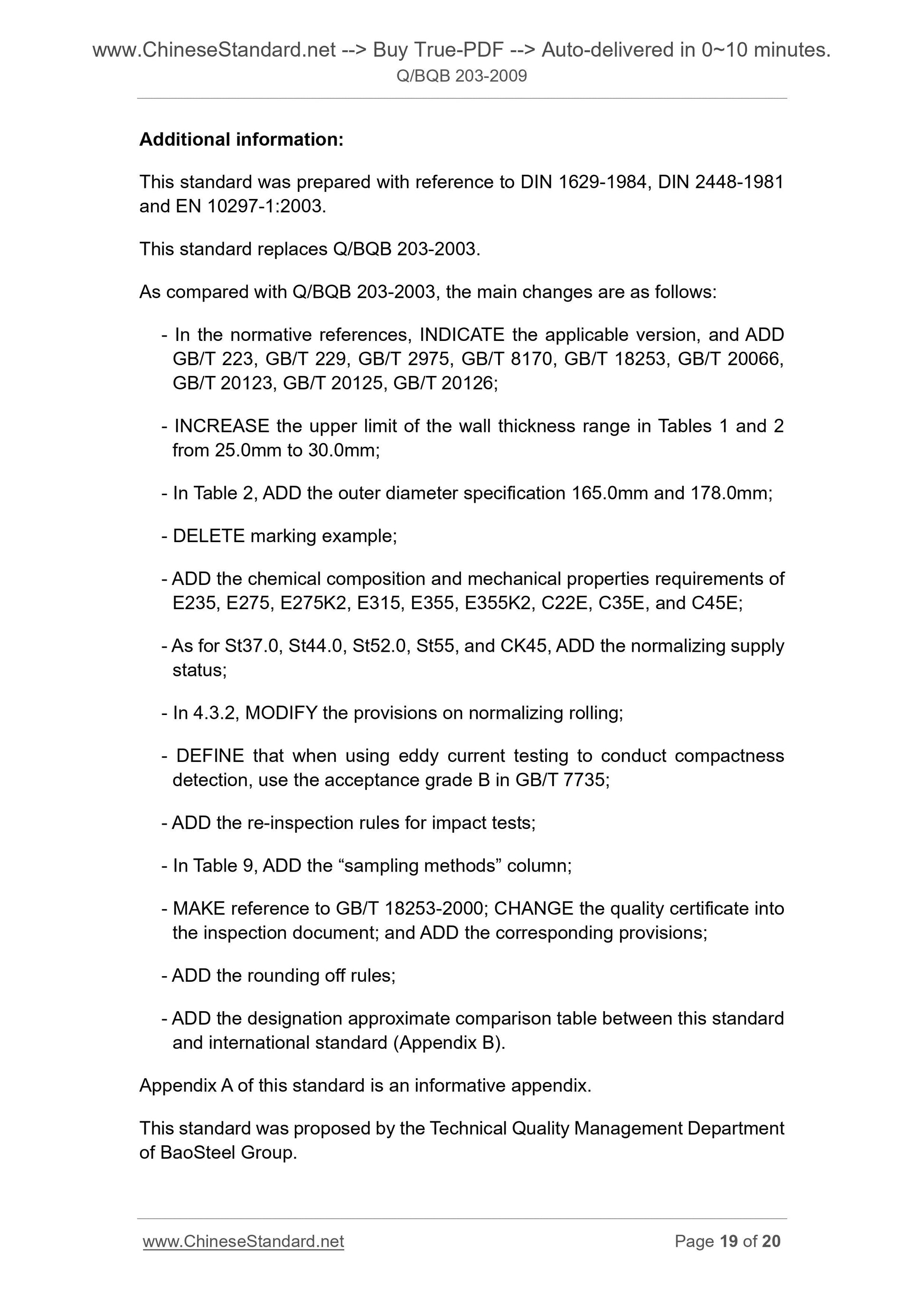

If the results of a group of three test specimens do not meet the above requirements, but the number of test specimens that less than the specified value is not more than 2, AND the number of test specimens that less than 70% Additional information.
This standard was prepared with reference to DIN 1629-1984, DIN 2448-1981 and EN 10297-1.2003.
This standard replaces Q/BQB 203-2003.
As compared with Q/BQB 203-2003, the main changes are as follows.
- In the normative references, INDICATE the applicable version, and ADD GB/T 223, GB/T 229, GB/T 2975, GB/T 8170, GB/T 18253, GB/T 20066,
GB/T 20123, GB/T 20125, GB/T 20126;
- INCREASE the upper limit of the wall thickness range in Tables 1 and 2 from 25.0mm to 30.0mm;
- In Table 2, ADD the outer diameter specification 165.0mm and 178.0mm; - DELETE marking example;
- ADD the chemical composition and mech...
