Q/BQB 111-2018: Continuous casting square and rectangular blank

This Standard specifies the dimension, shape, weight and tolerance, technical requirements, inspection and testing, packaging, marks and inspection documents of continuous casting square and rectangular blank. This Standard is applicable to continuous casting square and rectangular blank for rerolling, forging or metallurgical raw materials manufactured by Baoshan Iron and Steel Co., Ltd.

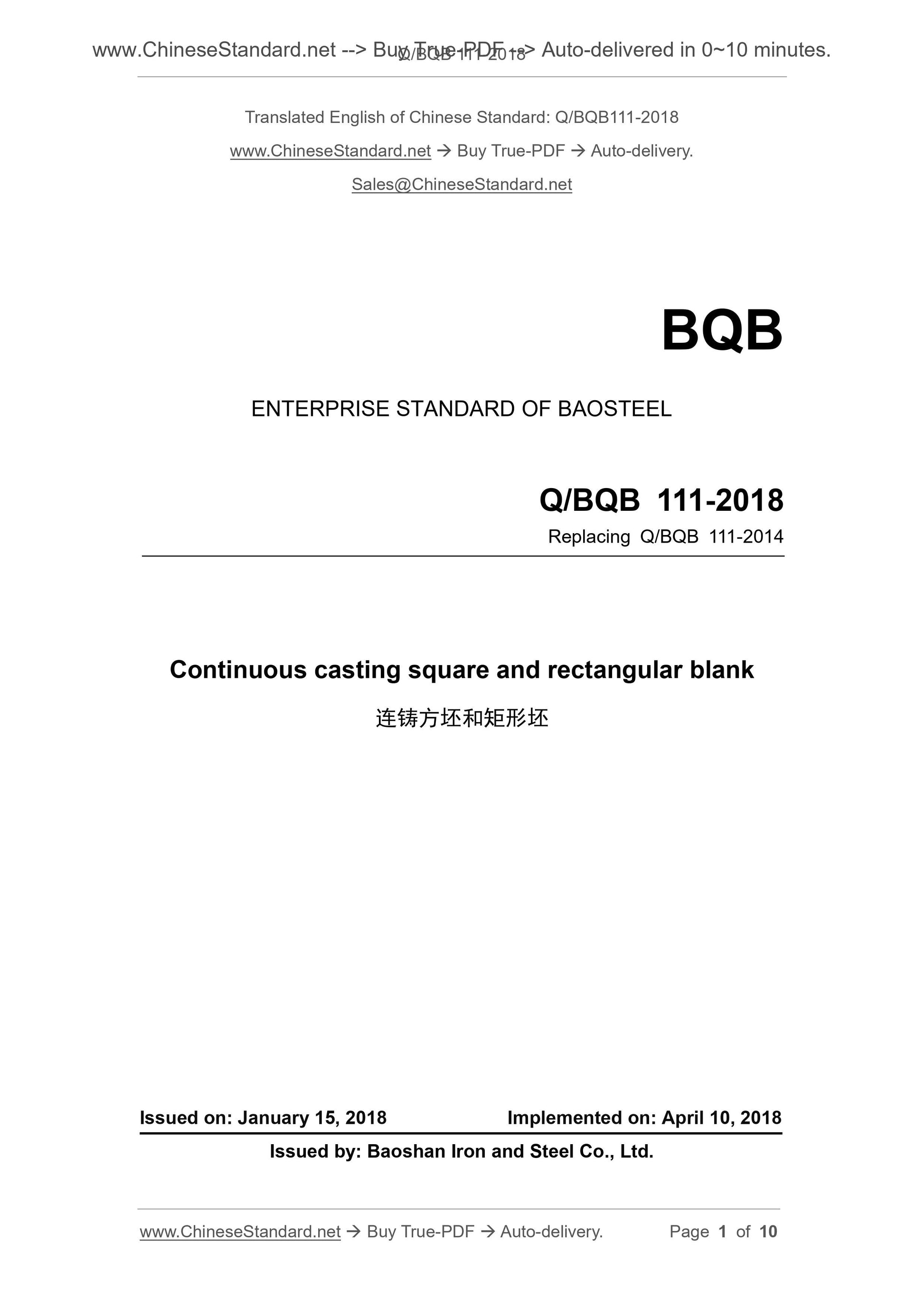

Q/BQB 111-2018
BQB
ENTERPRISE STANDARD OF BAOSTEEL
Replacing Q/BQB 111-2014
Continuous casting square and rectangular blank
ISSUED ON. JANUARY 15, 2018
IMPLEMENTED ON. APRIL 10, 2018
Issued by. Baoshan Iron and Steel Co., Ltd.

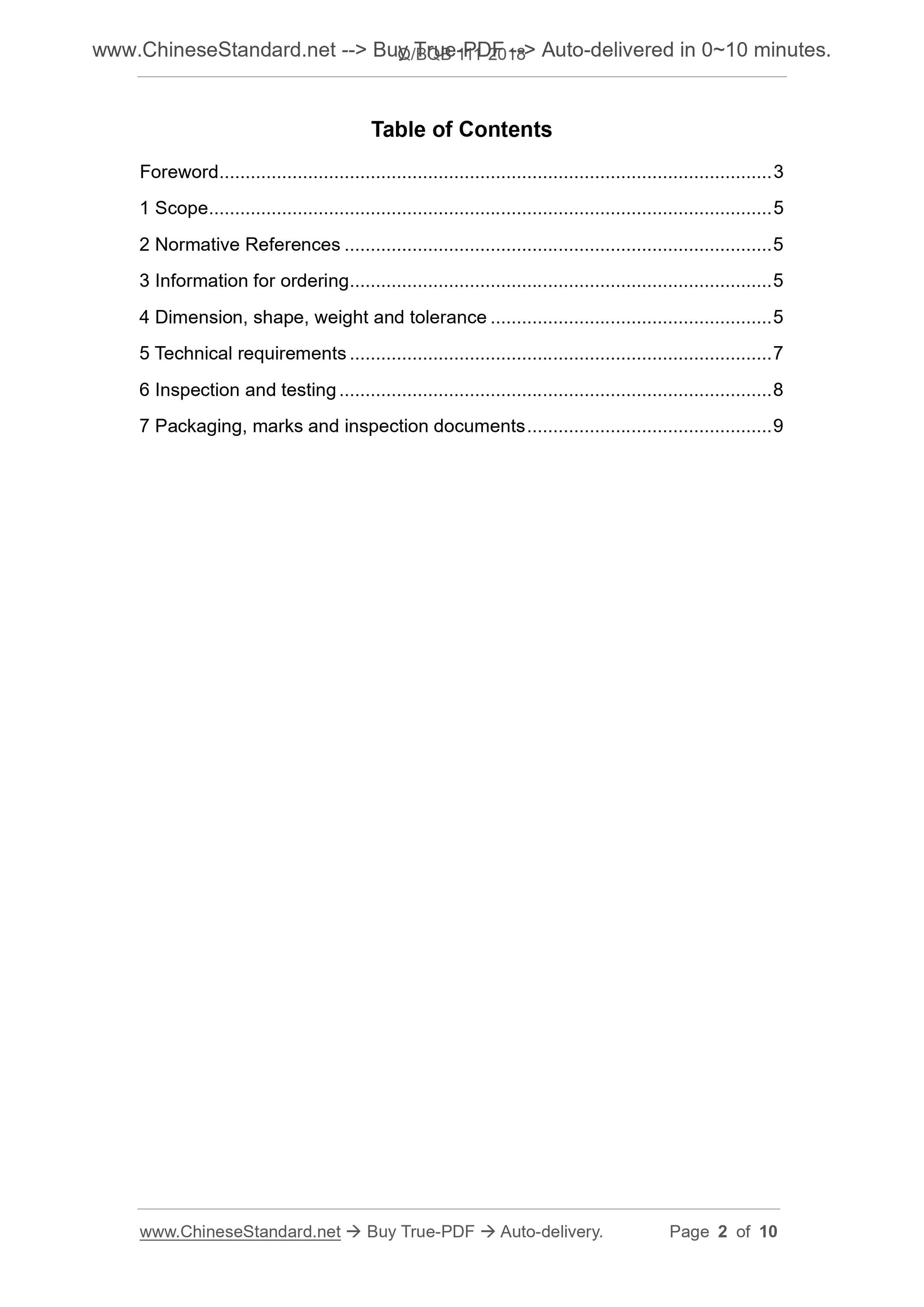

Table of Contents
Foreword ... 3
1 Scope ... 5
2 Normative References ... 5
3 Information for ordering ... 5
4 Dimension, shape, weight and tolerance ... 5
5 Technical requirements ... 7
6 Inspection and testing ... 8
7 Packaging, marks and inspection documents ... 9

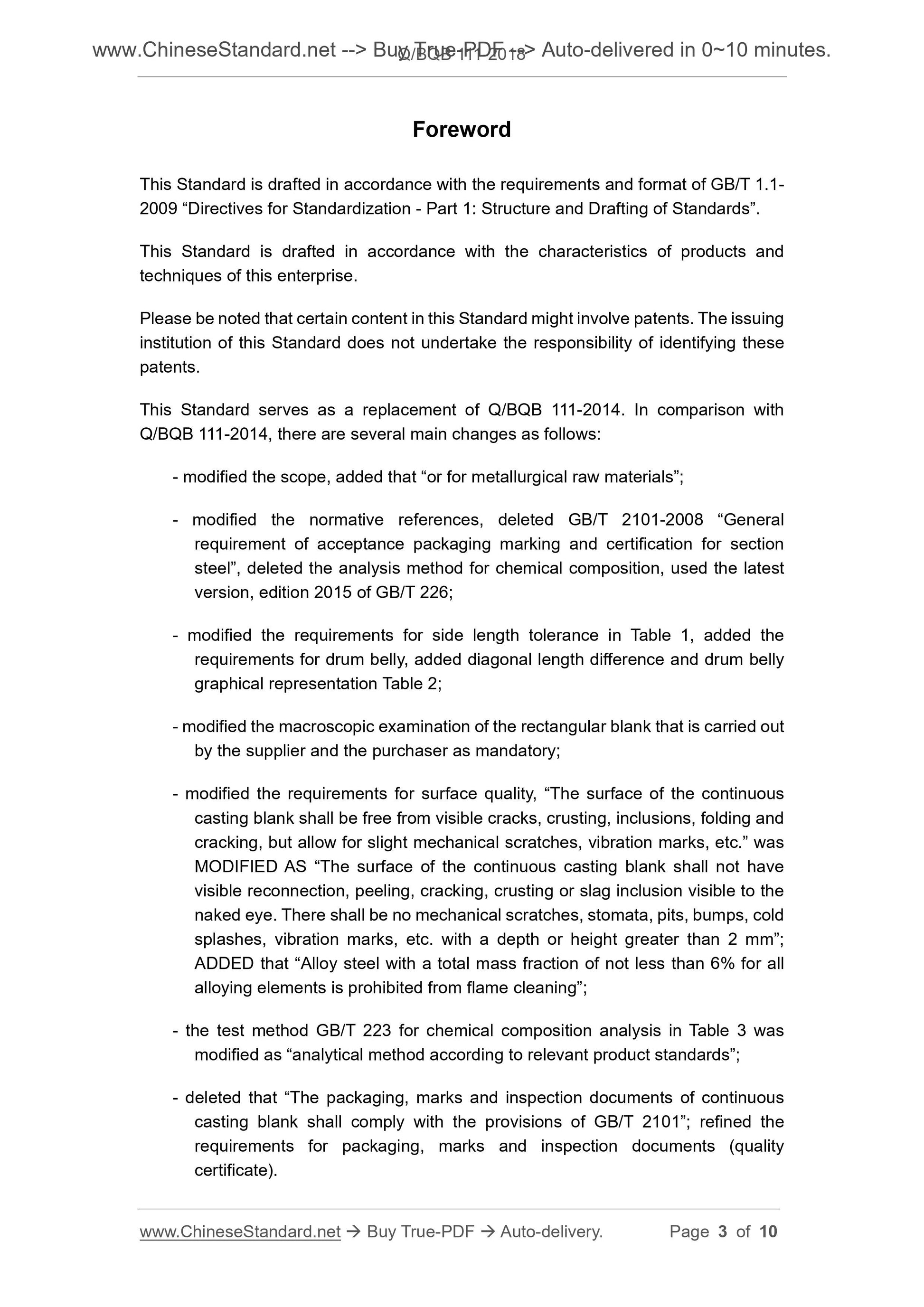

Foreword
This Standard is drafted in accordance with the requirements and format of GB/T 1.1- 2009 ?€?Directives for Standardization - Part 1. Structure and Drafting of Standards?€?. This Standard is drafted in accordance with the characteristics of products and techniques of this enterprise.
Please be noted that certain content in this Standard might involve patents. The issuing institution of this Standard does not undertake the responsibility of identifying these patents.
This Standard serves as a replacement of Q/BQB 111-2014. In comparison with Q/BQB 111-2014, there are several main changes as follows.
- modified the scope, added that ?€?or for metallurgical raw materials?€?;
- modified the normative references, deleted GB/T 2101-2008 ?€?General
requirement of acceptance packaging marking and certification for section steel?€?, deleted the analysis method for chemical composition, used the latest version, edition 2015 of GB/T 226;
- modified the requirements for side length tolerance in Table 1, added the requirements for drum belly, added diagonal length difference and drum belly graphical representation Table 2;
- modified the macroscopic examination of the rectangular blank that is carried out by the supplier and the purchaser as mandatory;
- modified the requirements for surface quality, ?€?The surface of the continuous casting blank shall be free from visible cracks, crusting, inclusions, folding and cracking, but allow for slight mechanical scratches, vibration marks, etc.?€? was MODIFIED AS ?€?The surface of the continuous casting blank shall not have visible reconnection, peeling, cracking, crusting or slag inclusion visible to the naked eye. There shall be no mechanical scratches, stomata, pits, bumps, cold splashes, vibration marks, etc. with a depth or height greater than 2 mm?€?; ADDED that ?€?Alloy steel with a total mass fraction of not less than 6% for all alloying elements is prohibited from flame cleaning?€?;
- the test method GB/T 223 for chemical composition analysis in Table 3 was modified as ?€?analytical method according to relevant product standards?€?; - deleted that ?€?The packaging, marks and inspection documents of continuous casting blank shall comply with the provisions of GB/T 2101?€?; refined the requirements for packaging, marks and inspection documents (quality
certificate).

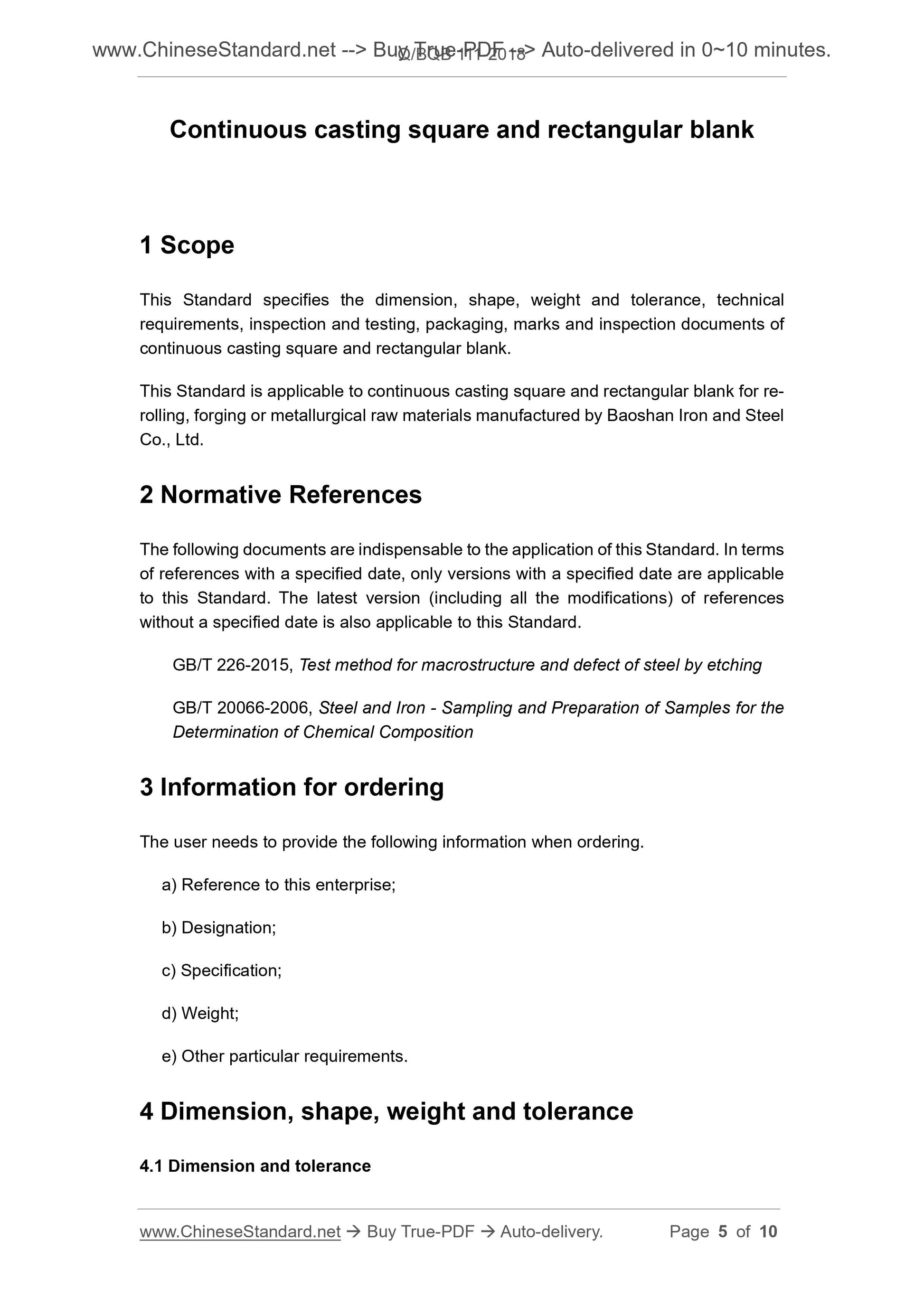

Continuous casting square and rectangular blank
1 Scope
This Standard specifies the dimension, shape, weight and tolerance, technical requirements, inspection and testing, packaging, marks and inspection documents of continuous casting square and rectangular blank.
This Standard is applicable to continuous casting square and rectangular blank for re- rolling, forging or metallurgical raw materials manufactured by Baoshan Iron and Steel Co., Ltd.
2 Normative References
The following documents are indispensable to the application of this Standard. In terms of references with a specified date, only versions with a specified date are applicable to this Standard. The latest version (including all the modifications) of references without a specified date is also applicable to this Standard.
GB/T 226-2015, Test method for macrostructure and defect of steel by etching GB/T 20066-2006, Steel and Iron - Sampling and Preparation of Samples for the Determination of Chemical Composition
3 Information for ordering
The user needs to provide the following information when ordering.
a) Reference to this enterprise;
b) Designation;
c) Specification;
d) Weight;
e) Other particular requirements.
4 Dimension, shape, weight and tolerance
4.1 Dimension and tolerance

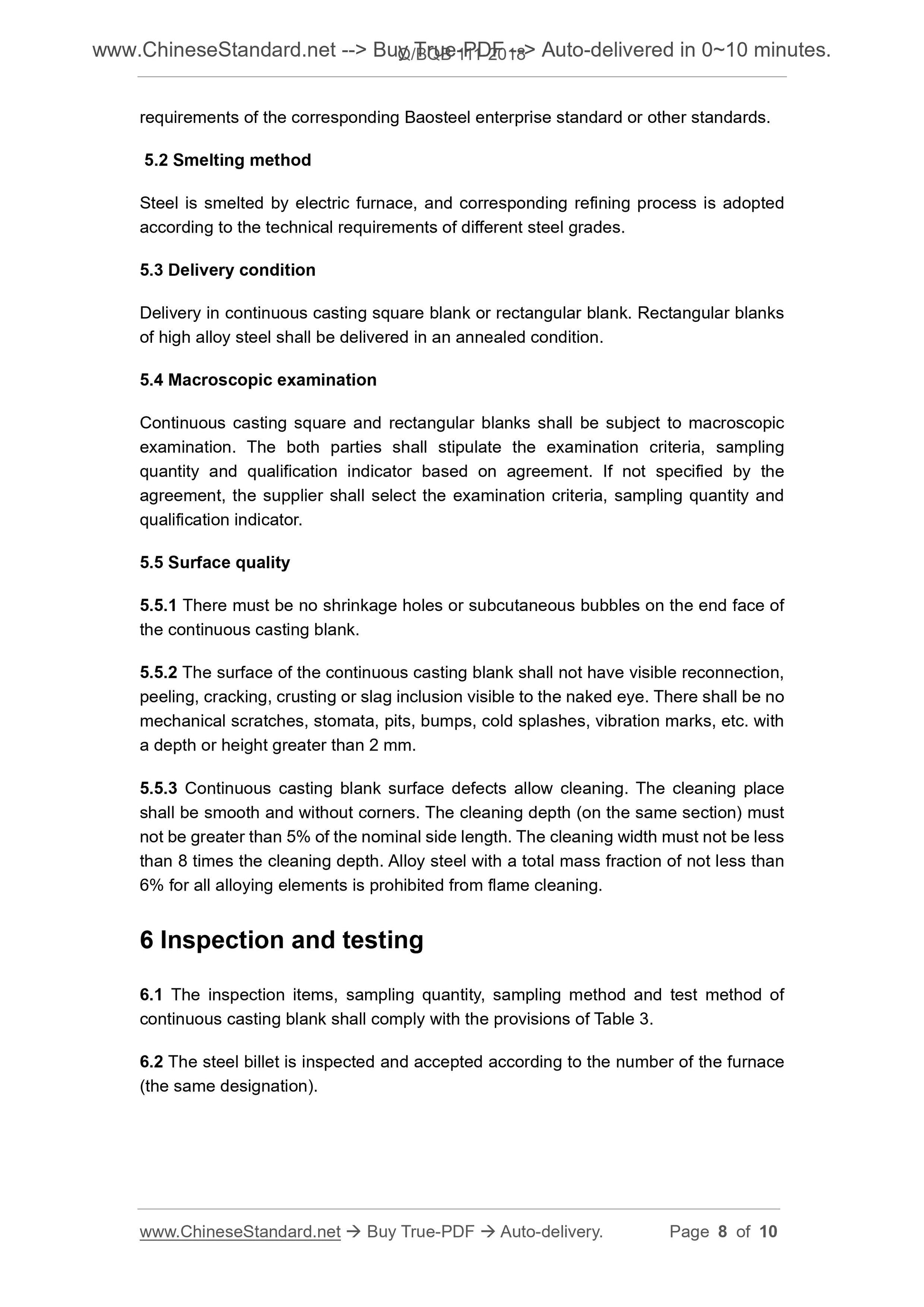

requirements of the corresponding Baosteel enterprise standard or other standards. 5.2 Smelting method
Steel is smelted by electric furnace, and corresponding refining process is adopted according to the technical requirements of different steel grades.
5.3 Delivery condition
Delivery in continuous casting square blank or rectangular blank. Rectangular blanks of high alloy steel shall be delivered in an annealed condition.
5.4 Macroscopic examination
Continuous casting square and rectangular blanks shall be subject to macroscopic examination. The both parties shall stipulate the examination criteria, sampling quantity and qualification indicator based on agreement. If not specified by the agreement, the supplier shall select the examination criteria, sampling quantity and qualification indicator.
5.5 Surface quality
5.5.1 There must be no shrinkage holes or subcutaneous bubbles on the end face of the continuous casting blank.
5.5.2 The surface of the continuous casting blank shall not have visible reconnection, peeling, cracking, crusting or slag inclusion visible to the naked eye. There shall be no mechanical scratches, stomata, pits, bumps, cold splashes, vibration marks, etc. with a depth or height greater than 2 mm.
5.5.3 Continuous casting blank surface defects allow cleaning. The cleaning place shall be smooth and without corners. The cleaning depth (on the same section) must not be greater than 5% of the nominal side length. The cleaning width must not be less than 8 times the cleaning depth. Alloy steel with a total mass fraction of not less than 6% for all alloying elements is prohibited from flame cleaning.
6 Inspection and testing
6.1 The inspection items, sampling quantity, sampling method and test method of continuous casting blank shall comply with the provisions of Table 3.
6.2 The steel billet is inspected and accepted according to the number of the furnace (the same designation).
