NY/T 1107-2020: Water-soluble macronutrient fertilizers
NY/T 1107-2020
NY
AGRICULTURAL INDUSTRY STANDARD
OF THE PEOPLE’S REPUBLIC OF CHINA
ICS 65.080
G 21
Replacing NY 1107-2010
Water-soluble macronutrient fertilizers
ISSUED ON: JULY 27, 2020
IMPLEMENTED ON: NOVEMBER 01, 2020
Issued by: Ministry of Agriculture and Rural Affairs of PRC

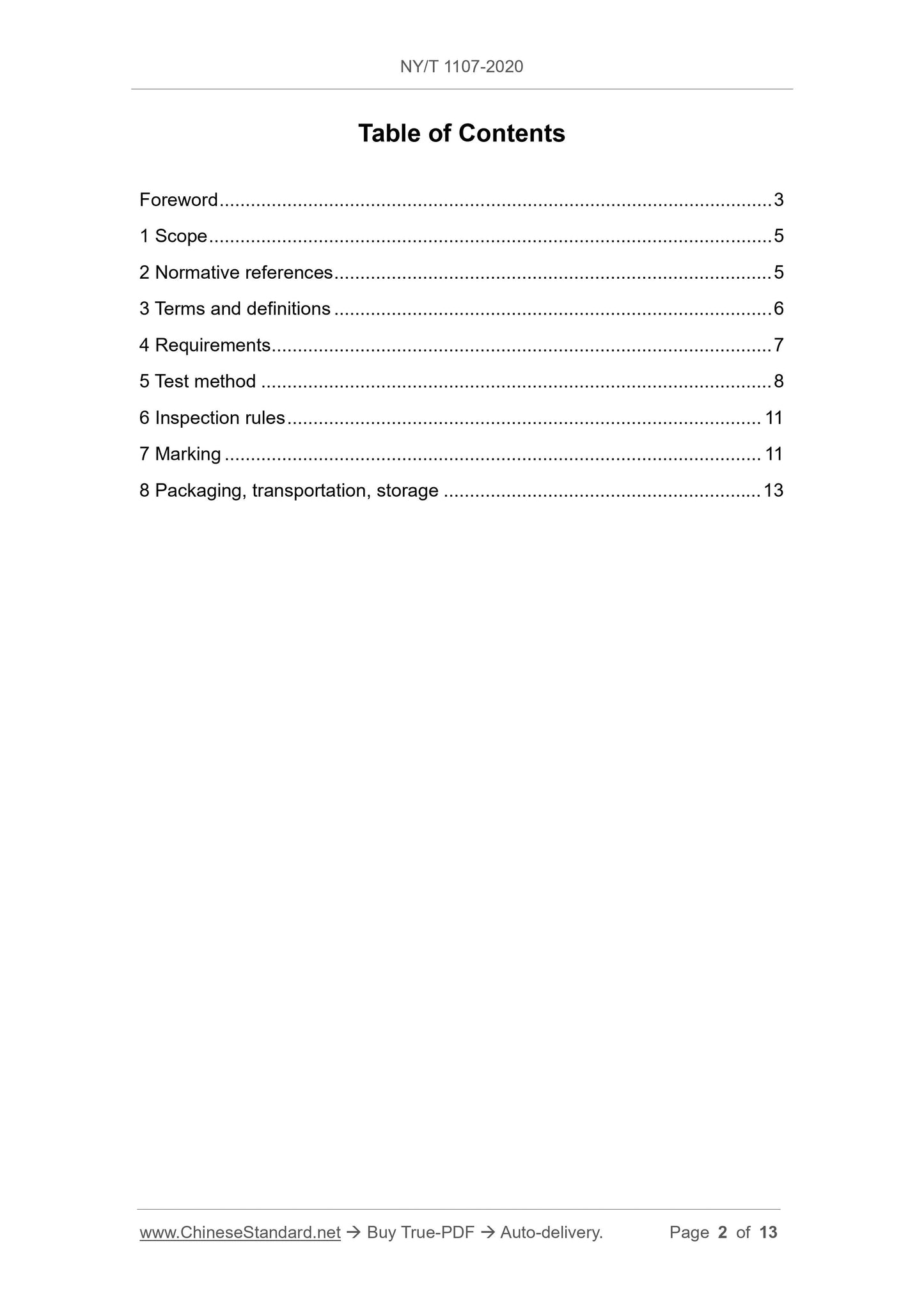

Table of Contents
Foreword ... 3
1 Scope ... 5
2 Normative references ... 5
3 Terms and definitions ... 6
4 Requirements ... 7
5 Test method ... 8
6 Inspection rules ... 11
7 Marking ... 11
8 Packaging, transportation, storage ... 13

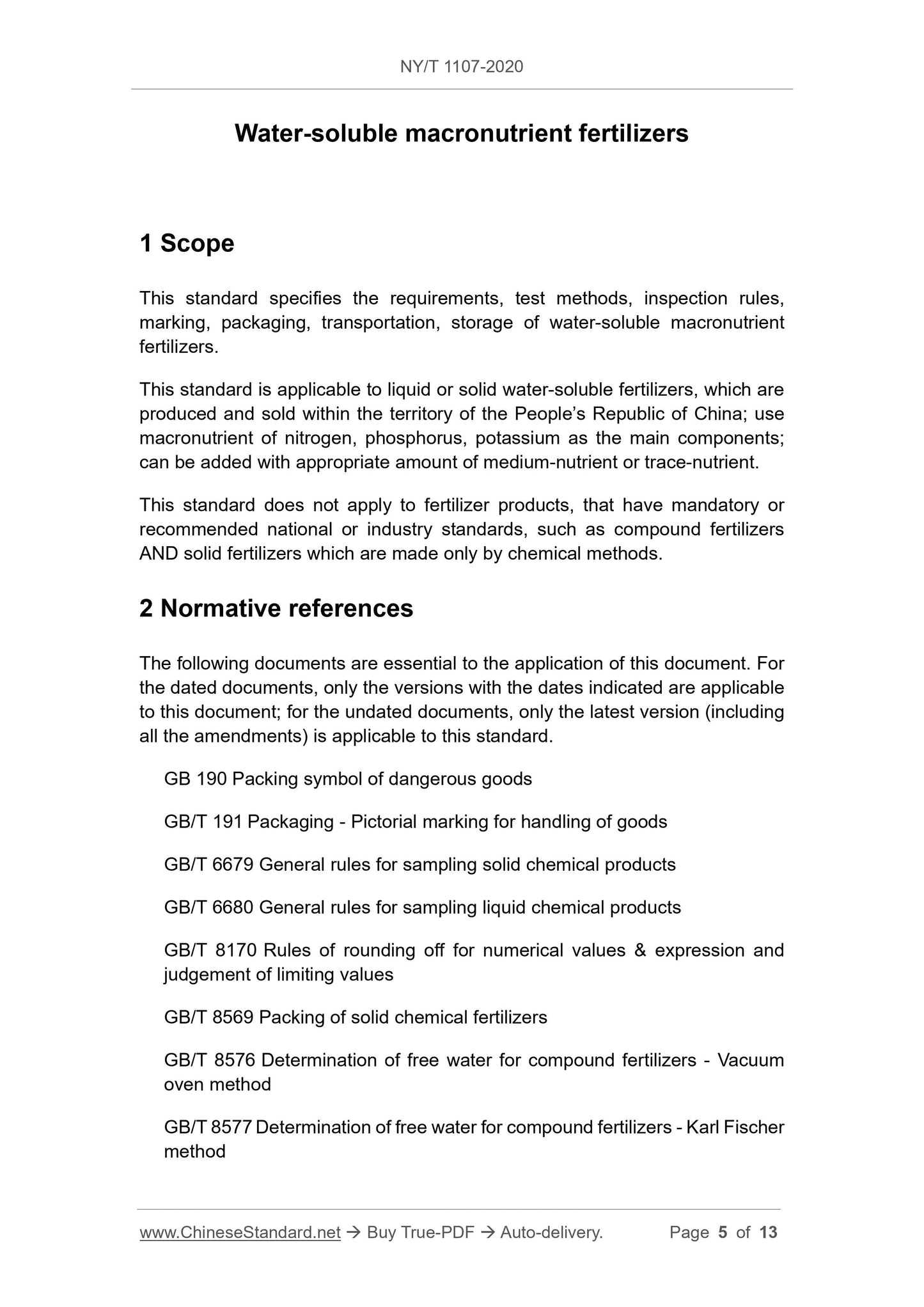

Water-soluble macronutrient fertilizers
1 Scope
This standard specifies the requirements, test methods, inspection rules,
marking, packaging, transportation, storage of water-soluble macronutrient
fertilizers.
This standard is applicable to liquid or solid water-soluble fertilizers, which are
produced and sold within the territory of the People’s Republic of China; use
macronutrient of nitrogen, phosphorus, potassium as the main components;
can be added with appropriate amount of medium-nutrient or trace-nutrient.
This standard does not apply to fertilizer products, that have mandatory or
recommended national or industry standards, such as compound fertilizers
AND solid fertilizers which are made only by chemical methods.
2 Normative references
The following documents are essential to the application of this document. For
the dated documents, only the versions with the dates indicated are applicable
to this document; for the undated documents, only the latest version (including
all the amendments) is applicable to this standard.
GB 190 Packing symbol of dangerous goods
GB/T 191 Packaging - Pictorial marking for handling of goods
GB/T 6679 General rules for sampling solid chemical products
GB/T 6680 General rules for sampling liquid chemical products
GB/T 8170 Rules of rounding off for numerical values and expression and
judgement of limiting values
GB/T 8569 Packing of solid chemical fertilizers
GB/T 8576 Determination of free water for compound fertilizers - Vacuum
oven method
GB/T 8577 Determination of free water for compound fertilizers - Karl Fischer
method

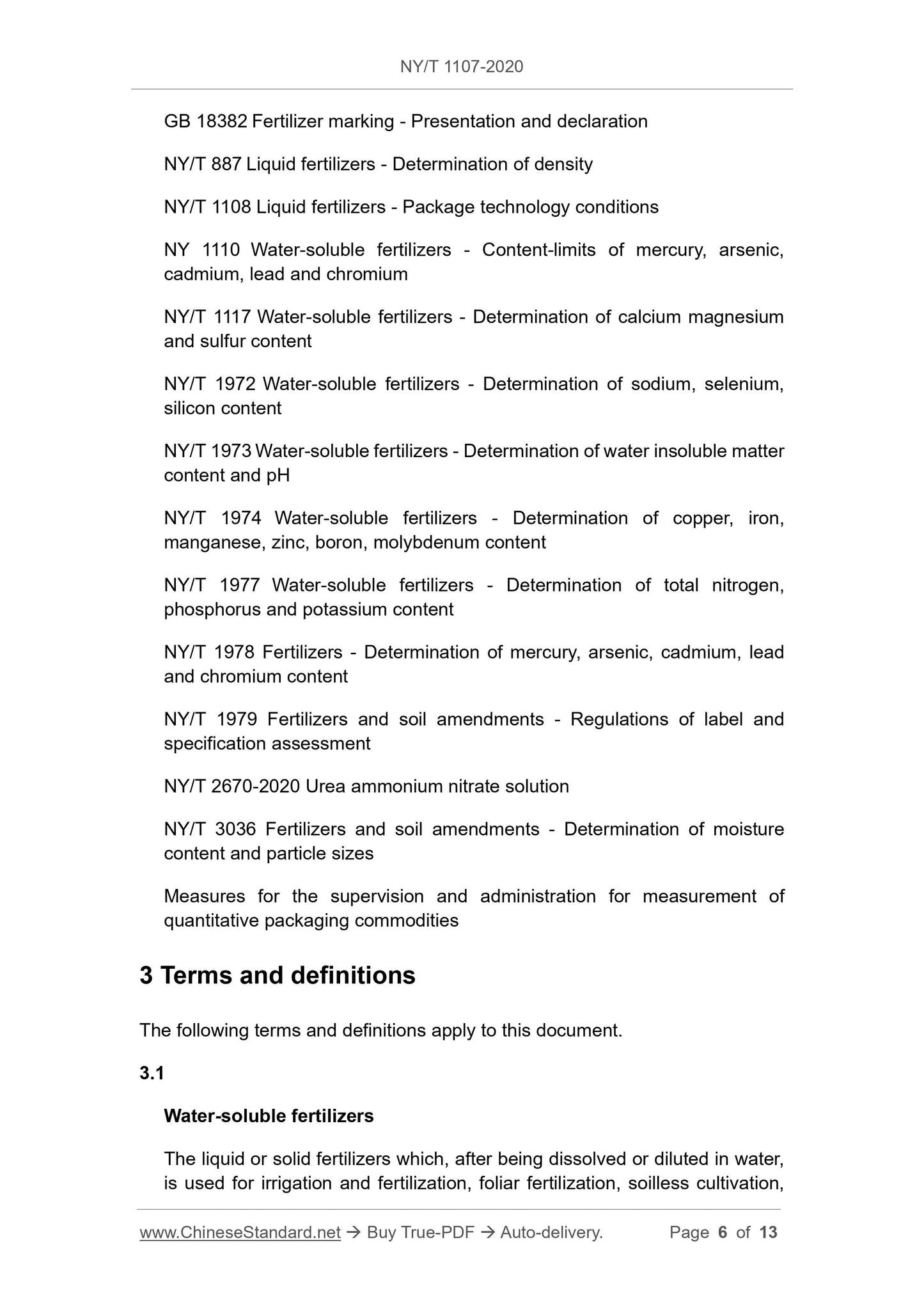

GB 18382 Fertilizer marking - Presentation and declaration
NY/T 887 Liquid fertilizers - Determination of density
NY/T 1108 Liquid fertilizers - Package technology conditions
NY 1110 Water-soluble fertilizers - Content-limits of mercury, arsenic,
cadmium, lead and chromium
NY/T 1117 Water-soluble fertilizers - Determination of calcium magnesium
and sulfur content
NY/T 1972 Water-soluble fertilizers - Determination of sodium, selenium,
silicon content
NY/T 1973 Water-soluble fertilizers - Determination of water insoluble matter
content and pH
NY/T 1974 Water-soluble fertilizers - Determination of copper, iron,
manganese, zinc, boron, molybdenum content
NY/T 1977 Water-soluble fertilizers - Determination of total nitrogen,
phosphorus and potassium content
NY/T 1978 Fertilizers - Determination of mercury, arsenic, cadmium, lead
and chromium content
NY/T 1979 Fertilizers and soil amendments - Regulations of label and
specification assessment
NY/T 2670-2020 Urea ammonium nitrate solution
NY/T 3036 Fertilizers and soil amendments - Determination of moisture
content and particle sizes
Measures for the supervision and administration for measurement of
quantitative packaging commodities
3 Terms and definitions
The following terms and definitions apply to this document.
3.1
Water-soluble fertilizers
The liquid or solid fertilizers which, after being dissolved or diluted in water,
is used for irrigation and fertilization, foliar fertilization, soilless cultivation,

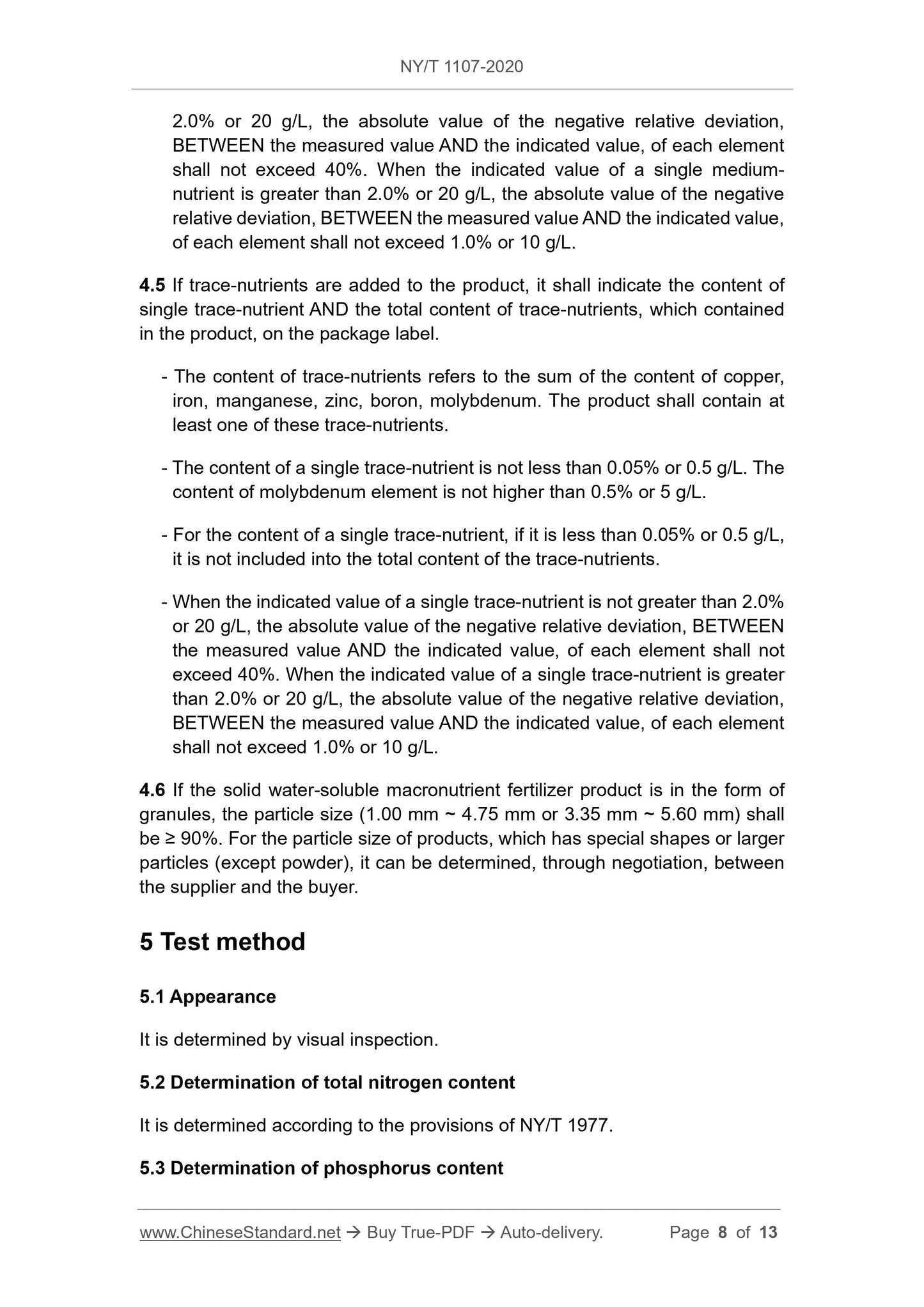

2.0% or 20 g/L, the absolute value of the negative relative deviation,
BETWEEN the measured value AND the indicated value, of each element
shall not exceed 40%. When the indicated value of a single medium-
nutrient is greater than 2.0% or 20 g/L, the absolute value of the negative
relative deviation, BETWEEN the measured value AND the indicated value,
of each element shall not exceed 1.0% or 10 g/L.
4.5 If trace-nutrients are added to the product, it shall indicate the content of
single trace-nutrient AND the total content of trace-nutrients, which contained
in the product, on the package label.
- The content of trace-nutrients refers to the sum of the content of copper,
iron, manganese, zinc, boron, molybdenum. The product shall contain at
least one of these trace-nutrients.
- The content of a single trace-nutrient is not less than 0.05% or 0.5 g/L. The
content of molybdenum element is not higher than 0.5% or 5 g/L.
- For the content of a single trace-nutrient, if it is less than 0.05% or 0.5 g/L,
it is not included into the total content of the trace-nutrients.
- When the indicated value of a single trace-nutrient is not greater than 2.0%
or 20 g/L, the absolute value of the negative relative deviation, BETWEEN
the measured value AND the indicated value, of each element shall not
exceed 40%. When the indicated value of a single trace-nutrient is greater
than 2.0% or 20 g/L, the absolute value of the negative relative deviation,
BETWEEN the measured value AND the indicated value, of each element
shall not exceed 1.0% or 10 g/L.
4.6 If the solid water-soluble macronutrient fertilizer product is in the form of
granules, the particle size (1.00 mm ~ 4.75 mm or 3.35 mm ~ 5.60 mm) shall
be ≥ 90%. For the particle size of products, which has special shapes or larger
particles (except powder), it can be determined, through negotiation, between
the supplier and the buyer.
5 Test method
5.1 Appearance
It is determined by visual inspection.
5.2 Determination of total nitrogen content
It is determined according to the provisions of NY/T 1977.
5.3 Determination of phosphorus content

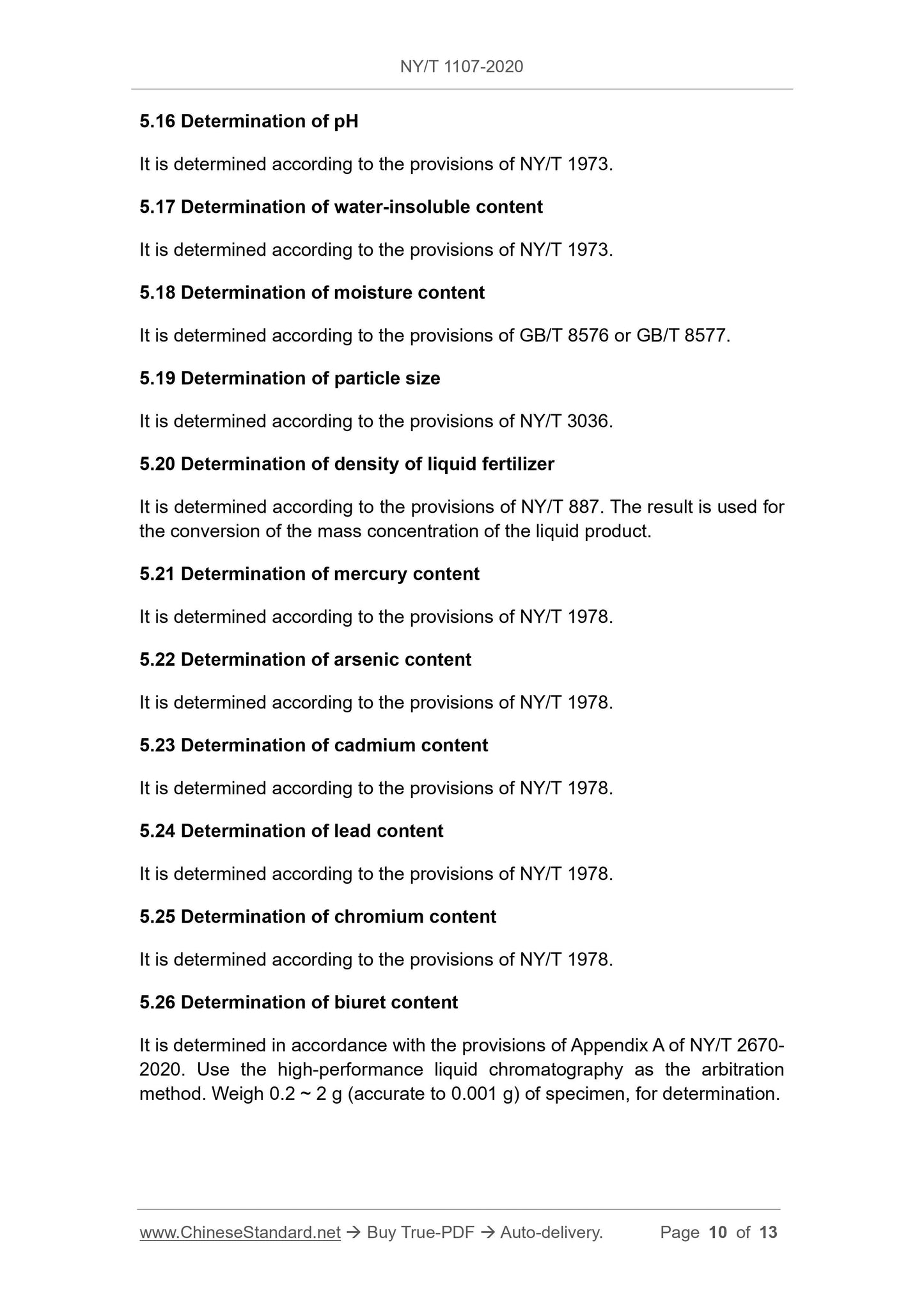

5.16 Determination of pH
It is determined according to the provisions of NY/T 1973.
5.17 Determination of water-insoluble content
It is determined according to the provisions of NY/T 1973.
5.18 Determination of moisture content
It is determined according to the provisions of GB/T 8576 or GB/T 8577.
5.19 Determination of particle size
It is determined according to the provisions of NY/T 3036.
5.20 Determination of density of liquid fertilizer
It is determined according to the provisions of NY/T 887. The result is used for
the conversion of the mass concentration of the liquid product.
5.21 Determination of mercury content
It is determined according to the provisions of NY/T 1978.
5.22 Determination of arsenic content
It is determined according to the provisions of NY/T 1978.
5.23 Determination of cadmium content
It is determined according to the provisions of NY/T 1978.
5.24 Determination of lead content
It is determined according to the provisions of NY/T 1978.
5.25 Determination of chromium content
It is determined according to the provisions of NY/T 1978.
5.26 Determination of biuret content
It is determined in accordance with the provisions of Appendix A of NY/T 2670-
2020. Use the high-performance liquid chromatography as the arbitration
method. Weigh 0.2 ~ 2 g (accurate to 0.001 g) of specimen, for determination.

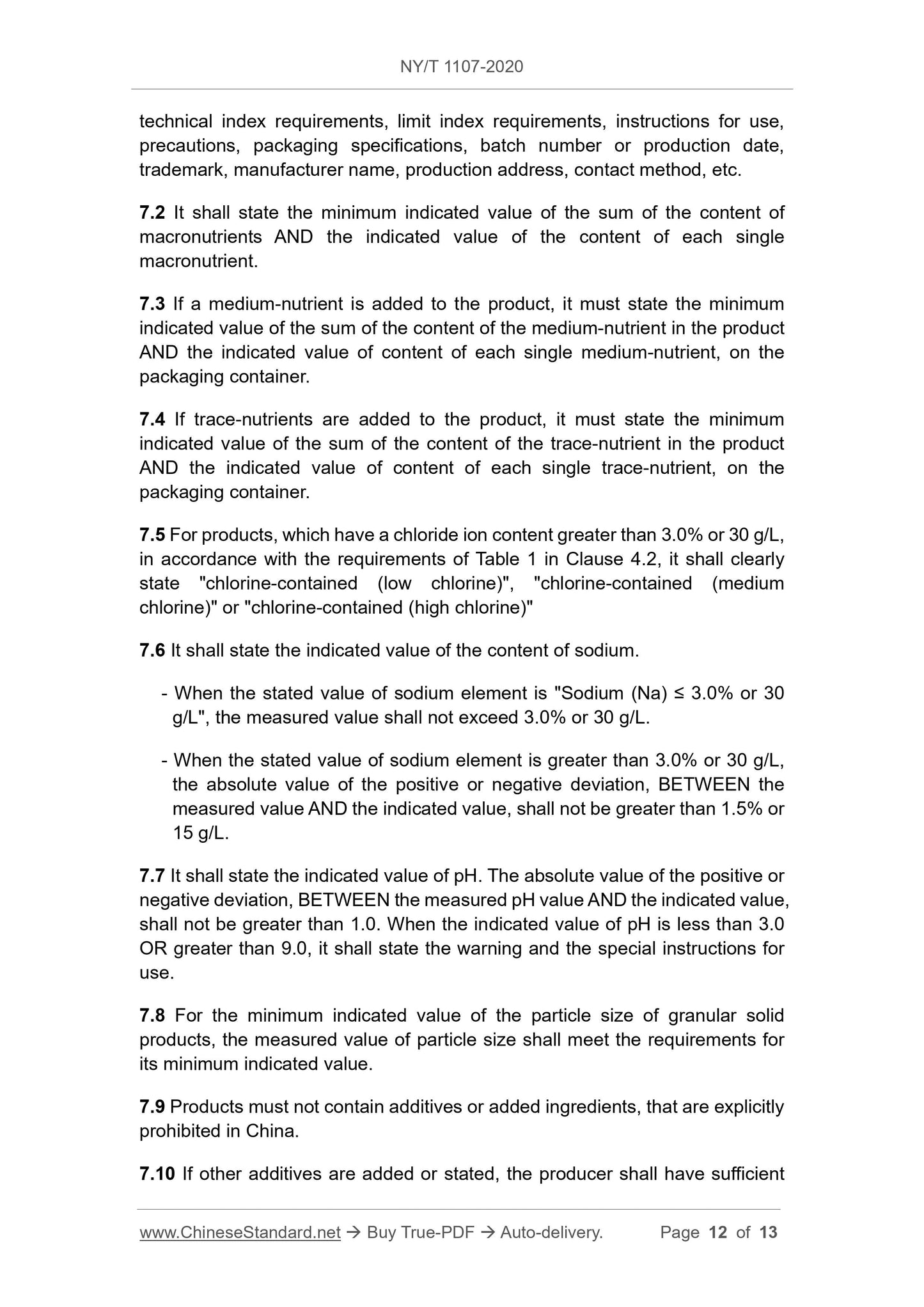

technical index requirements, limit index requirements, instructions for use,
precautions, packaging specifications, batch number or production date,
trademark, manufacturer name, production address, contact method, etc.
7.2 It shall state the minimum indic...
