NB/T 47013.1-2015: Nondestructive testing of pressure equipments - Part 1: General requirements

This Part of NB/T 47013 specifies the general requirements and use principles of radiographic testing, ultrasonic testing, magnetic particle testing, penetrant testing, eddy current testing, leak testing, visual testing, acoustic emission testing, ultrasonic time of flight diffraction technique testing, X-ray digital radiography testing, magnetic flux leakage testing, pulsed eddy current testing and other nondestructive testing methods.

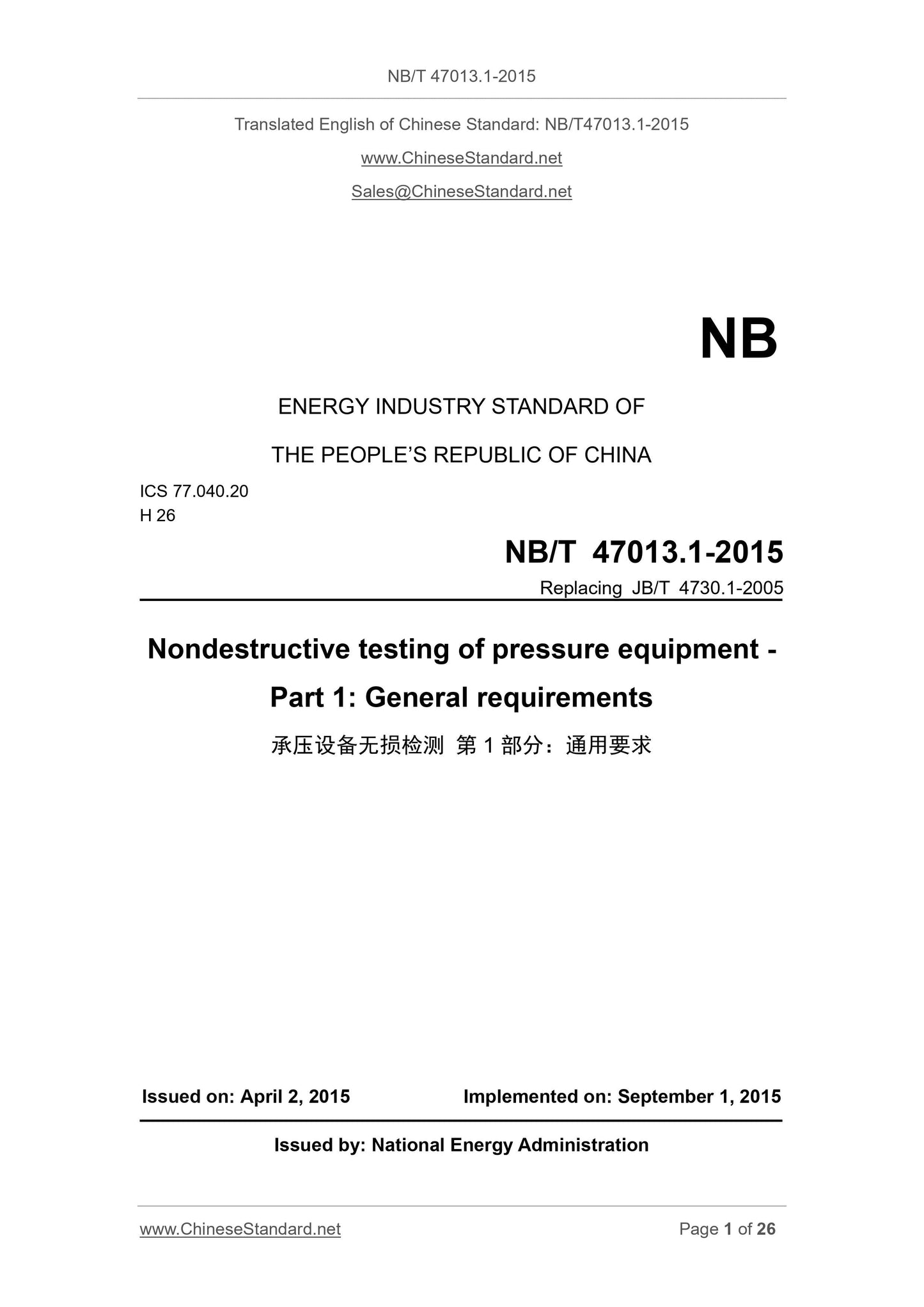

NB/T 47013.1-2015
GB
ENERGY INDUSTRY STANDARD OF
THE PEOPLE REPUBLIC OF CHINA
ICS 77.040.20
H 26
Replacing JB/T 4730.1-2005
Nondestructive testing of pressure equipment -
Part 1. General requirements
ISSUED ON. APRIL 2, 2015
IMPLEMENTED ON. SEPTEMBER 1, 2015
Issued by. National Energy Administration

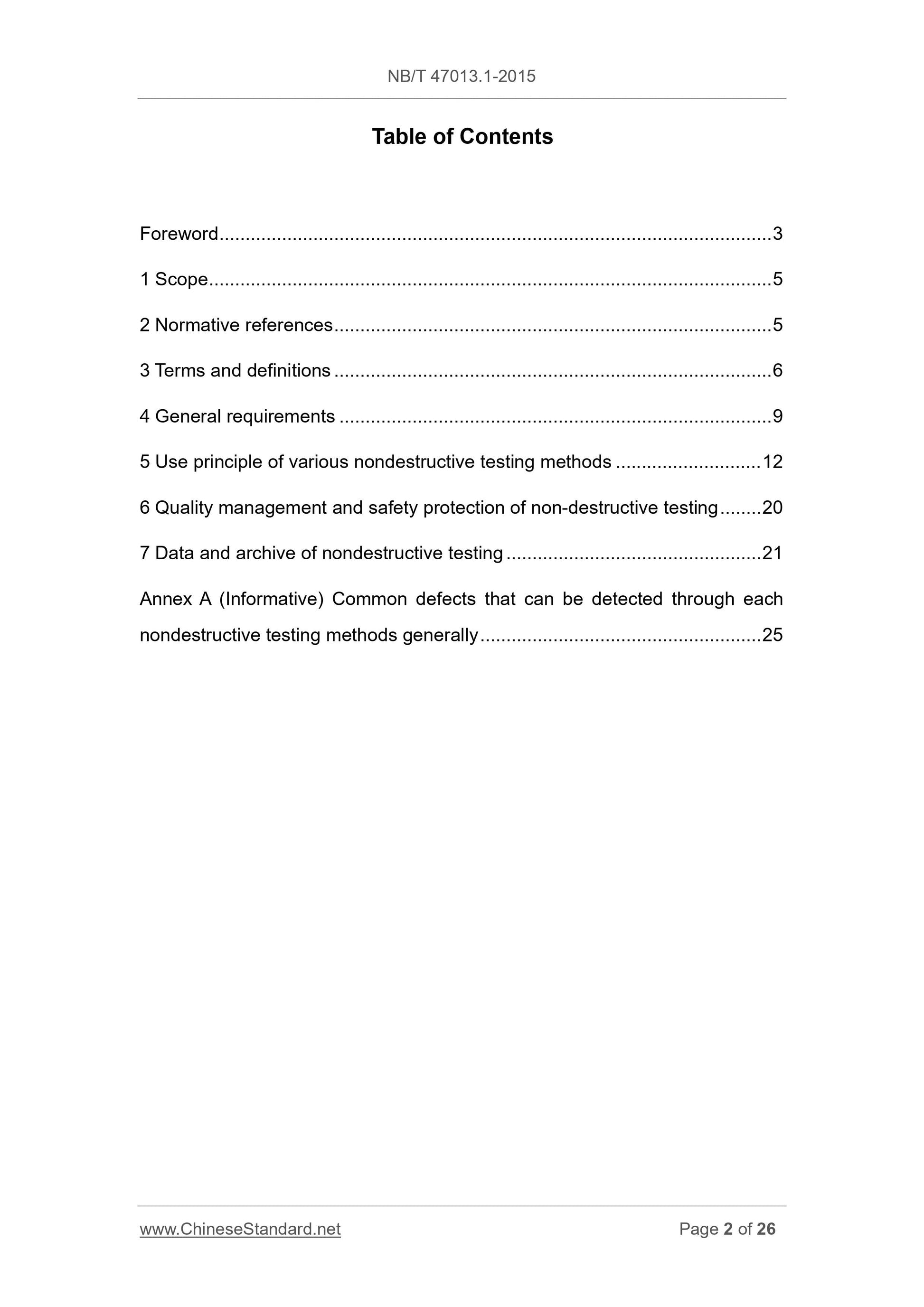

Table of Contents
Foreword ... 3
1 Scope ... 5
2 Normative references ... 5
3 Terms and definitions ... 6
4 General requirements ... 9

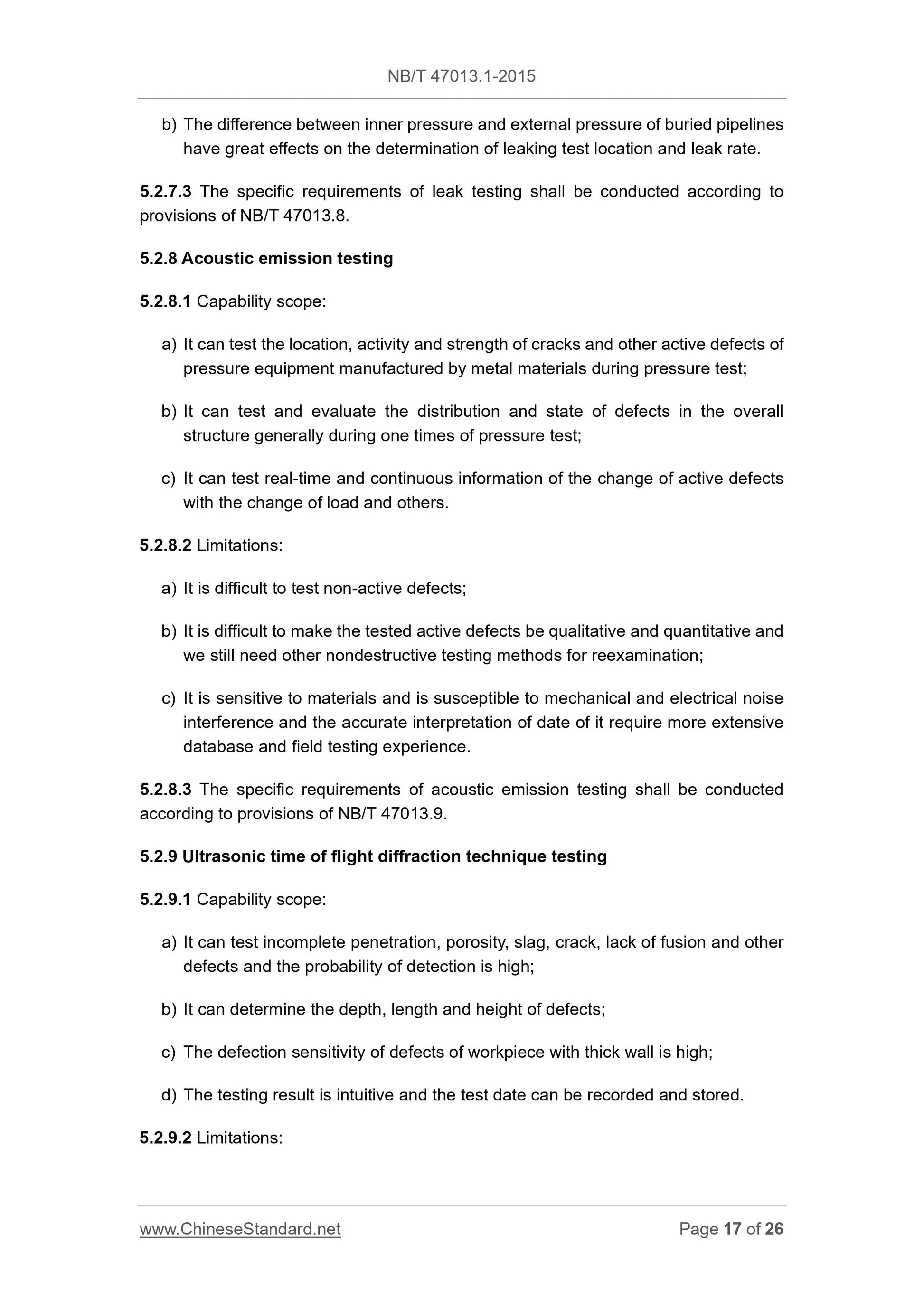

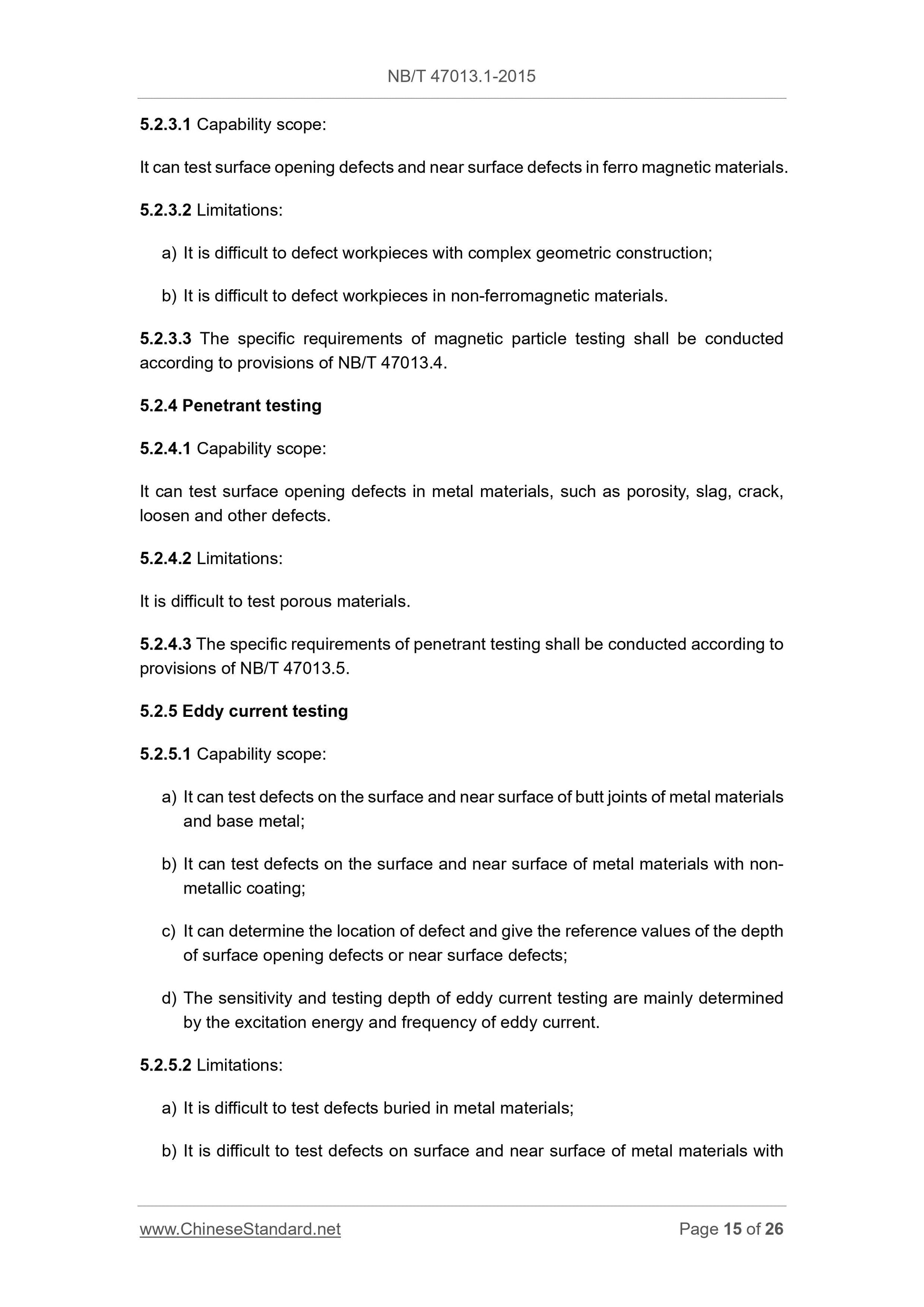

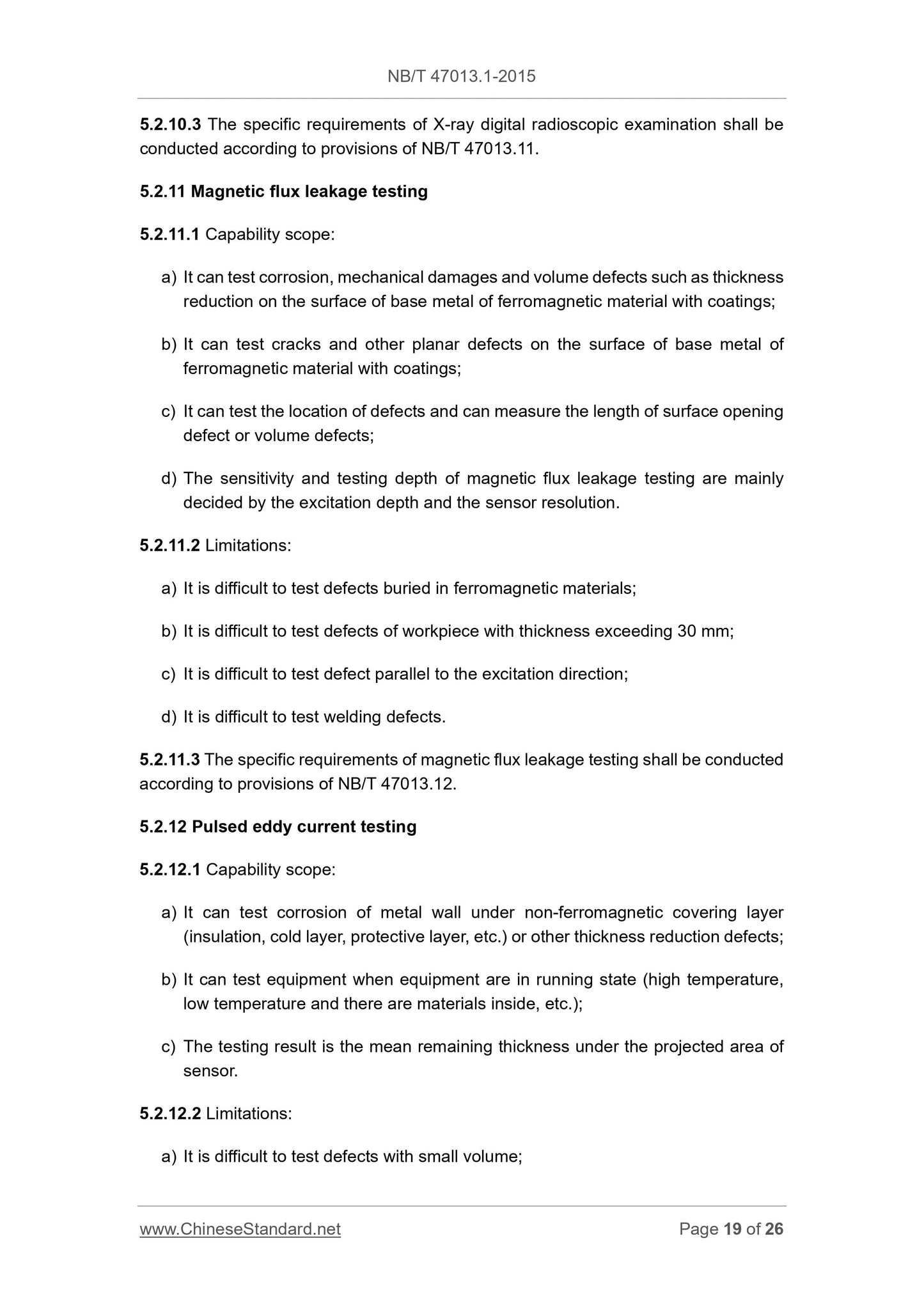

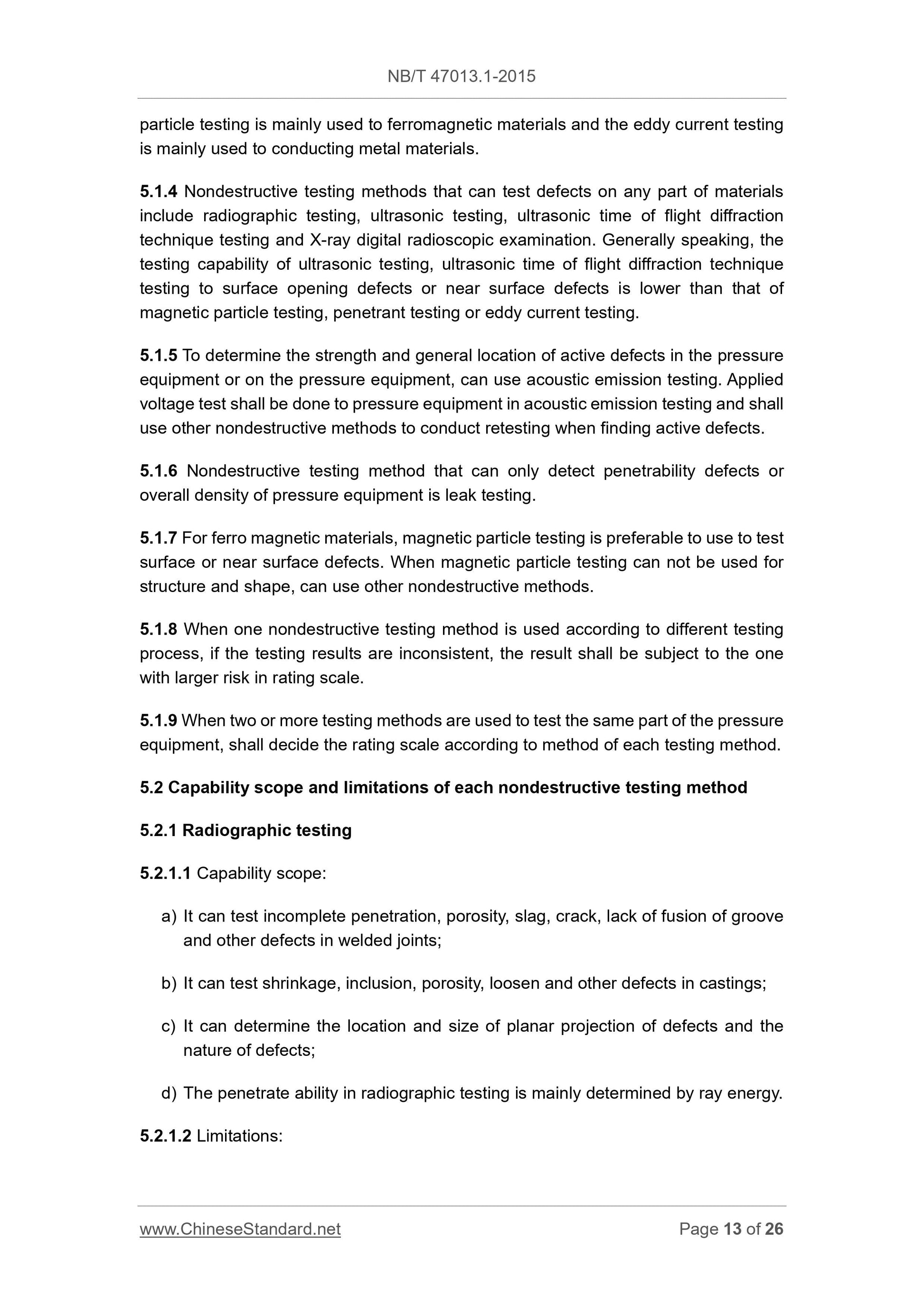

5 Use principle of various nondestructive testing methods ... 12

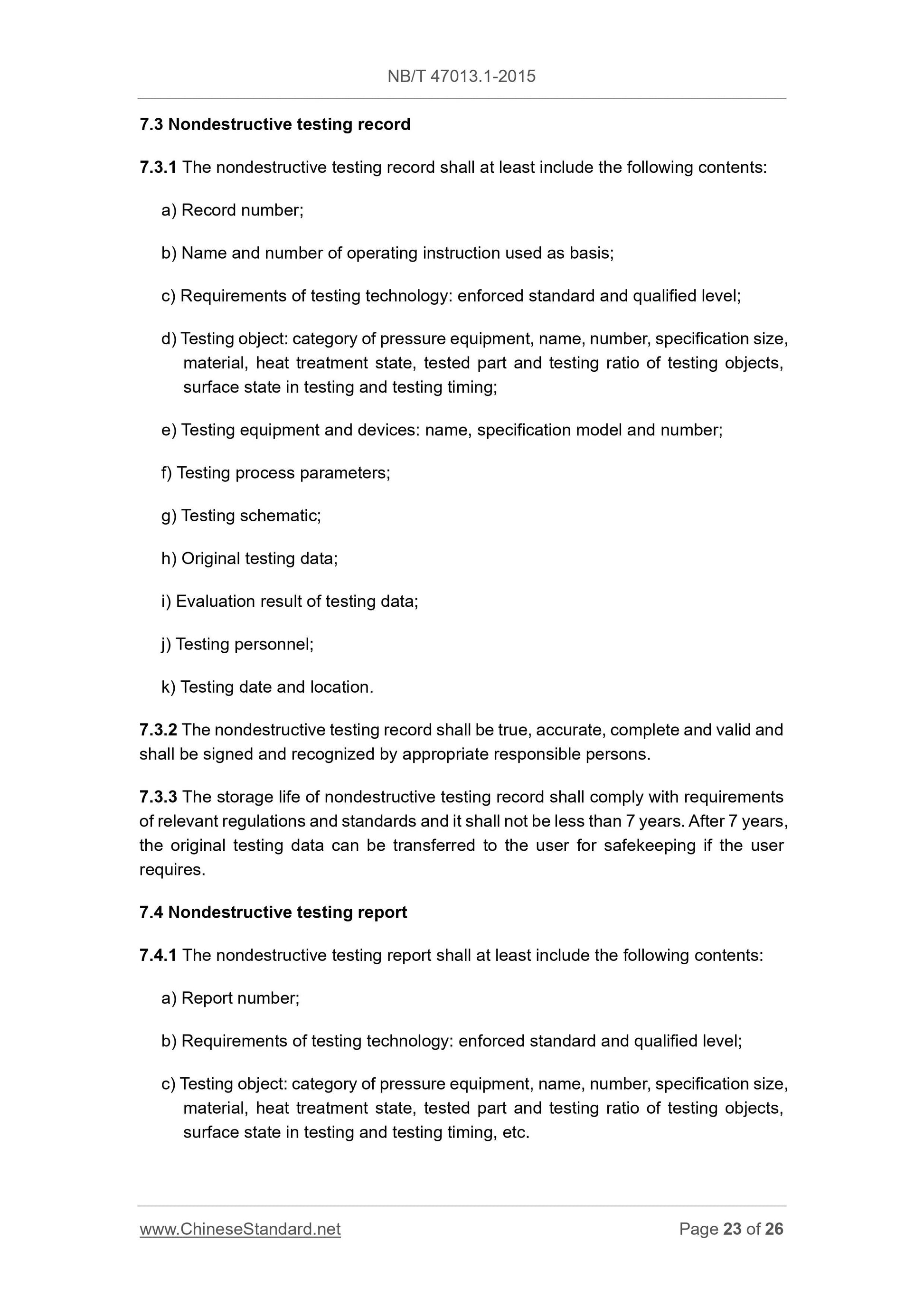

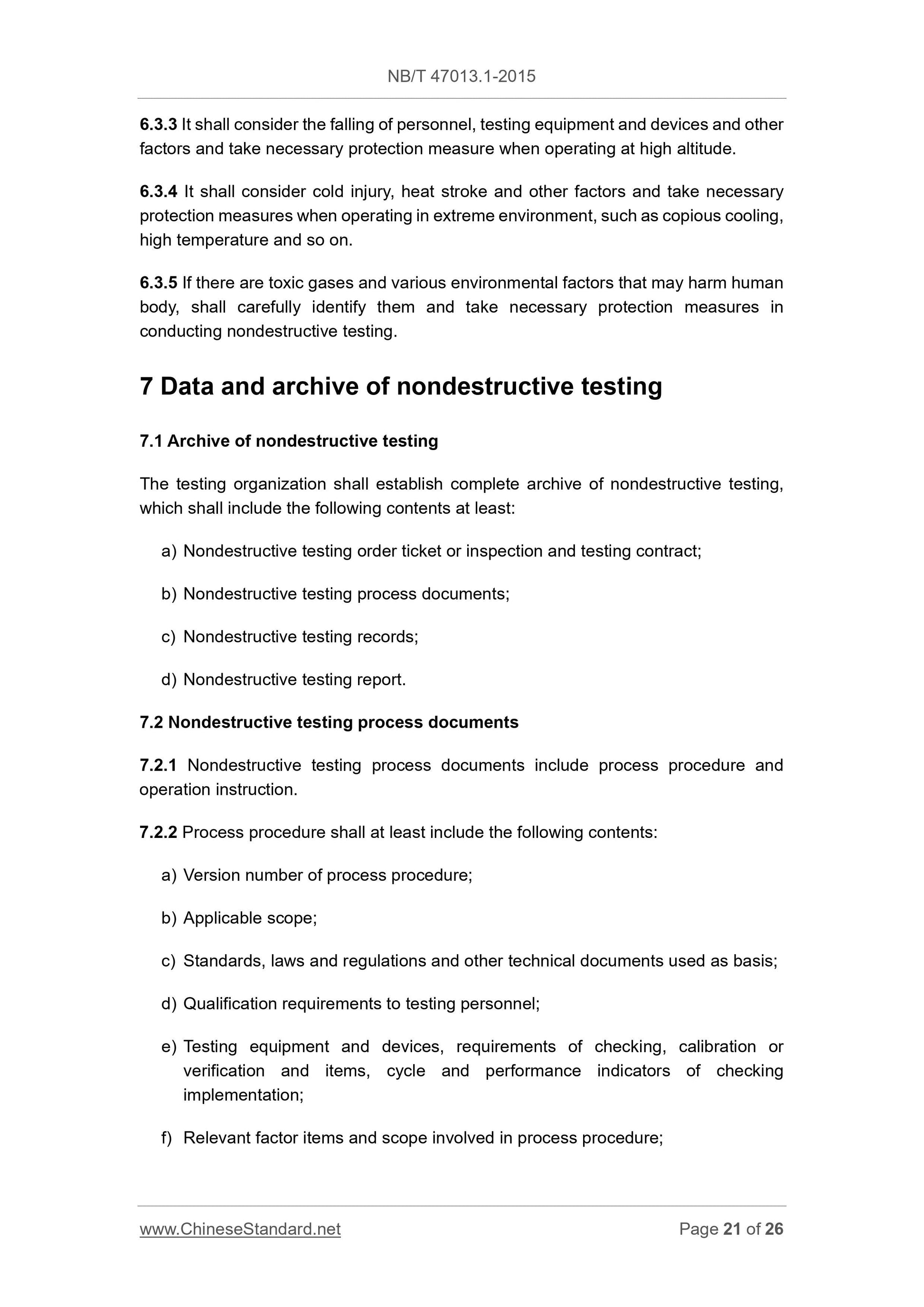

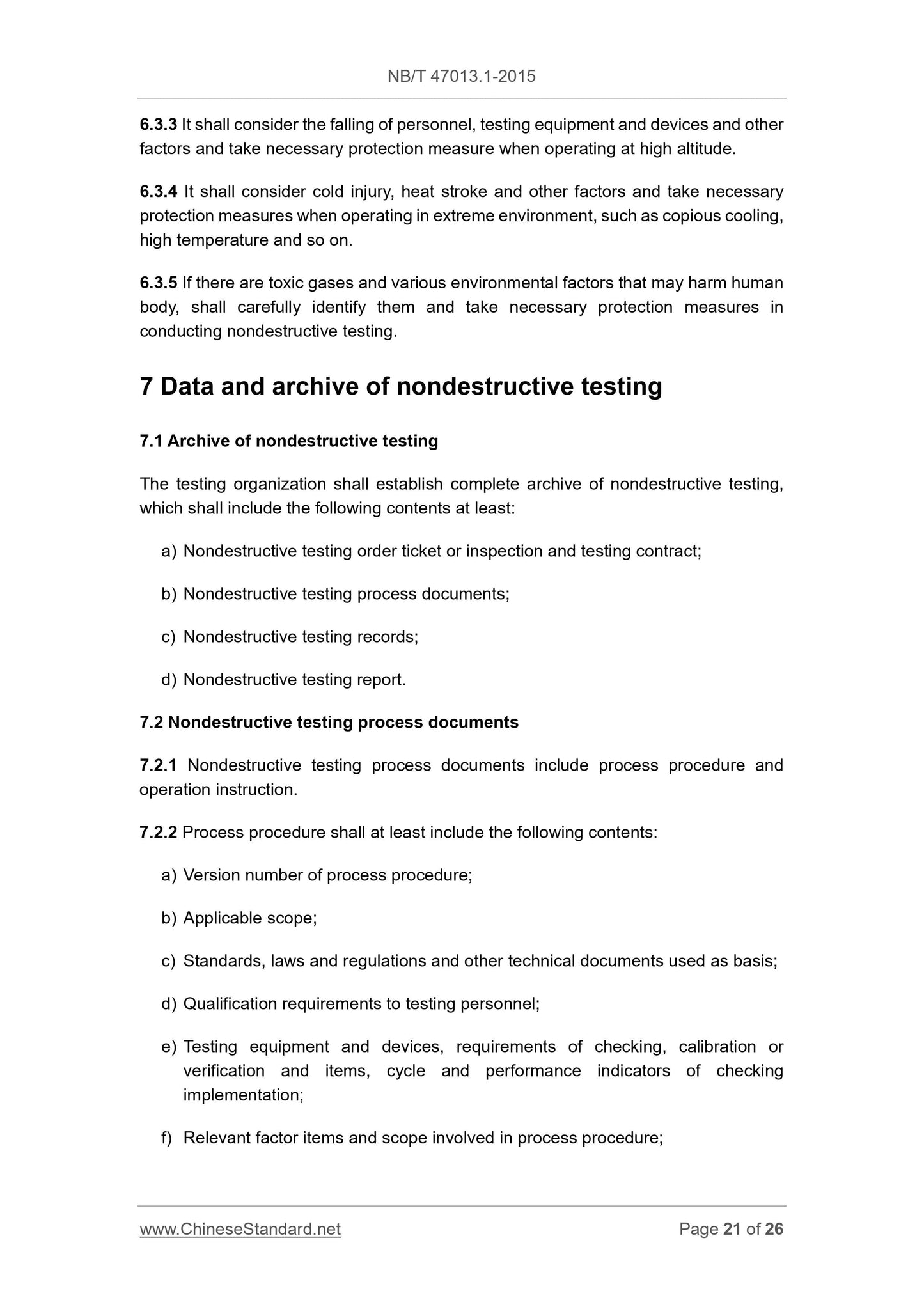

6 Quality management and safety protection of non-destructive testing ... 20 7 Data and archive of nondestructive testing ... 21
Annex A (Informative) Common defects that can be detected through each
nondestructive testing methods generally ... 25
Foreword
This Standard, NB/T 47013 ?€?Nondestructive testing of pressure equipment?€?, consists of the following 13 parts.
- Part 1. General requirements;
- Part 2. Radiographic testing;
- Part 3. Ultrasonic testing;
- Part 4. Magnetic particle testing;
- Part 5. Penetrant testing;
- Part 6. Eddy current testing;
- Part 7. Visual examination;
- Part 8. Leak testing;
- Part 9. Acoustic emission testing;
- Part 10. Ultrasonic time of flight diffraction technique;
- Part 11. Standard practice for X-ray digital radiography;
- Part 12. Magnetic flux leakage testing;
- Part 13. Pulsed eddy current testing.
This Part is Part 1 of NB/T 47013 ?€?General requirements?€?.
This Part is drafted according to the rules given in GB/T 1.1-2009 ?€?Directives for standardization - Part 1. Structure and drafting of standards?€?.
This Part replaces JB/T 4730.1-2005 ?€?Nondestructive testing of pressure equipment - Part 1. General requirements?€?, and compared with JB/T 4730.1, the main technical changes are as follows.
- MODIFY the scope;
- MODIFY the terms and definitions;
- MODIFY the requirements for personnel conducting nondestructive testing; - ADD the requirements for equipment of nondestructive testing;

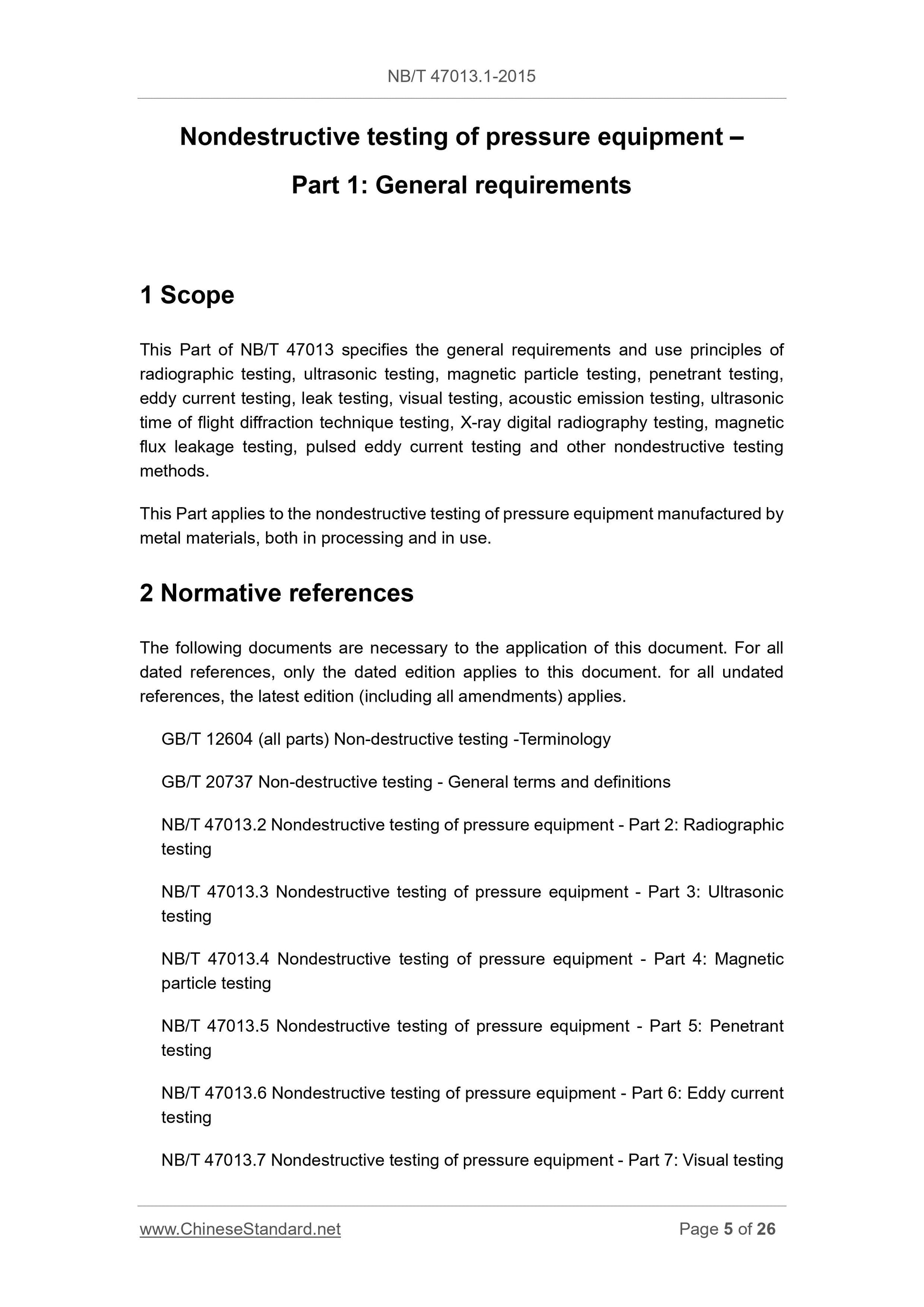

Nondestructive testing of pressure equipment ?€?
Part 1. General requirements
1 Scope
This Part of NB/T 47013 specifies the general requirements and use principles of radiographic testing, ultrasonic testing, magnetic particle testing, penetrant testing, eddy current testing, leak testing, visual testing, acoustic emission testing, ultrasonic time of flight diffraction technique testing, X-ray digital radiography testing, magnetic flux leakage testing, pulsed eddy current testing and other nondestructive testing methods.
This Part applies to the nondestructive testing of pressure equipment manufactured by metal materials, both in processing and in use.
2 Normative references
The following documents are necessary to the application of this document. For all dated references, only the dated edition applies to this document. for all undated references, the latest edition (including all amendments) applies.
GB/T 12604 (all parts) Non-destructive testing -Terminology
GB/T 20737 Non-destructive testing - General terms and definitions
NB/T 47013.2 Nondestructive testing of pressure equipment - Part 2. Radiographic testing
NB/T 47013.3 Nondestructive testing of pressure equipment - Part 3. Ultrasonic testing
NB/T 47013.4 Nondestructive testing of pressure equipment - Part 4. Magnetic particle testing
NB/T 47013.5 Nondestructive testing of pressure equipment - Part 5. Penetrant testing
NB/T 47013.6 Nondestructive testing of pressure equipment - Part 6. Eddy current testing
NB/T 47013.7 Nondestructive testing of pressure equipment - Part 7. Visual testing NB/T 47013.8 Nondestructive testing of pressure equipment - Part 8. Leak testing NB/T 47013.9 Nondestructive testing of pressure equipment - Part 9. Acoustic emission testing
NB/T 47013.10 Nondestructive testing of pressure equipment - Part 10. Ultrasonic time of flight diffraction technique
NB/T 47013.11 Nondestructive testing of pressure equipment - Part 11. X-ray digital radioscopic examination
NB/T 47013.12 Nondestructive testing of pressure equipment - Part 12. Magnetic flux leakage testing
NB/T 47013.13 Nondestructive testing of pressure equipment - Part 13. Pulsed eddy current testing
3 Terms and definitions
For the purpose of this document, the following terms and definitions defined in GB/T 12604 (all parts) and GB/T 20737 shall apply.
3.1
Nondestructive testing, NDT
On the premise of not damaging testing objects, conduct check and testing to the internal and surface structure, nature or state of testing objects by using physical or chemical methods with appropriate equipment according to technical requirements in specification and analyze and evaluate the result.
3.2
Incomplete penetration
The phenomenon that the joint ends are not completely dissolved in welding. For butt weld, it also refers to the phenomenon that the welding depth does not meet the design requirements.
3.3
Lack of fusion
The unbound parts between weld metal and base metal or among weld layers of weld metal, which may be one of the following forms.
a) The sides are lack of fusion;

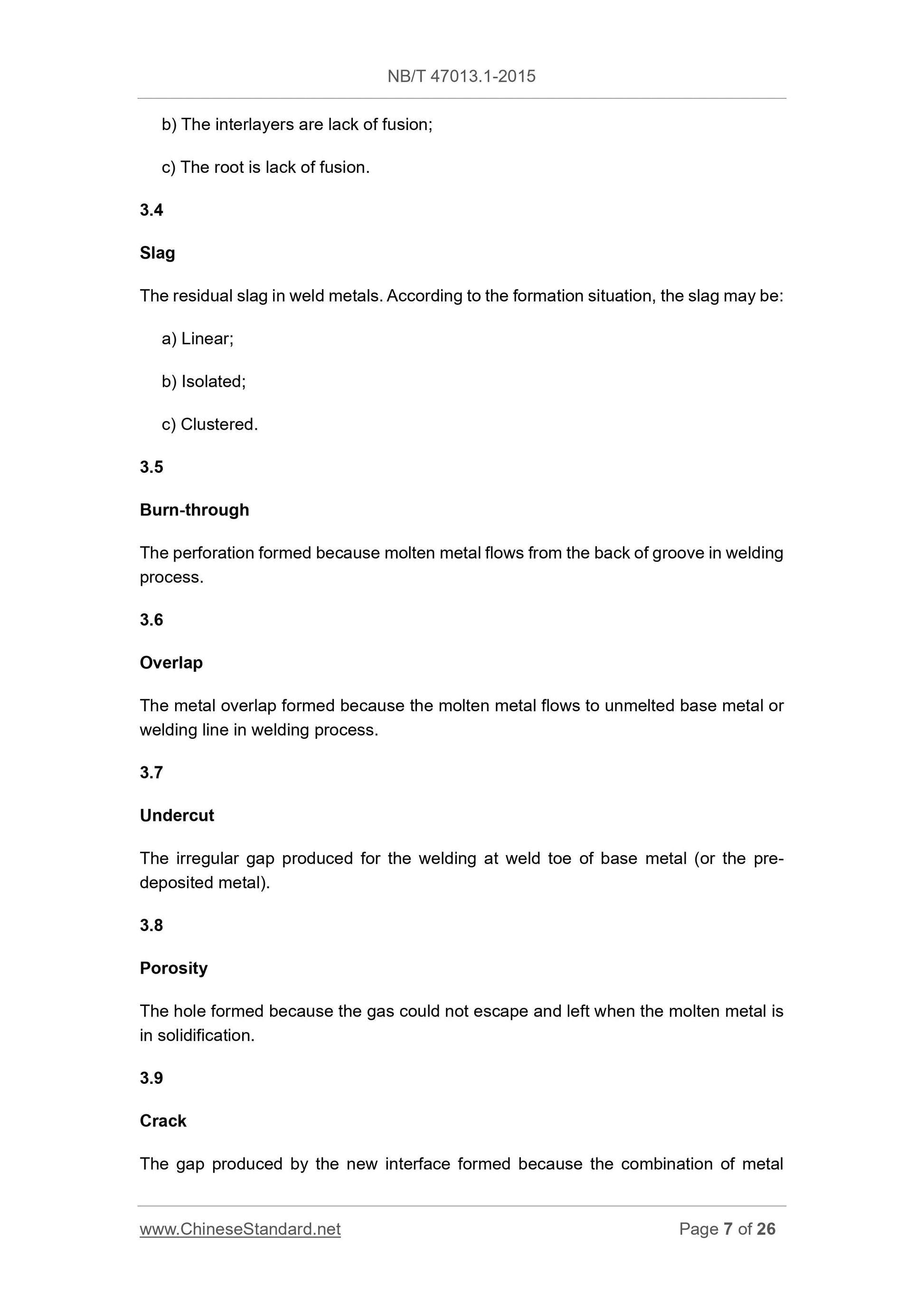

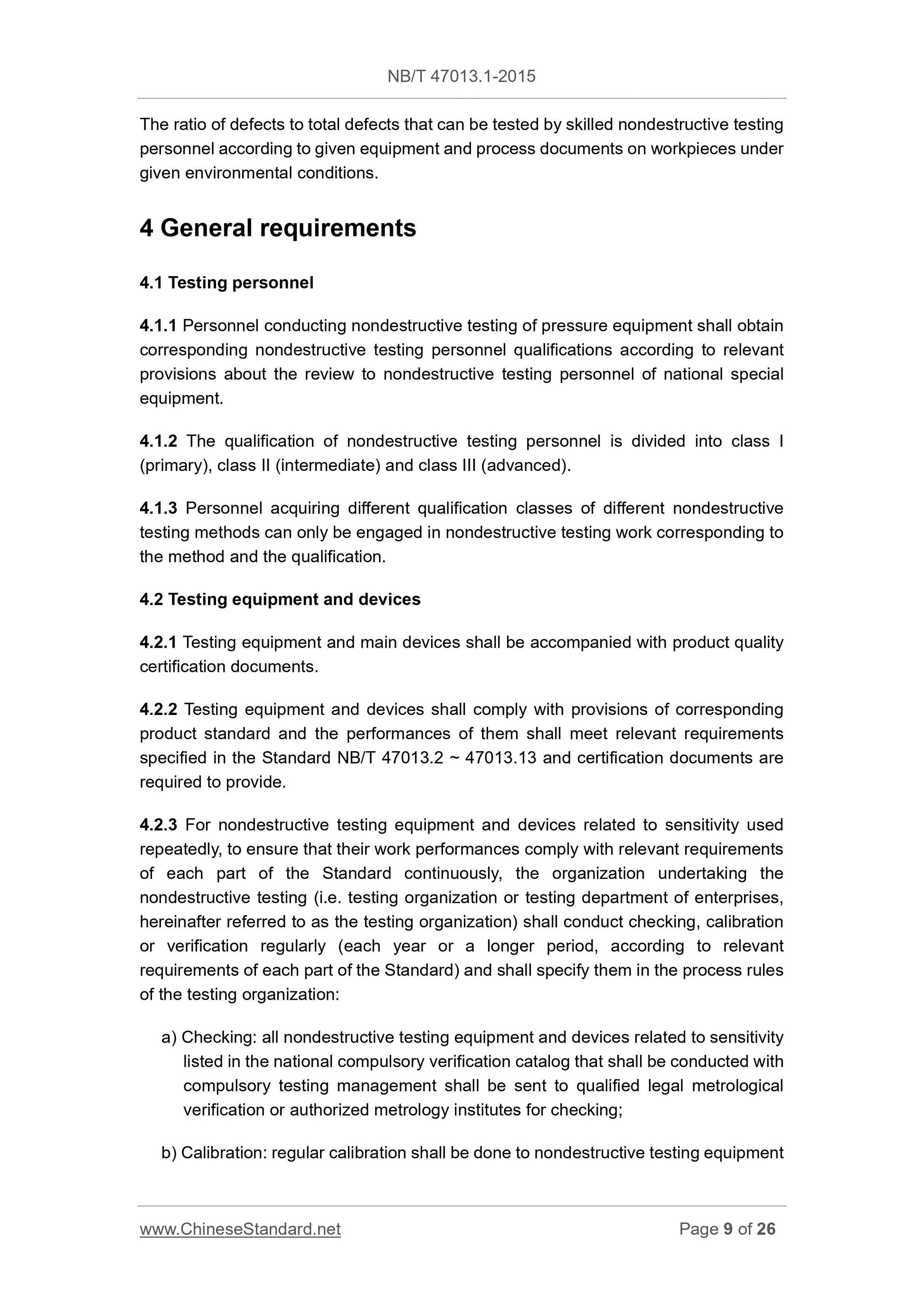

The ratio of defects to total defects that can be tested by skilled nondestructive testing personnel according to given equipment and process documents on workpieces under given environmental conditions.
4 General requirements
4.1 Testing personnel
4.1.1 Personnel conducting nondestructive testing of pressure equipment shall obtain corresponding nondestructive testing personnel qualifications according to relevant provisions about the review to nondestructive testing personnel of national special equipment.
4.1.2 The qualification of nondestructive testing personnel is divided into class I (primary), class II (intermediate) and class III (advanced).
4.1.3 Personnel acquiring different qualification classes of different nondestructive testing methods can only be engaged in nondestructive testing work corresponding to the method and the qualification.
4.2 Testing equipment and devices
4.2.1 Testing equipment and main devices shall be accompanied with product quality certification documents.
4.2.2 Testing equipment and devices shall comply with provisions of corresponding product standard and the performances of them shall meet relevant requirements specified in the Standard NB/T 47013.2 ~ 47013.13 and certification documents are required to provide.
4.2.3 For nondestructive testing equipment and devices related to sensitivity used repeatedly, to ensure that their work performances comply with relevant requirements of each part of the Standard continuously, the organization undertaking the nondestructive testing (i.e. testing organization or testing department of enterprises, hereinafter referred to as the testing organization) shall conduct checking, calibration or verification regularly (each year or a longer period, according to relevant requirements of each part of the Standard) and shall specify them in the process rules of the testing organization.
a) Checking. all nondestructive testing equipment and devices related to sensitivity listed in the national compulsory verification catalog that shall be conducted with compulsory testing management shall be sent to qualified legal metrological verification or authorized metrology institutes for checking;
b) Calibration. regular calibration shall be done to nondestructive testing equipment documents. According to provisions of this Standard and provisions of NB/T 47013.2 ~ 47013.13, it shall select one or more appropriate nondestructive testing methods, determine the testing technology class, testing rate, qualify requirements, qualified level and others to form specific testing requirements.
4.3.1.4 When nondestructive testing methods not listed in the provisions of this Standard or exceeding the applicable scope of this Standard, corresponding nondestructive testing personnel, equipment and devices and testing process documents shall be equipped and enterprise standard shall be formed after field test and technical identification and the enterprise standard shall comply with provisions of relevant laws and regulations and procedures in actual application.

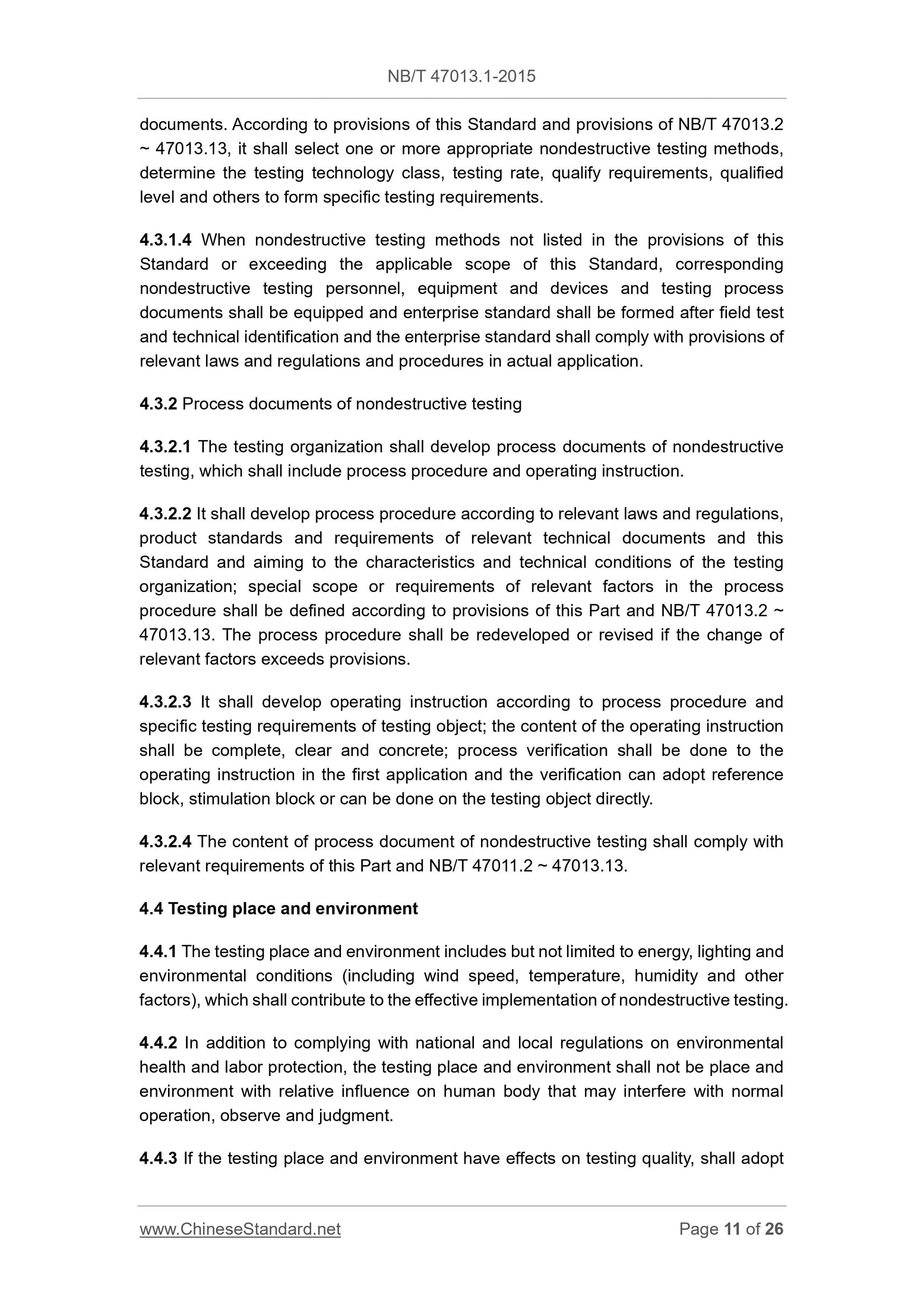

4.3.2 Process documents of nondestructive testing
4.3.2.1 The testing organization shall develop process documents of nondestructive testing, which shall include process procedure and operating instruction. 4.3.2.2 It shall develop process procedure according to relevant laws and regulations, product standards and requirements of relevant technical documents and this Standard and aiming to the characteristics and technical conditions of the testing organization; special scope or requirements of relevant factors in the process procedure shall be defined according to provisions of this Part and NB/T 47013.2 ~ 47013.13. The process procedure shall be redeveloped or revised if the change of relevant factors exceeds provisions.
4.3.2.3 It shall develop operating instruction according to process procedure and specific testing requirements of testing object; the content of the operating instruction shall be complete, clear and concrete; process verification shall be done to the operating instruction...
