Quotation: In 1-minute, 24-hr self-service. Click here JT/T 1178.1-2018 to get it for Purchase Approval, Bank TT...

JT/T 1178.1-2018: Safety specification for commercial vehicle for cargos transportation - Part 1: Goods vehicle

This part of JT/T 1178 specifies the safety technical requirements and test methods, for the complete vehicle, braking system, safety protection, load layout identification and securing points, alarms and reminders of goods vehicles. This part is applicable to goods vehicles of category N1, N2, N3. It is not applicable to towing vehicles and semi-trailers.

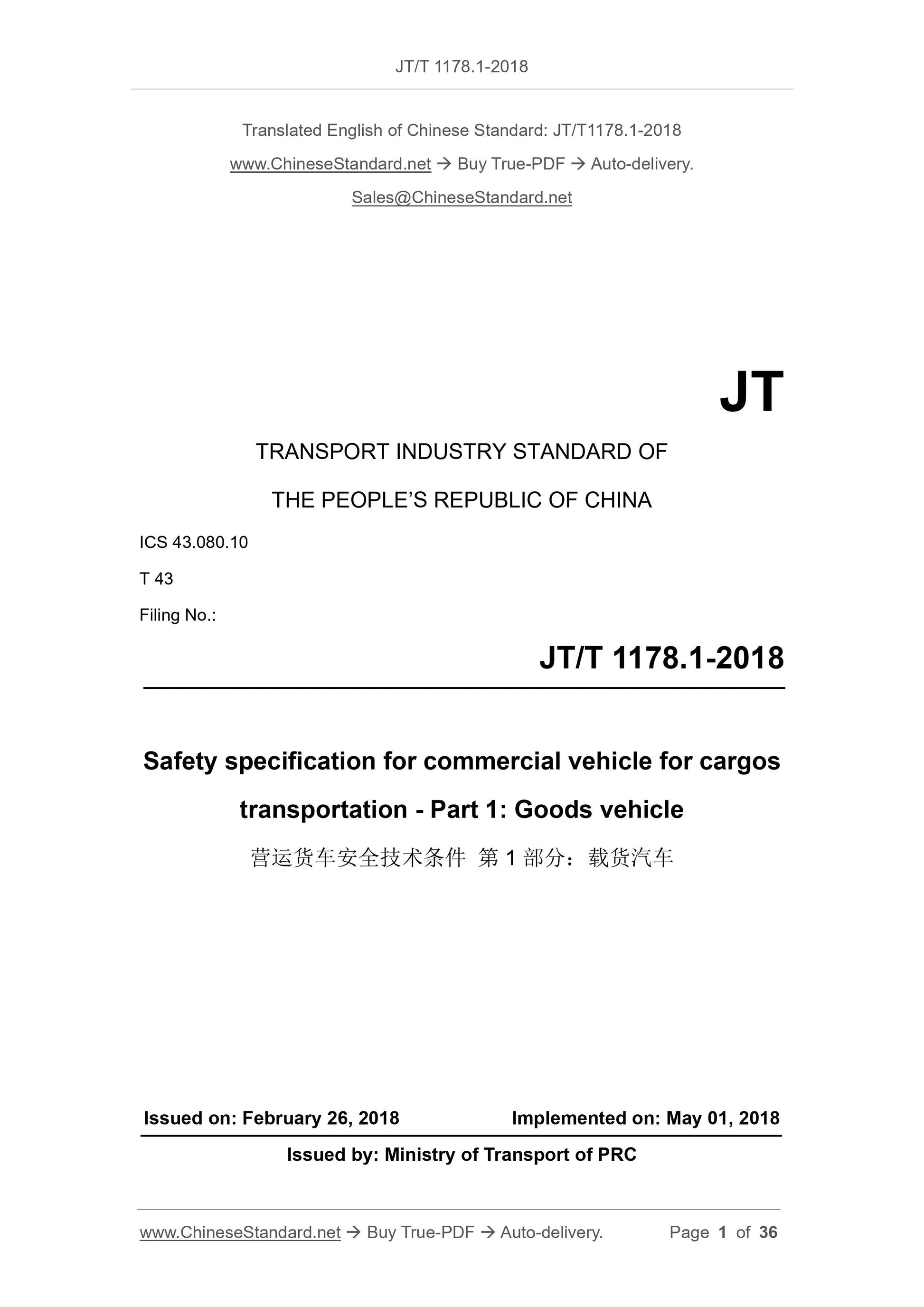

JT/T 1178.1-2018
JT
TRANSPORT INDUSTRY STANDARD OF
THE PEOPLE REPUBLIC OF CHINA
ICS 43.080.10
T 43
Filing No.:
Safety specification for commercial vehicle for cargos
transportation - Part 1: Goods vehicle
ISSUED ON: FEBRUARY 26, 2018
IMPLEMENTED ON: MAY 01, 2018
Issued by: Ministry of Transport of PRC

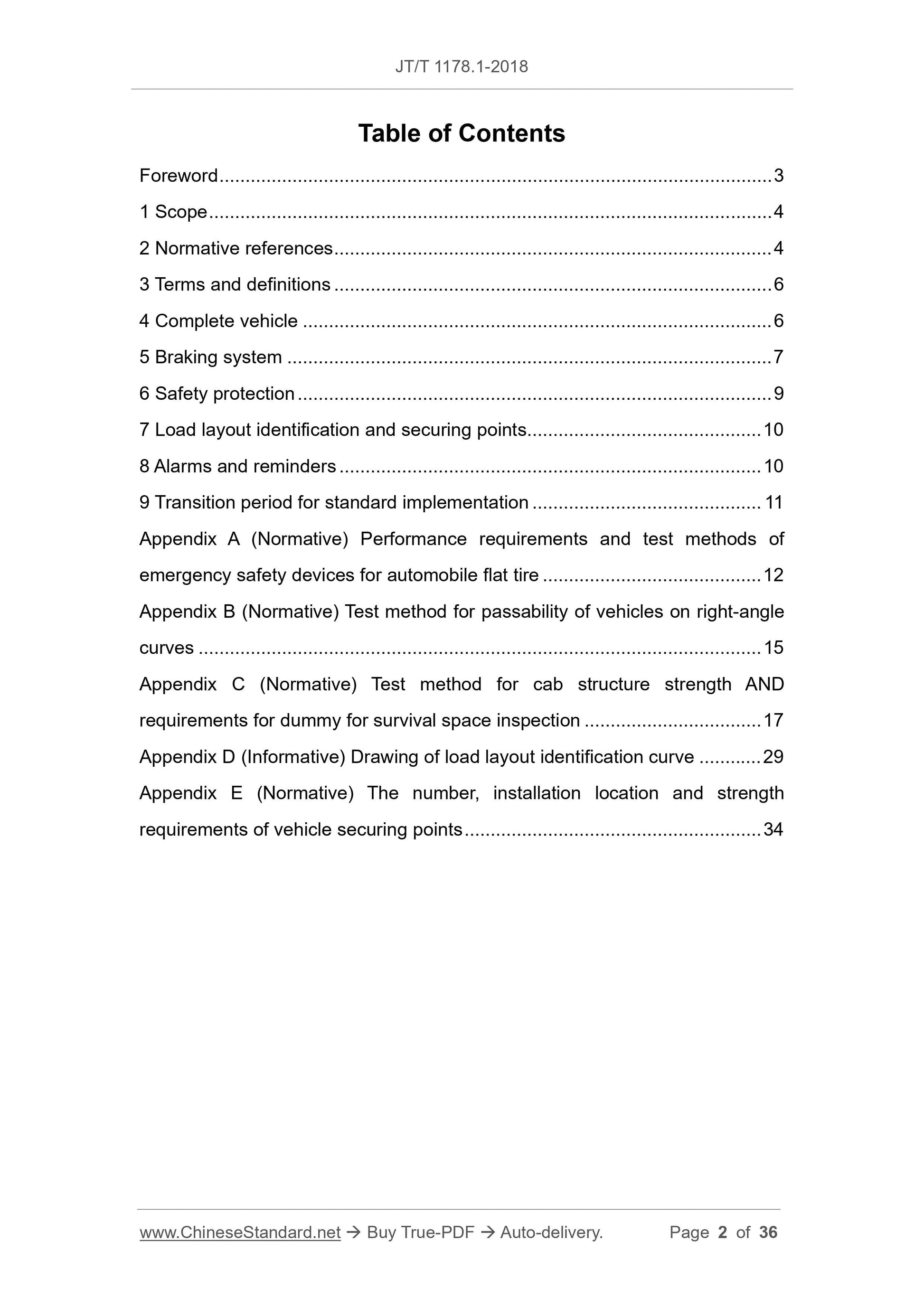

Table of Contents
Foreword ... 3
1 Scope ... 4
2 Normative references ... 4
3 Terms and definitions ... 6
4 Complete vehicle ... 6
5 Braking system ... 7
6 Safety protection ... 9
7 Load layout identification and securing points... 10
8 Alarms and reminders ... 10
9 Transition period for standard implementation ... 11
Appendix A (Normative) Performance requirements and test methods of
emergency safety devices for automobile flat tire ... 12
Appendix B (Normative) Test method for passability of vehicles on right-angle curves ... 15
Appendix C (Normative) Test method for cab structure strength AND
requirements for dummy for survival space inspection ... 17
Appendix D (Informative) Drawing of load layout identification curve ... 29 Appendix E (Normative) The number, installation location and strength
requirements of vehicle securing points ... 34

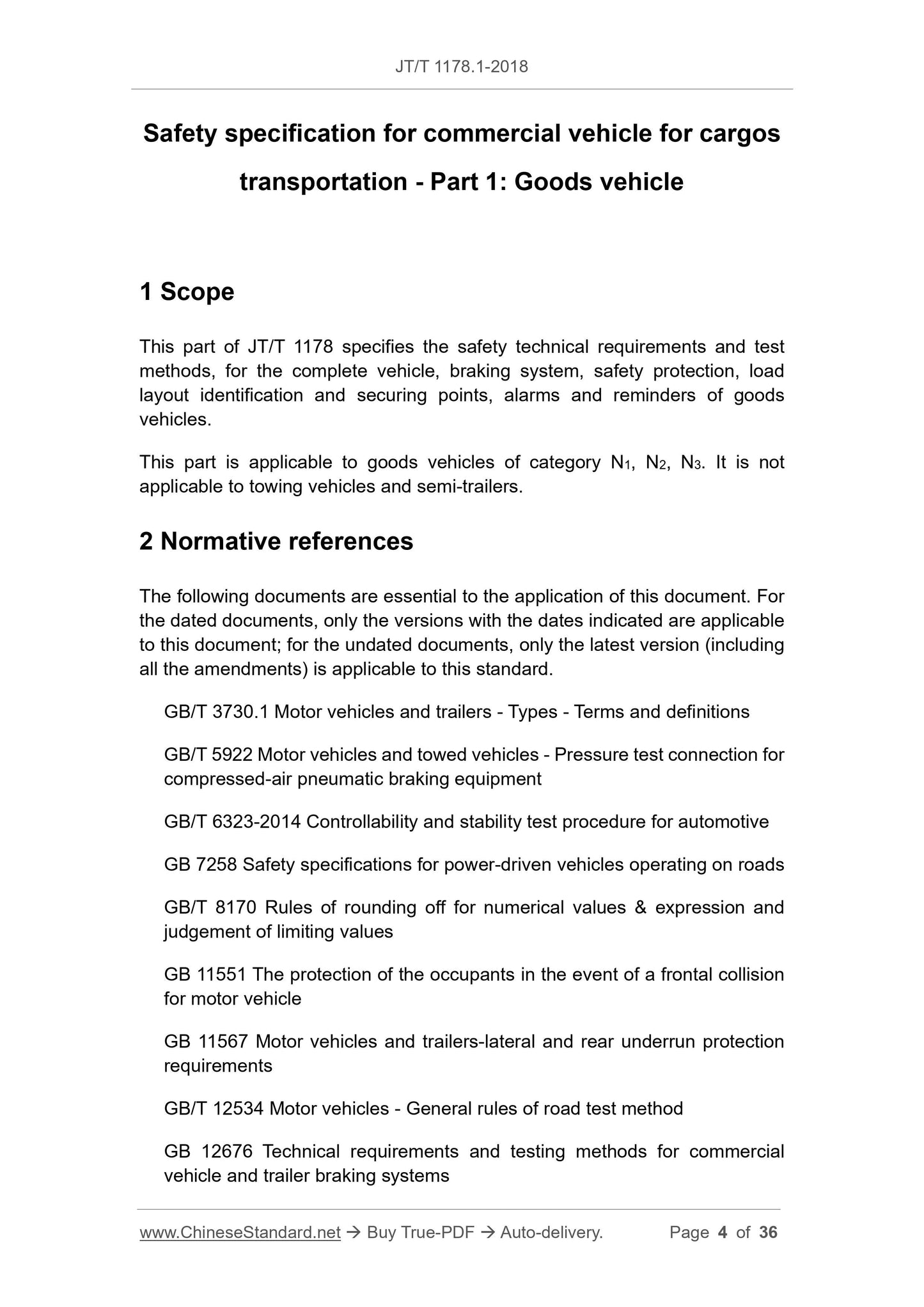

Safety specification for commercial vehicle for cargos
transportation - Part 1: Goods vehicle
1 Scope
This part of JT/T 1178 specifies the safety technical requirements and test methods, for the complete vehicle, braking system, safety protection, load layout identification and securing points, alarms and reminders of goods vehicles.
This part is applicable to goods vehicles of category N1, N2, N3. It is not applicable to towing vehicles and semi-trailers.
2 Normative references
The following documents are essential to the application of this document. For the dated documents, only the versions with the dates indicated are applicable to this document; for the undated documents, only the latest version (including all the amendments) is applicable to this standard.
GB/T 3730.1 Motor vehicles and trailers - Types - Terms and definitions GB/T 5922 Motor vehicles and towed vehicles - Pressure test connection for compressed-air pneumatic braking equipment
GB/T 6323-2014 Controllability and stability test procedure for automotive GB 7258 Safety specifications for power-driven vehicles operating on roads GB/T 8170 Rules of rounding off for numerical values and expression and
judgement of limiting values
GB 11551 The protection of the occupants in the event of a frontal collision for motor vehicle
GB 11567 Motor vehicles and trailers-lateral and rear underrun protection requirements
GB/T 12534 Motor vehicles - General rules of road test method
GB 12676 Technical requirements and testing methods for commercial
vehicle and trailer braking systems
JT/T 884 Anti-rollover stability test procedure for commercial vehicles - Steady static circular test procedure
JT/T 1046 Explosion suppression safety technical requirements for road
transportation vehicle fuel tank and liquid fuel transportation tank
JT/T 1094-2016 Safety specifications for commercial bus
QC/T 480 Criterion threshold and evaluation of controllability and stability for automobiles

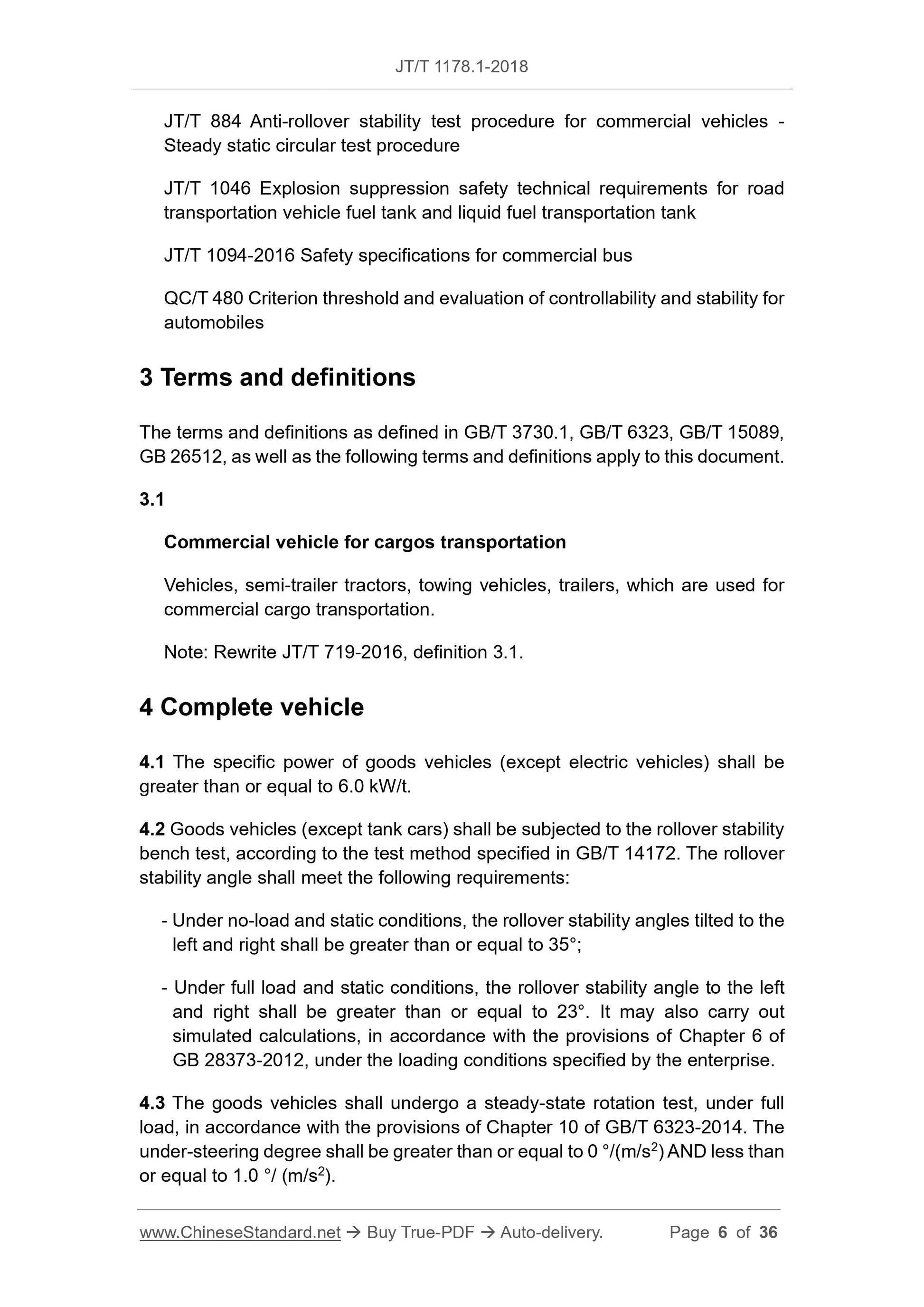

3 Terms and definitions
The terms and definitions as defined in GB/T 3730.1, GB/T 6323, GB/T 15089, GB 26512, as well as the following terms and definitions apply to this document. 3.1
Commercial vehicle for cargos transportation
Vehicles, semi-trailer tractors, towing vehicles, trailers, which are used for commercial cargo transportation.
Note: Rewrite JT/T 719-2016, definition 3.1.
4 Complete vehicle
4.1 The specific power of goods vehicles (except electric vehicles) shall be greater than or equal to 6.0 kW/t.
4.2 Goods vehicles (except tank cars) shall be subjected to the rollover stability bench test, according to the test method specified in GB/T 14172. The rollover stability angle shall meet the following requirements:
- Under no-load and static conditions, the rollover stability angles tilted to the left and right shall be greater than or equal to 35??;
- Under full load and static conditions, the rollover stability angle to the left and right shall be greater than or equal to 23??. It may also carry out
simulated calculations, in accordance with the provisions of Chapter 6 of GB 28373-2012, under the loading conditions specified by the enterprise. 4.3 The goods vehicles shall undergo a steady-state rotation test, under full load, in accordance with the provisions of Chapter 10 of GB/T 6323-2014. The under-steering degree shall be greater than or equal to 0 ??/(m/s2) AND less than or equal to 1.0 ??/ (m/s2).

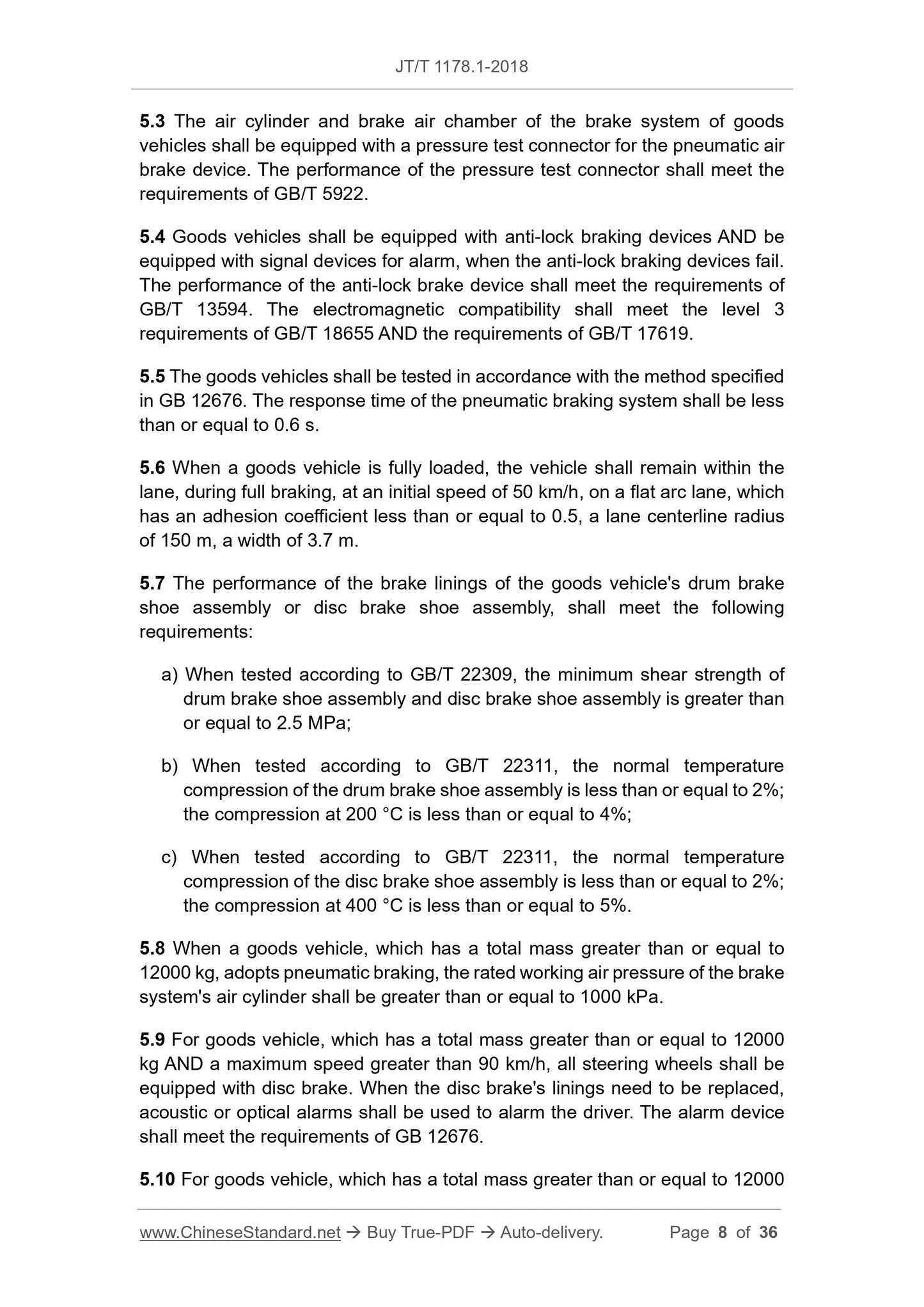

5.3 The air cylinder and brake air chamber of the brake system of goods vehicles shall be equipped with a pressure test connector for the pneumatic air brake device. The performance of the pressure test connector shall meet the requirements of GB/T 5922.
5.4 Goods vehicles shall be equipped with anti-lock braking devices AND be equipped with signal devices for alarm, when the anti-lock braking devices fail. The performance of the anti-lock brake device shall meet the requirements of GB/T 13594. The electromagnetic compatibility shall meet the level 3
requirements of GB/T 18655 AND the requirements of GB/T 17619.
5.5 The goods vehicles shall be tested in accordance with the method specified in GB 12676. The response time of the pneumatic braking system shall be less than or equal to 0.6 s.
5.6 When a goods vehicle is fully loaded, the vehicle shall remain within the lane, during full braking, at an initial speed of 50 km/h, on a flat arc lane, which has an adhesion coefficient less than or equal to 0.5, a lane centerline radius of 150 m, a width of 3.7 m.
5.7 The performance of the brake linings of the goods vehicle's drum brake shoe assembly or disc brake shoe assembly, shall meet the following
requirements:
a) When tested according to GB/T 22309, the minimum shear strength of
drum brake shoe assembly and disc brake shoe assembly is greater than
or equal to 2.5 MPa;
b) When tested according to GB/T 22311, the normal temperature
compression of the drum brake shoe assembly is less than or equal to 2%; the compression at 200 ??C is less than or equal to 4%;
c) When tested according to GB/T 22311, the normal temperature
compression of the disc brake shoe assembly is less than or equal to 2%; the compression at 400 ??C is less than or equal to 5%.
5.8 When a goods vehicle, which has a total mass greater than or equal to 12000 kg, adopts pneumatic braking, the rated working air pressure of the brake system's air cylinder shall be greater than or equal to 1000 kPa.
5.9 For goods vehicle, which has a total mass greater than or equal to 12000 kg AND a maximum speed greater than 90 km/h, all steering wheels shall be equipped with disc brake. When the disc brake's linings need to be replaced, acoustic or optical alarms shall be used to alarm the driver. The alarm device shall meet the requirements of GB 12676.
5.10 For goods vehicle, which has a total mass greater than or equal to 12000 6.8 Gas-fueled vehicles shall be equipped with automobile static conductive rubber tow belt. The performance of automobile static conductive rubber tow belt shall meet the requirements of JT/T 230.

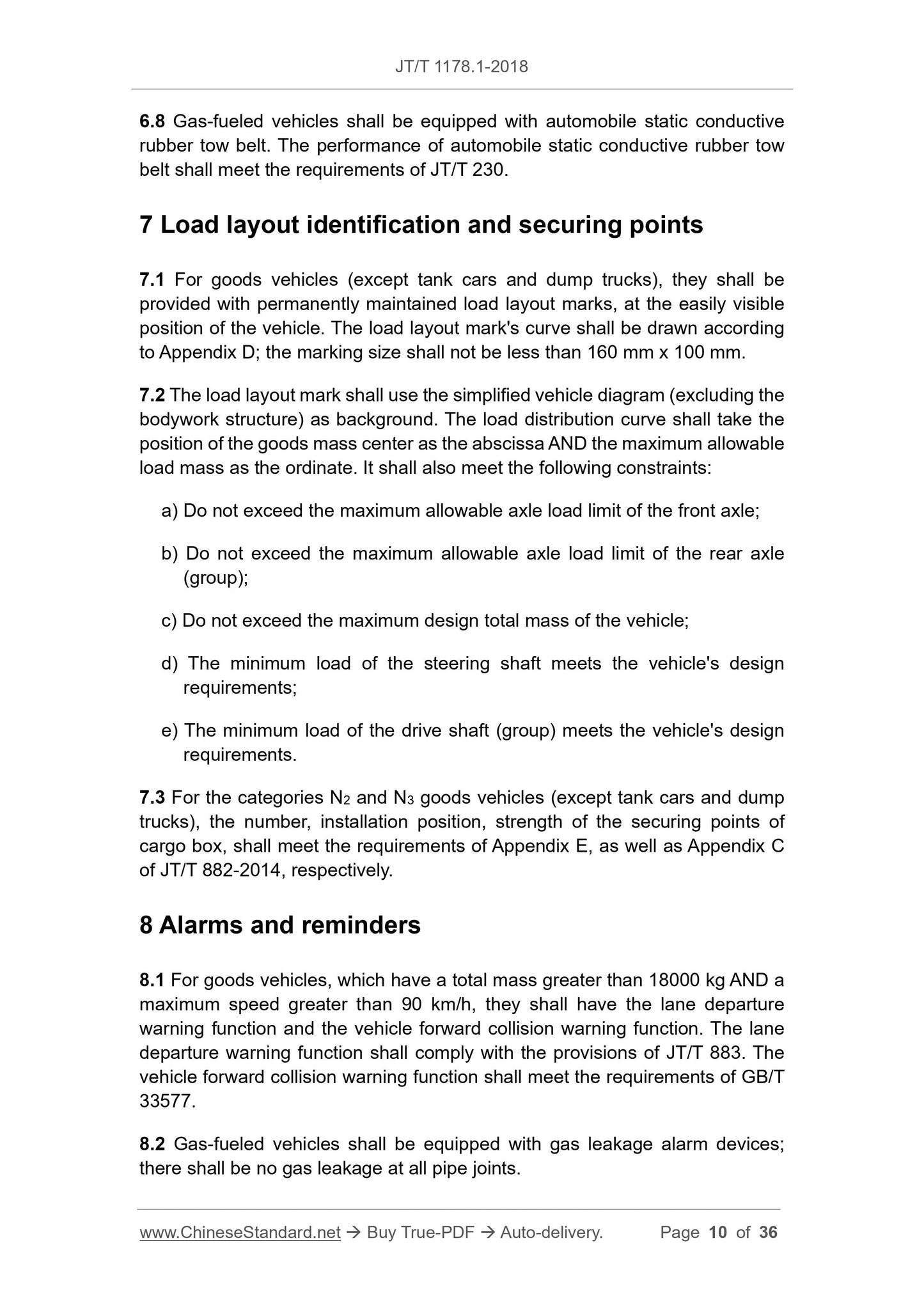

7 Load layout identification and securing points
7.1 For goods vehicles (except tank cars and dump trucks), they shall be provided with permanently maintained load layout marks, at the easily visible position of the vehicle. The load layout mark's curve shall be drawn according to Appendix D; the marking size shall not be less than 160 mm x 100 mm. 7.2 The load layout mark shall use the simplified vehicle diagram (excluding the bodywork structure) as background. The load distribution curve shall take the position of the goods mass center as the abscissa AND the maximum allowable load mass as the ordinate. It shall also meet the following constraints: a) Do not exceed the maximum allowable axle load limit of the front axle; b) Do not exceed the maximum allowable axle load limit of the rear axle (group);
c) Do not exceed the maximum design total mass of the vehicle;
d) The minimum load of the steering shaft meets the vehicle's design
requirements;
e) The minimum load of the drive shaft (group) meets the vehicle's design requirements.
7.3 For the categories N2 and N3 goods vehicles (except tank cars and dump trucks), the number, installation position, strength of the securing points of cargo box, shall meet the requirements of Appendix E, as well as Appendix C of JT/T 882-2014, respectively.
8 Alarms and reminders
8.1 For goods vehicles, which have a total mass greater than 18000 kg AND a maximum speed greater than 90 km/h, they shall have the lane departure
warning function and the vehicle forward collision warning function. The lane departure warning function shall comply with the provisions of JT/T 883. The vehicle forward collision warning function shall meet the requirements of GB/T 33577.
8.2 Gas-fueled vehicles shall be equipped with gas leakage alarm devices; there shall be no gas leakage at all pipe joints.

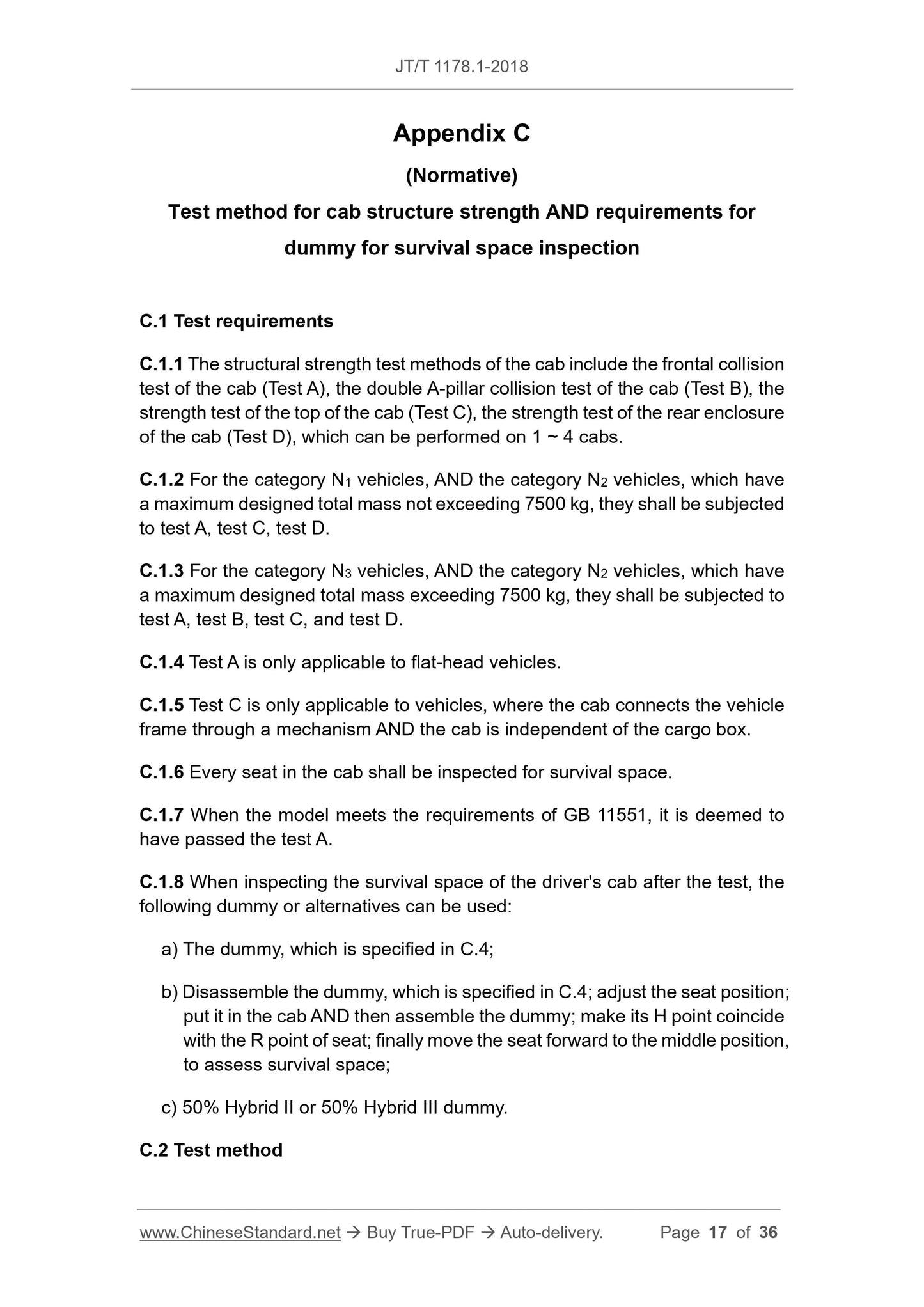

Appendix C
(Normative)
Test method for cab structure strength AND requirements for
dummy for survival space inspection
C.1 Test requirements
C.1.1 The structural strength test methods of the cab include the frontal collision test of the cab (Test A), the double A-pillar collision test of the cab (Test B), the strength test of the top of the cab (Test C), the strength test of the rear enclosure of the cab (Test D), which can be performed on 1 ~ 4 cabs.
C.1.2 For the category N1 vehicles, AND the category N2 vehicles, which have a maximum designed total mass not exceeding 7500 kg, they shall be subjected to test A, test C, test D.
C.1.3 For the category N3 vehicles, AND the category N2 vehicles, which have a maximum designed total mass exceeding 7500 kg, they shall be subjected to test A, test B, test C, and test D.
C.1.4 Test A is only applicable to flat-head vehicles.
C.1.5 Test C is only applicable to vehicles, where the cab connects the vehicle frame through a mechanism AND the cab is independent of the cargo box.
C.1.6 Every seat in the cab shall be inspected for survival space.
C.1.7 When the model meets the requirements of GB 11551, it is deemed to have passed the test A.
C.1.8 When inspecting the survival space of the driver's cab after the test, the following dummy or alternatives can be used:
a) The dummy, which is specified in C.4;
b) Disassemble the dummy, which is specified in C.4; adjust the seat position; put it in the cab AND then assemble the dummy; make its H point coincide with the R point of seat; finally move the seat forward to the middle position, to assess survival space;
c) 50% Hybrid II or 50% Hybrid III dummy.
C.2 Test method

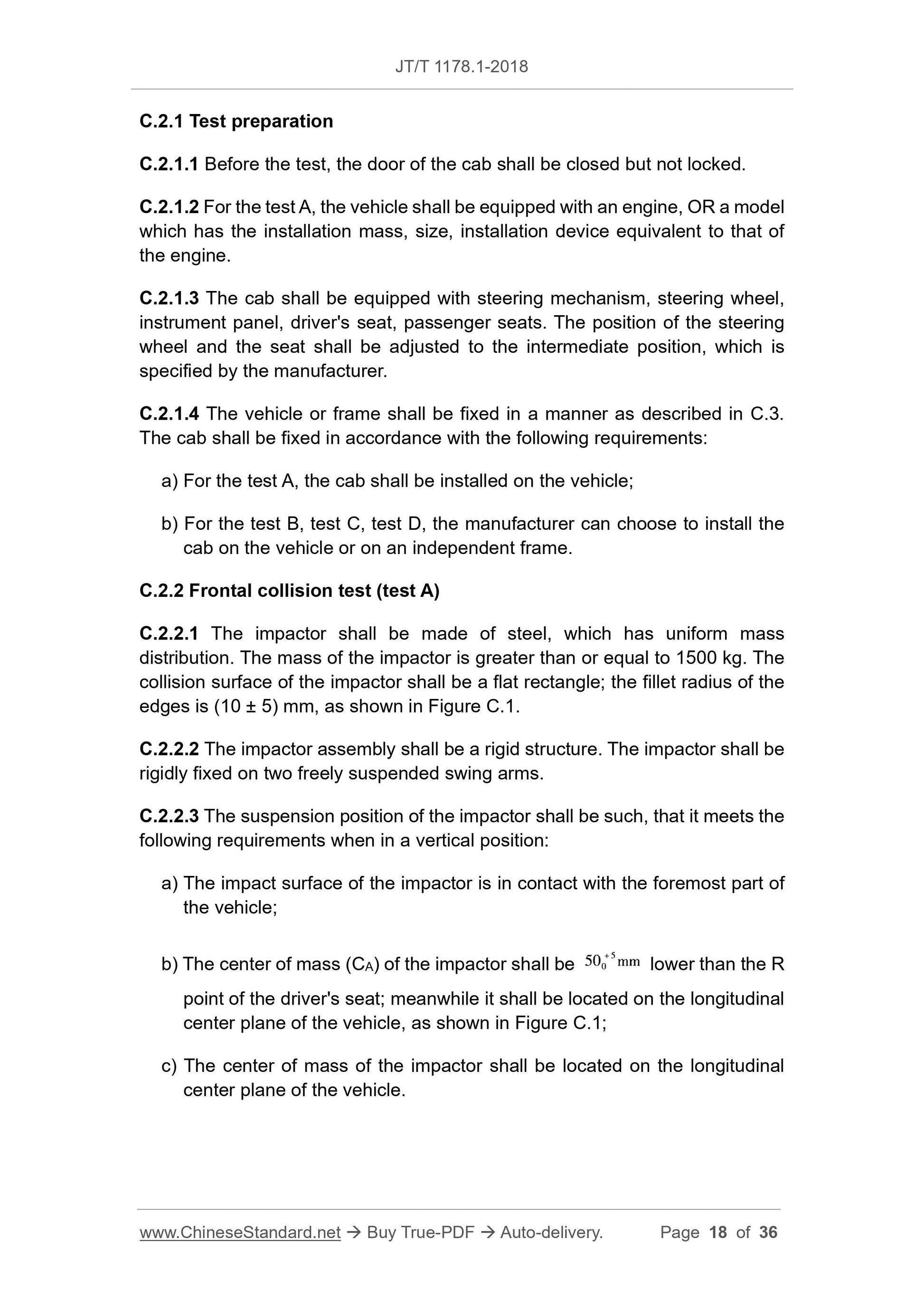

C.2.1 Test preparation
C.2.1.1 Before the test, the door of the cab shall be closed but not locked. C.2.1.2 For the test A, the vehicle shall be equipped with an engine, OR a model which has the installation mass, size, installation device equivalent to that of the engine.
C.2.1.3 The cab shall be equipped with steering mechanism, steering wheel, instrument panel, driver's seat, passenger seats. The position of the steering wheel and the seat shall be adjusted to the intermediate position, which is specified by the manufacturer.
C.2.1.4 The vehicle or frame shall be fixed in a manner as described in C.3. The cab shall be fixed in accordance with the following requirements:
a) For the test A, the cab shall be installed on the vehicle;
b) For the test B, test C, test D, the manufacturer can choose to install the cab on the vehicle or on an independent frame.
C.2.2 Frontal collision test (test A)
C.2.2.1 The impactor shall be made of steel, which has uniform mass
distribution. The mass of the impactor is greater than or equal to 1500 kg. The collision surface of the impactor shall be a flat rectangle; the fillet radius of the edges is (10 ?? 5) mm, as shown in Figure C.1.
C.2.2.2 The impactor assembly shall be a rigid structure. The impactor shall be rigidly fixed on two freely suspended swing arms.
C.2.2.3 The suspension position of the impactor shall be such, that it meets the following requirements when in a vertical position:
a) The impact surface of the impactor is in contact with the foremost part of the vehicle;
b) The center of mass (CA) of the impactor shall be lower than the R
point of the driver's seat; meanwhile it shall be located on the longitudinal center plane of the vehicle, as shown in Figure C.1;
c) The center of mass of the impactor shall be located on the longitudinal center plane of the vehicle.

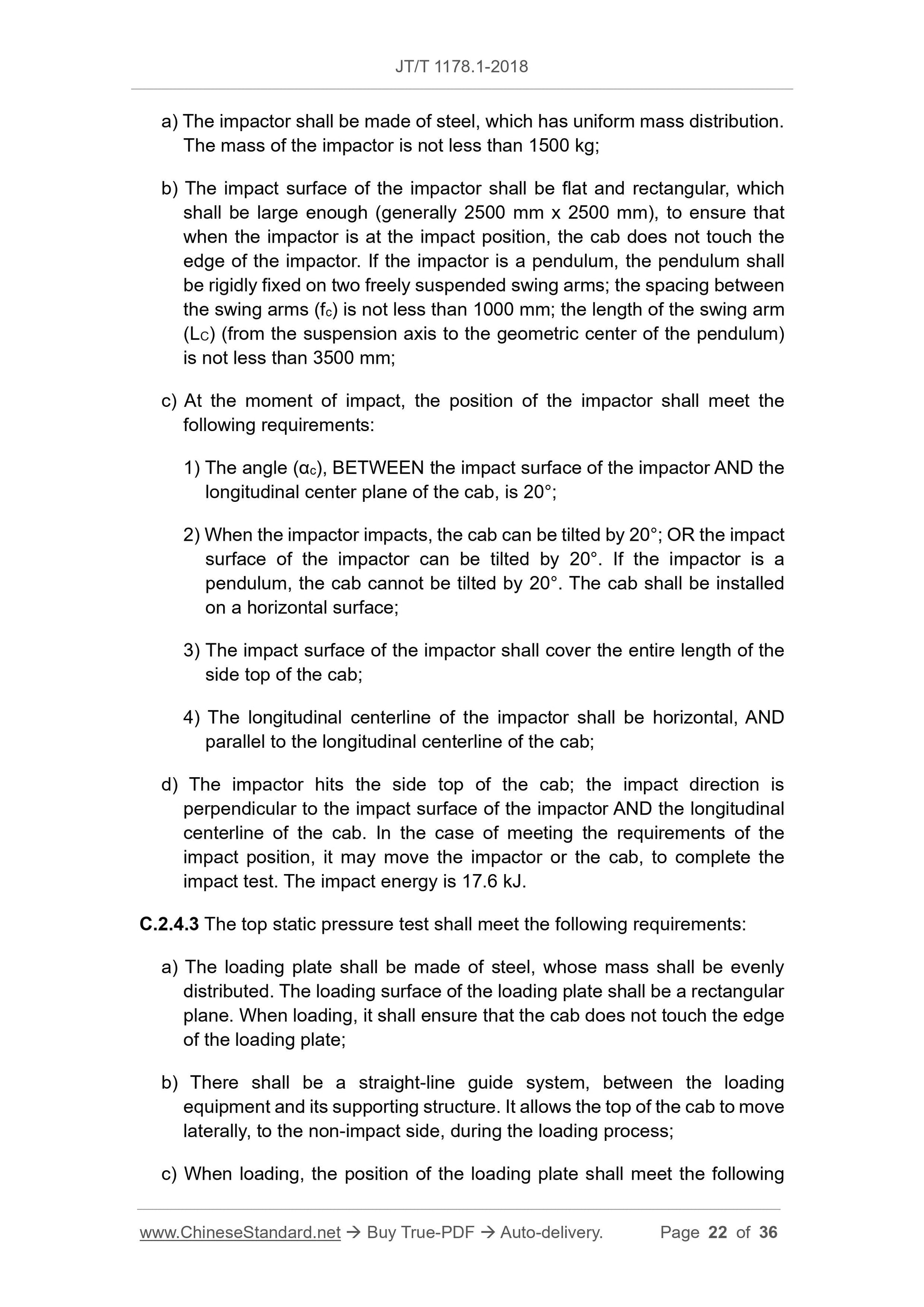

a) The impactor shall be made of steel, which has uniform mass distribution. The mass of the impactor is not less than 1500 kg;
b) The impact surface of the impactor shall be flat and rectangular, which shall be large enough (generally 2500 mm x 2500 mm), to ensure that
when the impactor is at the impact position, the cab does not touch the edge of the impactor. If the impactor is a pendulum, the pendulum shall be rigidly fixed on two freely suspended swing arms; the spacing between the swing arms (fc) is not less than 1000 mm; the length of the swing arm (LC) (from the suspension axis to the geometric center of the pendulum) is not less than 3500 mm;
c) At the moment of impact, the position of the impactor shall meet the following requirements:
1) The angle (??c), BETWEEN the impact surface of the impactor AND the
longitudinal center plane of the cab, is 20??;
2) When the impactor impacts, the cab can be tilted by 20??; OR the impact surface of the impactor can be tilted by 20??. If the impactor is a
pendulum, the cab cannot be tilted by 20??. The cab shall be installed
on a horizontal surface;
3) The impact surface of the impactor shall cover the entire length of the side top of the cab;
4) The longitudinal centerline of the impactor shall be horizontal, AND parallel to the longitudinal centerline of the cab;
d) The impactor hits the side top of the cab; the impact direction is
perpendicular to the impact surface of the impactor AND the longitudinal centerline of the cab. In the case of meeting the requirements of the
impact position, it may move the impactor or the cab, to complete the
impact test. The impact energy is 17.6 kJ.
C.2.4.3 The top static pressure test shall meet the following requirements: a) The loading plate shall be made of steel, whose mass shall be evenly distributed. The loading surface of the loading plate shall be a rectangular plane. When loading, it shall ensure that the cab does not touch the edge of the loading plate;
b) There shall be a straight-line guide system, between the loading
equipment and its supporting structure. It allows the top of the cab to move laterally, to the non-impact side, during the loading process;
c) When loading, the position of the loading plate shall meet the following b) The longitudinal beams of the frame shall be placed on the sleeper

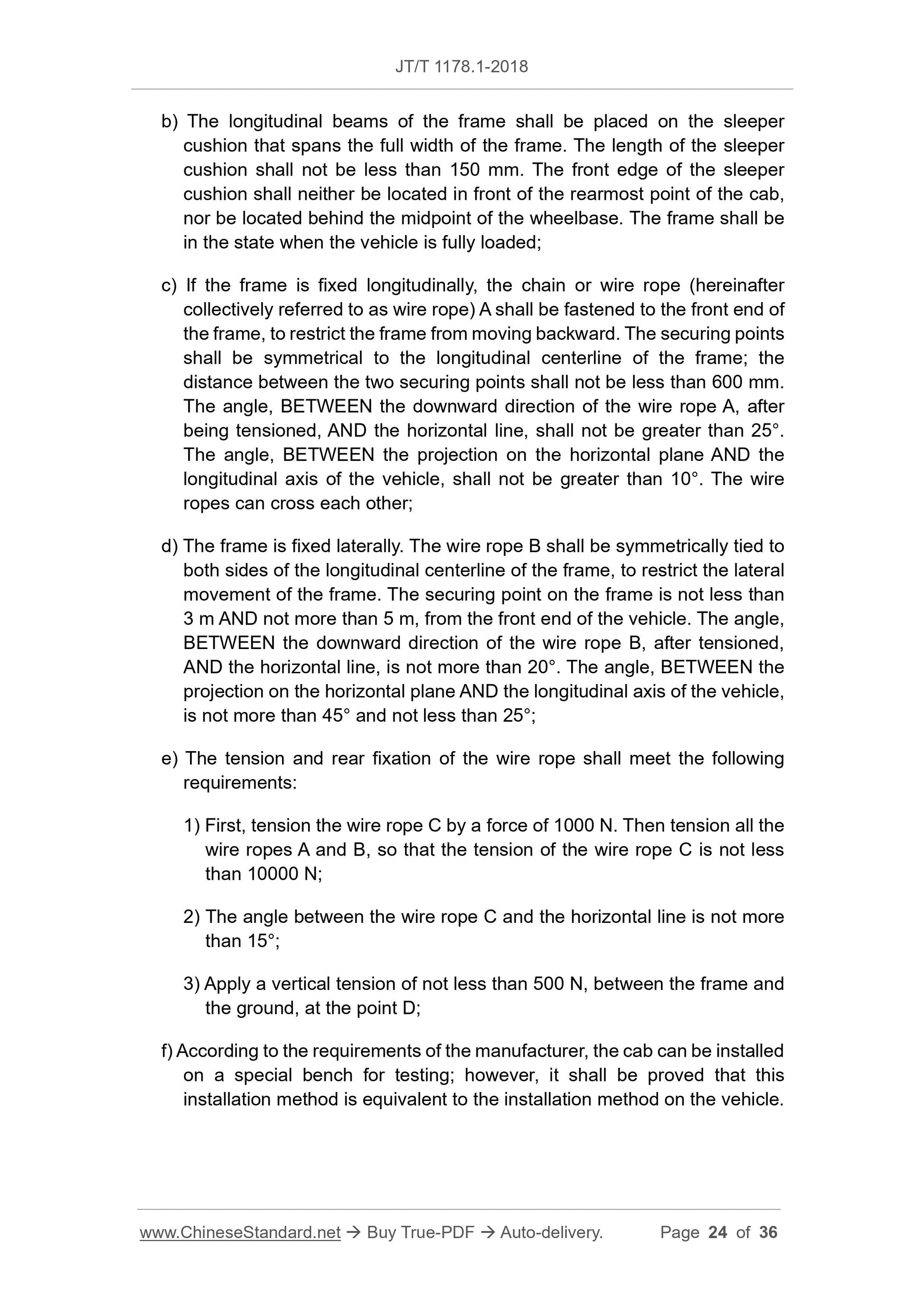

cushion that spans the full width of the frame. The length of the sleeper cushion shall not be less than 150 mm. The front edge of the sleeper
cushion shall neither be located in front of the rearmost point of the cab, nor be located behind the midpoint of the wheelbase. The frame shall be in the state when the vehicle is fully loaded;
c) If the frame is fixed longitudinally, the chain or wire rope (hereinafter collectively referred to as wire rope) A shall be fastened to the front end of the frame, to restrict the frame from moving backward. The securing points shall be symmetrical to the longitudinal centerline of the frame; the
distance between the two securing points shall not be less than 600 mm. The angle, BETWEEN the downward direction of the wire rope A, after
being tensioned, AND the horizontal line, shall not be greater than 25??. The angle, BETWEEN the projection on the horizontal plane AND the
longitudinal axis of the vehicle, shall not be greater than 10??. The wire ropes can cross each other;
d) The frame is fixed laterally. The wire rope B shall be symmetrically tied to both sides of the longitudinal centerline of the frame, to restrict the lateral movement of the frame. The securing point on the frame is not less than 3 m AND not more than 5 m, from the front end of the vehicle. The angle, BETWEEN the downward direction of the wire rope B, after tensioned,
AND the horizontal line, is not more than 20??. The angle, BETWEEN the
projection on the horizontal plane AND the longitudinal axis of the vehicle, is not more than 45?? and not less than 25??;
e) The tension and rear fixation of the wire rope shall meet the following requirements:
1) First, tension the wire rope C by a force of 1000 N. Then tension all the wire ropes A and B, so that the tension of the wire rope C is not less
than 10000 N;
2) The angle between the wire rope C and the horizontal line is not more than 15??;
3) Apply a vertical tension of not less than 500 N, between the frame and the ground, at the point D;
f) According to the requirements of the manufacturer, the cab can be installed on a special bench for testing; however, it shall be proved that this
installation method is equivalent to the installation method on the vehicle.
