JT/T 1095-2016 English PDF (JTT1095-2016)

JT/T 1095-2016 English PDF (JTT1095-2016)

Regular price $160.00 USD
Regular price Sale price $160.00 USD
Sale Sold out
Shipping calculated at checkout.
Quotation: 24-hr self-service. Click JT/T 1095-2016
See Chinese contents: JT/T 1095-2016

JT/T 1095-2016: Flame resistance of commercial bus interior materials

This Standard specifies the technical requirements and test methods for the flame resistance of commercial bus interior materials. This Standard is applicable to the evaluation on the flame resistance of the commercial bus interior materials.

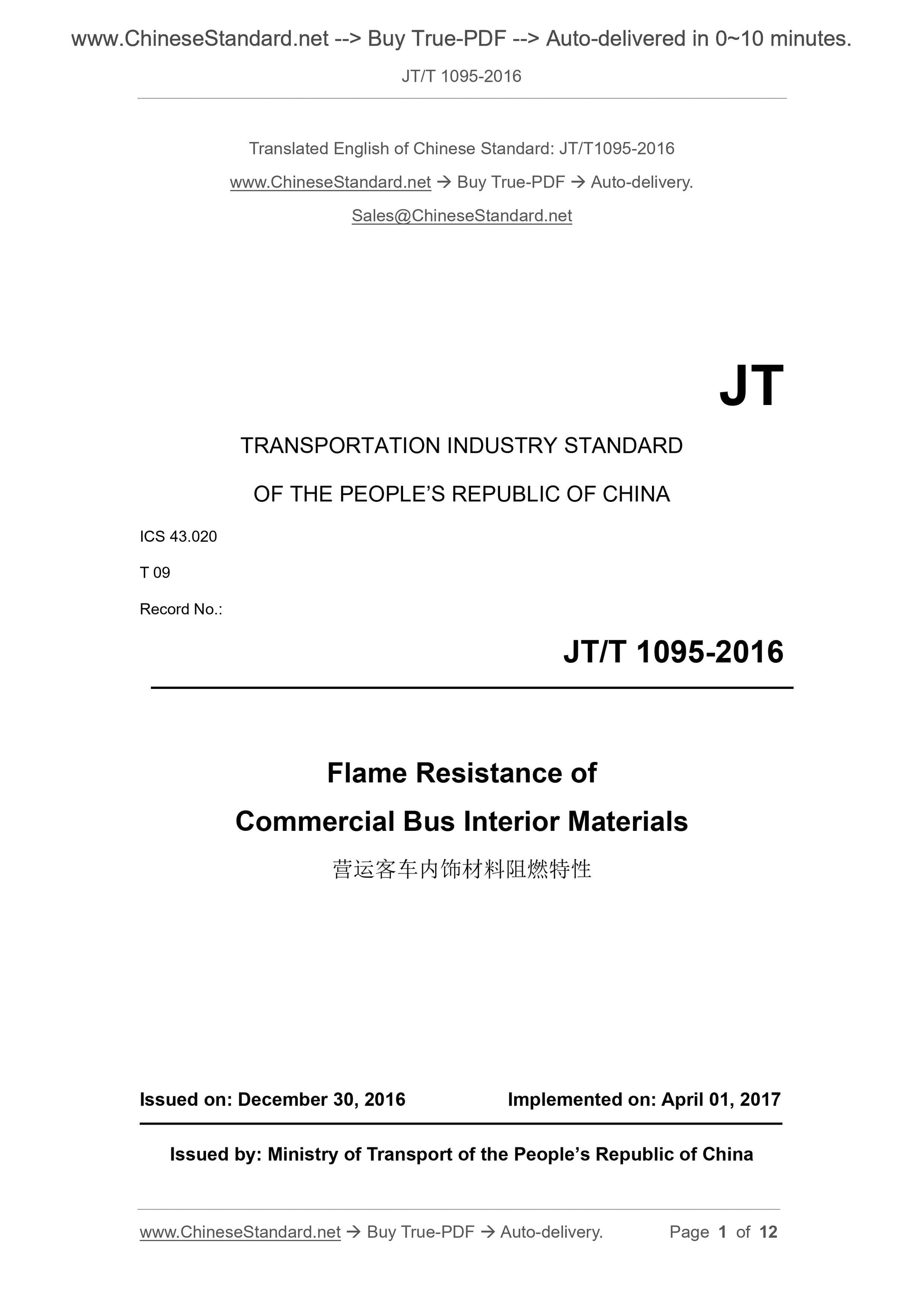

JT/T 1095-2016
JT
TRANSPORTATION INDUSTRY STANDARD
OF THE PEOPLE REPUBLIC OF CHINA
ICS 43.020
T 09
Record No..
Flame Resistance of
Commercial Bus Interior Materials
ISSUED ON. DECEMBER 30, 2016
IMPLEMENTED ON. APRIL 01, 2017
Issued by. Ministry of Transport of the PEOPLE Republic of China

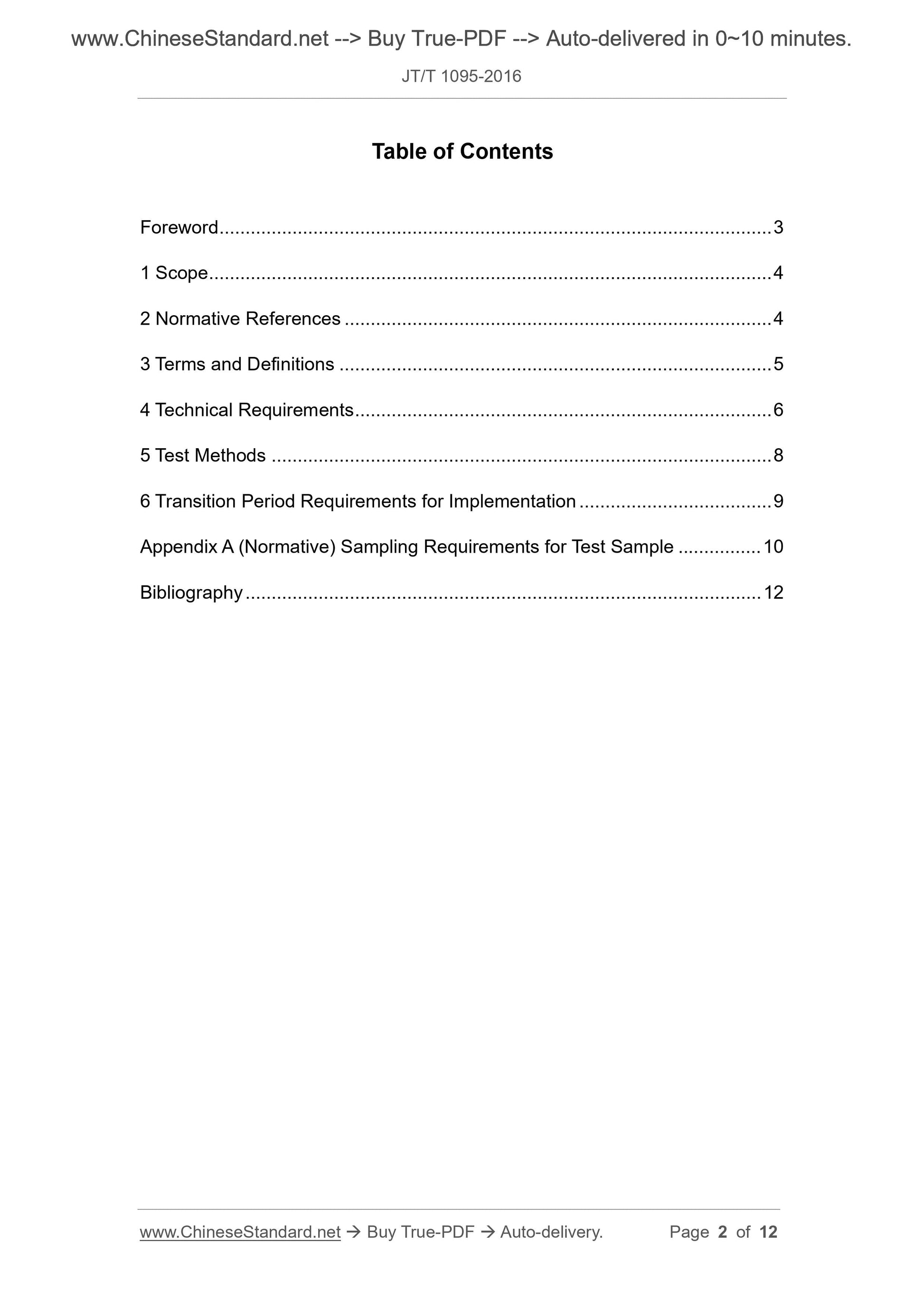

Table of Contents
Foreword ... 3
1 Scope ... 4
2 Normative References ... 4
3 Terms and Definitions ... 5
4 Technical Requirements ... 6
5 Test Methods ... 8
6 Transition Period Requirements for Implementation ... 9
Appendix A (Normative) Sampling Requirements for Test Sample ... 10
Bibliography ... 12

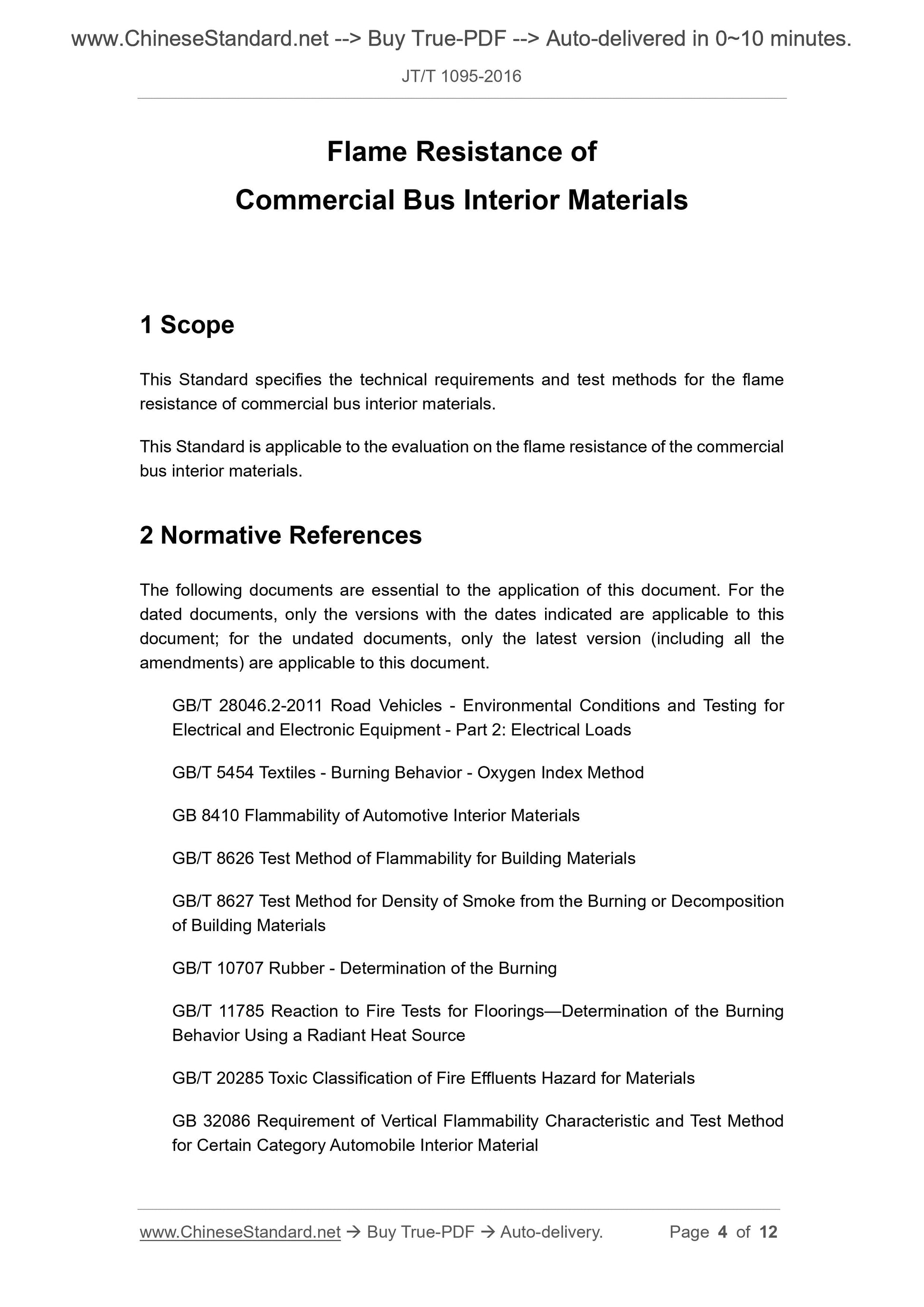

Flame Resistance of
Commercial Bus Interior Materials
1 Scope
This Standard specifies the technical requirements and test methods for the flame resistance of commercial bus interior materials.
This Standard is applicable to the evaluation on the flame resistance of the commercial bus interior materials.
2 Normative References
The following documents are essential to the application of this document. For the dated documents, only the versions with the dates indicated are applicable to this document; for the undated documents, only the latest version (including all the amendments) are applicable to this document.
GB/T 28046.2-2011 Road Vehicles - Environmental Conditions and Testing for Electrical and Electronic Equipment - Part 2. Electrical Loads
GB/T 5454 Textiles - Burning Behavior - Oxygen Index Method
GB 8410 Flammability of Automotive Interior Materials
GB/T 8626 Test Method of Flammability for Building Materials
GB/T 8627 Test Method for Density of Smoke from the Burning or Decomposition of Building Materials
GB/T 10707 Rubber - Determination of the Burning
GB/T 11785 Reaction to Fire Tests for Floorings?€?Determination of the Burning Behavior Using a Radiant Heat Source
GB/T 20285 Toxic Classification of Fire Effluents Hazard for Materials
GB 32086 Requirement of Vertical Flammability Characteristic and Test Method for Certain Category Automobile Interior Material

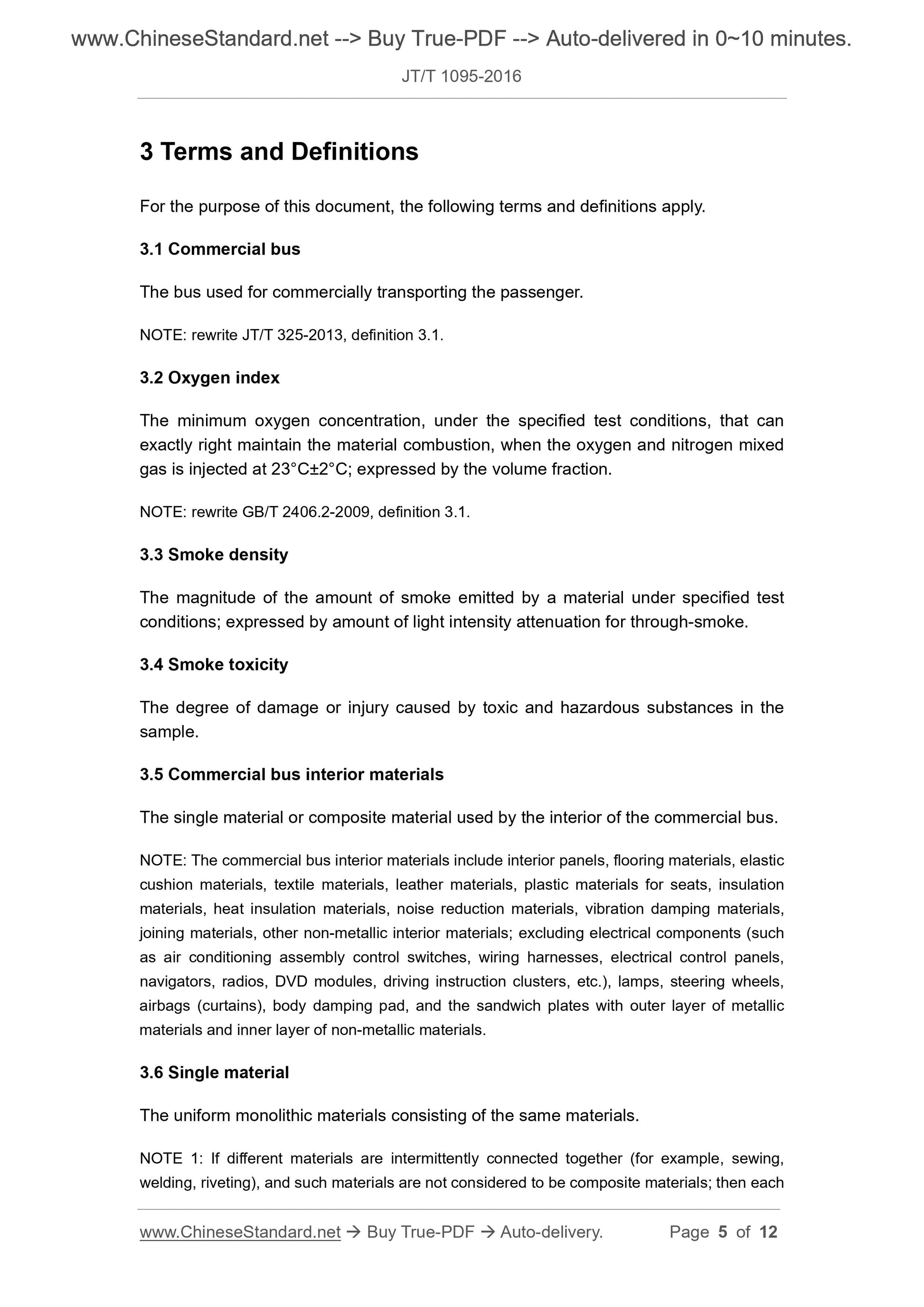

3 Terms and Definitions
For the purpose of this document, the following terms and definitions apply. 3.1 Commercial bus
The bus used for commercially transporting the passenger.
NOTE. rewrite JT/T 325-2013, definition 3.1.
3.2 Oxygen index
The minimum oxygen concentration, under the specified test conditions, that can exactly right maintain the material combustion, when the oxygen and nitrogen mixed gas is injected at 23??C??2??C; expressed by the volume fraction.
NOTE. rewrite GB/T 2406.2-2009, definition 3.1.
3.3 Smoke density
The magnitude of the amount of smoke emitted by a material under specified test conditions; expressed by amount of light intensity attenuation for through-smoke. 3.4 Smoke toxicity
The degree of damage or injury caused by toxic and hazardous substances in the sample.
3.5 Commercial bus interior materials
The single material or composite material used by the interior of the commercial bus. NOTE. The commercial bus interior materials include interior panels, flooring materials, elastic cushion materials, textile materials, leather materials, plastic materials for seats, insulation materials, heat insulation materials, noise reduction materials, vibration damping materials, joining materials, other non-metallic interior materials; excluding electrical components (such as air conditioning assembly control switches, wiring harnesses, electrical control panels, navigators, radios, DVD modules, driving instruction clusters, etc.), lamps, steering wheels, airbags (curtains), body damping pad, and the sandwich plates with outer layer of metallic materials and inner layer of non-metallic materials.
3.6 Single material
The uniform monolithic materials consisting of the same materials.

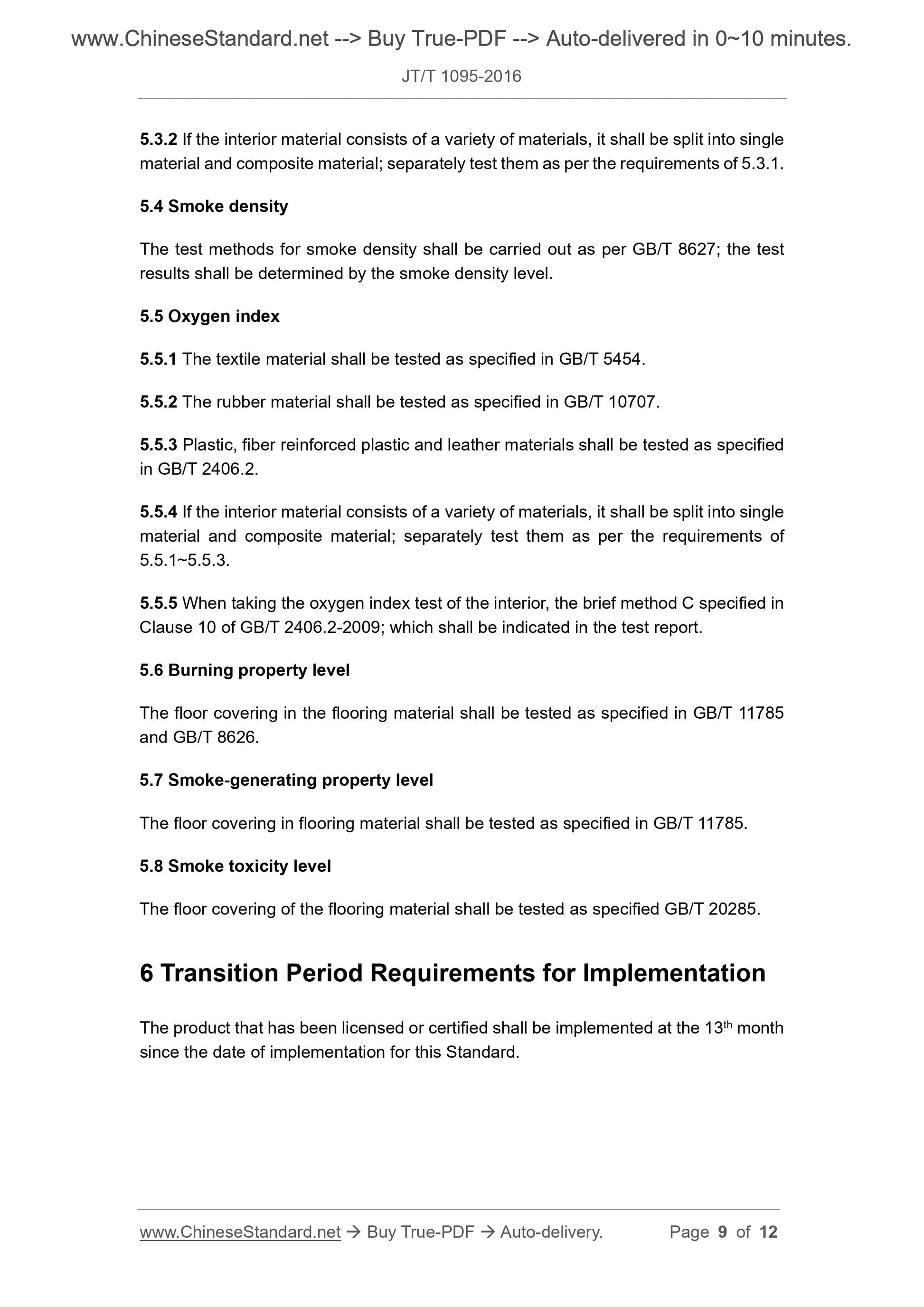

NOTE 1. If different materials are intermittently connected together (for example, sewing, welding, riveting), and such materials are not considered to be composite materials; then each 5.3.2 If the interior material consists of a variety of materials, it shall be split into single material and composite material; separately test them as per the requirements of 5.3.1. 5.4 Smoke density
The test methods for smoke density shall be carried out as per GB/T 8627; the test results shall be determined by the smoke density level.
5.5 Oxygen index
5.5.1 The textile material shall be tested as specified in GB/T 5454.
5.5.2 The rubber material shall be tested as specified in GB/T 10707.
5.5.3 Plastic, fiber reinforced plastic and leather materials shall be tested as specified in GB/T 2406.2.
5.5.4 If the interior material consists of a variety of materials, it shall be split into single material and composite material; separately test them as per the requirements of 5.5.1~5.5.3.
5.5.5 When taking the oxygen index test of the interior, the brief method C specified in Clause 10 of GB/T 2406.2-2009; which shall be indicated in the test report. 5.6 Burning property level
The floor covering in the flooring material shall be tested as specified in GB/T 11785 and GB/T 8626.
5.7 Smoke-generating property level
The floor covering in flooring material shall be tested as specified in GB/T 11785. 5.8 Smoke toxicity level
The floor covering of the flooring material shall be tested as specified GB/T 20285. 6 Transition Period Requirements for Implementation
The product that has been licensed or certified shall be implemented at the 13th month since the date of implementation for this Standard.
